Garmin ECHOMAP UHD2 93sv (Livescope Bundle)

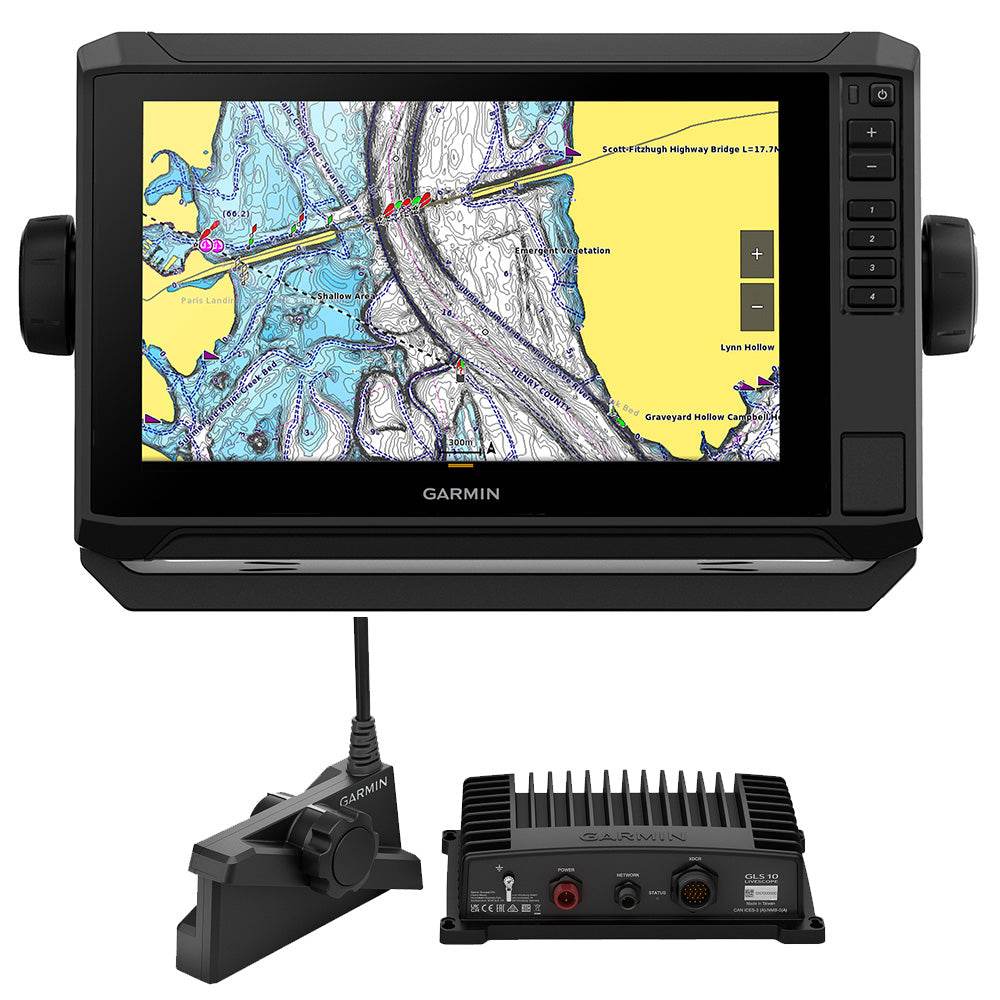

Garmin ECHOMAP UHD2 93sv with LiveScope Plus System – 9” Fishfinder & Chartplotter Bundle (010-02688-00/LVS34)

Revolutionize your fishing with real-time sonar clarity and precision mapping.

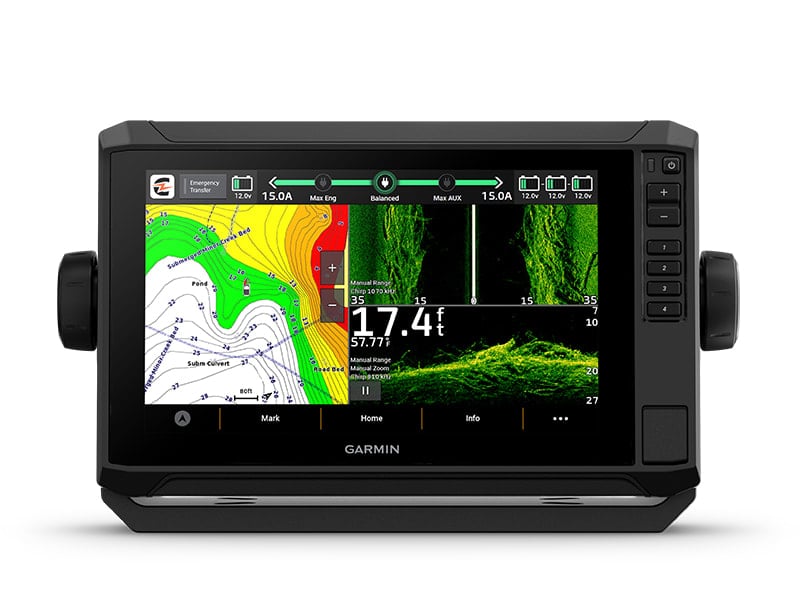

Take your angling to the next level with the Garmin ECHOMAP™ UHD2 93sv with LiveScope™ Plus Bundle, the ultimate setup for serious anglers who demand superior detail, speed, and control. This all-in-one fishfinder and chartplotter combo pairs Garmin’s bright 9” keyed-assist touchscreen with the LVS34 transducer and GLS 10 sonar module, giving you unmatched underwater insight in real time.

Built for both freshwater and ice fishing, this system delivers cutting-edge sonar clarity, detailed mapping, and reliable GPS performance — everything you need to outsmart the fish and navigate confidently.

Key Features & Capabilities

• 9” Sunlight-Readable Touchscreen – Enjoy sharp, high-resolution visuals on a bright display designed for visibility even in full sun.

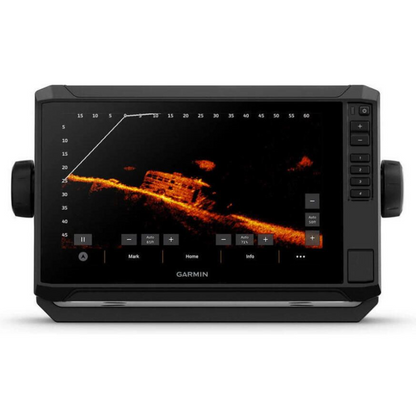

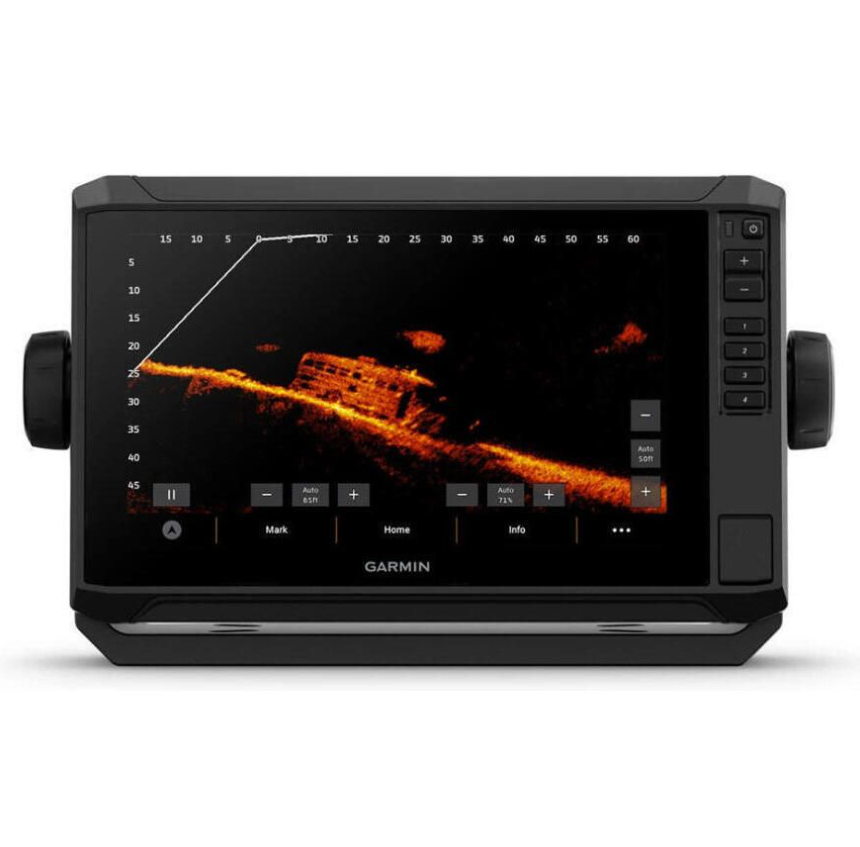

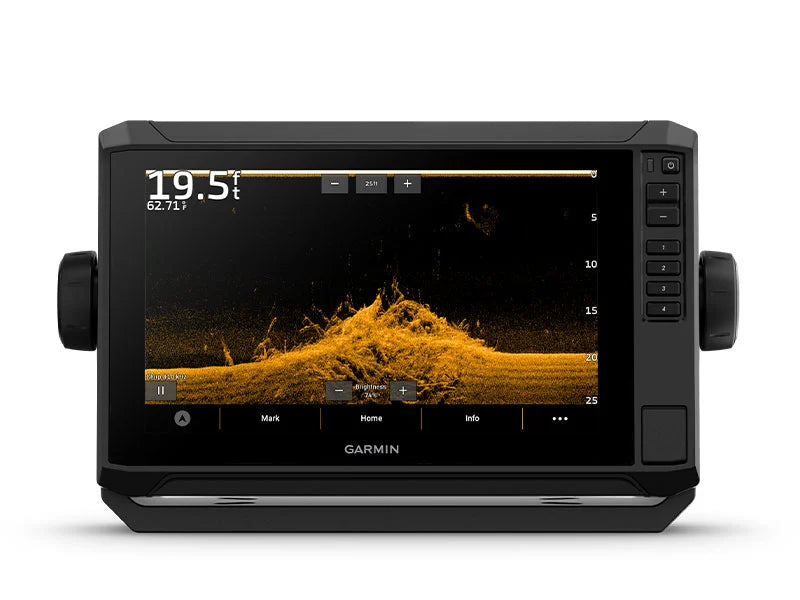

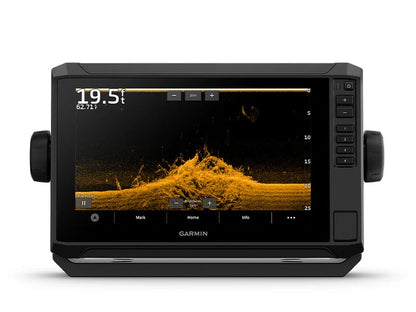

• LiveScope™ Plus System (LVS34 + GLS 10) – See fish and structure in real time with forward, down, and perspective modes. Improved resolution, noise reduction, and target separation reveal even the most subtle movements.

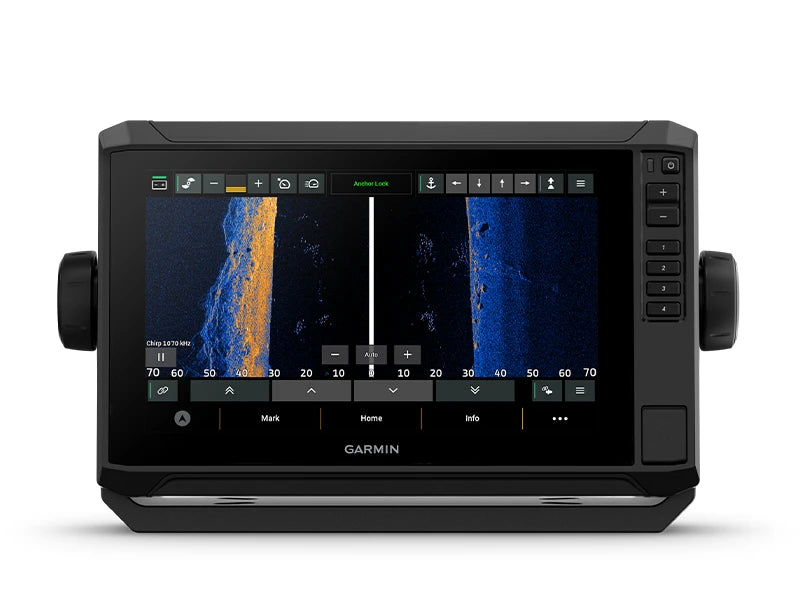

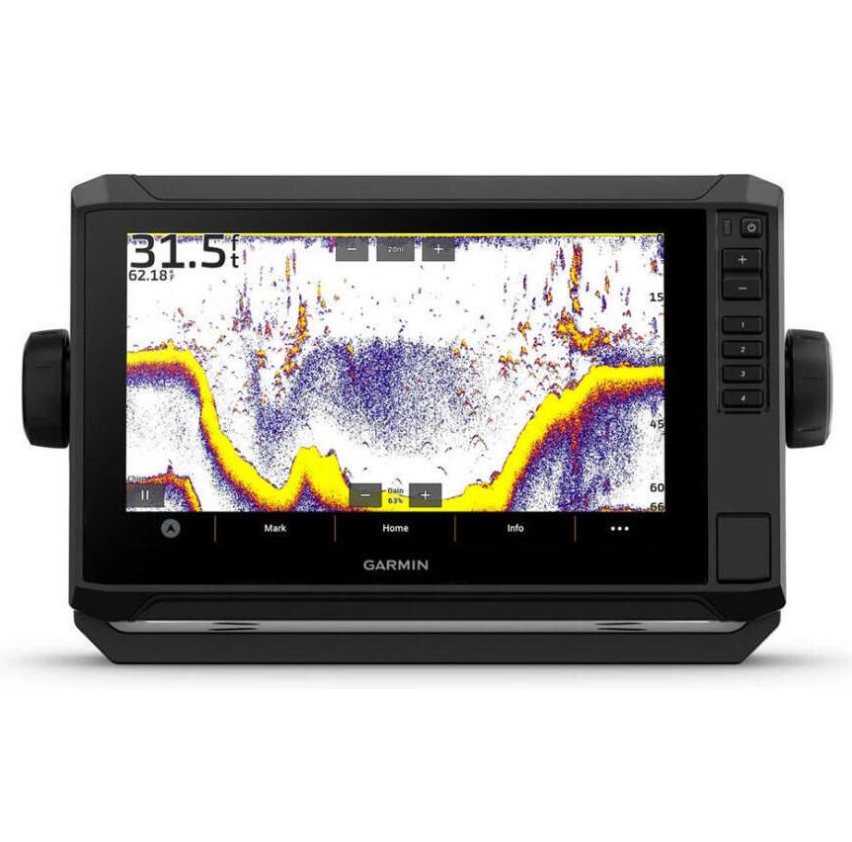

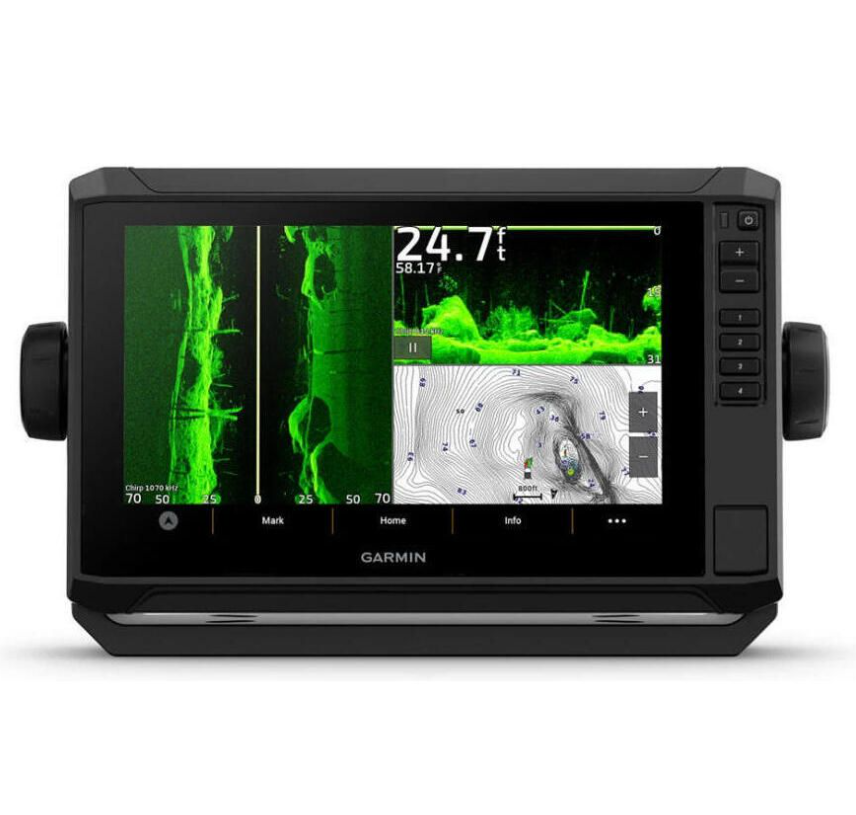

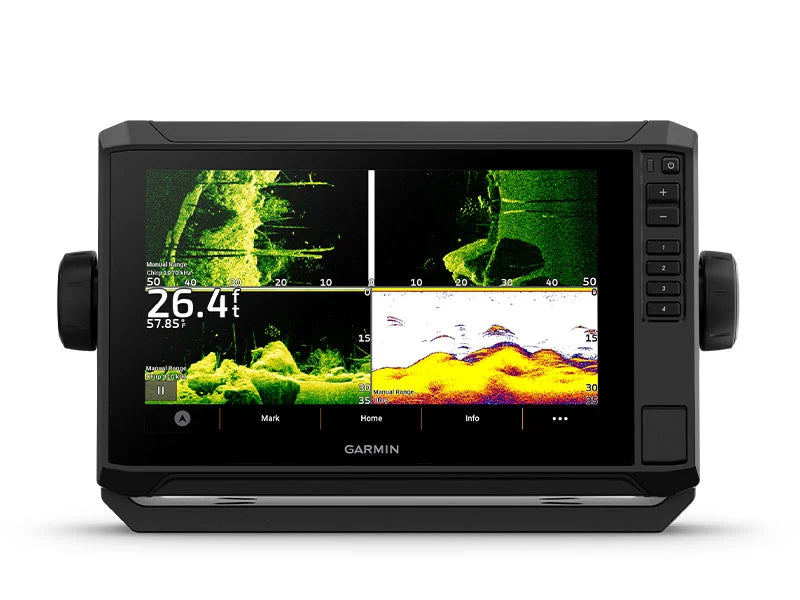

• Multi-Sonar Support – Compatible with Garmin traditional CHIRP, ClearVü™, and SideVü™ scanning sonars for exceptional target definition and wide-area coverage.

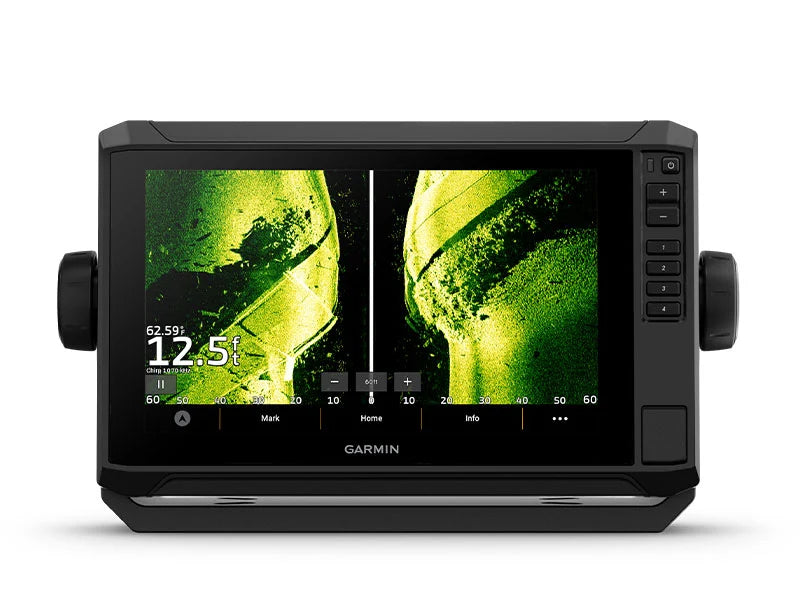

• Vivid Color Palettes – Choose from high-contrast color schemes for easier distinction of fish, structure, and bottom contours.

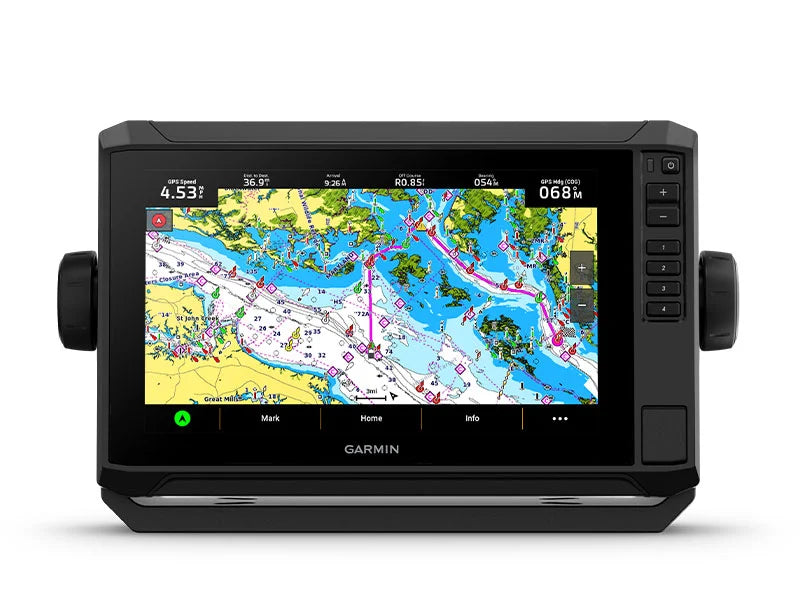

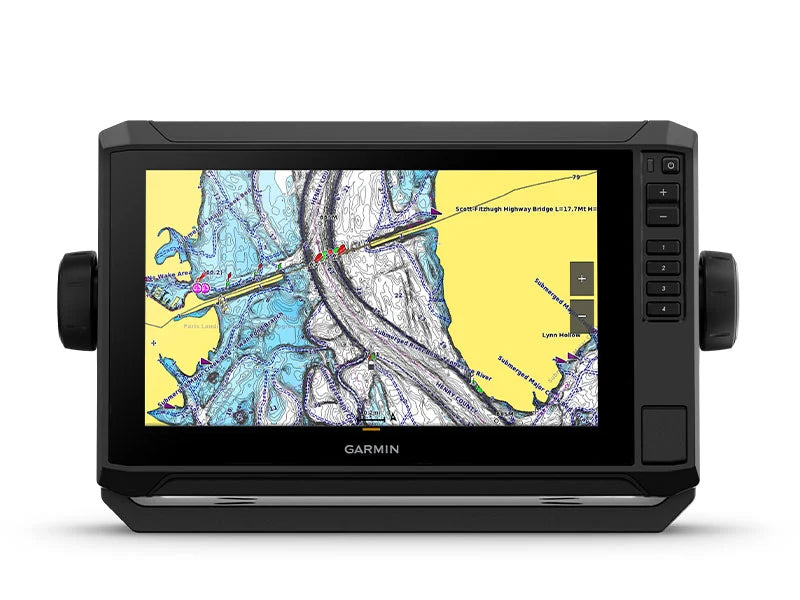

• Preloaded Garmin Navionics+™ Maps – Includes detailed inland mapping with coverage of over 18,000 U.S. lakes, 1-foot contours, depth shading, and Auto Guidance+™ for smarter route planning.

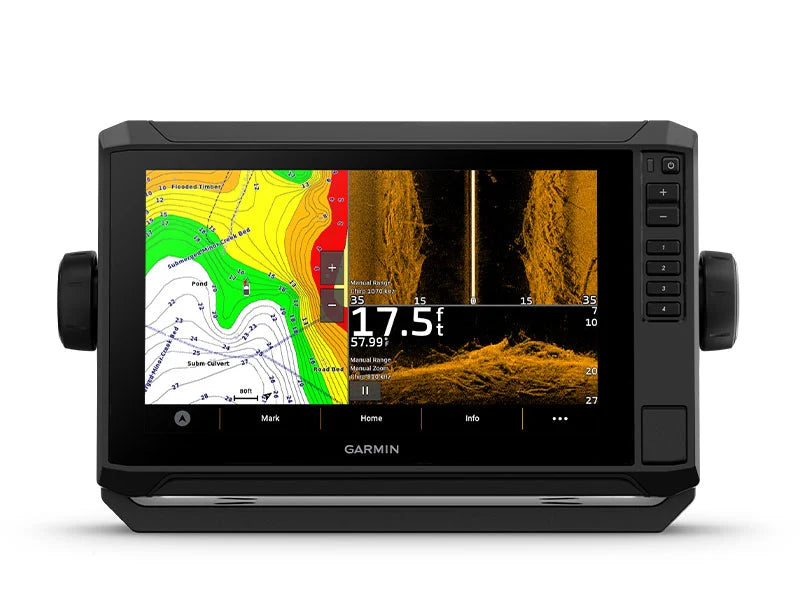

• Wireless Networking – Share sonar, waypoints, and routes wirelessly between compatible ECHOMAP UHD2 units on your boat.
• ActiveCaptain® App Integration – Sync via built-in Wi-Fi® for smart notifications, community mapping (Quickdraw™), software updates, and the OneChart™ feature.

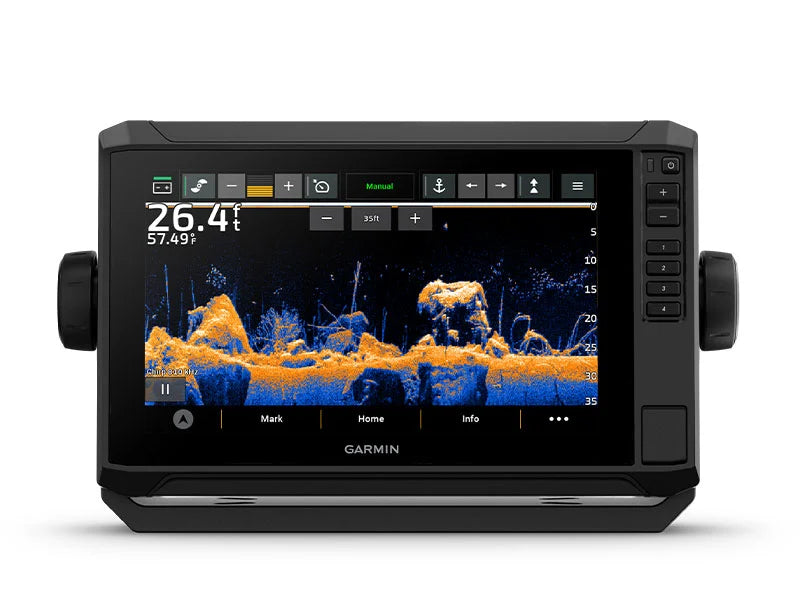

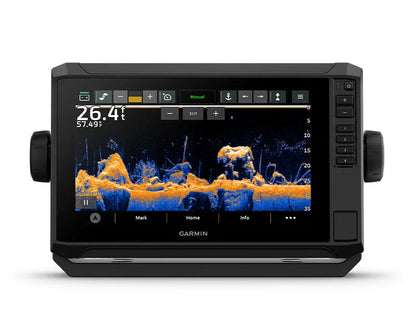

• Multi-Band GPS Accuracy – Experience enhanced positioning even in areas with signal interference or reflection.

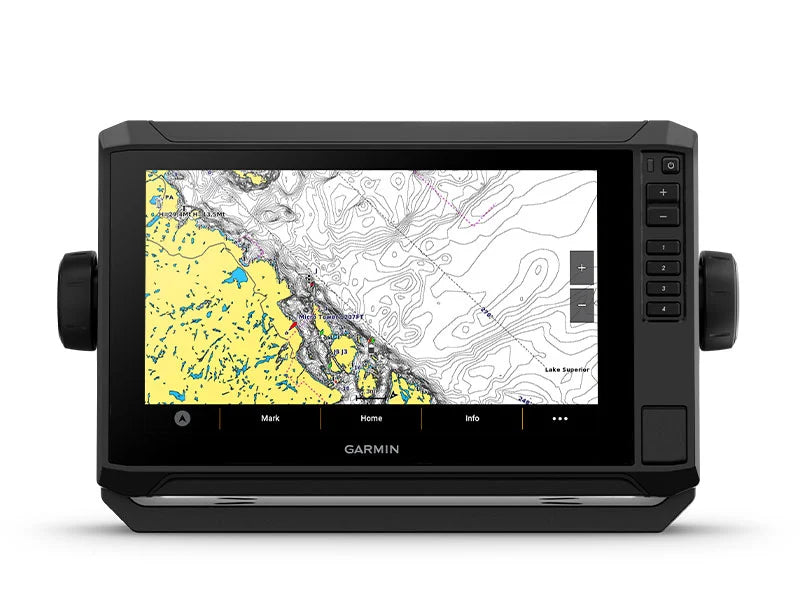

• Force® Trolling Motor Compatibility – Wirelessly connect to Garmin’s Force trolling motor to navigate routes, control speed, and manage waypoints with precision.

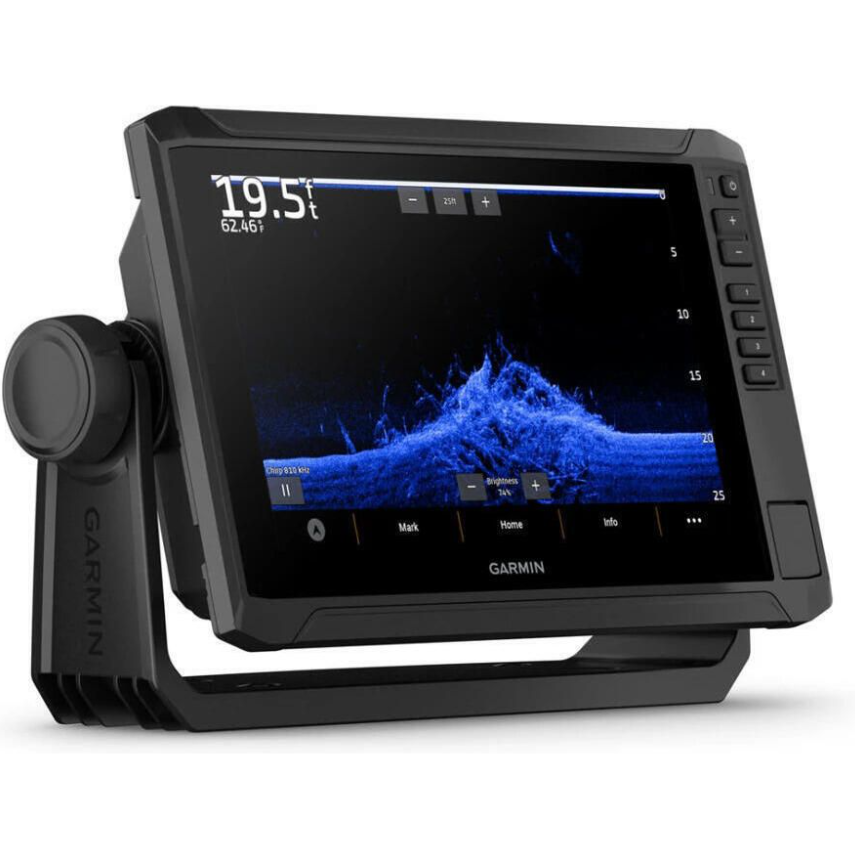

• Rugged, Quick-Install Design – Includes mounts and cables for fast setup on boats, kayaks, or ice rigs. Perfect for freshwater and tournament anglers alike.

What’s Included

ECHOMAP UHD2 93sv Chartplotter Bundle:

• ECHOMAP UHD2 93sv unit
• Power cable

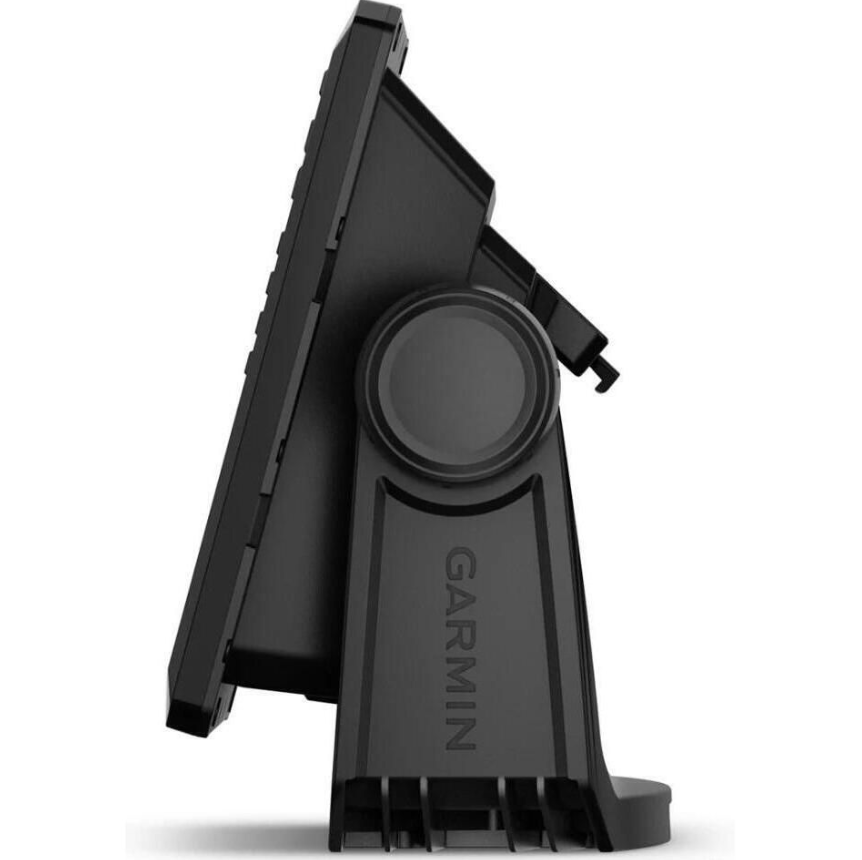

• Tilt mount with quick-release cradle
• 12-pin sounder to 8-pin transducer cable
• Protective cover
• Mounting hardware & documentation

LiveScope Plus System (GLS 10 + LVS34):

• GLS 10 sonar black box
• LVS34 transducer
• Perspective mount
• Trolling motor barrel mount
• Shaft mount
• Power and network cables
• Adapter & documentation

Technical Highlights

• Display Size: 9" touchscreen (keyed assist)
• Cartography: Garmin Navionics+ (U.S. Inland)
• Transducer: LVS34 included
• Connectivity: Wi-Fi®, Bluetooth®, ANT+, NMEA 2000®
• Ports: 1 NMEA 2000, 1 Garmin Marine Network, 1 12-pin transducer

Why Choose the ECHOMAP UHD2 93sv LiveScope Bundle

Combining the power of LiveScope Plus sonar with Garmin’s most advanced mapping and networking tools, this bundle provides a full command center for any fishing setup. From spotting suspended fish to tracking your lure in real time, the ECHOMAP UHD2 93sv gives you the clarity, precision, and confidence to fish smarter — and catch more.

Chartplotter Specifications:

• Dimensions: 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm)
• Touchscreen: Yes
• Input: Touchscreen with Keyed Assist
• Display Size: 7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm)
• Display Resolution: 1024 x 600 pixels
• Display Type: WSVGA, TN
• Waterproof: IPX7
• Mounting Options: Bail or flush
• AIS
• DSC
• Supports Fusion-Link Compatible Radios
• Activecaptain Compatible
• Sailing Features
• Maps and Memory:
  • Built-in maps: Garmin Navionics+ Inland
  • Accepts Data Cards: 1 microSD card; 32 GB maximum size
  • Waypoints: 5000
  • Track Points: 50000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
• Sensors:
  • Has Built-In Receiver
  • Receiver: 10 Hz
  • NMEA 2000 Compatible
  • GPS
  • GLONASS
  • Galileo
  • Beidou
  • Supports WAAS
  • Supports Multi-Band, Multi-Constellation GPS
• Sonar:
  • Displays Sonar
  • Power Output: 500W
  • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
  • ClearVu: built-in 260/455/800/1000/1200 kHz
  • SideVu: built-in 260/455/800/1000/1200 kHz
  • Panoptix Sonar
  • Livescope

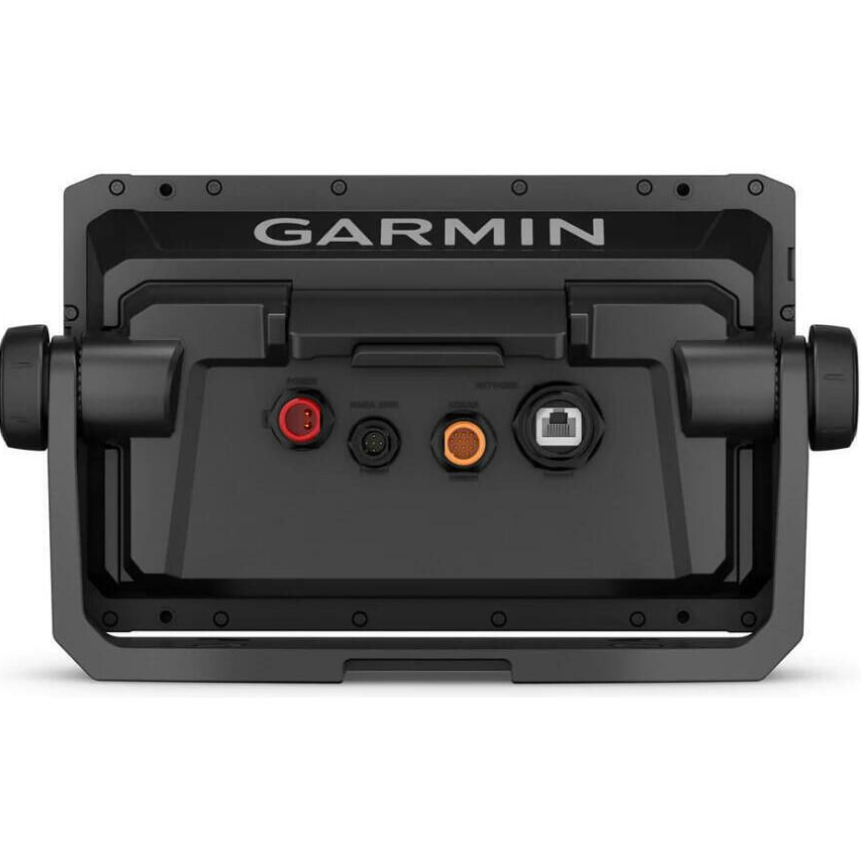

• Connections:
  • NMEA 2000 Ports
  • Garmin Marine Network Ports: 1
  • 12-Pin Transducer Ports: 1
  • Bluetooth Pairing
  • Ant+ (Connectivity)
  • Garmin Wi-Fi Network (Local Connection)
• Electrical:
  • Power Input: 9 to 18V DC
  • Typical Current Draw At 12V DC: 1.72A
  • Maximum Current Draw At 12V DC: 3.5A
  • Maximum Power Usage At 10V DC: 20.7W

Optional GT54-UHD Transducer Specifications:

• Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVu CHIRP 800 kHz (760-880 kHz); UHD SideVu 1,200kHz (1020-1230 kHz); CHIRP SideVu 455 kHz (425-485 kHz)
• Power: CHIRP Traditional 350 W; ClearV/SideVu 350W
• Beamwidth:
  • CHIRP: 24 deg.-16 deg.
  • ClearVu: 0.94 deg.x60 deg. @ 800 kHz
  • SideVu: 1.62 deg.x50 deg.
  • UHD SideVu: 0.441 deg.x52 deg. @ 1200 kHz
  • Maximum Depth: CHIRP: 800 ft.; ClearVu 200 ft.; SideVu 500'; UHD SideVu 125'
• Cable Length: 20 ft
• Depth/Speed/Temperature: Depth and Temperature
• Number Of Pins: 12
• Supported Deadrise/Transom Angles: 0 deg.-70 deg. degree transom
