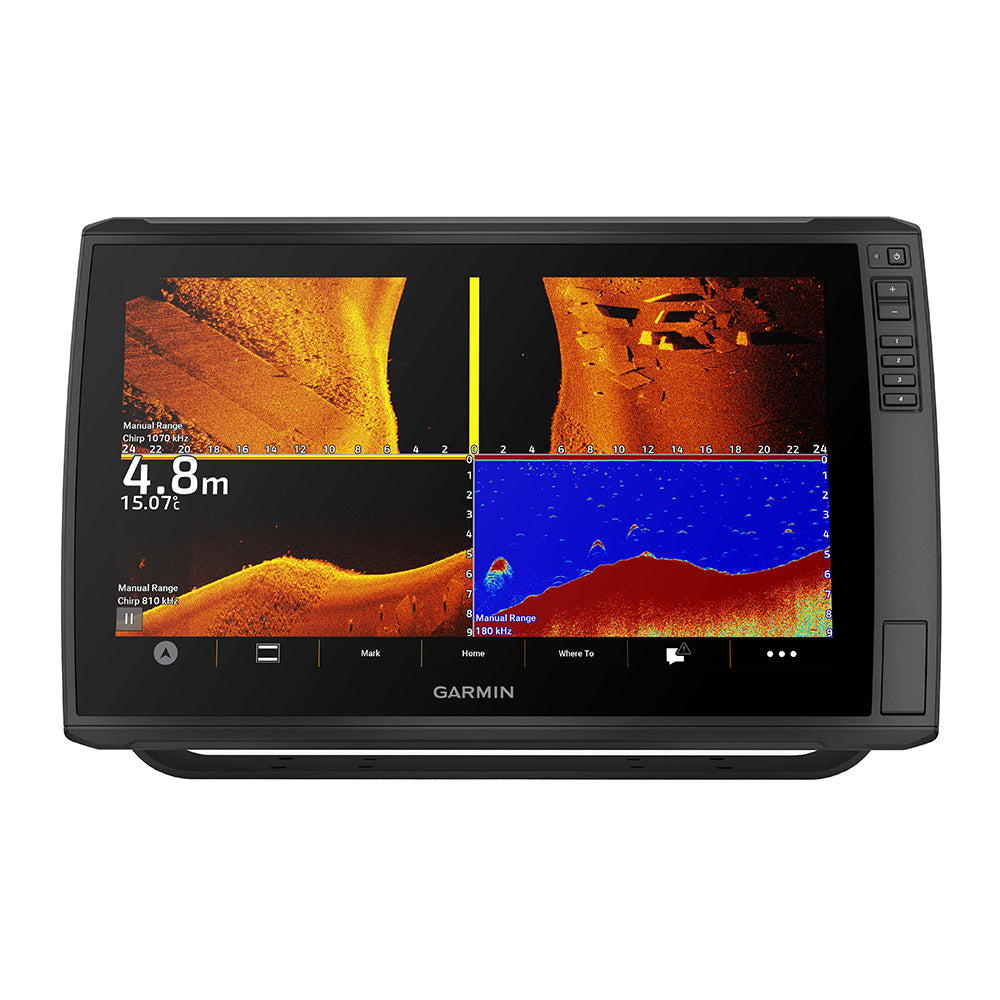

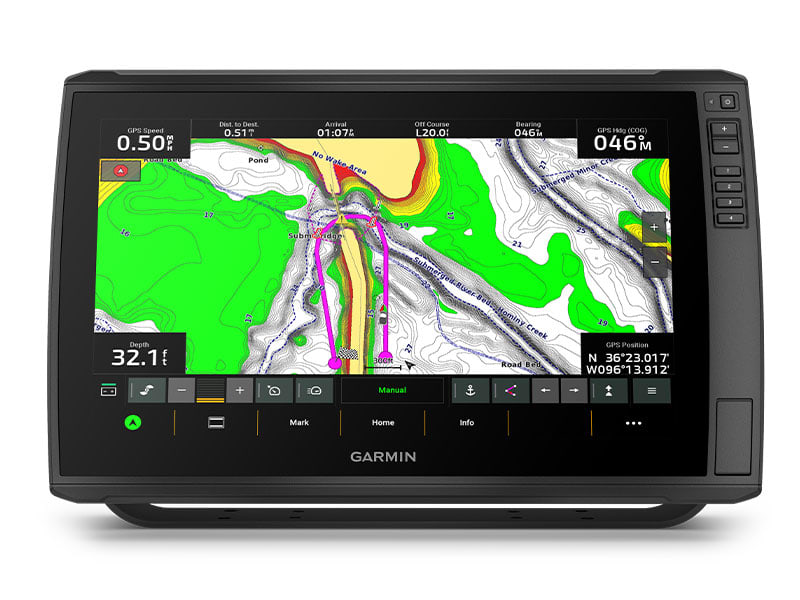

Garmin 162sv ECHOMAP Ultra 2 16" Chartplotter (Worldwide Basemap) (GT56UHD-TM)

ECHOMAP™ Ultra 2 16" Chartplotter 162sv with Worldwide Basemap & GT56UHD-TM Transducer (010-03385-01)

SEE BIGGER CATCHES ON A BIGGER SCREEN

Elevate your fishing game with the Garmin ECHOMAP Ultra 2 16″ Chartplotter 162sv (0100338501) engineered for serious anglers who demand unmatched clarity, precision and advanced sonar-capabilities. Featuring a massive 16″ full-HD IPS display, ultra-high-definition scanning sonar, multi-band GPS and seamless connectivity, this chartplotter redefines what it means to “see” under the surface—and beyond.

• Immersive big-screen clarity: With a 15.6″ diagonal (13.6″ × 7.7″ active area) full HD resolution (1920 × 1080) IPS display, you get outstanding brightness, clarity and readability—even on sunlit waters.

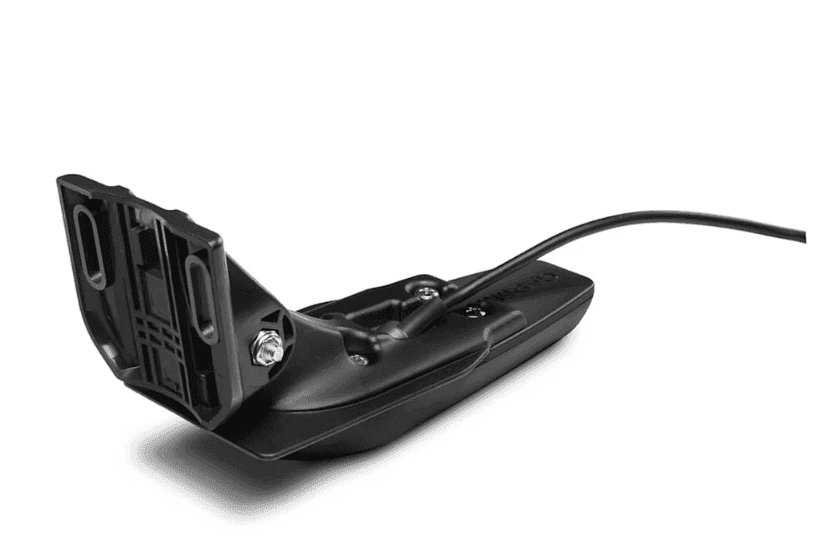

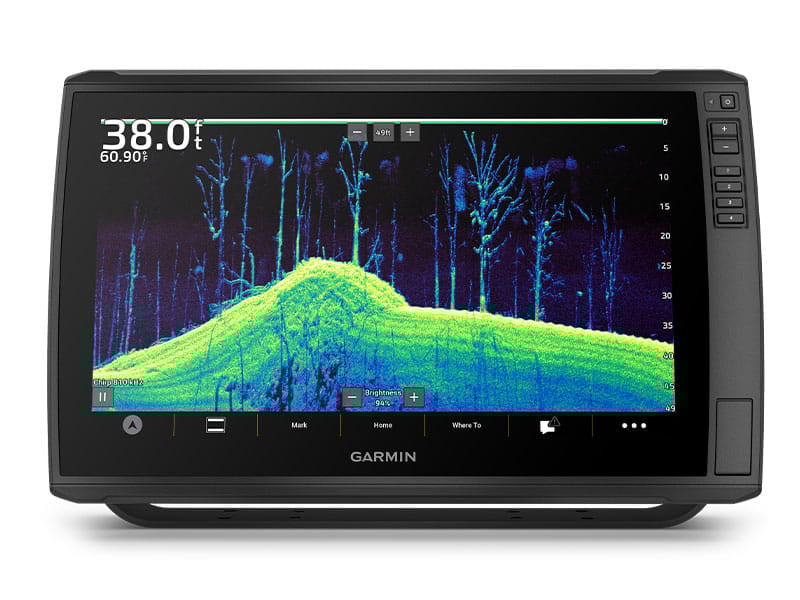

• Built for the catch: Bundled with the GT56UHD-TM transducer, this unit delivers built-in CHIRP traditional sonar (70/83/200 kHz) plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonar (260/455/800/1000/1200 kHz) for photo-like imaging of structure, fish and the underwater environment.

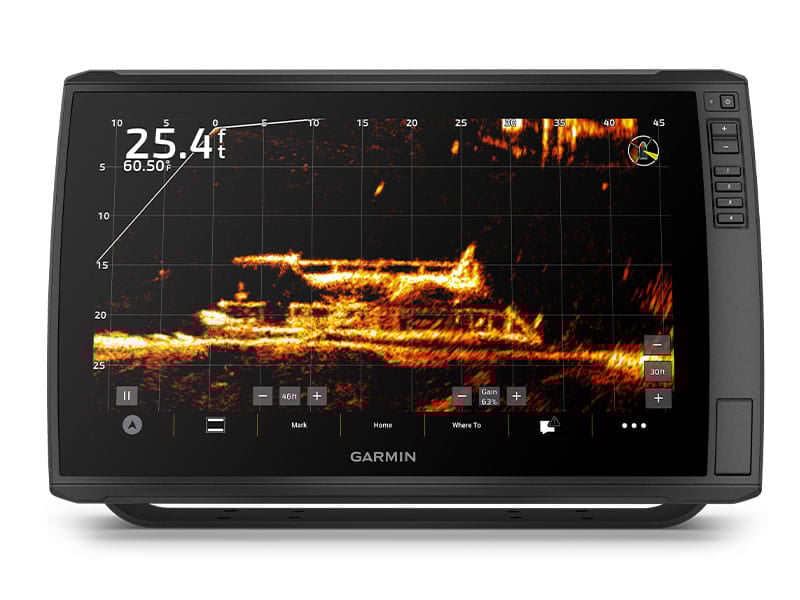

• Compatible with next-gen sonar: Supports the full lineup of LiveScope™ live-scanning sonar products (transducers sold separately), giving you real-time sonar views of moving fish, structure and renders beneath and ahead of your boat.
• Precision navigation: Multi-band GNSS (GPS/GLONASS/Galileo/etc) improves location and heading accuracy for plotting waypoints and tracks. Wired NMEA 2000® network compatibility allows integration with heading sensors, autopilots, Fusion-Link™ audio systems and more.

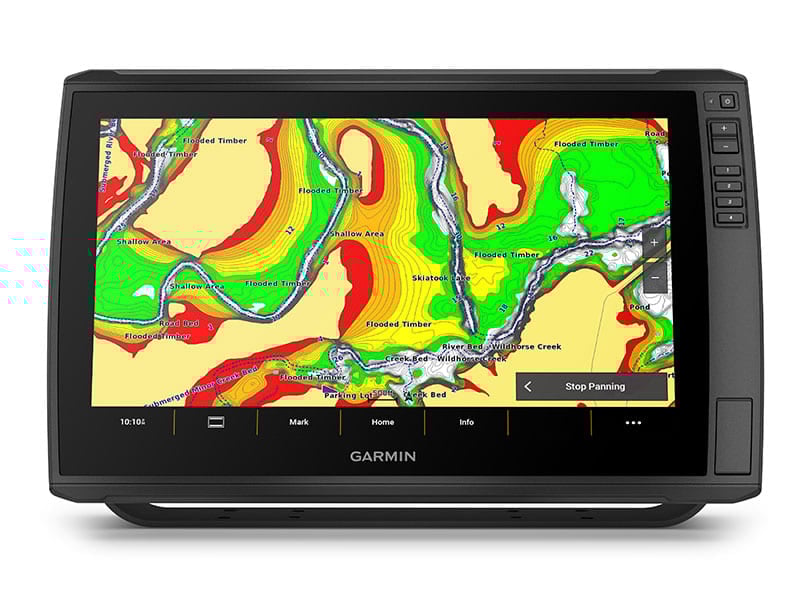

• Preloaded Worldwide Basemap + expandable: The unit comes with a worldwide basemap and select models include built-in Garmin Navionics+™ mapping (1-year updates), with optional Garmin Navionics Vision+™ premium cartography for high-resolution relief shading and satellite imagery (sold separately).
• Smart connectivity: Built-in Bluetooth and Wi-Fi let you control features via voice command and sync with the free Garmin ActiveCaptain® app to update software, record your screen, access the Quickdraw™ Community and share sonar, waypoints and routes between compatible chartplotters.

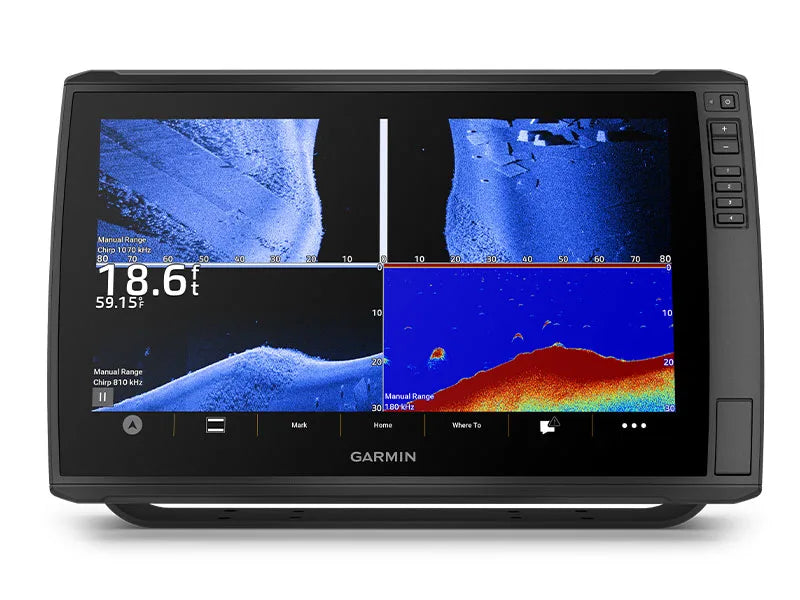

• HDMI output: Mirror your chartplotter’s screen to an external display or TV via HDMI—ideal for sharing mapping and sonar visuals with your crew.

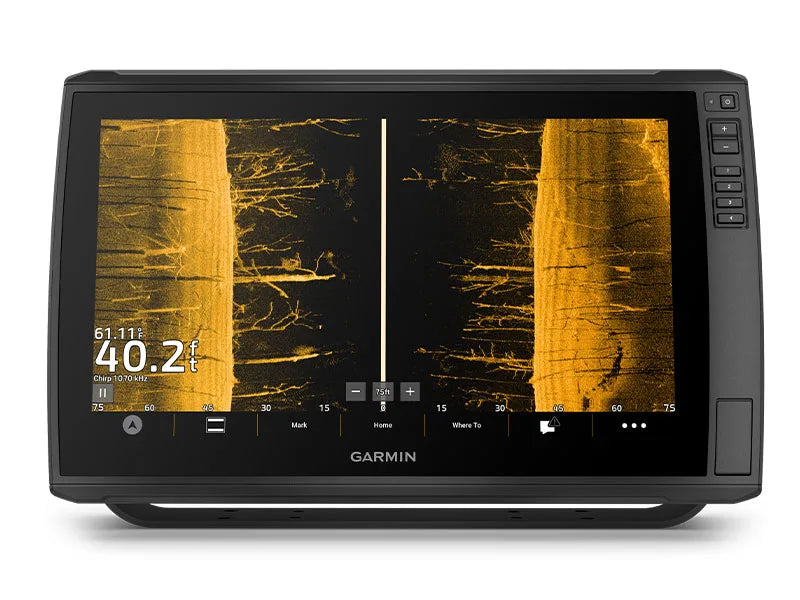

• High-contrast color sonar palettes: Vivid sonar color themes make it easier to differentiate fish, structure and thermoclines at a glance.
• Durable, marine tough: Water-rated to IPX7, supports both bail-mount and flush-mount options, and accepts two microSD™ cards for expanded storage of maps, waypoints and routes.
• Massive logging capacity: Store up to 5,000 waypoints, 50 saved tracks, 50,000 track points and 100 navigation routes—great for keeping records across seasons of fishing.

What’s in the Box

• ECHOMAP Ultra 2 16″ Chartplotter unit (162sv version)

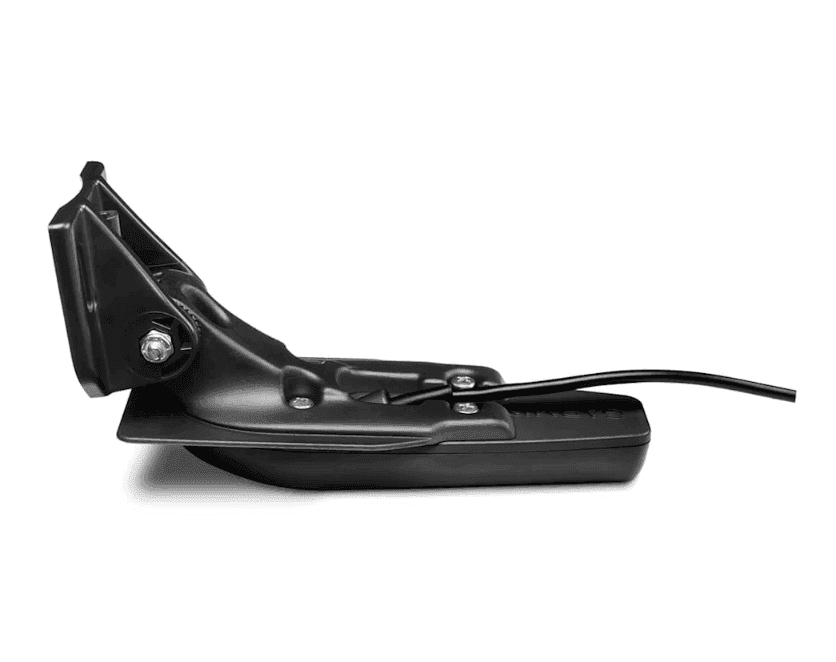

• GT56UHD-TM transducer
• Power/data cable

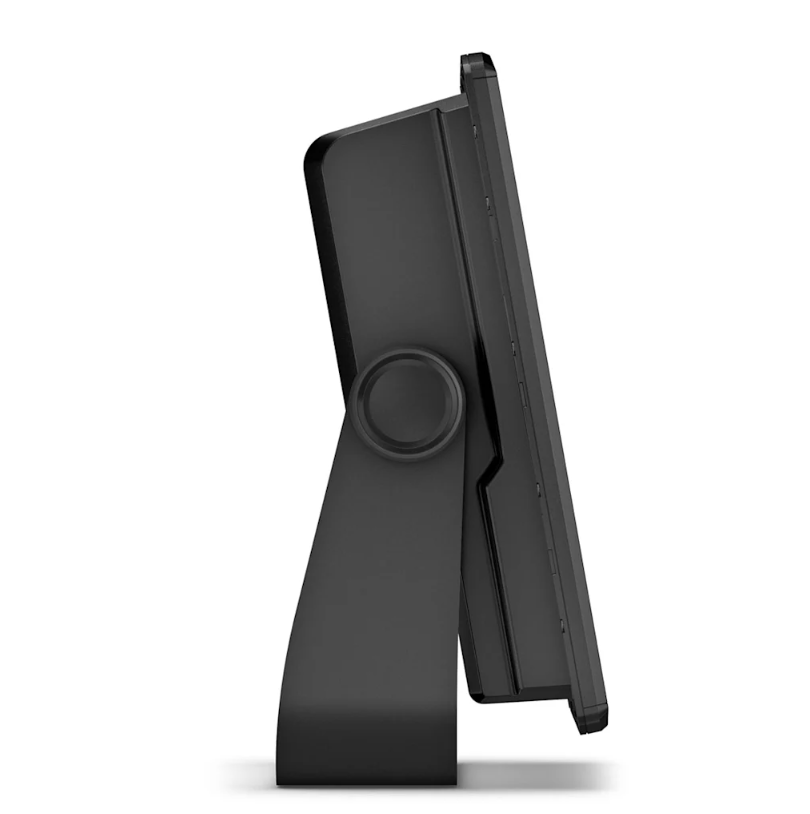

• Bail-mount bracket with tilt knobs
• Protective sun cover
• Trim caps
• Installation hardware & documentation


Why This Chartplotter Stands Out

This isn’t just a bigger screen—it’s the “big picture” in every sense. The Ultra 2 16″ puts you on the helm with industry-leading display size and resolution, giving you crystal-clear mapping, sonar returns and system information at a glance.

Combine that with ultra-HD sonar imaging, multi-band GPS, wireless sharing, and the extensive ecosystem of Garmin marine technology and you have a tool built for professionals—and passionate anglers who demand elite performance.

Whether you’re running offshore structure, tracking bass on shallow flats or navigating complex river systems, this system positions you to find and exploit the fish-holding features others can’t see, and then execute the catch with confidence.

Pro Tips for Getting the Most Out of It

• Mount it with proper tilt and view angle—your 16″ screen offers a huge advantage in visibility, so exploit it.
• Use the vivid sonar color palettes to identify structure edges and suspended fish quickly—switch palettes depending on water clarity.
• Sync with the ActiveCaptain app before heading out so you’re browsing updated maps, reading community Quickdraw data and checking for system firmware updates.
• Utilize the HDMI output to mirror sonar views during tournaments or group fishing trips—easy way to collaborate and share intel.
• Pair with a compatible LiveScope or UHD-resolution trolling motor transducer for pre-bait-presentation views—it gives you a dynamic advantage.
• Take advantage of sharing sonars, waypoints and routes with your second chartplotter networked onboard—as permitted, it creates synergy between units.

With its priority on clarity, connectivity, sonar precision and professional-grade mapping, the Garmin ECHOMAP Ultra 2 16″ Chartplotter 162sv is engineered to help you see what others don’t—and then land the catch they never knew was there.
