Garmin ECHOMAP Ultra 2 16" Chartplotter 166sv GN+ (No Transducer)

ECHOMAP™ Ultra 2 16-inch Chartplotter 166sv with GN+ Mapping without Transducer (010-03386-00)

SEE BIGGER CATCHES ON A BIGGER SCREEN

Experience unmatched detail, clarity and connectivity on the water with the Garmin ECHOMAP Ultra 2 16″ Chartplotter 166sv: (0100338600) engineered for serious anglers and marine adventurers alike, every feature serves to elevate your navigation, sonar and mapping game.

Key Features & Capabilities:

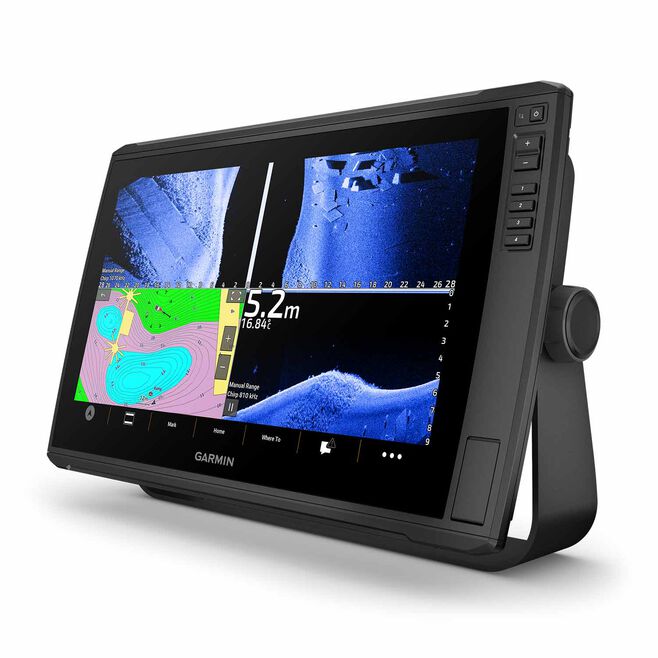

• Massive 16-inch Full HD IPS touchscreen (15.6″ diagonal; 1920 × 1080 resolution) delivers expansive, razor-sharp views of charts, sonar images and waypoints.

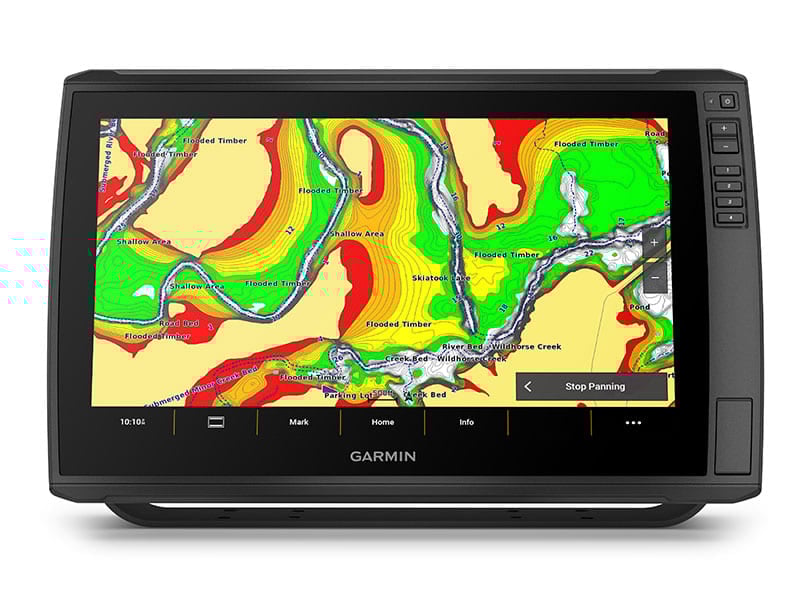

• Preloaded with premium mapping via Garmin Navionics+™ charts (on select models) so you’re ready to fish and navigate from day one — includes 1-year daily-update subscription.

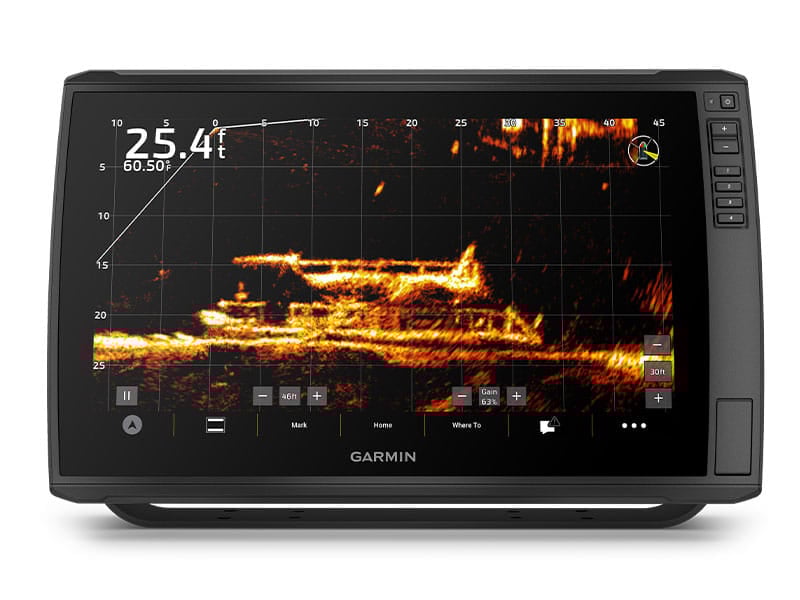

• Built to support the full lineup of LiveScope™ live-scanning sonar systems (transducer sold separately) so you can see real-time motion of fish and structure around your boat.

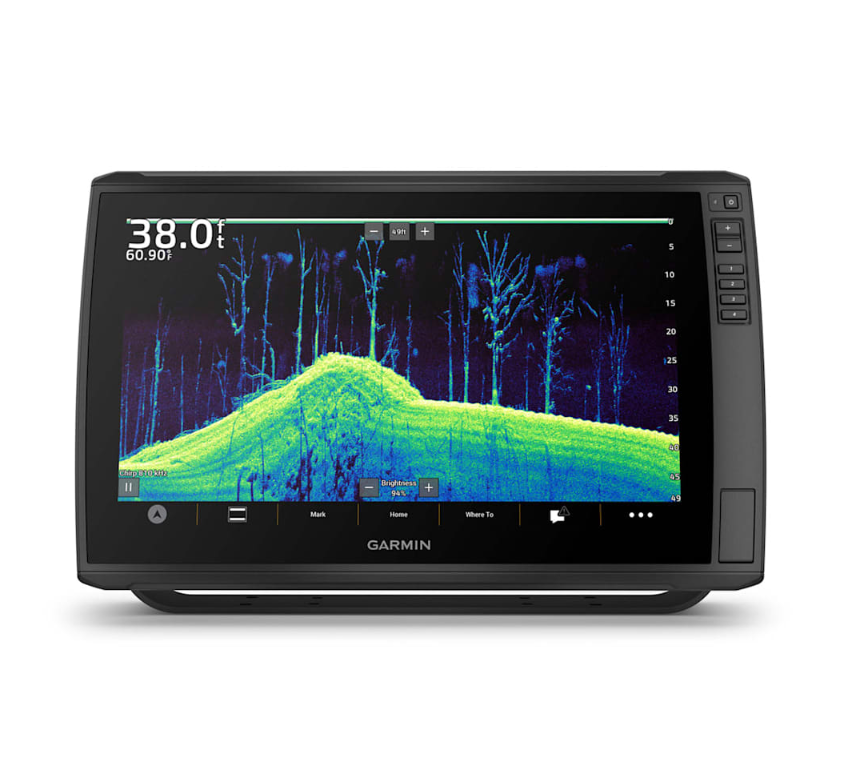

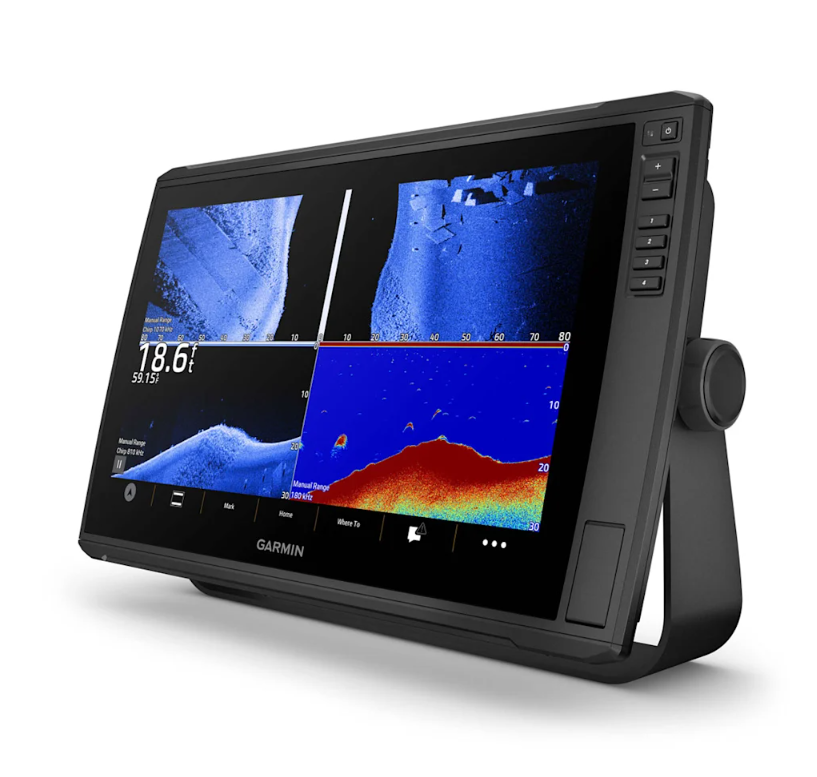

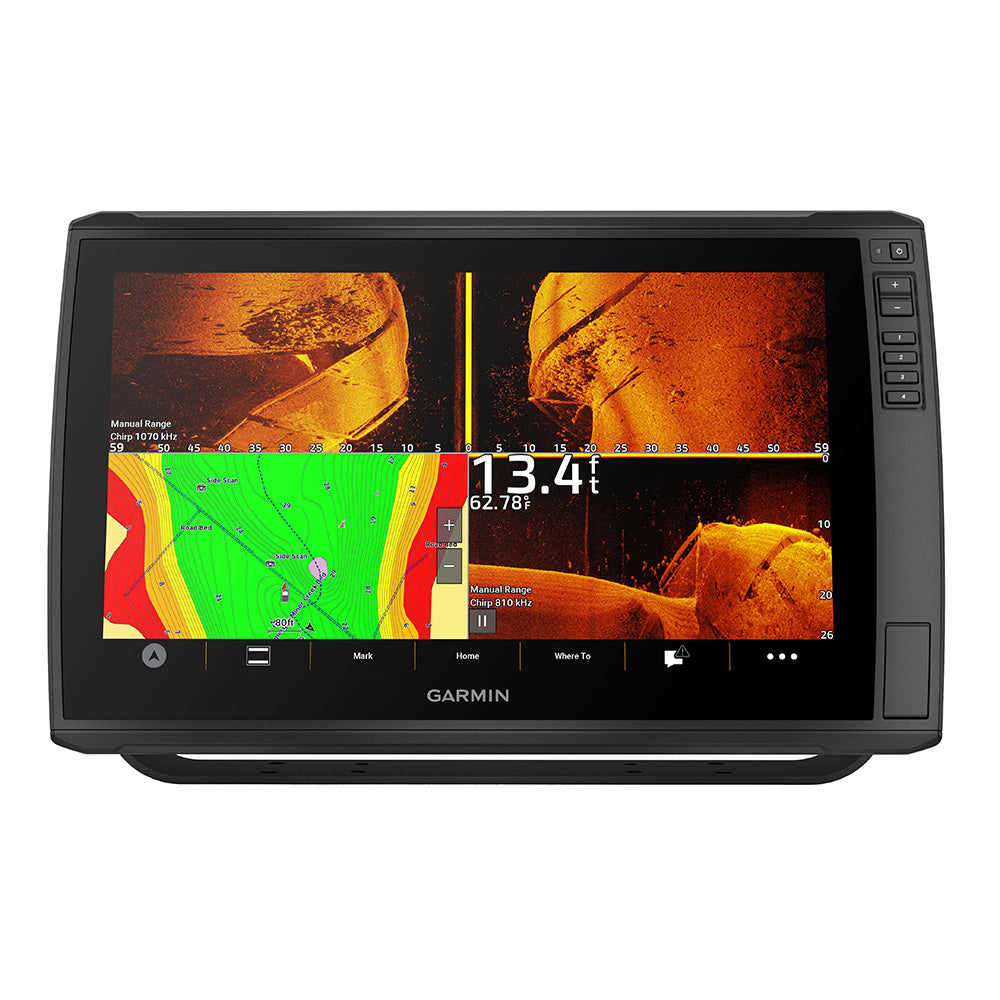

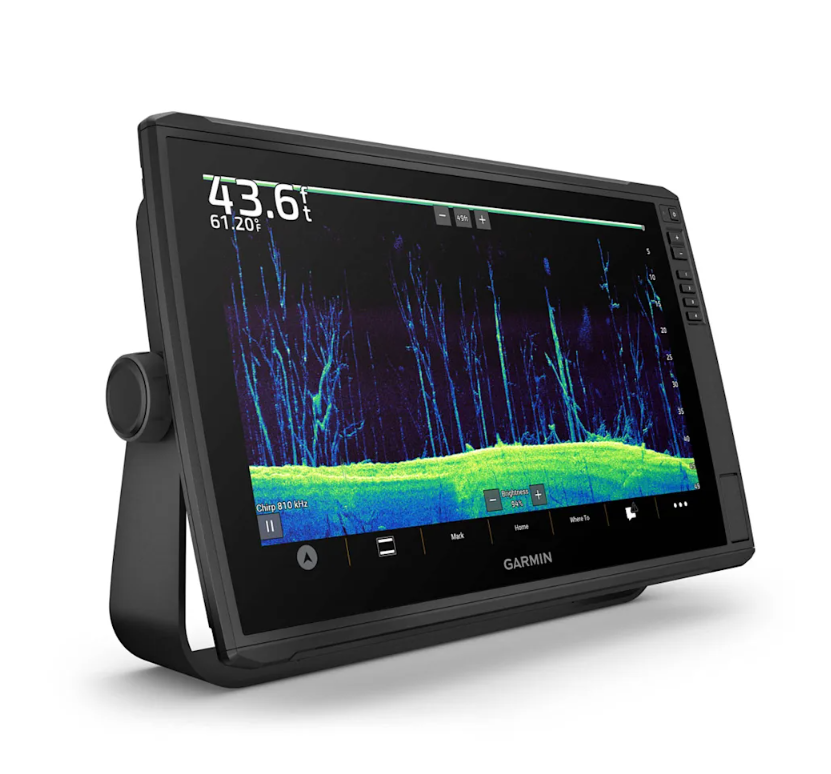

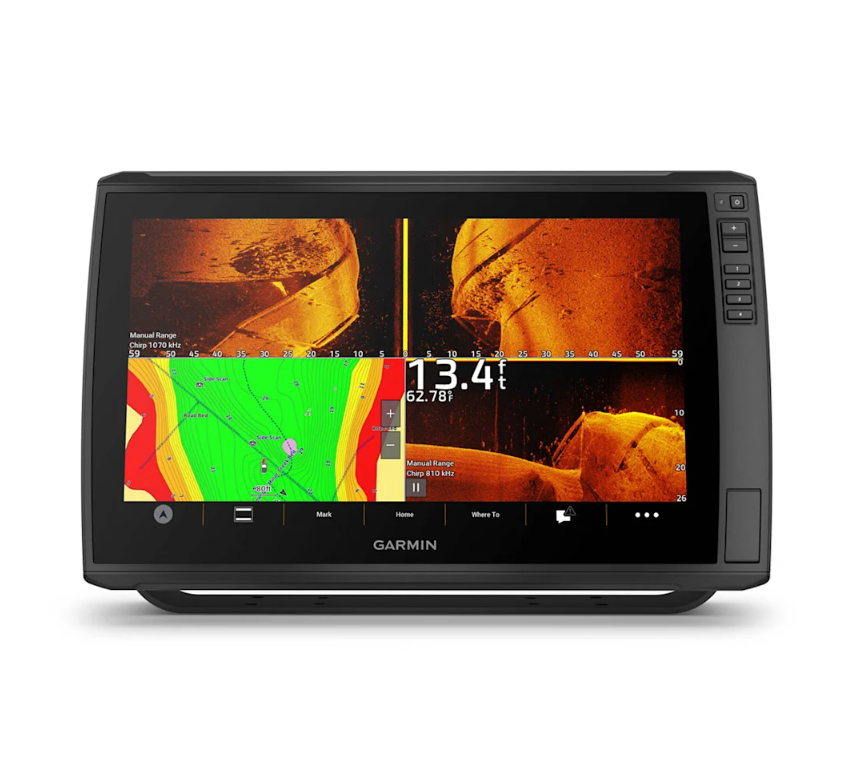

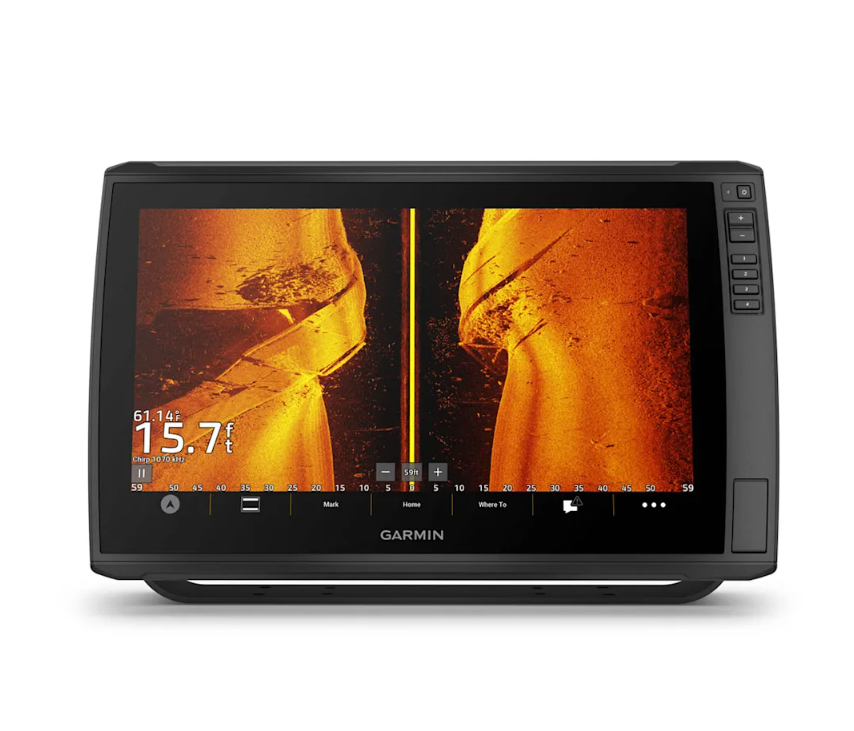

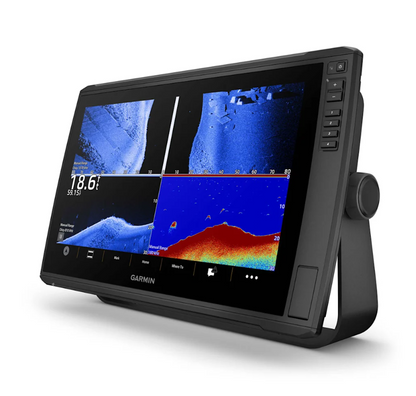

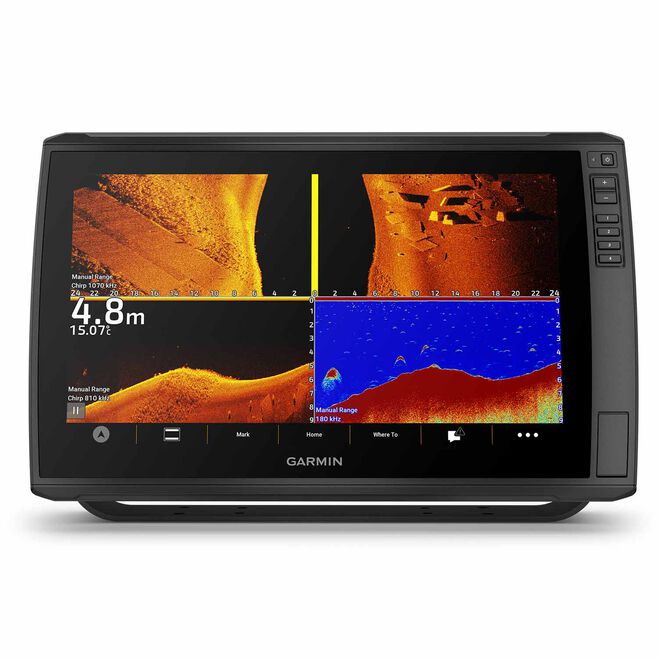

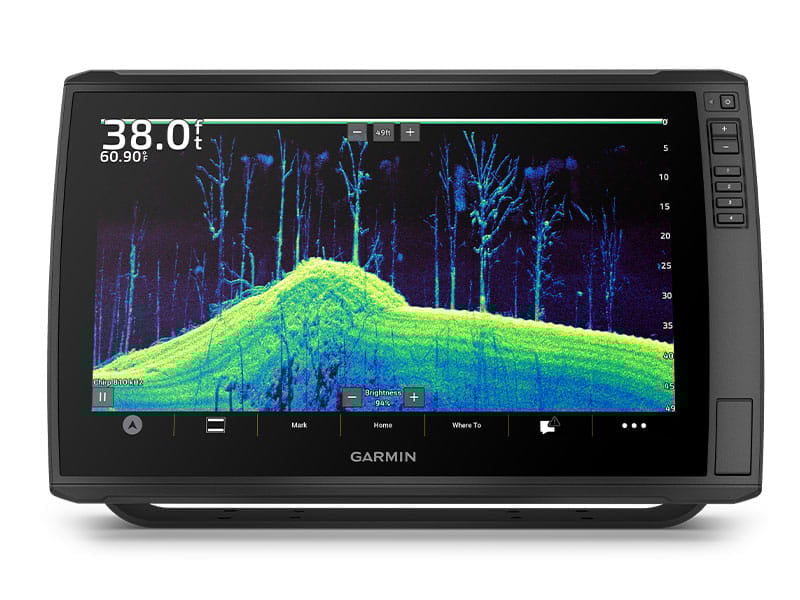

• Integrated Ultra High-Definition (UHD) scanning sonar options (ClearVü™ & SideVü™) plus CHIRP traditional sonar — offers photo-like underwater images with premium clarity.

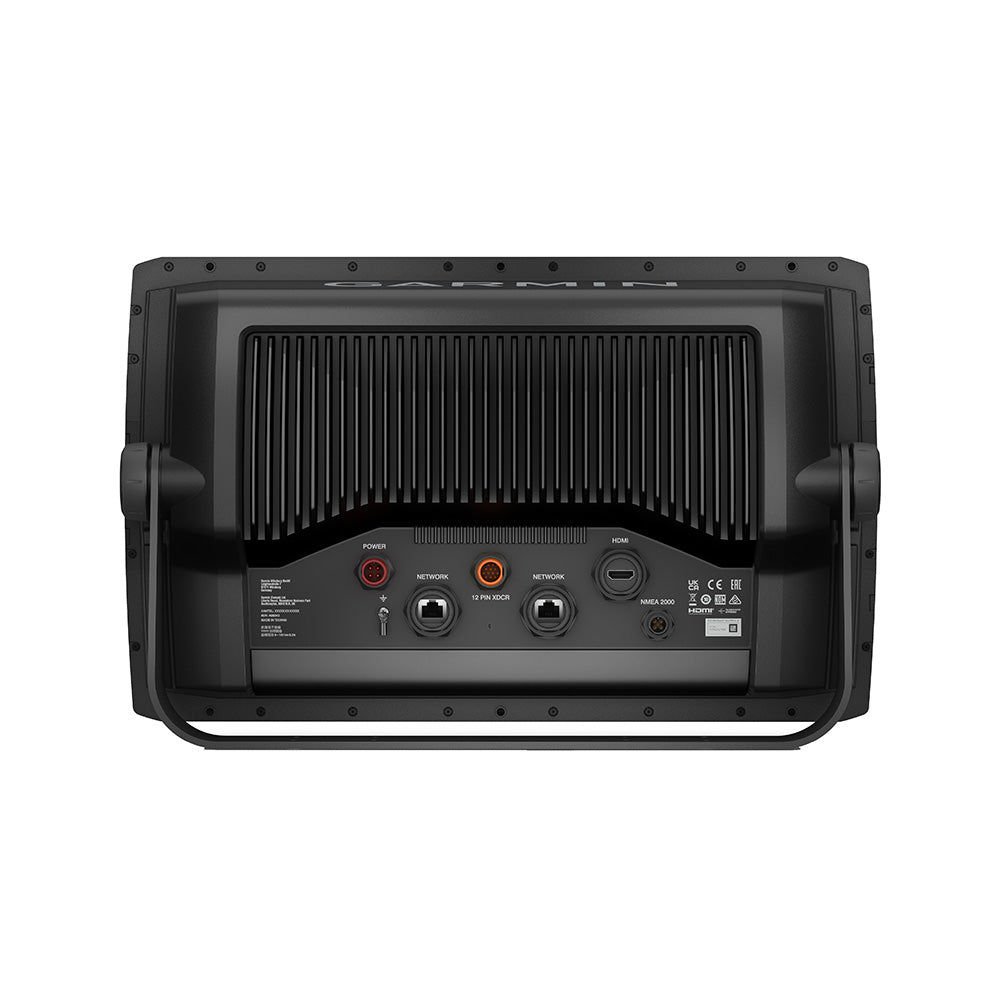

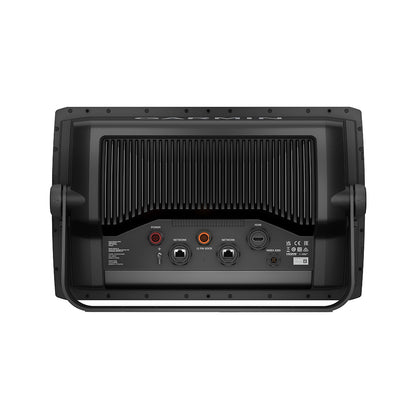

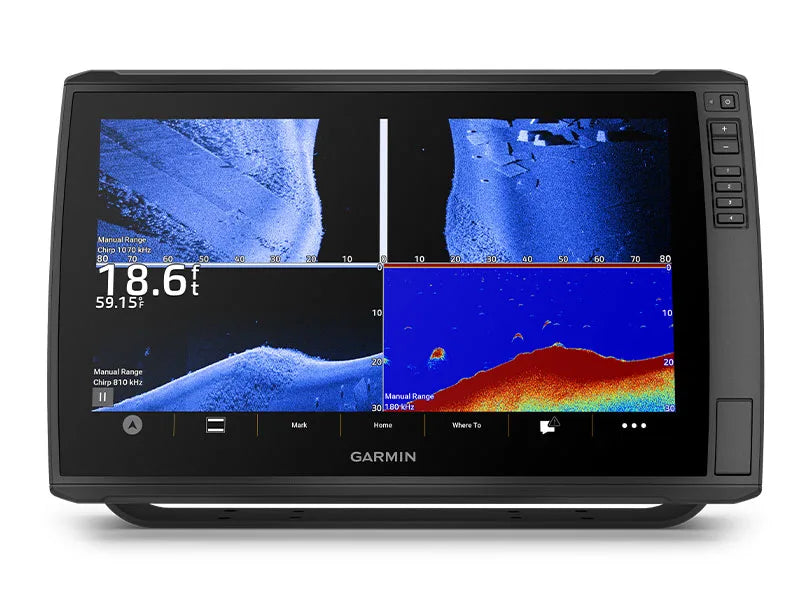

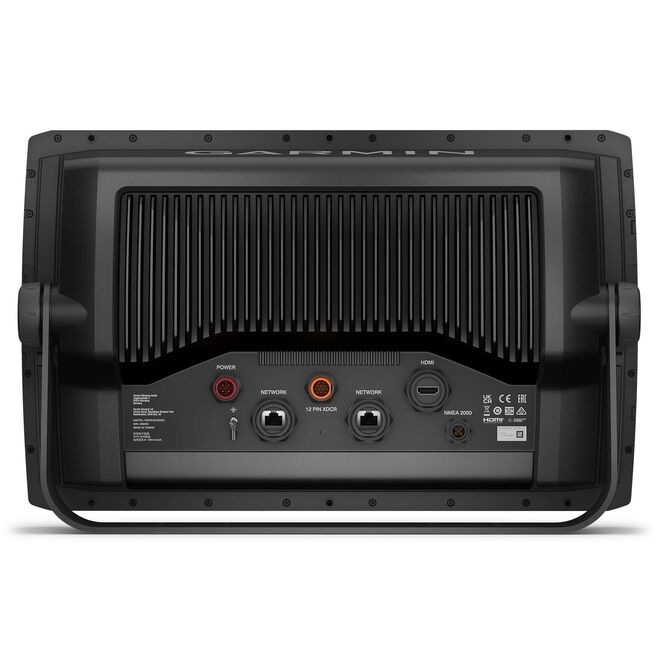

• HDMI output connector allows you to mirror your display to a larger TV or external monitor for group viewing or enhanced cockpit integration.

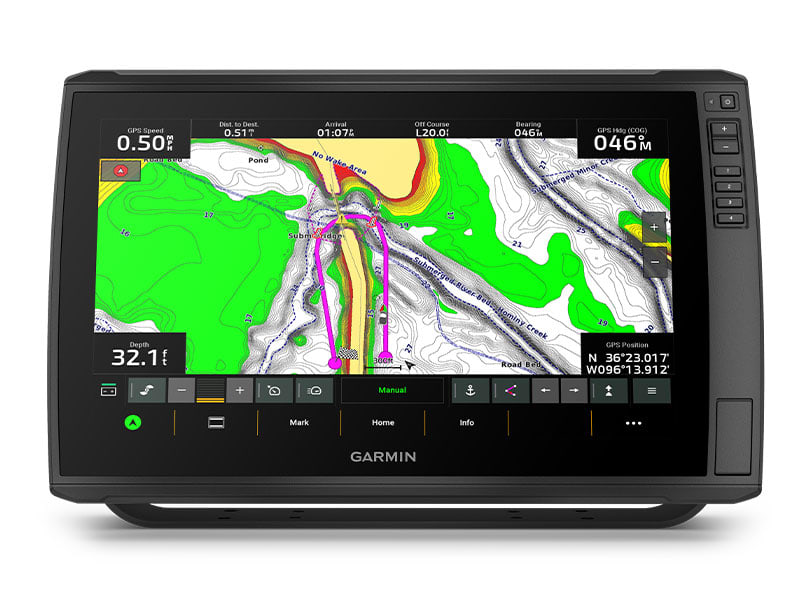

• Built-in Bluetooth® voice control lets you use voice commands to operate your chartplotter for hands-free control of features like favorite keys, sonar inputs and your connected Force® trolling motor.

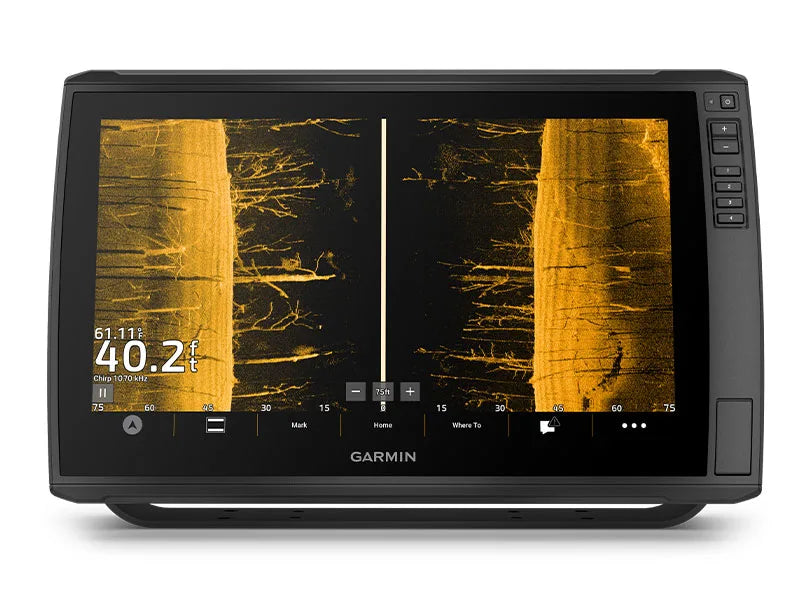

• Vivid color palettes designed for scanning sonar make interpreting fish, structure and bottom contours easier than ever.
• Wireless networking allows sharing of sonar, waypoints and routes between two Ultra 2 or UHD2 units on board — enabling seamless collaboration and data sync.
• Multi-band GPS receiver delivers improved positional accuracy — an advantage when marking sweet spots, structure and routes.
• Full NMEA 2000® network compatibility means you can integrate heading sensors, autopilots, Fusion-Link™ audio systems and other devices into your marine electronics ecosystem.
• Compatible with the free ActiveCaptain® app: enjoy smartphone pairing for software updates, screen recording, Quickdraw™ Community data and remote monitoring/control.

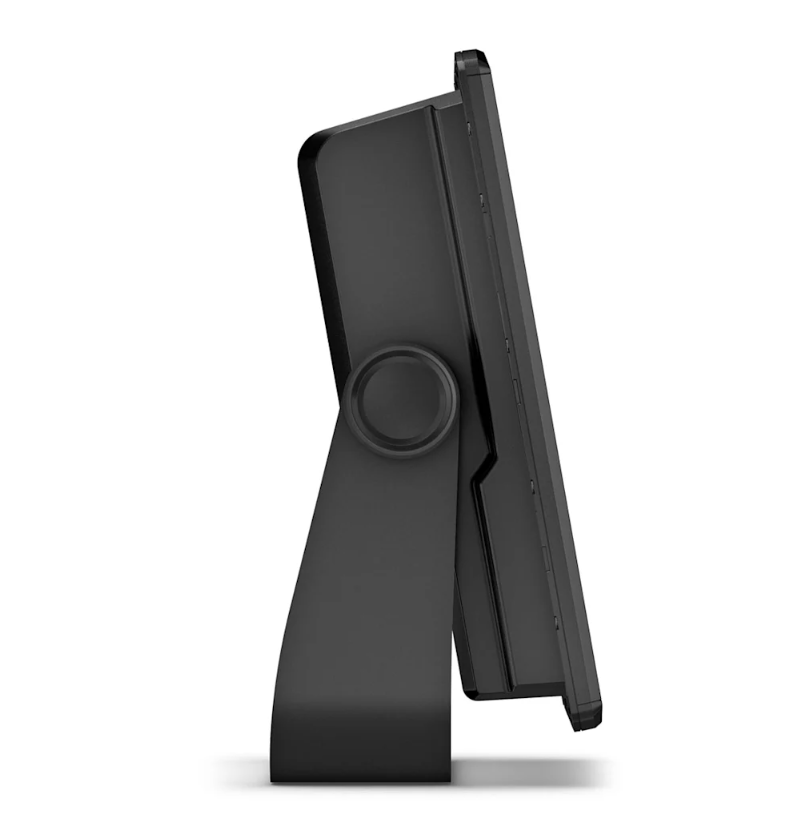

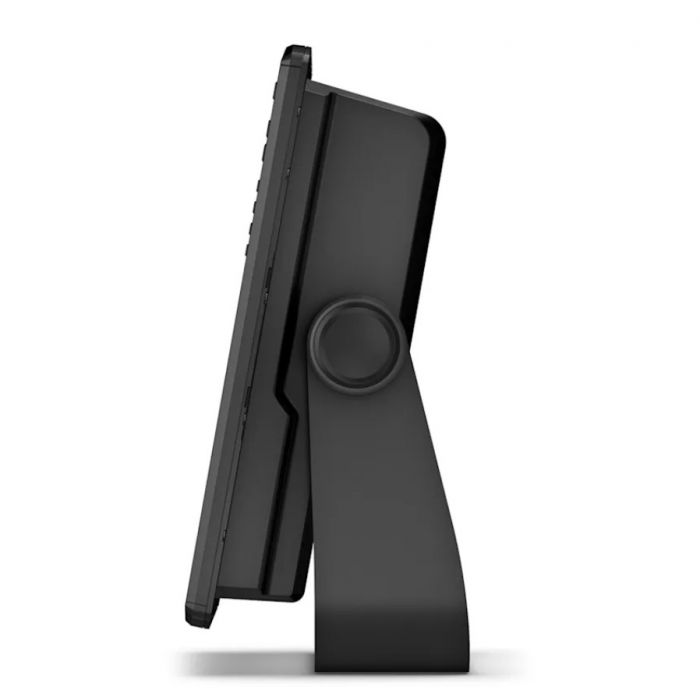

• Designed for easy mounting: choose either surface (bail) mount with knobs (tilt angle adjustment) or flush mount.
• Durable and boat-worthy: IPX7 water rating ensures protection from incidental exposure to water.
• The box includes the chartplotter unit, bail mount with knobs, power cable, sun cover, trim caps, hardware and documentation — transducer not included in this version.

Why this model stands out:
With its extra-large 16″ high-definition display, the Ultra 2 166sv offers serious screen real-estate for anglers who demand both mapping and sonar clarity.

The ability to integrate LiveScope, UHD scanning sonar, voice commands and HDMI output makes this chartplotter a central hub of your marine electronics setup.

Whether you’re running offshore, trolling freshwater lakes or exploring new waters, this unit gives you both the “big picture” and fine-detail imagery to make informed decisions.

Plus, the inclusion of Navionics+ mapping (on select versions) means less time configuring and more time fishing.

Installation & Usage Tips:

• Ensure you choose the proper version (with or without transducer included) to avoid duplicate purchases.
• For best results using UHD scanning or LiveScope, match the right transducer to your boat (transducer sold separately).
• Mount in a location with good visibility and tilt-adjustability using the included bail mount and knobs; consider flush mounting if you want a sleeker helm integration.
• Connect to your boat’s NMEA 2000 network and your trolling motor (such as Force) to get route, heading and anchor control features.
• Use the HDMI out if you run a companion monitor or TV in your cockpit or cabin for enhanced viewing.
• Download and pair the ActiveCaptain® app to your compatible smartphone for quick updates, screen capture/recording and sharing to the Quickdraw™ Community.
• Keep the software version up-to-date — the Ultra 2 series has had numerous enhancements (e.g., large-capacity microSD card support, Livescope colour improvements) via firmware updates.

Specifications Snapshot (based on version without transducer):

• Dimensions: 16.9″ × 10.5″ × 3.14″ (43.0 × 26.6 × 8.0 cm)
• Weight: 9.5 lbs (4.31 kg)
• Water rating: IPX7
• Display size: 13.6″ × 7.7″; 15.6″ diagonal (34.5 × 19.5 cm)
• Display resolution: 1920 × 1080 pixels
• Mounting: Bail or flush
• Accepts data cards: 2 microSD slots
• Waypoints: 5,000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Power input: 9-18 Vdc; typical current draw at 12 Vdc: 3.9 A; max current draw: 6.6 A
• Built-in sonar capabilities: CHIRP (70/83/200 kHz) + ClearVü & SideVü (260/455/800/1000/1200 kHz)
• Transducer not included in this version; you’ll need to purchase separately for sonar imaging to function.

If you’re ready to step up to a premium, full-size chartplotter that does more than just navigation — that offers the full sonar-and-mapping suite, high-definition display, and seamless marine-network integration — then the Garmin ECHOMAP Ultra 2 16″ 166sv is a standout choice.

Whether you’re chasing trophy bass, running offshore structure or creating custom maps on the fly, this unit gives you the platform and performance to make it happen.

(0100338600)
