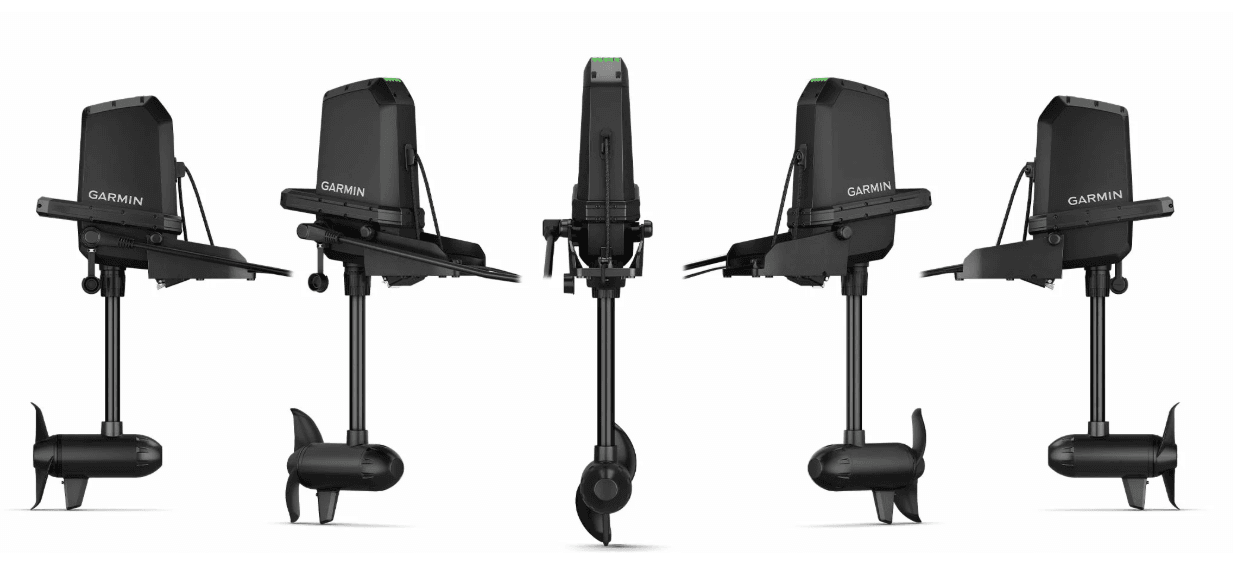

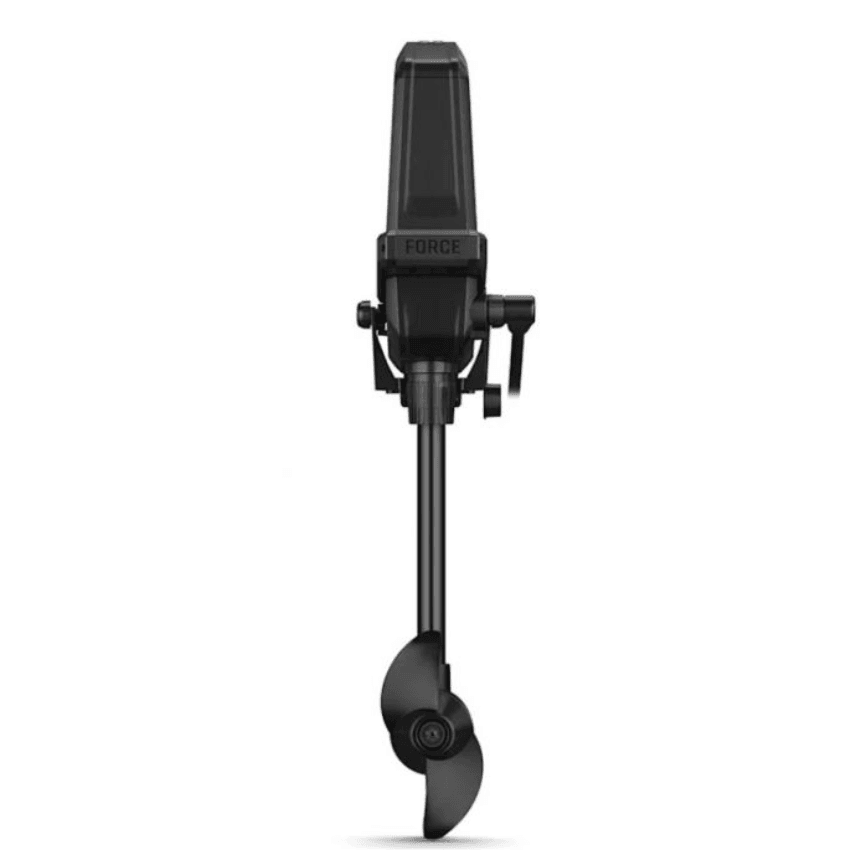

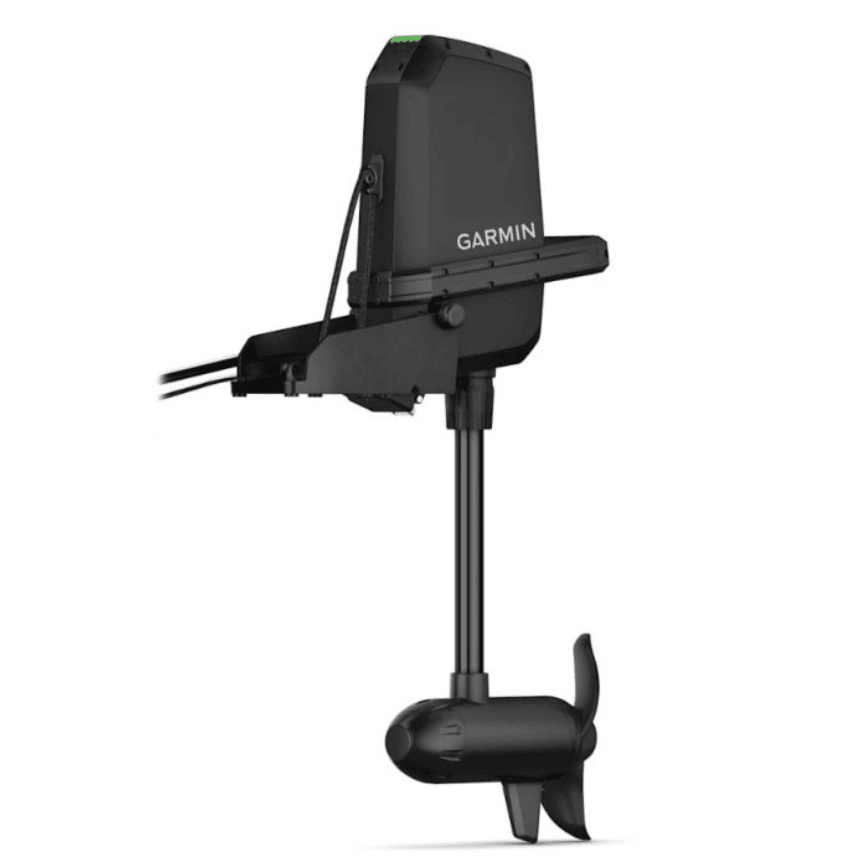

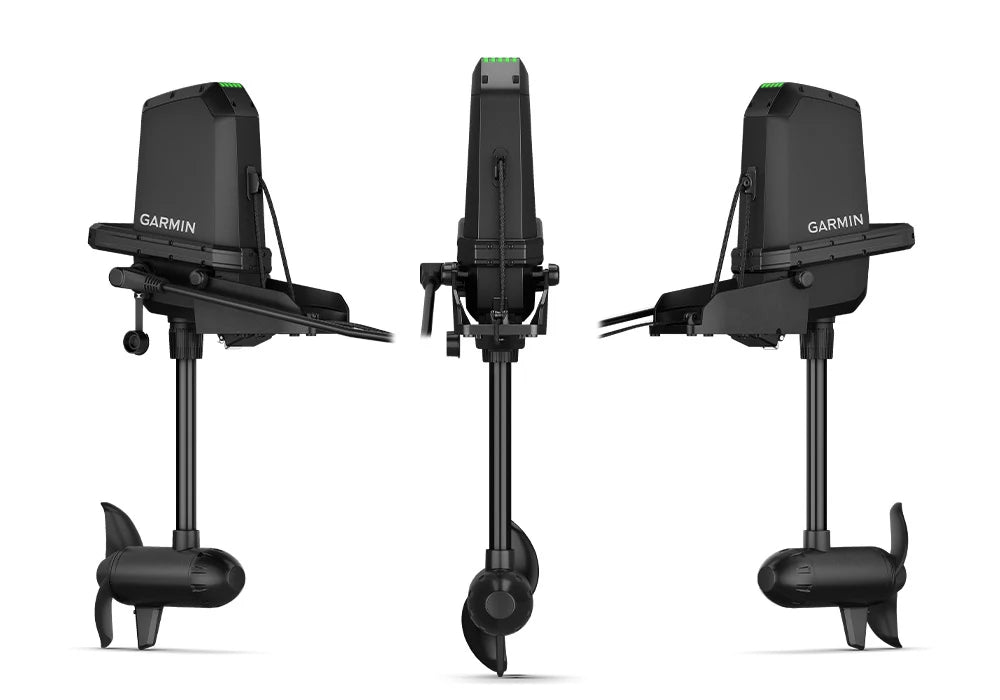

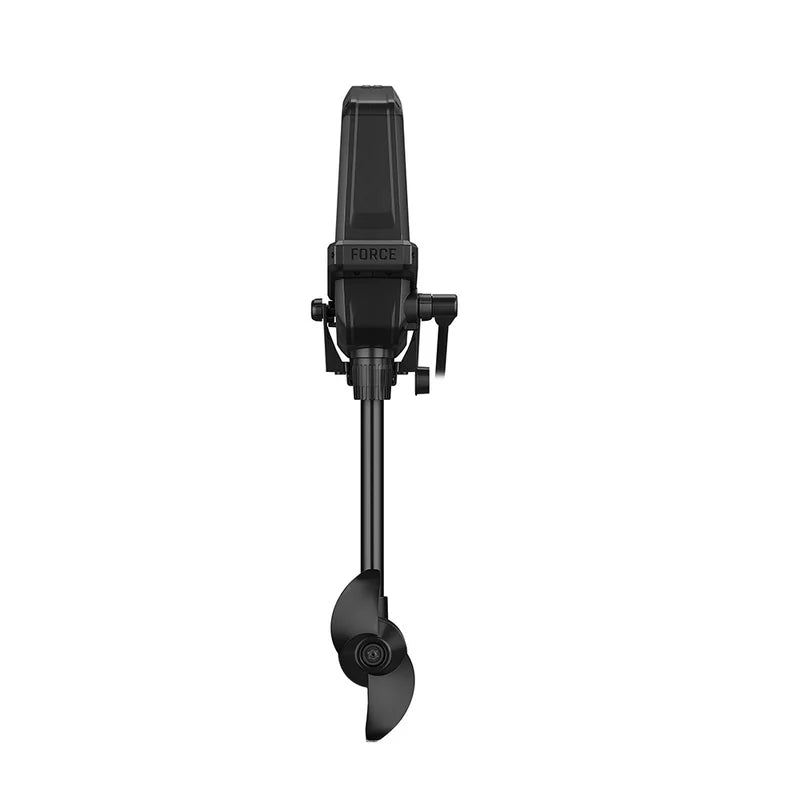

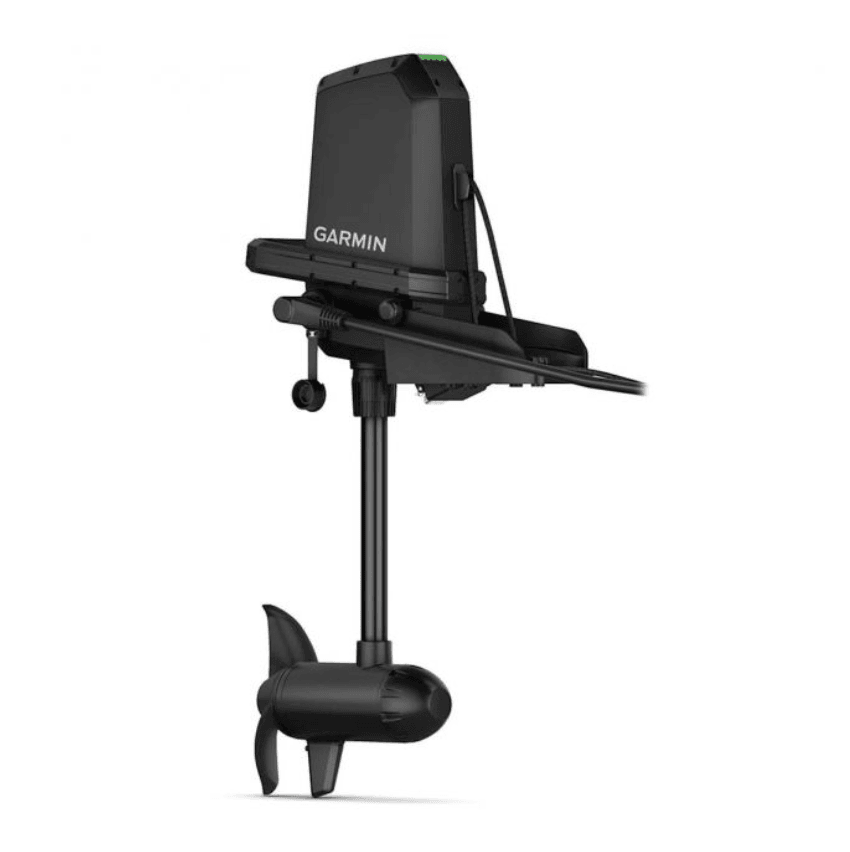

Garmin Force® Current Kayak Trolling Motor

Force® Current Kayak Trolling Motor (010-02864-10)

LEGENDARY FORCE PERFORMANCE

The Force Current trolling motor is engineered for kayak anglers looking for a rugged propulsion system with superior maneuverability, wireless integration, and wireless throttle and steering control.

• Legendary Force performance and reliability
• Wireless throttle and steering control with the included remote
• Stay on the fish with an anchor lock and multi-band GPS
• Simple and intuitive installation
• Wireless integration with Garmin chartplotters
• Wireless man overboard tag

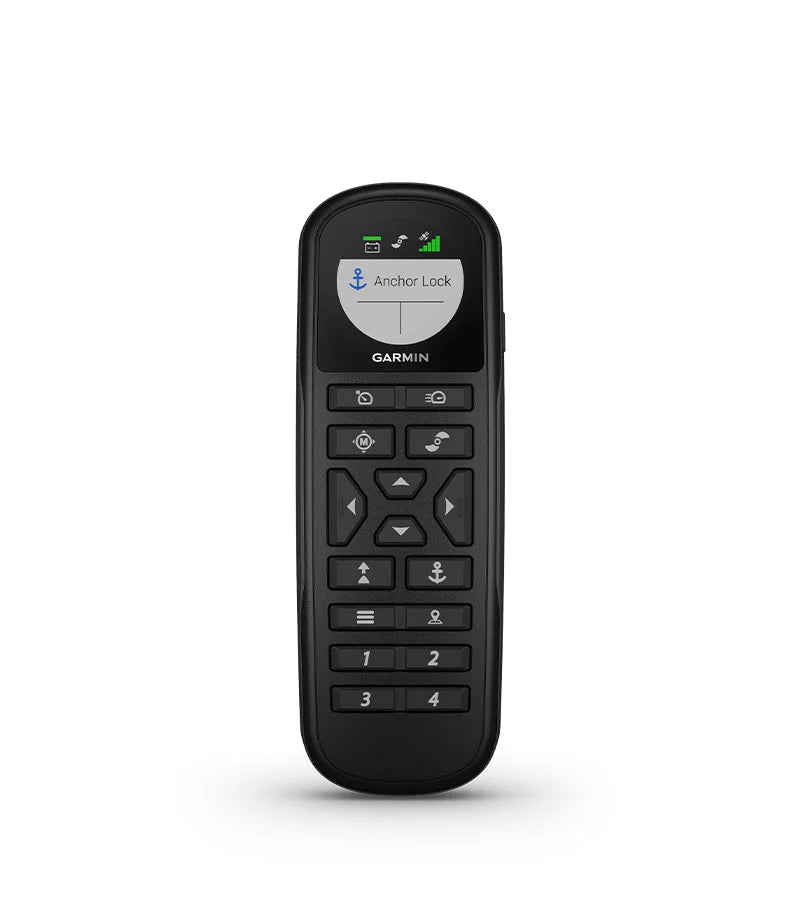

Floating Remote

Use the included remote to control throttle and steering with the wireless remote control. Want to control throttle and steering without setting the rod down? Check out the power steer pedals.

Unprecedented Maneuverability

Turn your boat quickly with full forward and reverse thrust in any direction. Weave through tight timber, turn in a tight circle, sneak along shorelines, and creep through weed beds while you fish. Use the included wireless handheld remote for point-and-go gesture steering.

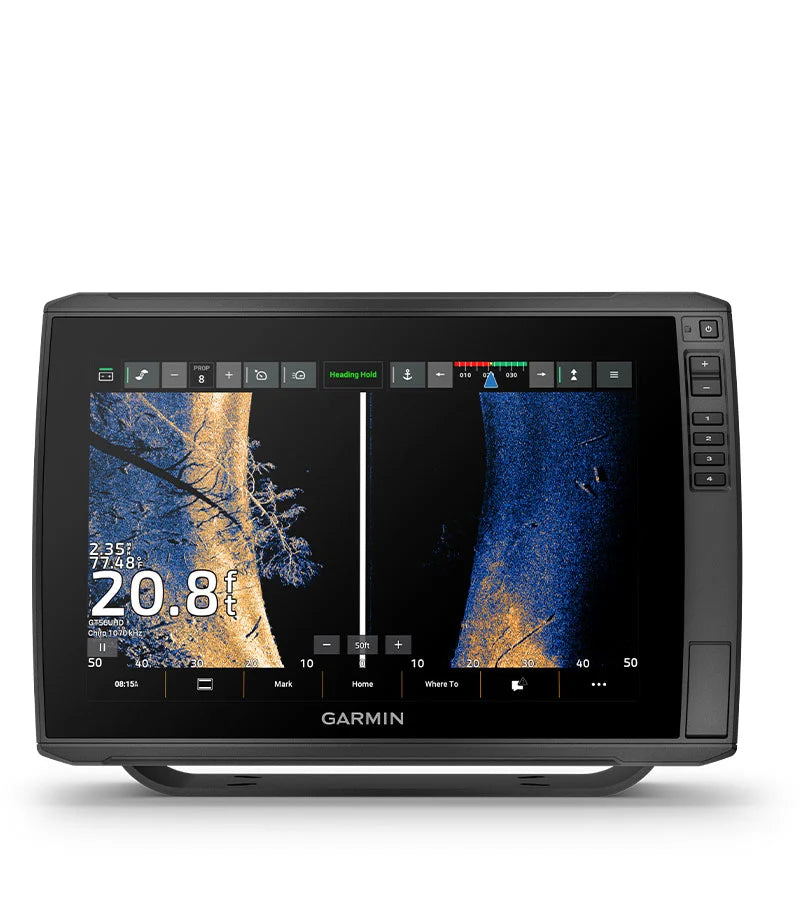

Chartplotter Integration

Wireless integration with your Garmin chartplotters allows you to create routes and tracks for the trolling motor to follow while you fish. You can also adjust throttle and steering on the chartplotter control bar, adjust motor settings and more.

Stay Put

The anchor lock technology with multi-band GPS provides our most precise boat positioning technology to help keep the boat in one place, even in windy conditions or strong current.

Safety First

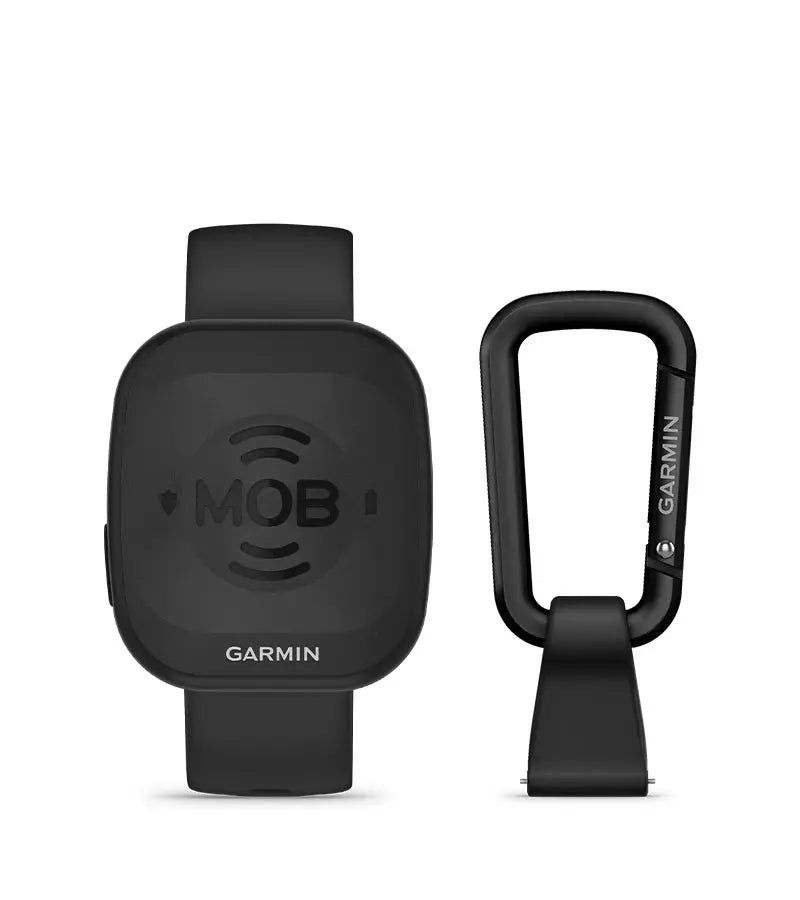

When wearing the included wireless man overboard tag, the motor cuts off if it detects you fall overboard.

Power That Lasts

An efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.

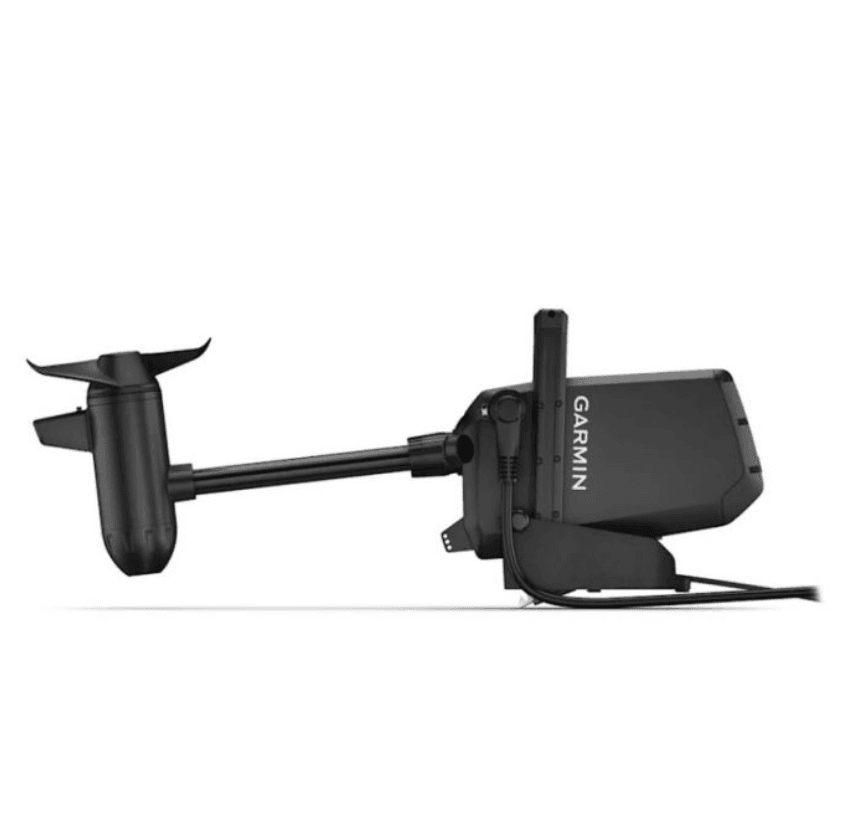

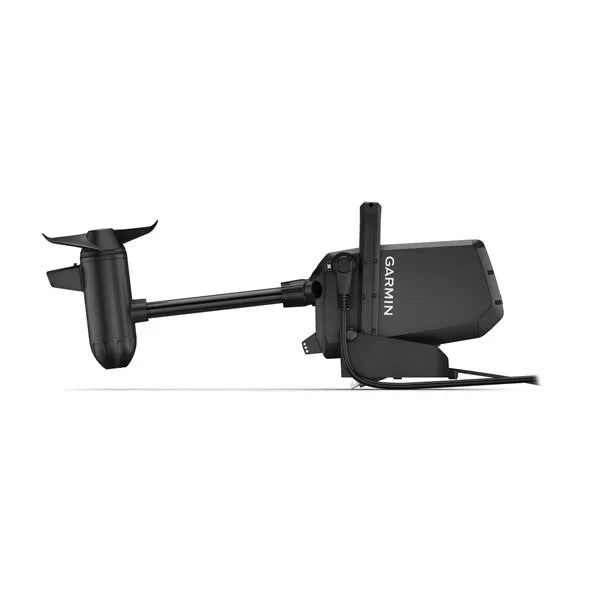

Stow and Deploy

Quickly stow or deploy the prop with one hand when you need to glide over shallow areas with the included stow rope and cleat kit.

Smartwatch Integration

Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.

Two Prop Options

Use the high-efficiency prop to maximize battery life, or the weedless prop to cut through aquatic vegetation.

Industry Standard

The 4-hole mounting pattern makes installation easy on many different types of kayaks.

Load Up and Go

Get on and off the water fast with simple motor and pedal installation and removal.

Whisper Quiet

Don’t spook the fish; the motor is extremely quiet above and below the water.

Rugged Design

The sturdy alloy shaft and components are built to endure harsh saltwater and freshwater environments with advanced corrosion protection.

What's In The Box?

• Force® Kayak Propulsion System
• Force trolling motor remote with lanyard
• Black MOB tag
• Power cable
• Pull rope and cleat

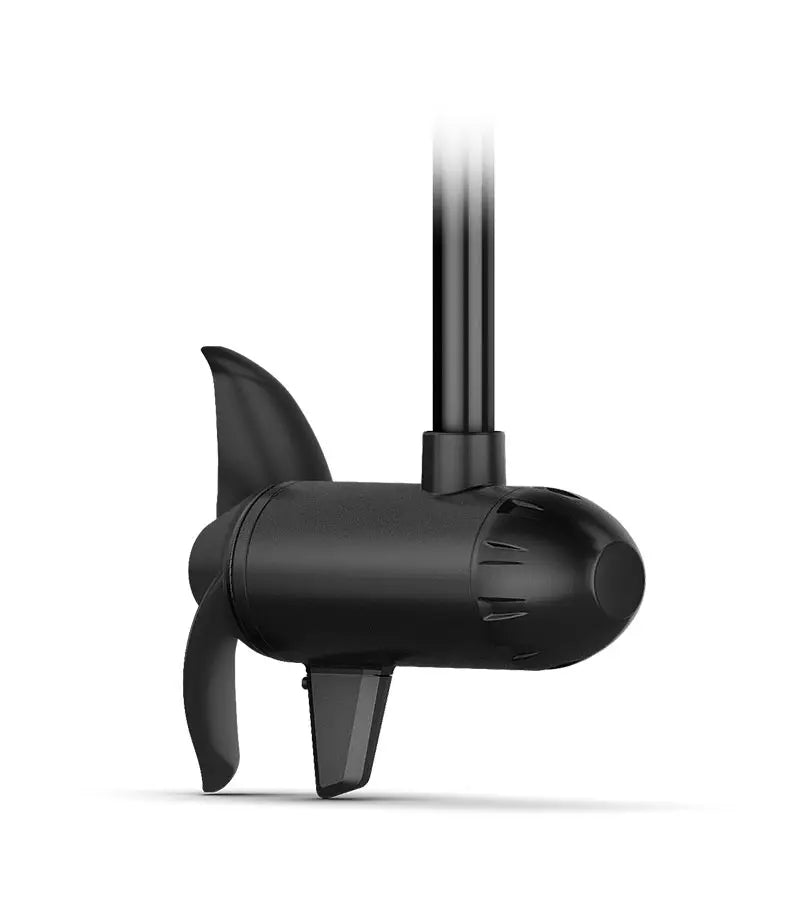

• Skeg
• Performance propeller
• Weedless propeller
• Mounting hardware
• Documentation

Specifications:

General

• Color: Black
• Mount Style: 4-hole tilt mount
• Max Thrust: 50 lbs (ISO13342) using high efficiency propeller at 24 V, 30 lbs (ISO13342) using high efficiency propeller at 12 V
• Voltage: 12v or 24v
• Electric Steering: Yes
• Built-In Heading Sensor: Yes
• Built-In GPS: yes (dual frequency GPS)
• Warranty: 3-year, limited lifetime on shaft
• Water Rating: IPX7
• Mounting Location: Stern
• Wireless Remote: Yes (included)
• Shaft Length (From Mount to Top of Drive Motor): 16.6" (max); 11.4" (min)
• Power Steer Foot Pedals (Kayak) Compatible: Yes

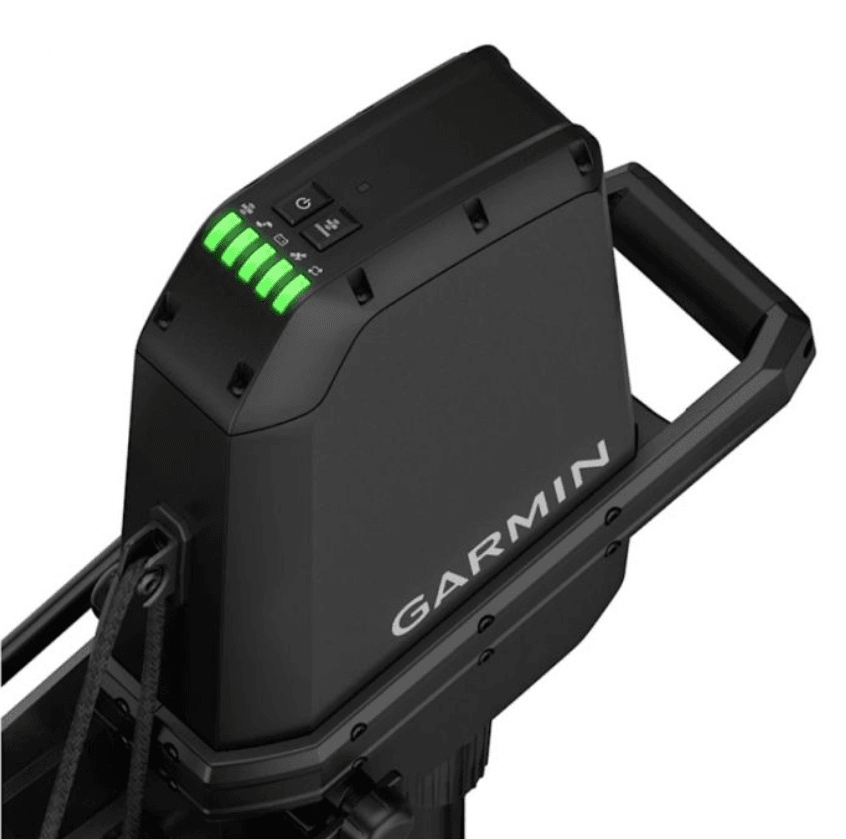

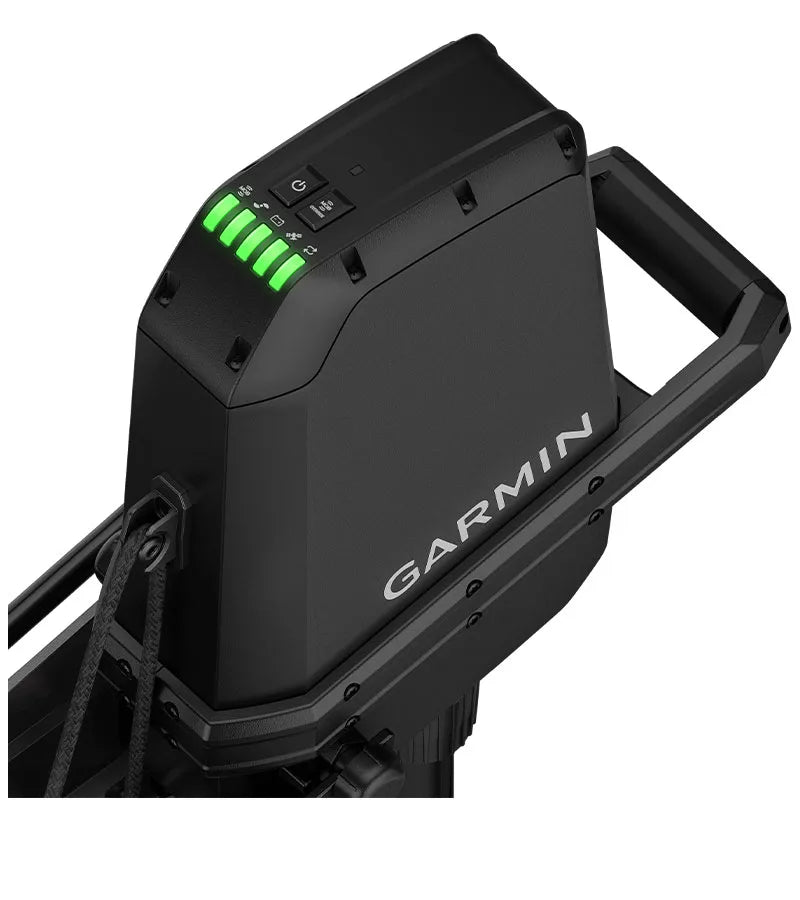

• Battery Indicator: Yes
• Variable Speed Control: Yes (20 steps)
• Quatix Remote Control Supported: Yes
• Manual Reverse Control: Yes

Autopilot Features:

• Route Following: Yes
• Anchor Lock: Yes
• Smart Anchor Lock Features: Yes
• Anchor Lock Jog: Yes
• Heading Hold: Yes
• Cruise Control: Yes
• Gesture Features: yes (manual+, heading hold+, jog+)

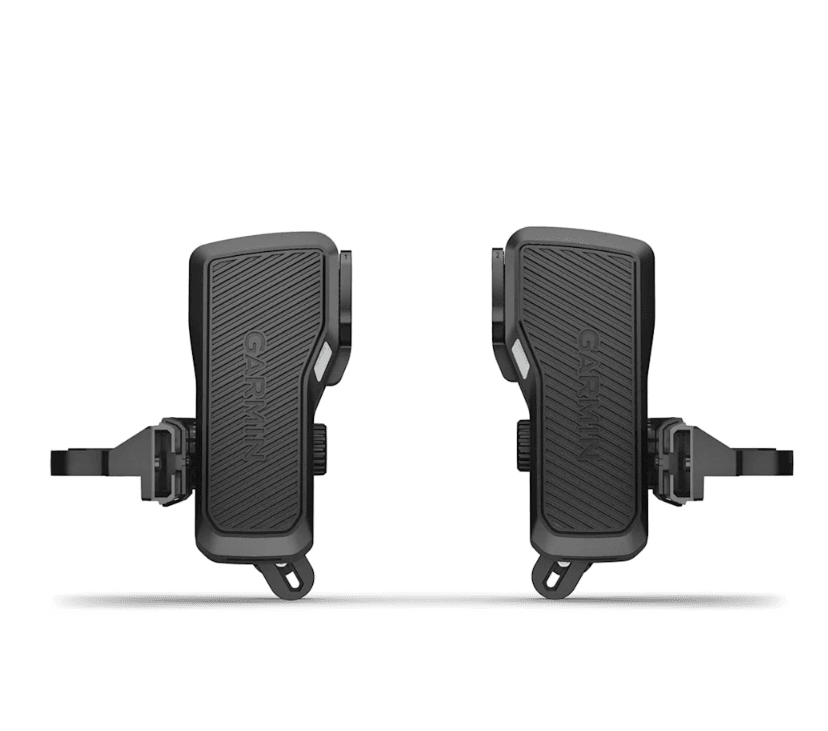

Power Steer Foot Pedals (Kayak) (Optional)

• Wireless Communication: Yes
• Power Installation: Batteries (2 AA)
• AA Battery Life: 1 Full Season
• Water Rating: IPX 7

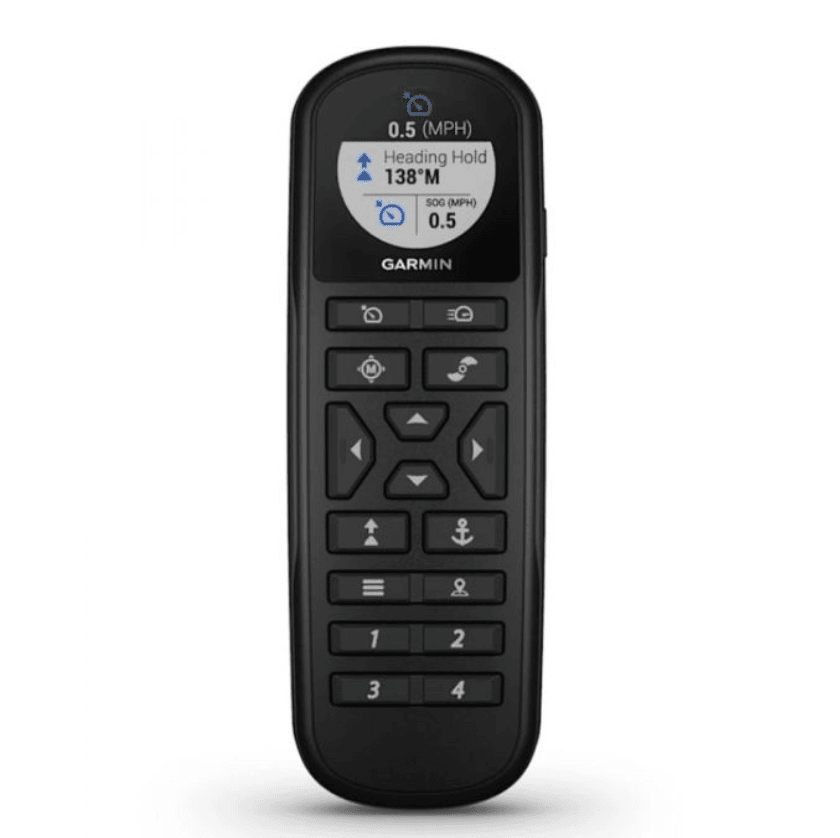

Remote Features

• Display Size: 1.2" diameter
• Display Resolution: 240 x 240 pixels
• Display Type: color, sunlight-visible, transflective memory-in-pixel (MIP)
• Chartplotter User-Performance Keys: Yes
• Autopilot Feature Control: Yes
• Water Rating: IPX7
• Battery Life: typical use with backlight at low, 43 weeks
• Floats: Yes

Specifications:

• Autopilot: Yes
• Built-In Transducer: No
• Control Type: Wireless Remote
• Mounting Style: Transom
• Series: Force
• Voltage - Input Range (Volts): 12v or 36v
