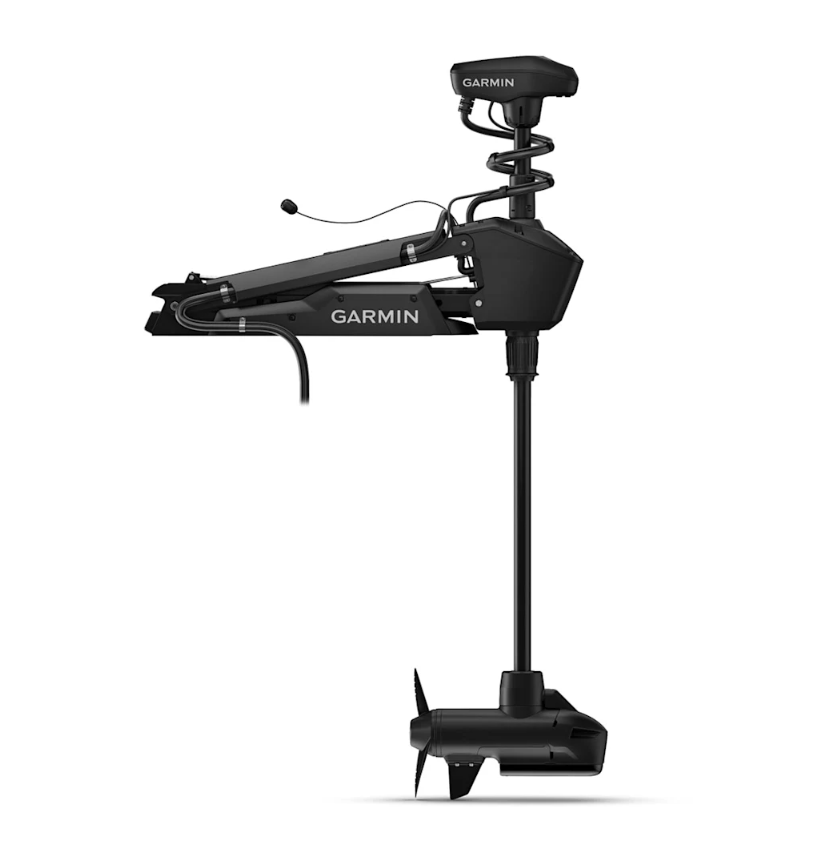

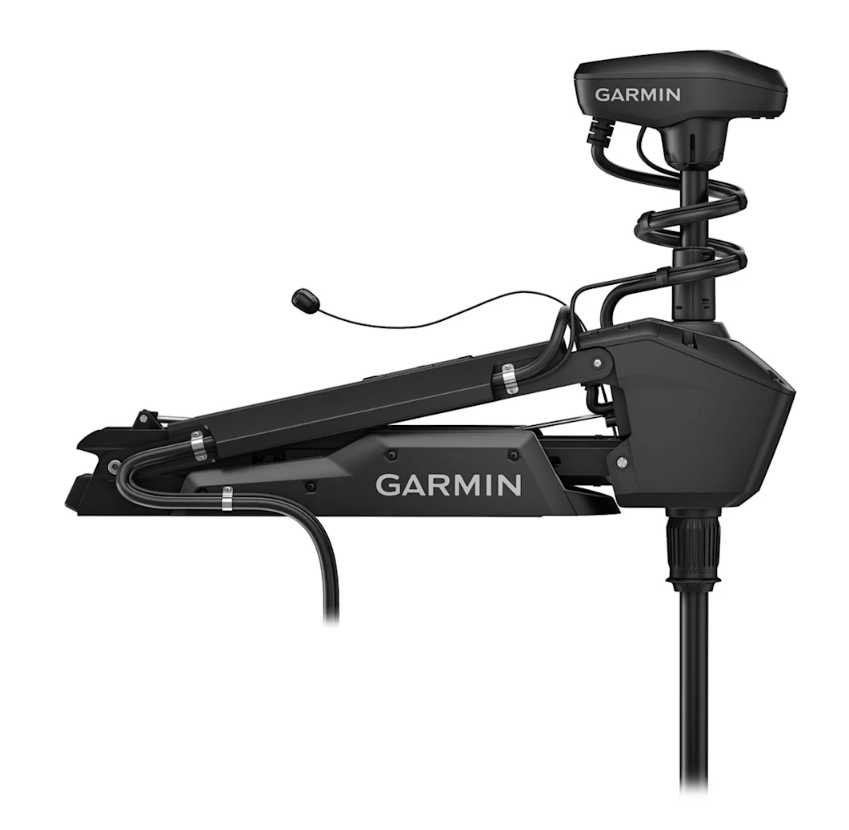

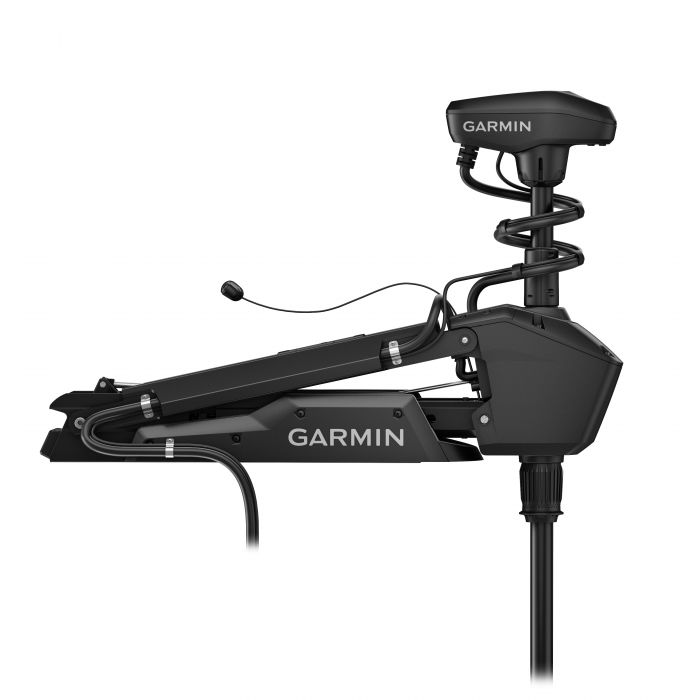

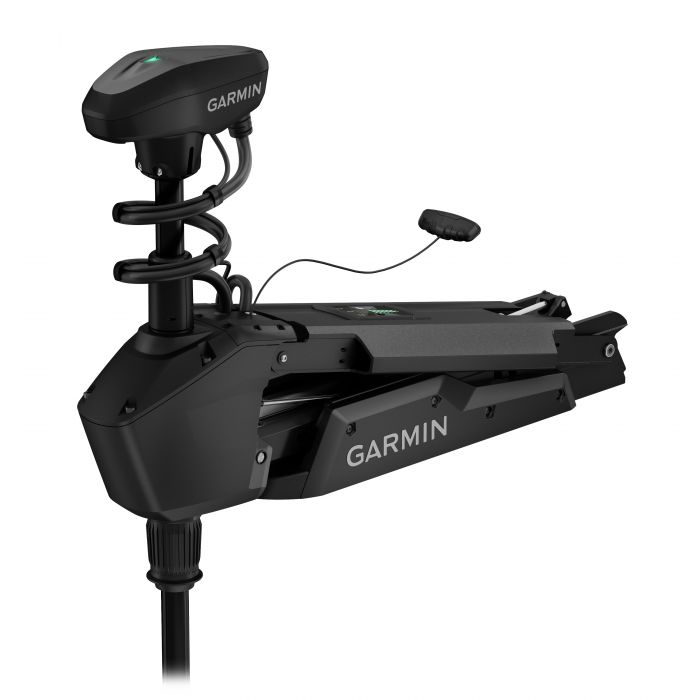

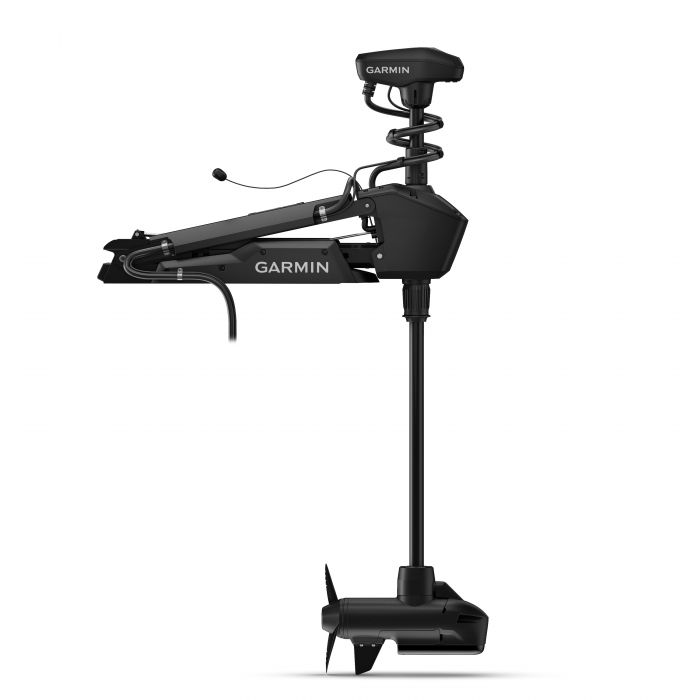

Garmin Force Pro 50" Trolling Motor (Built-In Transducer)

Force® Pro 50" Trolling Motor with Built-In GT56UHD-TR Transducer (010-03011-00)

Ultimate Power. Precision Control. Quiet Performance.

Experience the next level of fishing performance with the Garmin Force® Pro 50" Trolling Motor (0100301100)— Garmin’s most powerful, quietest, and most efficient trolling motor yet. Designed for serious anglers, this advanced brushless trolling motor delivers up to 100 lbs of thrust and features multi-band GPS anchor lock, wireless control, and a built-in GT56UHD-TR transducer for ultra-clear sonar imaging.

Whether you’re targeting bass in freshwater or navigating coastal waters, the Force Pro gives you the confidence to fish harder, longer, and smarter.

Key Features & Benefits

• Powerful Brushless Motor: Enjoy unmatched torque and efficiency with 100 lbs of thrust (at 36V) or 80 lbs (at 24V), ensuring smooth, quiet propulsion without spooking fish.
• Advanced GPS Anchor Lock: Hold your position precisely with Garmin’s most accurate multi-band GPS system. The anchor lock technology includes reverse prop spin and cable unwrap for minimal motor movement in calm water.

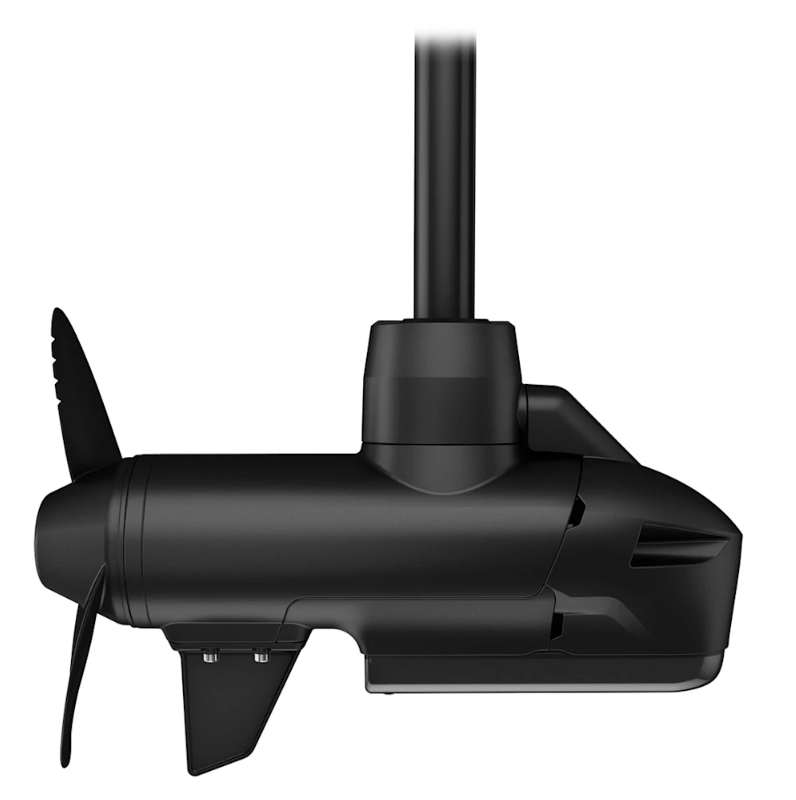

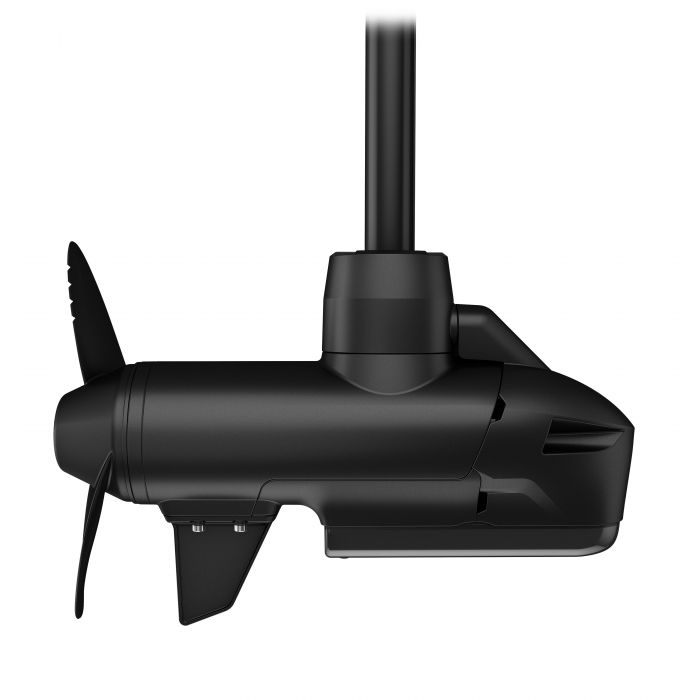

• Built-In GT56UHD-TR Transducer: See more beneath the surface with Garmin’s Ultra High-Definition ClearVü and SideVü scanning sonar. View detailed structure and fish targets with reduced noise and improved clarity.
• Wireless Chartplotter Integration: Pair seamlessly with compatible Garmin chartplotters to create and follow fishing routes, set waypoints, and control your motor directly from your display.
• Intuitive Wireless Control: Adjust speed and steering effortlessly using the included wireless foot pedal or the floating remote with gesture control and sunlight-readable display.
• Smartwatch Compatibility: Control your motor right from your wrist with compatible Garmin Quatix® and Instinct® smartwatches — including steering, anchor lock, and more.
• Quiet and Stealthy Operation: The brushless design ensures whisper-quiet performance both above and below the waterline, keeping your approach silent and your target undisturbed.

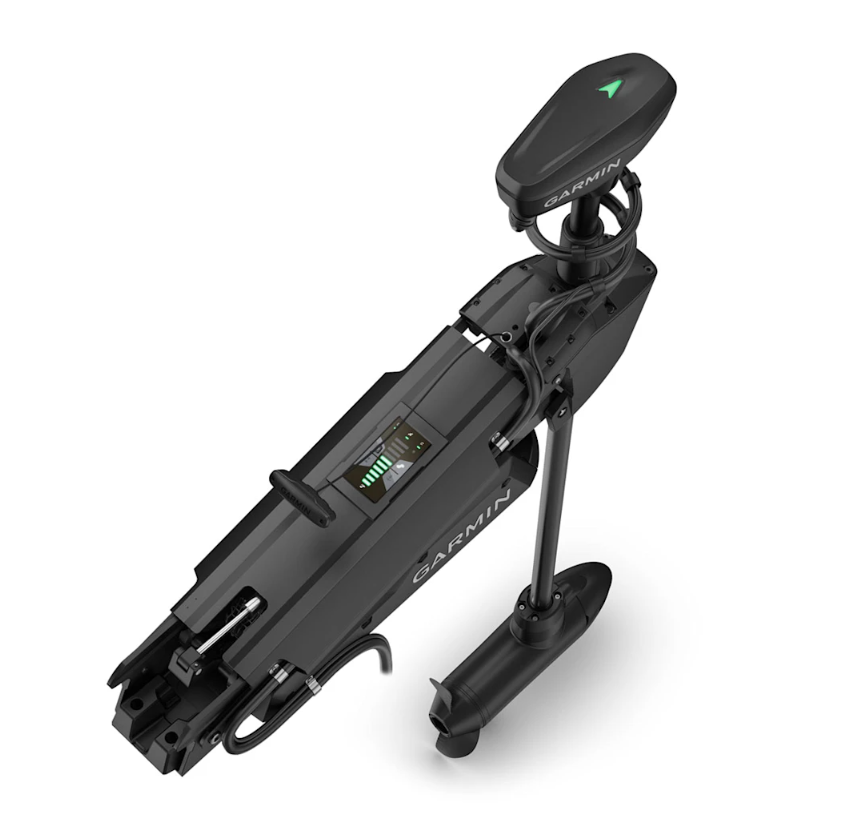

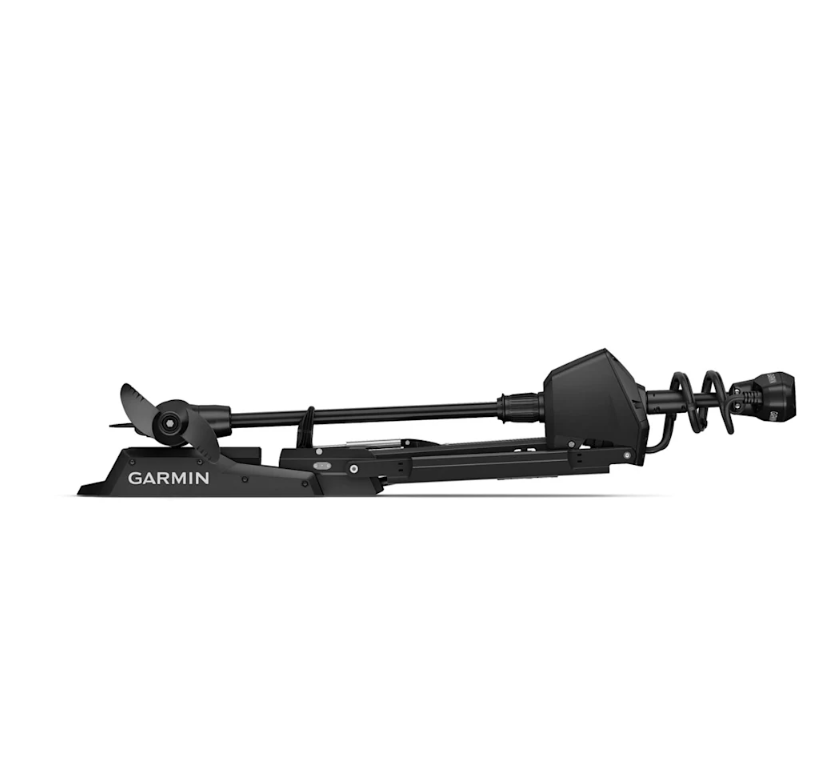

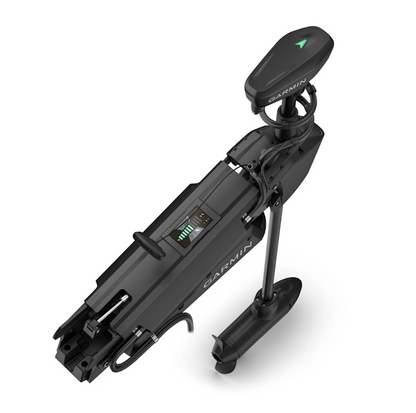

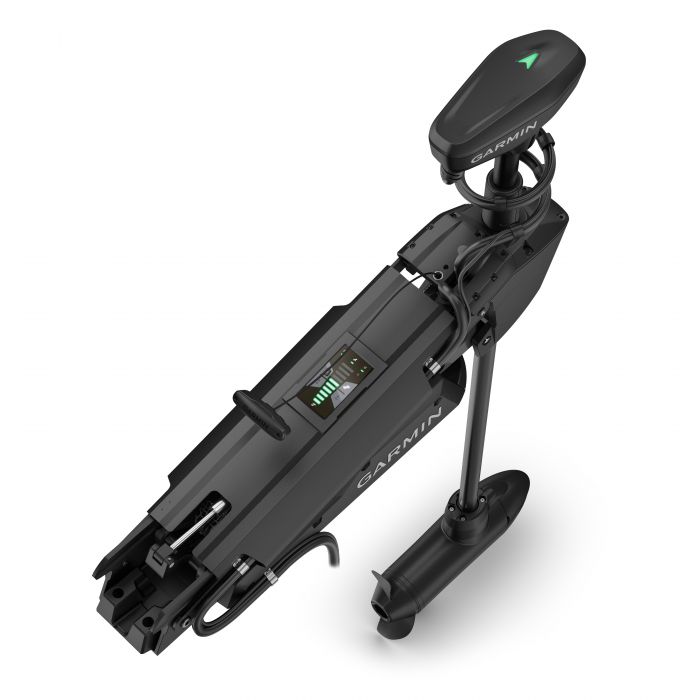

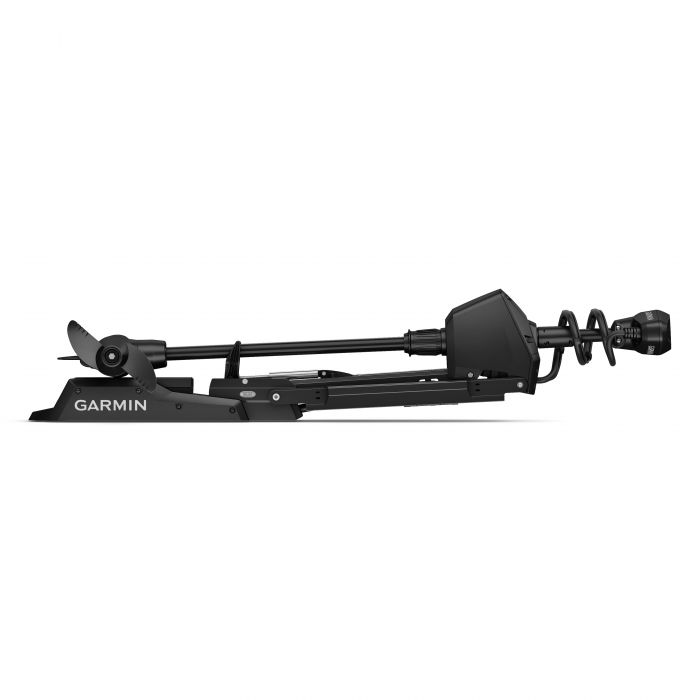

• Easy Deployment & Stowing: Dual gas springs and a rugged pull cable make deploying and stowing the motor smooth and effortless.
• Durable, Saltwater-Ready Design: Built with advanced corrosion resistance and IPX7 water rating, the Force Pro performs reliably in freshwater, brackish, and saltwater conditions.

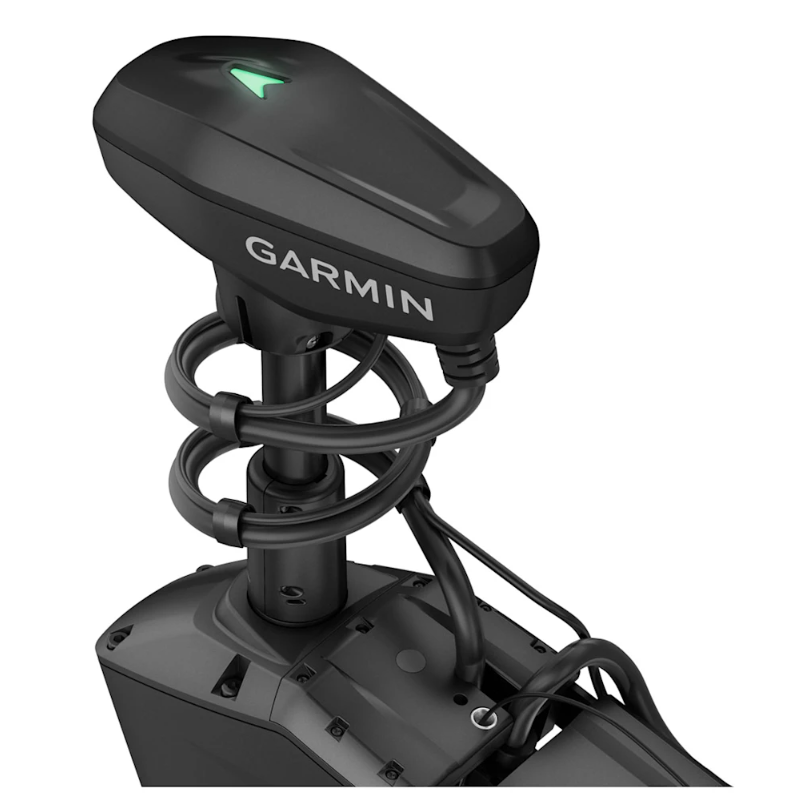

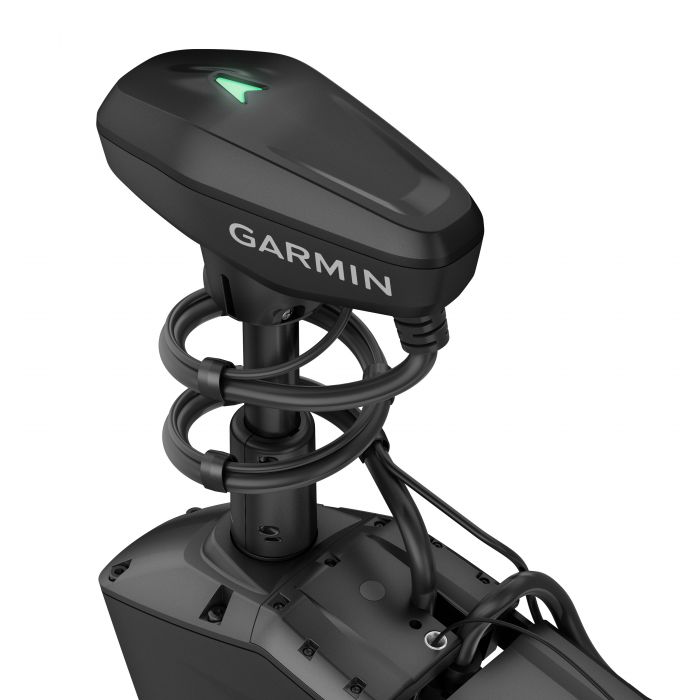

• Lighted Direction Indicator: Stay oriented during early mornings or late-night fishing with the illuminated shaft-cap direction light.

Technical Specifications

• Mounting Location: Bow
• Shaft Length: 50 inches
• Thrust: 100 lbs (36V) / 80 lbs (24V)
• Voltage: 24V or 36V
• Steering: Electric, variable speed (20 steps)
• Control Type: Foot control and wireless remote
• Lift Assist: Dual gas springs
• Integrated Sonar: GT56UHD-TR (CHIRP, ClearVü, SideVü)
• Maximum Depth: Up to 800 ft (CHIRP)
• Water Rating: IPX7
• Warranty: 3-year limited; lifetime shaft coverage

In the Box

• Garmin Force® Pro Trolling Motor
• High-efficiency and weedless propellers
• Wireless foot pedal
• Floating remote control
• Stabilizer and mounting hardware
• Documentation

Why Choose the Garmin Force® Pro?

The Garmin Force Pro 50" Trolling Motor is the ultimate combination of power, precision, and quiet operation. With smart GPS integration, UHD sonar, and brushless motor technology, it’s built to outperform and outlast — making it the top choice for serious anglers and bass boat owners.

General Specifications:

• Color: Black
• For use in: freshwater, brackish water, and saltwater

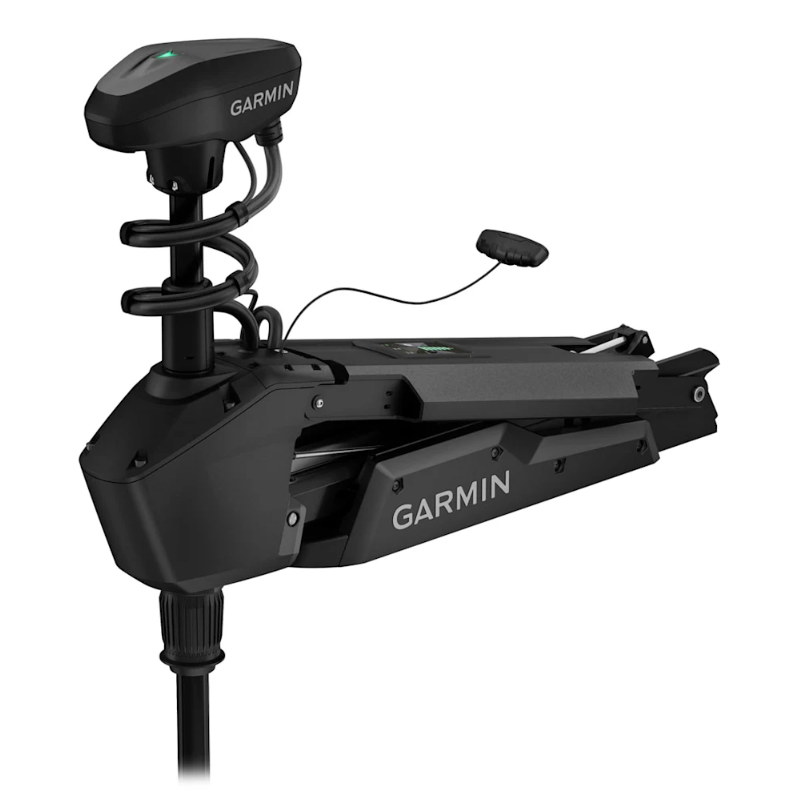

• Mount Style: scissor-style mount
• Max thrust: 100 lbs per ISO 13342 using a high-efficiency propeller at 36 V, 80 lbs per ISO 13342 using a high-efficiency propeller at 24 V
• Voltage: 24 V or 36 V
• Electric steering: Yes
• Lift-assist: dual gas springs
• Built-in heading sensor: Yes
• Warranty: 3-year, limited lifetime on shaft
• Water rating: IPX7
• Mounting location: Bow
• Wireless remote: Yes (Included)
• Foot pedal compatible: Yes (included)

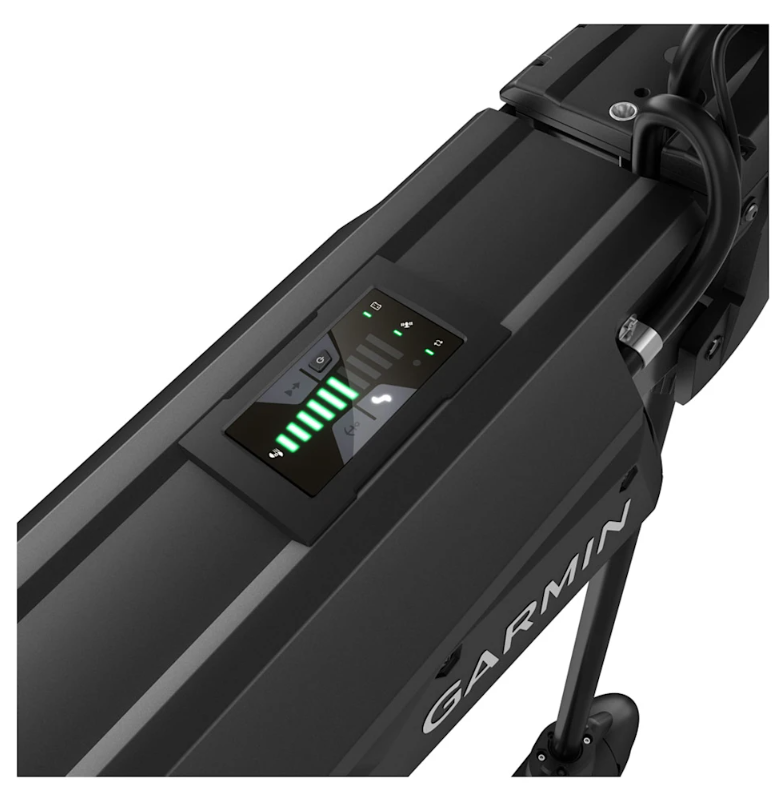

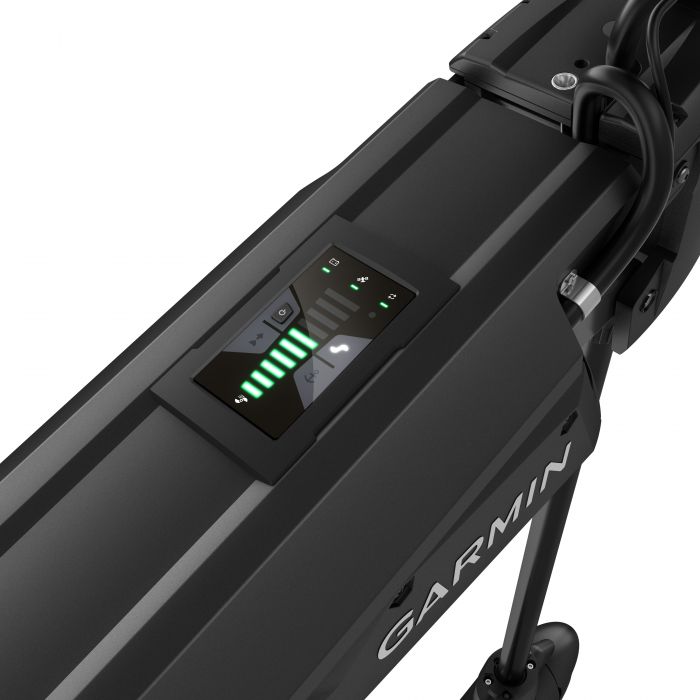

• Battery Indicator: Yes
• Variable speed control: Yes (20 steps)
• Lighted direction indicator: Yes
• Deck stabilizer: Yes (included)
• Quatix remote control supported: Yes
• Manual reverse control: yes

Sonar Features:

• Frequencies Supported: Traditional: High-wide CHIRP (150-240 kHz); ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
• Transmit Power: Traditional: 350 W; ClearVü/SideVü: 500 W
• Maximum Depth: CHIRP sonar: 800' freshwater; ClearVü: 400'; SideVü: 500'
• Depth/Speed/Temperature: depth and temperature
• Number of Pins: 12-pin (orange connector)

Autopilot Features:

• Route Following: Yes
• Anchor Lock: Yes
• Smart Anchor Lock Features: Yes
• Anchor Lock Jog: Yes
• Heading Hold: Yes
• Cruise Control: Yes
• Gesture Features: Yes(manual+, heading hold+, jog+)

Foot Pedal Features:

• Dimensions: 12" L x 9" W x 4 1/2" H
• Wireless Communication: Yes
• Power Installation: 12 V/24 V/36 V wired or battery-powered (2 AA)
• AA Battery Life: 1 full season
• Water Rating: IPX7
• Adjustable Pedal Resistance: Yes

Remote Features:

• Display Size: 1.2" (30.2 mm) diameter
• Display Resolution: 240 x 240 pixels
• Display Type: color, sunlight-visible, transflective memory-in-pixel (MIP)
• Chartplotter User-Programmable Keys: Yes
• Autopilot Feature Control: Yes
• Water Rating: IPX7
• Battery Life: typical use with backlight at low, 43 weeks
• Floats: Yes

¹In compliance with ISO standard 13342

(0100301100)
