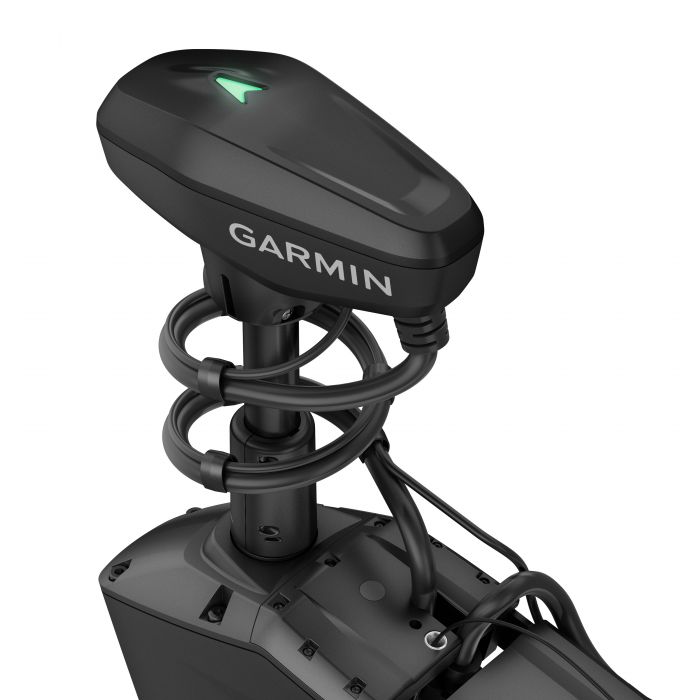

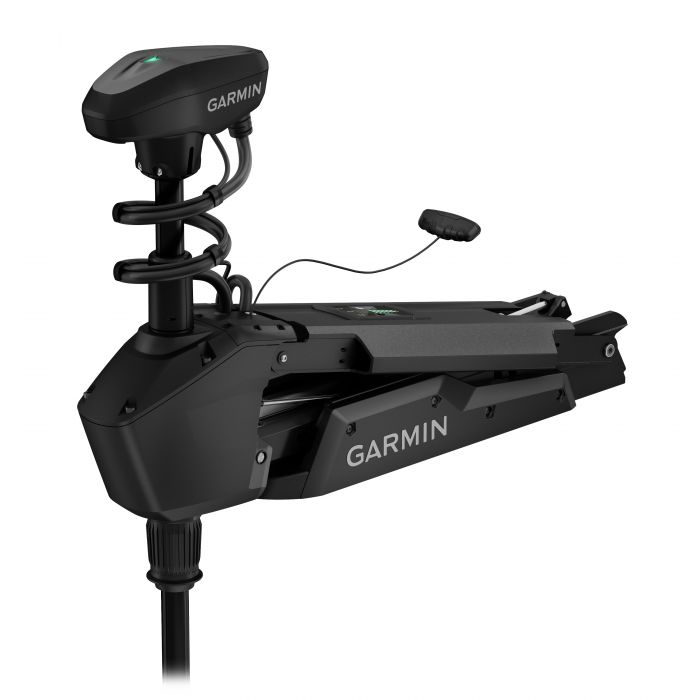

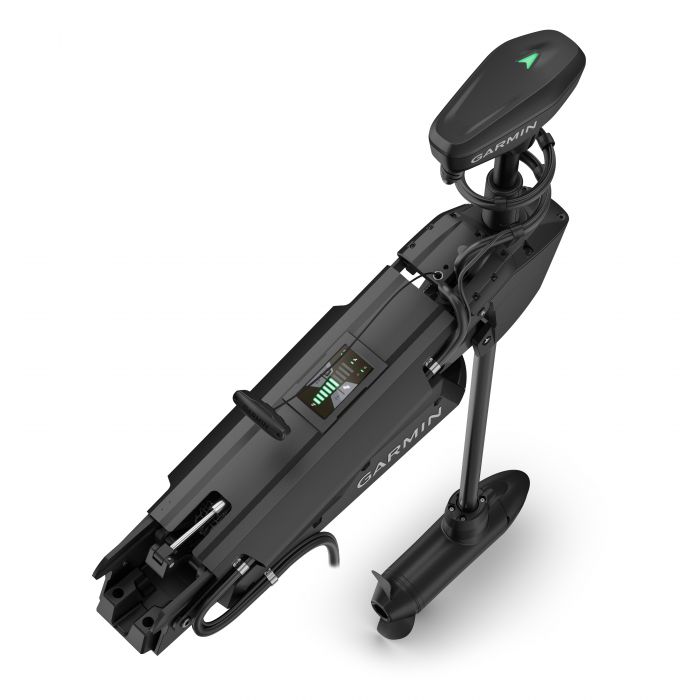

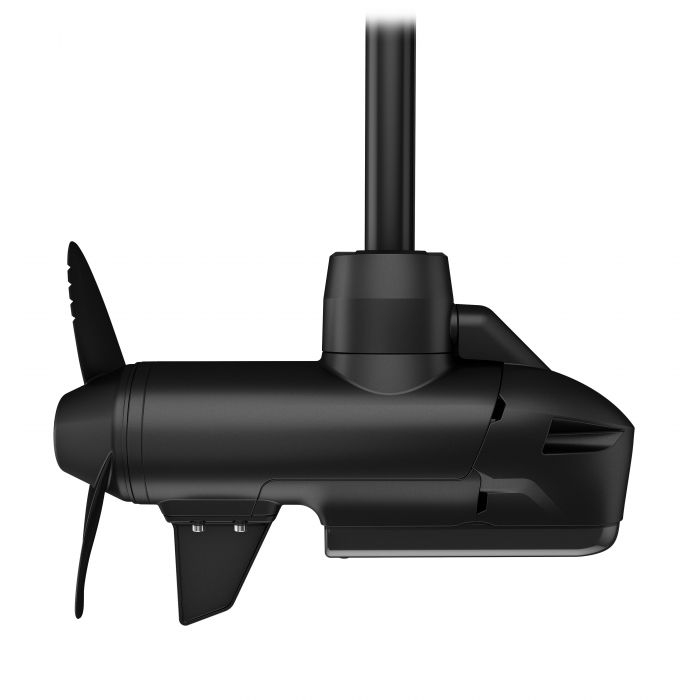

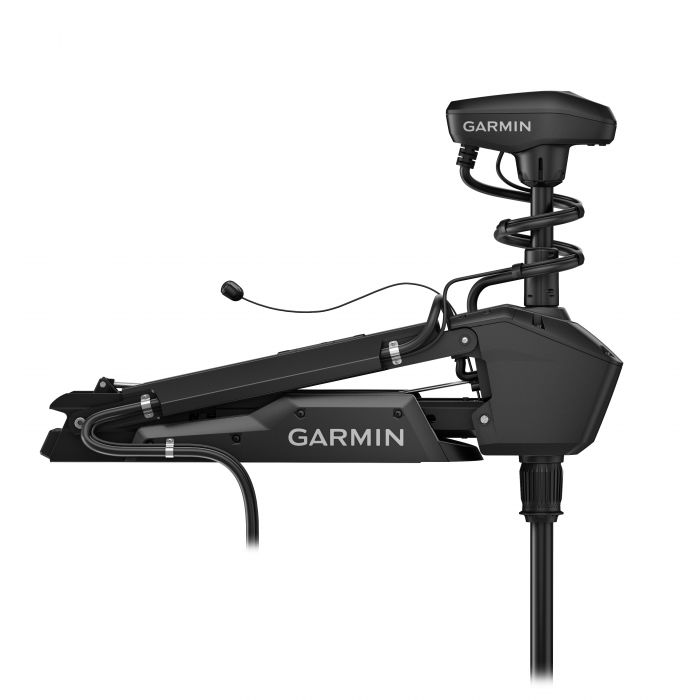

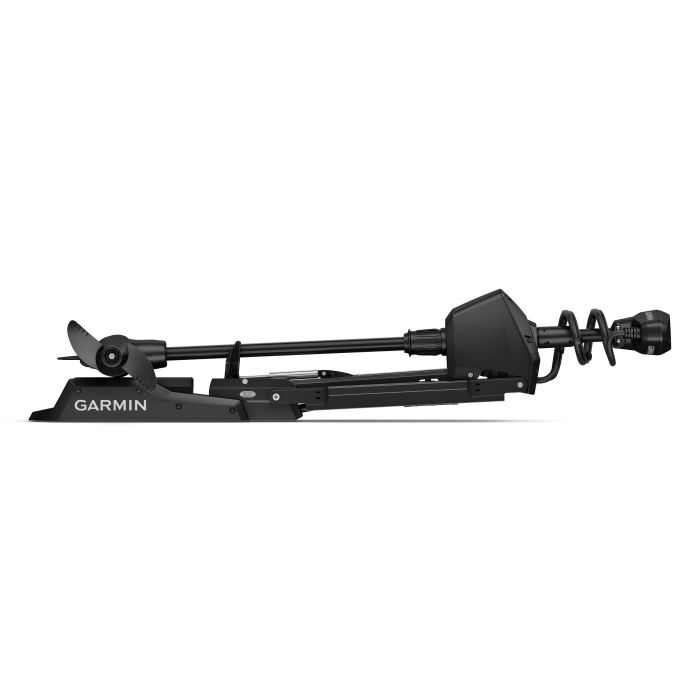

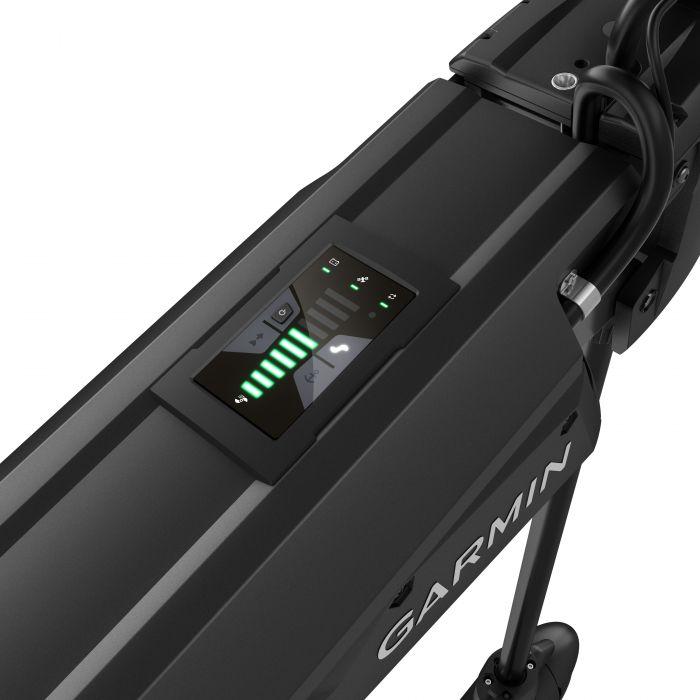

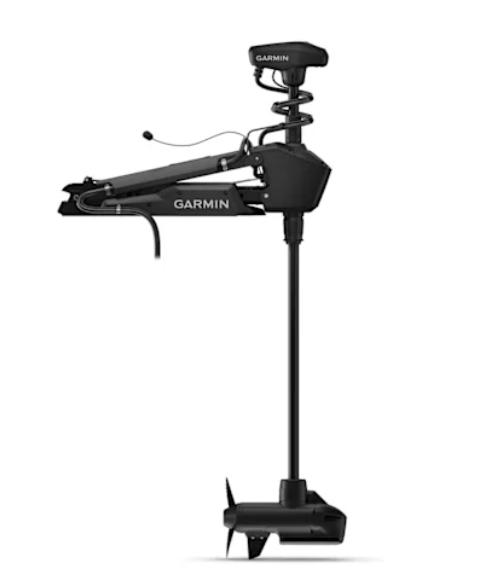

Garmin Force 57" Pro Trolling Motor (Built-In Transducer)

Force® Pro 57" Trolling Motor with Built-In GT56UHD-TR Transducer (010-03011-10)

Powerful. Precise. Whisper-Quiet Performance.

Take control of your fishing experience with the Garmin Force® Pro 57" Trolling Motor, built for anglers who demand strength, stealth, and smart integration. With 100 lbs of thrust and multi-band GPS anchor lock, this brushless trolling motor delivers unmatched power, accuracy, and efficiency on the water.

Key Features & Capabilities

• Legendary Power & Efficiency: The advanced brushless motor provides up to 100 lbs of thrust (at 36V) or 80 lbs (at 24V), offering superior performance, efficiency, and battery life — perfect for both freshwater and saltwater use.
• Ultra-Precise GPS Anchor Lock: Stay exactly where you want to fish with Garmin’s most accurate multi-band GPS positioning technology. Reverse prop spin and calm-water cable unwrap minimize motor movement for stable boat positioning.
• Built-In GT56UHD-TR Transducer: See fish and structure with stunning clarity using Ultra High-Definition ClearVü and SideVü scanning sonar. Experience crisp CHIRP imaging with minimal sonar noise and a maximum depth of up to 800 feet in freshwater.
• Wireless Control Options: Control speed and steering from anywhere on the boat with the wireless foot pedal or the floating handheld remote featuring intuitive gesture control and sunlight-visible display.
• Smart Integration with Garmin Electronics: Seamlessly connect to Garmin chartplotters to follow pre-set routes, maintain heading, or engage autopilot features like cruise control and anchor lock jog. Also compatible with Garmin Quatix smartwatches for on-wrist control.
• Easy Deployment & Stow: Dual gas springs and a durable pull cable make it easy to deploy or stow the motor — even on larger boats. The 57-inch shaft is ideal for bass boats and deep-deck setups.
• Quiet & Stealthy Operation: Fish won’t hear you coming. The Force Pro operates virtually silent both above and below the surface, keeping you stealthy and undetected.
• Built to Last: Engineered with advanced corrosion and saltwater protection, this trolling motor stands up to harsh marine environments and comes with a 3-year warranty and limited lifetime shaft warranty.

Included in the Box

• Force® Pro 57" Trolling Motor
• GT56UHD-TR Built-In Transducer
• High-efficiency propeller
• Weedless propeller
• Wireless foot pedal
• Floating handheld remote
• Deck stabilizer
• Mounting and assembly hardware
• Documentation

Specifications

• Thrust: 100 lbs (36V) / 80 lbs (24V)
• Voltage: 24V or 36V
• Mounting Style: Bow, scissor-style mount
• Control Type: Wireless foot pedal and remote
• Built-In Sonar: GT56UHD-TR (CHIRP, ClearVü, SideVü)
• Water Rating: IPX7
• Shaft Length: 57 inches
• Warranty: 3-year limited, lifetime on shaft

Why Choose the Garmin Force Pro 57” Trolling Motor

The Garmin Force Pro redefines precision trolling with its combination of raw power, GPS accuracy, sonar clarity, and seamless wireless control. Whether you’re targeting bass in freshwater or exploring coastal shallows, this motor gives you the control, silence, and confidence to fish smarter and stay longer.

General Specifications:

• Color: Black
• For use in: freshwater, brackish water, and saltwater
• Mount Style: scissor-style mount
• Max thrust: 100 lbs per ISO 13342 using a high-efficiency propeller at 36 V, 80 lbs per ISO 13342 using a high-efficiency propeller at 24 V
• Voltage: 24 V or 36 V
• Electric steering: Yes
• Lift-assist: dual gas springs
• Built-in heading sensor: Yes
• Warranty: 3-year, limited lifetime on shaft
• Water rating: IPX7
• Mounting location: Bow
• Wireless remote: Yes (Included)
• Foot pedal compatible: Yes (included)
• Battery Indicator: Yes
• Variable speed control: Yes (20 steps)
• Lighted direction indicator: Yes
• Deck stabilizer: Yes (included)
• Quatix remote control supported: Yes
• Manual reverse control: yes

Sonar Features:

• Frequencies Supported: Traditional: High-wide CHIRP (150-240 kHz); ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
• Transmit Power: Traditional: 350 W; ClearVü/SideVü: 500 W
• Maximum Depth: CHIRP sonar: 800' freshwater; ClearVü: 400'; SideVü: 500'
• Depth/Speed/Temperature: depth and temperature
• Number of Pins: 12-pin (orange connector)

Autopilot Features: Route Following, Anchor Lock, Smart Anchor Lock, Anchor Lock Jog, Heading Hold, Cruise Control, Gesture Features (manual+, heading hold+, jog+)

Foot Pedal Features:

• Dimensions: 12" L x 9" W x 4 1/2" H
• Wireless Communication: Yes
• Power Installation: 12 V/24 V/36 V wired or battery-powered (2 AA)
• AA Battery Life: 1 full season
• Water Rating: IPX7
• Adjustable Pedal Resistance: Yes

Remote Features:

• Display Size: 1.2" (30.2 mm) diameter
• Display Resolution: 240 x 240 pixels
• Display Type: color, sunlight-visible, transflective memory-in-pixel (MIP)
• Chartplotter User-Programmable Keys: Yes
• Autopilot Feature Control: Yes
• Water Rating: IPX7
• Battery Life: typical use with backlight at low, 43 weeks
• Floats: Yes

¹In compliance with ISO standard 13342
