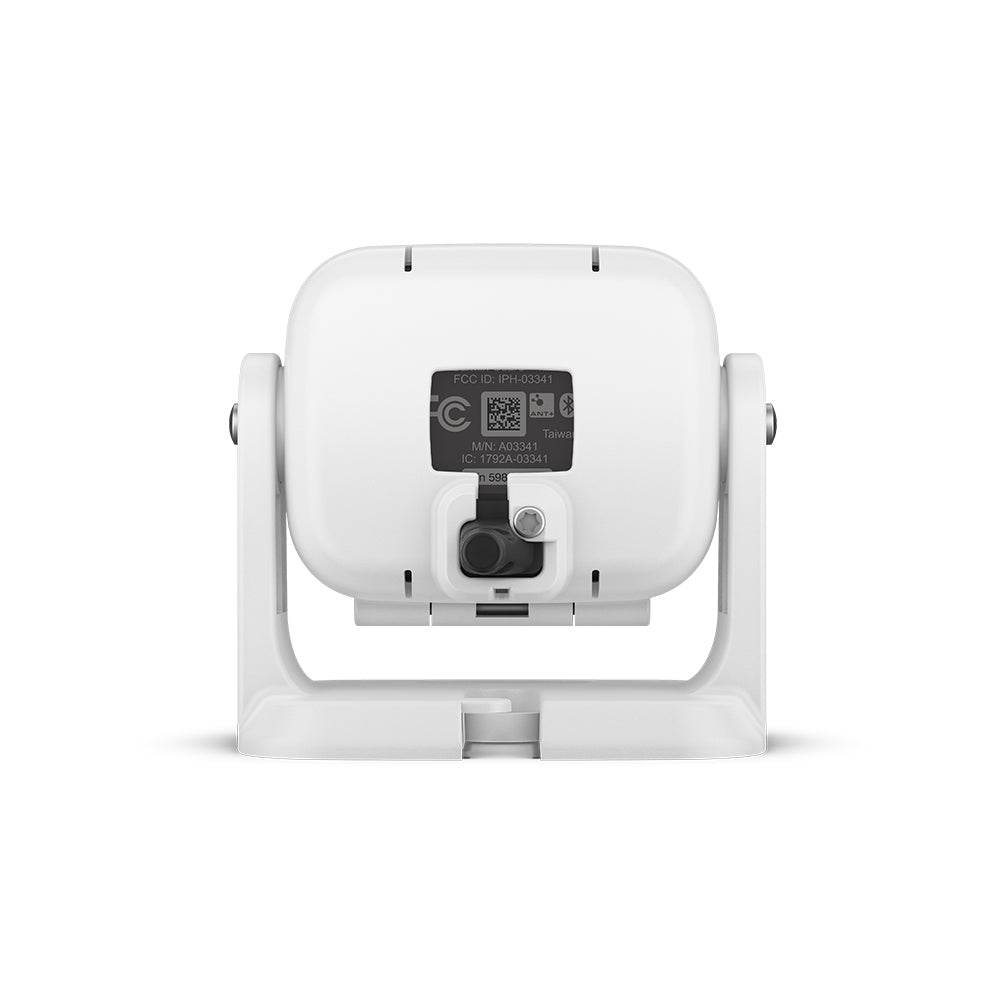

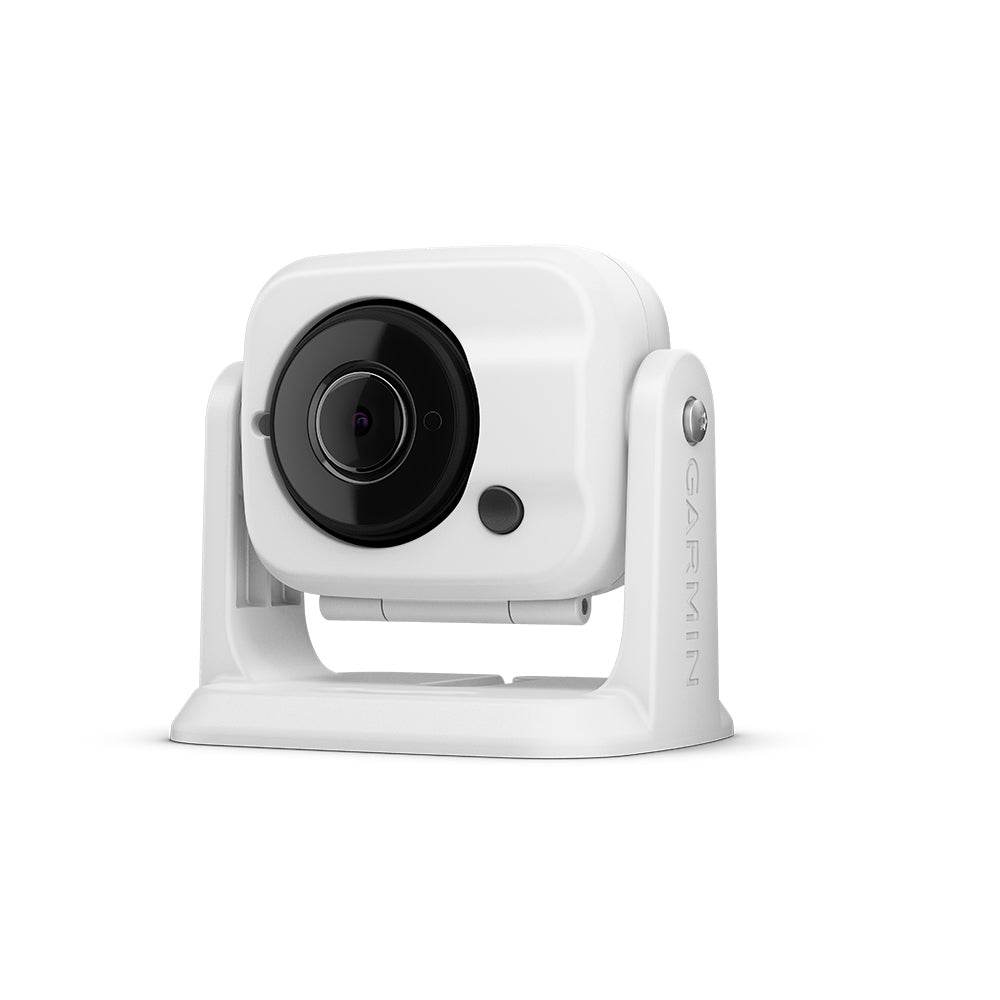

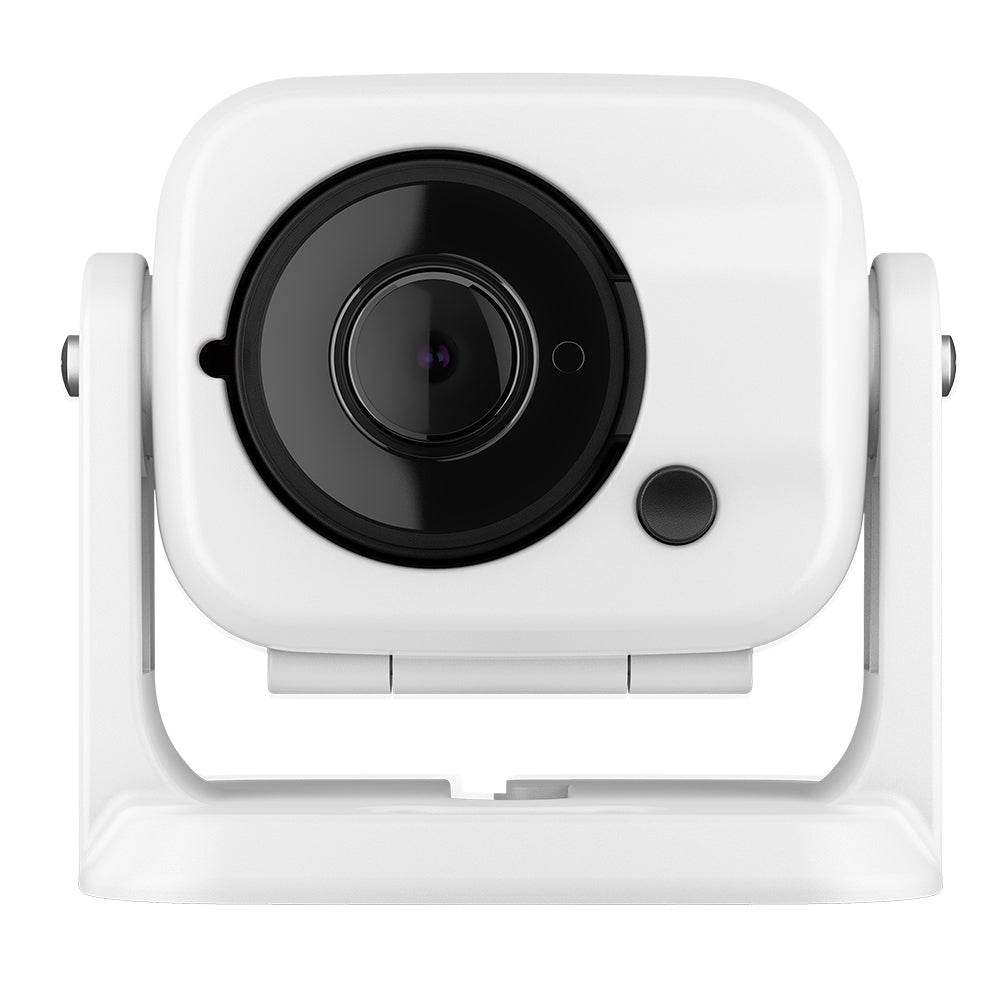

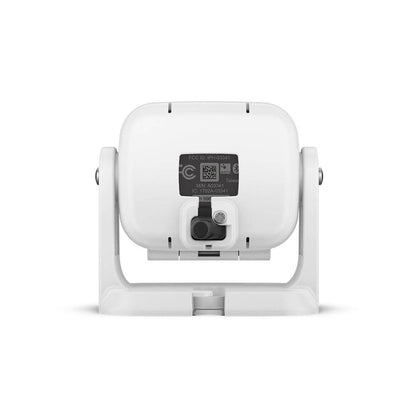

Garmin GC 100 Wireless Camera (010-01865-30)

GC™ 100 Wireless Camera

Wirelessly Stream Video to Your Chartplotter

Features:

• Compact marine camera helps you monitor areas inside and around your boat
• Wirelessly connect to your compatible chartplotter for high-quality images shown right on your display
• Video is available for viewing on any other chartplotter on same network
• Effective in total darkness; perfect for the engine room
• Easy to install and hardwired for power with one-button setup

For added security and practical awareness above and below deck and around your boat, the GC 100 marine camera provides an easy solution. This compact camera wirelessly streams high-quality video to display directly on your compatible chartplotter and any other chartplotter on the same network. You can pair up to 7 cameras with your chartplotter, and view content from up to 4 cameras simultaneously.

Install Nearly Anywhere

GC 100 is effective in total darkness, making it perfect for the engine room. Easy to install and hardwired for power, the camera is ready to use with one-button setup. The durable, compact design of the camera, weatherproof housing and its secure mounting bracket provide flexible options for placement nearly anywhere on your boat.

Specifications:

• Wi-Fi®: Built-in Wi-Fi
• Camera connection: Wi-Fi connection
• Power: Hardwired (10-30 Vdc)
• Images: standard and reverse
• Night vision: Built-in IR LED illumination (940 nm)
• Night vision distance: Up to 3 meters
• Viewing angle: 183° (diag) / 160° (horiz) / 90° (vert)
• Image sensor device: 1/4 in (4.5mm) high-sensitivity CMOS
• Effective pixels: 1280 x 720 (720p HD)
• Scanning system: Rolling shutter
• Resolution: 1280 x 720 (720p HD)
• Video output: H.264 stream over Wi-Fi
• Operating temperature: -20°C to +60°C
• Infared spectrum: 940 nm
• Gain correction: Auto
• White balance: Auto
• Electronic shutter: Auto
• Back light compensation: Auto
• Day/night operation: RGB mode full-time
• Waterproof rating: IPX7

What's In The Box?

• GC 100 wireless camera
• Protective case
• Screw-down mount with mounting hardware
• 10 meter IPX7 power cable
• Manual

• Reverse Image: Yes
