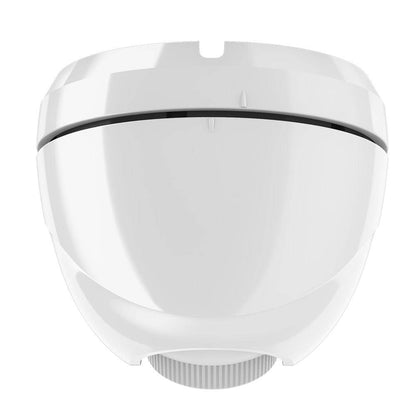

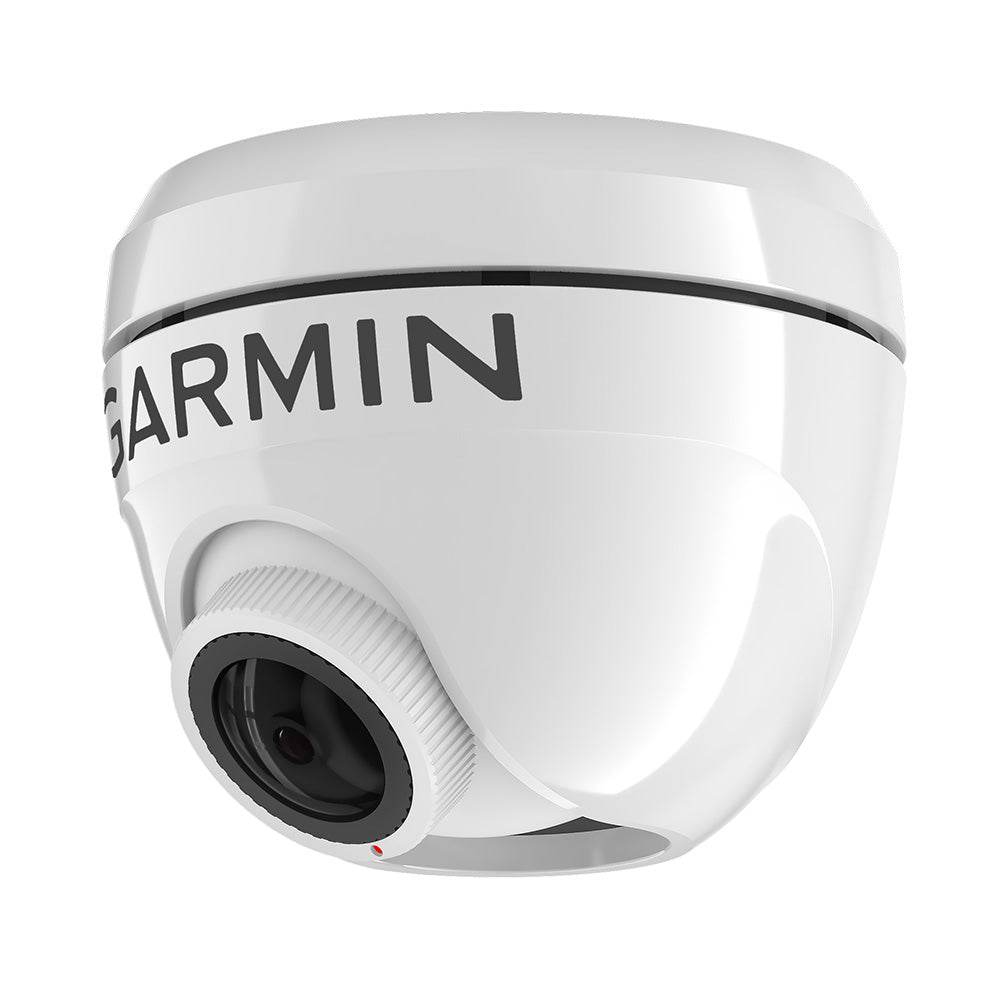

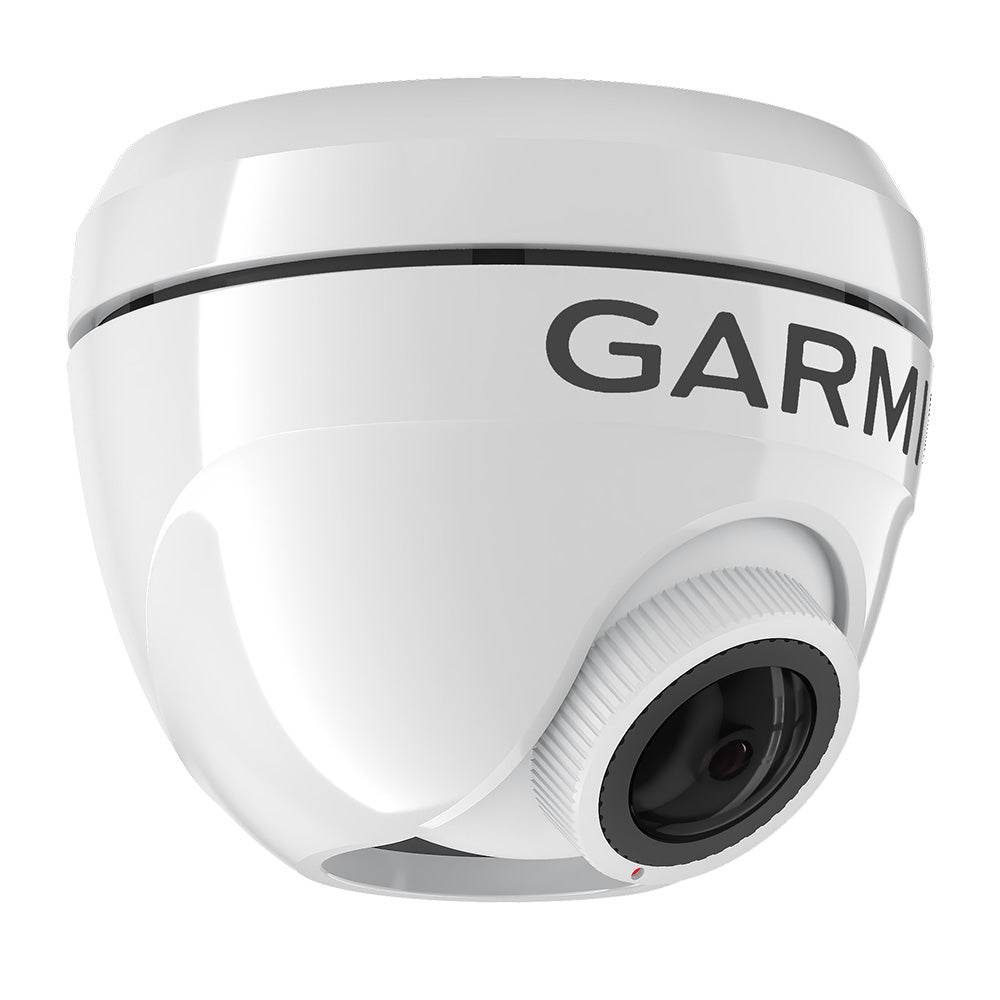

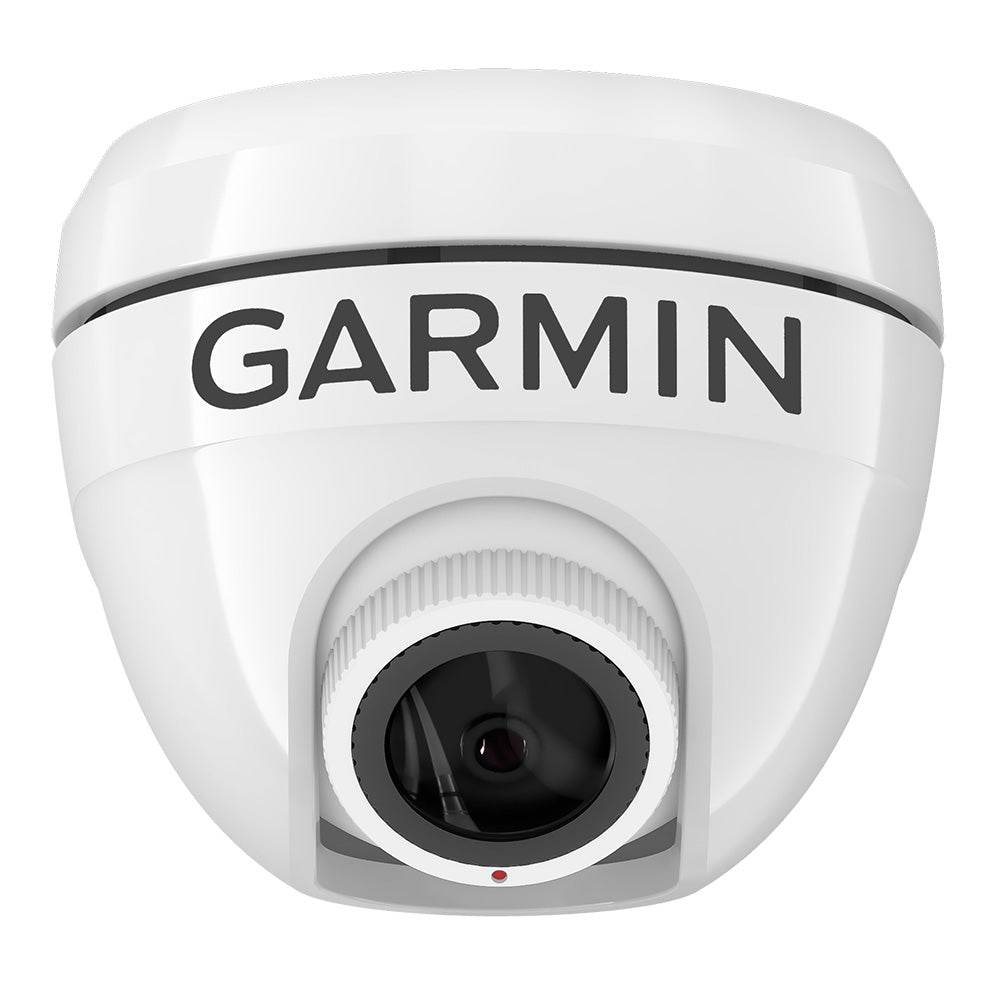

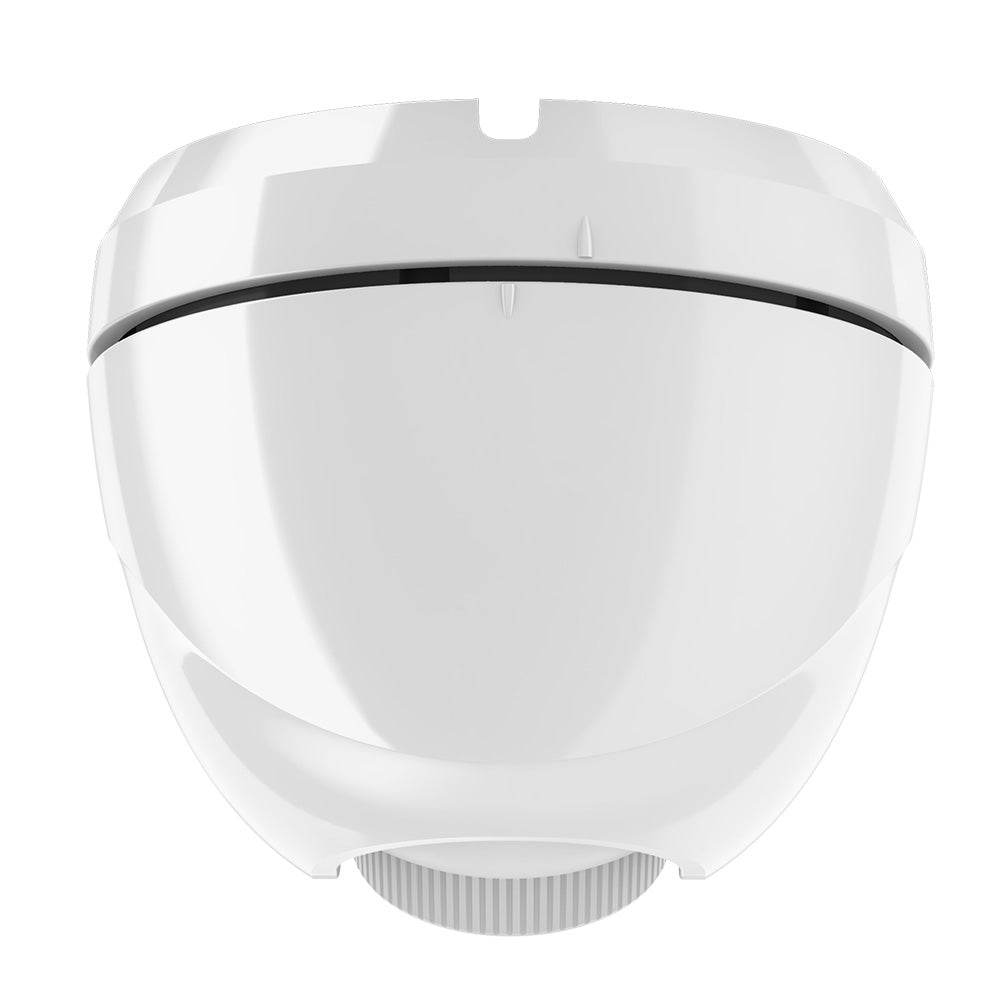

Garmin GC 245 Surface Mount Marine Camera (White)

GC™ 245 Surface Mount Marine Camera - White (010-02892-10)

High-Definition Marine Camera for Safer Docking and Navigation

Bring vision and confidence to your helm with the Garmin GC 245 Surface Mount Camera (0100289210). This advanced 1080p marine camera provides clear, high-resolution video to help you maneuver safely in tight quarters, monitor activity on deck, or keep an eye on what’s happening around your vessel. Designed for seamless integration with the Garmin Marine Network or Garmin BlueNet™, the GC 245 gives you powerful visibility and awareness right where you need it most.

Key Features & Benefits

• Full HD 1080p Resolution – Enjoy crisp, detailed video output for enhanced situational awareness day or night (available on select Garmin chartplotters).
• Custom Guidance Lines – Set up personalized guidance lines on your compatible Garmin display for confident docking and obstacle avoidance.
• Distance Markers – Use distance markers calibrated specifically for your vessel to accurately gauge how far you are from objects and docks.
• Multiple Viewing Modes – Choose between FishEye, Standard, or BirdsEye views¹ to get the best perspective for your current conditions.
• Versatile Mounting Options – Install the camera dome-up or dome-down for flexible placement and a clean, professional finish.
• Multiple Camera Feeds – View up to four live camera feeds simultaneously on your compatible Garmin MFD or networked chartplotters.
• Digital Pan & Zoom – Focus in on key areas or adjust your perspective for maximum visibility.
• Rugged, Marine-Grade Build – Built to withstand the harsh marine environment with an IPX7 water rating and durable housing.
• Plug-and-Play Installation – Simple setup through your Garmin network for fast integration and reliable performance.

Specifications

• Unit Dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Power: 12V/24V DC (Hardwired)
• Operating Current: 300 mA at 12VDC / 200 mA at 24VDC
• Power Consumption: 4.5 W
• Connection: IP connection to Garmin chartplotter
• Video Resolution: 1920 x 1080 pixels (progressive scan)
• Video Output: H.264 over GMN and BlueNet™
• Viewing Angle: 160° Horizontal / 90° Vertical
• Selectable Views: FishEye, Standard, BirdsEye (OEM calibrated)
• Augmented Reality Features: Distance markers (OEM calibrated), Guidance lines (user setup)
• Water Rating: IPX7
• Operating Temperature: -20°C to +60°C
• Day/Night Operation: RGB mode full-time

In the Box

• GC 245 Surface Mount Camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

¹ Professional calibration required for distance markers and BirdsEye view.
² 1080p resolution available on select chartplotters only.
