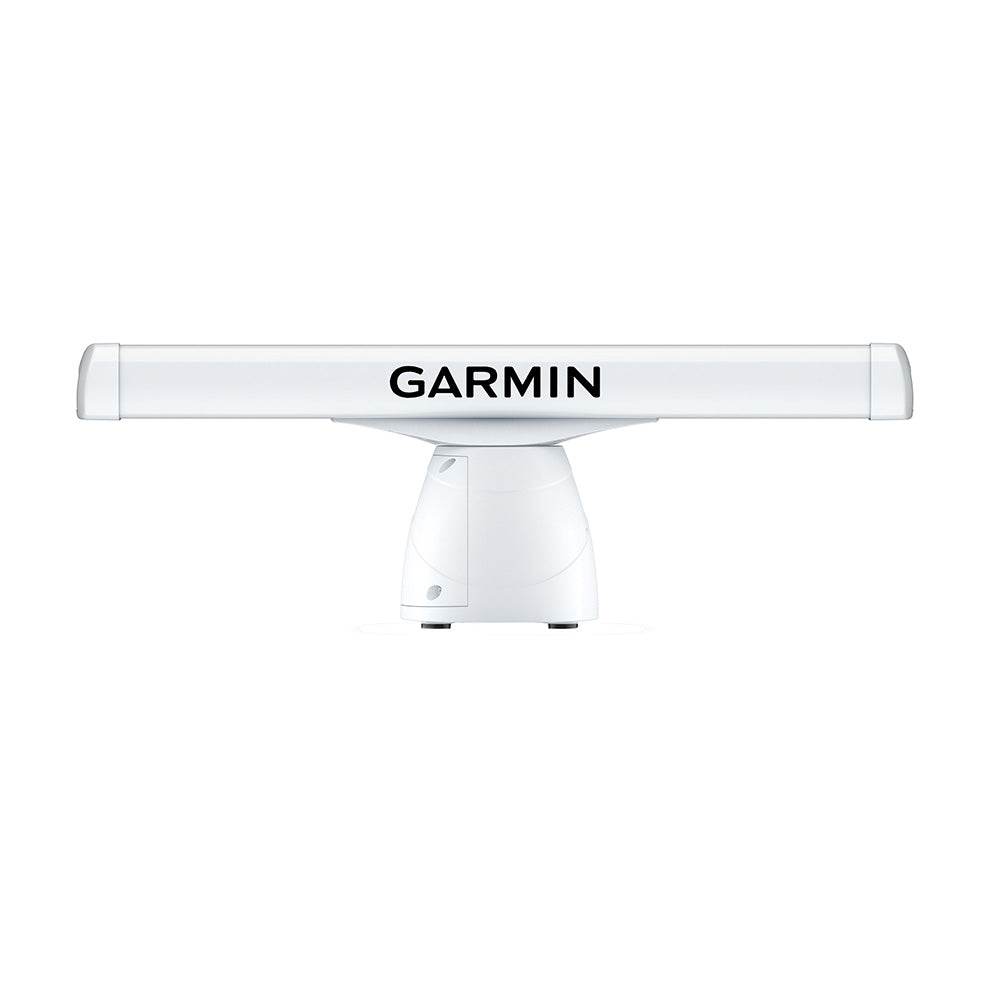

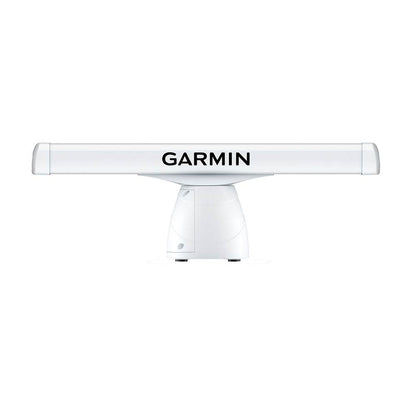

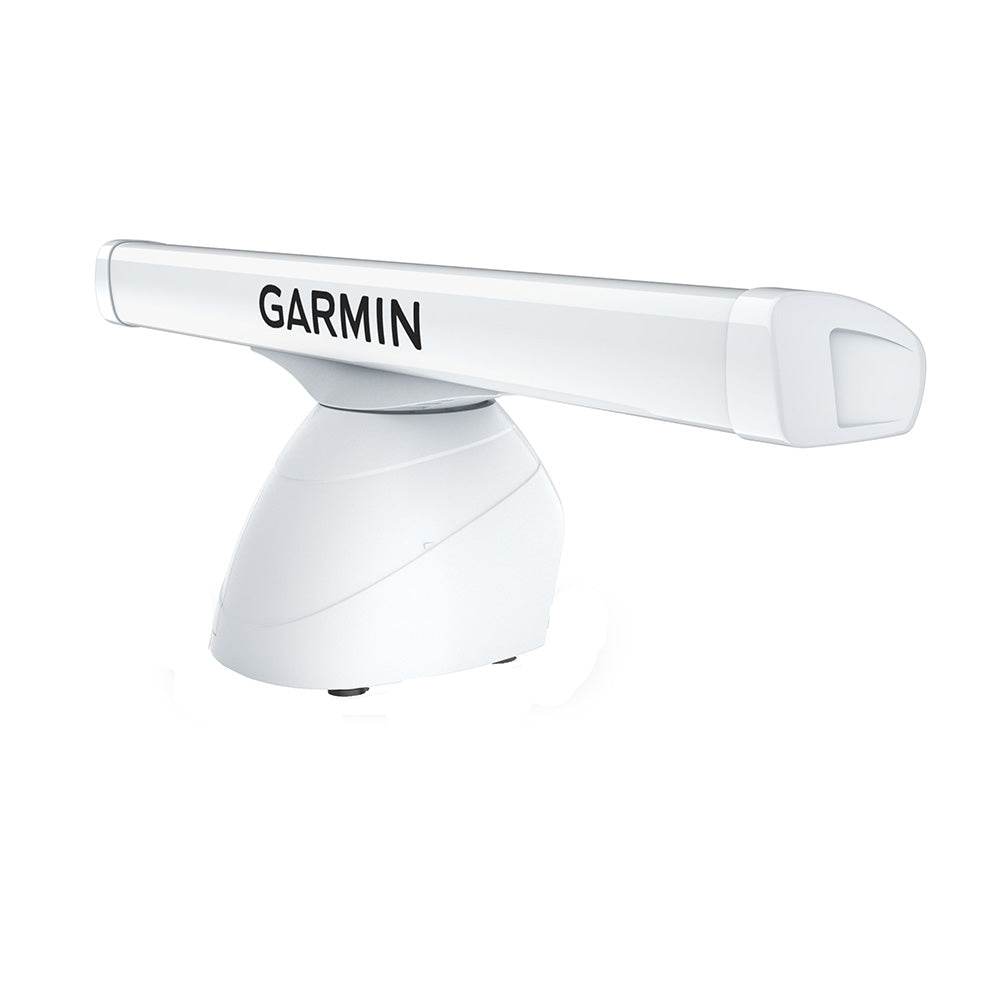

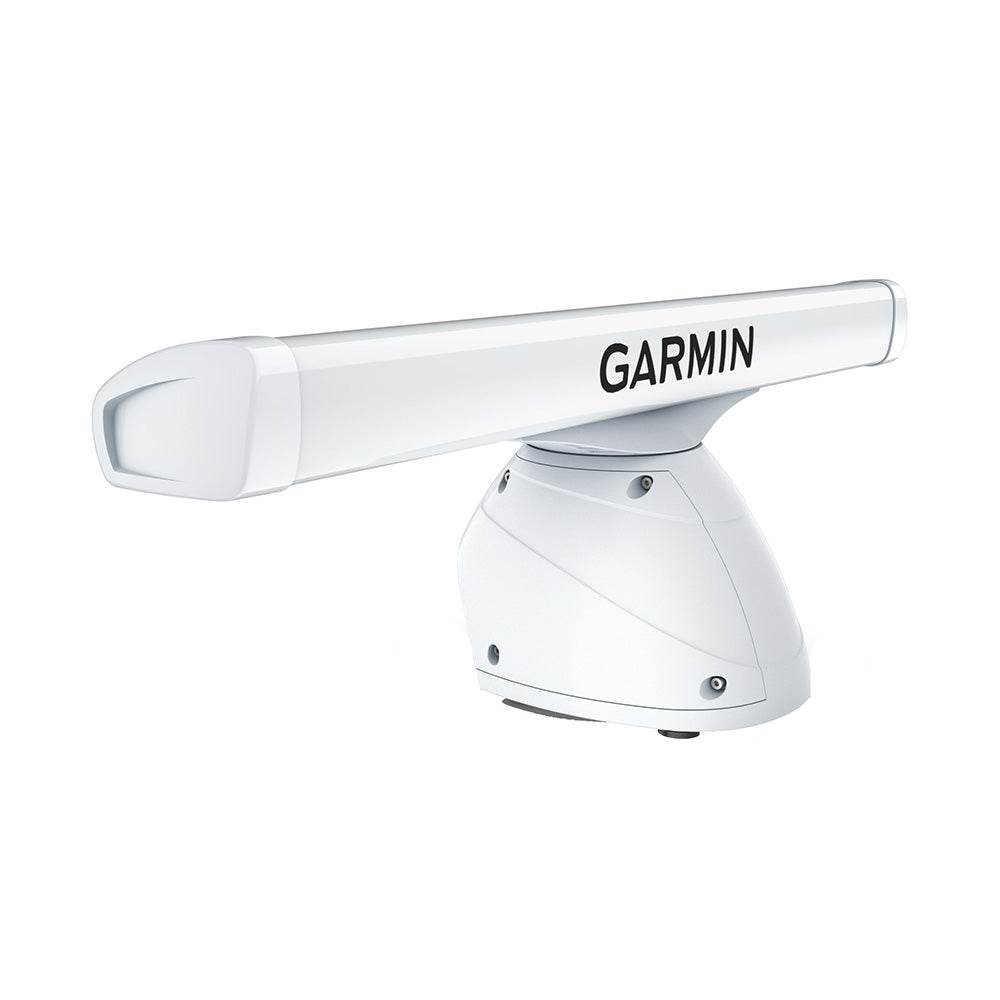

Garmin GMR 434 xHD3 4' Open Array Radar and Pedestal (4kW) (White)

Garmin GMR 434 xHD3 4' Open Array Radar and Pedestal - 4kW (K10-00012-24)

Dominate offshore navigation and fish-finding with the Garmin GMR™ 434 xHD3 4' Open Array Radar & Pedestal (4 kW)—a powerhouse marine radar system built for precision, safety, and situational awareness. Designed for serious mariners who demand top-tier performance, this rugged open-array radar delivers sharp target definition and unmatched capability in challenging marine environments.

• Scan with the full magnetron power of Garmin’s open-array radar platform, combining high-definition imaging and advanced radar tech for superior detection of weather cells, obstacles, and vessel traffic.
• Offers a maximum range of up to 72 nautical miles, making it ideal for both offshore cruising and serious fishing expeditions.

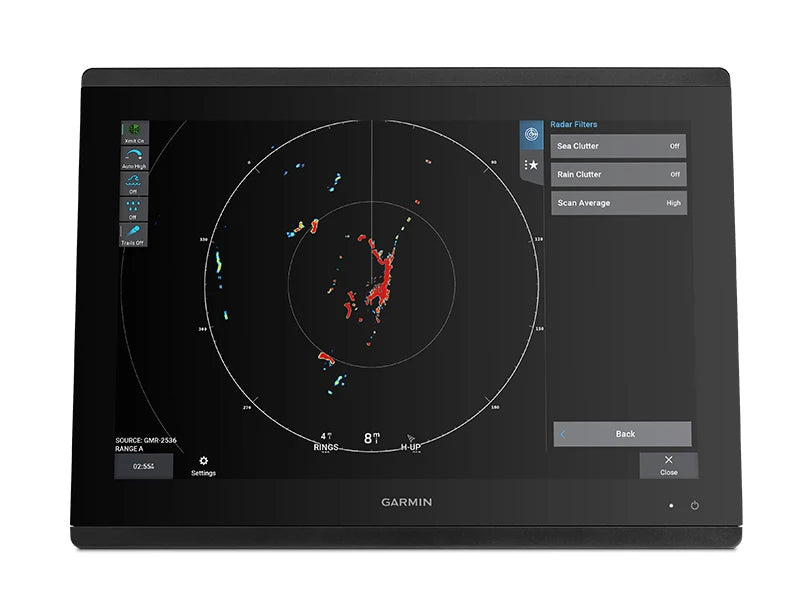

• Scan Averaging Technology filters sea clutter and interference to enhance consistent target returns—first-of-its-kind in a Garmin magnetron radar.

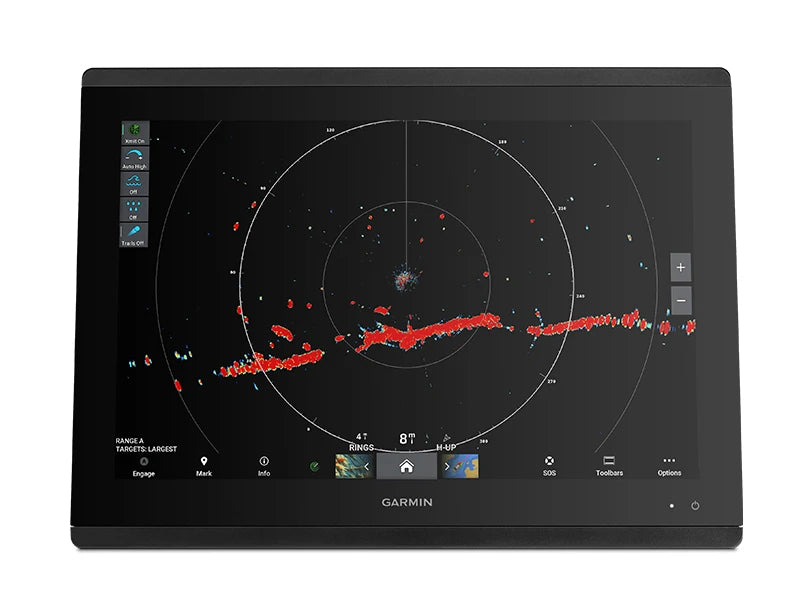

• Angular Target-Size Adjustment and pulse-expansion processing refine the shape and clarity of targets across all ranges for easier interpretation.

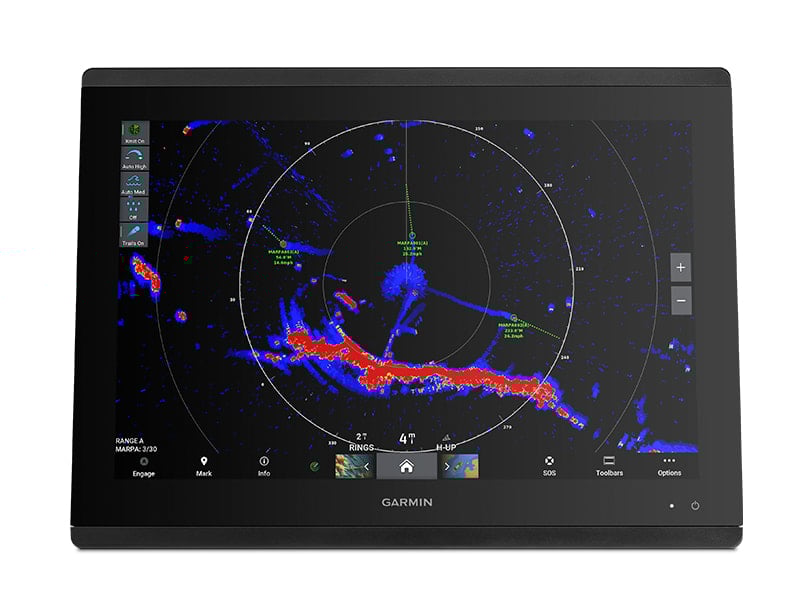

• True Echo Trails display a historical track of moving contacts, eliminating relative motion effects to help you spot collision threats faster.

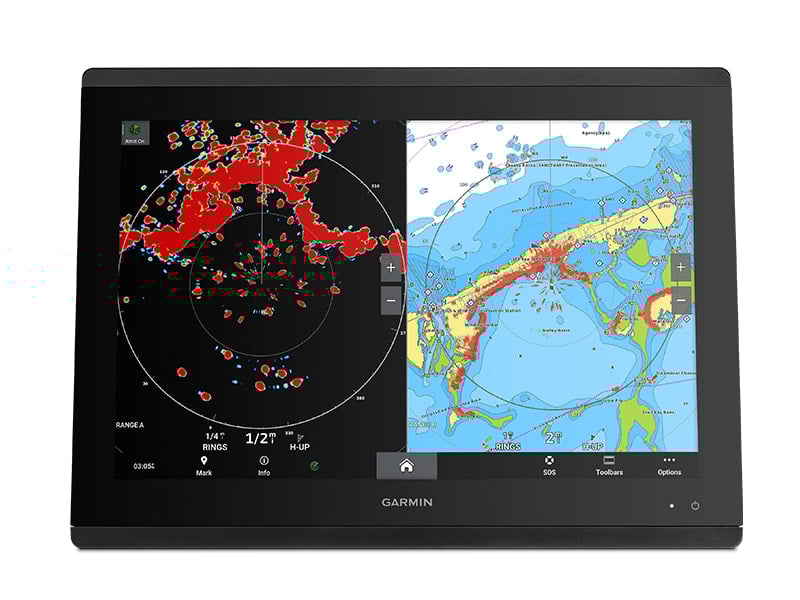

• Supports Dual-Range / Split-Screen Display: view separate short and long-range sectors side by side on compatible chartplotters, and overlay one or both on your map view.

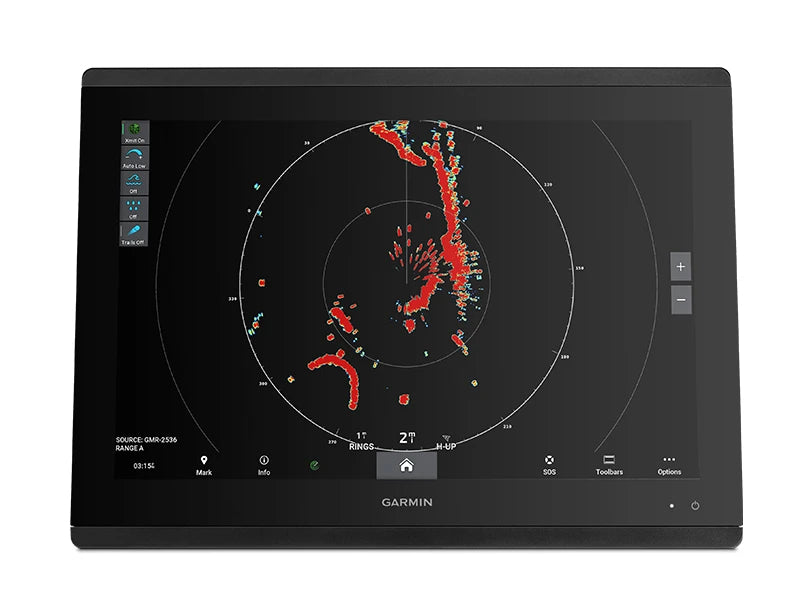

• Dynamic Auto Gain continuously optimizes gain settings for harbor, near-shore, and open water, with built-in Dynamic Sea Filter adapting to calm or rough seas.
• Radar Overlay capability lets you show radar returns directly on your chart plotter’s map screen (with compatible sensors and chartplotter).

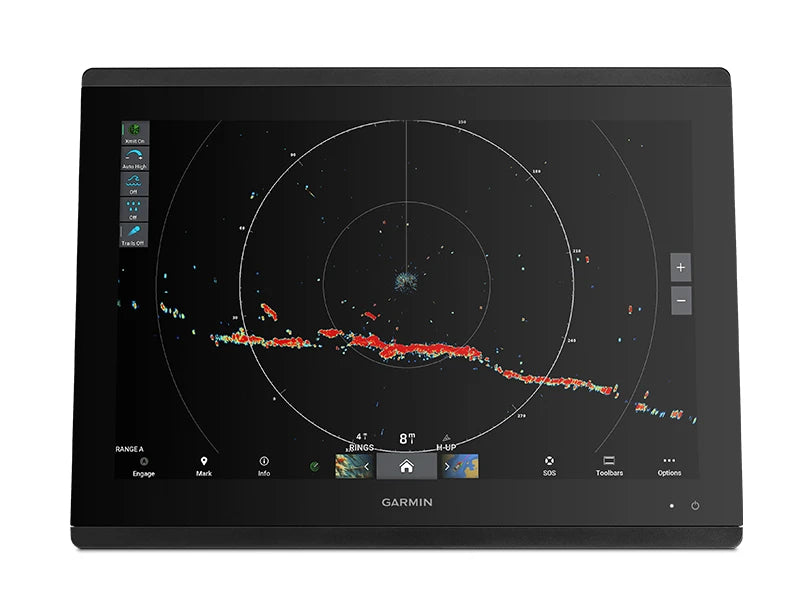

• High-Resolution Radar benefits from a narrow 1.8° horizontal beamwidth and high antenna gain, enabling detection of small targets at greater distances.
• Dual-Radar Support allows redundancy and multiple display units to pull data from distinct radars for extra safety.
• Auto Bird Gain helps you locate flocks of birds (and associated baitfish) on the sea surface—critical for targeting fishing zones.
• MARPA Target Tracking supports tracking of up to 30 targets (with requisite heading/heading sensor setup), aiding collision avoidance and tactical maneuvers.
• Guard Zone & Range/Bearing Cues let you define safety zones, get alarms on zone intrusion, and rapidly measure range or bearings to vessels or land features.

What’s Included

• GMR™ xHD3 4 kW open-array radar with 4′ antenna
• Pedestal
• Power cable (15 m / 49.21 ft)
• BlueNet™ network cable (15 m)
• BlueNet™ Network → RJ45 adapter cable
• Mounting hardware kit, template, and installation instructions

Dimensions & Weight

• 4′ array: 1325 × 122 × 170 mm (52.2″ × 4.8″ × 6.7″)
• Pedestal: 520 × 328 × 314 mm (20.5″ × 12.9″ × 12.4″)
• Combined weight: 27.6 kg
• Waterproof rating: IPX6

Specifications & Electrical Data

• Maximum wind rating: 80 knots (upgradeable to 100 knots via optional voltage converter)
• Antenna length: 48″ / 122 cm
• Rotation speeds: 24 RPM & 48 RPM
• Beamwidth: 1.8° horizontal × 23° vertical
• Radar type: Open-array magnetron
• Range: 72 nautical miles (max) / 20 meters (min)
• Power input: 11–32 V DC
• Power consumption:
   • Standby: 18 W
   • Transmitting (normal mode): 55 W
• Transmit power: 4 kW
