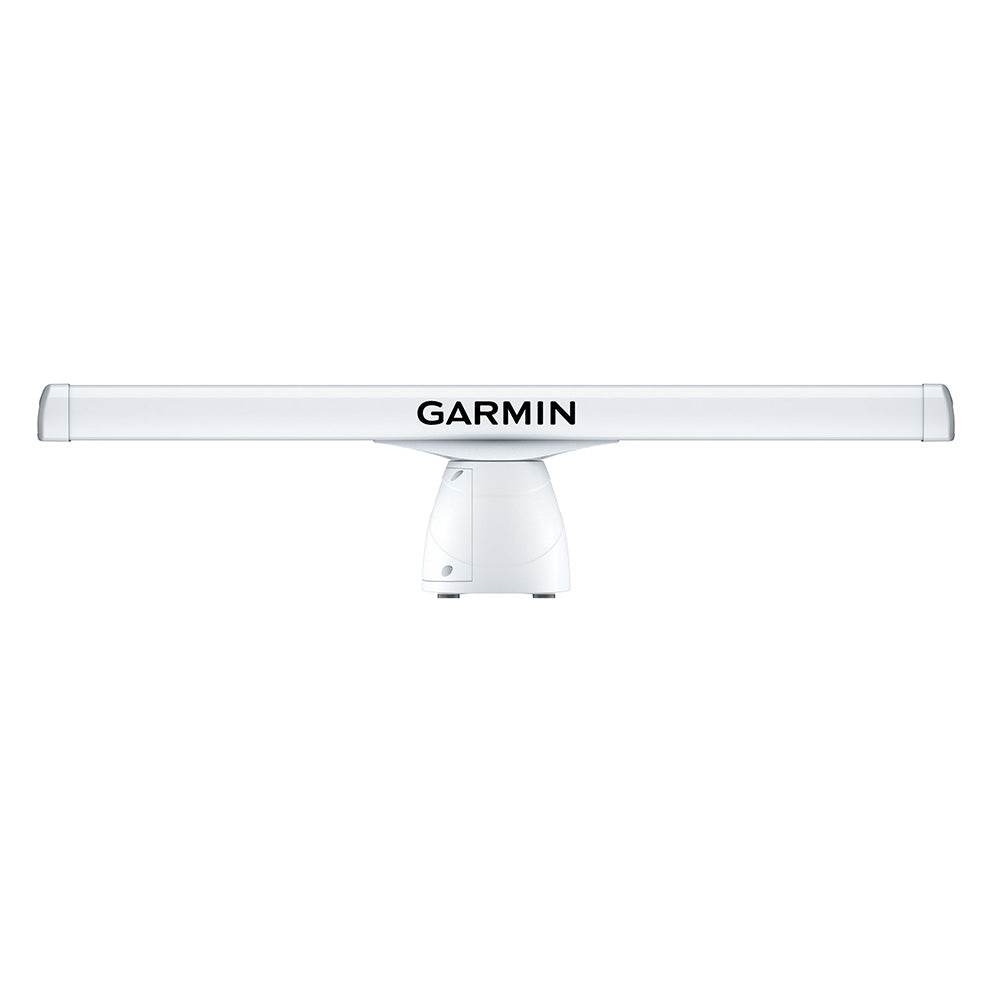

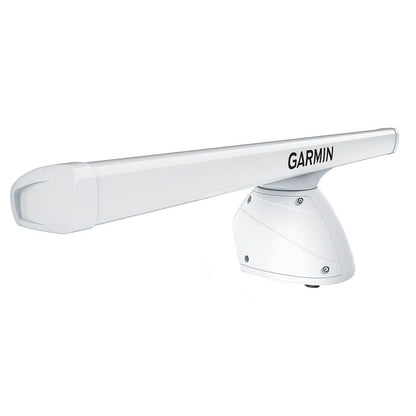

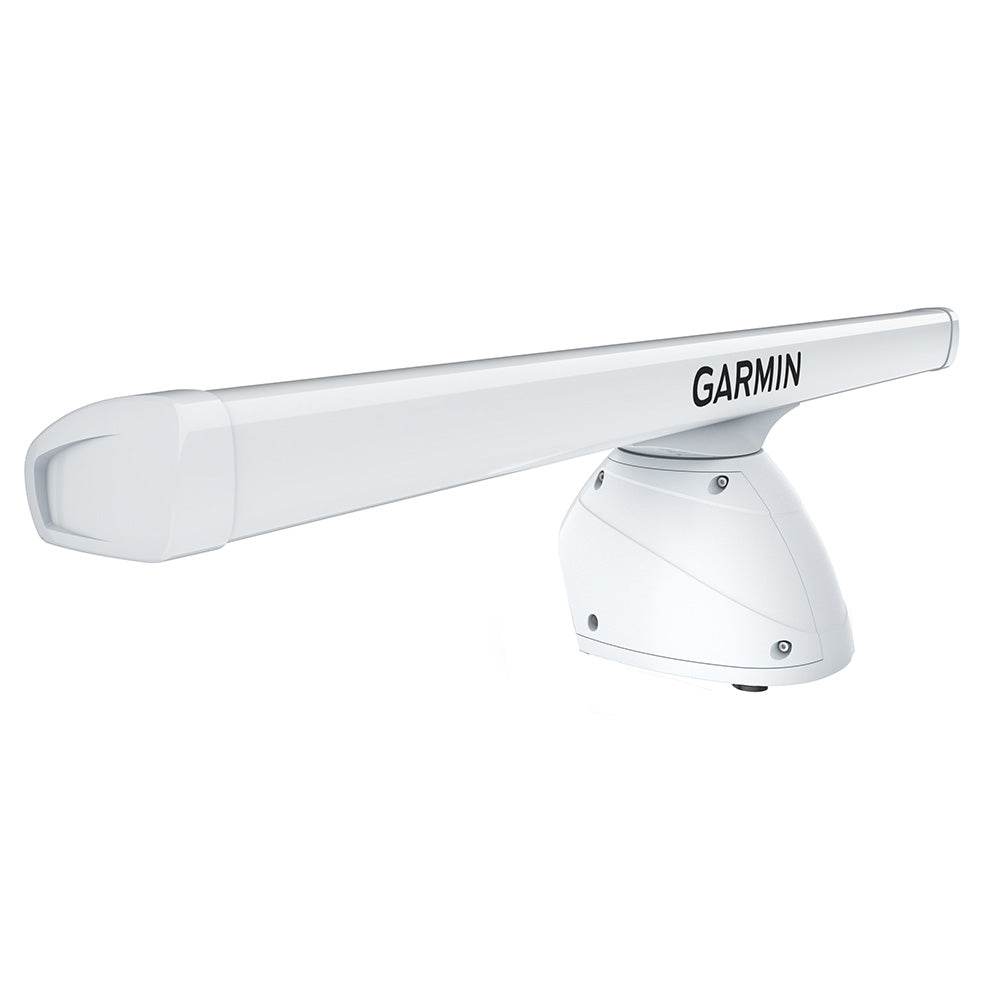

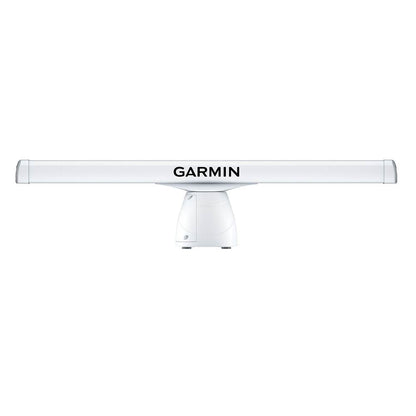

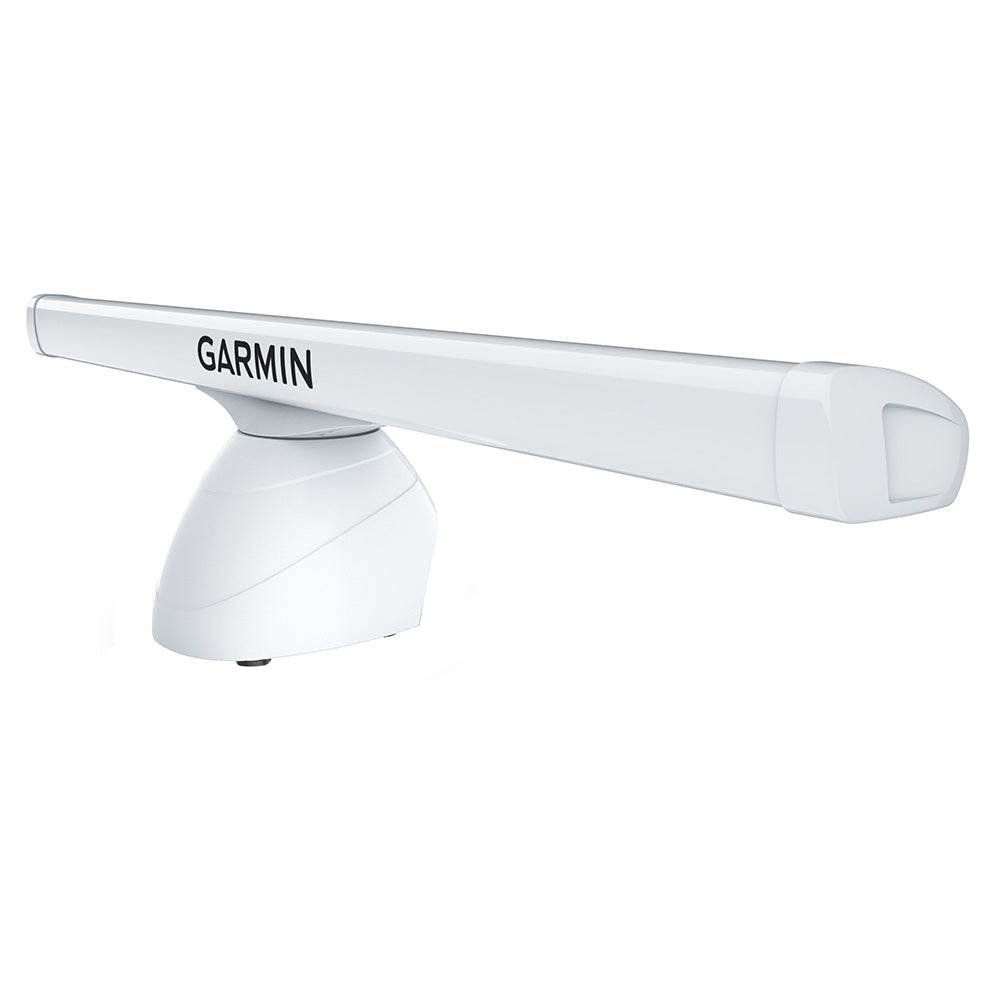

Garmin GMR 436 xHD3 6' Open Array Radar and Pedestal (4 kW) (White)

GMR™ 436 xHD3 6′ Open-Array Radar & Pedestal – 4 kW (K10-00012-25)

Unlock full offshore visibility with Garmin’s flagship 6-foot open-array radar engineered for performance, precision, and reliability.

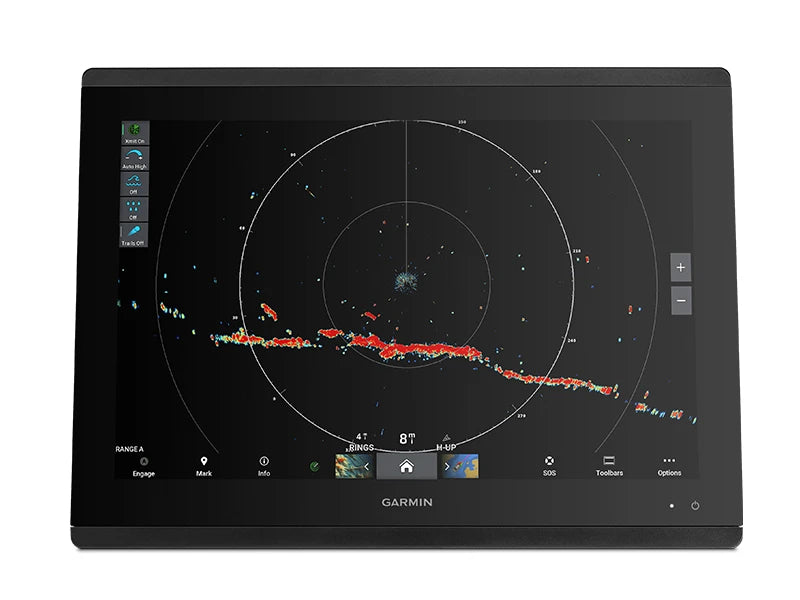

• Scan with magnetron-powered high-definition radar imaging, combining raw detection power with Garmin’s advanced platform intelligence
• Delivers detection of weather systems, obstacles, vessels, and marine hazards with clarity for cruising, offshore fishing, and ocean passage
• Up to 72 nautical mile range — far-reaching radar coverage for long-range threat spotting and navigation safety

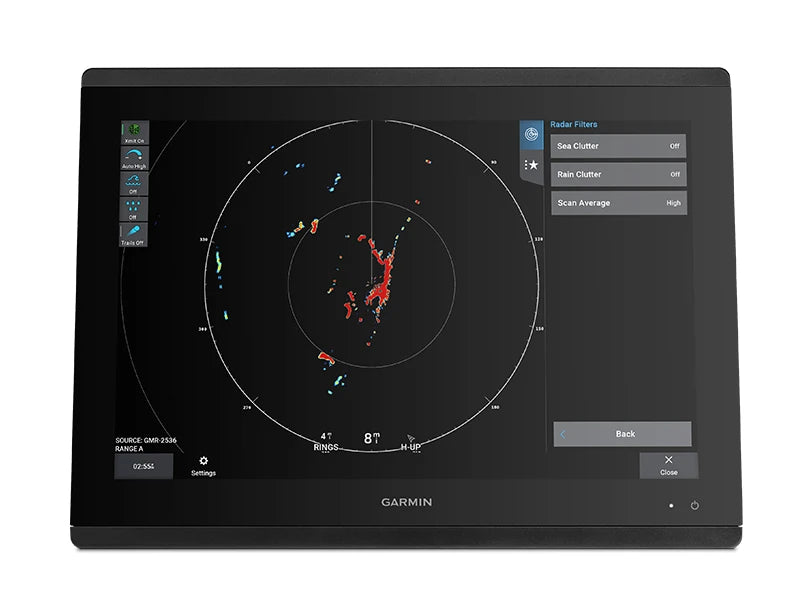

• Scan Averaging Technology filters sea clutter and suppresses interference, producing cleaner echo returns and stable target tracking

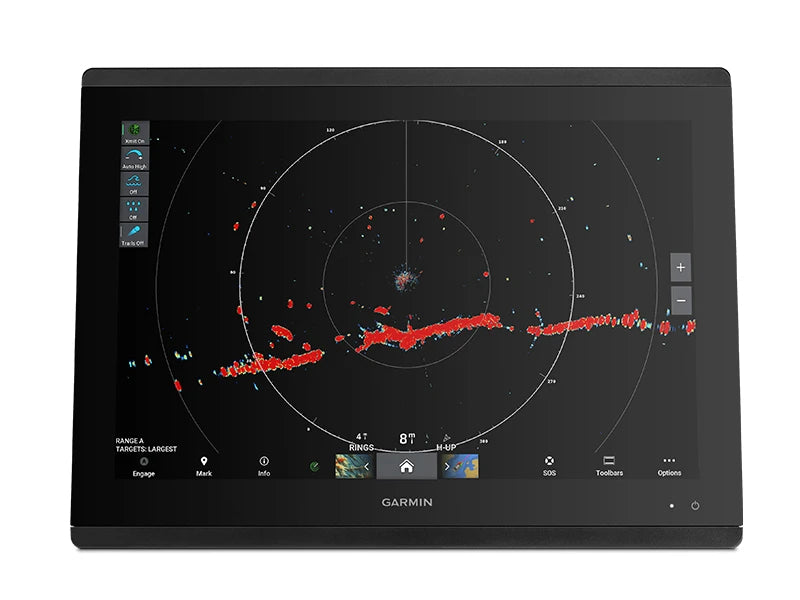

• Improved Target-Size Processing & Angular Target-Size Adjustment — pulse expansion and angular scaling refine how objects appear on-screen at every zoom level

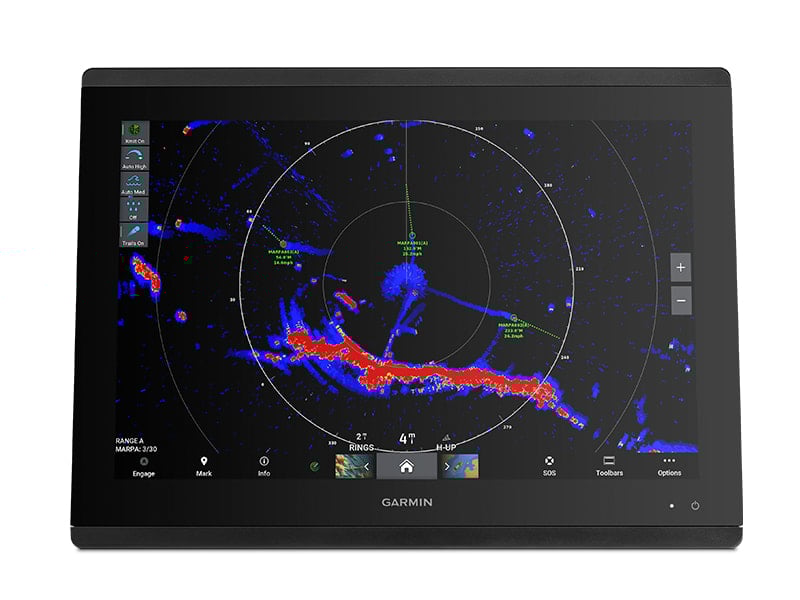

• True Echo Trails — historical motion trails remove relative motion bias, helping you identify vessel trajectories and collision threats quickly

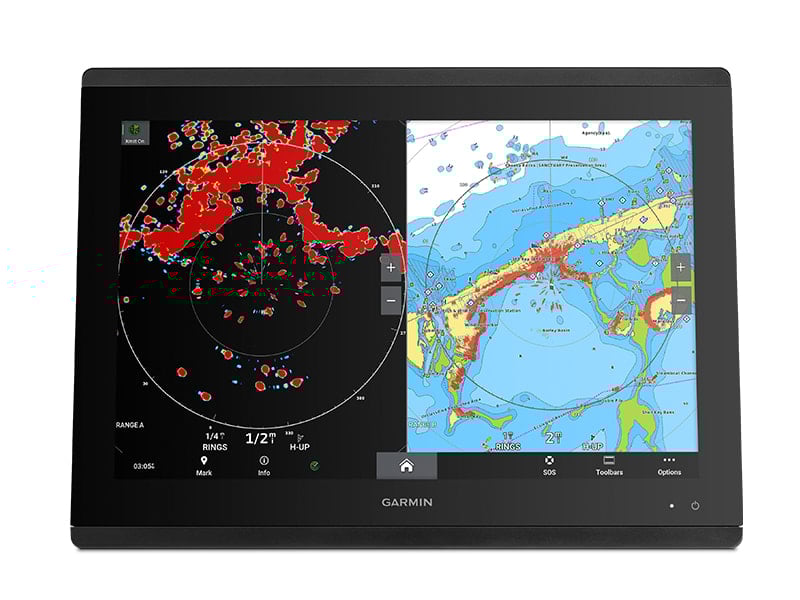

• Split-Screen Dual-Range Display / Overlay Mode — view close-in and long-range echoes side by side or overlaid on the chart, with independent range settings

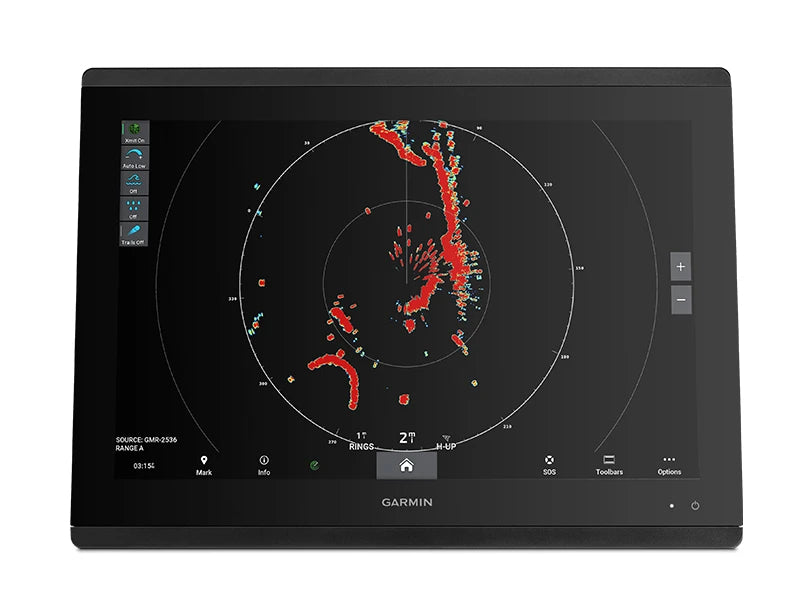

• Dynamic Auto Gain & Dynamic Sea Filter — adapt gain and clutter suppression automatically for harbor, nearshore, and open-sea conditions
• Auto Bird Gain — detect flocks floating on the water surface, useful for locating baitfish zones
• MARPA Target Tracking (30 targets) — actively track multiple moving targets (requires external heading sensor)
• Guard Zone & Alarm — define safety perimeters; receive audible/visual alerts when objects penetrate the zone
• Range & Bearing Cues — electronic bearing lines and variable range rings provide interactive measurement tools
• Supports dual radar redundancy — separate display units can pull data from independent radars
• Commercial-grade 100-knot wind rating (80 knots standard, upgradable) for rugged offshore performance
• Quiet open-array drive motor with selectable rotational speeds (24 and 48 RPM)

Includes:

• GMR xHD3 4 kW open-array radar with 6′ antenna
• Pedestal mount
• 15 m (49.2 ft) power cable
• 15 m BlueNet™ network cable
• BlueNet™ Network → RJ45 adapter cable
• Mounting hardware kit + template
• Comprehensive installation instructions

Dimensions & Weight:

• Antenna (6′ array): 1938 × 122 × 170 mm / 76.5″ × 4.8″ × 6.7″
• Pedestal: 520 × 328 × 314 mm / 20.5″ × 12.9″ × 12.4″
• Combined weight: 29.6 kg

Electrical & Performance Specs:

• Radar Type: Open-array magnetron
• Max Range: 72 nm | Min Range: 20 m
• Beam Width: 1.1° horizontal / 23° vertical
• Transmit Power: 4 kW
• Power Input: 11–32 V DC
• Power Consumption (Standby): 18 W
• Typical Power Use (Transmitting): 55 W
• Rotation Speed: 24 / 48 RPM
• Waterproof Rating: IPX6
• Max Wind Load: 80 knots standard, upgradable to 100 knots with optional converter

Why Choose the GMR 436 xHD3 Radar?

With its unmatched combination of long-range detection, clutter suppression, dual-range overlay, and target differentiation, this radar is built for serious offshore mariners.

Whether navigating tight shoals, patrolling far offshore, or identifying distant storm cells, the Garmin GMR 436 xHD3 gives you the radar clarity, target insight, and redundancy needed to sail smarter and safer.
