Garmin GPSMAP 1222xsv Keyed Networking Combo (No Transducer)

GPSMAP® 1222xsv Keyed Networking Combo - No Transducer (010-01741-02)

Experience the ultimate all-in-one marine navigation and sonar solution with the Garmin GPSMAP 1222xsv Keyed Networking Combo (no transducer). Designed for serious anglers, cruisers, and performance sailors, this 12″ keyed chartplotter/sonar combo merges powerful built-in features with full expandability.

• 12″ high-resolution display + keyed interface: vivid WXGA 1280×800 color display (12.1″ diagonal) with wide viewing angles, combined with a tactile keypad, user-programmable keys, and a multifunction control knob for precise, no-lag navigation.

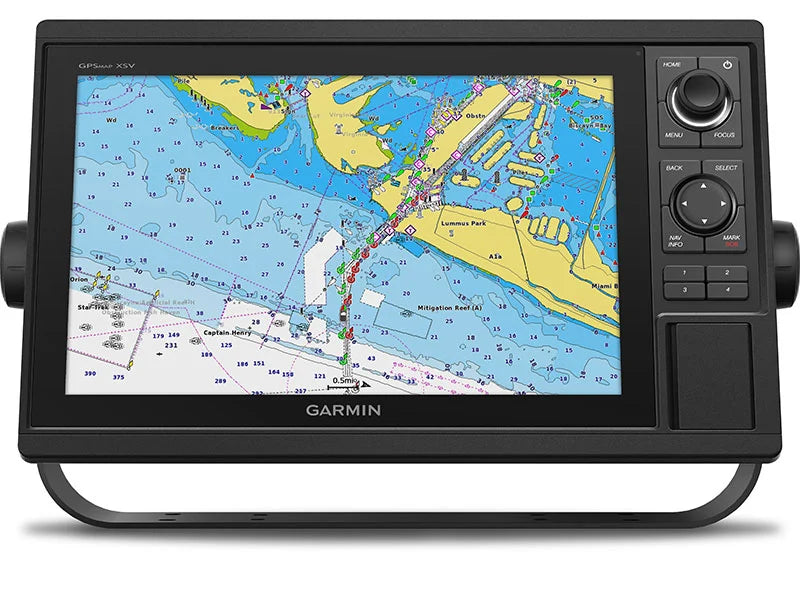

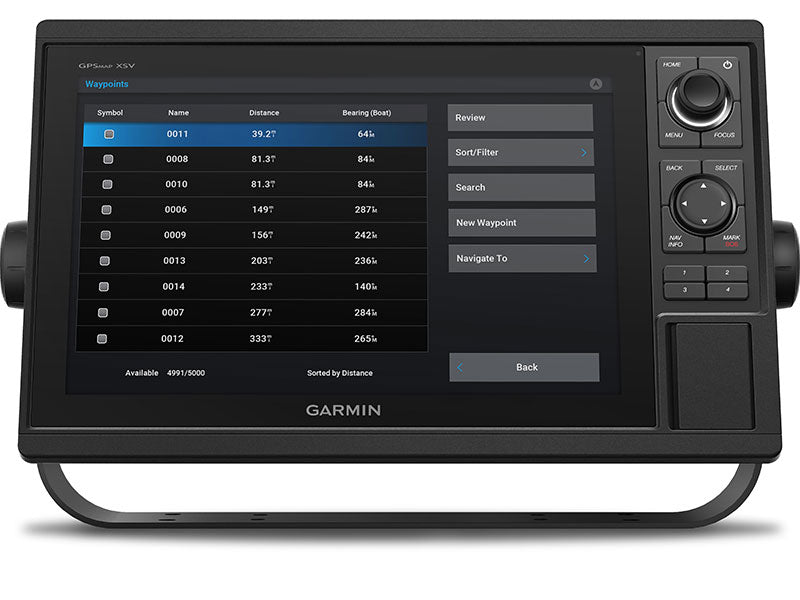

• 10 Hz GPS + GLONASS position refresh: internal high-sensitivity receiver updates your heading and position ten times per second for smooth, accurate navigation and waypoint tracking (support for up to 5,000 waypoints).

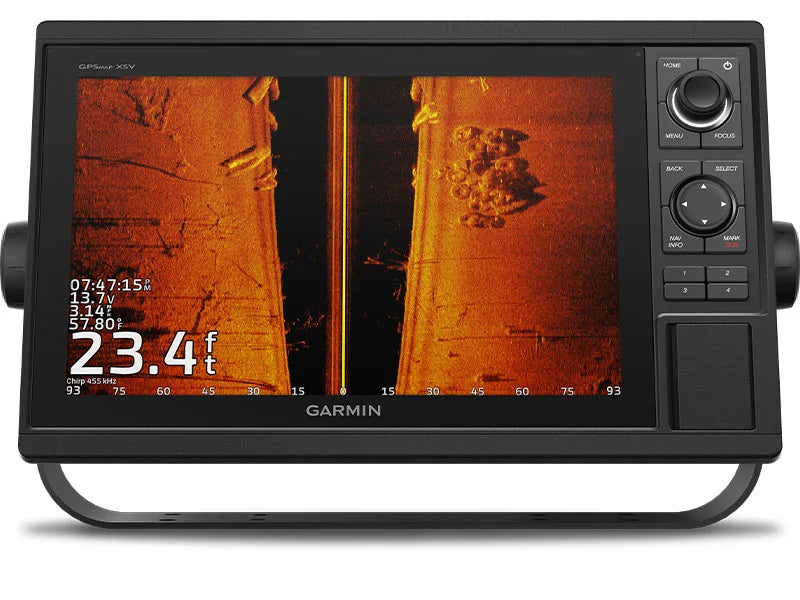

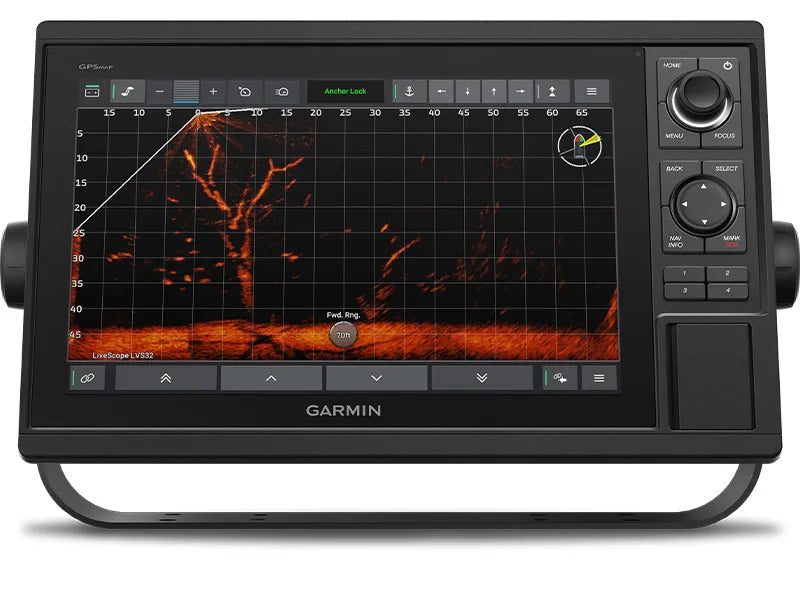

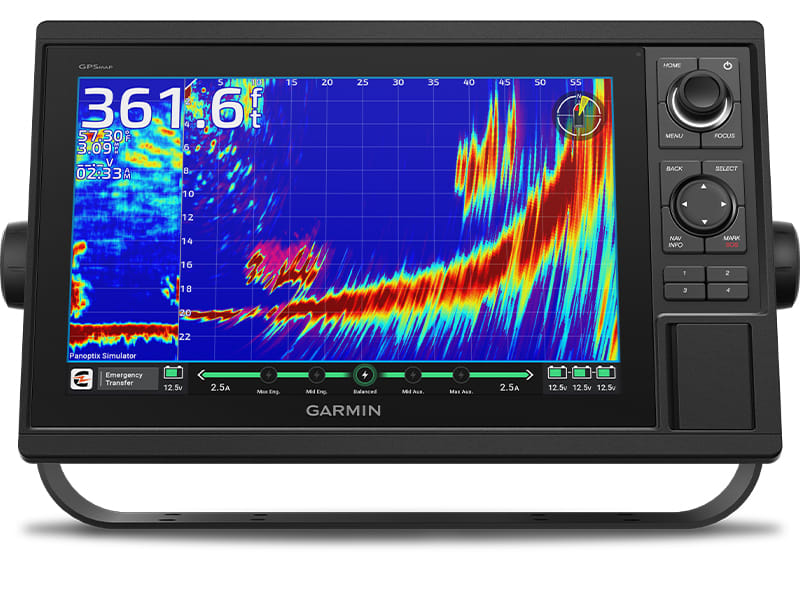

• Built-in sonar & scanning support: includes single-channel CHIRP broadband sonar, CHIRP ClearVü, and CHIRP SideVü scanning sonar. Supports Panoptix all-seeing sonar, LiveScope, and premium Garmin sonar modules (all transducers sold separately) to extend your underwater visibility.

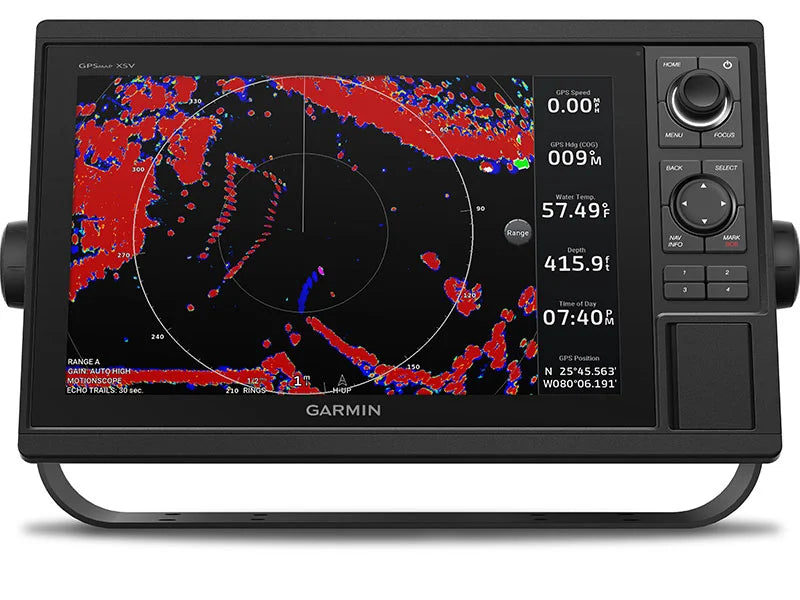

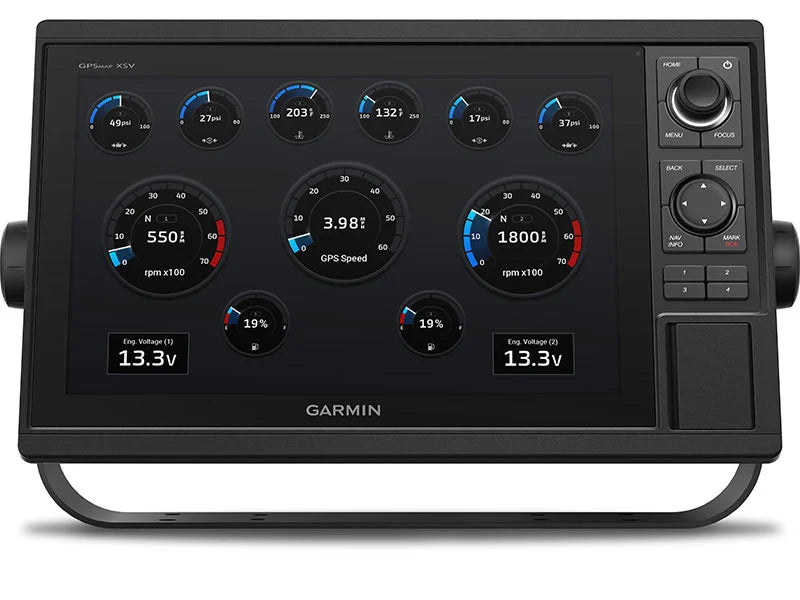

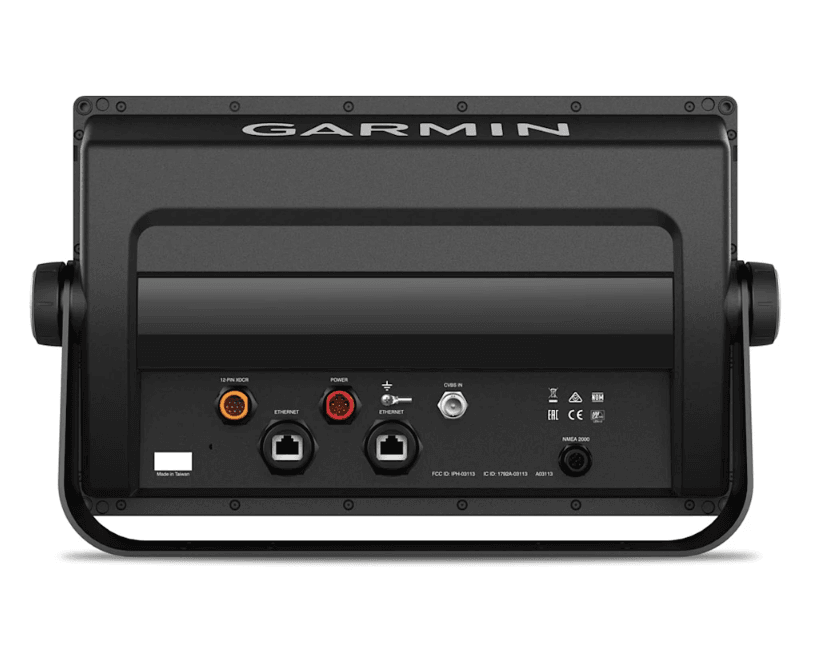

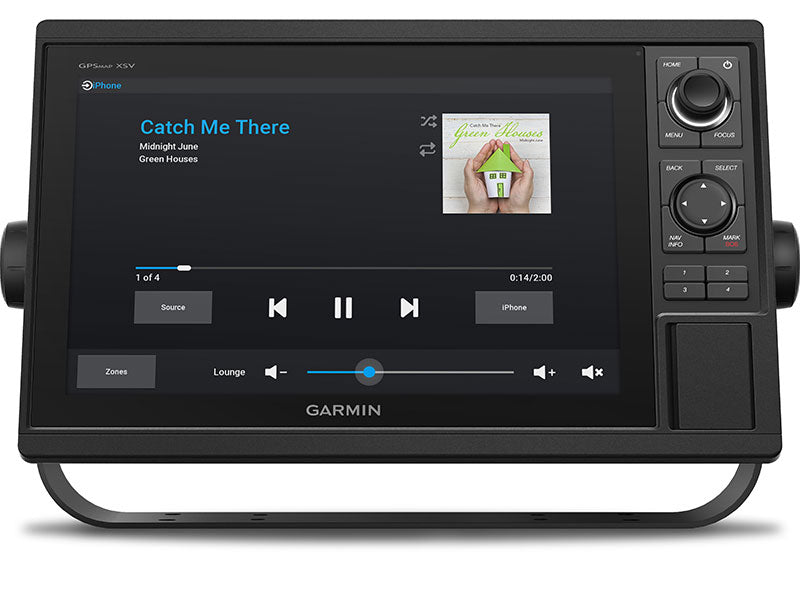

• Fully network capable: connect via Garmin Marine Network, NMEA 2000®, and NMEA 0183 to share sonar, maps, radar, user data, IP camera video, AIS, autopilot, digital switching and more across multiple Garmin units.

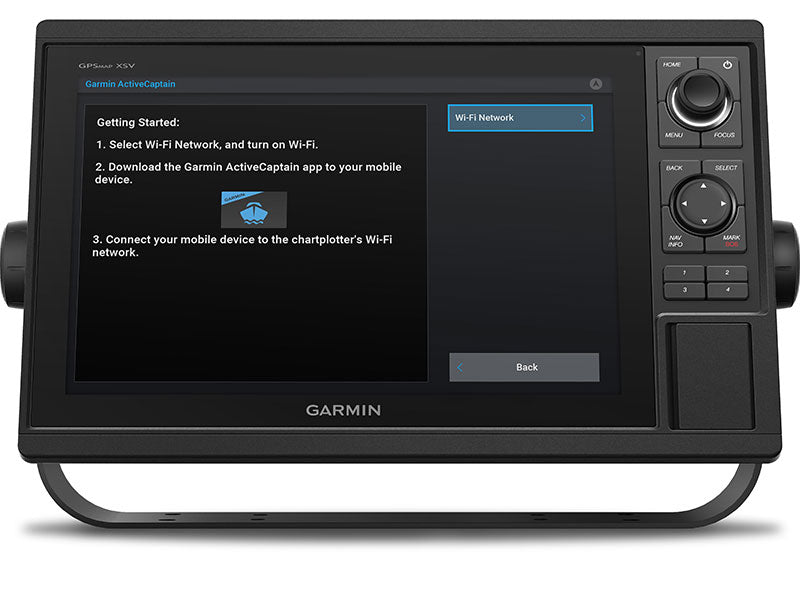

• Wireless & ANT+ connectivity: built-in Wi-Fi supports the ActiveCaptain™ app for remote planning, software updates, notifications, and chart/map sync. ANT® connectivity allows pairing with quatix® marine watches, gWind™ Wireless 2, GNX™ Wind, wireless remotes, and more.

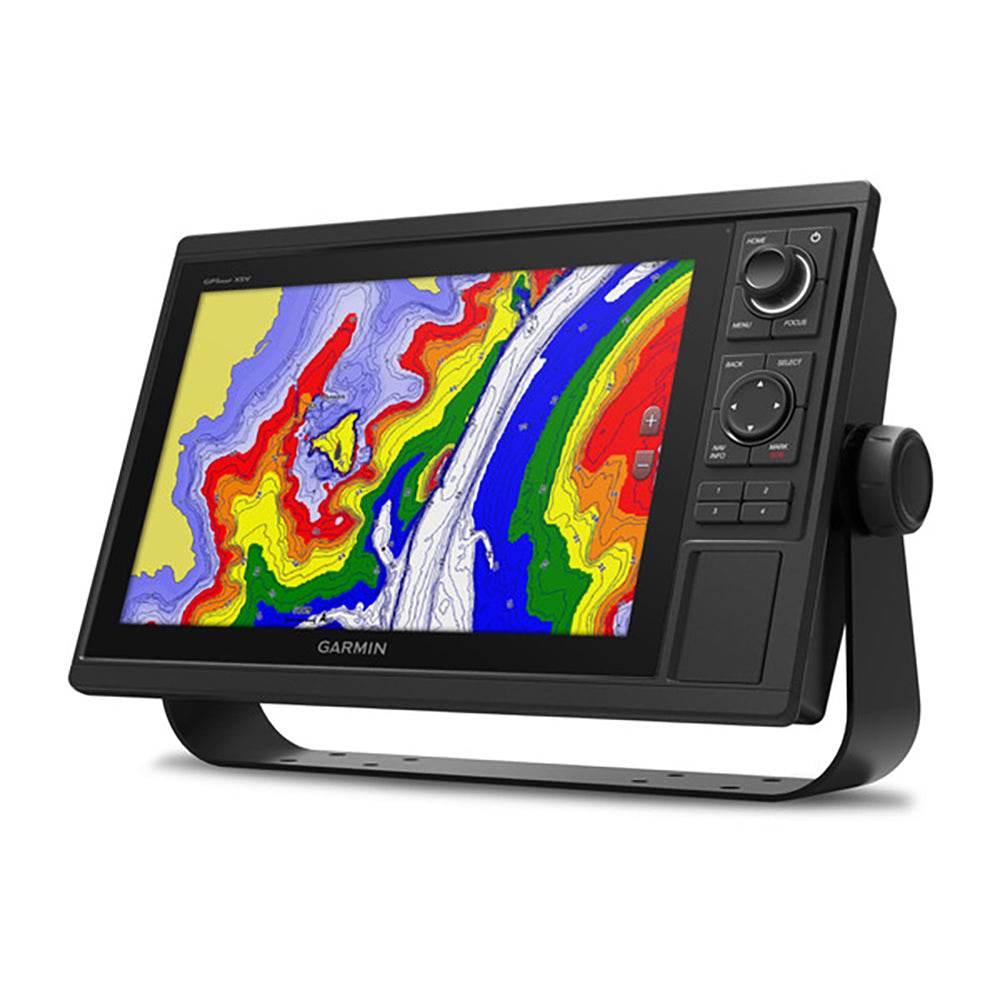

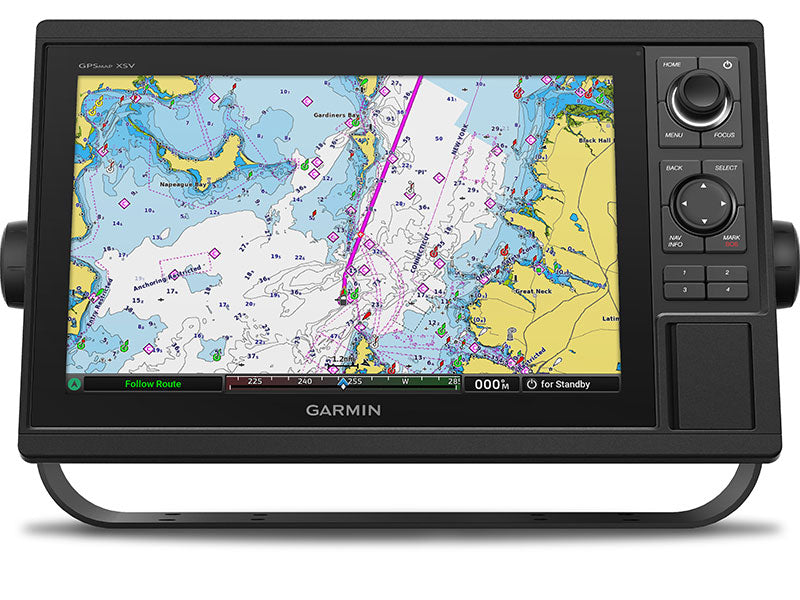

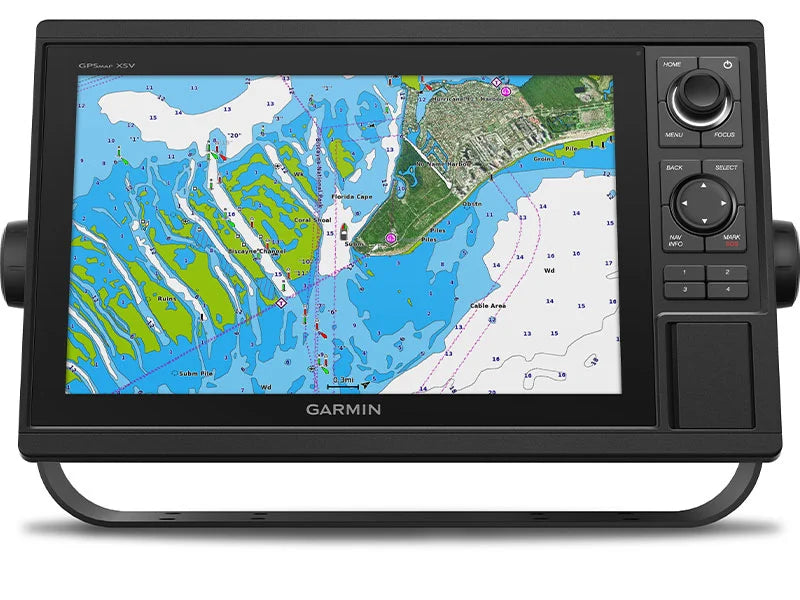

• Quickdraw Contours & chart support: generate custom HD fishing maps with 1-foot contours, store your mapping data, or share via the Quickdraw Community. Supports expandable memory via two SD™ card slots and compatibility with BlueChart® g2/g2 Vision/HD, LakeVü HD/Ultra, and Navionics (add-on) maps.

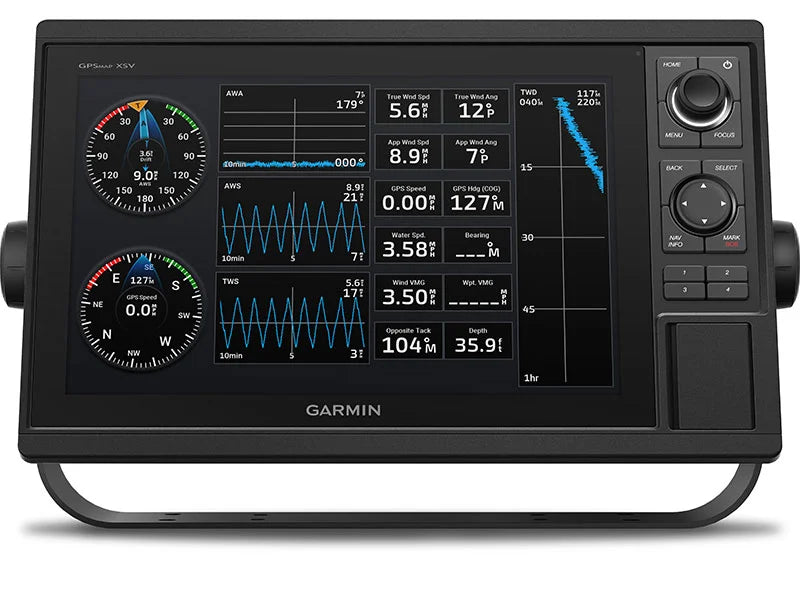

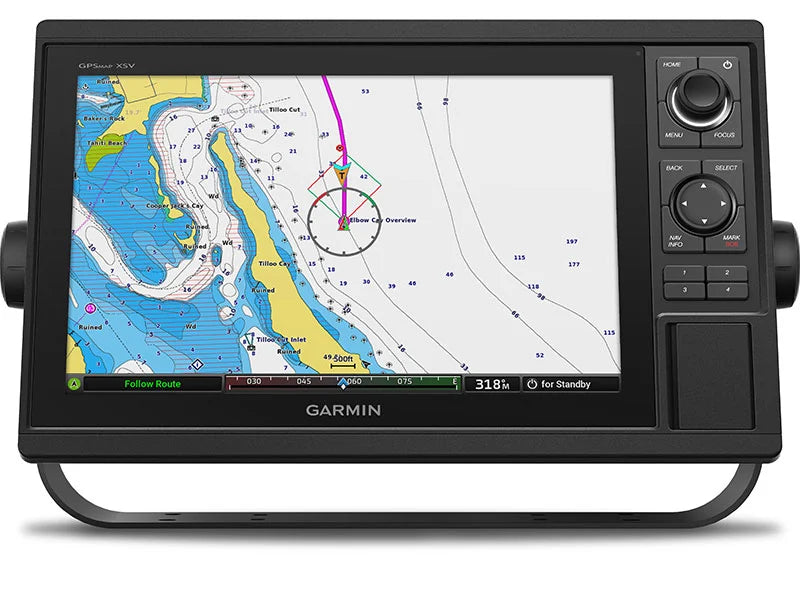

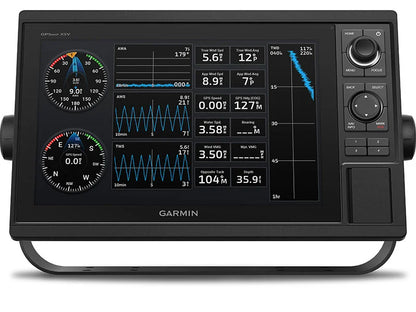

• SailAssist & advanced regatta features: exclusive pre-race guidance page with virtual starting line, laylines, countdown timer, synchronized across networked units. Also supports wind rose, set & drift, true/apparent wind data, COG/heading overlays (sensor sold separately).
• GPX and cross-brand support: easily import waypoints, tracks, and routes from other GPS devices or Garmin handhelds via GPX file transfer.

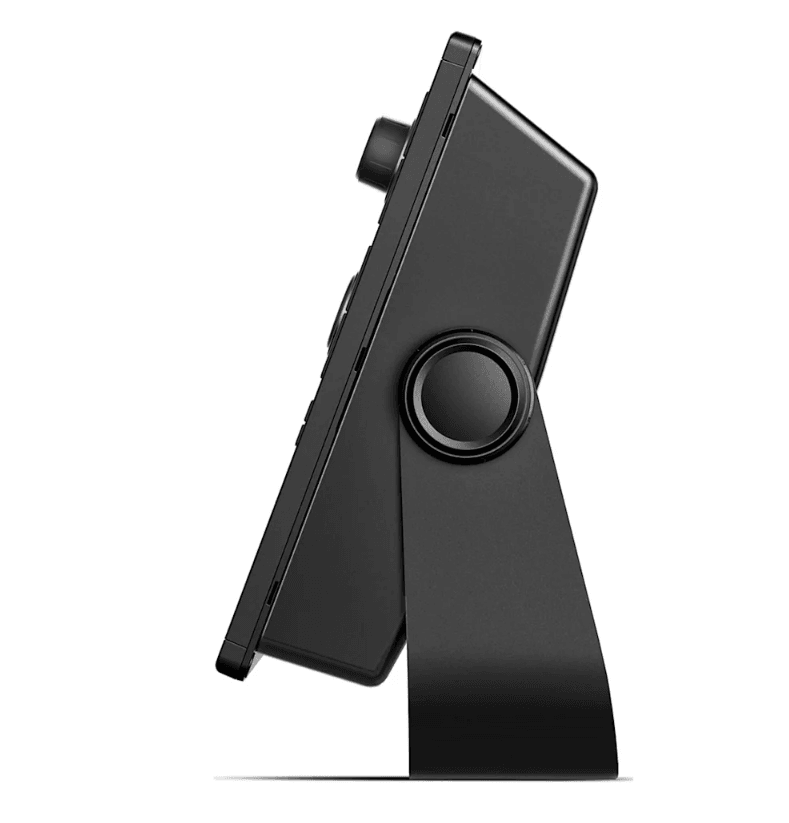

• Rugged, marine-grade design: constructed from die-cast aluminum and polycarbonate, rated to IPX7 for water resistance (can withstand incidental exposure to 1 m water for 30 minutes) and operable in -15° to 55 °C (5° to 131 °F).
• Comprehensive in the box: includes the GPSMAP 1222xsv chartplotter, power/data cable, NMEA 2000 T-connector and drop cable, 8-pin to 12-pin sounder adapter, bail mount kit, flush mount kit and gasket, protective cover, trim snap covers, and documentation.

This is your gateway to a fully integrated, high-performance marine electronics system. Note: transducer is not included — choose from Garmin’s broad range of compatible transducers to unlock the full sonar and imaging potential.
