Garmin GPSMAP 1223xsv 12" Combo GPS/Fishfinder (Worldwide)

GPSMAP® 1223xsv 12-inch Combo GPS/Fishfinder - Worldwide (010-02367-02)

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing, and upgraded IPS display, this advanced 12” chartplotter/sonar combo integrates seamlessly into your Garmin marine system.

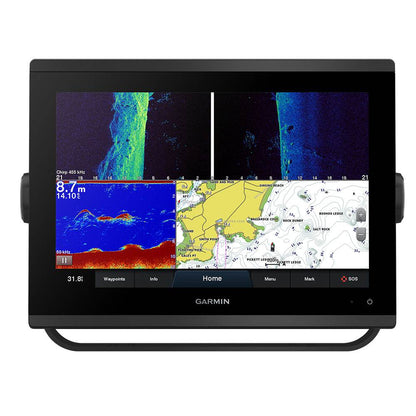

Unlock sharper charts and sonar views with the Garmin GPSMAP® 1223xsv Combo GPS/Fishfinder (010-02367-02). This powerhouse marine display fuses high-resolution navigation and advanced sonar so you can fish, navigate, and control your boat smarter. Optimize your listing with these feature-driven bullets:

• Immersive 12″ IPS (WXGA) touchscreen display — 1280 × 800 resolution offers excellent sunlight readability and wide viewing angles.

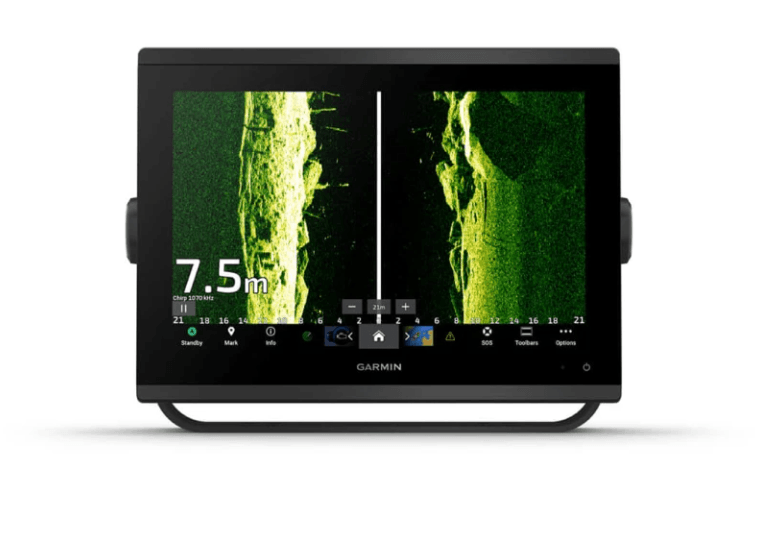

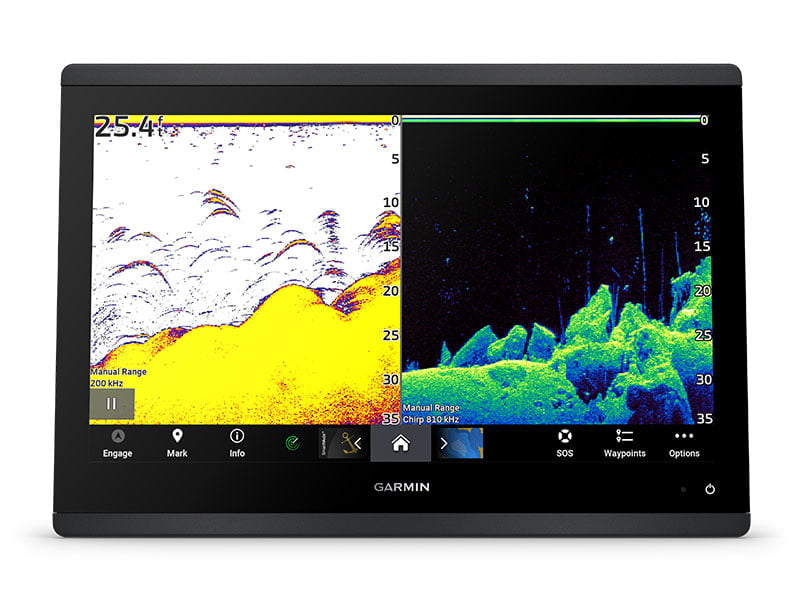

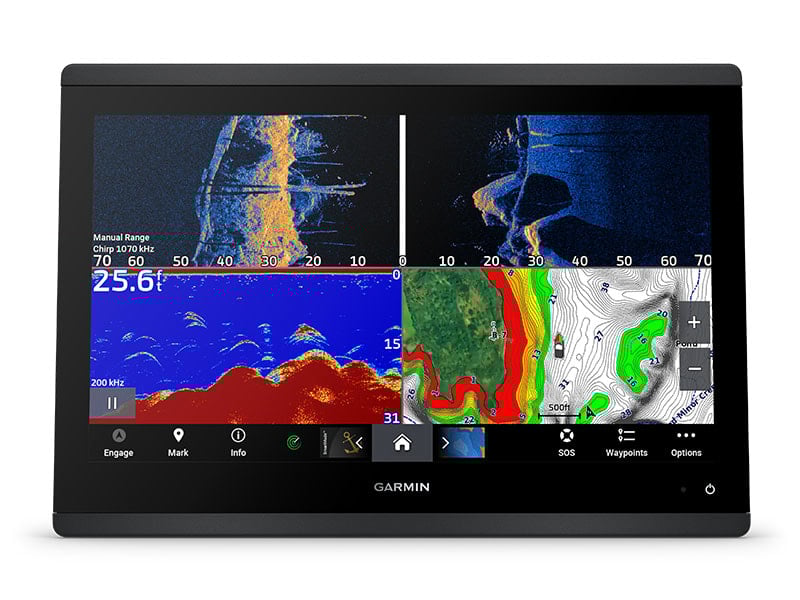

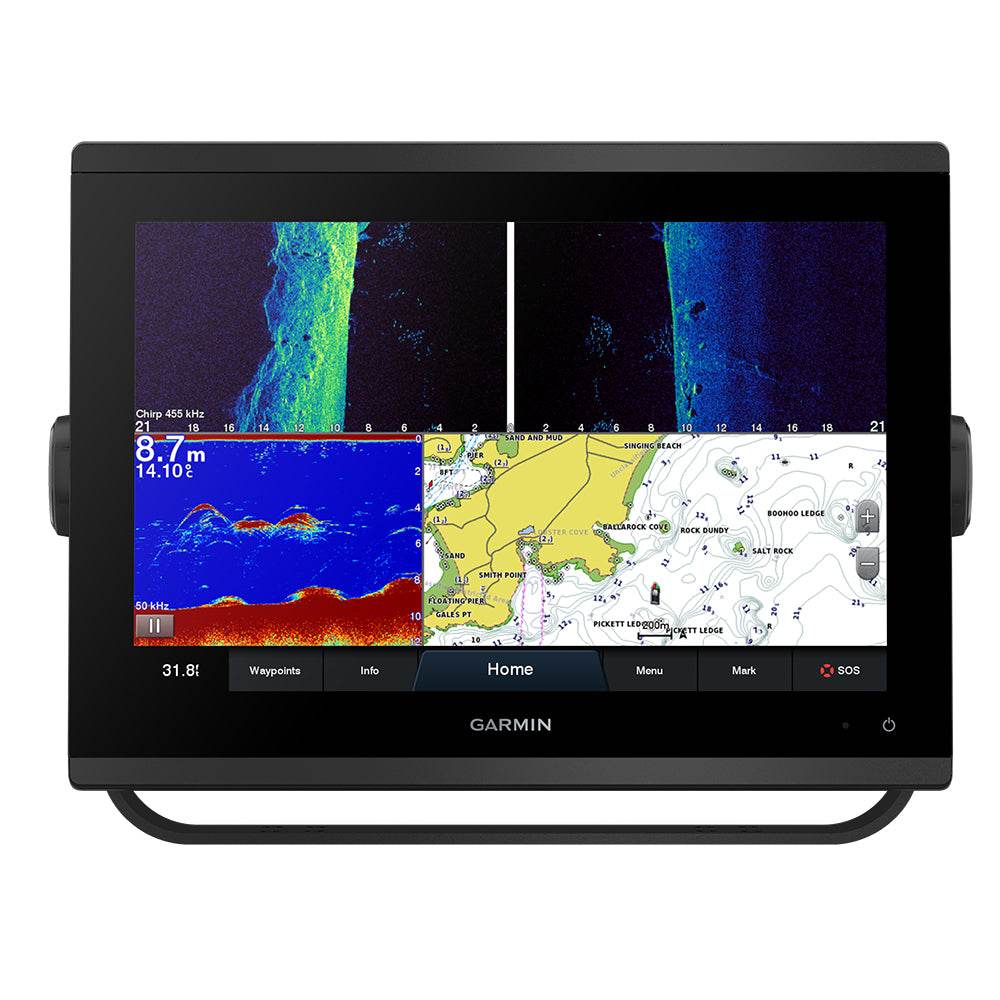

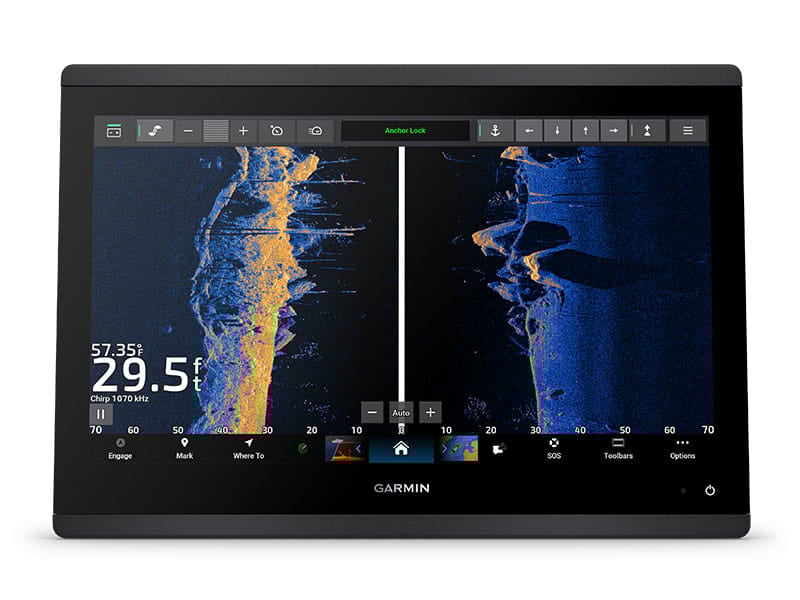

• Built-in Ultra High-Definition scanning sonar — SideVü and ClearVü deliver vivid, high-contrast underwater imaging so you can more clearly distinguish fish, structure, and terrain.

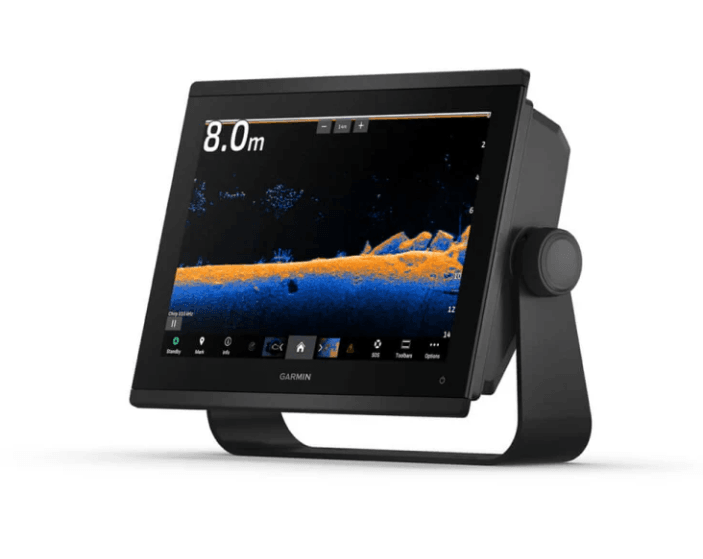

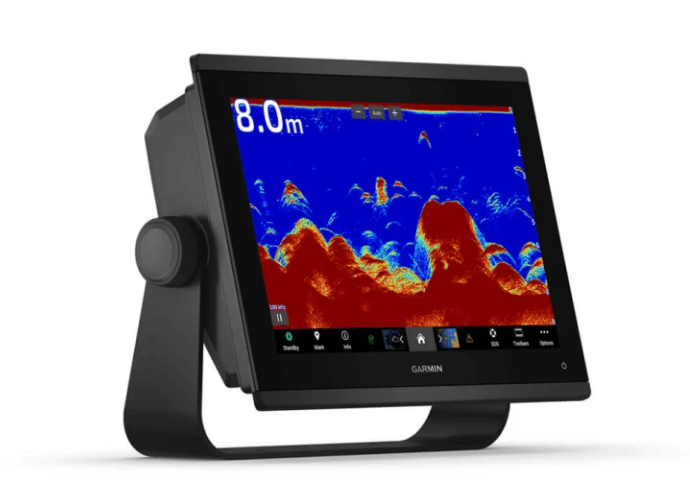

• Traditional CHIRP sonar support (1 kW) — Complement scanning sonar with deep-penetrating CHIRP returns for excellent target separation and detail at depth.

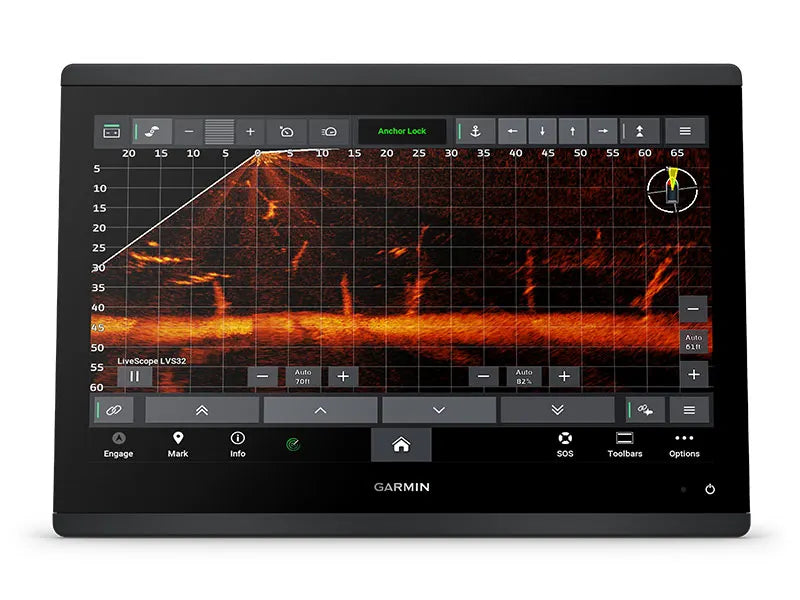

• Panoptix / LiveScope sonar ready — Pair with Panoptix or LiveScope (transducer sold separately) to view real-time 3D sonar around, below, or ahead of your boat.

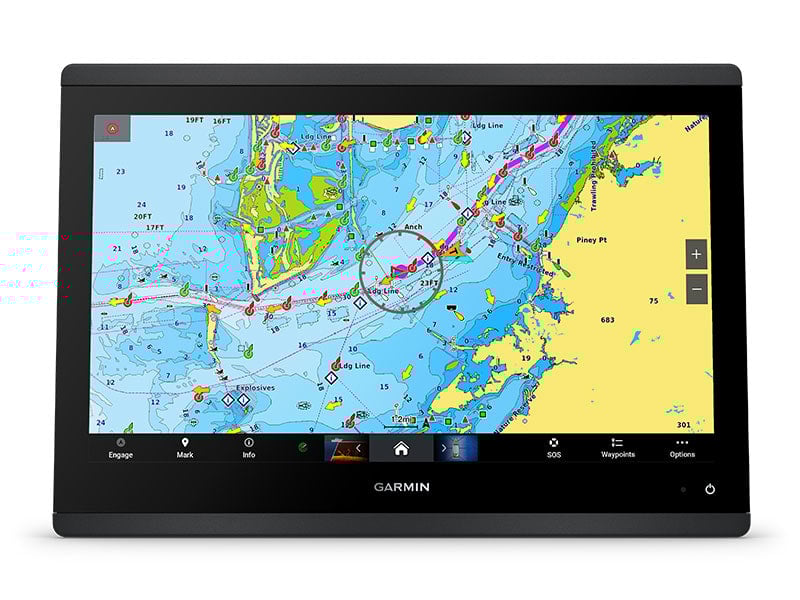

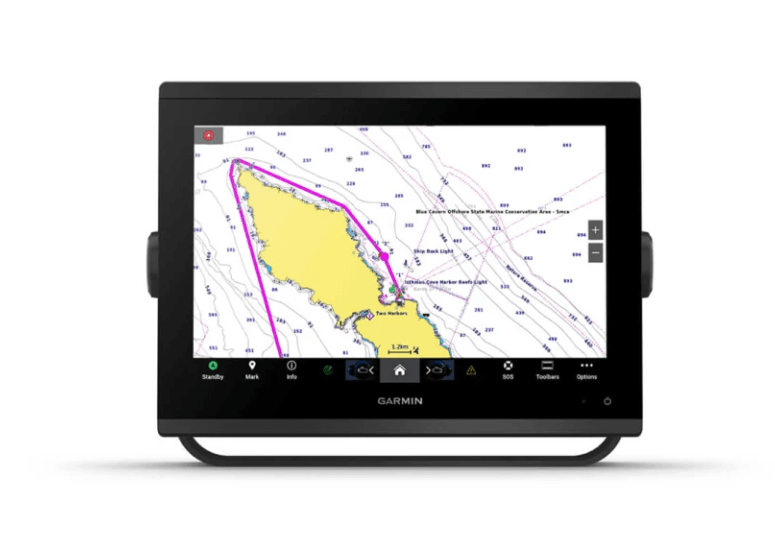

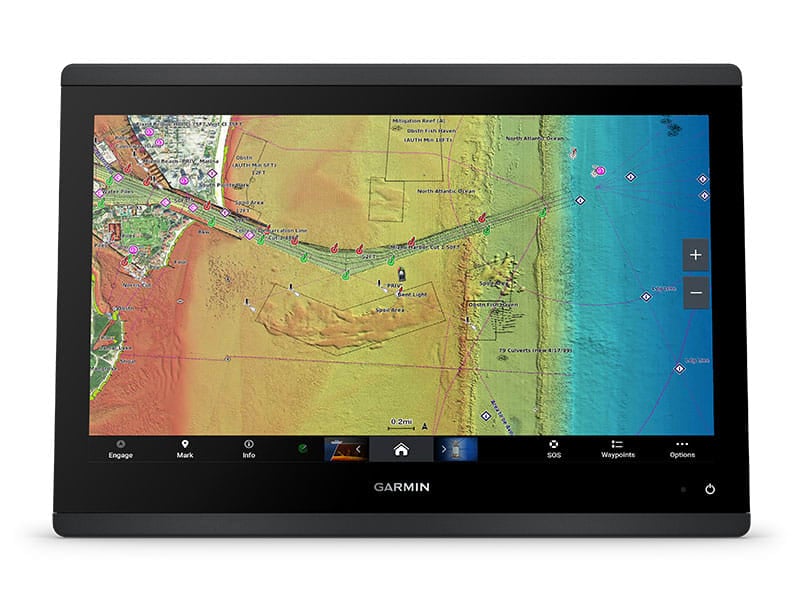

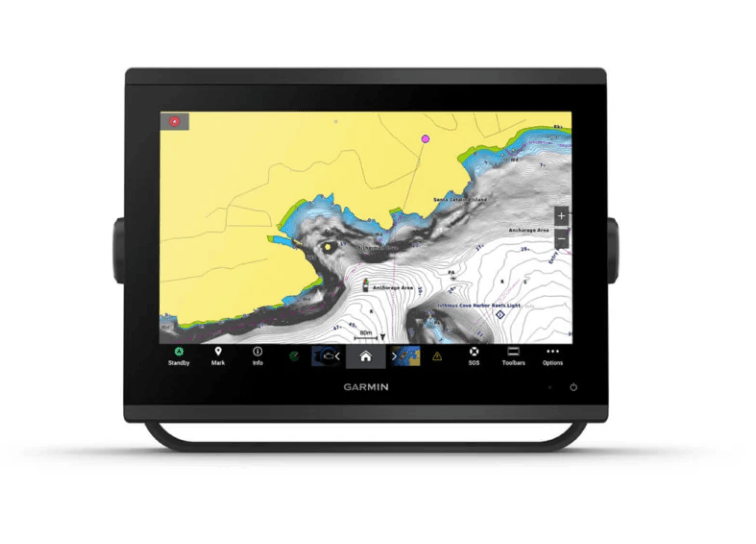

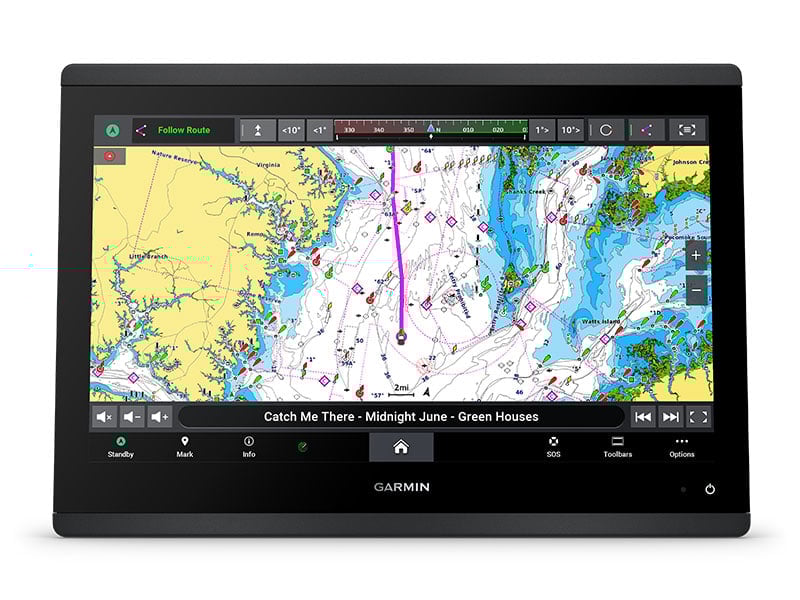

• Preloaded worldwide basemap — Navigate global waters right out of the box, with major coastal, river, and lake charts included.

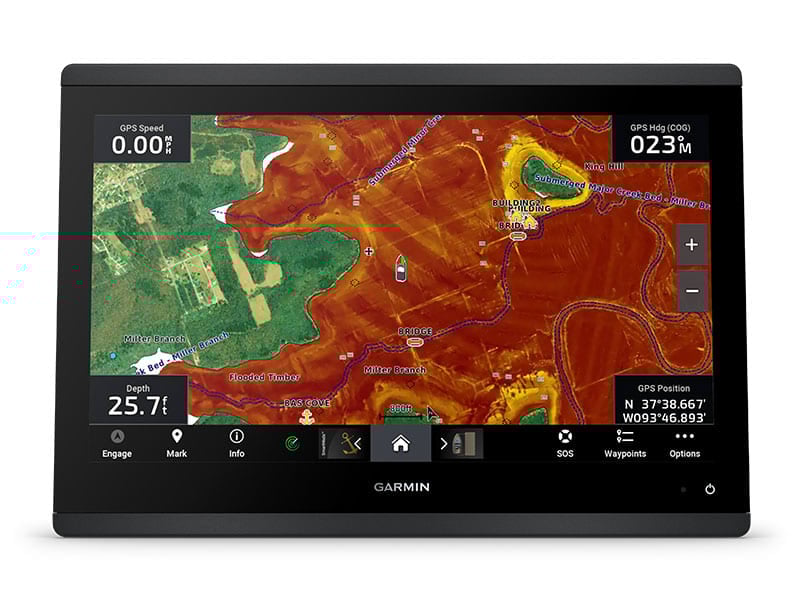

• Optional BlueChart® g3 Vision charts compatible — Advanced Navionics + Garmin data, Auto Guidance, satellite imagery, depth shading, and more.

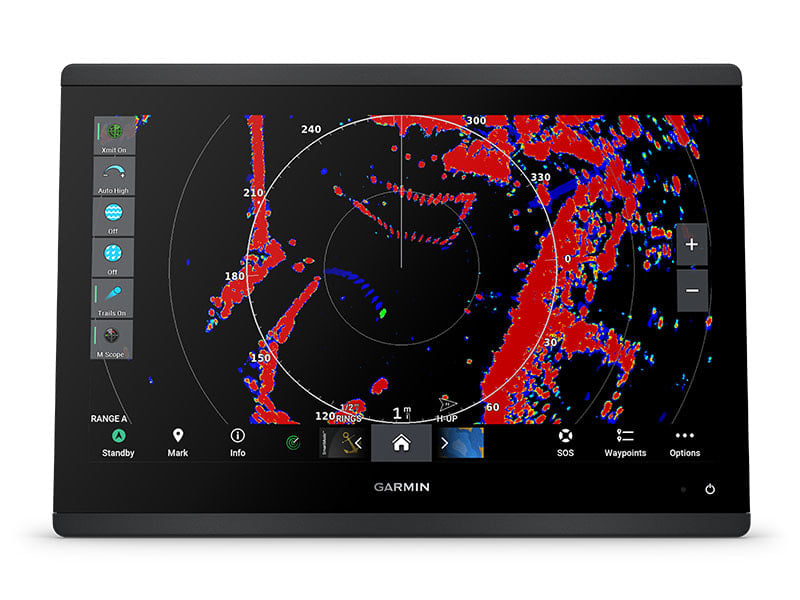

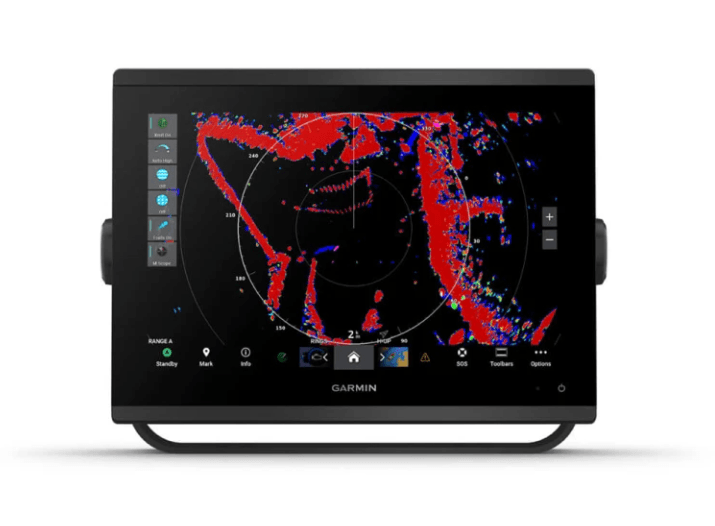

• Seamless Garmin Marine Network integration — Share radar, maps, camera feeds, sonar, and user data across compatible Garmin devices on your boat.

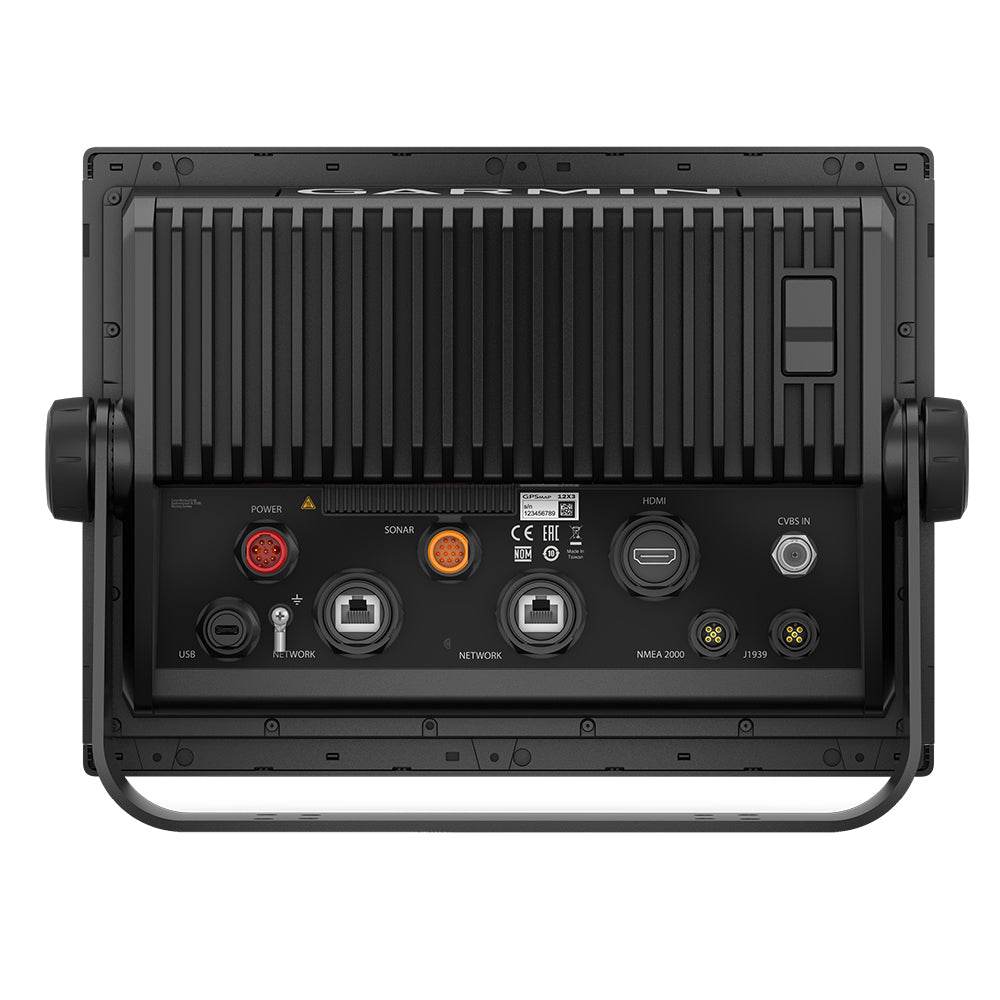

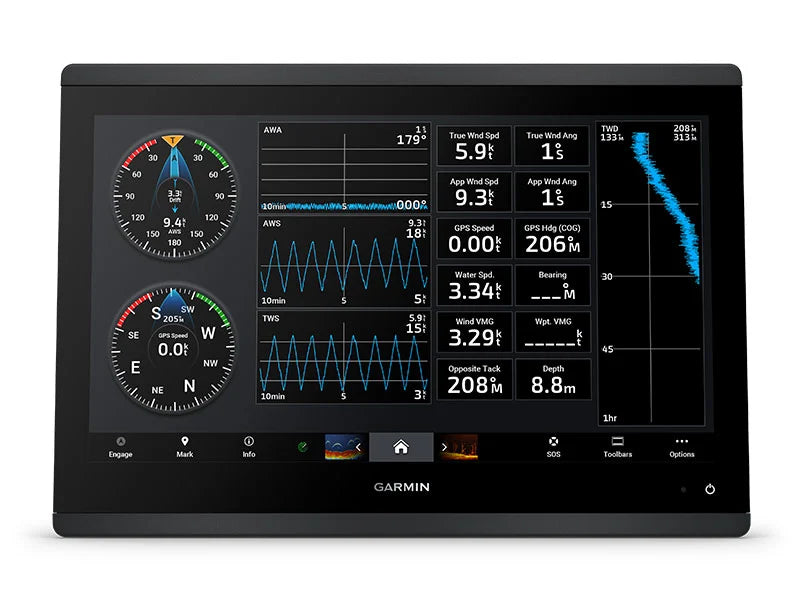

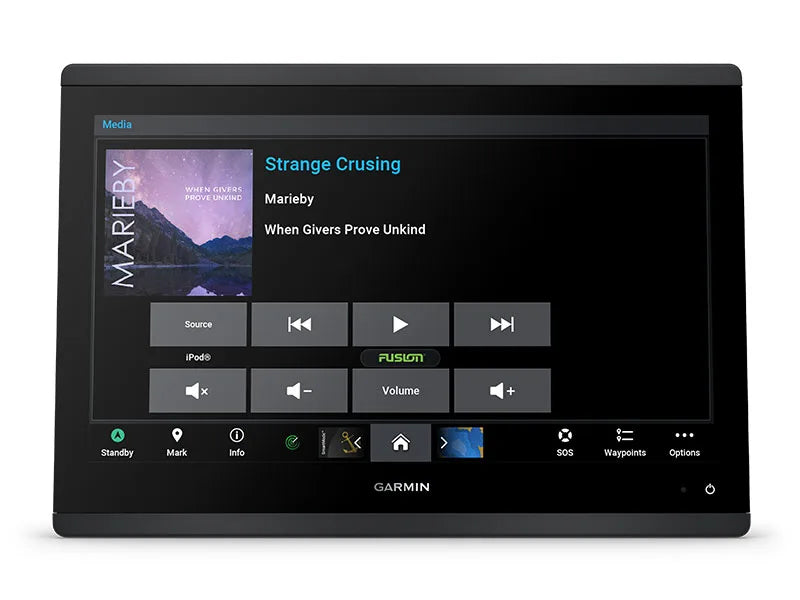

• NMEA 2000 & NMEA 0183 support — Wire into autopilots, weather sensors, digital switching, AIS, VHF, Fusion-Link audio systems, and more.

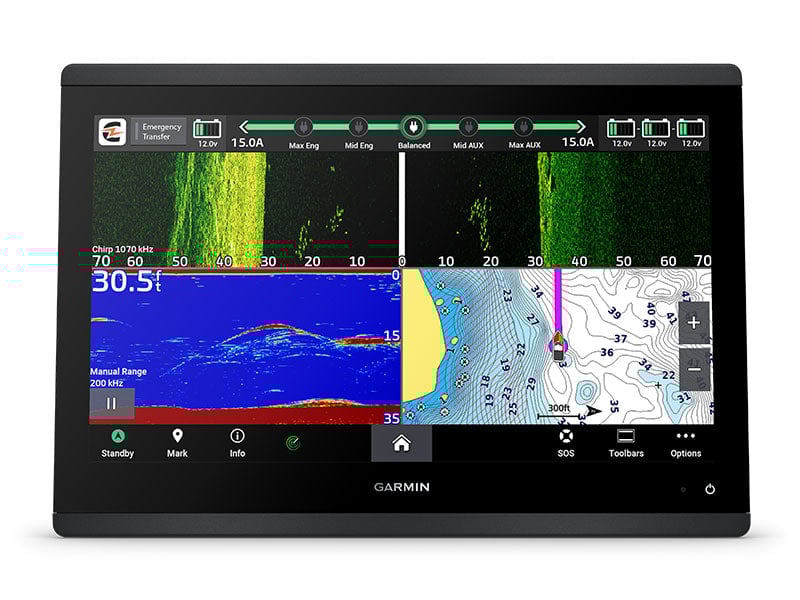

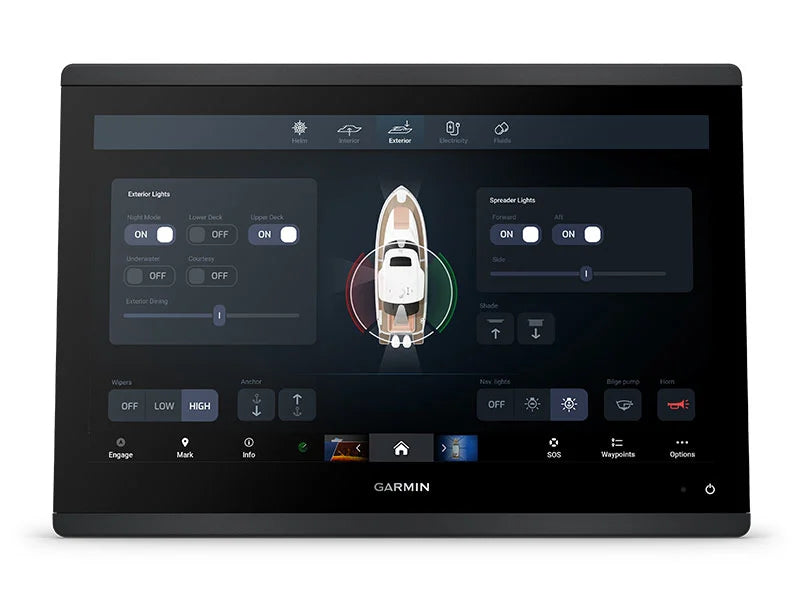

• OneHelm™ digital switching & third-party integration — Control compatible EmpirBus® or other systems directly from the chartplotter screen.

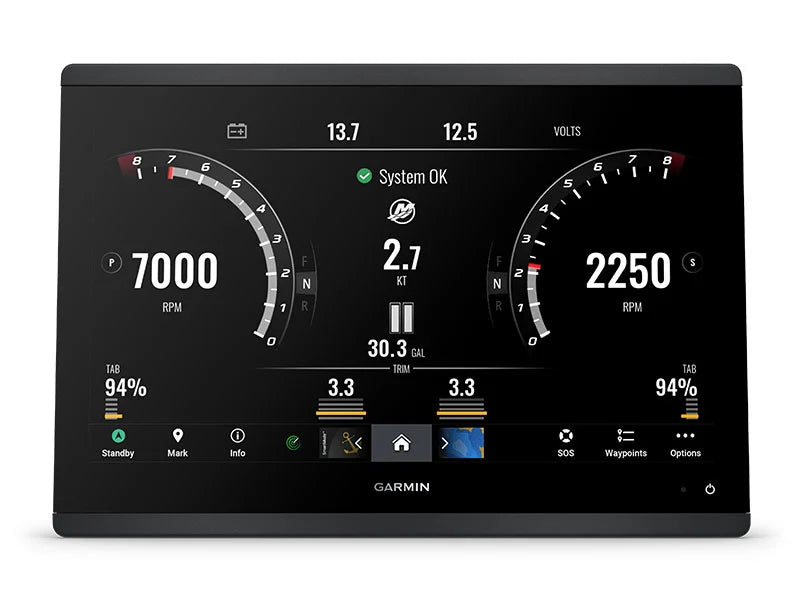

• J1939 engine connectivity — Connect and monitor select Yamaha or other J1939-compatible engines directly via this unit.

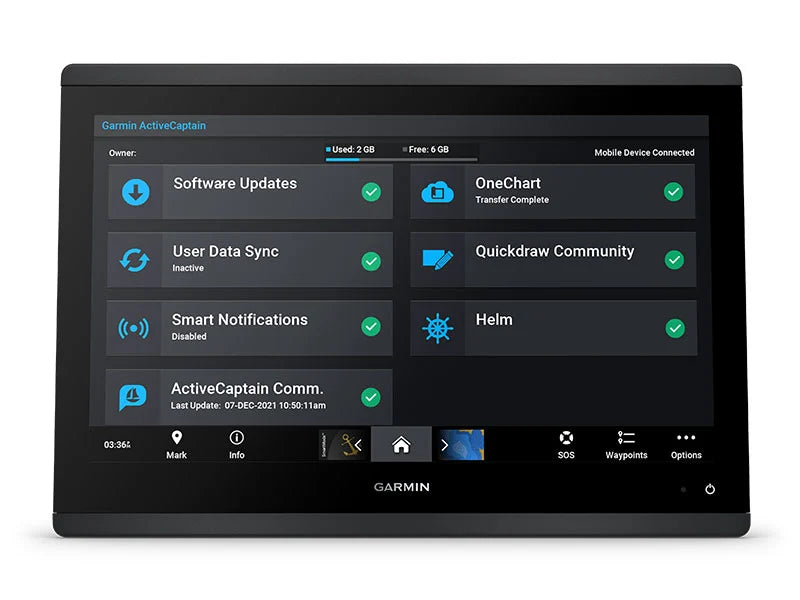

• ActiveCaptain® app & built-in Wi-Fi® connectivity — Pair with your smartphone to update charts, view smart notifications, access Quickdraw™ Community maps, OneChart™ features, and remote control.
• Rugged, marine-grade construction — IPX7 water rating, polarized support, and robust build quality for handling tough marine environments.
• Power-efficient at 10 Vdc — Max power consumption 26.5 W, typically drawing ~1.7 A at 12 V, with max 2.2 A current draw.
• Memory & data capacity — Supports two microSD® cards, supports up to 5,000 waypoints, 50,000-point track log, and 100 routes.
• Boxed package includes essential accessories — chartplotter unit, preinstalled microSD card, power cable, NMEA 2000 T-connector & drop cable, transducer adapter cable, bail/flush mount kits, protective cover, trim covers, and documentation.

What's in the Box:

• GPSMAP 1223xsv chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)

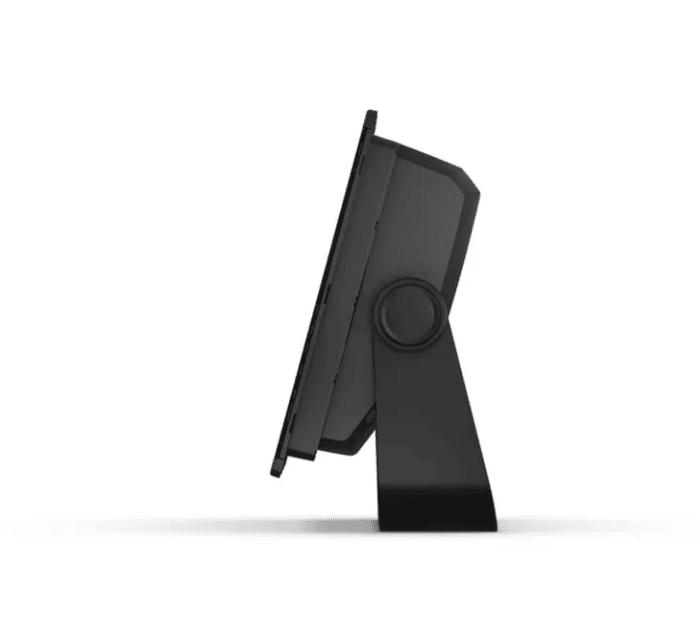

• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
• 8-pin transducer to 12-pin sounder adapter cable

Owner's Manual (pdf)
