Garmin GPSMAP 1543xsv 15" Ultrawide Combo GPS/Fishfinder GN+ (Sonar + Mapping)

GPSMAP® 1543xsv 15-inch Ultrawide Combo GPS/Fishfinder GN+ with SideVü, ClearVü and Traditional CHIRP Sonar with Mapping

(010-03855-01)

WIDEN YOUR HORIZONS

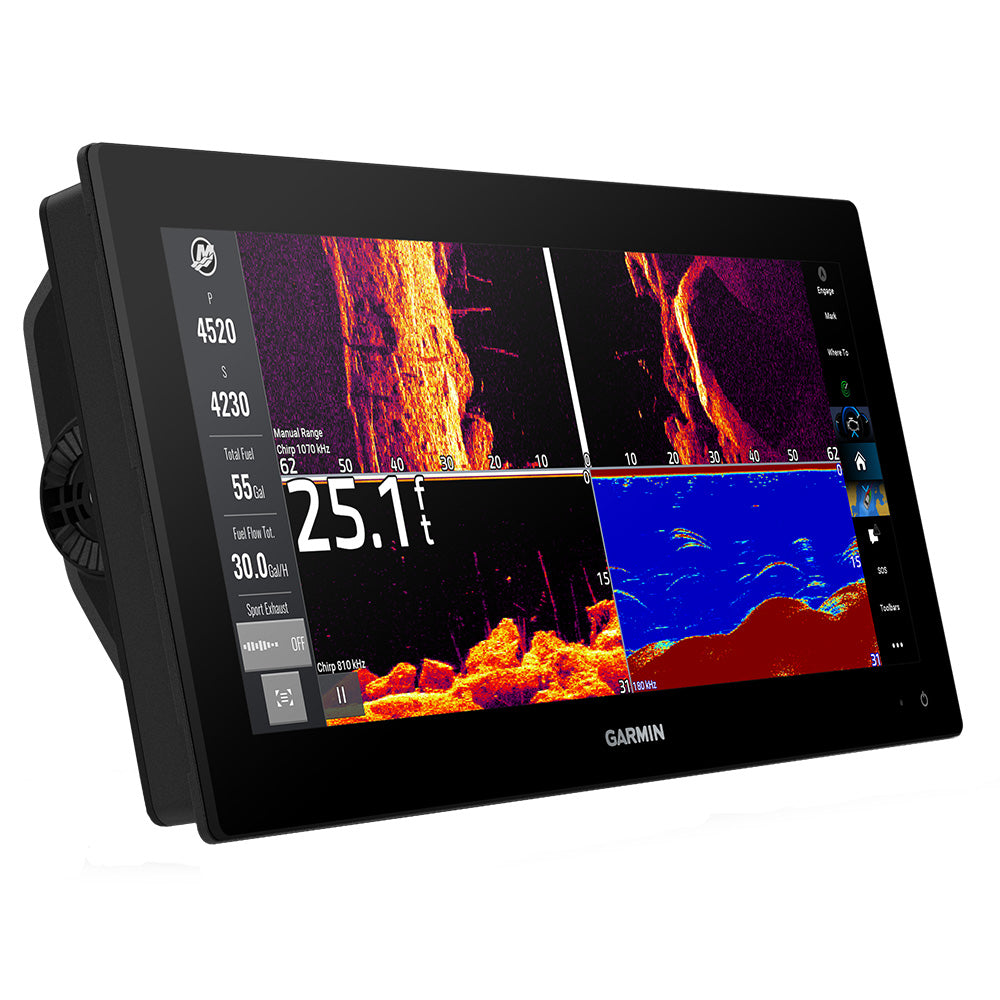

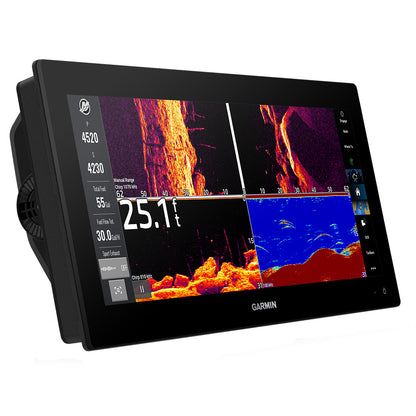

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

• Experience expansive visibility with the Garmin GPSMAP 1543xsv: (0100385501) a 15-inch ultrawide IPS touchscreen spanning 13.6″ × 5.1″ (14.5″ diagonal) and boasting a resolution of 1920 × 720 pixels — 74 % wider than a standard 9″ chartplotter for superior helm clarity.

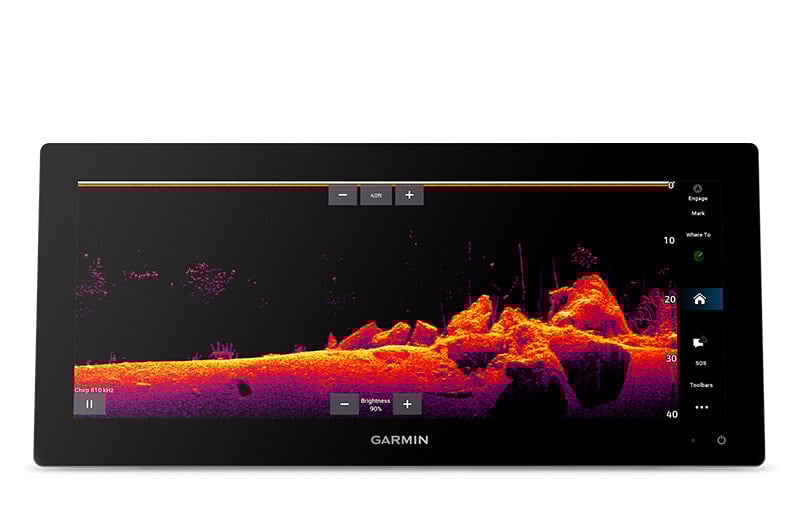

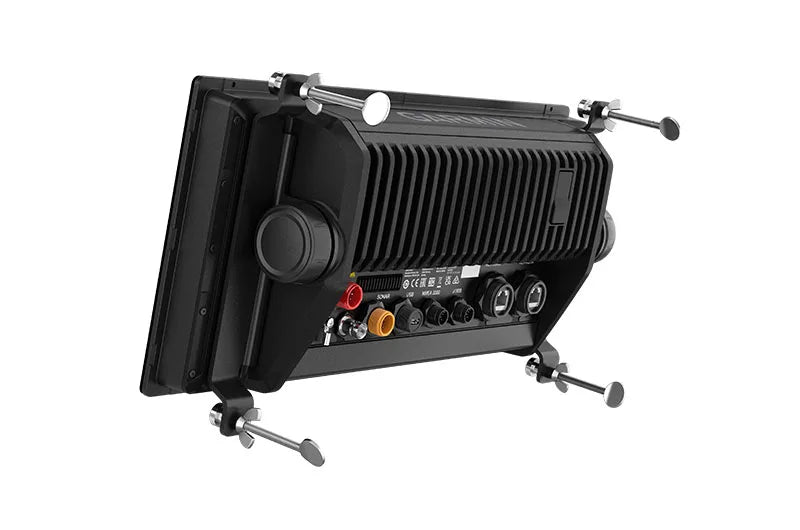

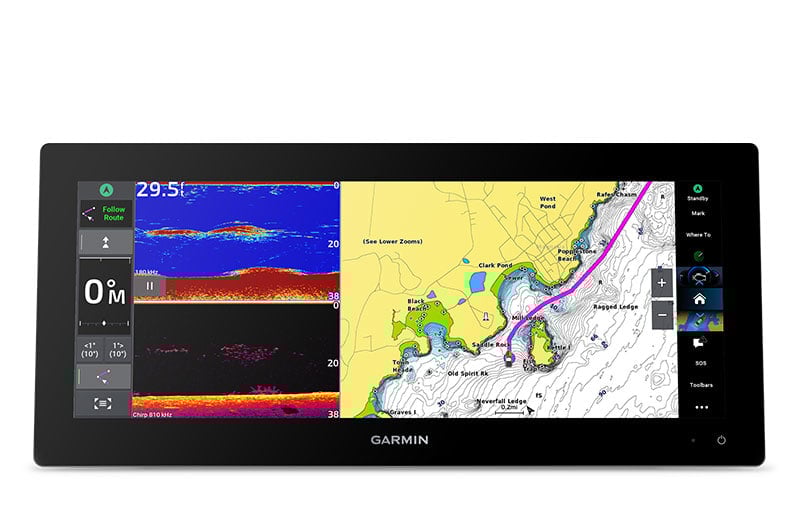

• Sleek edge-to-edge glass design couples modern aesthetics with high functionality: minimal trim borders, polarized-lens readability even in bright sunlight, and flexible mounting options (bail-mount “floating display”, flush or flat-mount).

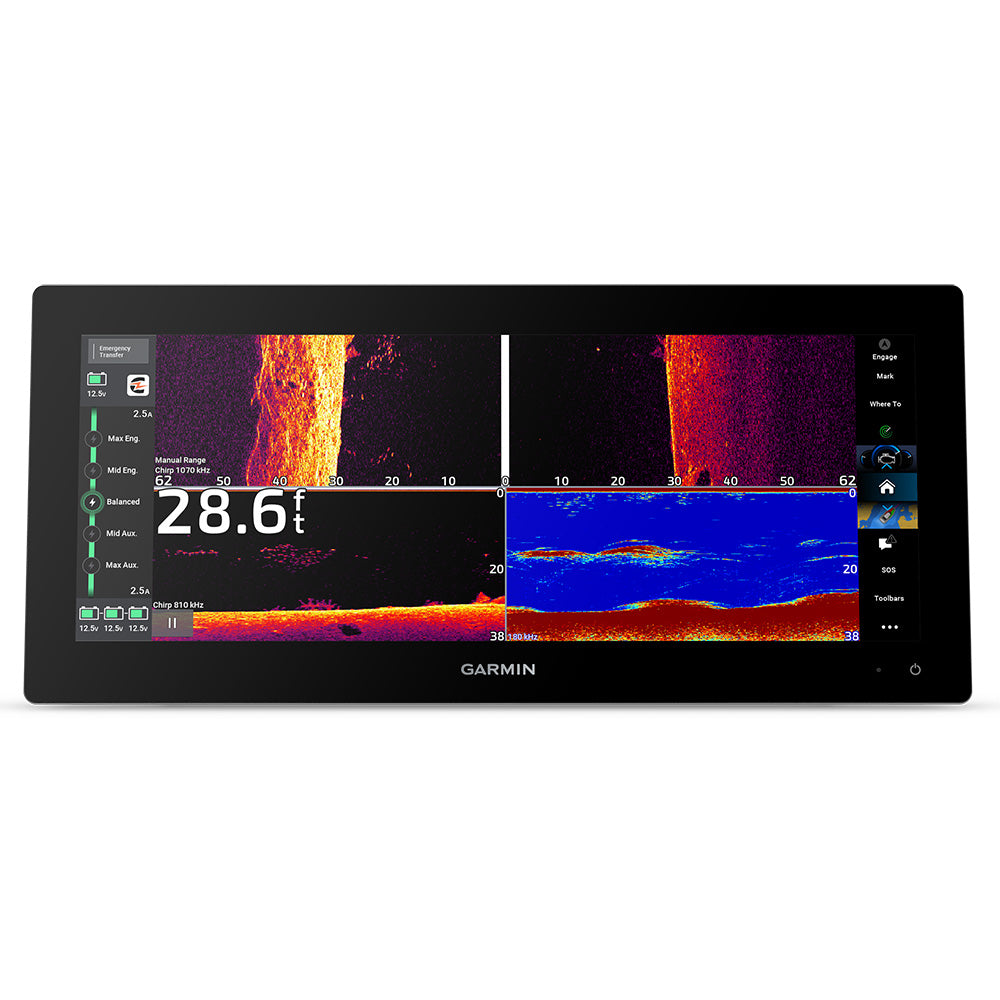

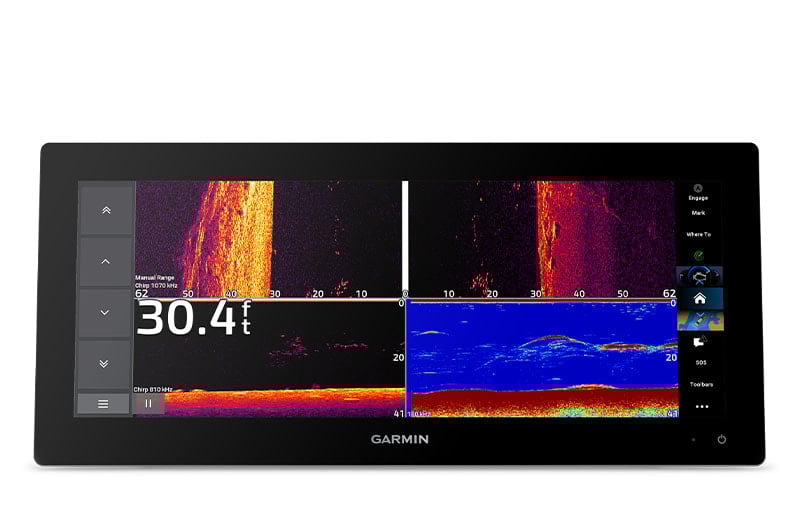

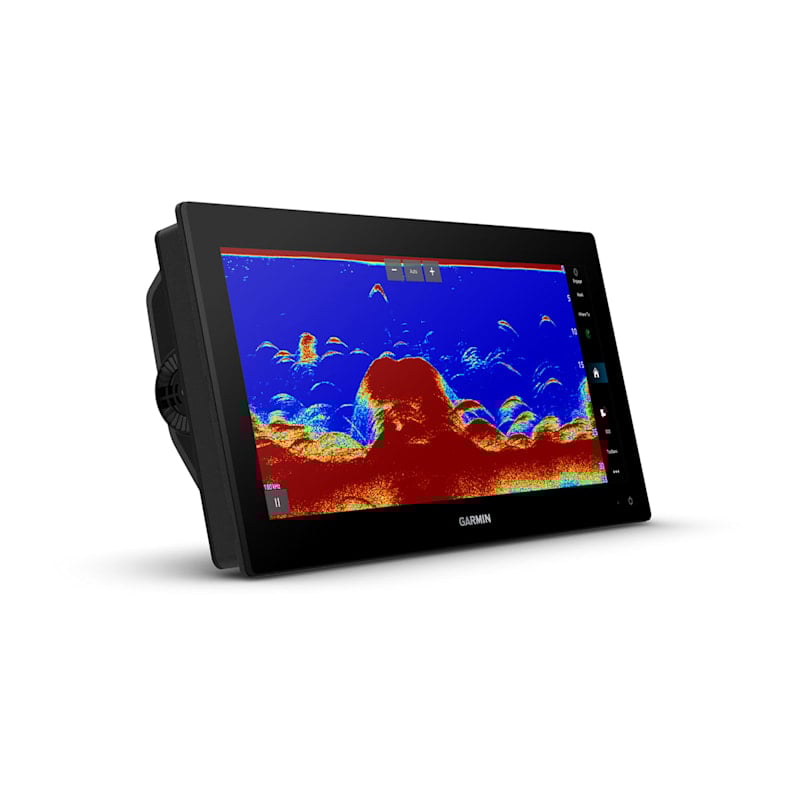

• All-in-one fishfinder/plotter combo: built-in sonar includes 1 kW CHIRP traditional sonar plus Ultra High-Definition ClearVü and SideVü scanning sonars (transducer required, sold separately).

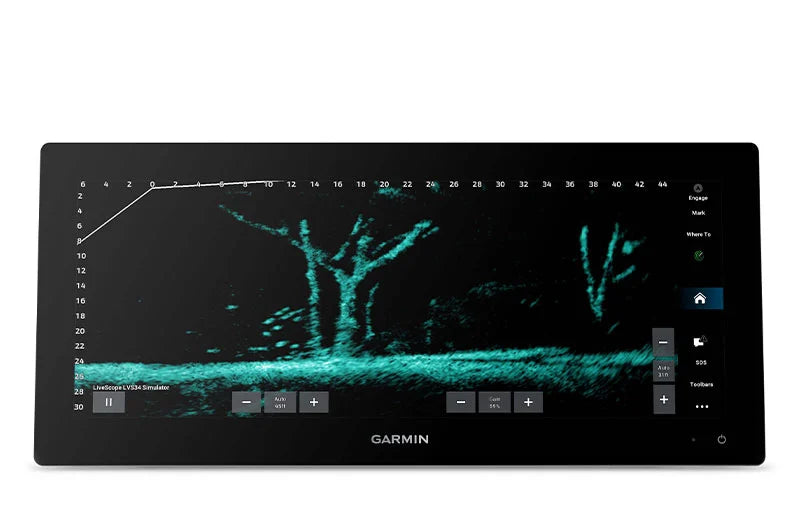

• Ready for live-view sonar: supports real-time imaging with Panoptix™ or LiveScope™ (transducer required, sold separately), giving you under-boat and around-boat views to locate structure and fish.

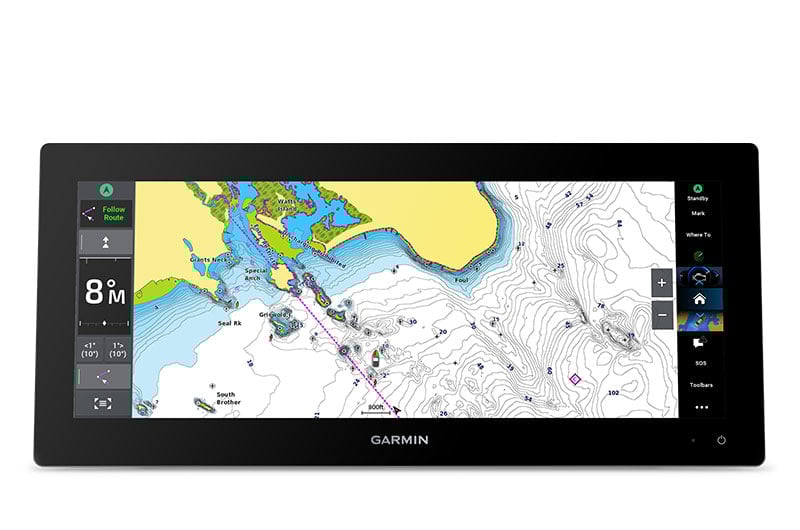

• Navigation confidence built in: Preloaded Garmin Navionics+™ inland and coastal charts deliver Auto Guidance+™ routing, tide tables and more — helping boaters and anglers chart smarter.

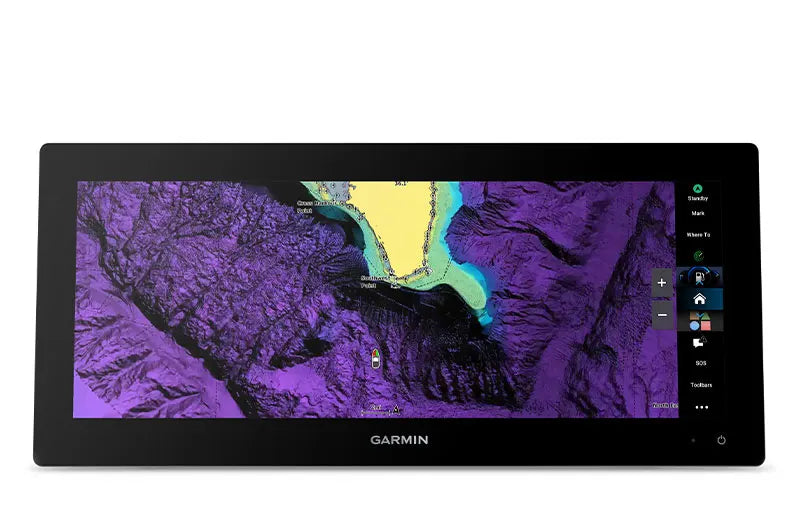

• Premium chart upgrade capable: Upgrade to Navionics Vision+™ maps (optional) for satellite imagery, high-resolution relief shading and sonar-image overlays for next-level detail and insight.

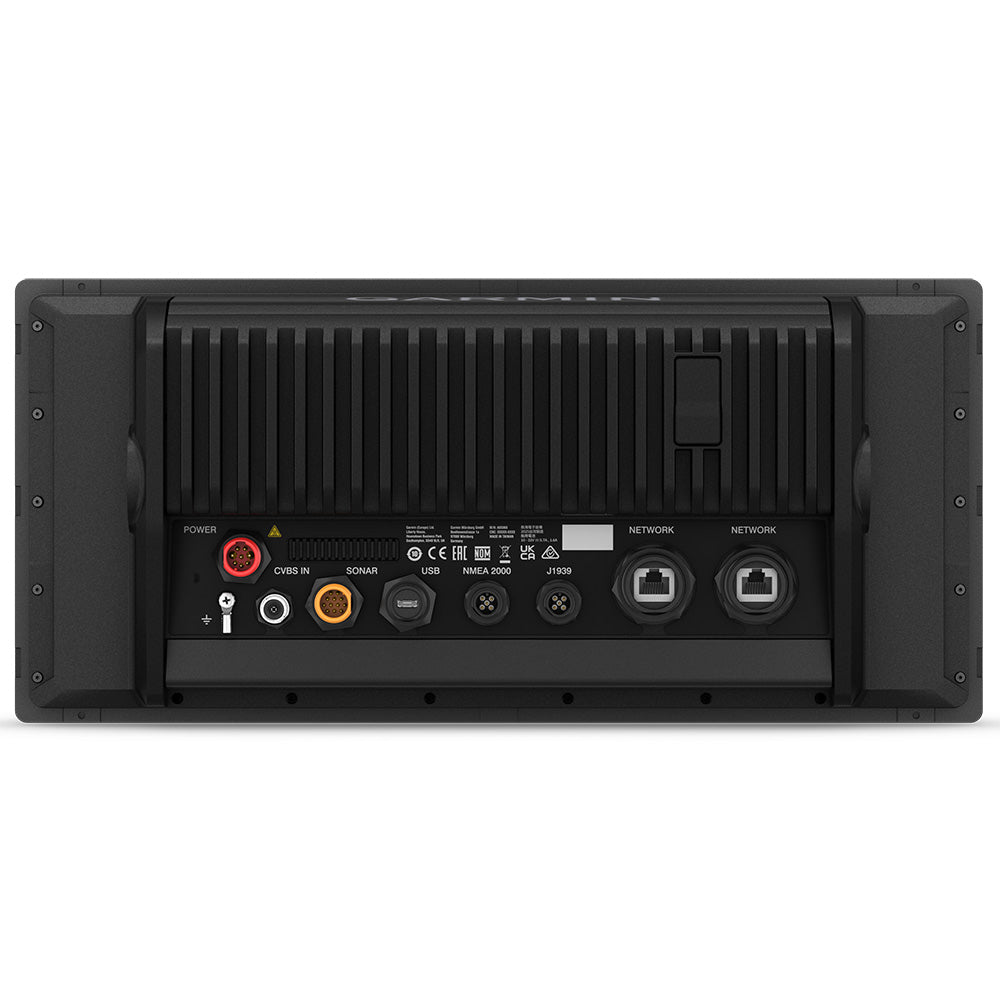

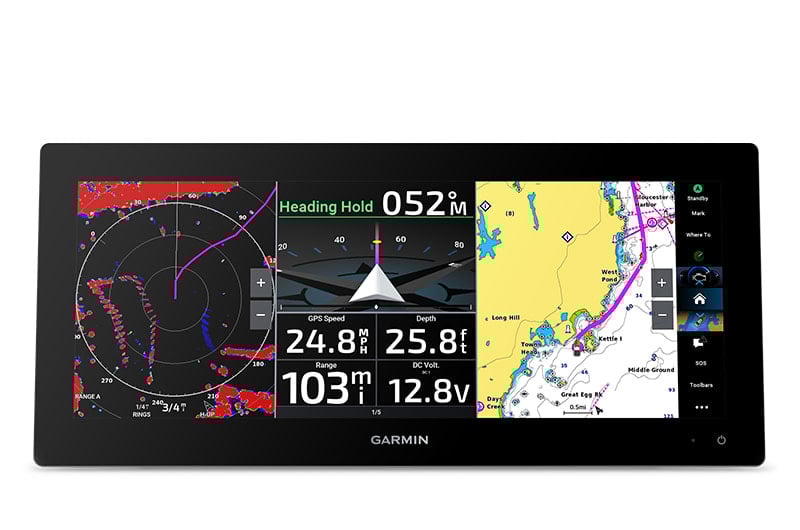

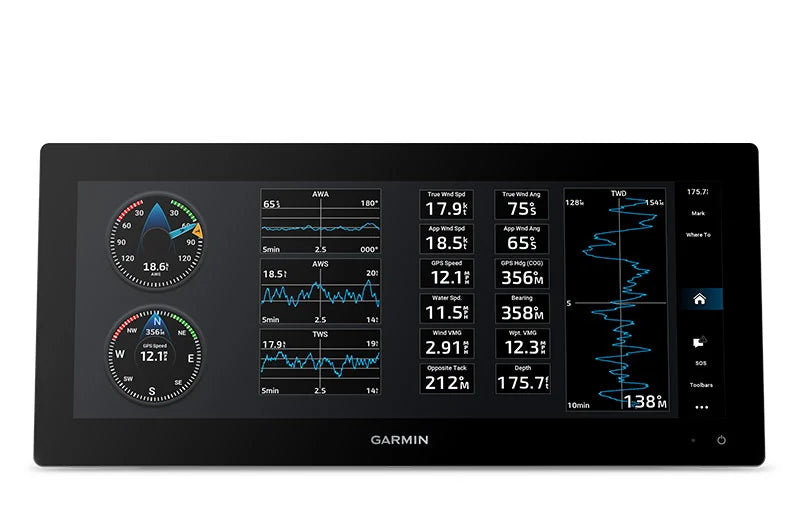

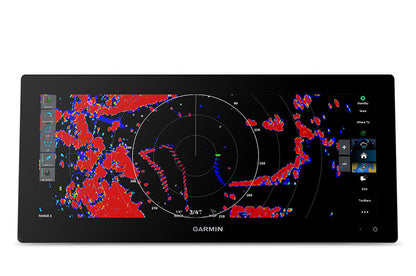

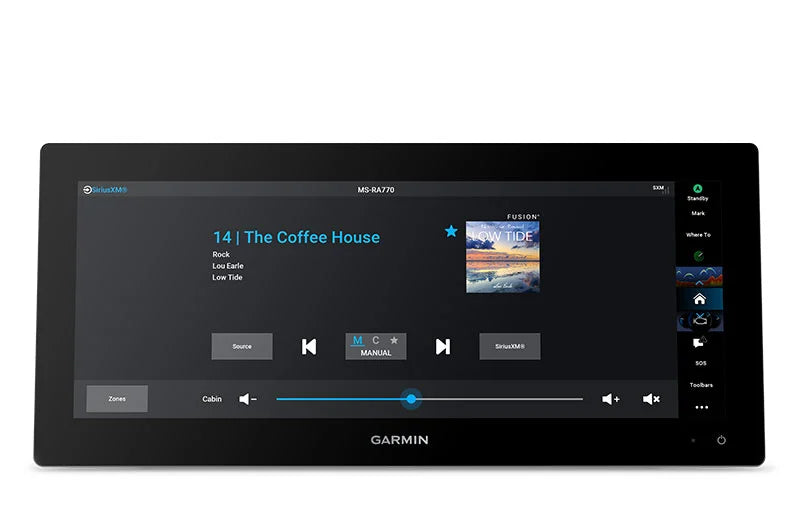

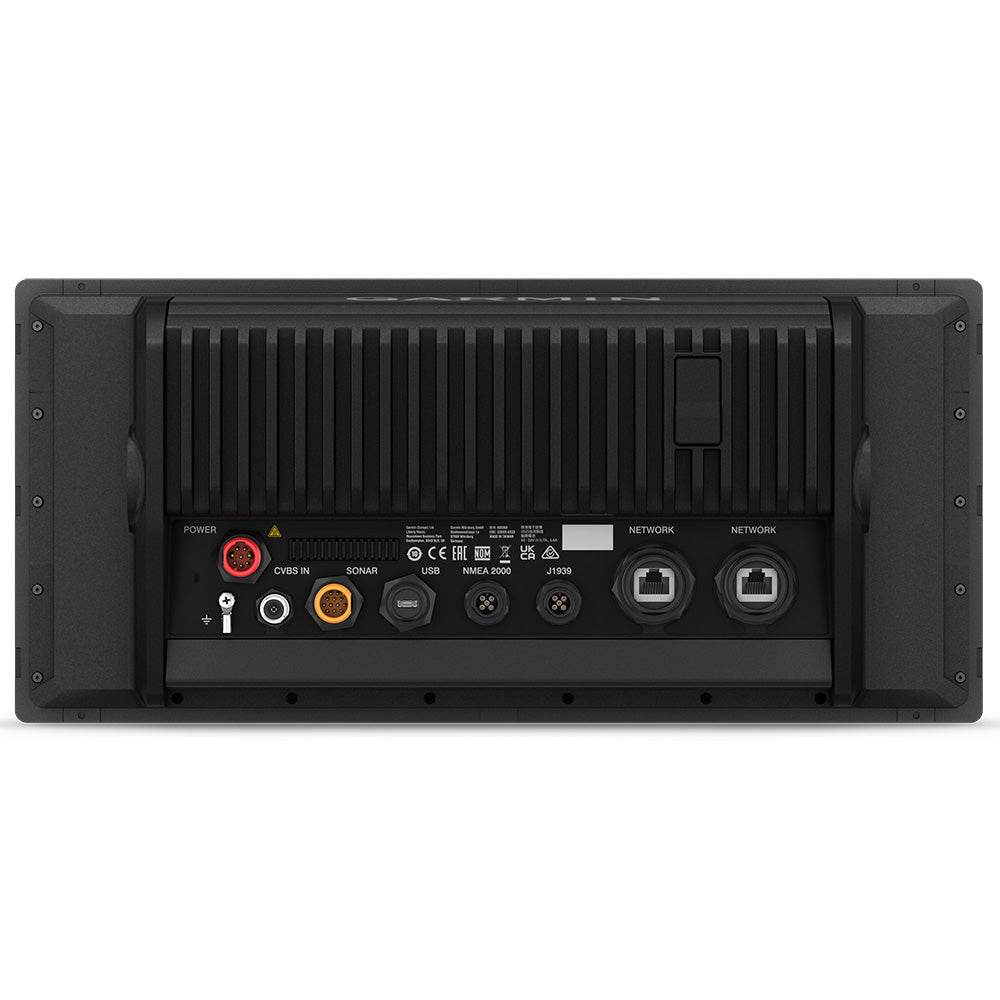

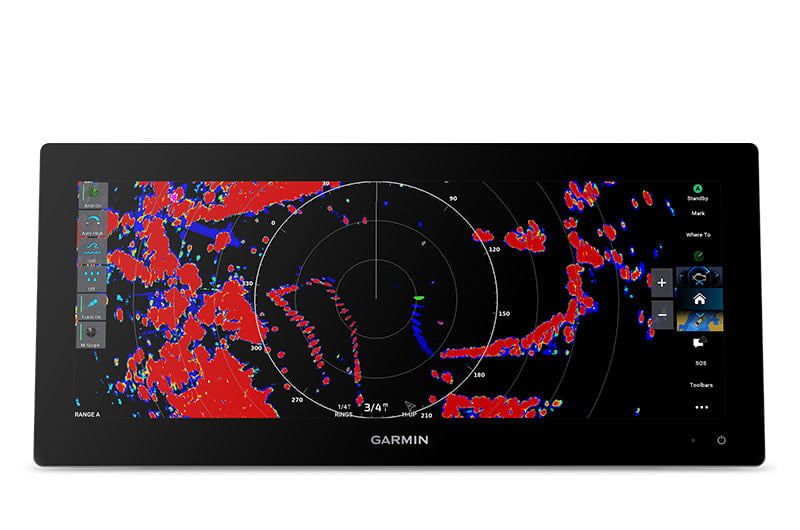

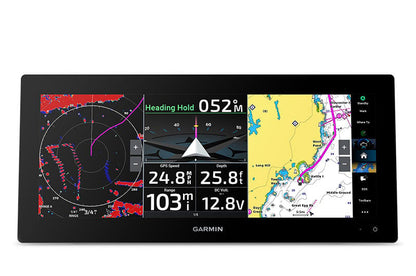

• Seamless helm integration: Fully built for the marine network with NMEA 2000®, NMEA 0183, J1939 support, dual Garmin Marine Network ports, USB, Bluetooth, Wi-Fi and ANT®/ANT+® connectivity. Share maps, data, radar and video across your system.

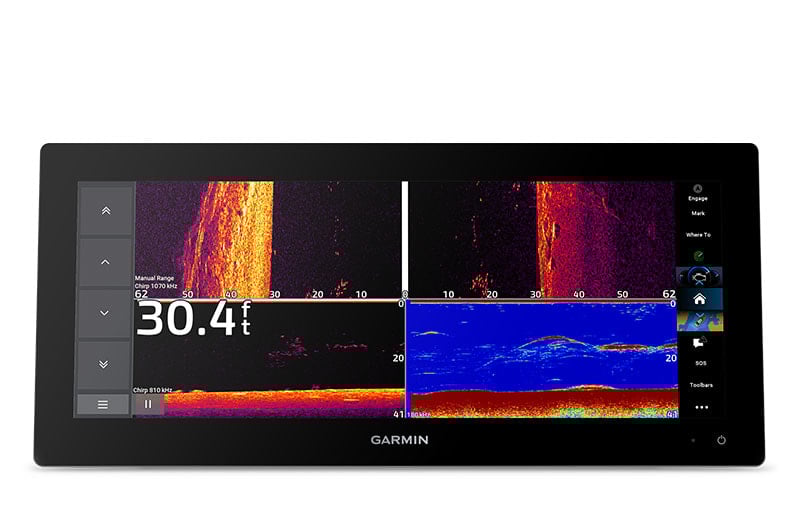

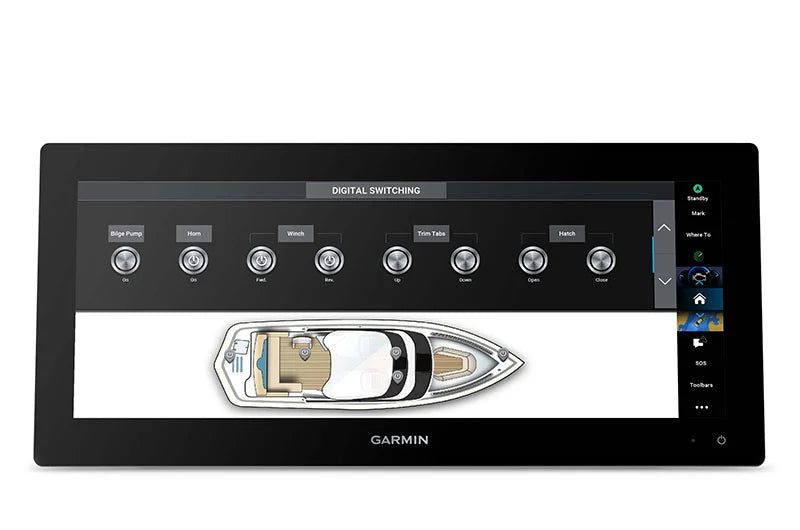

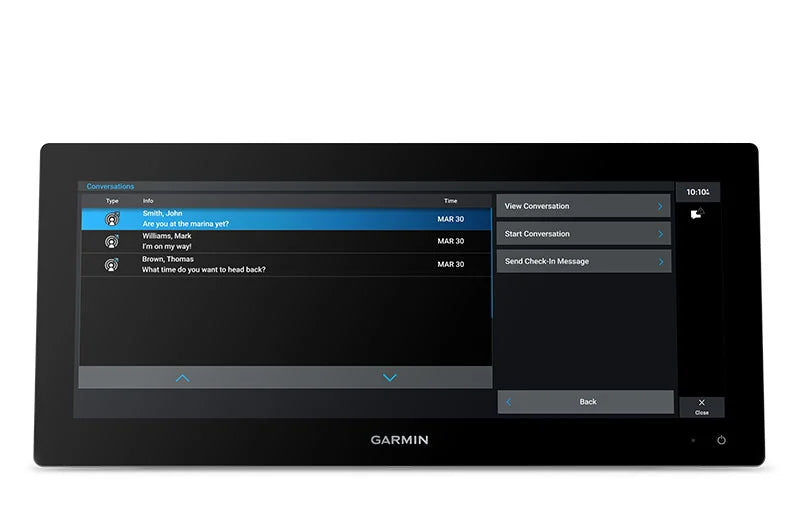

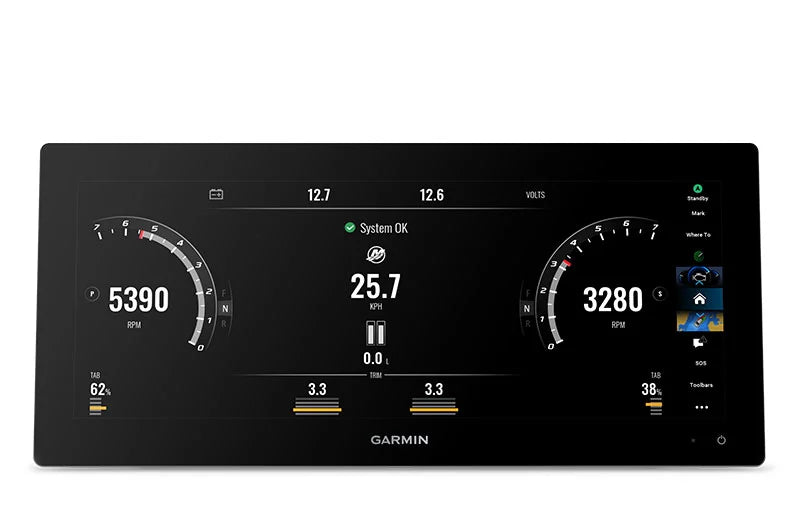

• OneHelm™ digital-switching ready: Connect to autopilot systems, digital switching modules, engines (select Yamaha®/Mercury®), Power-Pole® shallow-water anchoring systems, inReach® satellite communicators and more — control your marine ecosystem from one screen.

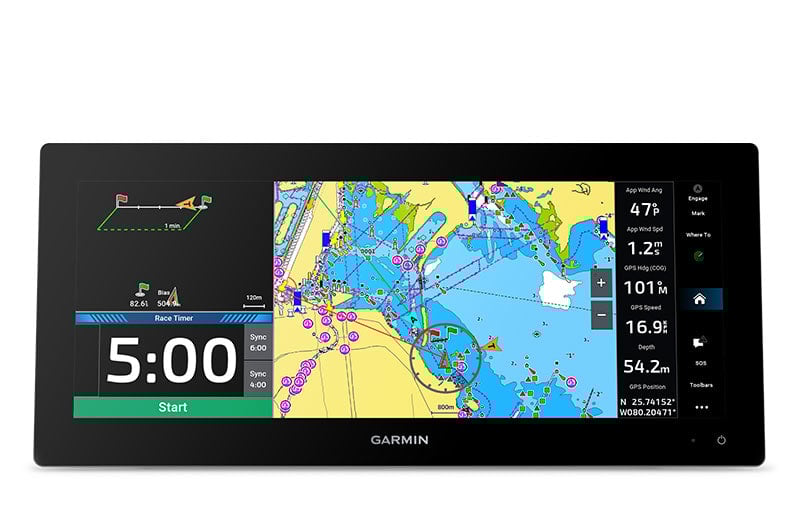

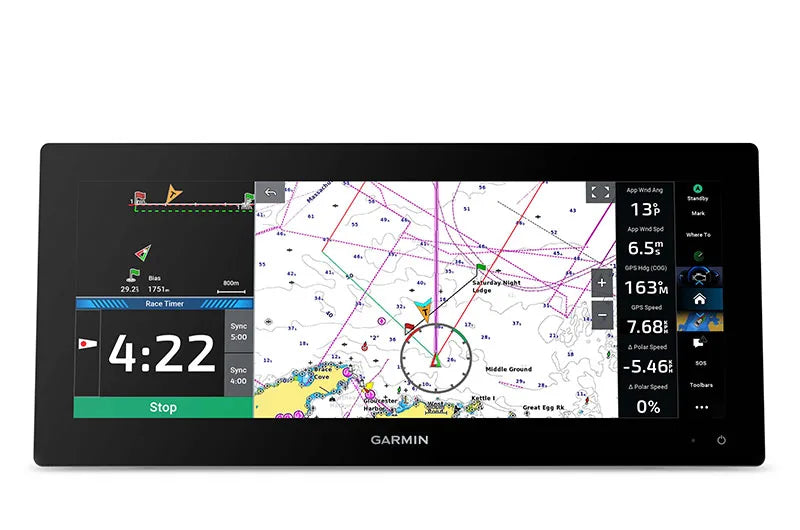

• Sailassist™ and racing features for the serious sailor: Laylines, start-line guidance, wind-rose, set/drift, polar tables — all built in to help you trim sails and optimize performance.
• Robust and marine-ready: Measuring 15.3″ × 7.02″ × 3.3″ and weighing only 7.2 lbs, with an IPX7 water-rating to withstand harsh marine conditions. Accepts dual microSD cards, supports up to 5,000 waypoints, 50,000 track points and 100 routes.

Included in the box: Chartplotter unit, pre-installed microSD card, power cable, thin flush-mount kit with gasket, protective cover, adapter cable (8-pin transducer to 12-pin), 2 m backbone/drop cable + T-connector for NMEA 2000® network, documentation. (0100385501)

Whether you’re cruising coastal waters, trolling for structure fish, or racing a sailboat, the Garmin GPSMAP 1543xsv delivers one of the most feature-rich, network-ready, ultra-wide display chartplotter/fishfinder combos in the marine electronics world.
