Garmin GPSMAP 8410xsv 10" Chartplotter/Sounder Combo (Worldwide Basemap)

GPSMAP® 8410xsv 10 inch Chartplotter/Sounder Combo with Worldwide Basemap (010-02091-02)

Elevate your marine navigation with the Garmin GPSMAP 8410xsv, a 10″ chartplotter/sonar powerhouse engineered for serious anglers, cruisers, sailors, and racers. With a focus on clarity, connectivity, and control, it brings advanced features into a compact, helm-ready package.

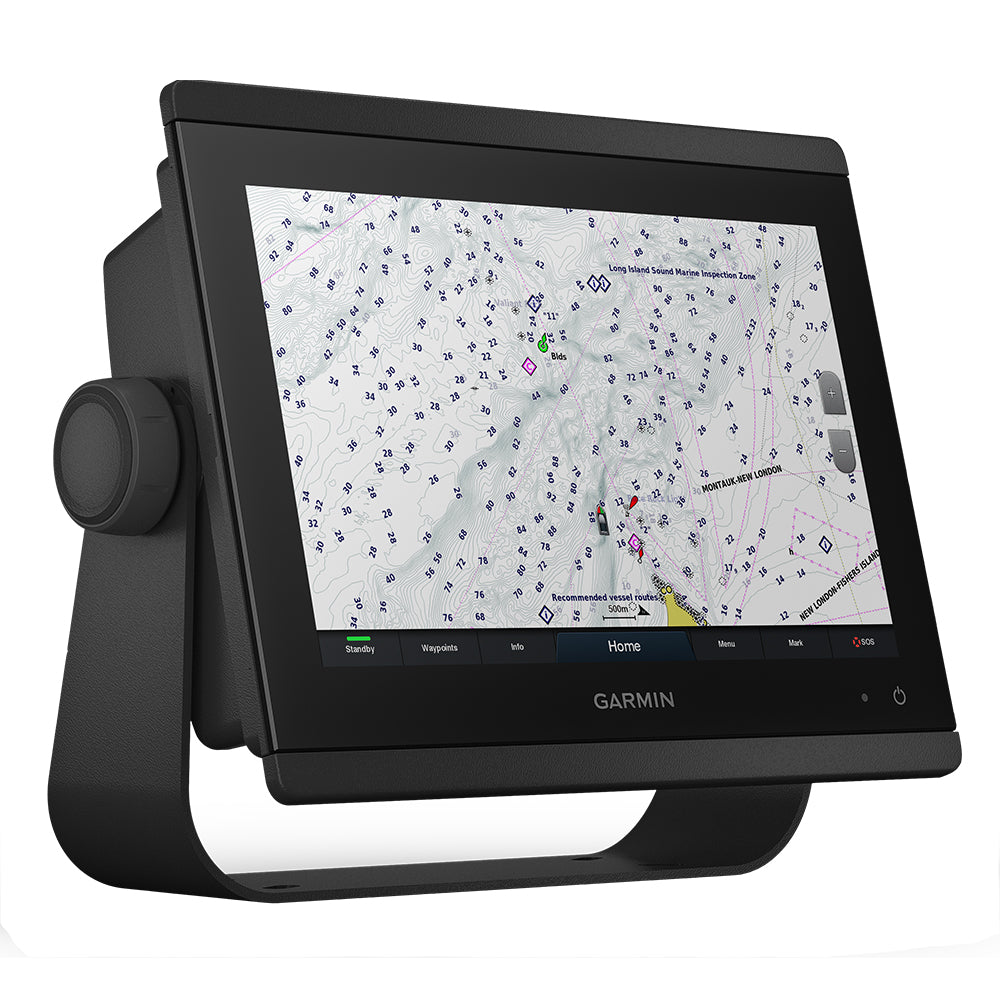

• Stunning 10″ Full HD IPS Touchscreen: Delivers wide viewing angles, crisp clarity, and excellent readability even in bright sunlight — compatible with polarized sunglasses.

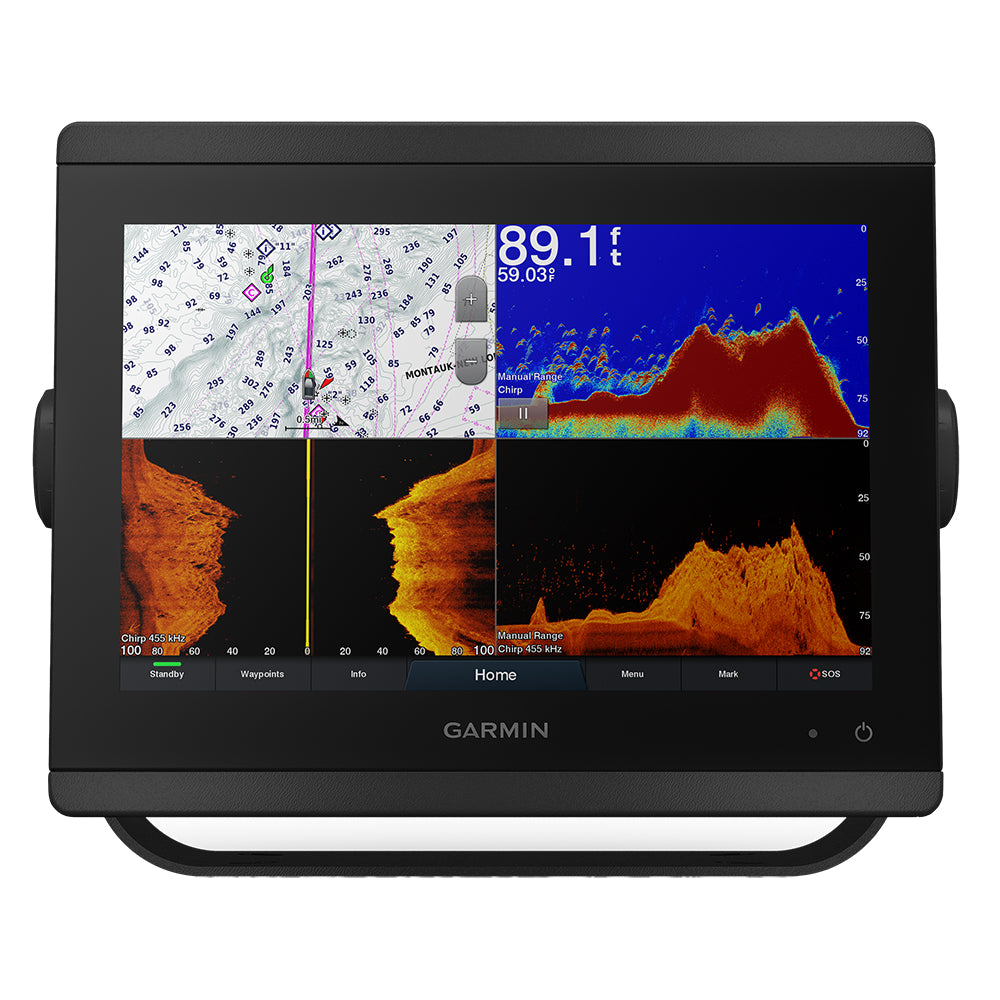

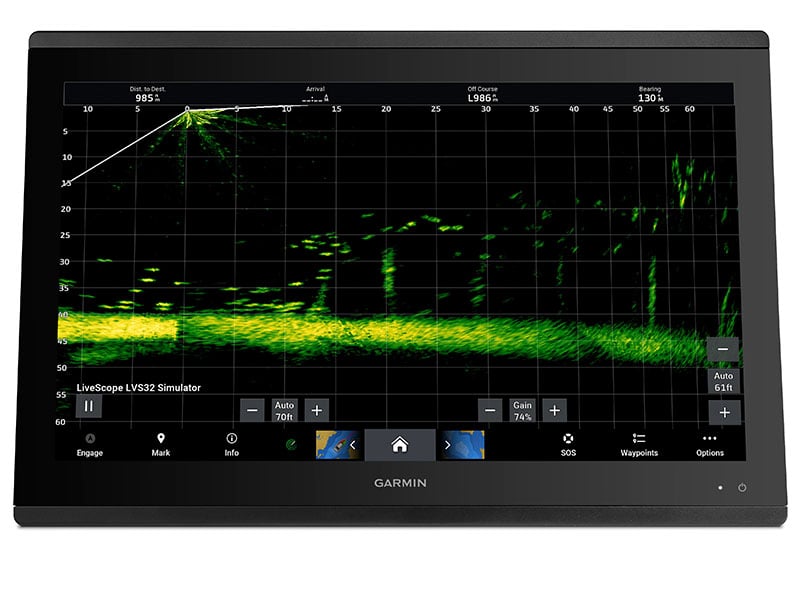

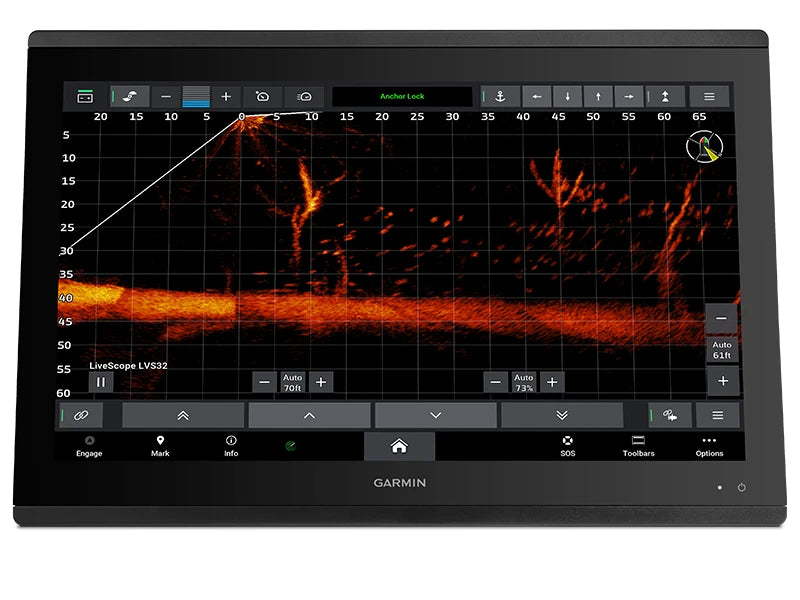

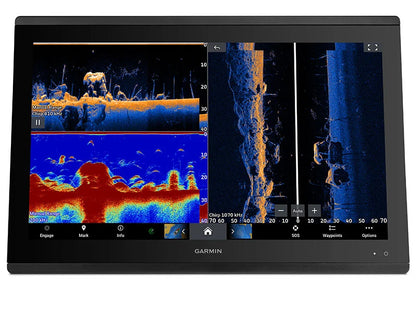

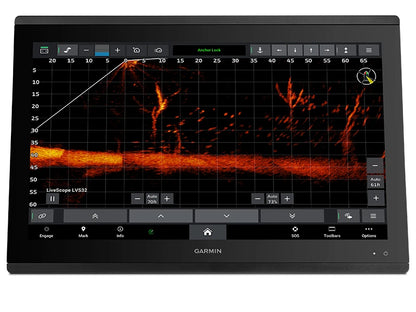

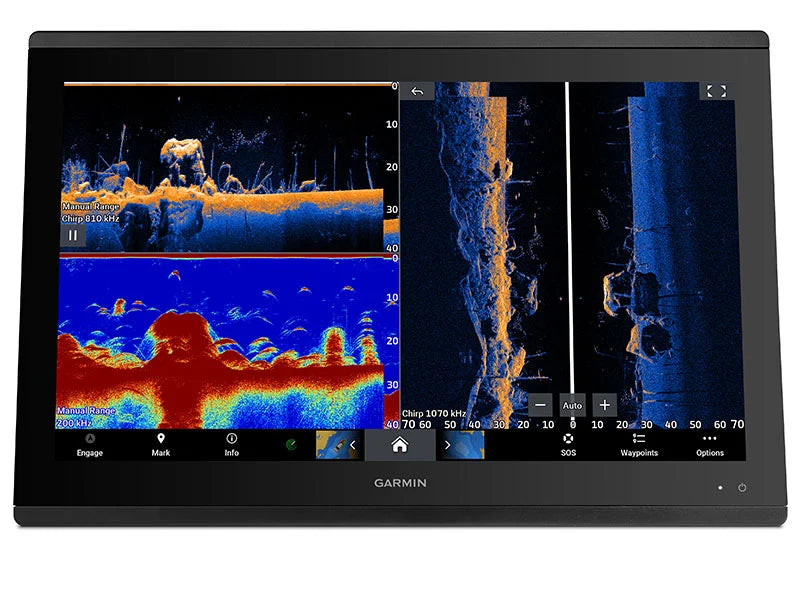

• Comprehensive Sonar Suite (Built-in): Supports dual-channel 1 kW CHIRP traditional sonar, CHIRP ClearVü and SideVü scanning sonar, and Ultra High-Definition scanning sonar — no external black box required. Also compatible with the full Panoptix™ all-seeing sonar line (transducers sold separately).

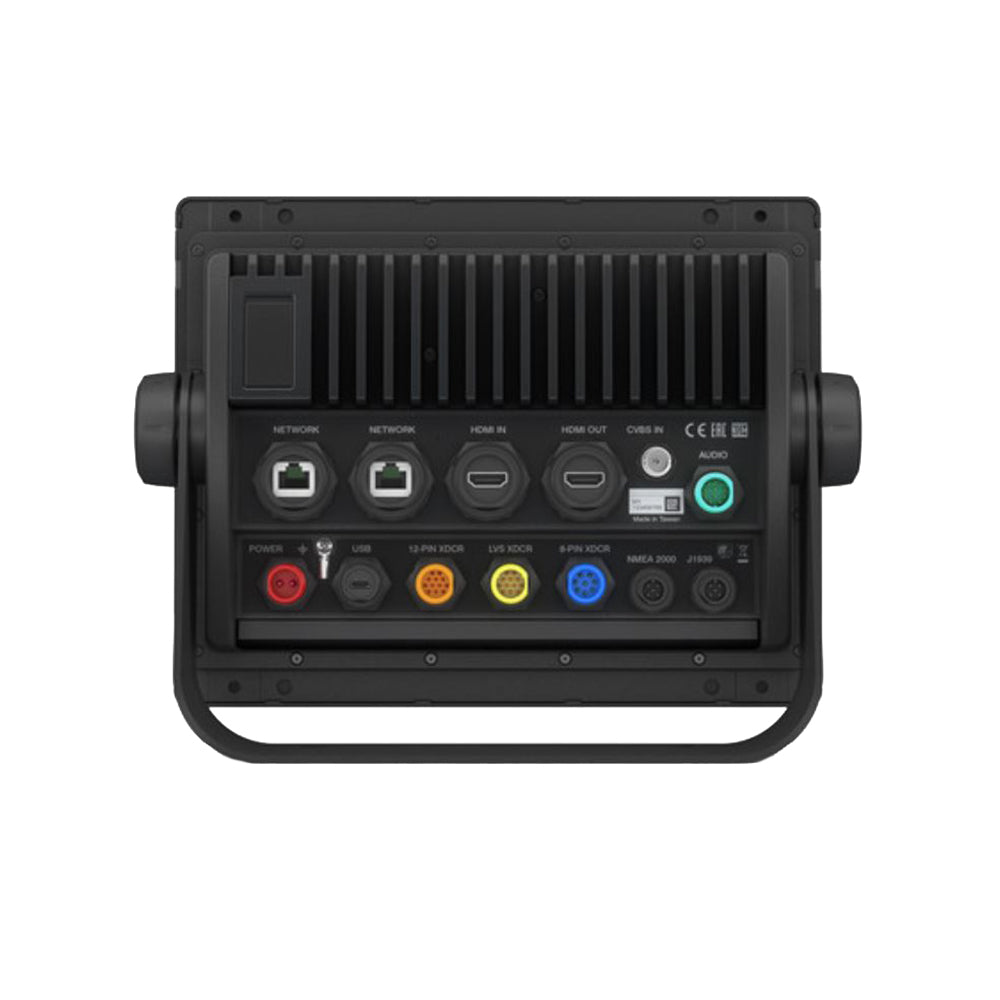

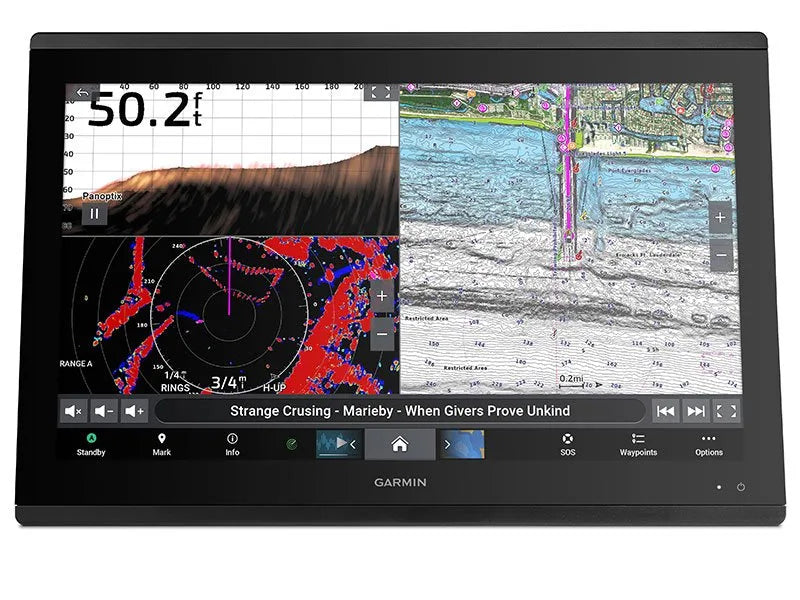

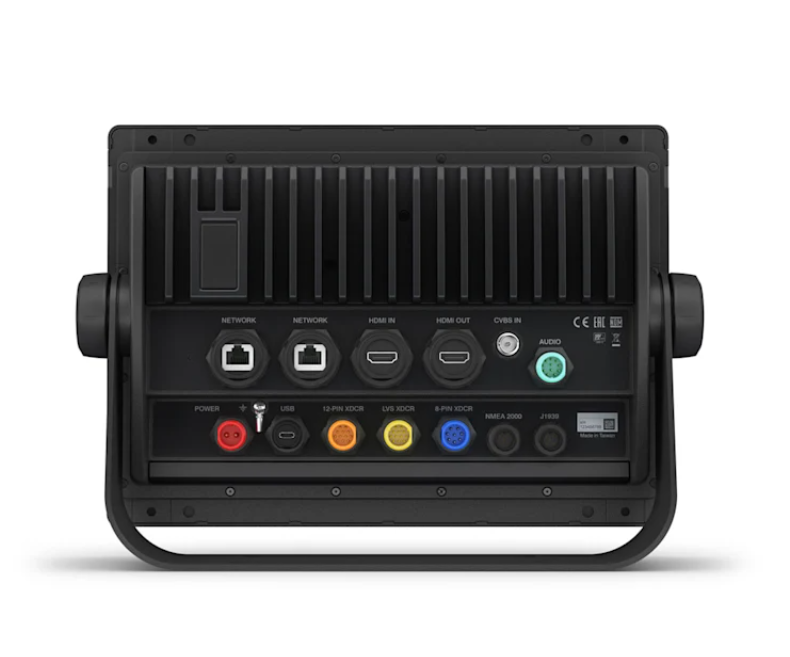

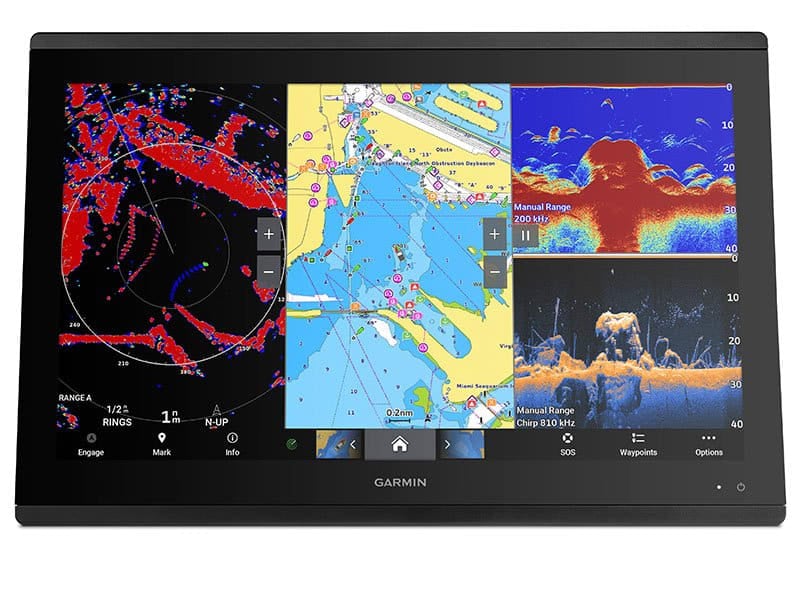

• Full Marine Networking & System Integration: Leverage NMEA 2000® and Garmin Marine Network™ to seamlessly link radar, autopilots, cameras, instruments, and more — share data across multiple displays.

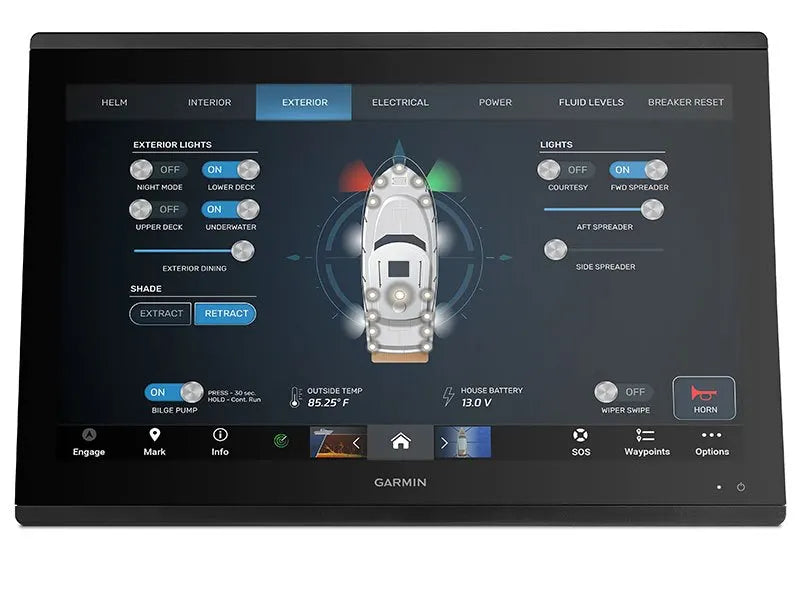

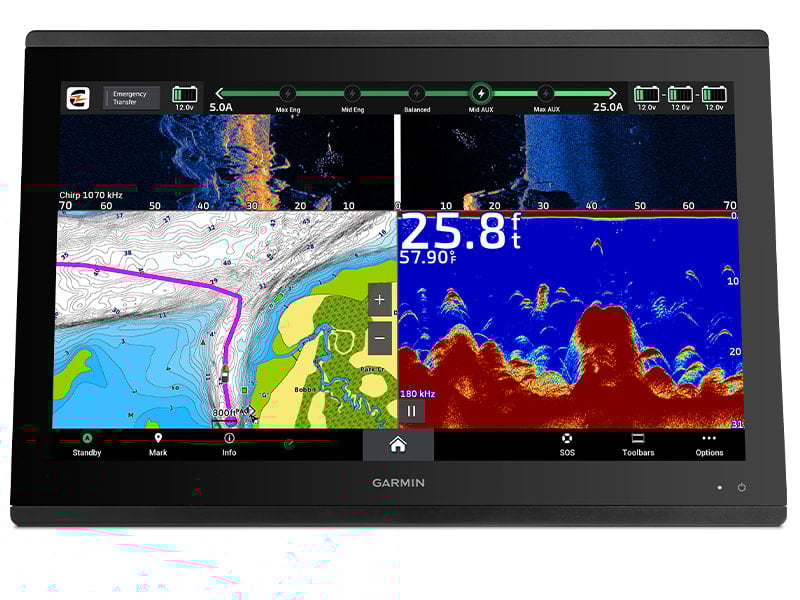

  With OneHelm™ compatibility, control third-party digital switching, lighting, stabilization, and onboard systems—all from your chartplotter screen.

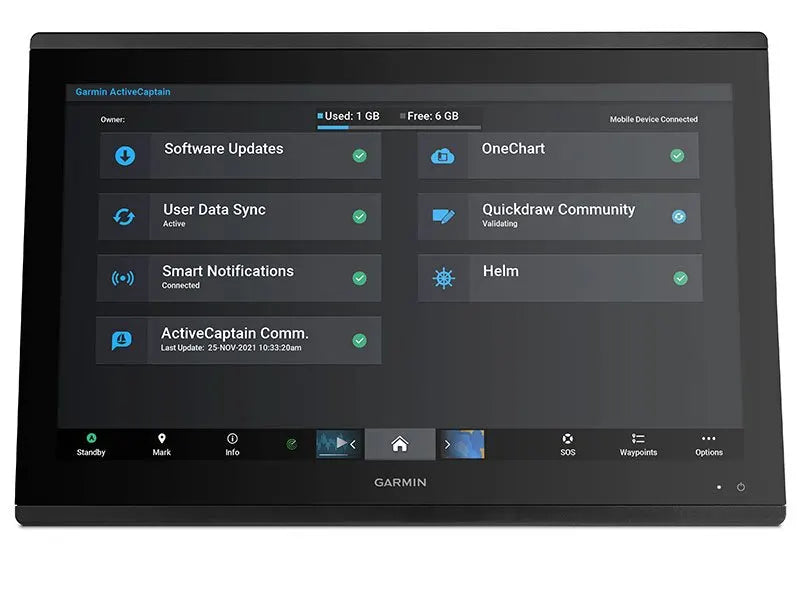

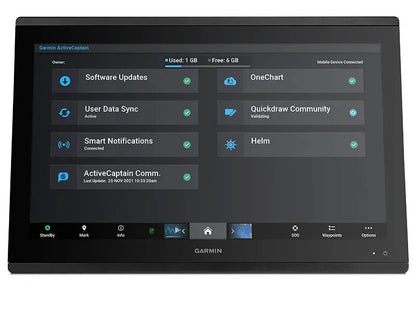

• Wireless Connectivity: Wi-Fi, Bluetooth, ANT: Built-in Wi-Fi pairs with the ActiveCaptain® app for OneChart, smart notifications, software updates, and community maps. Bluetooth and ANT connectivity allow integration with devices like quatix® marine watches, gWind Wireless 2, VIRB® cameras, and remote controls.

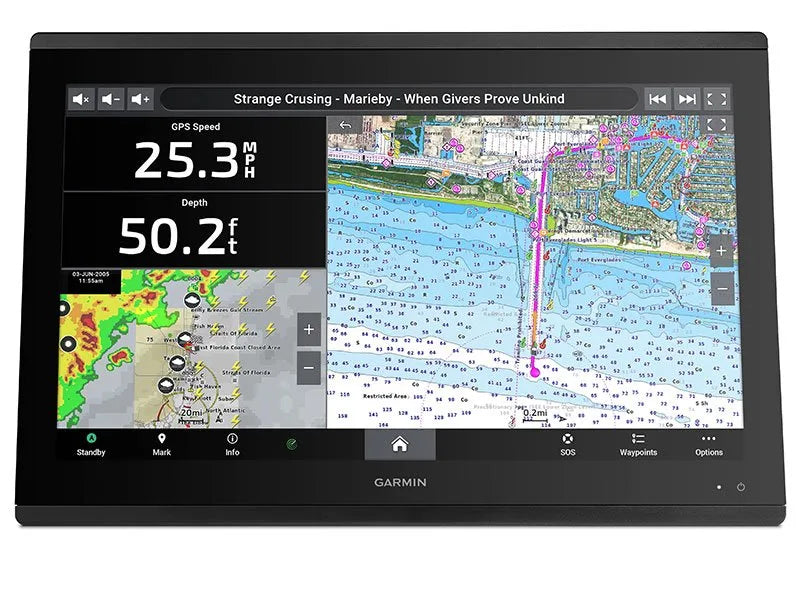

• SmartMode™ Station Controls: Customizable, one-touch station presets give instant access to critical screens — perfect for high-stress moments like docking or transitions. Combine radar, sonar, media, cameras, and digital switching into SmartMode recipes.

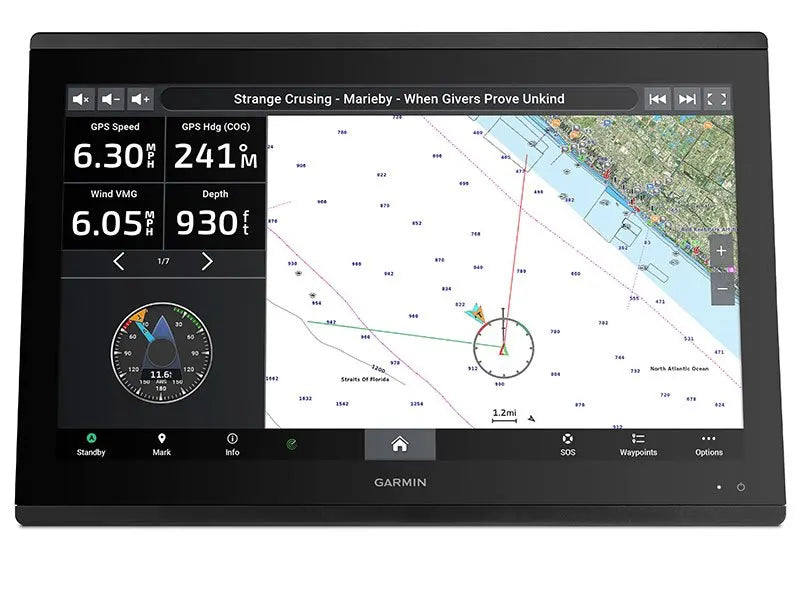

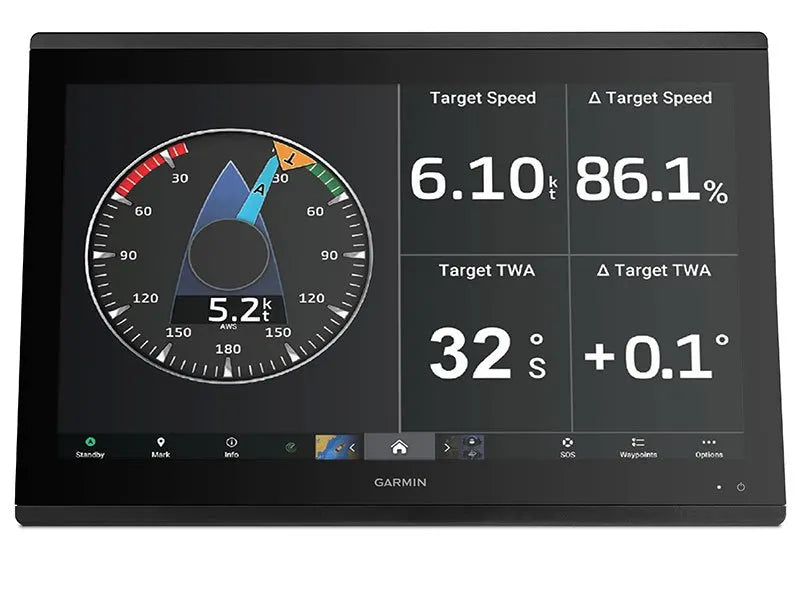

• Advanced Sailing & Racing Features: Includes Garmin SailAssist™ tools such as laylines, enhanced wind rose, heading/course-over-ground lines, true wind/ apparent wind data, and tide/current slider. Racing features provide pre-race guidance, wind-angle metrics, polars, and performance gauges (apparent/true wind angle, drift, set, speed).

Robust Specs & Expandability

• Dimensions: 10.25″ × 8.0625″ × 2.95″ (25.9 × 20.5 × 7.5 cm)
• Weight: ~5.2 lbs (2.4 kg)
• IPX7 water rating (with IPX6 in some specs)
• Display resolution: WUXGA 1920 × 1200
• Power input: 10–32 V DC, typical draw ~1.5 A at 12 V, up to 6 A max
• Storage & navigation limits: supports 2 microSD slots, up to 5,000 waypoints, 50,000 track points, and 100 routes (with ~250 waypoints each)

Included in the Box

• GPSMAP 8410xsv unit
• Power cable
• NMEA 2000 drop cable & T-connector

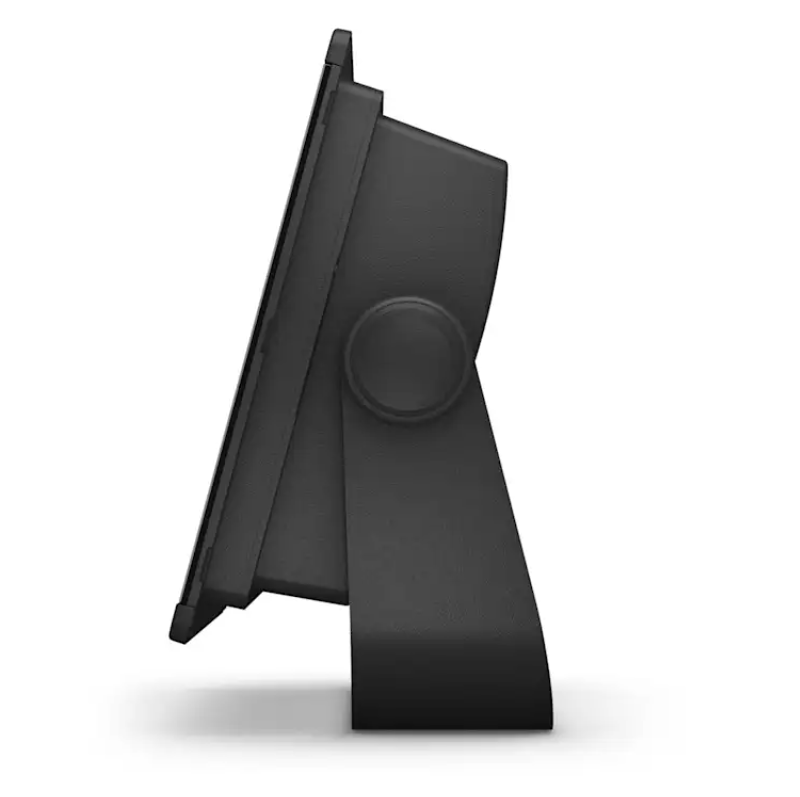

• Bail mount with knobs
• Flush-mount kit
• Sun cover
• Trim piece snap covers
• Documentation

Ideal For: Captains, anglers, and sailors who demand best-in-class sonar and navigation in a sleek, networkable display. Use it as a master helm display or pair multiple units for a “glass helm” arrangement.
