Garmin GPSMAP 8416xsv 16" Chartplotter/Sounder Combo (Worldwide Basemap and Sonar)

GPSMAP® 8416xsv 16 inch Chartplotter/Sounder Combo with Worldwide Basemap & Sonar (010-02093-02)

Unlock premium chartplotter and sonar performance with the GPSMAP 8416xsv 16″ Chartplotter/Sounder Combo (0100209302), engineered for serious anglers, cruisers, and sailors. Designed for clarity, connectivity, and command, this powerhouse unit delivers advanced features in a refined package:

• 16″ Full HD IPS touchscreen ensures wide viewing angles and excellent readability even in direct sunlight or when wearing polarized sunglasses

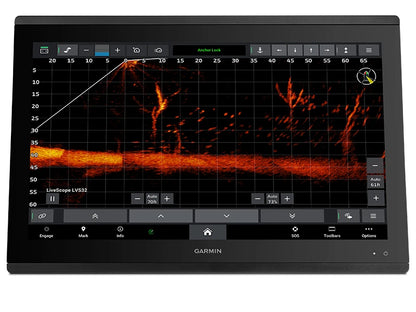

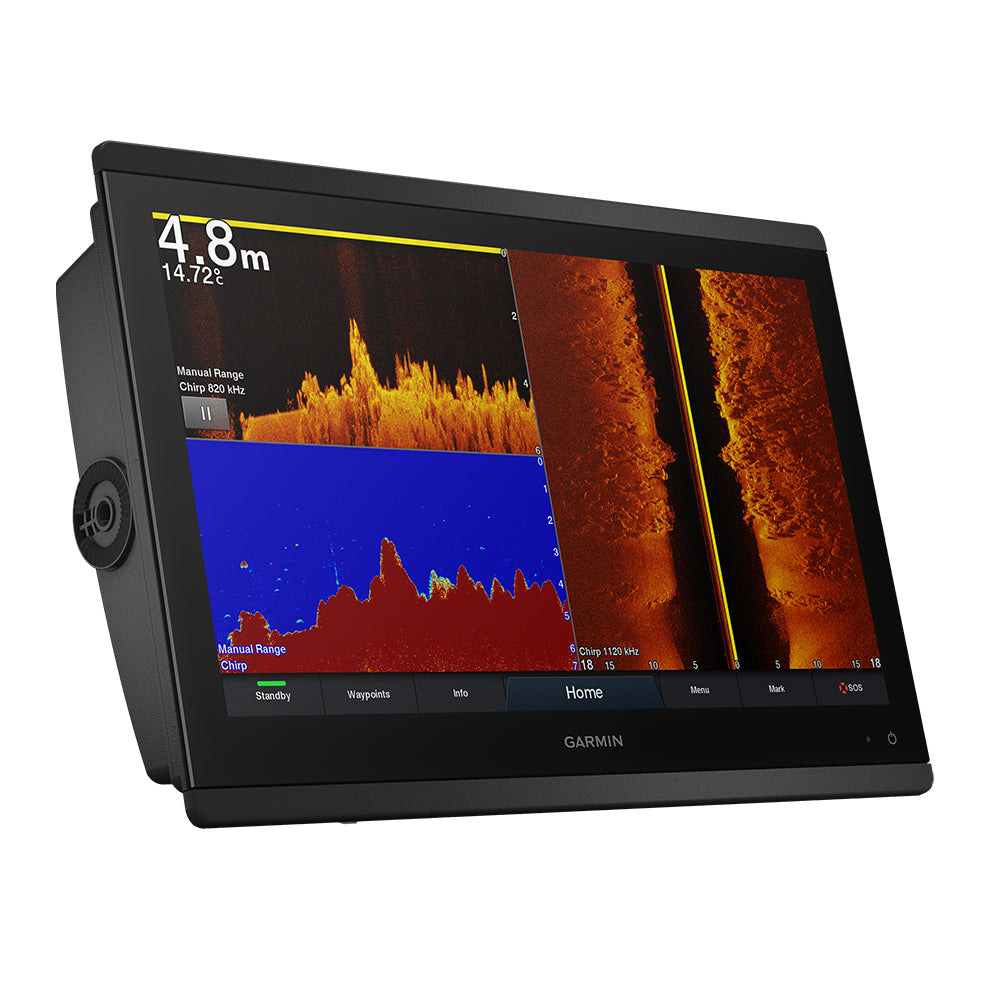

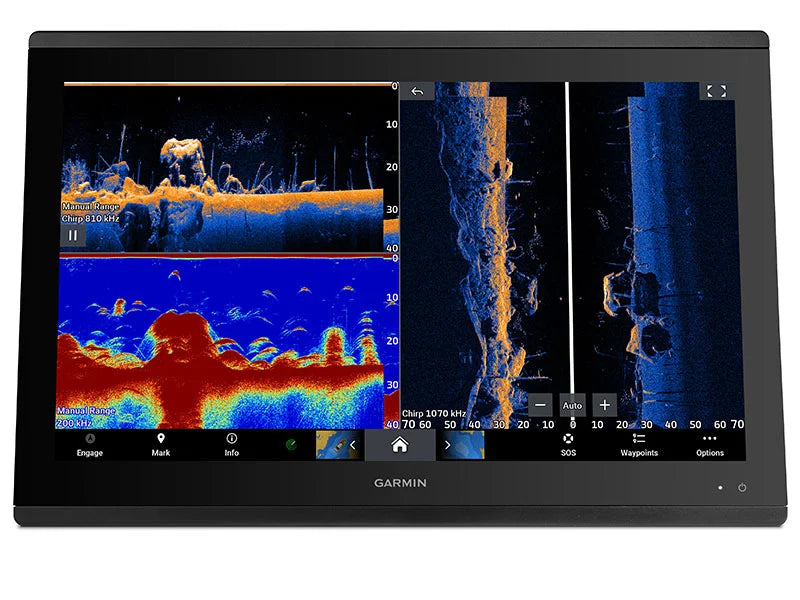

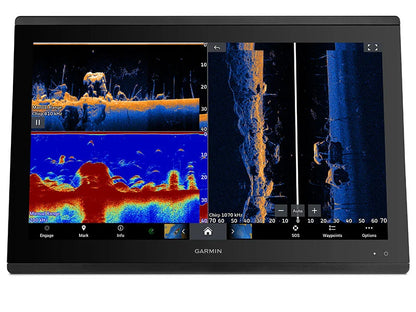

• Built-in support for Garmin’s full sonar suite: dual-channel 1 kW traditional CHIRP, CHIRP ClearVü, CHIRP SideVü, and Ultra High-Definition (UHD) scanning sonar — no external black box needed

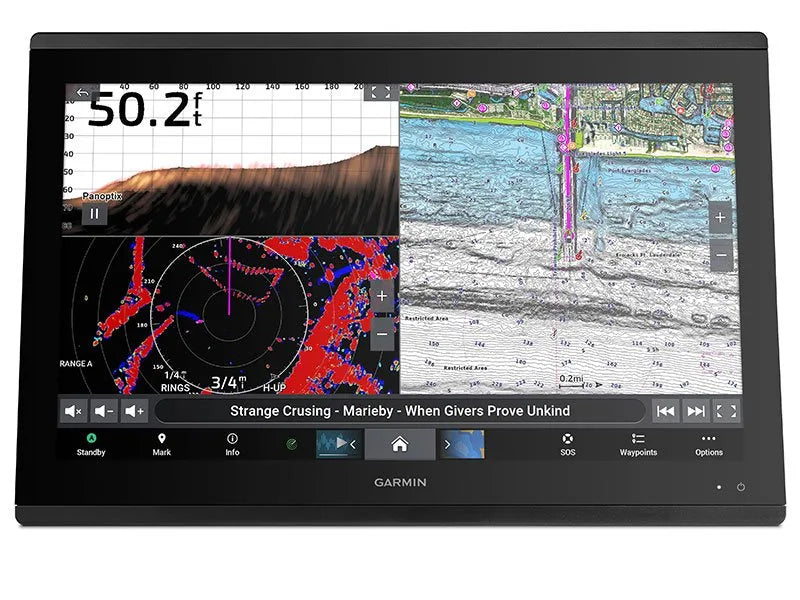

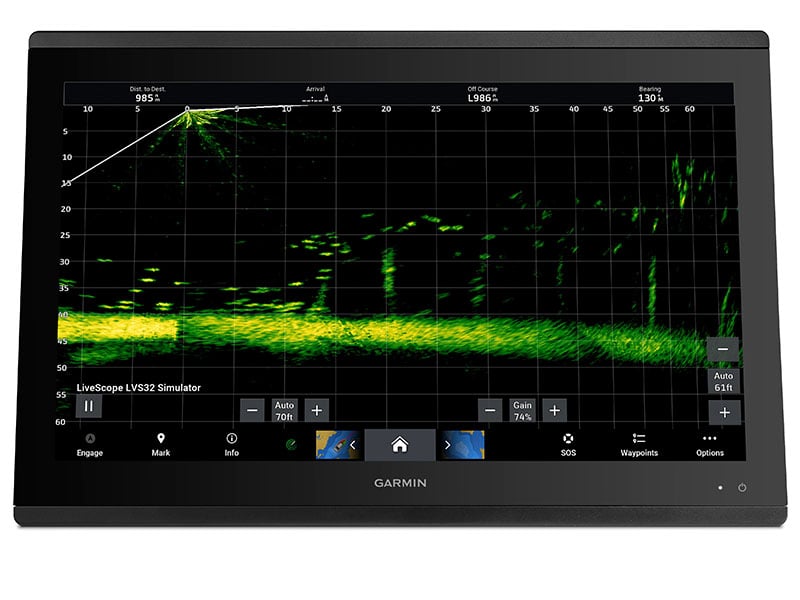

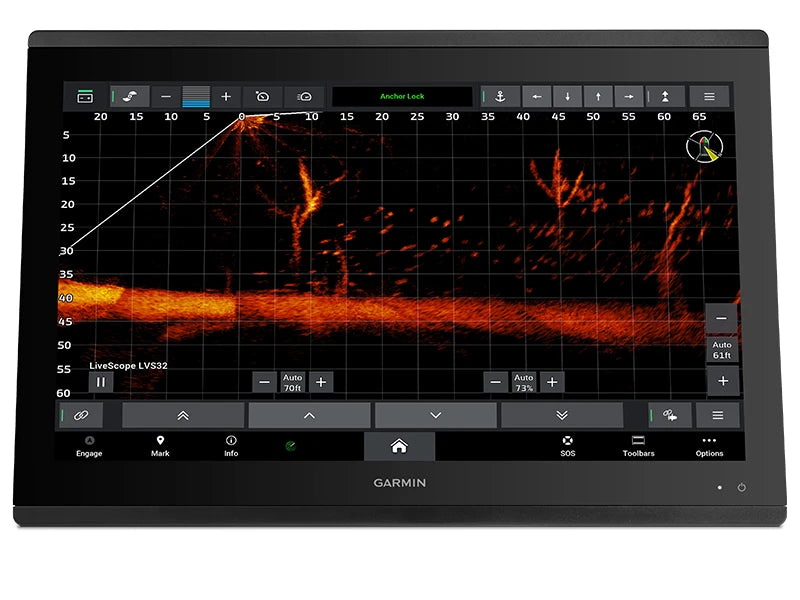

• Compatible with the complete Panoptix™ all-seeing sonar line (transducers sold separately), giving you real-time 3D sonar views

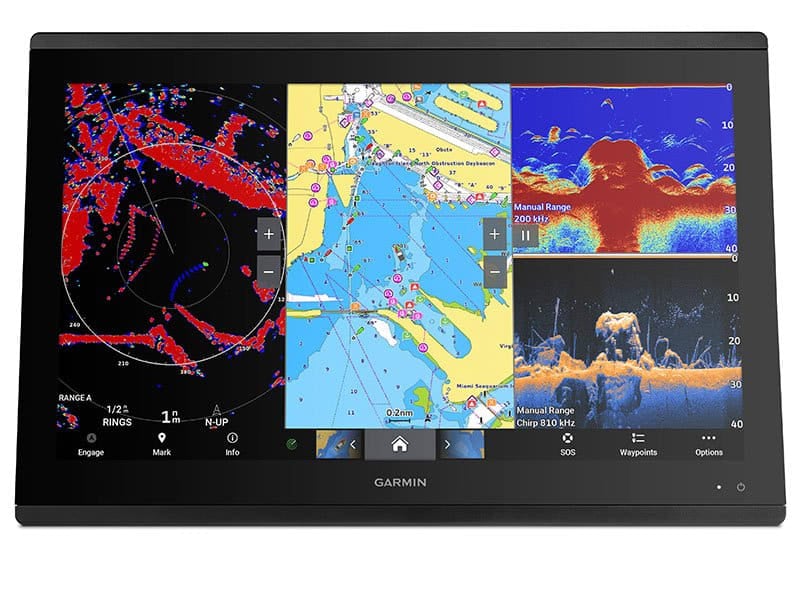

• Fully network-capable with NMEA 2000® connectivity and Garmin Marine Network™, enabling system integration with radar, autopilots, cameras, instruments, and more

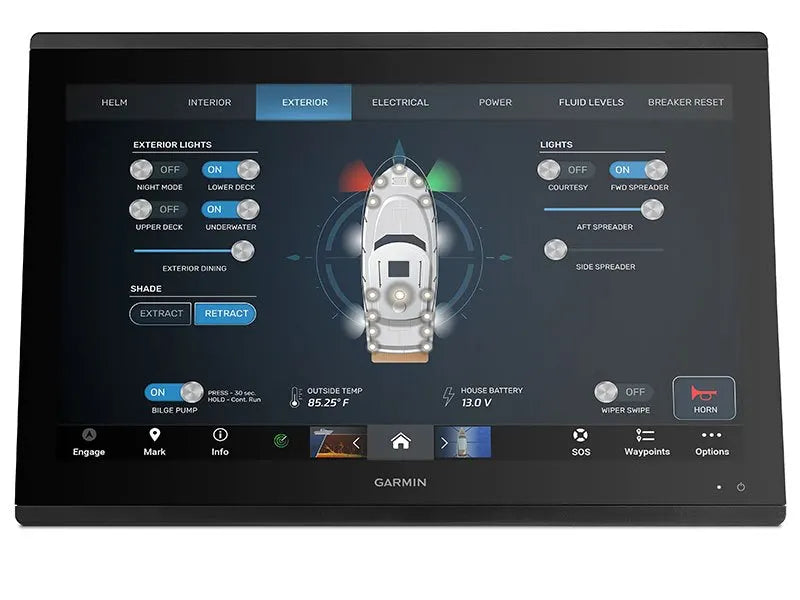

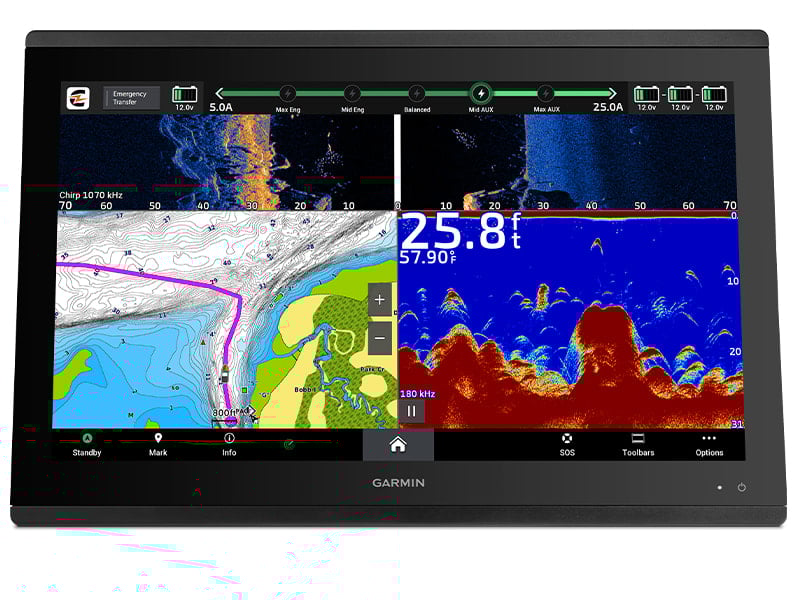

• Exclusive OneHelm™ support links many third-party marine devices (digital switching, stabilization, lighting) directly to your chartplotter interface

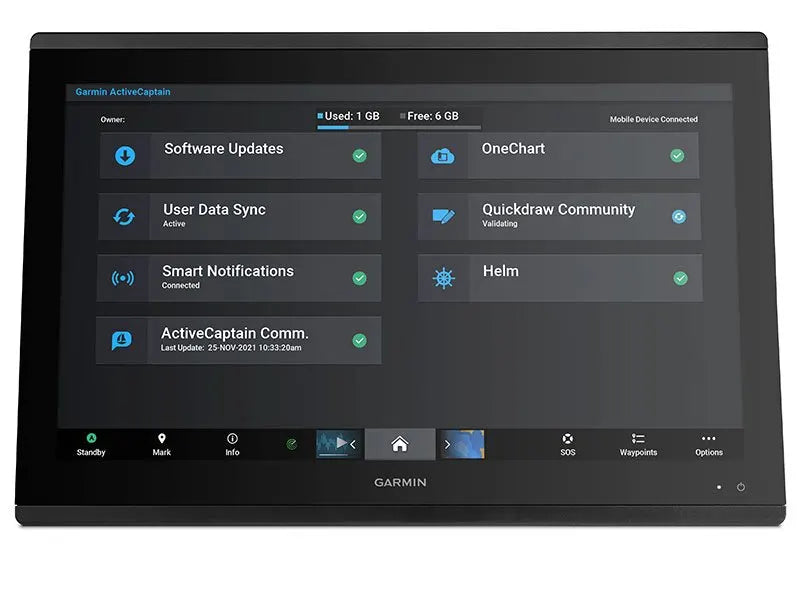

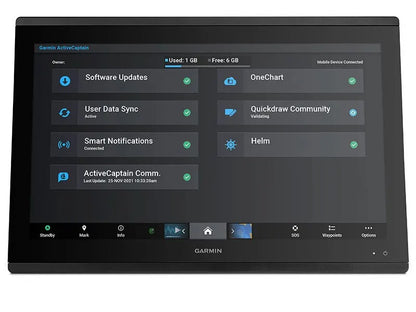

• Advanced connectivity with Wi-Fi®, Bluetooth®, and ANT® — pair with the ActiveCaptain® app for OneChart™, smart notifications, Garmin Quickdraw™ community maps, and software updates
• Control video streaming from GC 100 wireless cameras, VIRB® action cams, and other video sources

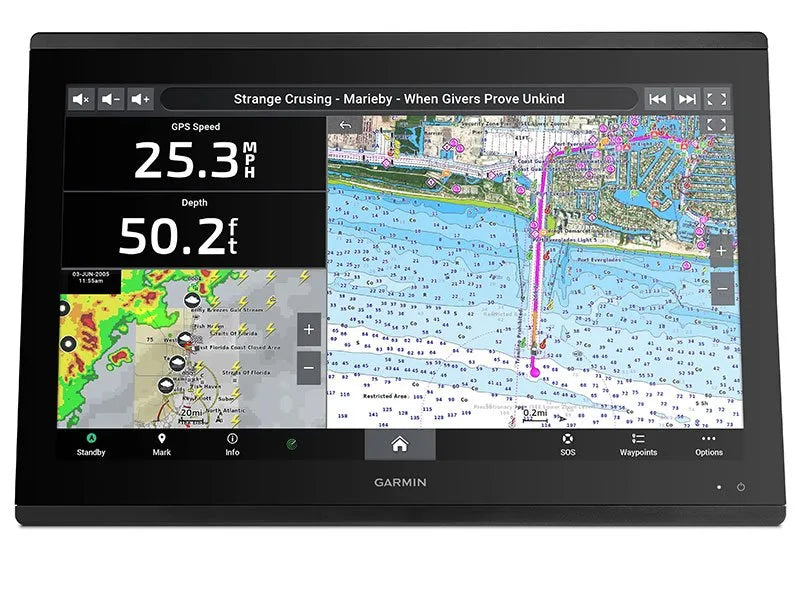

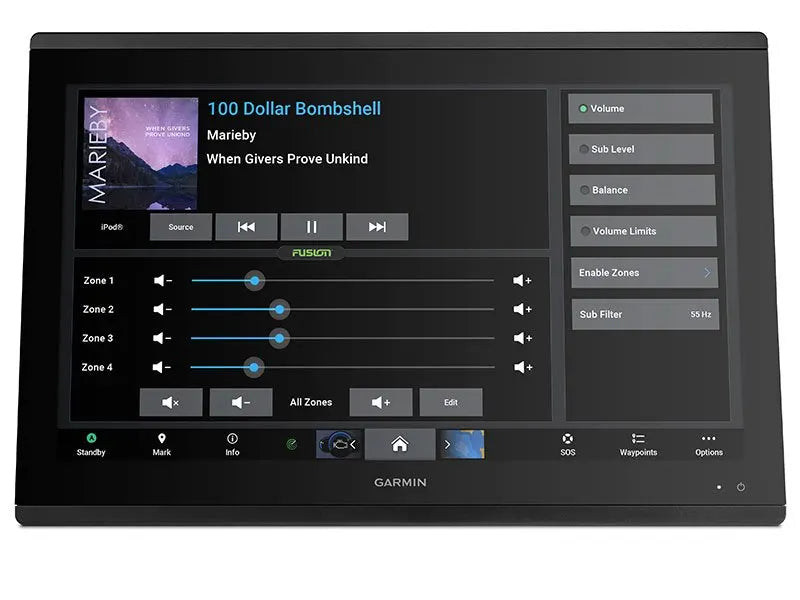

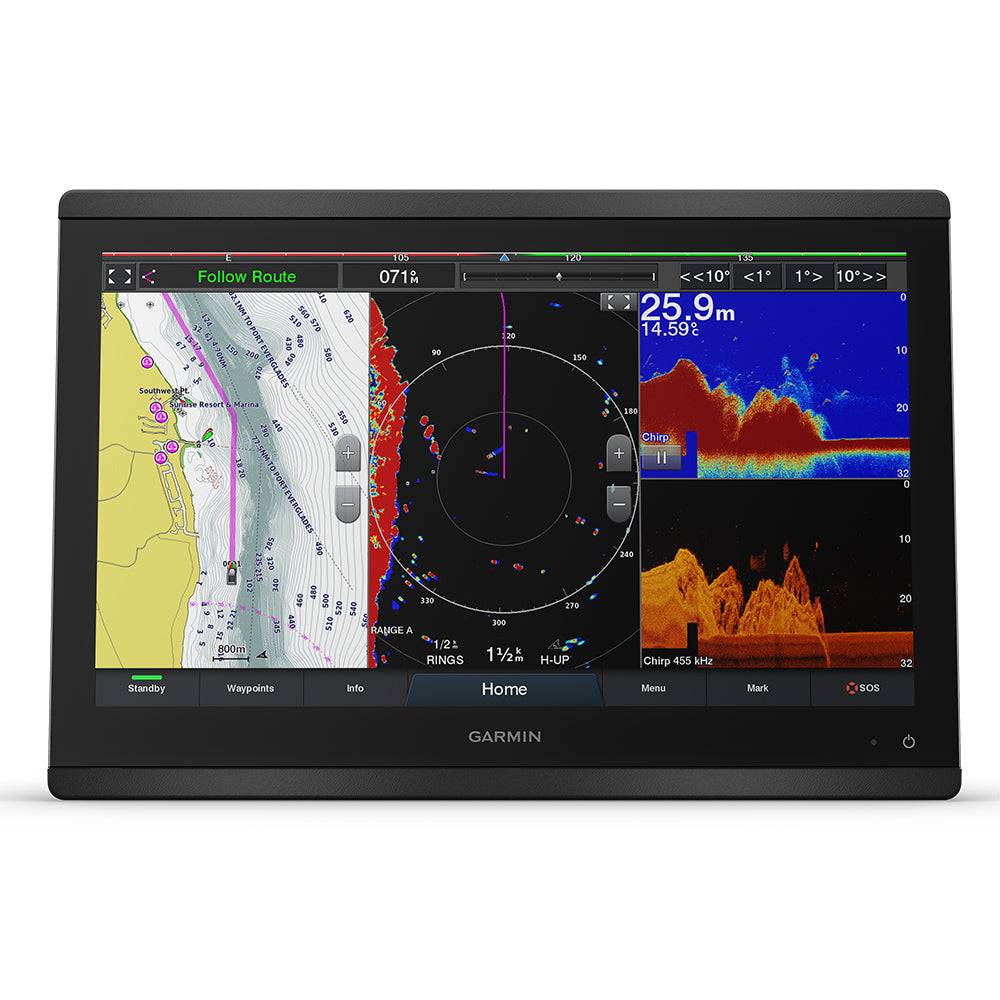

• SmartMode™ station controls provide seamless one-touch access to networked sonar, radar, cameras, media, and digital switching — ideal during high-pressure maneuvers like docking

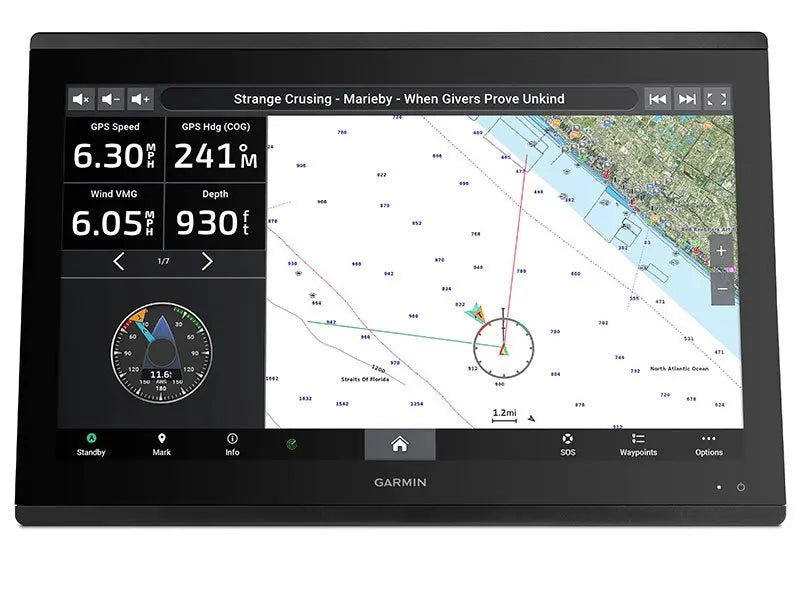

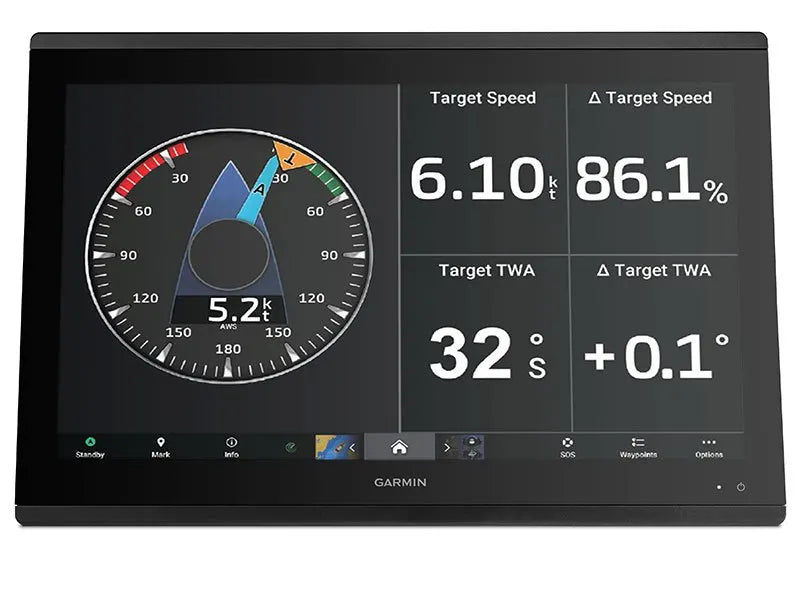

• Garmin SailAssist™ tools deliver race and sailing advantages: laylines, enhanced wind rose, true/apparent wind, drift/set, tide/current/time slider, custom gauges, and more
• Sleek installation options: mount multiple displays flat edge-to-edge for a flush, glass helm look or choose standard flush mounting

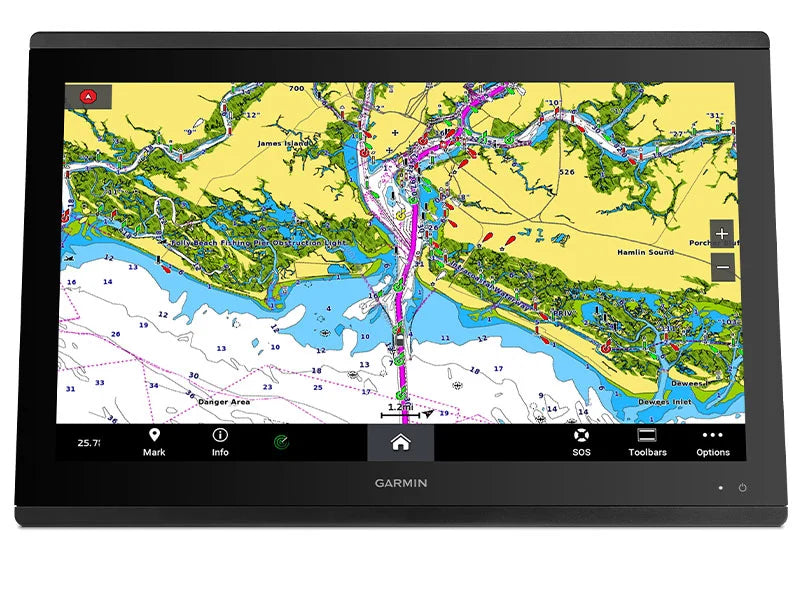

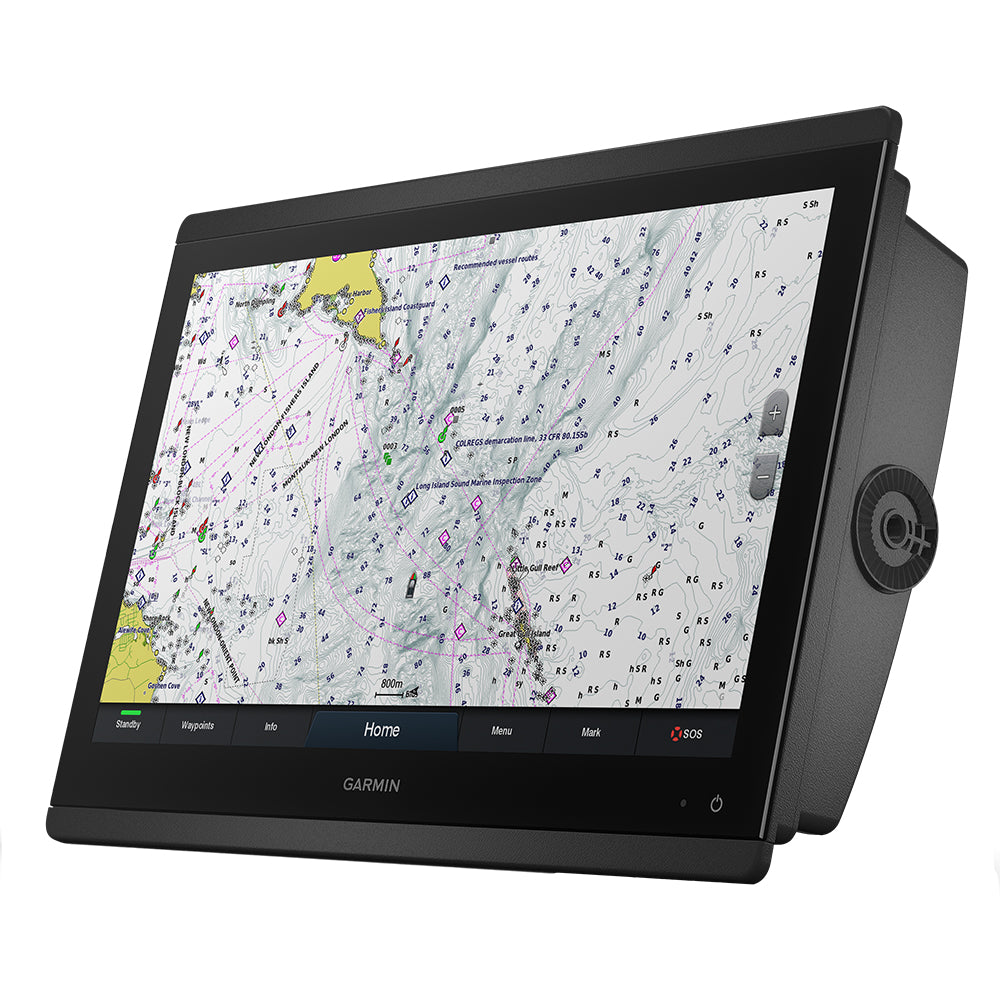

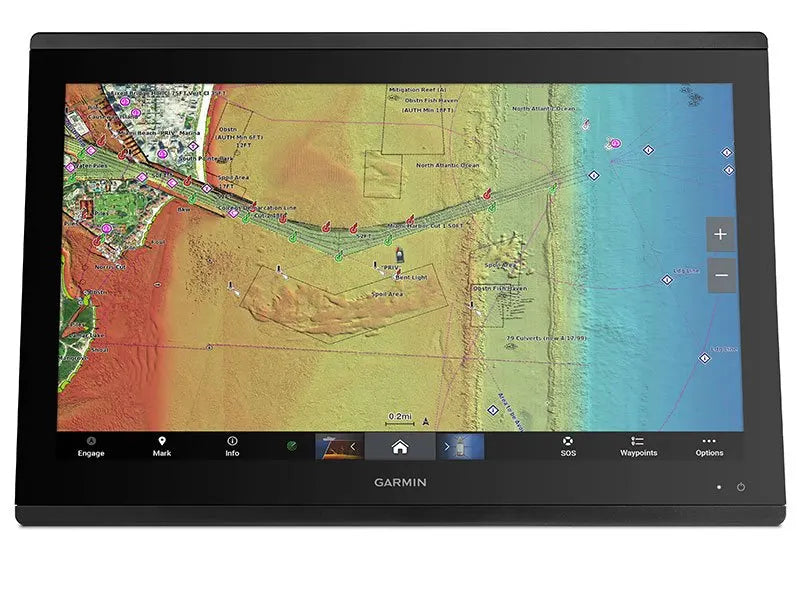

• Preloaded with Worldwide Basemap for global chart coverage
• Robust hardware design: IPX7 waterproof rating ensures durability in marine environments (spec sheet lists waterproof rating)
• Compact form: 15.1″ × 10.3″ × 3.0″ (W × H × D), weight about 9.6 lbs.
• Power input range: 10 – 32 V DC; typical draw ~1.3 A; max draw ~6.0 A

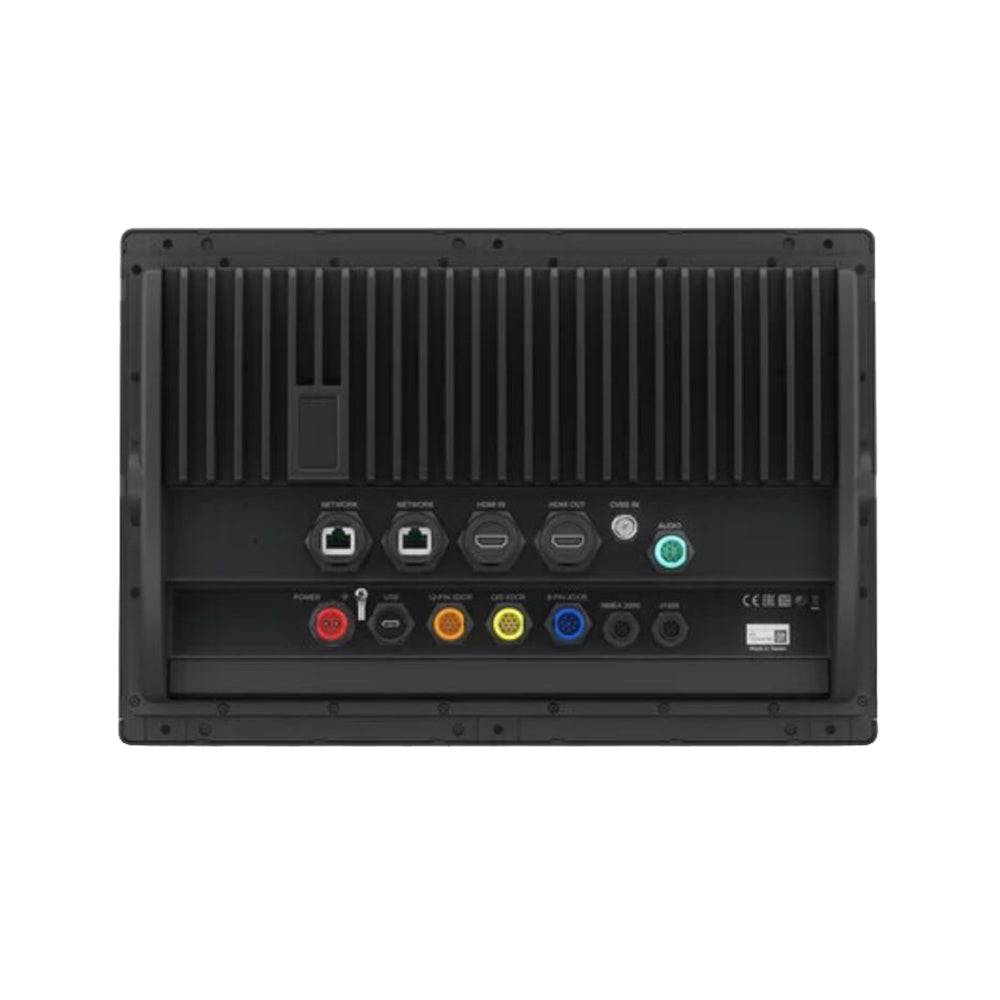

• Multi-port connectivity: 2 Garmin Marine Network ports, NMEA 2000 port, NMEA 0183 input/output, HDMI in/out, BNC composite video in, and more
• Package includes: GPSMAP 8416xsv unit, power cable, NMEA 2000 drop cable, T-connector, flush mount kit, sun cover, trim covers, and documentation

Specifications:

• Cartography Brand: Garmin
• Transducer Included: No
• Touchscreen: Yes
• Included Transducer: Not Included
• Screen Size: 16"
