Garmin GPSMAP 9027 27" Chartplotter w/Worldwide Basemap

GPSMAP® 9027 – 27″ Premium 4K Marine Chartplotter with Worldwide Basemap (010-02676-00)

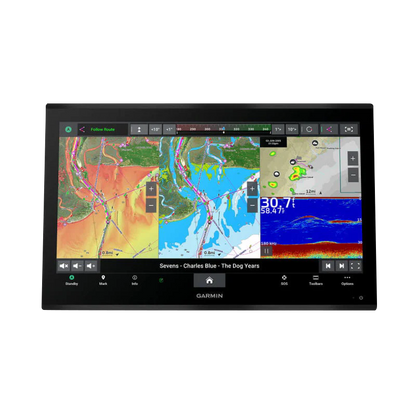

Embark on an elevated navigation experience with the Garmin GPSMAP 9027, the industry’s first fully integrated 4K resolution touchscreen chartplotter (3840 x 2160 px). Designed for serious boaters, anglers, and sea-bound explorers, this powerhouse display brings your helm to life with clarity, speed, and connectivity.

Key Features & Benefits

• Stunning 4K IPS Sunlight-Readable Touchscreen
  Experience crystal-clear charts and sonar returns even in direct sunlight. The edge-to-edge glass helm design gives your helm station a modern, luxurious look.
• Blazing-Fast 7× Processing Power
  With up to seven times the processing speed of prior models, this chartplotter draws maps, recalculates Auto Guidance+™ routes, and responds to inputs with lightning speed.
• Gigabit-Speed Garmin BLUENET™ Network Support
  Seamlessly network multiple chartplotters, radars, cameras, and sonar modules with ultra-fast data throughput, reducing lag and improving system coordination.

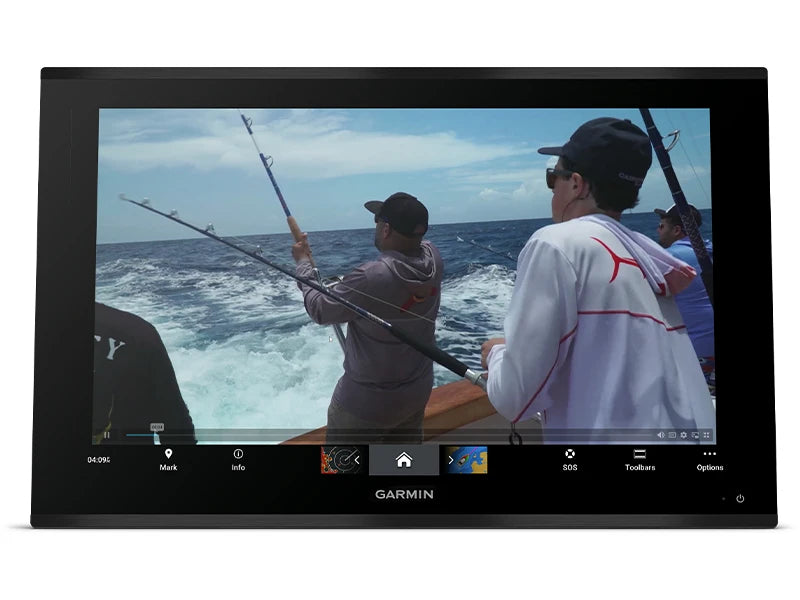

• Full Video Integration with HDCP Compliance
  Share video and audio across your network—watch a movie or camera feed on multiple displays with synced playback.

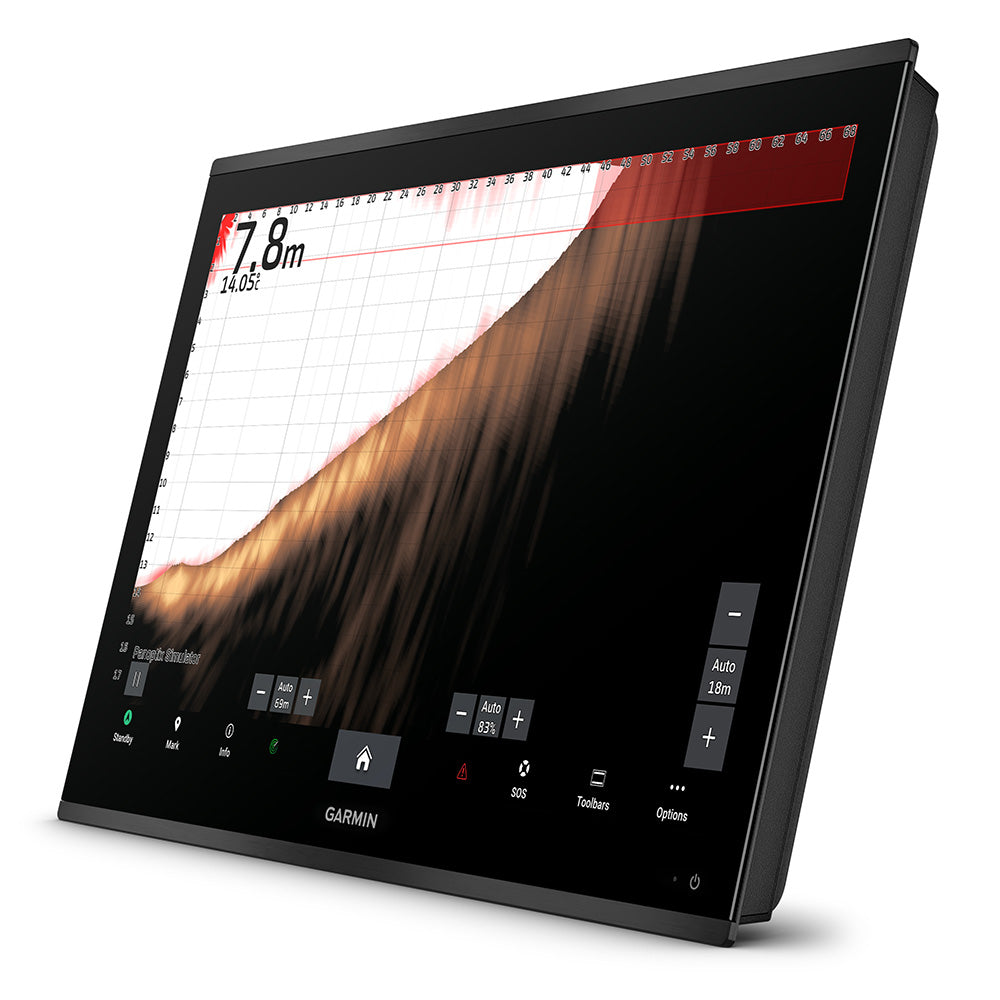

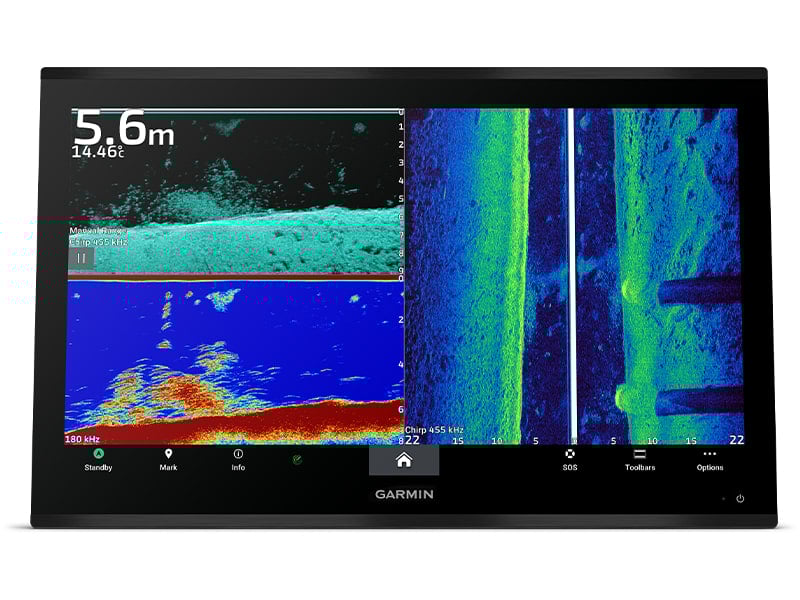

• High-Definition Sonar Imaging
  When paired with compatible sonar modules (sold separately), the 4K display reveals fish, structure, and underwater terrain in exceptional detail.
• Complete Vessel Ecosystem Integration
  Connect to NMEA 2000® and NMEA 0183 networks to interface with autopilots, sensors, engine systems, and third-party devices.
• Wireless Software Updates via ActiveCaptain®
  Keep your unit current with over-the-air updates through the ActiveCaptain app.

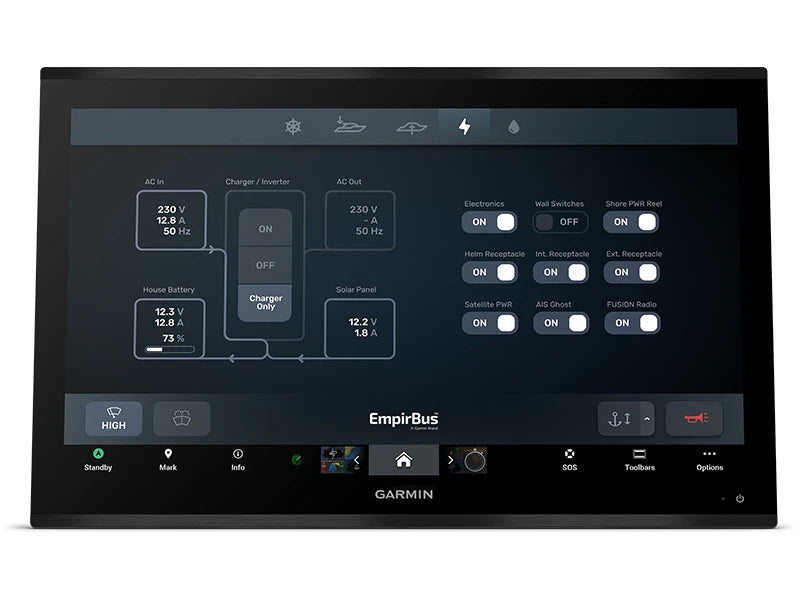

• Engine & System Monitoring
  Monitor engine data (including J1939), diagnostics, fuel metrics, and more when integrated with compatible systems.

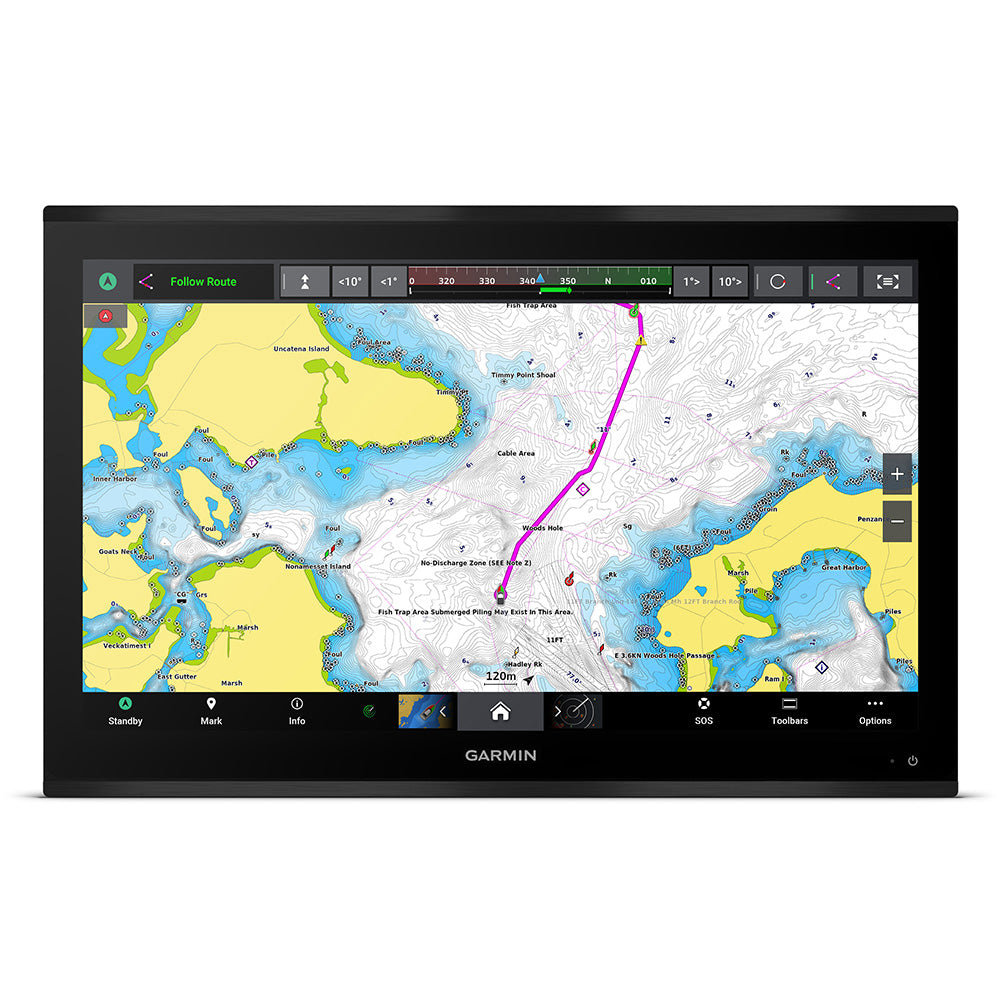

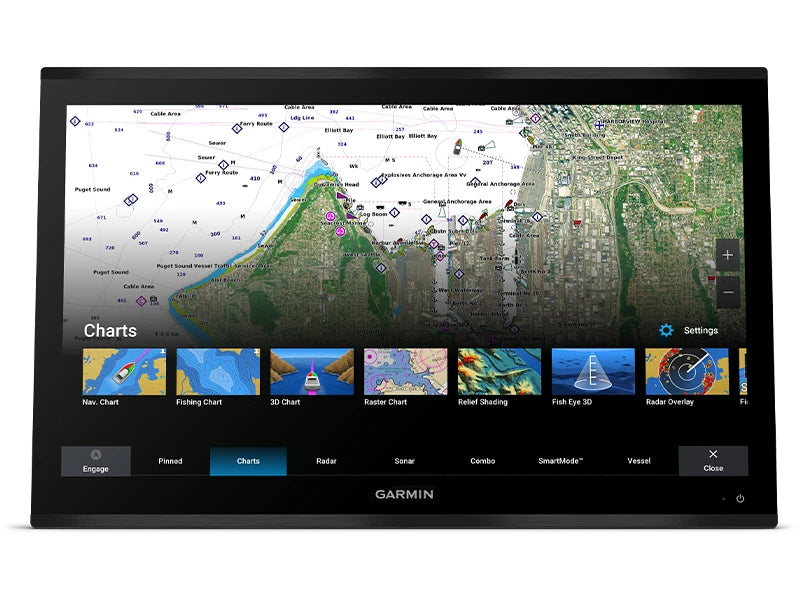

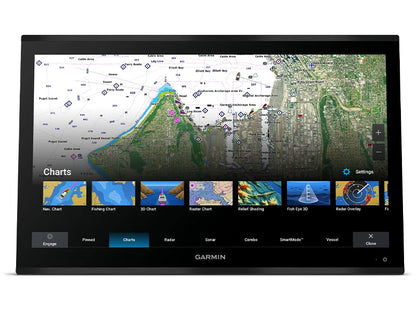

• Chart & Navigation Options
  Supports Garmin Navionics+™ (with Auto Guidance+), Vision+™ charts with advanced topographic shading, LakeVü G3/G3 Ultra, Quickdraw Contours, and raster chart formats.
• Autopilot & Waypoint Control
  Command autopilot systems from this central display and manage up to 5,000 waypoints, 50,000 track points, and 100 navigation routes.
• Camera & Surround-View Compatibility
  Display on-board camera feeds or view bird’s-eye perspectives via Garmin Surround View systems (accessory required).
• Voice & Watch Control
  Control functions via spoken commands (with compatible headset) or link to your Garmin smartwatch for remote navigation control.
• Weather-Resistant & Rugged Design
  Built to marine standards with an IPX7 rating to withstand harsh sea conditions.
• Latest Firmware Enhancements

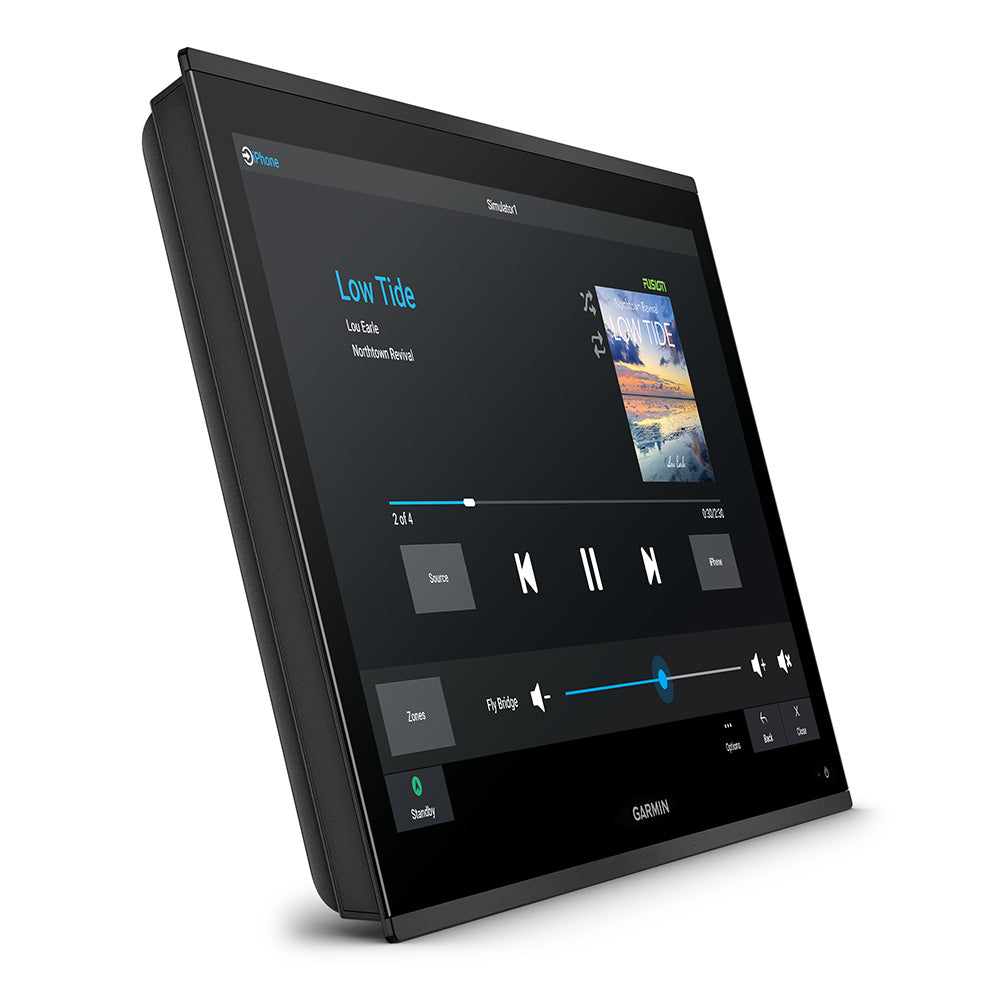

  Recent updates include voice commands for trolling motor controls (Cruise Control, Heading Hold, Anchoring), support for Fusion RA800 stereo systems, MAN engine compatibility, and new AIS trail drawing options.

In the Box

• GPSMAP 9027 27″ chartplotter
• Trim snap cover & protective cover
• Flush-mount hardware kit
• Power cable
• GPS 24xd NMEA 2000® position receiver & antenna (with multiple mounting adapters)
• NMEA 2000 backbone/drop cable (2 m), T-connector, terminator kit, power cable
• Documentation

Technical Highlights

• Dimensions: 25.8″ × 16.7″ × 3.3″ (65.5 × 42.3 × 8.5 cm)
• Weight: 27.65 lb (12.54 kg)
• Display Resolution: 3840 × 2160 px
• Mounting: Flush or flat

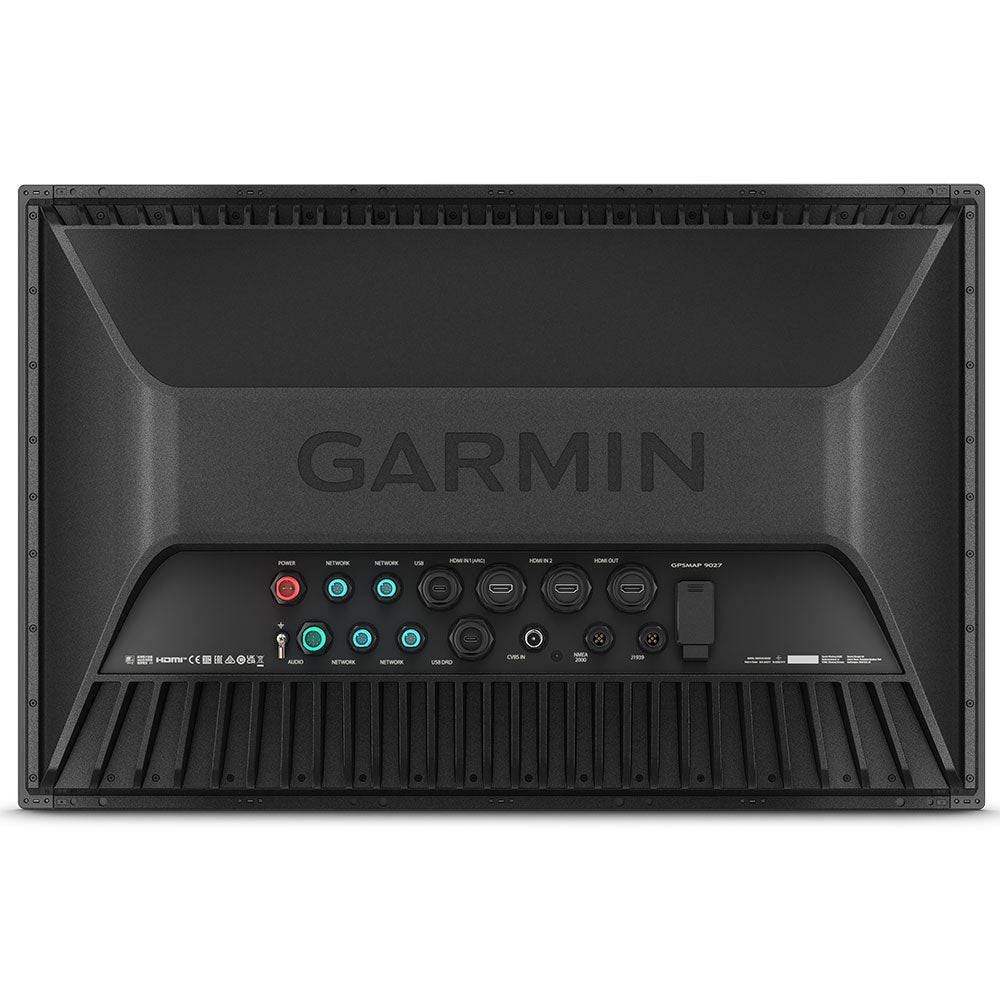

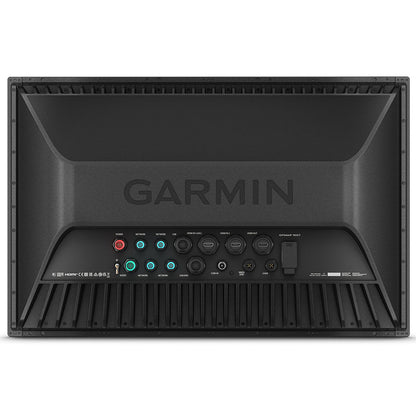

• Connectivity: 1 NMEA 2000 port, 4 Garmin BLUENET ports, 4 NMEA 0183 input, 2 output, HDMI and video I/O (HDCP compliant), 2 × USB-C, J1939
• Power Input: 10–35 VDC (typical draw: 7.2 A at 12 V; max 8.1 A)
• Navigation Capacity: 5,000 waypoints, 50,000 track points, 100 routes
• Supported charting options: Garmin Navionics+, Vision+, LakeVü G3 family, Quickdraw Contours, raster charts
• Sonar modes: Traditional, ClearVü, SideVü, Panoptix™, LiveScope (requires compatible modules)
• Certifications & Protection: Sunlight-readable display, IPX7 waterproofing

Owner's Manual (pdf)
