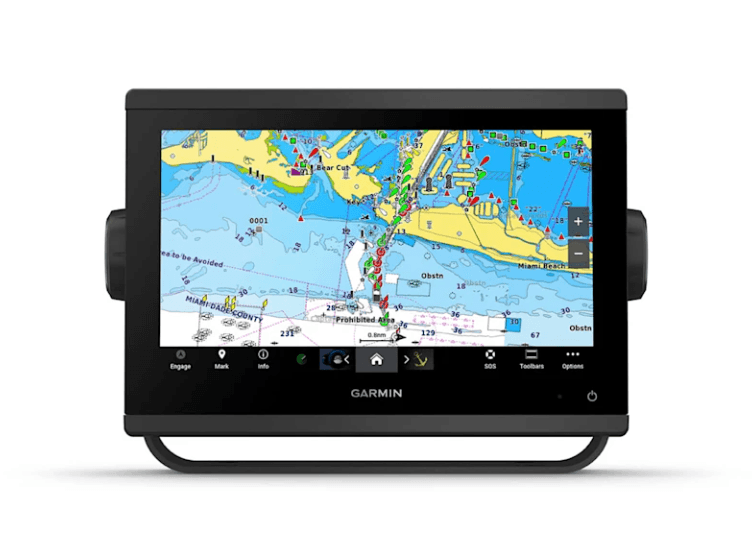

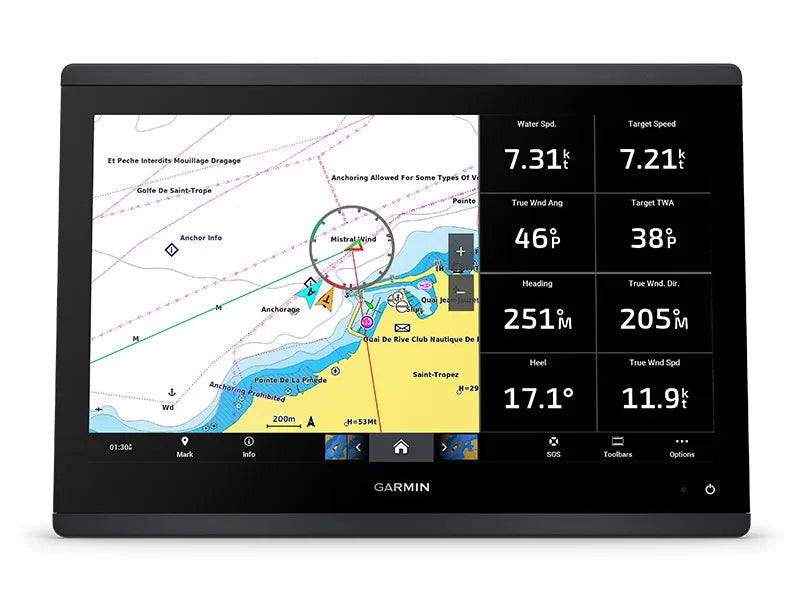

Garmin GPSMAP 923xsv 9" GPS/Fishfinder Combo (CHIRP + Worldwide Basemap)

GPSMAP® 923xsv 9-inch Combo GPS/Fishfinder - SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap (010-02366-02)

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

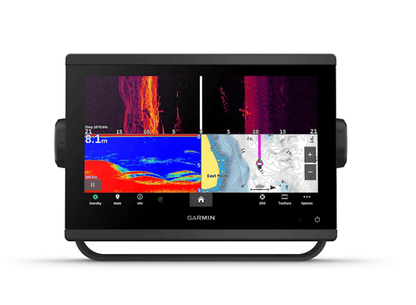

• Experience crystal-clear navigation and sonar imaging with the Garmin GPSMAP 923xsv 9-inch combo — integrating SideVü, ClearVü and traditional 1 kW CHIRP sonar for full 360° underwater visibility.
• The high-resolution IPS touchscreen (1280×720) has 50% more pixels and enhanced sunlight readability versus earlier 9" Garmin models, letting you view maps and sonar with clarity from any angle.

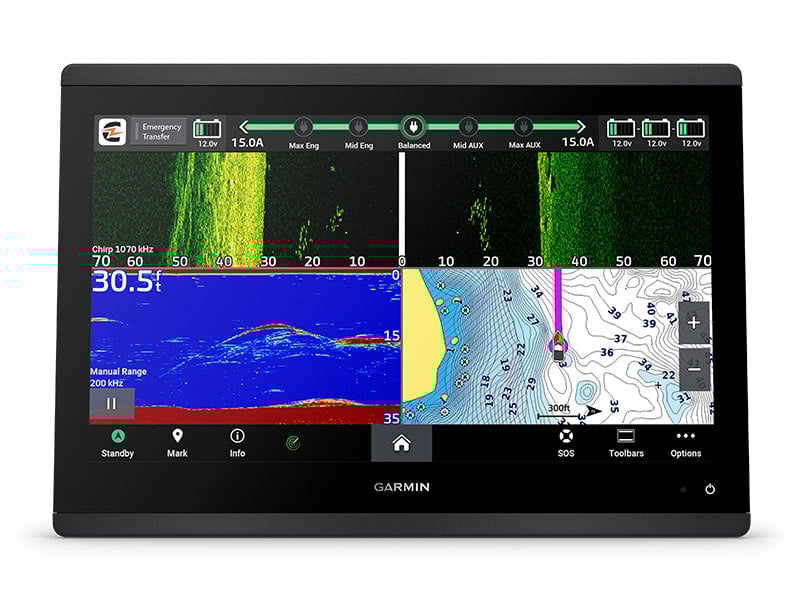

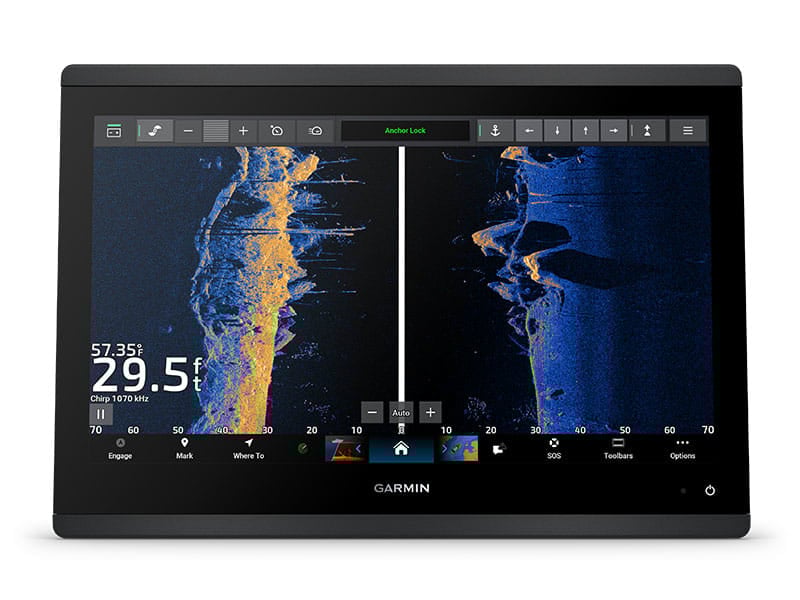

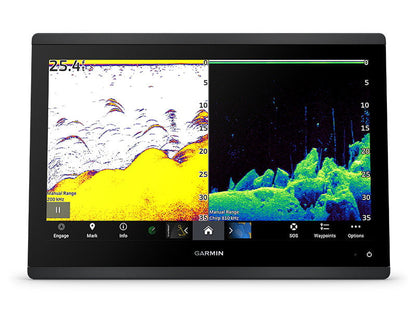

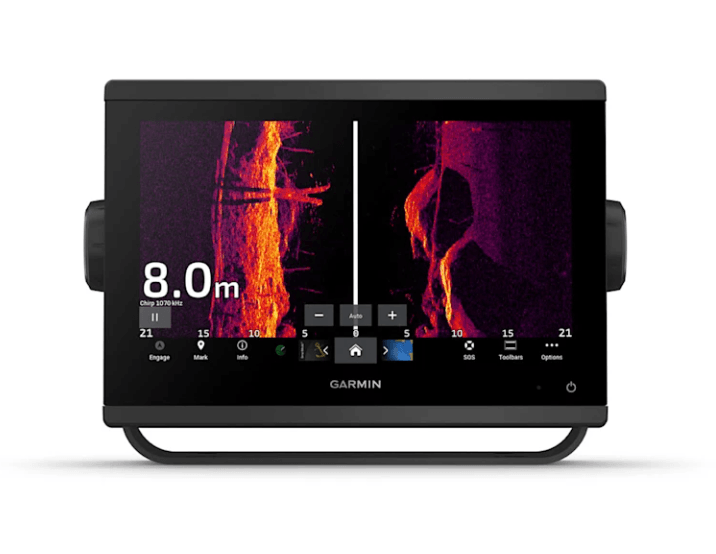

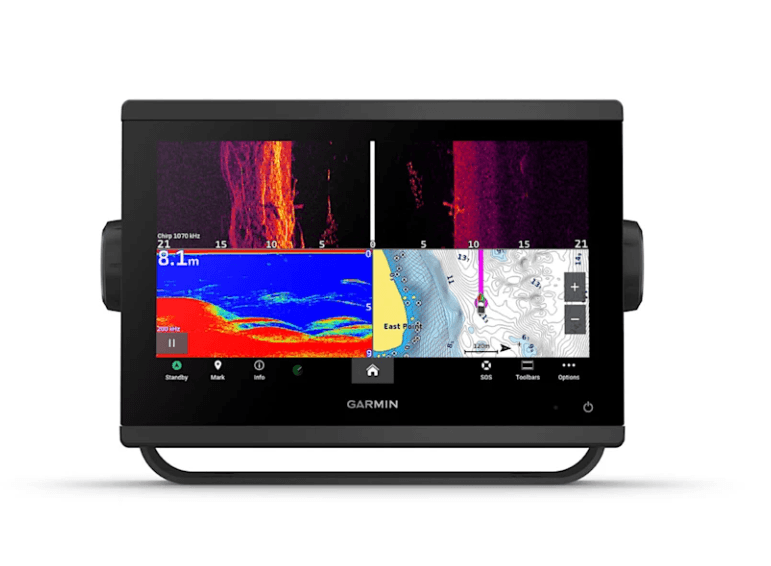

• Built-in Ultra High-Definition SideVü and ClearVü scanning sonar helps you differentiate fish from structure with vivid, high-contrast color palettes.
• Also supports traditional CHIRP sonar (dual-frequency / beam, low/medium/high bands) to reach depths of up to 5,000 ft (subject to water conditions).

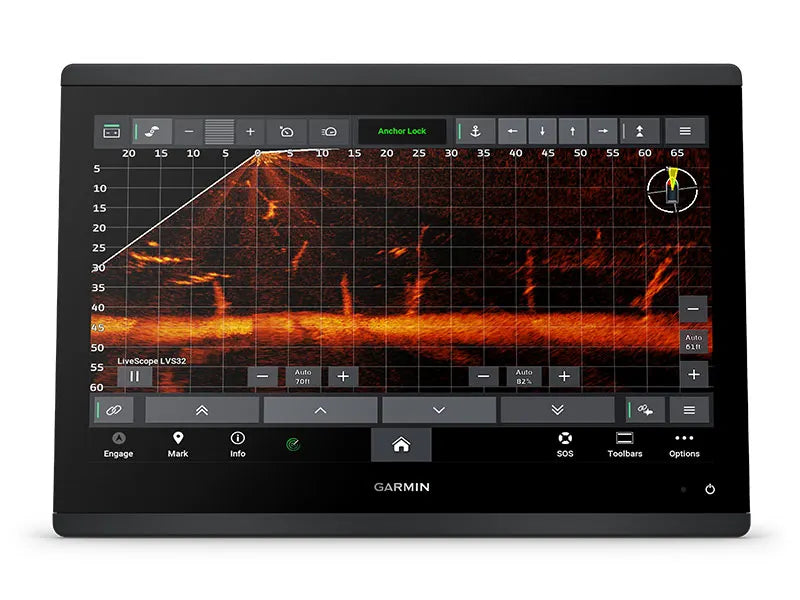

• Panoptix™ / LiveScope™ support (transducer sold separately) enables real-time 3D and all-round sonar views around your boat.

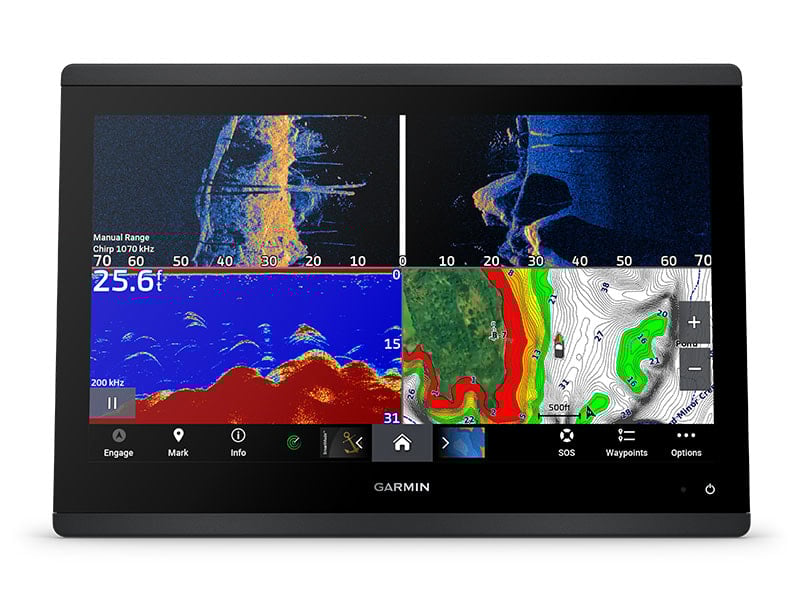

• With nearly double the processing power of previous-generation Garmin 9″ devices, this chartplotter is faster, sharper, and smarter — ideal for retrofit or new builds.
• The slimline design featuring edge-to-edge glass and compact footprint allows easier integration into tighter dash spaces.

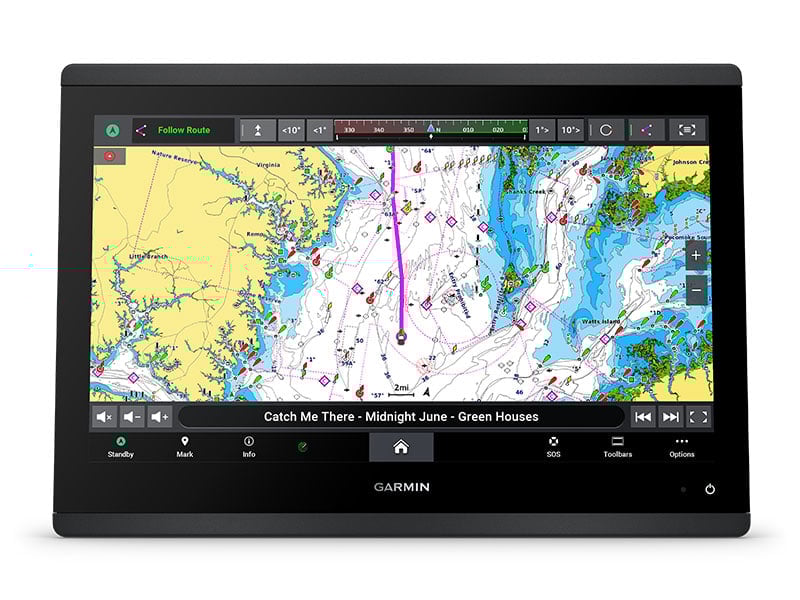

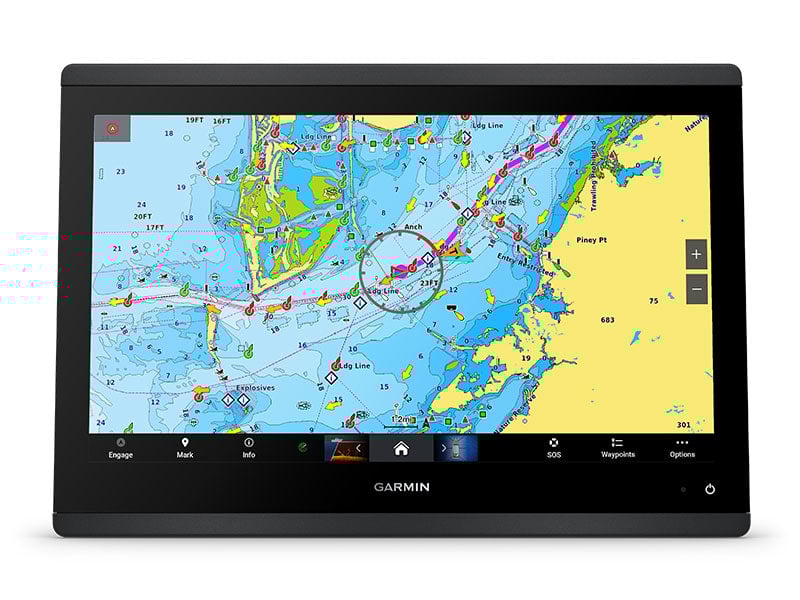

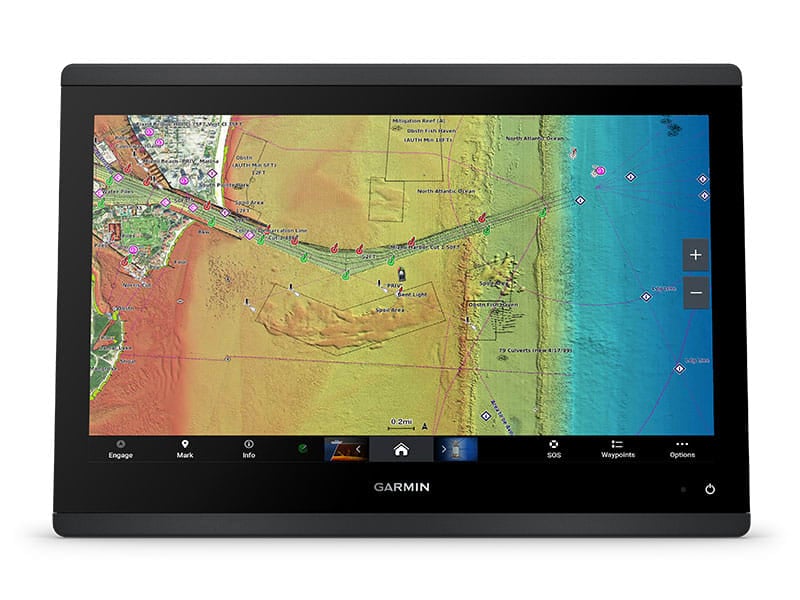

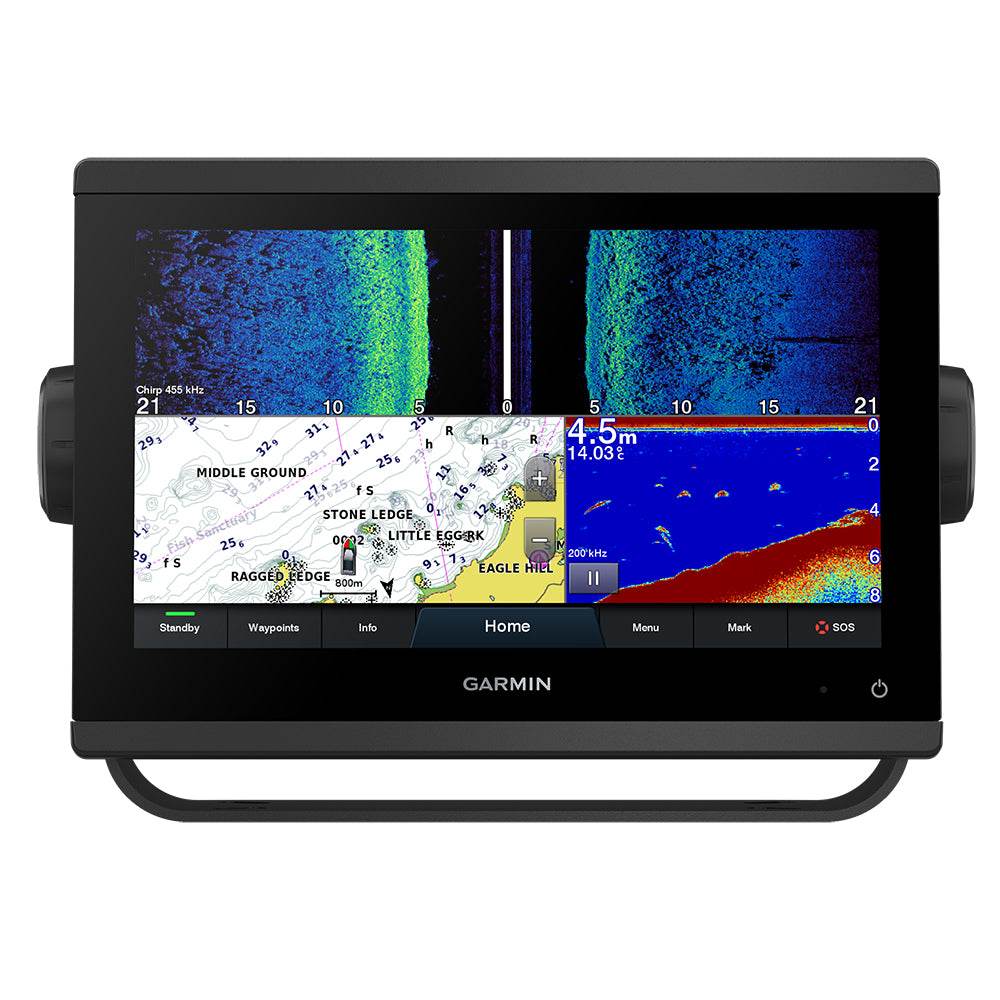

• Comes preloaded with a Worldwide Basemap, and supports premium chart upgrades like BlueChart® G3 Vision and Garmin/Navionics+ maps (sold separately) including Auto Guidance™ for route planning.

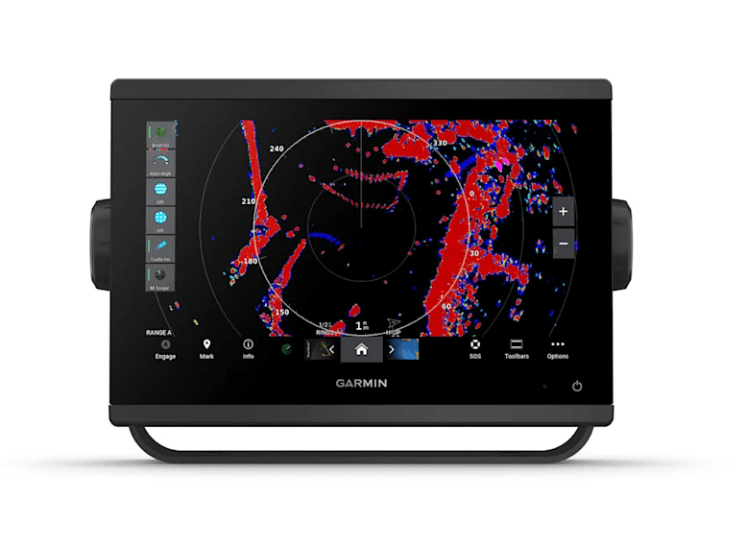

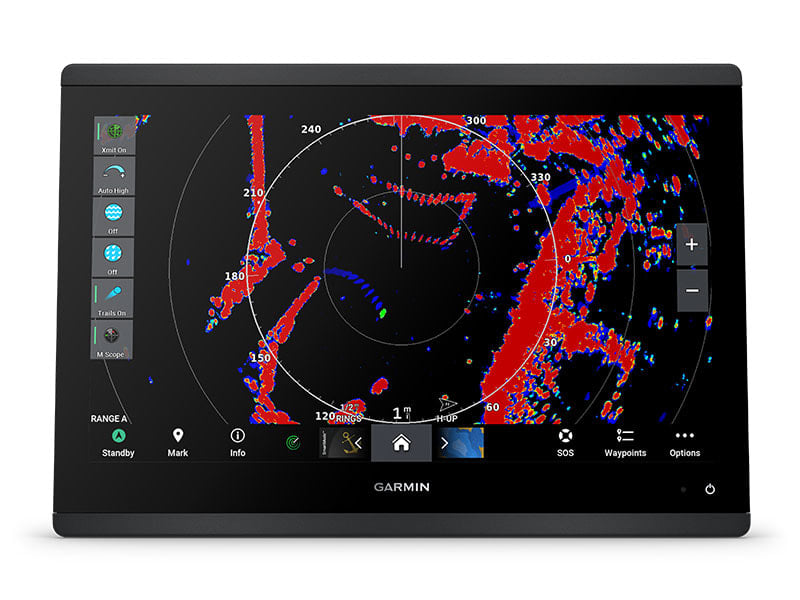

• Choose the optional GMR 18 HD+ 4 kW dome radar bundle to detect weather, vessels, and hazards on the water.

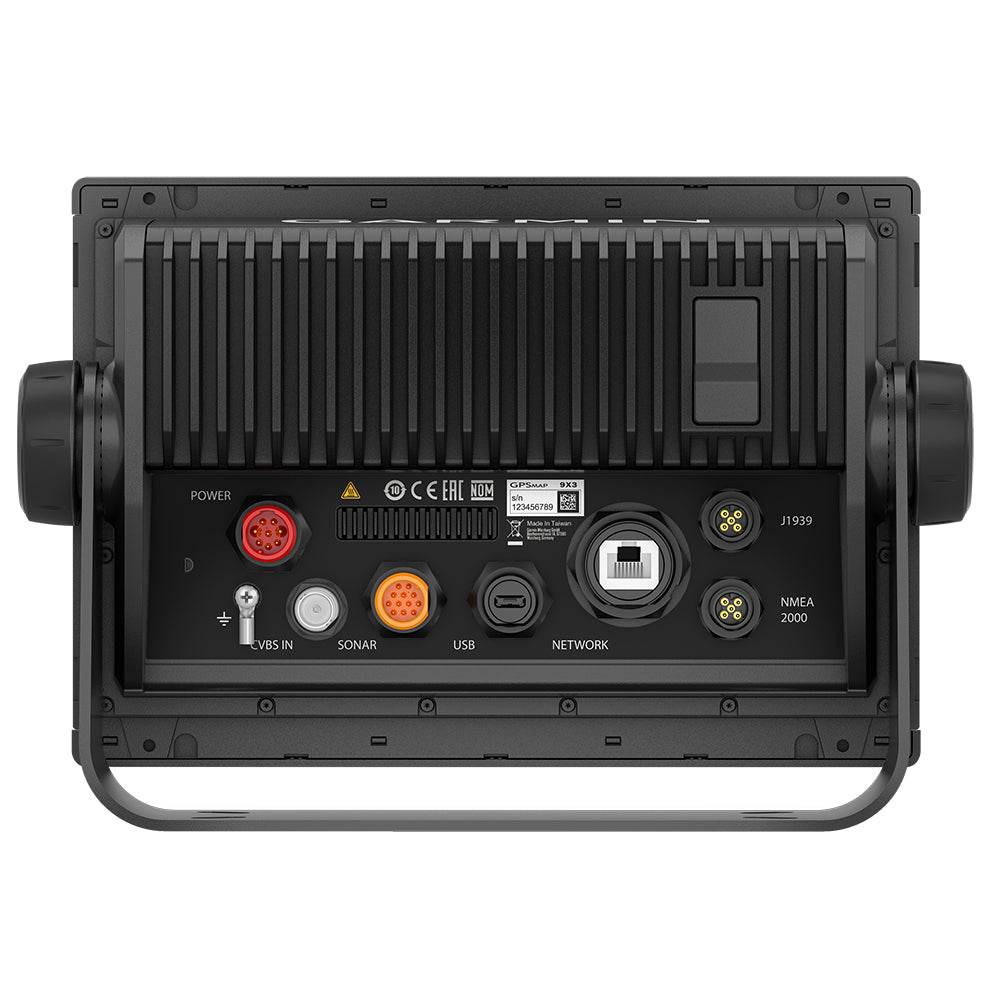

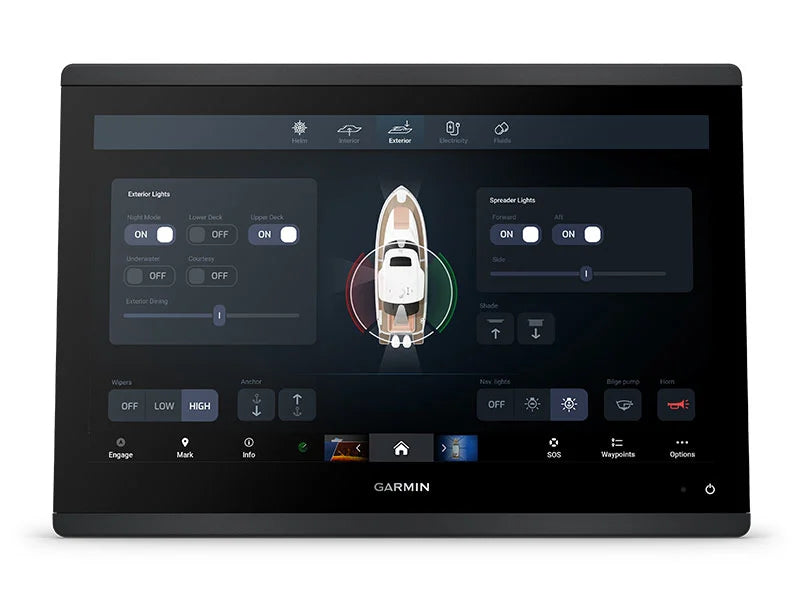

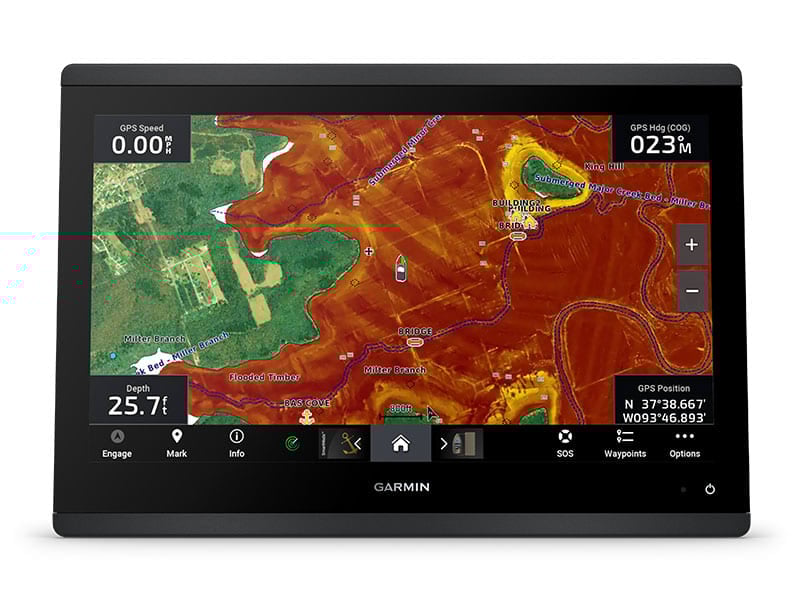

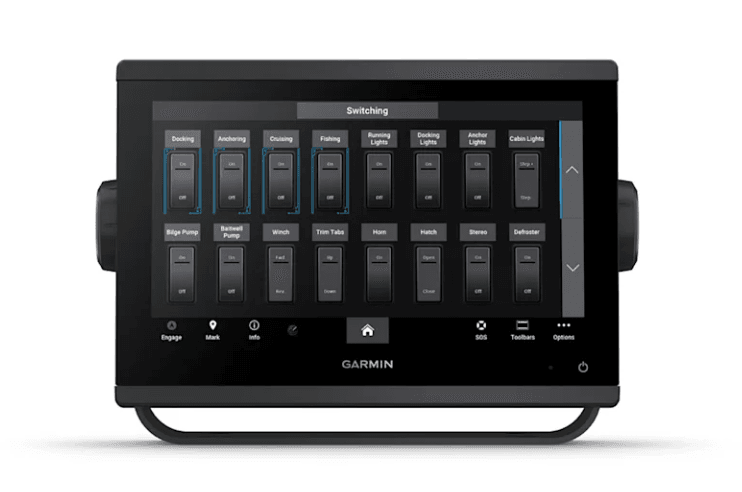

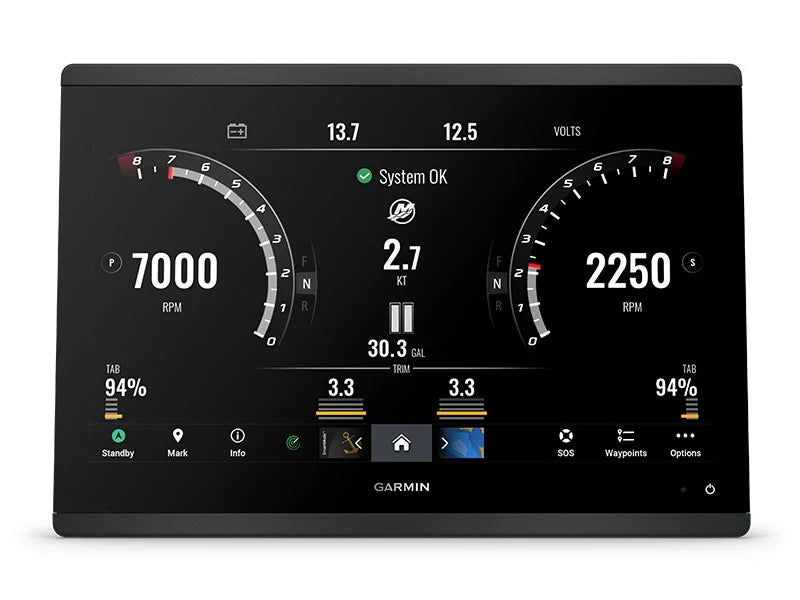

• Designed for connectivity: Garmin Marine Network, NMEA 2000 / NMEA 0183, J1939 engine integration (including select Yamaha engines), and OneHelm™ digital switching unify third-party controls on a single screen.

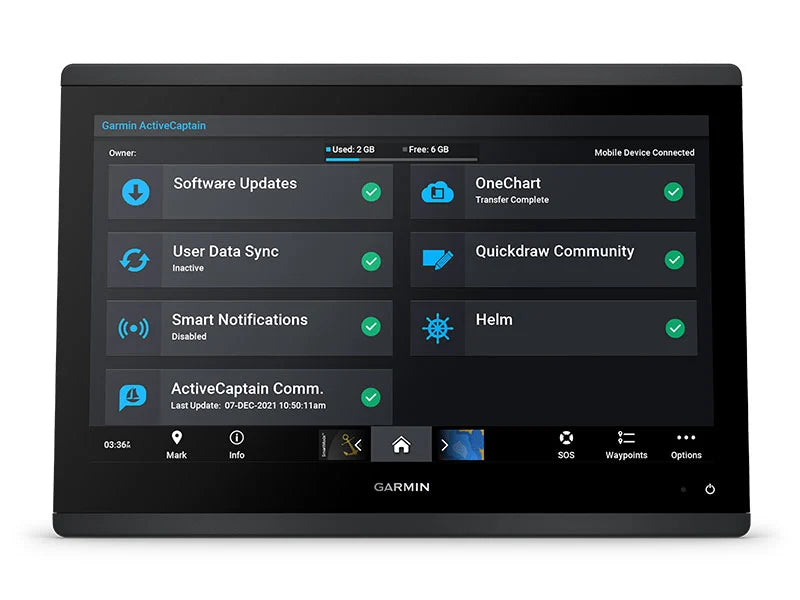

• The ActiveCaptain® app (via built-in Wi-Fi) enables features like OneChart updates, smart notifications, Garmin Helm control, Quickdraw™ Community data, and software updates — all from your mobile device.

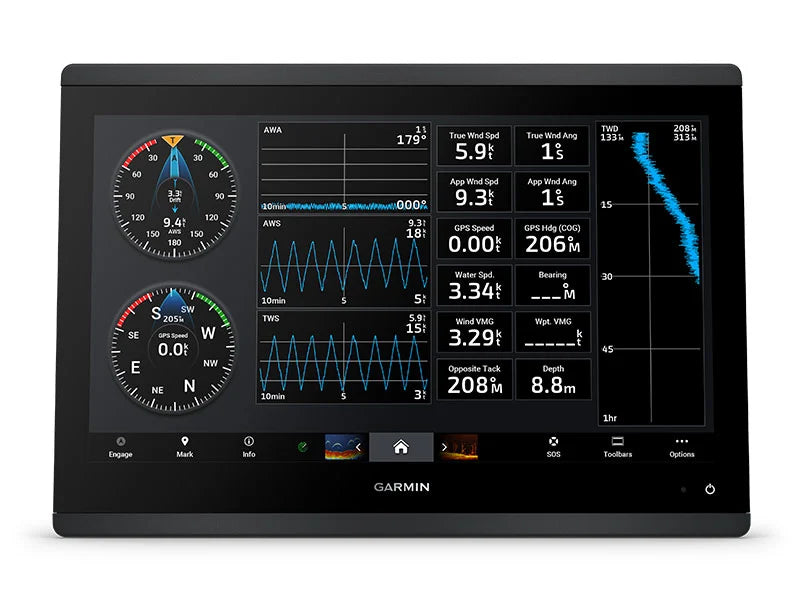

• Integrated ANT® technology connects to Garmin accessories like quatix marine watches, gWind™ Wireless 2, GNX Wind instruments, and wireless remotes.

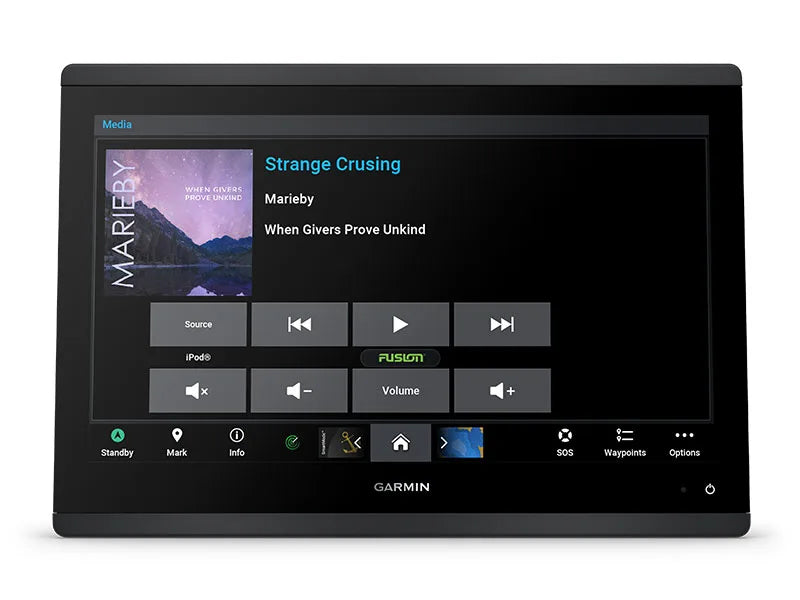

• Supports standard marine device protocols: autopilots, digital switching, AIS, Fusion-Link™ audio, VHF/DSC, cameras, sensors, and more — all accessible from one central screen.
• Offers redundancy, power efficiency, and durability: IPX7 water rating, 3.6 lb weight (1.6 kg), typical draw ~1.3 A @12V, maximum power ~22 W (varies by mode).
• Memory & navigation capacity: 5,000 waypoints, 50,000 track points (50 saved tracks), 100 routes. Dual microSD™ card slots expand storage for charts, logs, and updates.

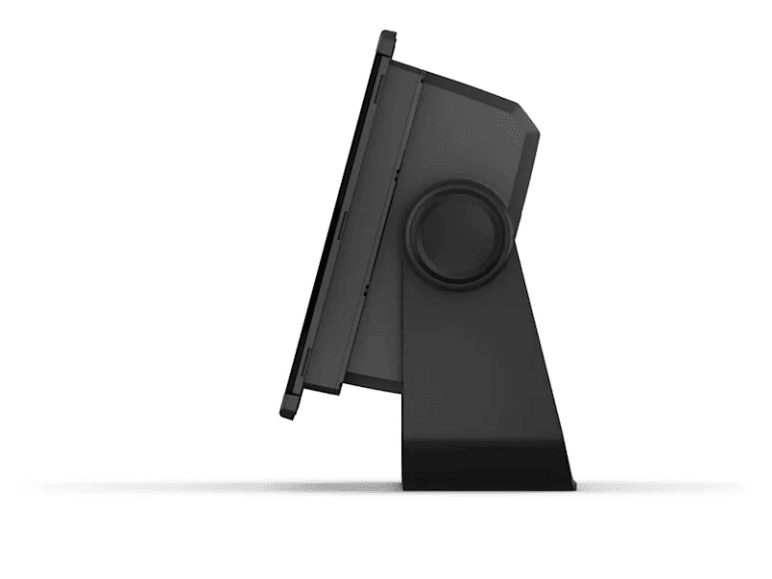

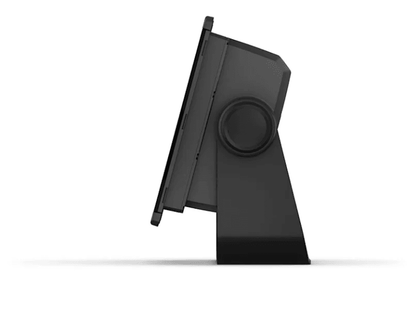

• Flexible mounting options included: bail (bracket) mount with knobs, flush mount kit with gasket, protective cover, NMEA cables, transducer adapter, trim covers, and documentation included.
• Package does not include transducer — you’ll need to pair with compatible models (Garmin or third-party) for sonar features.
• Ideal for serious anglers, offshore cruisers, charter boats, or any boater who demands seamless integration, advanced sonar imaging, and dependable navigation in one robust marine display system.

Specifications:

• Cartography Brand: Garmin
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: No
