Garmin GPSMAP 943xsv 9" GPS/Fishfinder Combo GN+ (GT56-TM)

GPSMAP® 943xsv 9-inch Combo GPS Fishfinder GN+ with GT56-TM Transducer (010-02366-61/GT56)

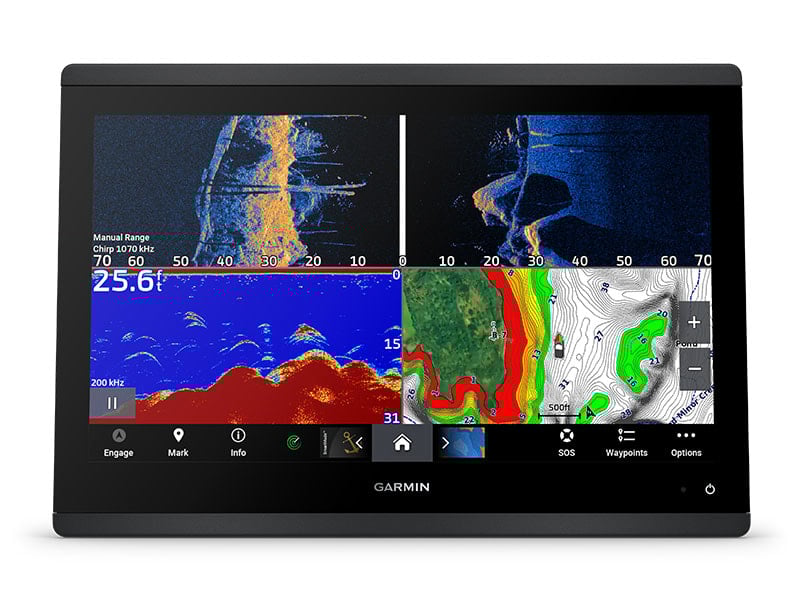

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 9” chartplotter integrates seamlessly into your Garmin marine system.

Get the ultimate connected helm experience with the Garmin GPSMAP 943xsv — a high-performance 9″ chartplotter/fishfinder combo built for serious anglers and navigators. With sleek styling, robust processing, and advanced sonar, it’s designed to elevate your marine setup. Here’s what makes it stand out:

• Brilliant 9″ WXGA IPS touchscreen display with edge-to-edge glass and 1280 × 720 resolution — optimized for viewing in sunlight and from wider angles.

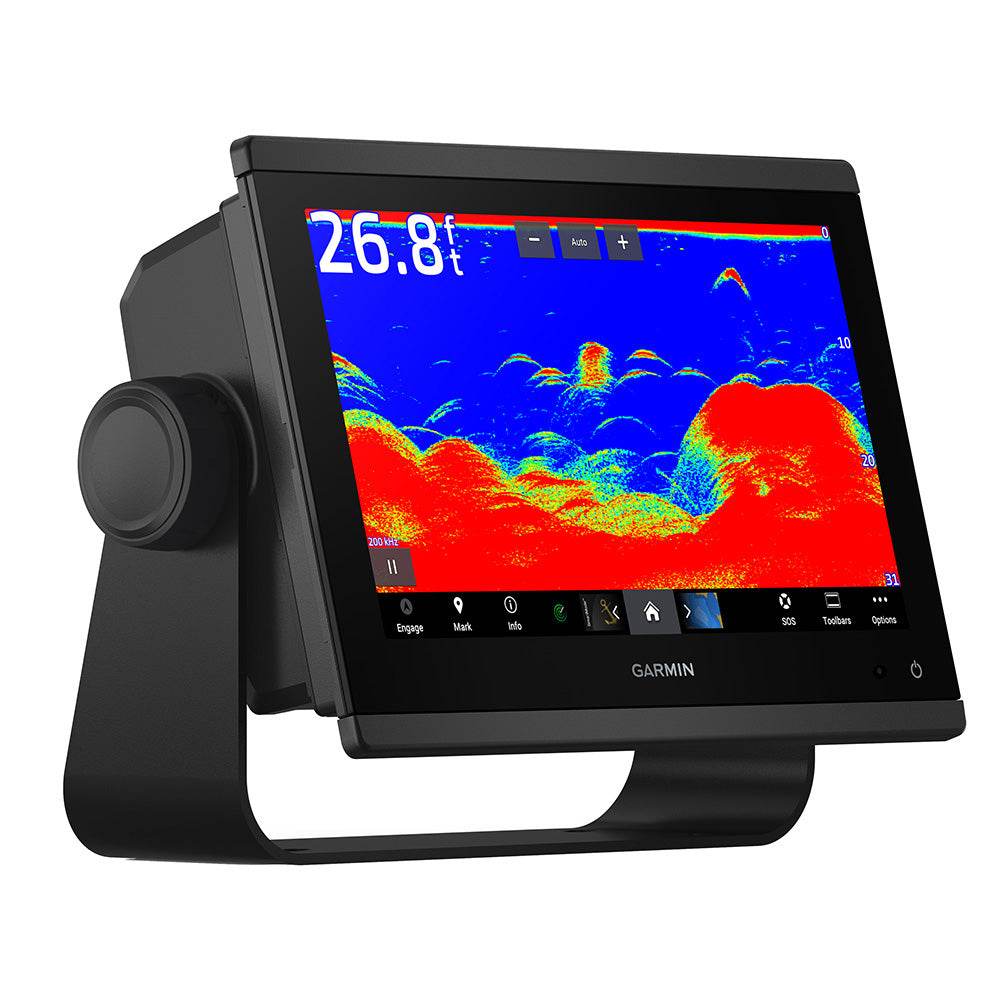

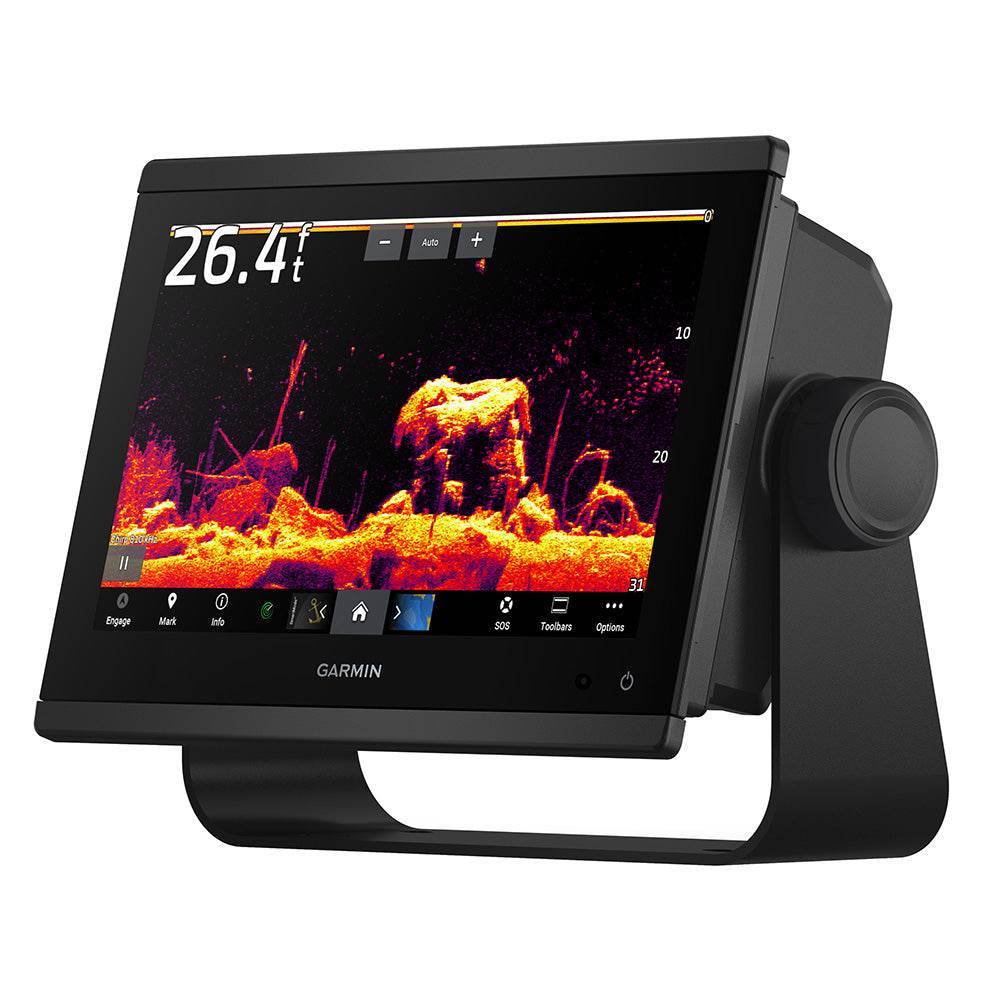

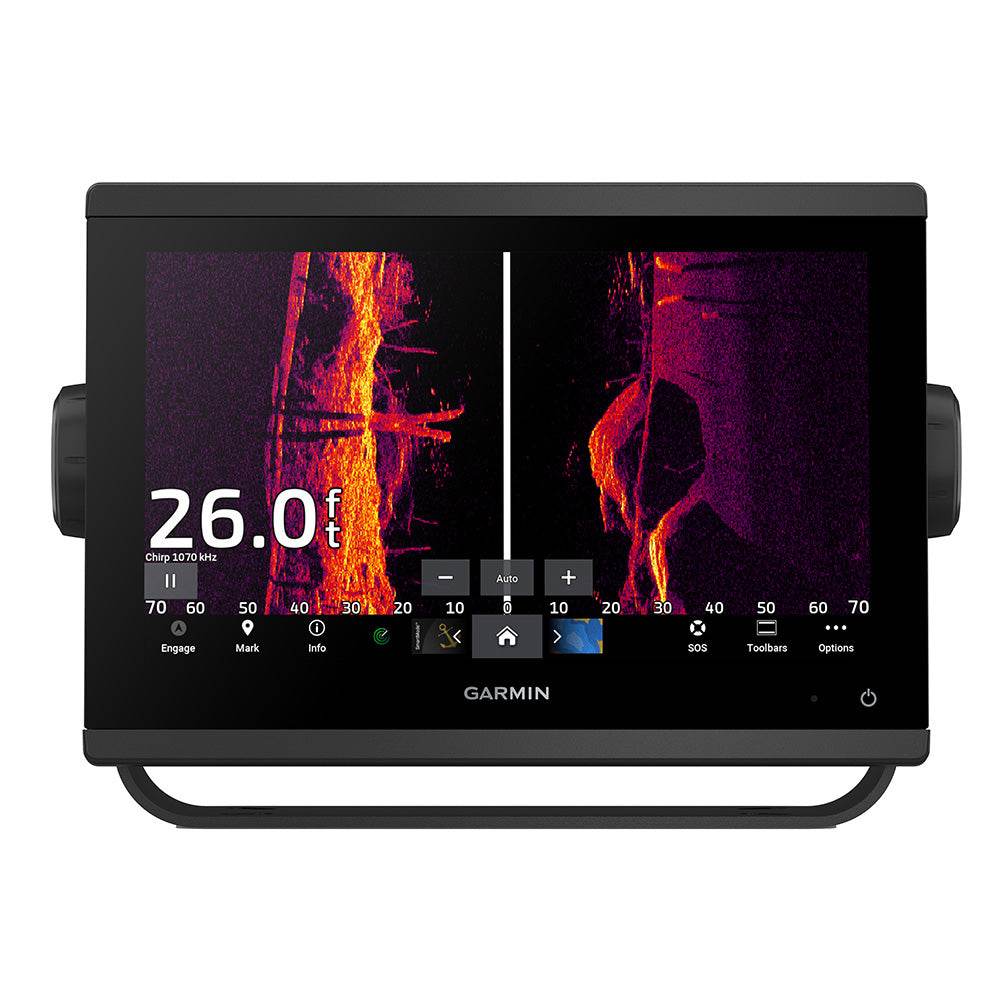

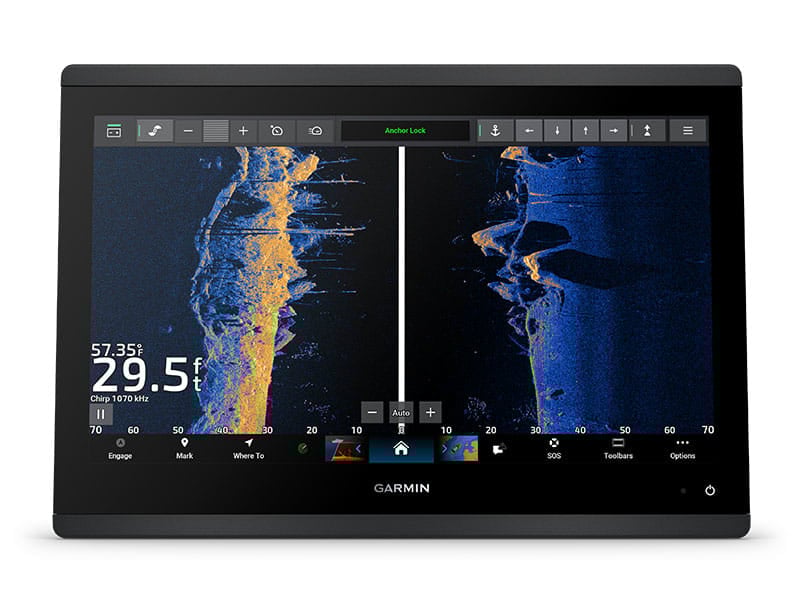

• Twin built-in Ultra High-Definition sonar: ClearVü and SideVü scanning sonar, with vivid, high-contrast color palettes to help you distinguish fish from structure beneath and beside your vessel. Supporting 1 kW CHIRP traditional sonar boosts depth clarity.

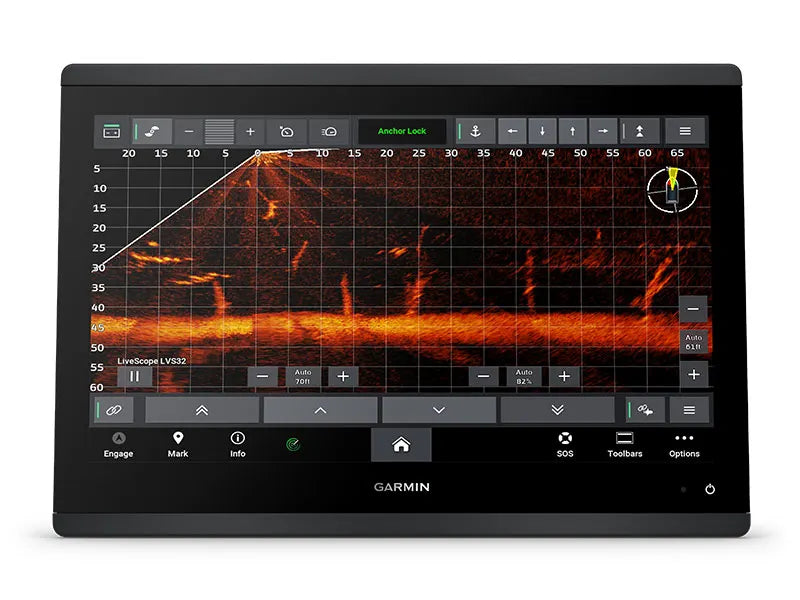

• Panoptix / LiveScope compatibility (transducer sold separately) enables real-time all-around sonar views — ideal for spotting baitfish, structure, and motion in the water column.
• Faster, more responsive performance – The X3 generation delivers nearly double the processing power compared to prior series, making map redraws, sonar rendering, and page changes quicker and smoother.
• Slimline design & retrofit ready – Reduced bezel and smaller footprint let you drop this unit into more dash spaces with ease.

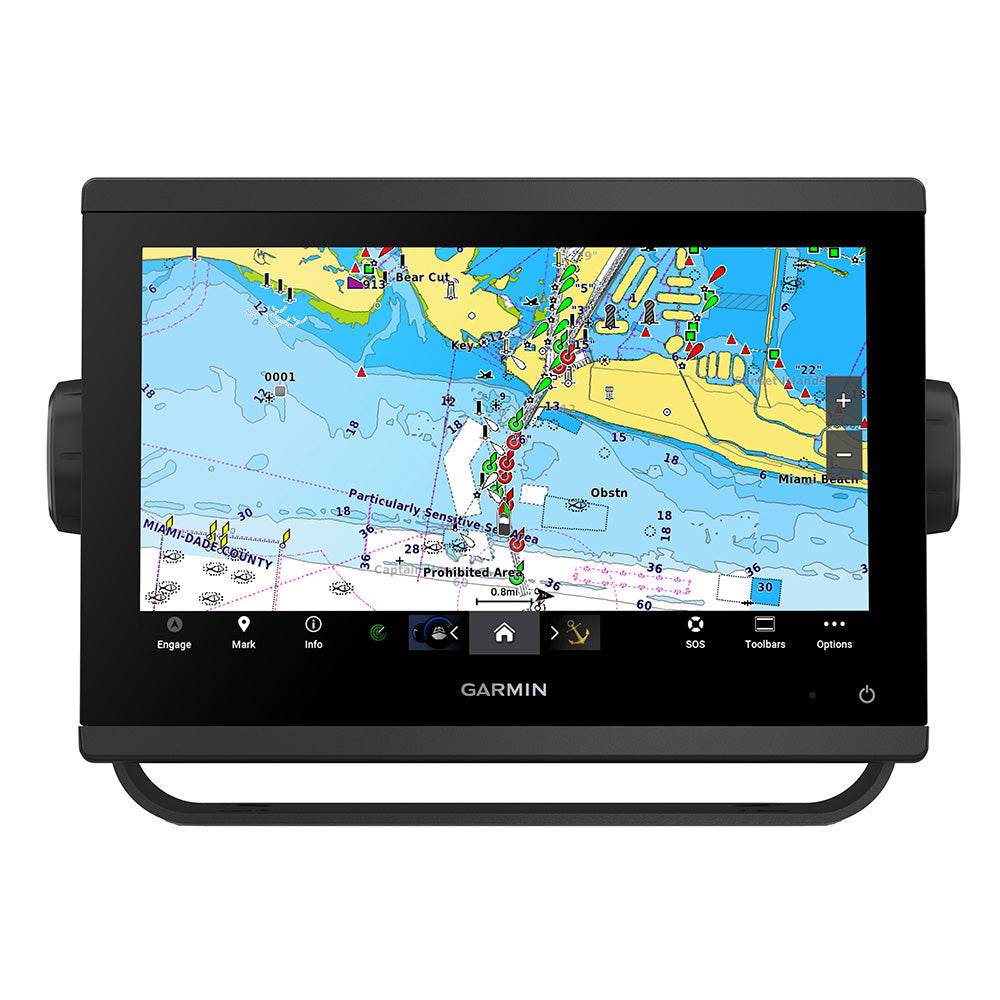

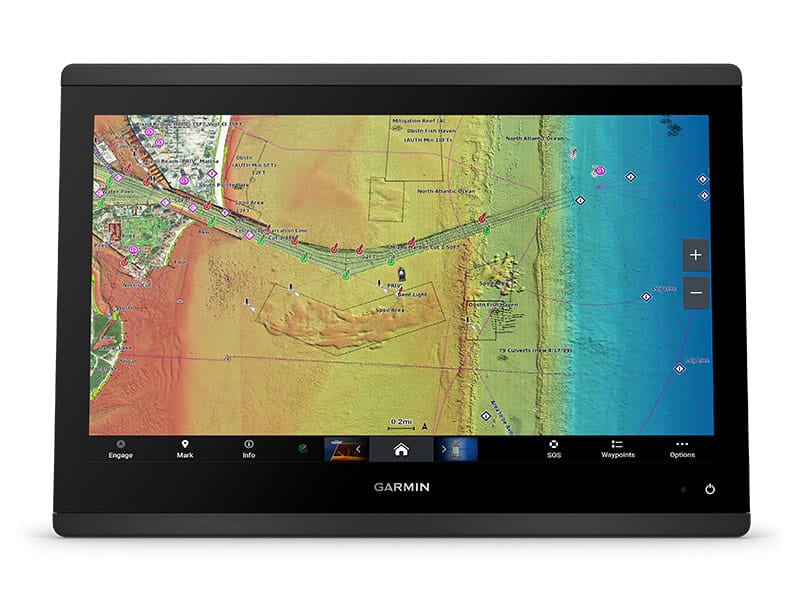

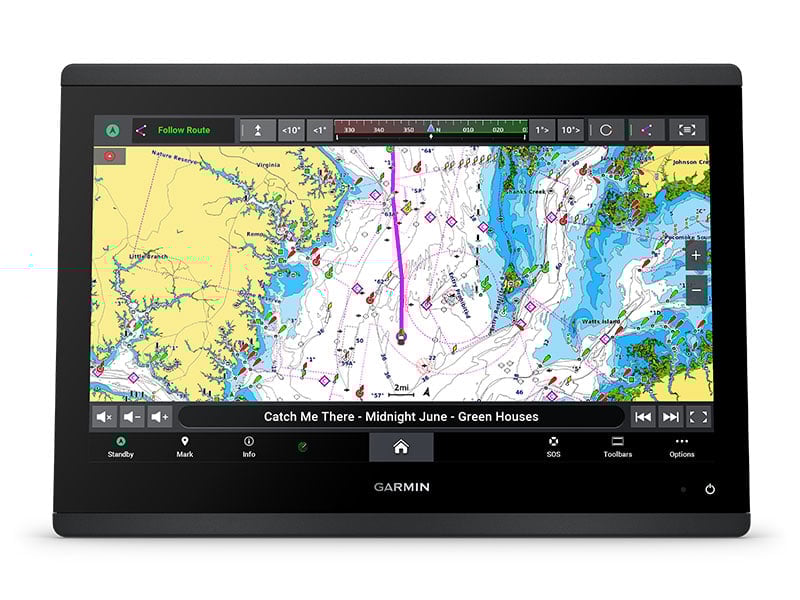

• Preloaded Garmin Navionics+ charts (coastal, inland, and lake coverage for U.S. & Canada) with Auto Guidance+ route suggestions and full support for optional Navionics Vision+ enhancements.

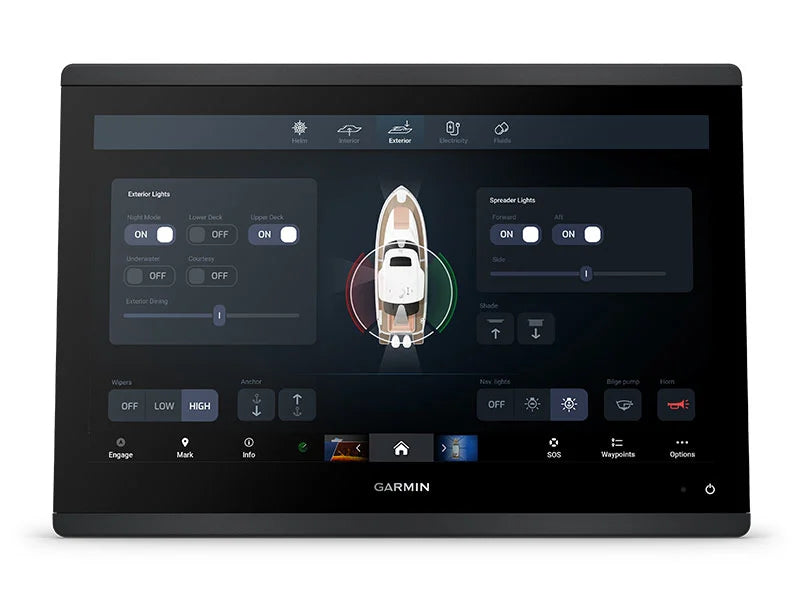

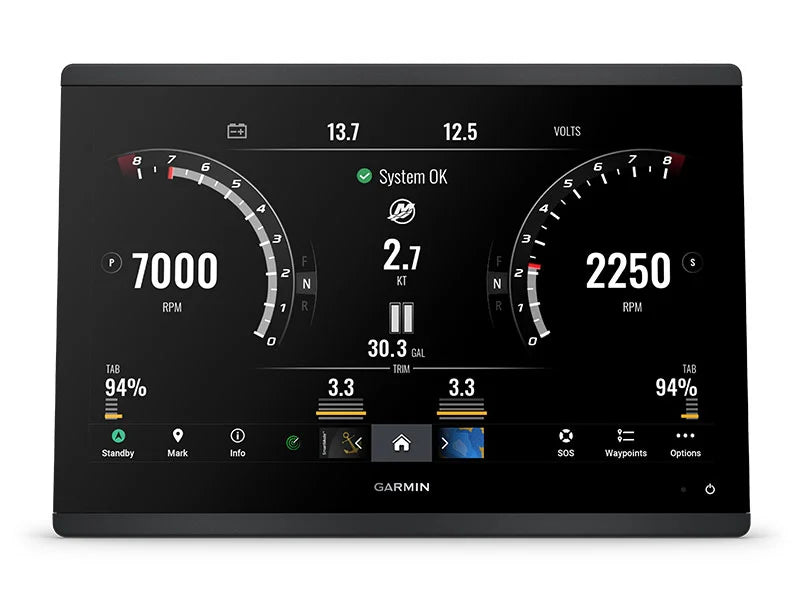

• OneHelm™ digital switching & engine connectivity — Integrate compatible third-party devices (e.g. EmpirBus) and connect to select engines including Yamaha using J1939 interface to display engine data internally.

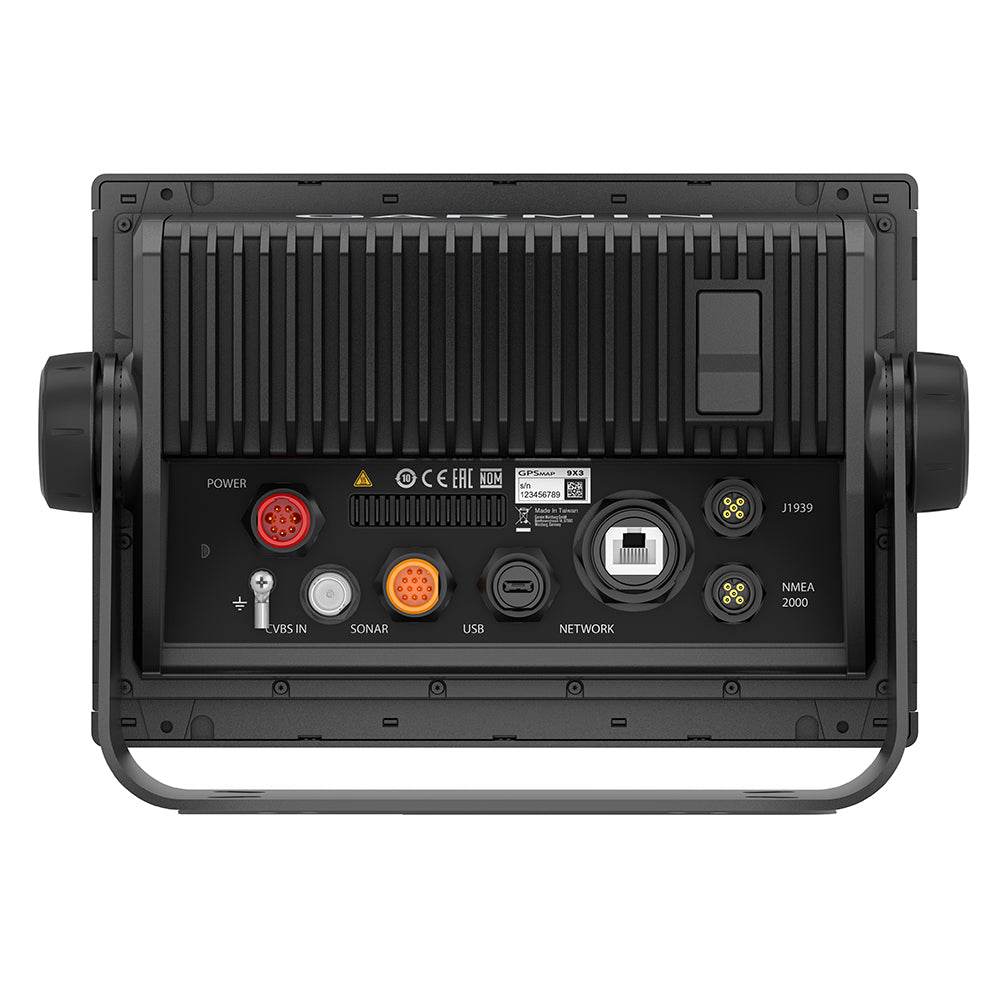

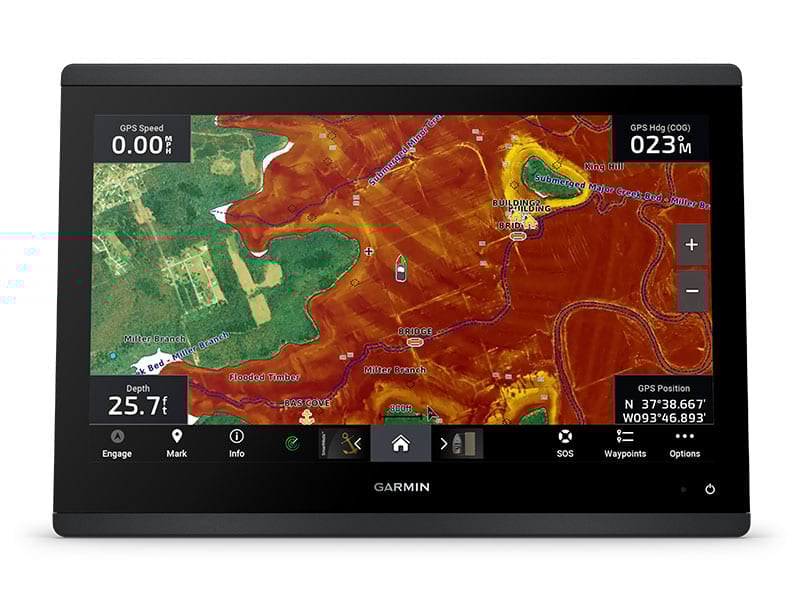

• Marine network & multi-standard support — Full NMEA 2000® and NMEA 0183 connectivity, Garmin Marine Network port, video input, Bluetooth, Wi-Fi, and ANT integration.

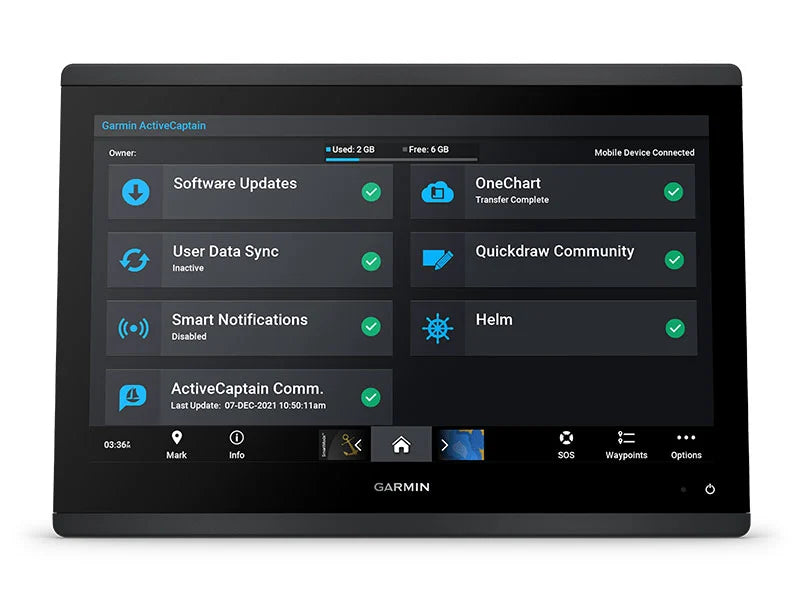

• ActiveCaptain® & mobile integration — Built-in Wi-Fi enables pairing with Garmin’s free ActiveCaptain app for chart updates, smart notifications, OneChart, remote control, and community insight sharing.

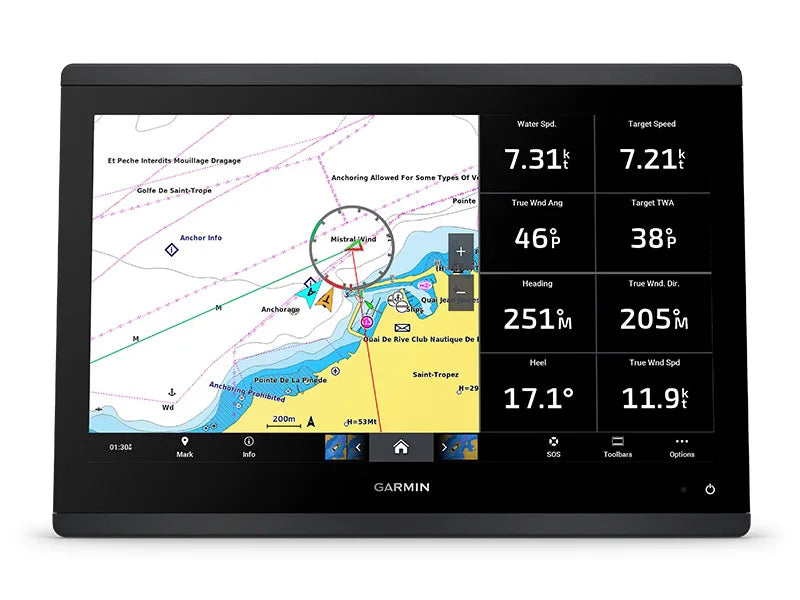

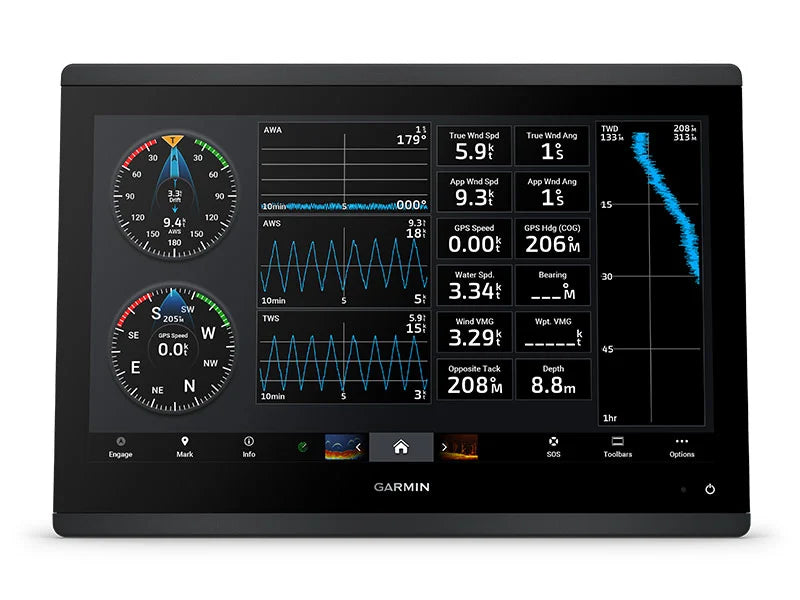

• Advanced sailing & racing tools — Includes Garmin SailAssist features like laylines, race start guidance, wind rose, true wind readings, and sail polars to inform performance decisions.
• Robust memory & data support — Accepts two microSD cards (one preinstalled), stores up to 5,000 waypoints, 100 routes, and logs up to 50 tracks (50,000 points).
• Weatherproof & durable — IPX7 water rating ensures resilience against splashes and marine environments.

What’s in the Box
Chartplotter, preinstalled microSD chart card, power cable, NMEA 2000 T-connector & drop cable, bail mount with knobs, flush mount kit and gasket, protective cover, snap covers, documentation (plus 8-pin to 12-pin transducer adapter).

Technical Highlights (key specs you can’t omit)

• Dimensions: 9.2″ × 6.4″ × 3.0″ (23.3 × 16.2 × 7.6 cm)
• Weight: 3.6 lb (1.6 kg)
• Display resolution: 1280 × 720 pixels
• Power consumption (typical): ~1.3 A at 12 Vdc; max ~1.8 A
• Transmit power: 1 kW traditional CHIRP

This powerful combination of chartplotter, high-definition sonar, networking flexibility, and enhanced processing makes the Garmin GPSMAP 943xsv an elite tool for charting, fishfinding, and fully managing your marine experience.

Specifications:

• Cartography Brand: Garmin Navionics+

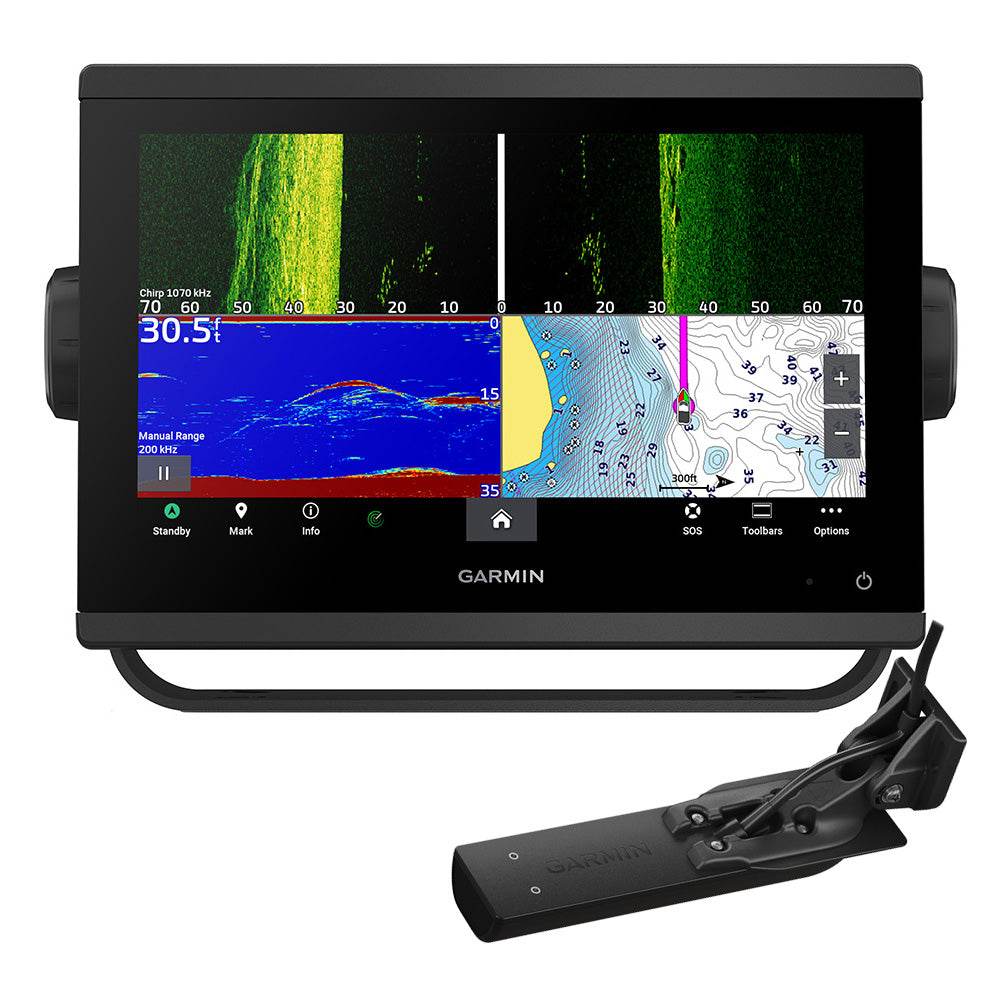

• Included Transducer: GT56
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: Yes

• 0100236661GT56
