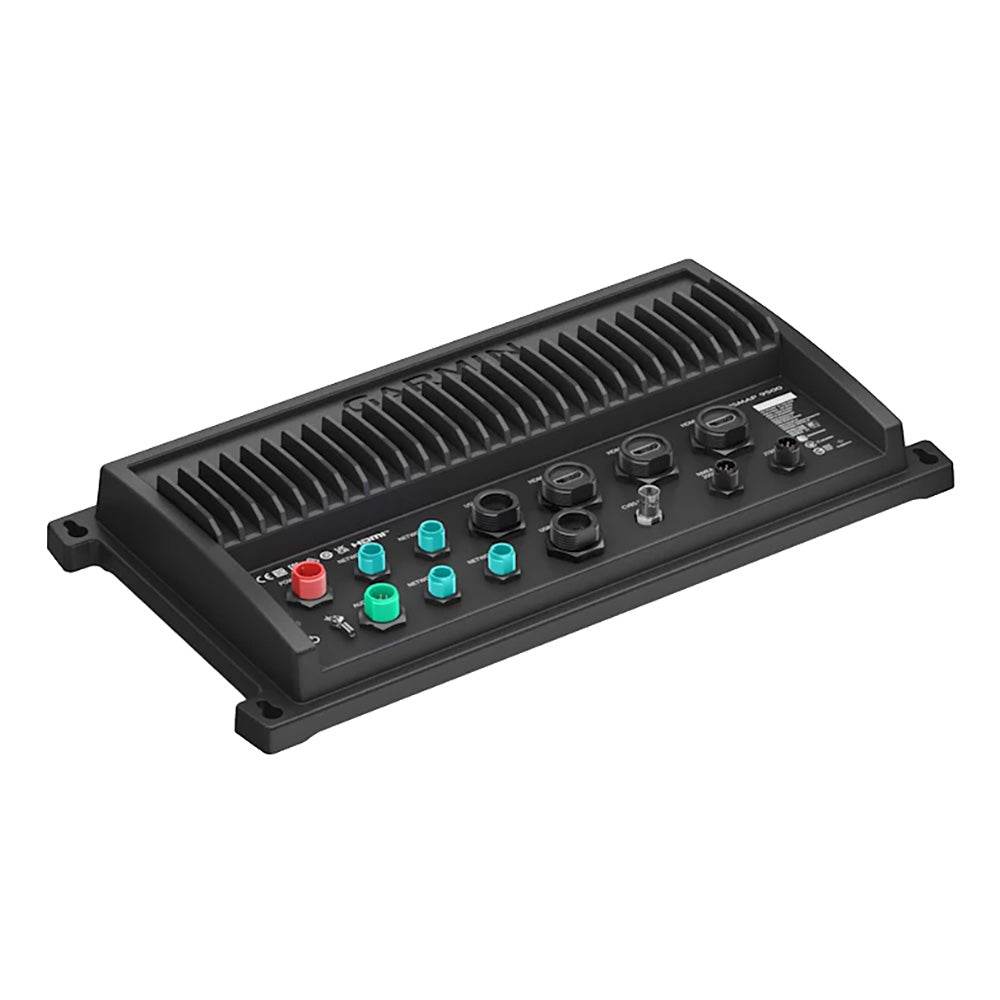

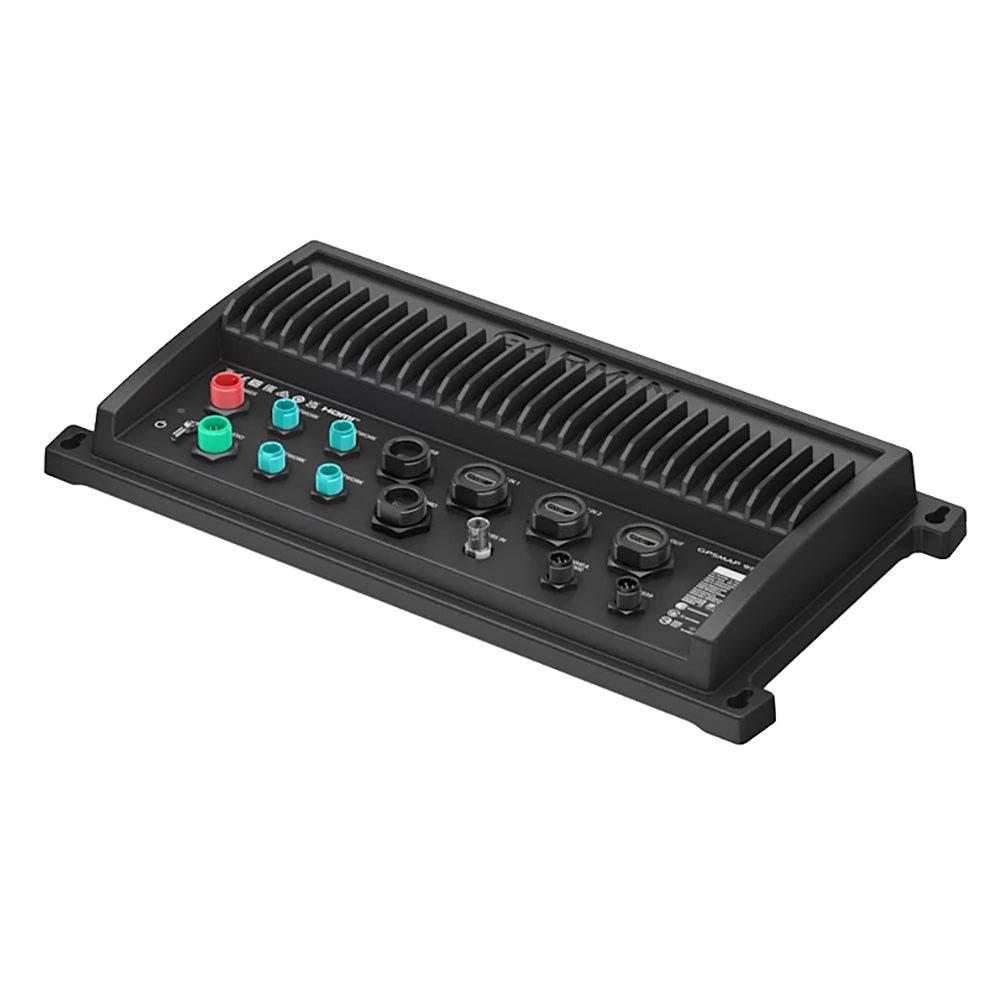

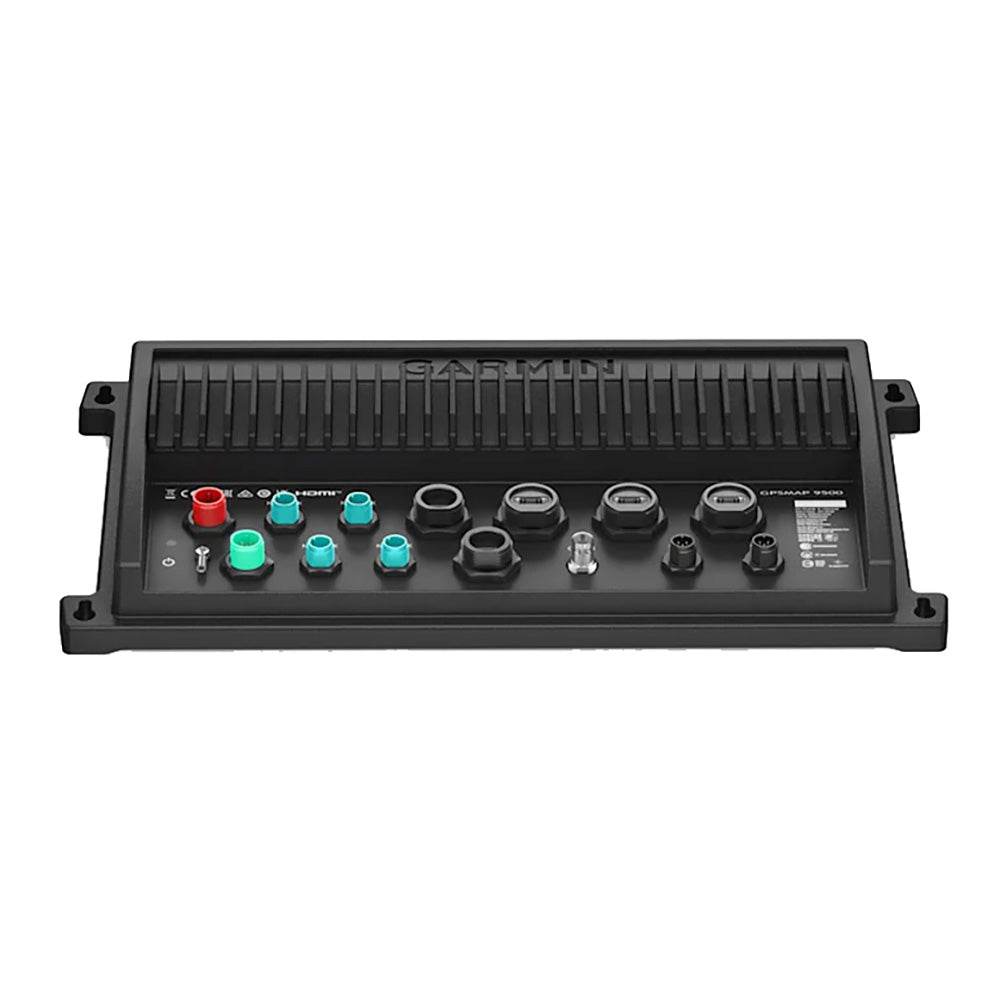

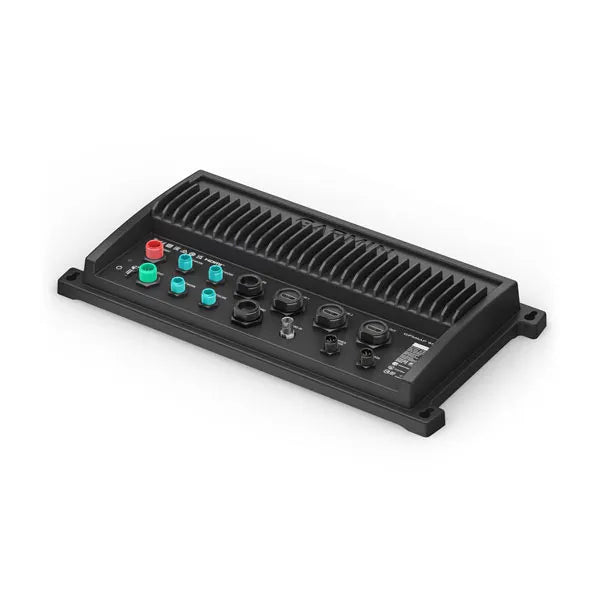

Garmin GPSMAP® 9500 Black Box

GPSMAP® 9500 Black Box Chartplotter System (010-02677-00)

Premium Marine Navigation Power for the Ultimate Integrated Helm

Take total control of your vessel with the Garmin GPSMAP® 9500 Black Box, the next-generation premium chartplotter system designed for captains who demand power, precision, and seamless connectivity. Experience lightning-fast chart rendering, superior sonar compatibility, and full-system integration — all from one advanced command hub.

Key Features & Capabilities

• Ultra-Fast Performance: Enjoy up to 7x faster processing power than previous GPSMAP generations for rapid chart drawing, route calculation, and system response.
• HDCP-Compliant HDMI Connectivity: Connect effortlessly to third-party HDCP-compliant monitors via HDMI with USB DRD for full touchscreen control and crystal-clear display quality.
• Garmin BlueNet™ Networking: Build your ideal helm with the latest gigabit-speed Garmin BlueNet™ network, supporting extensive connections to multiple displays, cameras, radars, sonars, and sensors with minimal lag.
• Comprehensive Sonar Compatibility: Fully integrates with Garmin’s suite of sonar modules, including LiveScope™, Panoptix™, ClearVü™, SideVü™, and GSD™ sonar systems (modules sold separately).
• Complete Helm Integration: Supports autopilot, engine data, radar, cameras, and Fusion® audio through OneHelm™ integration for a fully connected boating experience.
• Video & Audio Entertainment: Stream and distribute HD video throughout your vessel and enjoy high-quality entertainment from any connected screen or speaker.
• Advanced Wireless Connectivity: Features built-in Wi-Fi®, Bluetooth®, and ANT® technology for remote control, easy updates via the ActiveCaptain® app, and smartwatch or headset integration.
• Compatible with Garmin Wearables: Control key MFD features — chart zoom, Fusion® stereo, autopilot, and more — directly from your Garmin smartwatch or through voice commands.
• High-Definition Charting Support: Includes compatibility with Garmin Navionics+™ and Garmin Navionics Vision+™ charts, providing Auto Guidance+™ routing, 1' contours, premium relief shading, and daily chart updates.
• Robust Construction: Designed for marine environments with an IPX7 waterproof rating, durable build, and reliable power performance.

Navigation & Mapping

• Preloaded base map with full Garmin Navionics+™ and Vision+™ support
• Compatible with Garmin Quickdraw Contours and Raster Charts
• Supports GPS, GLONASS, Galileo, and BeiDou for precise global positioning
• Stores up to 5,000 waypoints, 50,000 track points, and 100 routes

Connectivity & Network Integration

• NMEA 2000® & NMEA 0183 compatible for seamless data sharing
• Four Garmin BlueNet™ ports for high-speed networking
• USB-C ports for direct device connections and data transfer

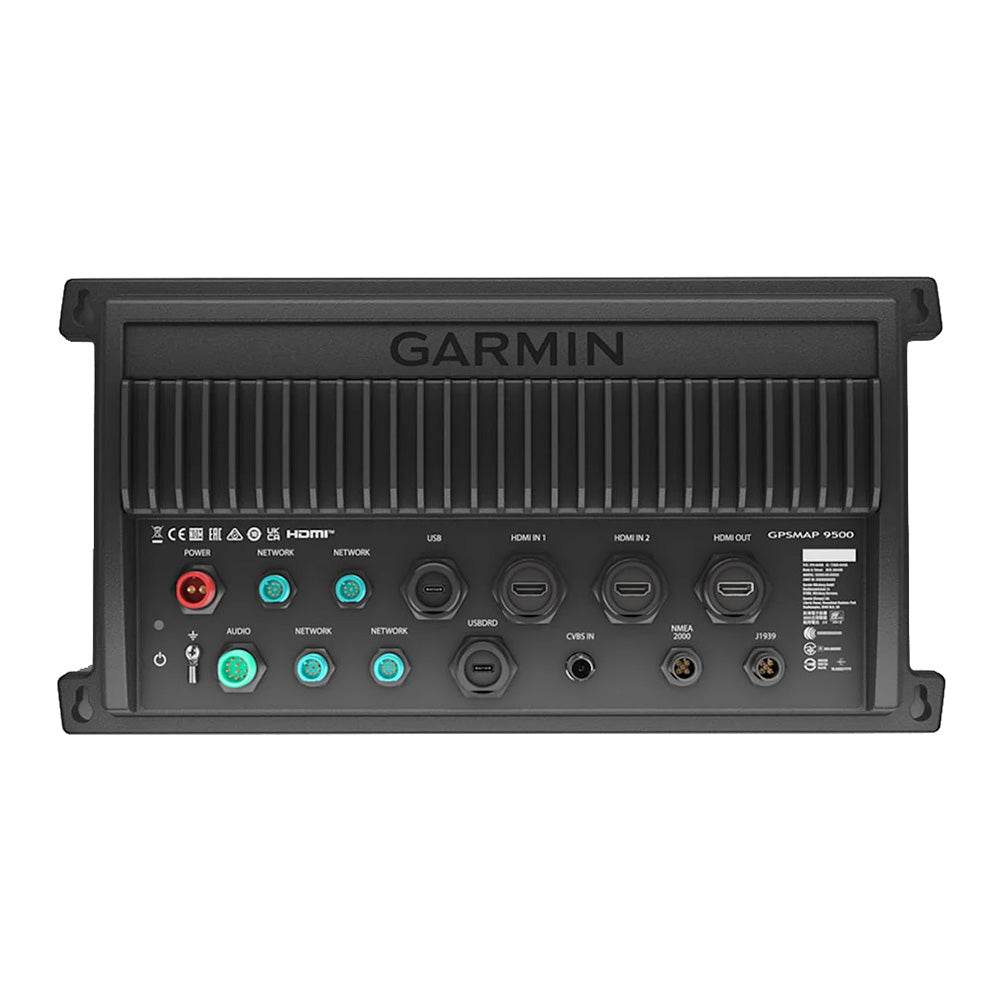

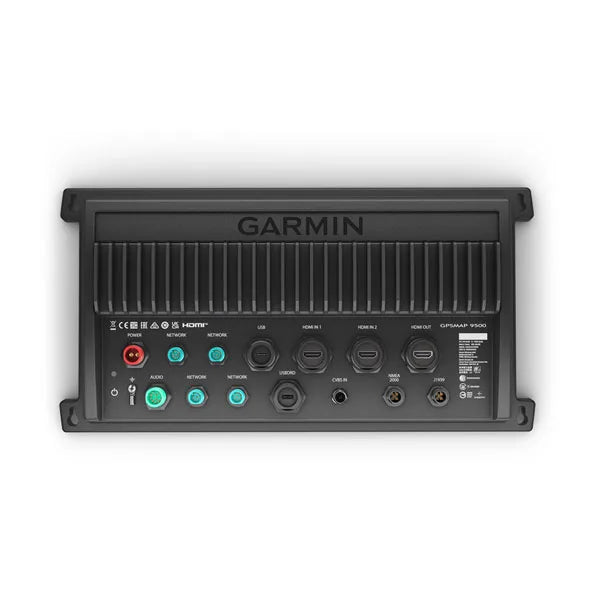

• HDMI input/output, J1939 port, and audio output for total system flexibility

In the Box

• Garmin GPSMAP® 9500 Black Box
• Power cable
• NMEA 2000® T-connector and 2m backbone/drop cable
• Mounting hardware
• Documentation

Specifications

• Dimensions: 15.1" x 7.8" x 1.9" (38.3 x 19.8 x 4.7 cm)
• Weight: 3.49 lbs (1.583 kg)
• Waterproof Rating: IPX7
• Power Input: 10–35 Vdc
• Typical Current Draw (12V): 2.0A
• Max Current Draw (12V): 3.3A
• Max Power Usage (10V): 40W
• Display Resolution Supported: 1024x600 to 3840x2160

Why Choose the GPSMAP® 9500 Black Box?

With unrivaled processing power, next-gen networking, and full Garmin ecosystem compatibility, the GPSMAP 9500 redefines what a marine chartplotter system can do. Perfect for sportfishing boats, luxury yachts, and professional captains seeking precision, speed, and reliability on the water.
