Garmin LiveScope Plus Ice House System (Chartplotter/Sonar Bundle)

LiveScope™ Plus Ice House System (020-00332-00) — Elite Ice Fishing Chartplotter + Sonar Bundle

Elevate your ice-fishing performance with the premium LiveScope Plus Ice House System, combining the GPSMAP® 8610xsv chartplotter, LiveScope™ real-time sonar, and everything needed to dominate under-ice conditions.

• Crystal Clear 10ʺ Full HD IPS Touchscreen — High-resolution (1920 × 1200) display built with in-plane switching (IPS) delivers wide viewing angles and excellent sunlight readability (even with polarized sunglasses).
• HDMI Output for Big-Screen Viewing — Share sonar and chart data on your TV or external display (note: HDMI cable not included).

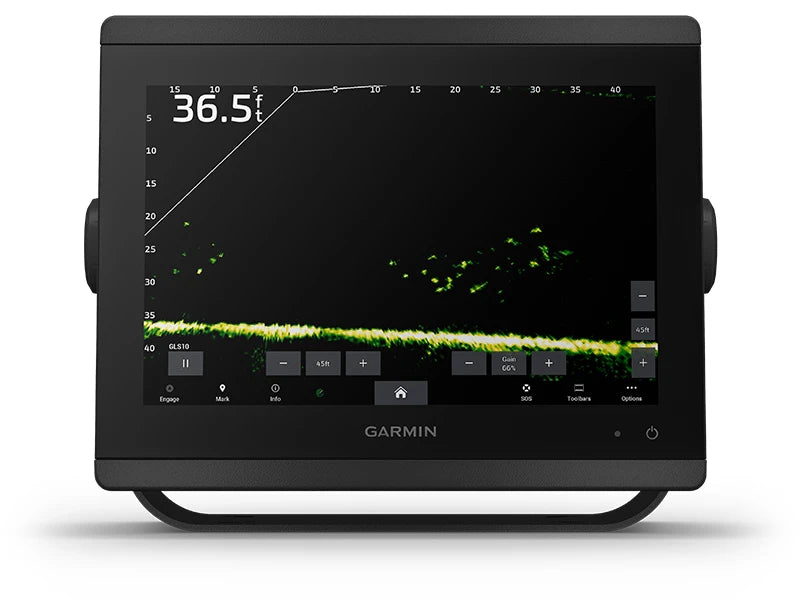

• LiveScope™ Forward & Down Mode — Seamlessly switch between forward and downward scanning views using the included 0° pole mount, giving you real-time clarity of targets and structure under your ice hole.

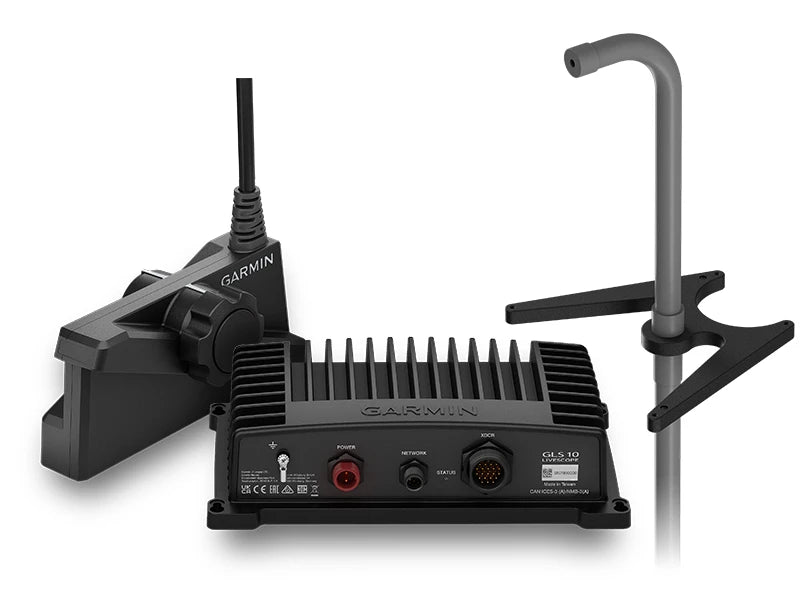

• GLS™ 10 Sonar Black Box + LVS34-IF Transducer — Comes with the GLS 10 sonar module and swivel pole mount. The included transducer’s cable remains flexible even in freezing conditions, so you won’t crack or stiffen your lines in subzero temps.
• Preloaded Garmin Navionics+™ Charts — Access mapping of more than 25,000 U.S. inland and coastal lakes (also supports over 23,000 lakes in some editions) for precise navigation and fish-structure reference.

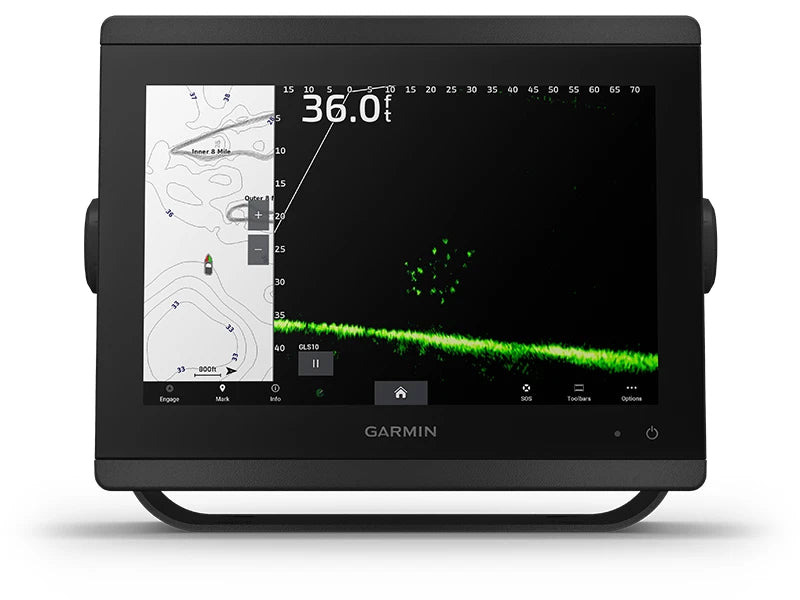

• Customizable Page Layouts — Combine sonar, flasher, maps, and chart data into your own custom view pages to suit your fishing style.

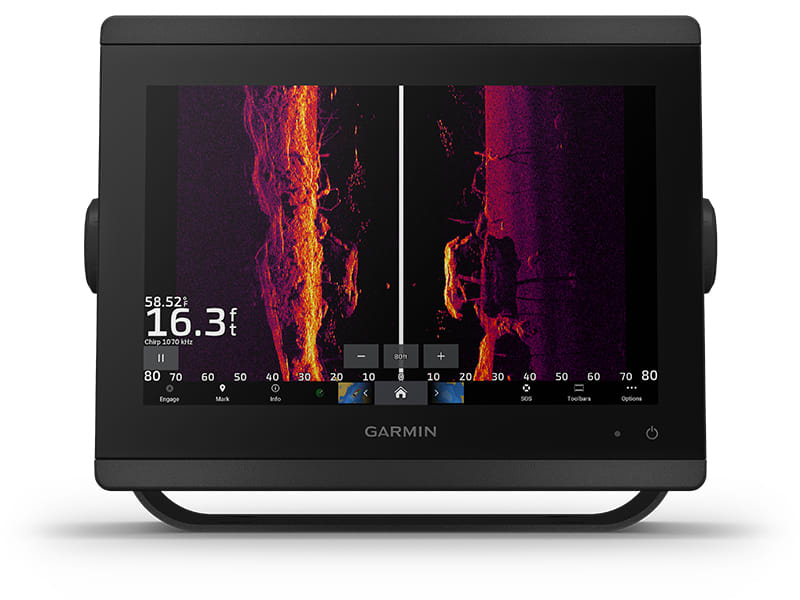

• Built-In Advanced Sonar — In addition to LiveScope, the unit supports dual-channel CHIRP (70/83/200 kHz), CHIRP ClearVü™, CHIRP SideVü™, and Panoptix™ sonar functionality — letting you see below, beside, and around your position.
• Robust Mapping & Memory Support — Dual microSD card slots, capacity for 5,000 waypoints, 50,000 track points, 50 tracks, and up to 100 navigation routes.
• Wide Connectivity — NMEA 2000®, Garmin Marine Network, Bluetooth®, ANT+, built-in Wi-Fi network (ActiveCaptain® support), plus one HDMI input, one HDMI output, BNC composite video input, and multiple transducer ports (8-pin, 12-pin).
• Rugged & Weather-Resistant Design — The GPSMAP 8610xsv unit is IPX7 waterproof rated, dimensioned at 10.25″ × 8.0625″ × 2.95″ (25.9 × 20.5 × 7.5 cm), and weighs ~15.4 lbs (7.0 kg).
• Versatile Map Compatibility — Supports optional map upgrades: BlueChart G3 & G3 Vision, LakeVü G3, LakeVü G3 Ultra, Garmin Navionics Vision+, TOPO, raster charts, Garmin Quickdraw Contours, Auto Guidance+, and more.
• Power & Signal — Operates on 10–32 Vdc, includes a 10 Hz internal GPS/GLONASS/Galileo receiver with WAAS support for fast, accurate positioning.

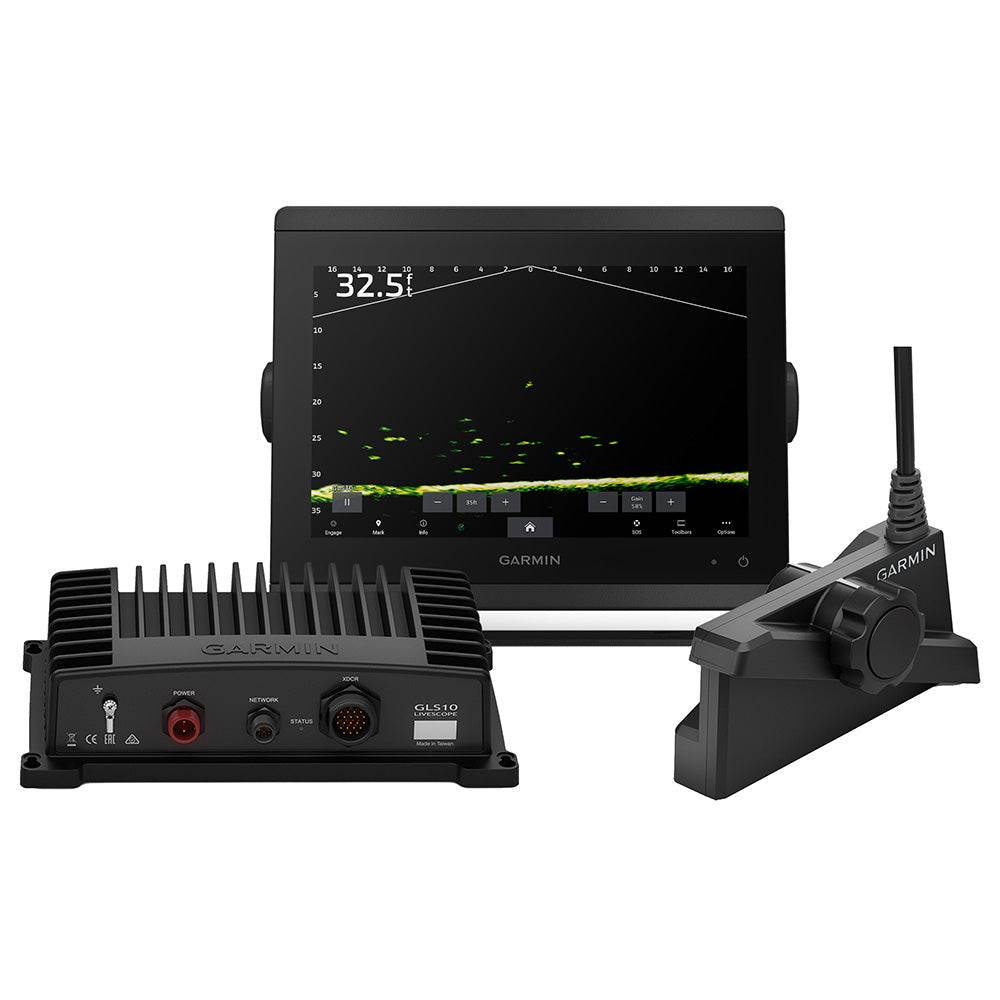

In the Box:

• GPSMAP 8610xsv chartplotter with preloaded Garmin Navionics+ coastal and inland U.S./Canada charts
• LiveScope Plus LVS34-IF transducer GLS 10 sonar black box with power & network cables
• Ice fishing pole mount (0° swivel mount)
• Documentation & user manual

Why This System Will Help You Catch More Fish:

• The real-time LiveScope sonar offers live video clarity that helps you track fish movement and structure detectability under the ice.
• Multi-angle scanning capability (forward, down, side, clear) provides comprehensive views of your fishing area.
• Preloaded high-definition mapping with support for additional chart layers gives you confidence in navigation and structure targeting.
• The flexible transducer cable ensures reliable signal in freezing air and water conditions, reducing breakage and signal loss.
• Deep integration and versatile ports allow expansion — connect radar, autopilots, cameras, or other marine electronics through the Garmin network and NMEA 2000 architecture.

This LiveScope Plus Ice House System (020-00332-00) is engineered to empower serious ice anglers by combining chartplotter, sonar, and mapping into one advanced package. Use it to locate fish with pinpoint accuracy, visualize structure in real time, and confidently navigate frozen lakes — all backed by Garmin’s marine electronics reliability.
