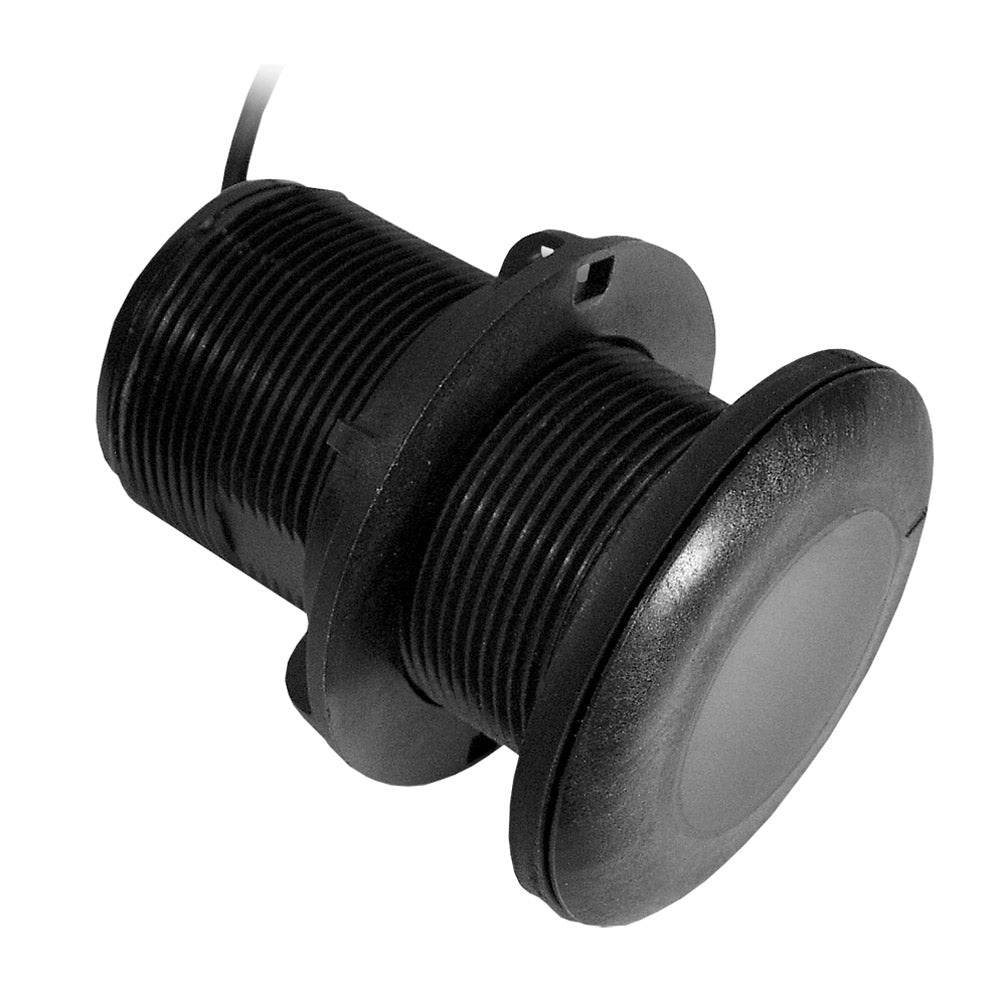

Garmin P19 Nylon 12 Degree Tilt Transducer - 8-Pin (010-10218-21)

Garmin P19 Nylon 12 Degree Tilt Transducer - 8-Pin (010-10218-21)

$199.99
$0.00 $199.99
Sale Sold out
Shipping calculated at checkout.

Common Questions

What is your Shipping Policy?

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

What delivery times should I expect?

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

How does Suncoast handle returns and refunds?

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

View full details

Authentic, brand-new, and backed by full manufacturer warranty as an Authorized Dealer

Product Description

Tilted Element™ Thru-Hull

Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

  • Cruising powerboats and sailboats
  • Sailboats


Features
  • Depth only or Depth and temperature
  • Fixed 12° tilted versions for 8° to 15° hull deadrise
  • Right angle cable exit offers low headroom and protection when transducer is stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Housings are ABYC H-27 compliant
  • Optional temperature sensor
  • Plastic housing
  • Boat Size: Up to 9M (30')
Specifications:
  • Speed Included: No
  • Pins: 8
  • Mounting Style: Thru-Hull
  • Imagining: Standard
  • Chirp: No
  • Cable Length (Feet): 30'
  • Temperature: Yes

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
