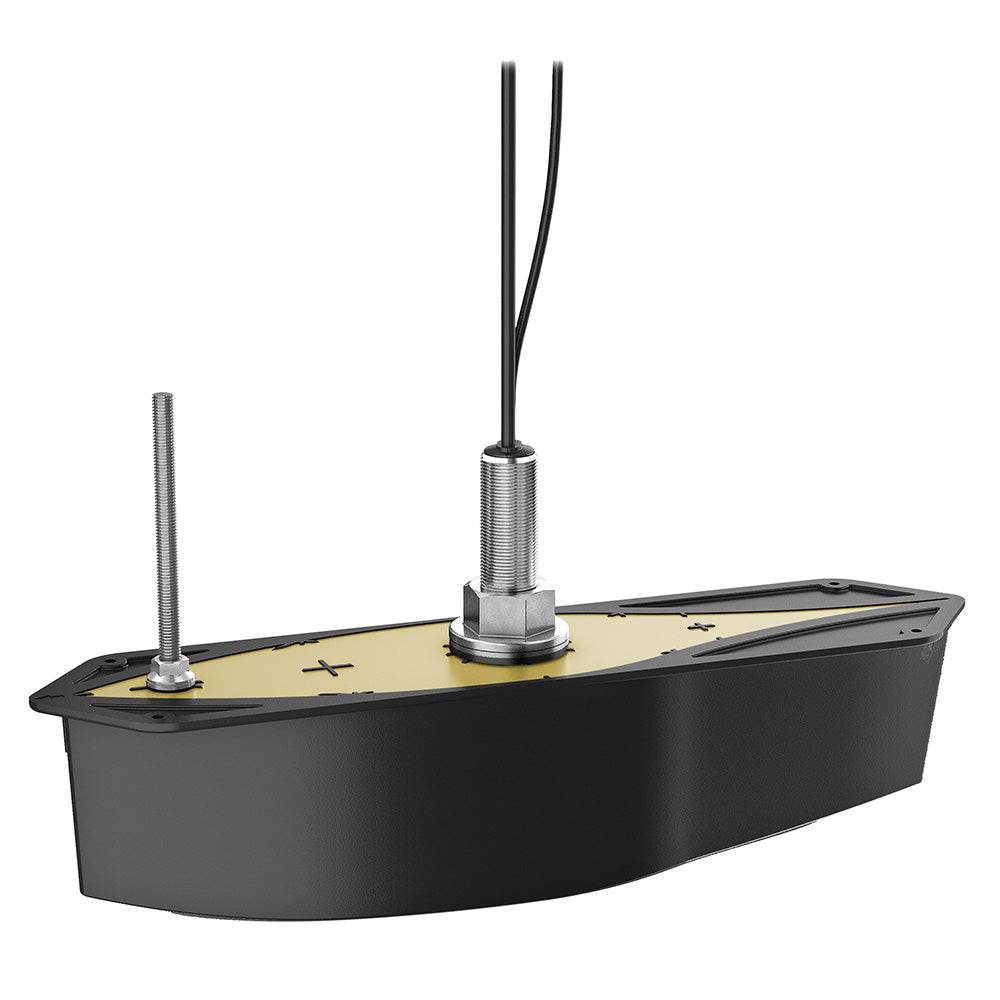

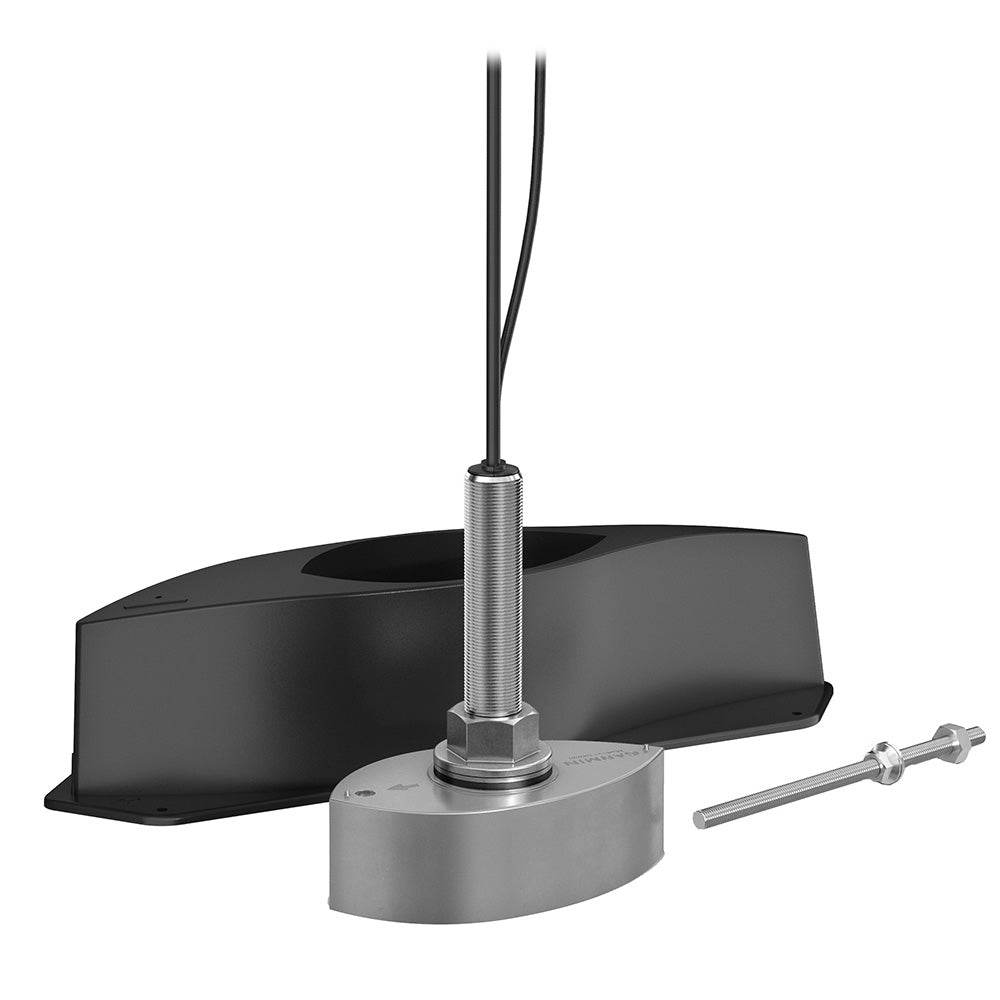

Garmin Panoptix PS70 With Transducer and Fairing Block

Panoptix™ PS70 Thru-Hull Transducer with Fairing Block (010-02768-00)

Unlock unmatched underwater visibility and fish deeper with confidence. The Panoptix® PS70 stainless-steel thru-hull transducer delivers high-definition, real-time sonar imaging up to 1,000 ft in saltwater, bringing you a competitive edge on deep-sea fishing expeditions.

Key Features & Benefits:

• Live sonar imaging down to 1,000 ft — powered by Garmin RapidReturn™, this transducer delivers ultra-fast, simultaneous multi-frequency pings for live sonar views in deep water.

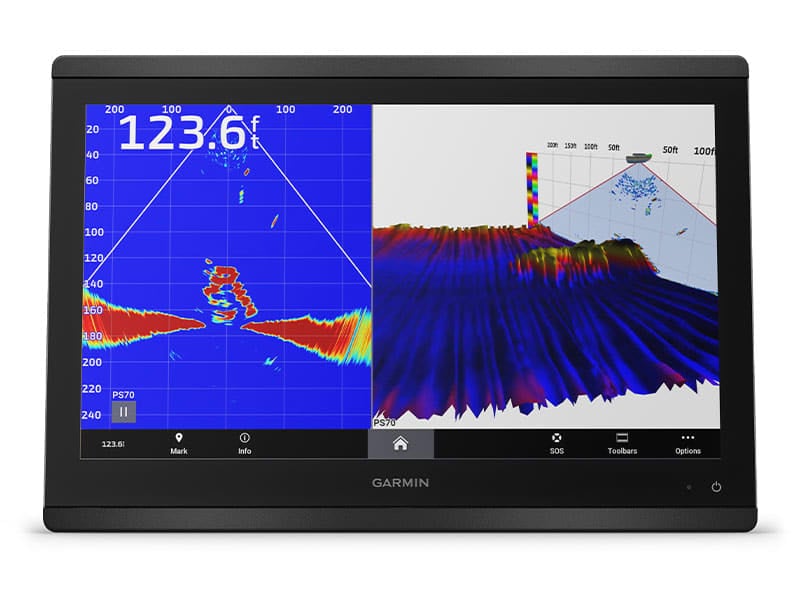

• Multiple sonar modes for versatile coverage — switch seamlessly among LiveVü™ Down, Traditional Sonar, Triple-Beam (three-column split), and RealVü™ 3D Historical scanning to match your fishing scenario.
• Wide 120° × 8° beam angle — perfect for locating baitfish and game fish across a broad column beneath your vessel.
• High-definition target separation — Traditional and Triple-Beam sonar modes deliver crisp fish arches, ideal for anglers who want to distinguish structure, bait, and individual targets.

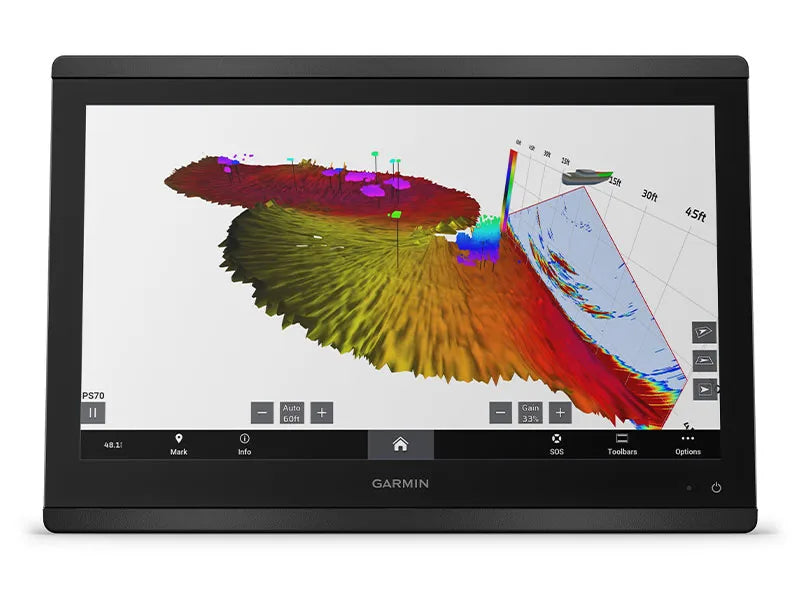

• RealVü™ 3D scanning — as you traverse waters, historical 3D returns map the entire water column (from bottom to surface) along your track. True Motion 3D ensures imagery aligns with your actual course.
• QuickDraw Contours support — survey and map extensive seabed areas at depths up to 1,000 ft, adding bathymetric detail for smarter navigation and fishing.
• Image stabilization in rough seas — built-in AHRS sensor compensates for pitch and roll, maintaining clear sonar returns in choppy conditions.
• Durable thru-hull installation — the stainless-steel transducer supports flush- or pocket-mounting. Supplied fairing block accommodates deadrise angles from 0° to 20° and withstands offshore speeds.
• 800-watt power output — delivers strong signal penetration for clearer returns in deep saltwater environments.

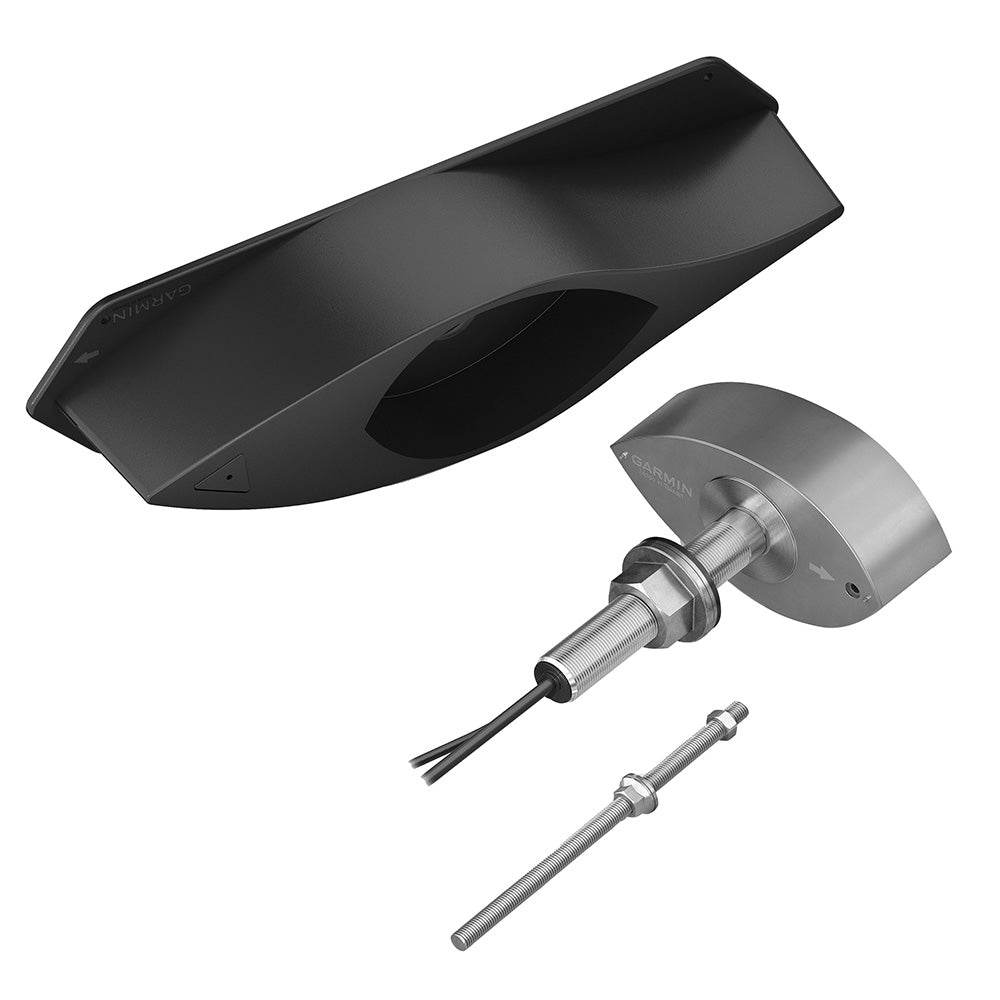

In the Box:

• PS70 down-looking thru-hull transducer
• Fairing block
• Stainless-steel thru-hull mounting hardware
• Power cable
• 40 ft (12 m) network cable with adapter
• Documentation

Specifications & Technical Details:

• Dimensions: 8.50″ × 4.49″ × 9.61″
• Weight: 10.12 lbs
• Waterproof rating: IPX7
• Transducer beamwidth: 120° × 8°
• Cable length: 8 ft + 40 ft extension
• Operating temperature: 0 °C to 40 °C
• Power input: 10–35 V
• Power draw: 35 W (fuse: 7.5 A)
• Frequency range: 190–210 kHz
• Maximum effective depth: 1,000 ft (saltwater)
• Sonar type: Multi-beam phased array
• Connection: One Garmin Marine Network port (small connector)

Why Fishermen & Offshore Anglers Choose PS70:

Designed for rugged use in offshore and deep-sea conditions, the PS70 offers live sonar clarity never before possible in a single thru-hull transducer. Its RapidReturn™ ping technology pushes it beyond typical CHIRP performance — delivering 6 to 8× faster frame rates than conventional sonar systems.

The wide 120° coverage lets you scan massive swaths below your vessel, while its high-power 800 W output penetrates deeper, denser water with minimal signal loss.

Veteran anglers have reported uncovering structure and honey holes previously invisible with standard sonar — thanks to the PS70’s superior image detail and coverage.

And with compatibility built for Garmin’s ecosystem, you can integrate advanced bathymetric mapping, QuickDraw Contours, and shareable underwater maps via ActiveCaptain.
