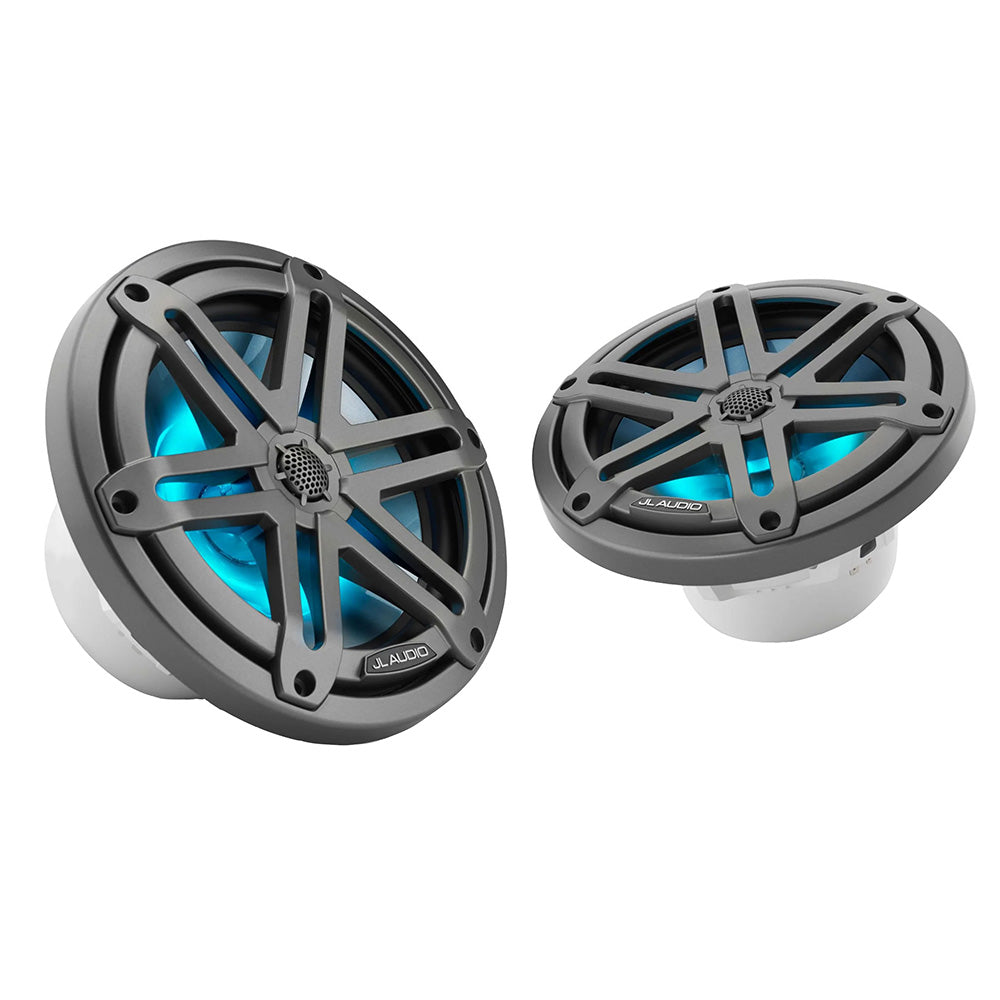

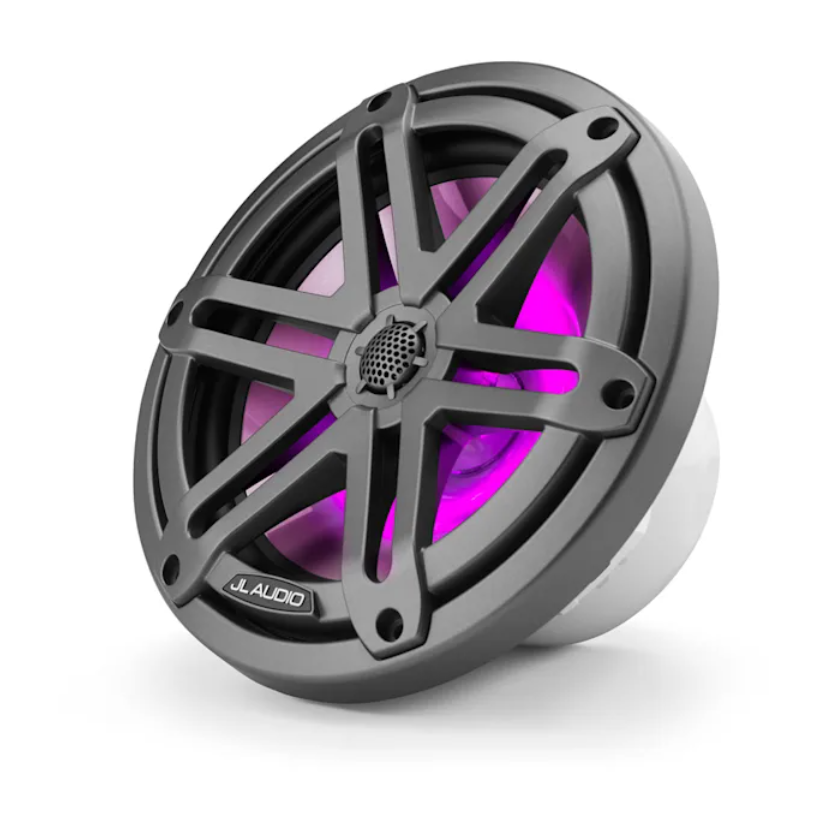

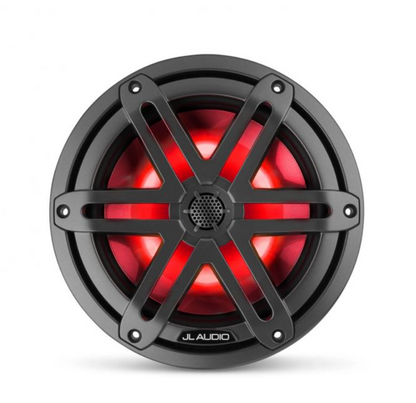

JL Audio® M3 Marine Speakers 7.7" with LED and Gray Sport Grille (M3-770X-S-Gm-i)

M3 Series 7.7" Marine Coaxial Speakers with Grey Metallic Sport Grilles with RGB LED Lighting - M3-770X-S-Gm-i (010-03067-00)

PLAY BETTER. Sold as a pair.

Also available in:

• Gray Sport Grille non-LED

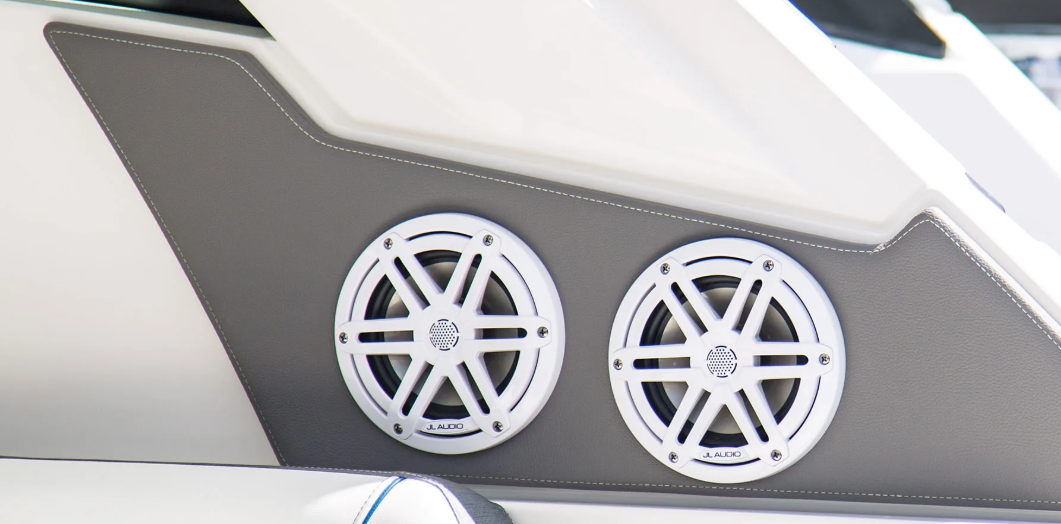

• White Classic Grille non-LED
• White Sport Grille non-LED
• White Sport Grille with LED Lighting

Optimized for moderate power systems, M3 marine speakers are designed to produce powerful, smooth sound that is several steps beyond common marine speakers.

Features:

• Amazing fidelity and affordability in marine settings
• Built-in RGB LED lighting
• Exceeds international standards for salt fog and UV exposure
• 3-Year Warranty

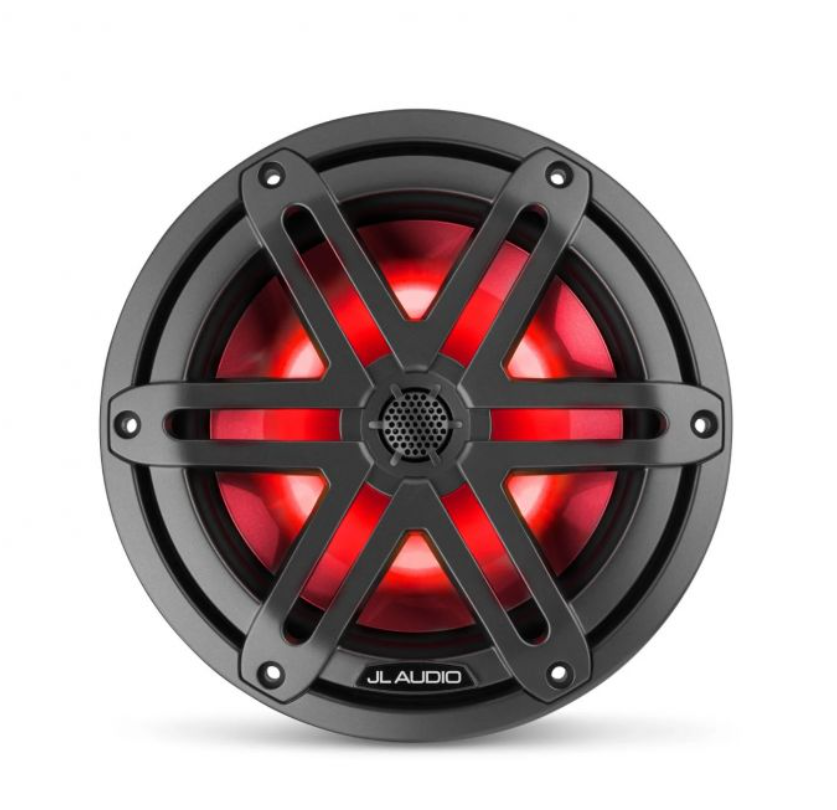

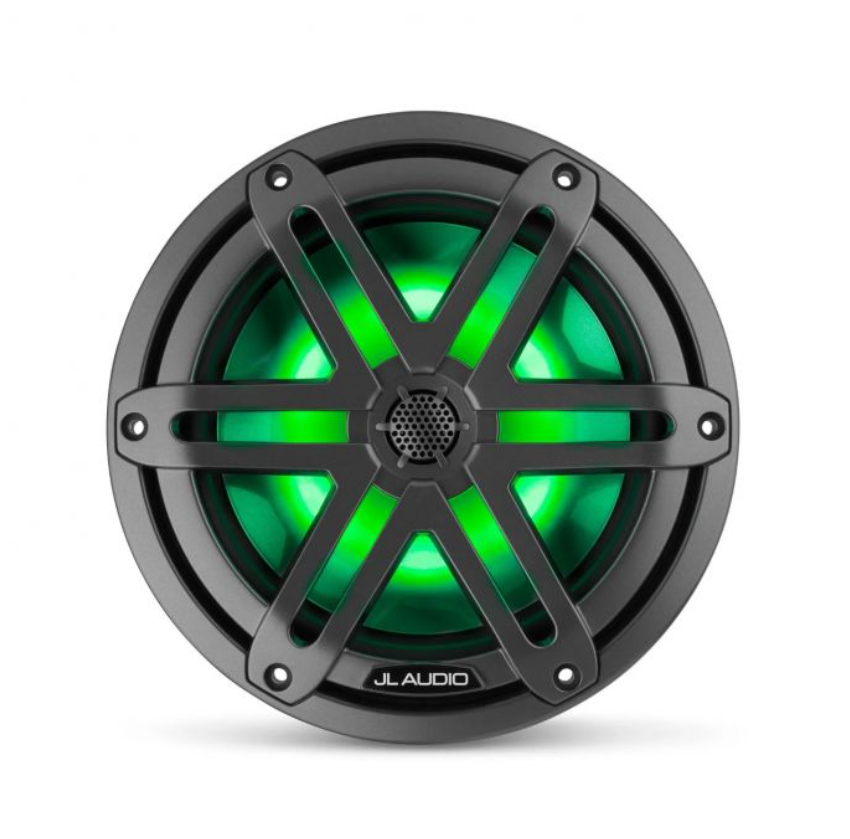

Built-in RGB LED Lighting: Multicolor LEDs produce a vibrant accent glow.

DMA-Optimized Woofers: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Pure Silk Tweeters: The treated silk dome design is chosen for its lightness, damping properties and smooth response characteristics to deliver superior output capability with crystal-clear, high-frequency detail.

Integrated Tweeter Filters: Each speaker includes a built-in second-order, high-pass tweeter filter with a solid-state protection circuit to minimize the possibility of tweeter failure.

Power Versatility: Designed to benefit from operation with quality amplification, M3 marine speakers are also suitable for use with standard marine head-unit power.

Real Marine Duty: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Compatible Products:

• JL Audio® MX Marine and Powersports Amplifiers
• JL Audio® XDM Car and Marine Amplifier
• JL Audio® M3 Marine Subwoofer

In The Box:

• Two marine coaxial loudspeakers
• Two grilles (attached to speaker)
• Twelve stainless steel mounting screws
• Twelve stainless steel washers
• Mounting template

Specifications:

• Size: 7.7"
• Color: Gray Sport
• Physical Dimensions (Diameter): 7.7"
• Physical Dimensions (Depth): 4.27"
• Speaker Type: Coaxial
• Continuous Power Handling (RMS): 70w
• Sensitivity (SPL @ 1w/1m): 90.5 dB
• Frequency Response (+/- 3 dB): 45 Hz-25 KHz
• Nominal Impedance: 4 ohm
• Recommended Amplifier Power (RMS): 20-140 w/Channel
• LED Lighting: Yes - RGB
• LED Supply Voltage: 10-14.4 VDC
• LED Load Current @ 14.4 VDC (Max): 108 mA
• Cone Material: Injection-molded, mica-filled polypropylene
• Tweeter Type: Silk Dome
• Tweeter Size: 0.75"
• Speaker Connections: Spade Connectors
• Warranty: 3 Year

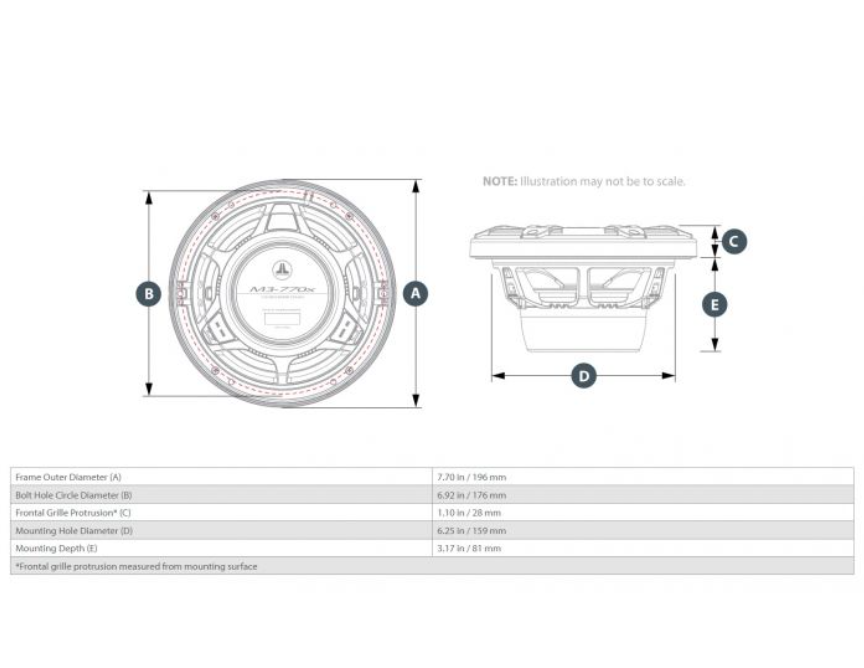

Mounting Dimensions

• Mounting Depth Clearance: 3.17"
• Frontal Grille Protrusion: 1.10"
• Bolt Hole Circle: 6.92"

Specifications:

• LED Lighting: Yes
• Mounting Style: Surface
• QTY: Pair
• Size: 7.7"
• Watts RMS: 70w

Compatible with:

• JL Audio M3 10" Marine Subwoofer w/Gloss White Classic Grille
• JL Audio XDM 600w Monoblock Amplifier
• JL Audio MX Series 300w Monoblock Wide-Range Amplifier

Specifics:

Owner's Manual (pdf)
