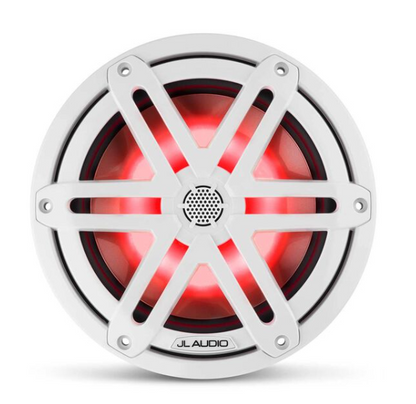

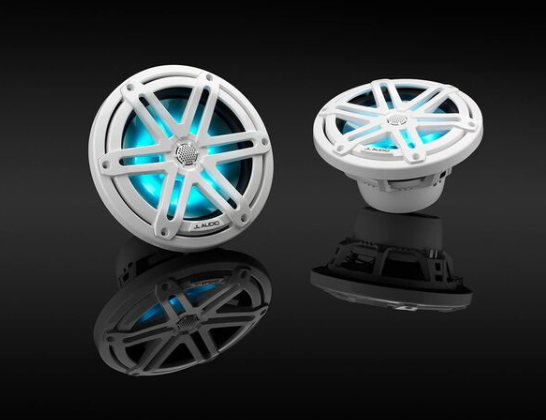

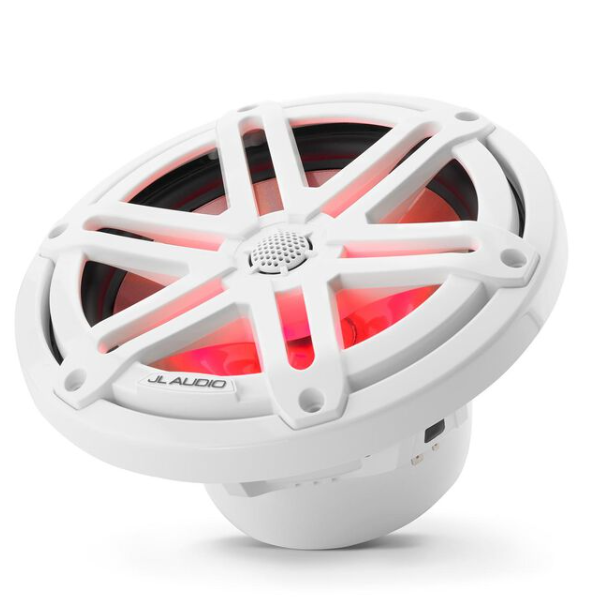

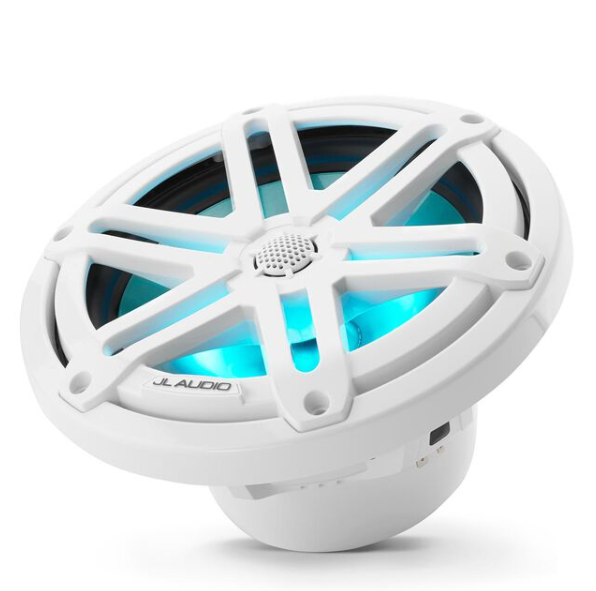

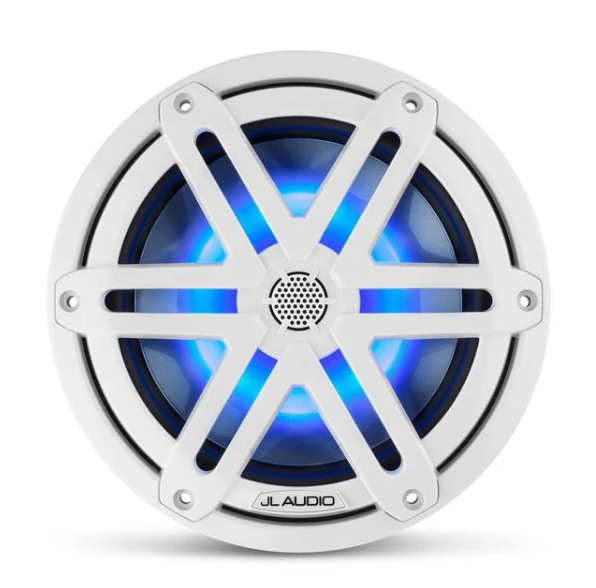

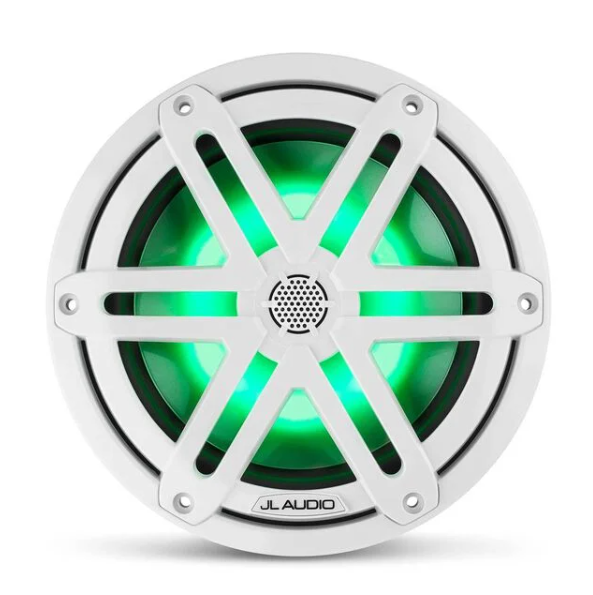

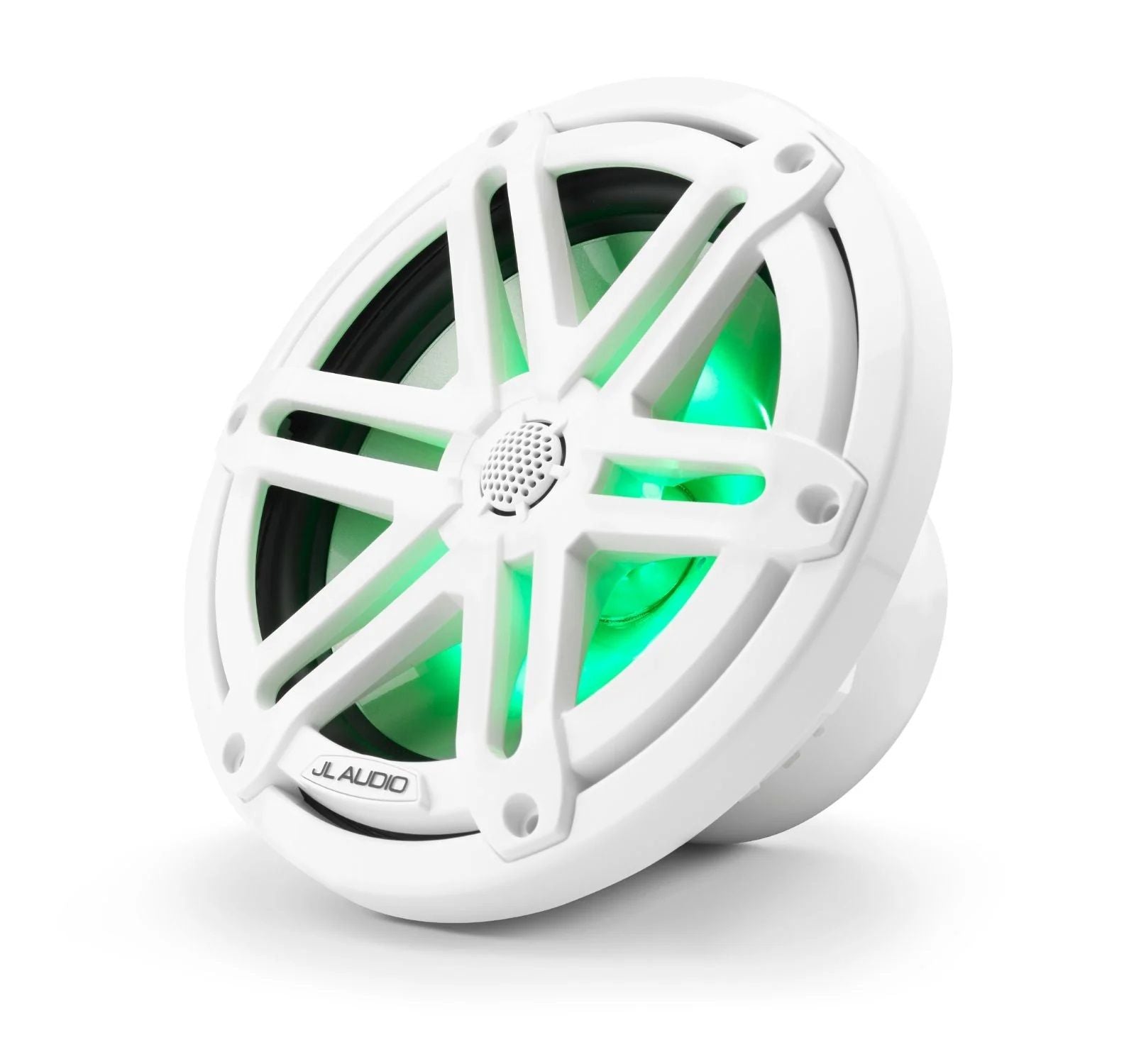

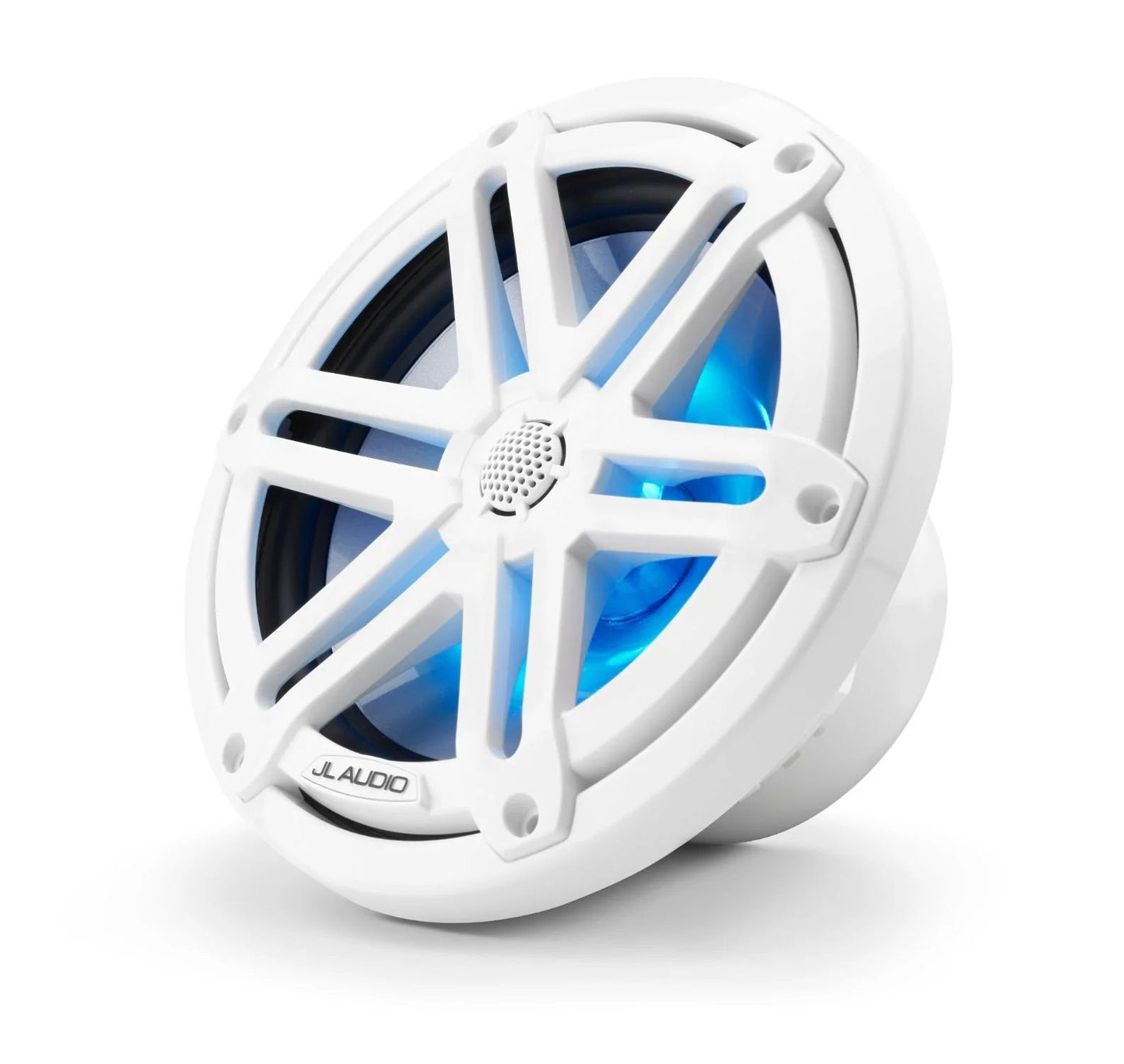

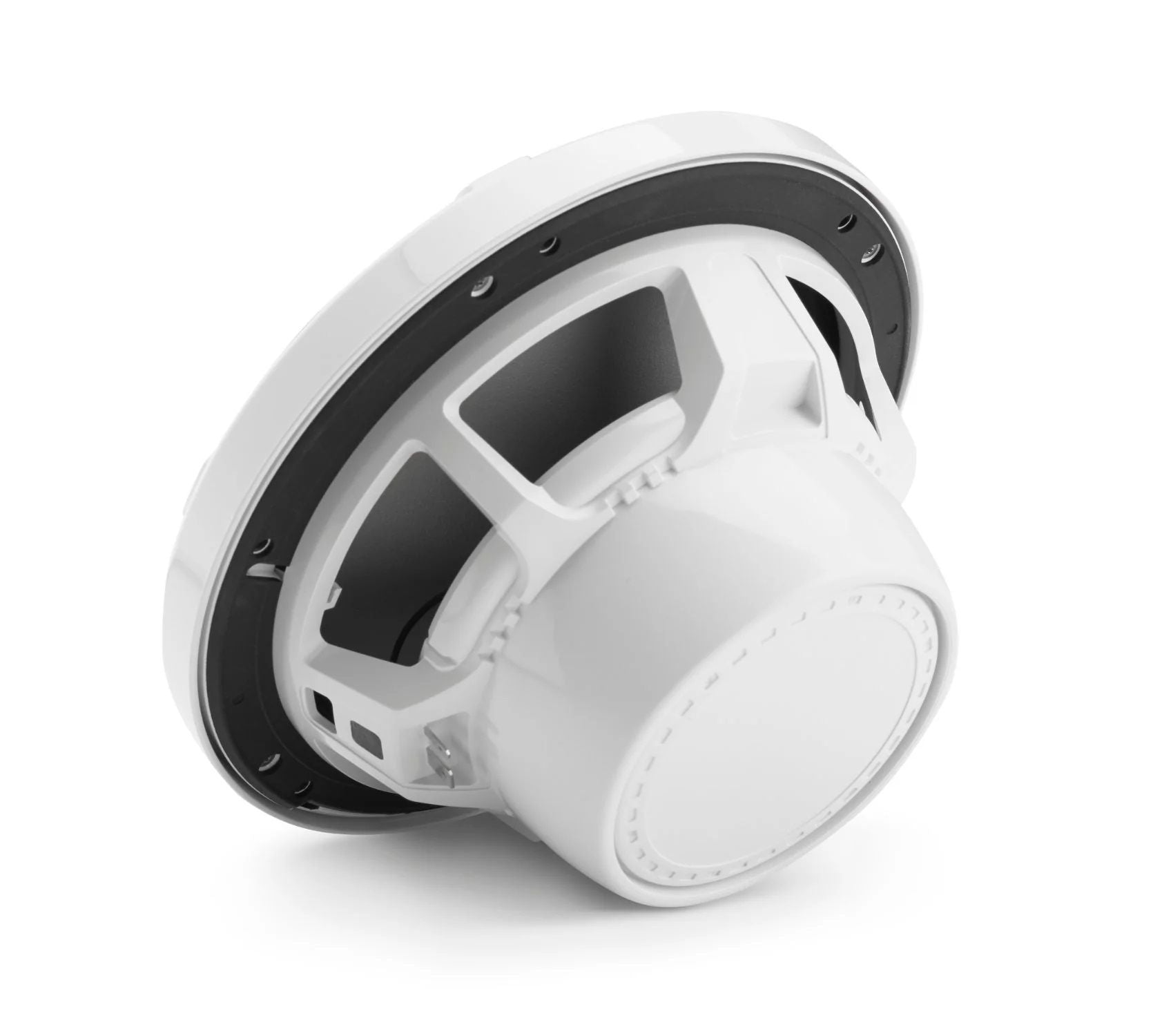

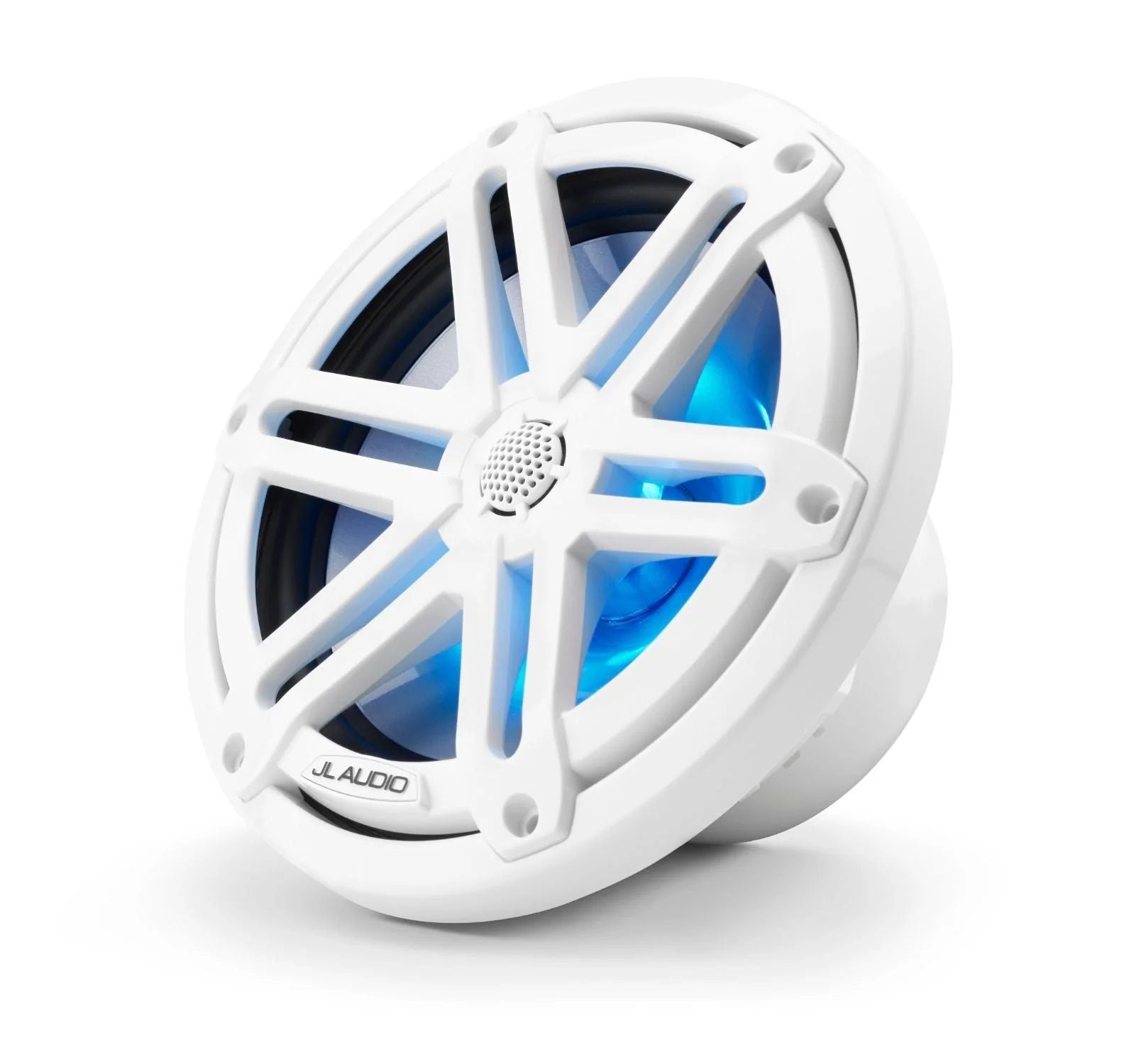

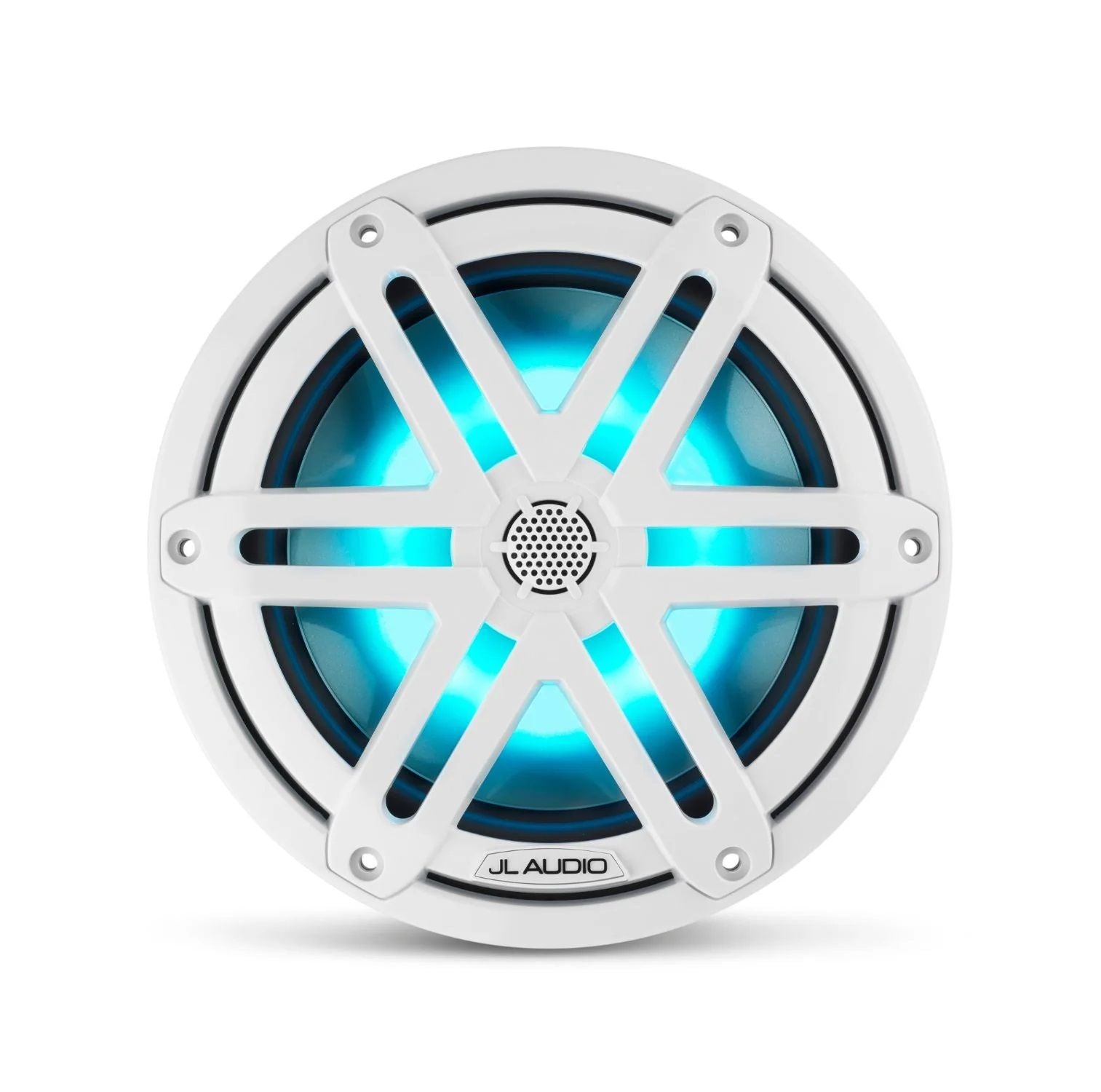

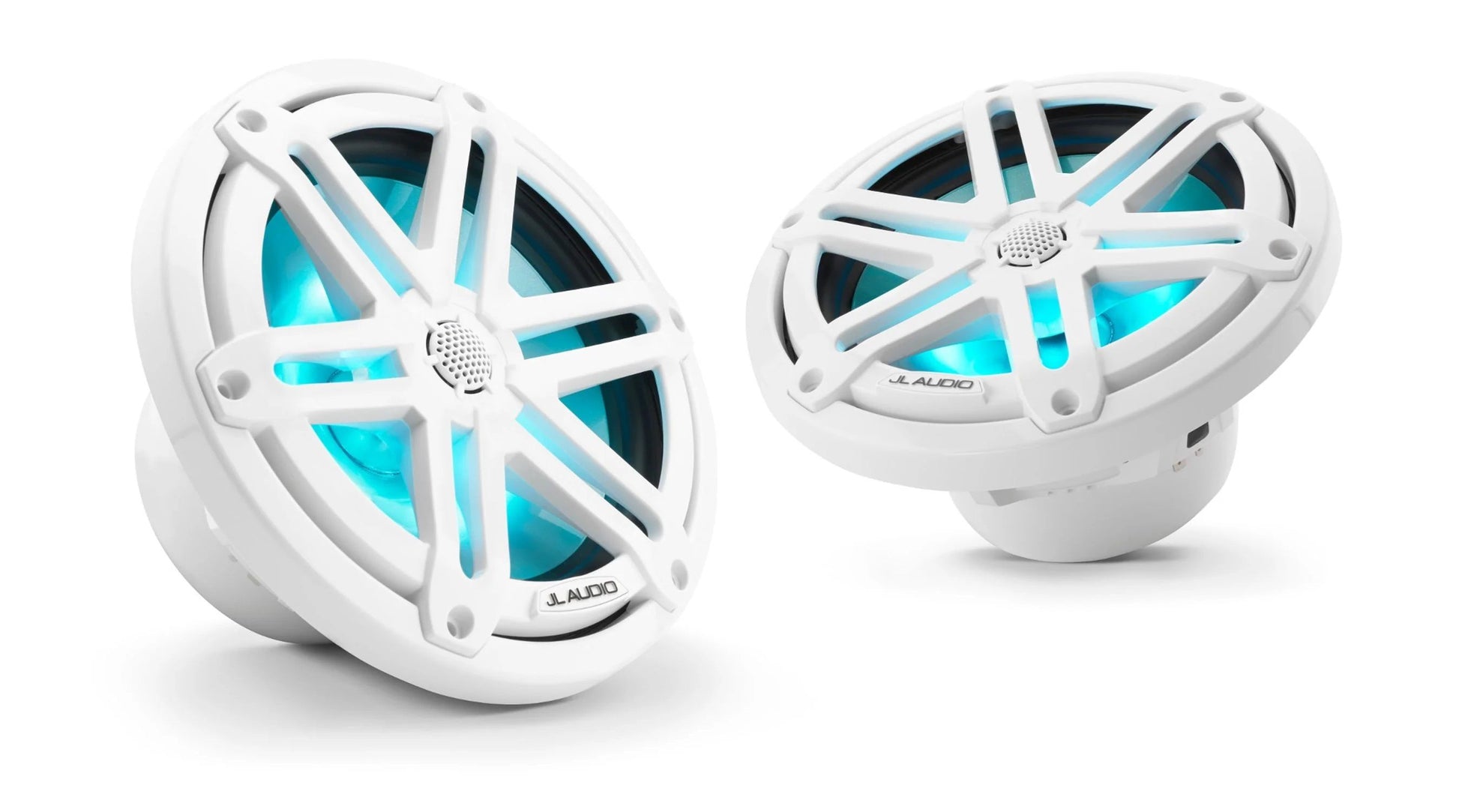

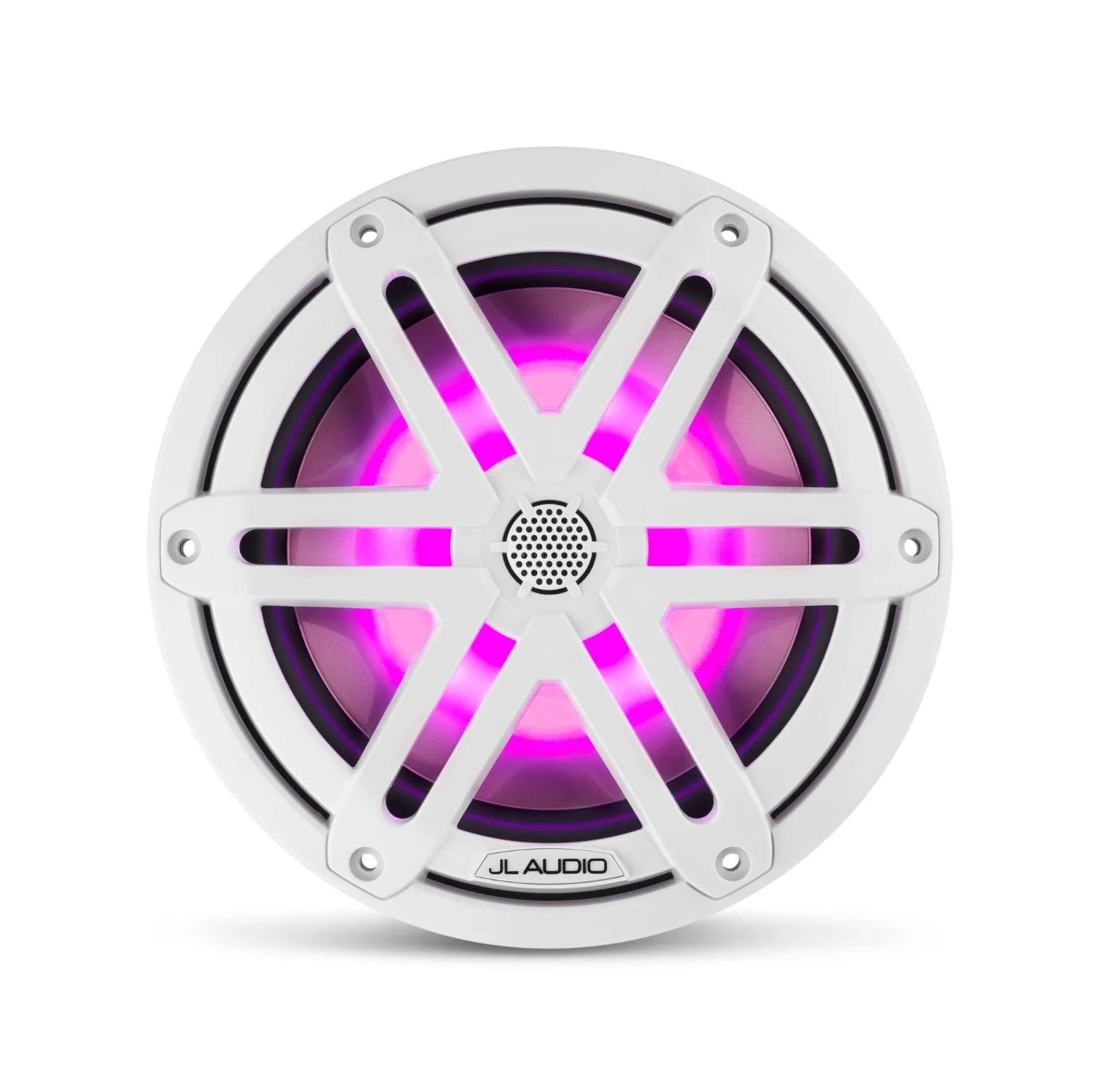

JL Audio M3 Marine Speakers 7.7" with LED and White Sport Grille (M3-770X-S-Gw-i)

7.7" Marine Coaxial Speakers, White Sport Grilles with RGB LED Lighting (M3-770X-S-Gw-i) (010-03069-00)

PLAY BETTER. Sold as a pair.

Elevate your marine audio experience with the JL Audio (M3770XSGwi) 7.7" Marine Coaxial Speakers. Designed for durability and superior sound quality, these speakers are perfect for boaters seeking both performance and aesthetics.

Key Features:

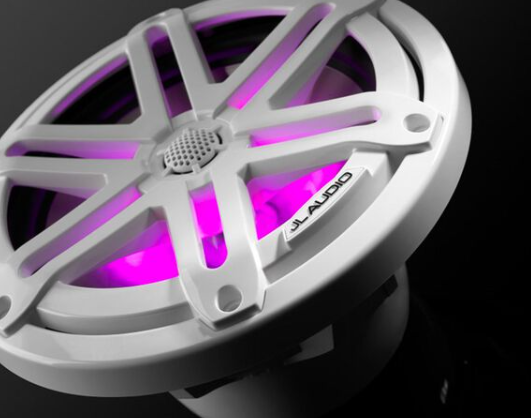

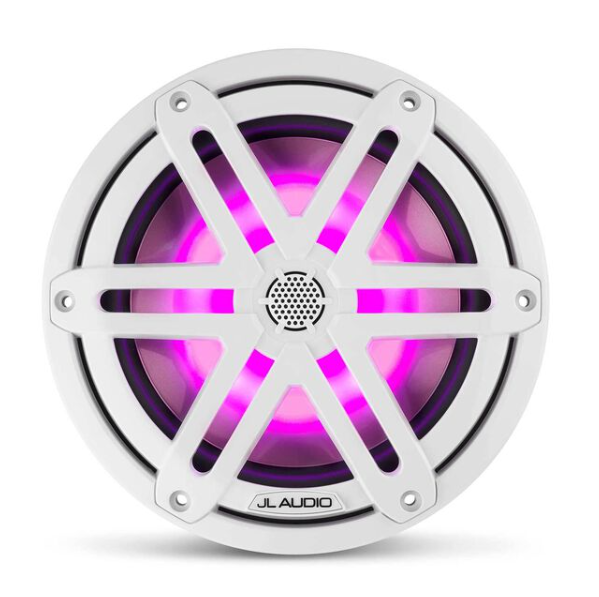

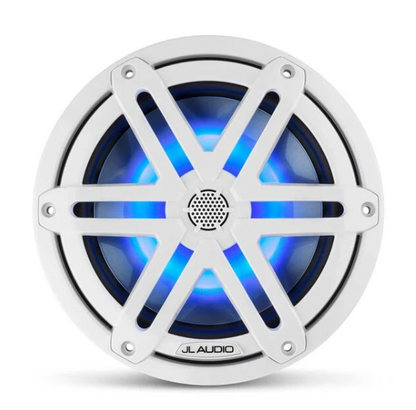

• Built-in RGB LED Lighting: Enhance your boat's ambiance with multicolor LED illumination, adding a vibrant accent glow to your audio setup.
• DMA-Optimized Woofers: Proprietary motor, suspension, and cone modeling systems reduce distortion and improve transient performance, delivering stellar bass sound quality.
• Pure Silk Tweeters: The treated silk dome design offers lightness, damping properties, and smooth response characteristics, ensuring crystal-clear high-frequency detail.
• Integrated Tweeter Filters: Each speaker includes a built-in second-order, high-pass tweeter filter with a solid-state protection circuit to minimize the possibility of tweeter failure.
• Power Versatility: Suitable for use with standard marine head-unit power, these speakers are also designed to benefit from operation with quality amplification.
• Real Marine Duty: Built to withstand saltwater marine environments, these speakers exceed international standards for salt fog and UV exposure, ensuring long-term use and durability.
• 3-Year Warranty: Enjoy peace of mind with a 3-year warranty, reflecting JL Audio's commitment to quality and customer satisfaction.

Specifications:

• Size: 7.7"
• Color: White Sport Grille
• Continuous Power Handling (RMS): 70W
• Sensitivity (SPL @ 1w/1m): 90.5 dB
• Frequency Response (+/- 3 dB): 45 Hz - 25 KHz
• Nominal Impedance: 4 ohm
• Recommended Amplifier Power (RMS): 20-140W/channel
• LED Lighting: Yes - RGB
• LED Supply Voltage: 10-14.4 VDC
• LED Load Current @ 14.4 VDC (Max): 108 mA
• Cone Material: Injection-molded, mica-filled polypropylene
• Tweeter Type: Silk Dome
• Tweeter Size: 0.75"
• Speaker Connections: Spade Connectors
• Warranty: 3 Year

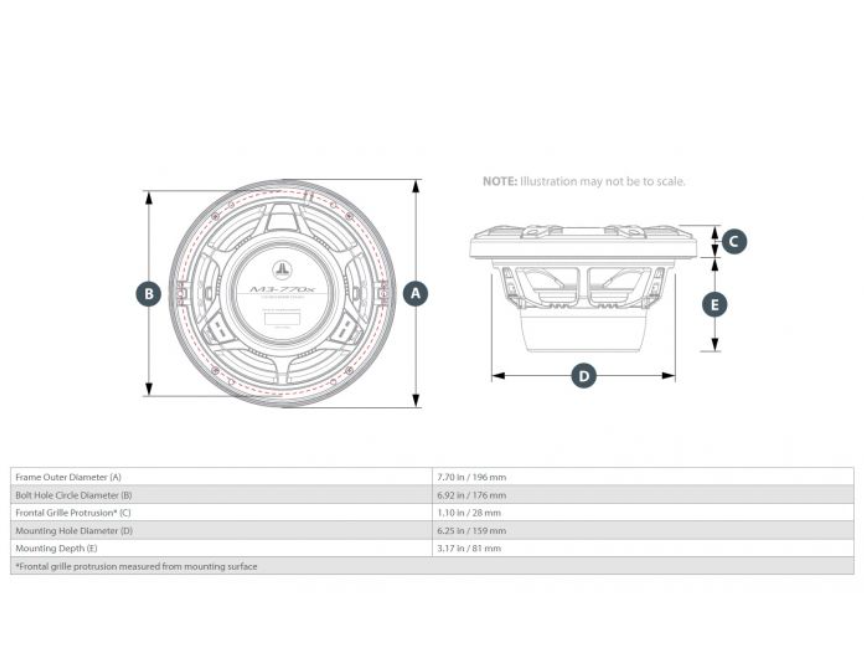

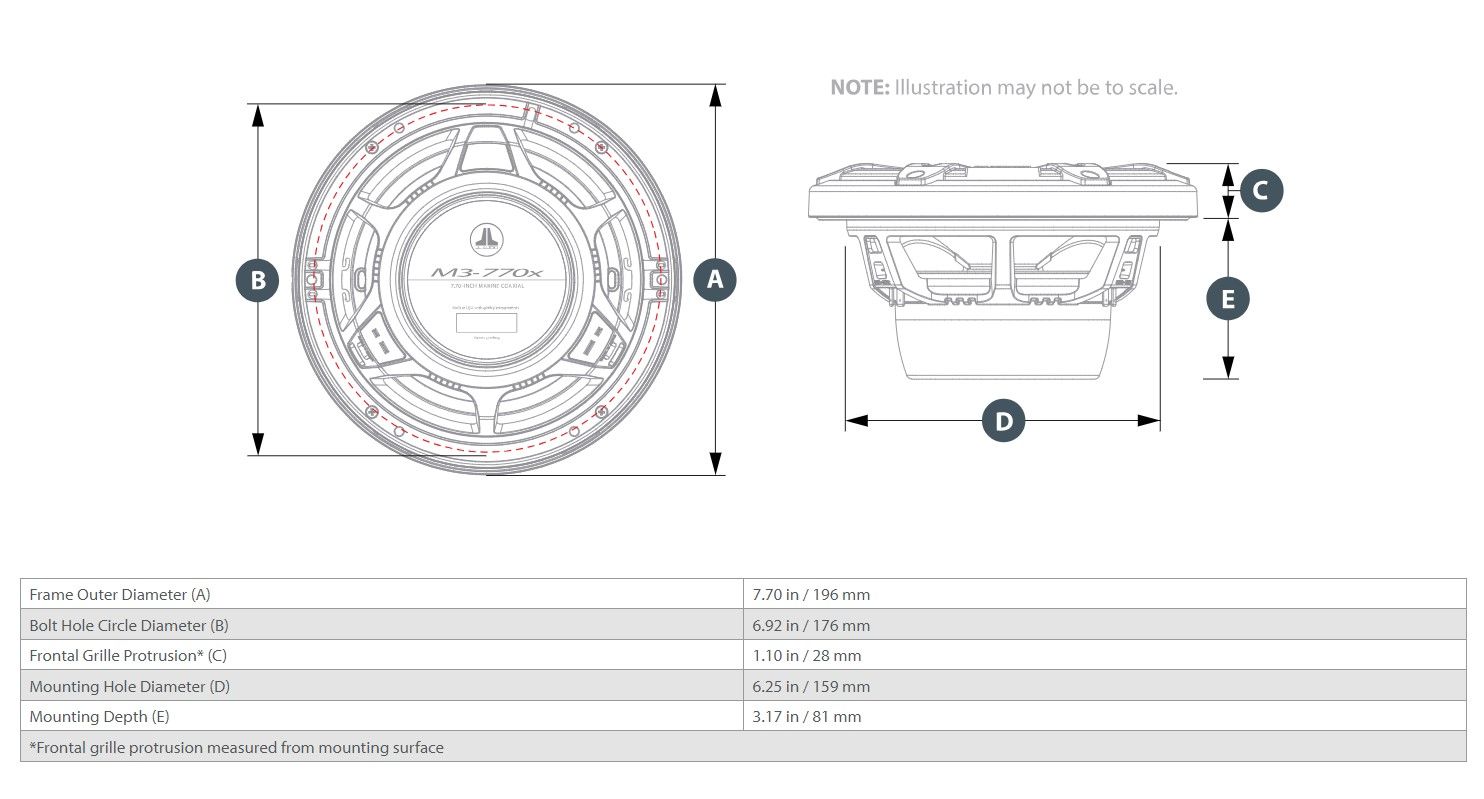

Mounting Dimensions:

• Mounting Depth Clearance: 3.17"
• Frontal Grille Protrusion: 1.10"
• Bolt Hole Circle: 6.92"

In The Box:

• Two marine coaxial loudspeakers
• Two grilles (attached to speaker)
• Twelve stainless steel mounting screws
• Twelve stainless steel washers
• Mounting template

Also available in:

• White Classic Grille non-LED
• White Sport Grille non-LED
• Gray Sport Grille non-LED
• Grey Metallic Sport Grilles w/RGB LED Lighting

Compatible Products:

• JL Audio® MX Marine and Powersports Amplifiers
• JL Audio® XDM Car and Marine Amplifier
• JL Audio® M3 Marine Subwoofer

(0100306900)
