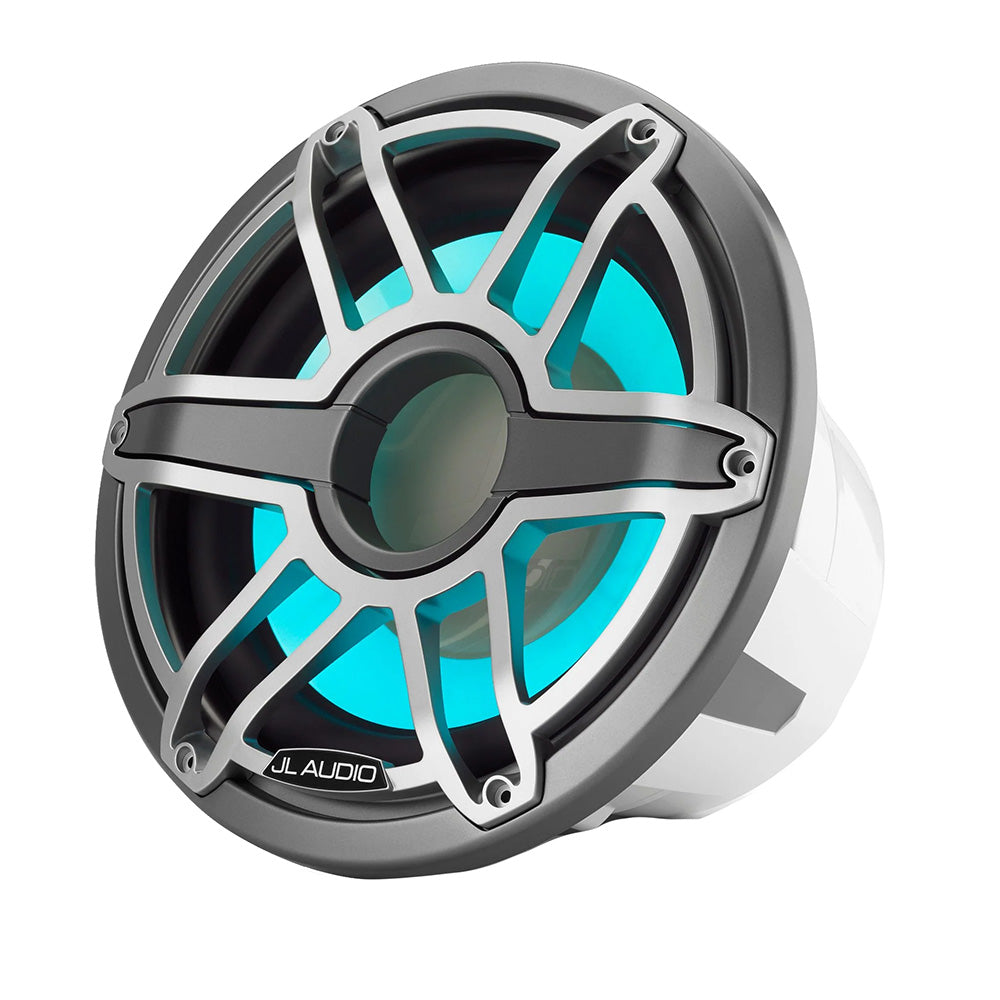

JL Audio M7-12IB-S-GmTi-i-4 12" Marine Subwoofer M7 Series with LED and Titanium Sport Grille

M7 Series 12" Marine Subwoofer with Titanium Sport Grille & Transflective™ LED Lighting (M7-12IB-S-GmTi-i-4) (010-03289-00)

KING OF BASS

With oversized, overbuilt components and very powerful motor systems, M7s are extreme subwoofers optimized for high-power operation in open-air applications.

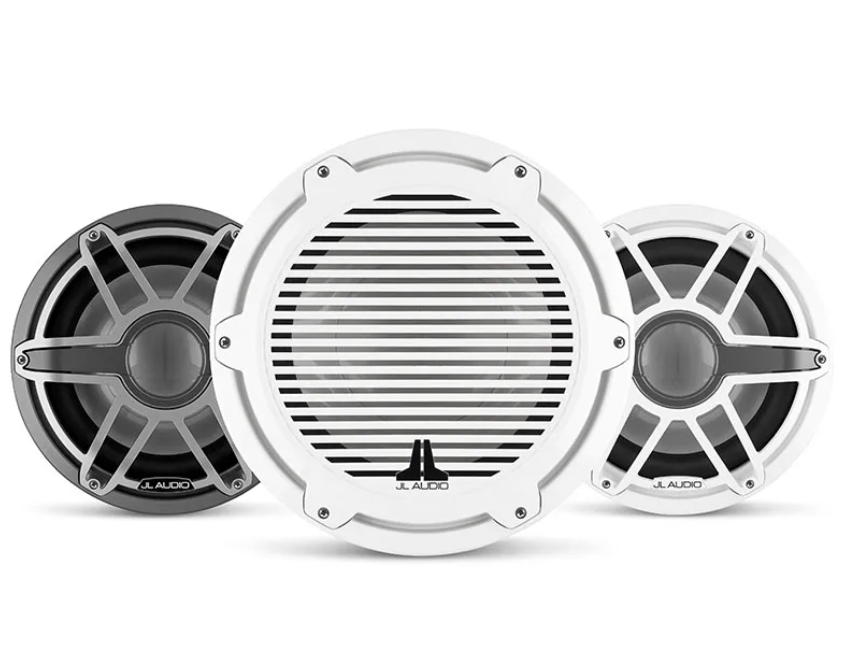

Also available in:

• Gloss White Sport Grille non-LED
• White Sport Grille with LED Lighting
• Titanium Sport Grille non-LED
• White Classic Grille non-LED

Features

• Generates stunning bass in open-air applications
• Egineered for use without dedicated enclosure
• Grille and trim ring are easily removable for painting
• Transflective™ RGB LED lighting
• Exceeds international standards for salt fog and UV exposure
• 3-Year Warranty

Incredible Displacement

Displacement is a direct measure of a subwoofer’s output capability. With more than twice the displacement of most 10-inch subwoofers, the M7-12IB is in a class of its own.

Infinite Baffle Design

M7 marine subwoofers are purpose-engineered to operate without dedicated enclosures, needing only large volumes of air behind them.

High Powered

The M7 marine subwoofer easily handles up to 600 watts RMS.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Transflective™ RGB LED lighting

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

Compatible Products:

• JL Audio® M6 Marine Speakers
• JL Audio VeX™ Enclosed Speaker System
• JL Audio® MVi Marine Amplifier

In The Box

• One marine subwoofer
• One grille
• Six stainless steel mounting screws
• Six stainless steel washers

Specifications

• Size: 12"
• Color: Titanium Sport
• Physical Dimensions (Diameter): 14"
• Physical Dimensions (Depth): 9.42"
• Weight: 25.35 lbs
• Speaker Type: Infinite Baffle Subwoofer
• Continuous Power Handling (RMS): 600w
• Sensitivity (SPL @ 1w/1m): 86.7 dB
• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power (RMS): 200-600 w
• LED Lighting: Yes - Transflective™
• LED Supply Voltage: 10-14.4 VDC
• LED Load Current @ 14.4 VDC (Max): 648 mA
• Voice Coil Diamater: 4"
• Cone Material: Injection-molded, mica-filled polypropylene
• Warranty: 3-Year

Connections

• Speaker Connections: Spade Connectors
• LED Connection: Flying Lead with 4-conductor 20 AWG wire

Mounting Dimensions

• Mounting Depth Clearance: 7.94"
• Frontal Grille Protrusion: 1.48"
• Mounting Hole: 12.0625"
• Bolt Hole Circle: 12.813"

Specifications:

• QTY: Single
• Watts RMS: 600w
• Size: 12"

(M712IBSGmTii4) (0100328900)
