KVH Ultra-Compact TracPhone V30 w/DC-BDU [01-0432-01]

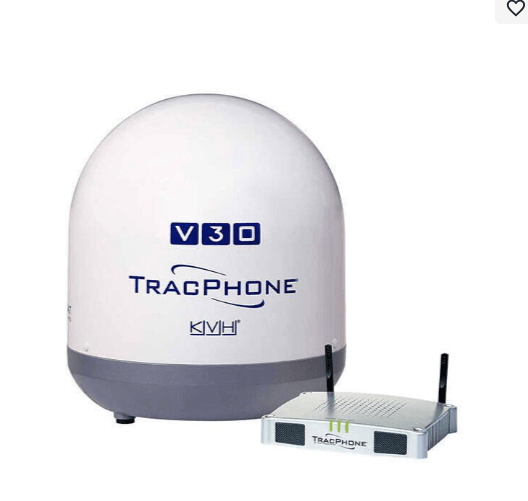

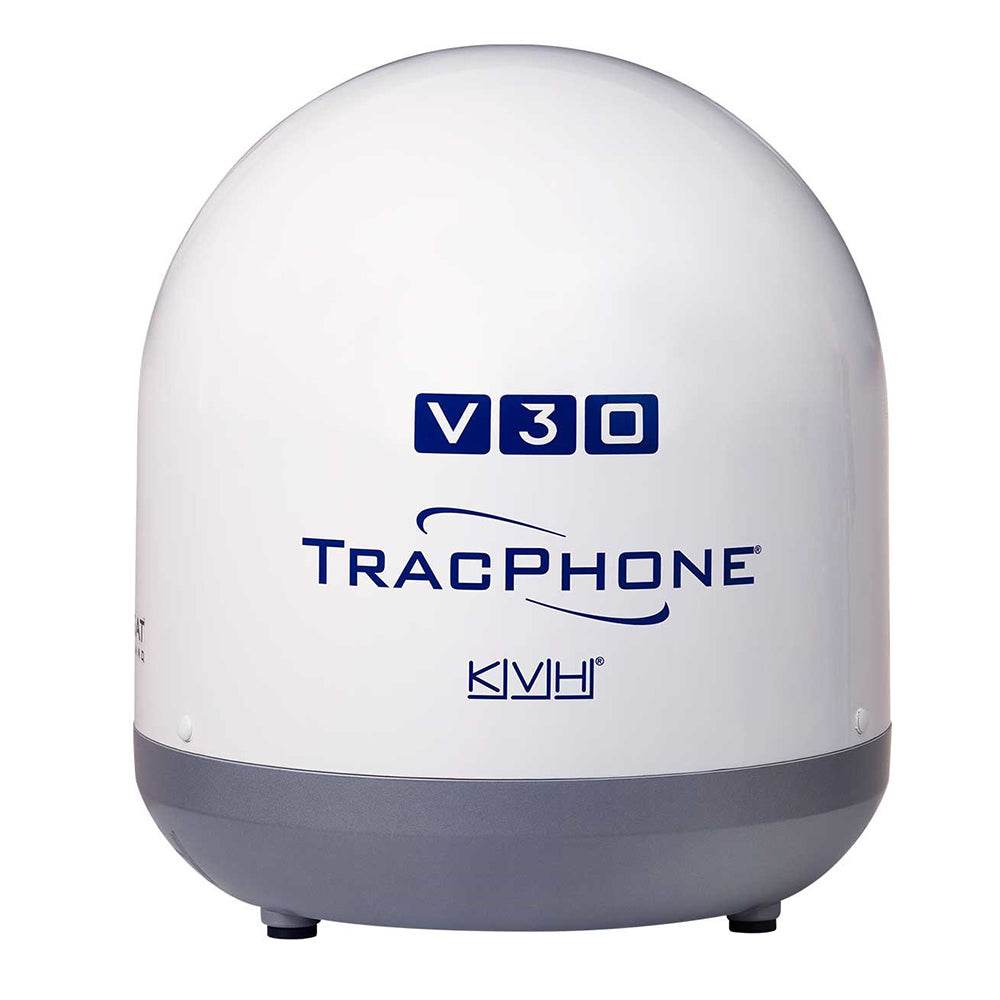

Ultra-Compact TracPhone® V30 with DC-BDU

FREE Shipping

LOWEST PRICES GUARANTEED

Receive fast, affordable service with your choice of metered and unlimited use airtime plans via next-generation, TracPhone v30 from KVH. The innovative digital terminal with a 37 cm (14.5") D dish offers higher signal strength and efficiency, an easily installed single-cable, DC-powered design with a compact belowdecks unit, and data speeds as fast as 6/2 Mbps (down/up).

Features:

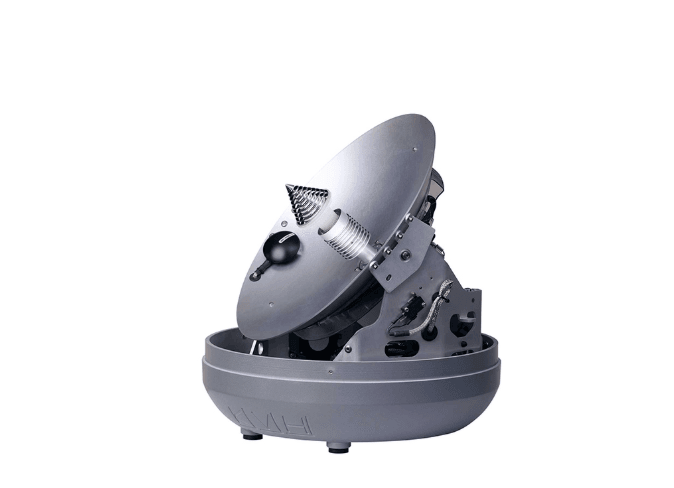

• The smallest, lightest, lowest powered maritime VSAT system with precision two-axis stabilized pedestal design plus stabilized skew for solid connections in all sea states
• Simple to install using a single new or existing coaxial cable, rotary joint for unlimited rotation, DC power (optional AC-to-DC power converter available), and compact VSAT-Hub belowdecks unit
• Provides the fastest global broadband connections available and crystal-clear voice calls via KVH's mini-VSAT Broadband HTS network
• Powerful network management tools providing valuable insight and control over data usage via KVH Manager
• Optimized system performance thanks to KVH's integrated IoT Proactive Monitoring
• Multi-level Cybersecurity Program with advanced network-level firewall, automated threat management, secure boot, encrypted drives, and more to provide additional security
• Airtime Plan options
  • Metered Airtime: Choose a metered global plan and enjoy the fastest network speeds available at all times, monthly airtime packages sized to meet your unique needs, affordable per MB additional data, and service throughout the global mini-VSAT Broadband HTS network
  • Unlimited Use Airtime: Choose the monthly high-speed data package best for your needs. Use it all up before the end of the month? No problem! Your network automatically shifts to a reduced data rate shaped plan with NO overage charges so you can stay connected with unlimited email, texting, and more
• For an additional fee, you may assign up to 5 virtual phone numbers to the vessel's phone line
• These numbers can be set up with a different country code and area/city code, allowing people on shore within those regions to avoid international or long-distance charges when they call

Service

• Network: Mini-VSAT Broadband HTS network
• Antenna type: Ku-band
• Service coverage area: Seamless worldwide regions
• Maximum speed download/upload: As fast as 6 Mbps/2 Mbps (down/up)

Abovedecks Equipment

• Antenna dish diameter: 36.8 cm (14.5")
• Antenna unit dimensions/weight: 39.4 cm D x 44.7 cm H (15.5" D x 17.6" H)/10.6 kg (23.4 lbs)
• Elevation/Azimuth range: 7.7° to 75°/Unlimited rotation
• Temperature: Operating: -30° C to 55° C (-22° F to 131° F); Survival: -35° C to 70° C (-31° F to 158° F)
• Humidity/salt fog: IEC 60945; 40° C (104° F), 95% Humidity (non-condensing)
• Rain: Precipitation rate of 1.7 mm/min, w/wind speeds up to 100 knots
• Heading input: NMEA 0183 and NMEA 2000 magnetic or true heading
• Antenna unit rate: 48 VDC input from the VSAT-Hub
• VSAT-Hub to antenna unit connection: Single coaxial cable

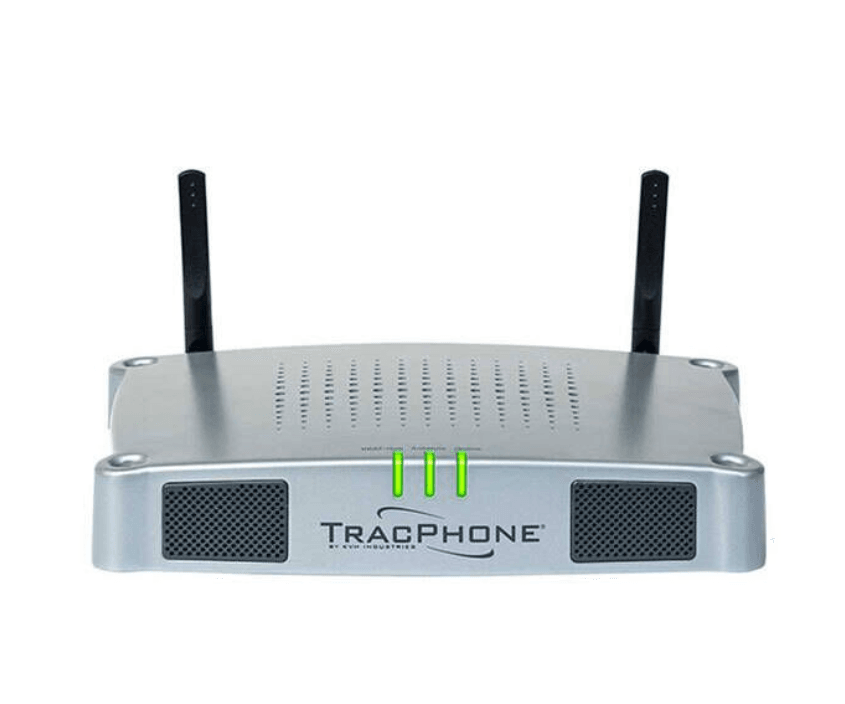

Belowdecks Equipment - VSAT-Hub

• Dimensions: 23.6 cm x 20.5 cm x 4.4 cm (9.34" x 8.05" x 1.73"); will fit in 1U slot
• Weight: 1.4 kg (3 lbs)
• Temperature: Operating: -15° C to 55° C (5° F to 131° F); Survival: -25° C to 70° C (5° F to 158° F)
• Input power: 10-30 VDC, 125W max
• Data interfaces: 4 Ethernet: Gigabit 1000BASE-T IEEE 802.3; 2.4/5GHz IEEE 802.11ac/a/b/g/n 2x2 MIMO Wi-Fi; USB 3.0 Port
• Voice interfaces: 1 RJ11 port for VoIP services

System Options

• KVH OneCare™ Support Program: Available; see kvh.com/onecare for details

Complete System

• Certification: Complies with the essential requirements of Radio Equipment Directive 2014/53/EU, which includes the safety objectives set out in EN62368-1 and in EMC directive EN60945 FCC Part 15, Subpart B, Class A, NMEA 2000 Certified, RoHS & REACH
• System Warranty: Comprehensive 2-year parts, 2-year labor warranty supported by KVH's worldwide Certified Support Network (CSN)
