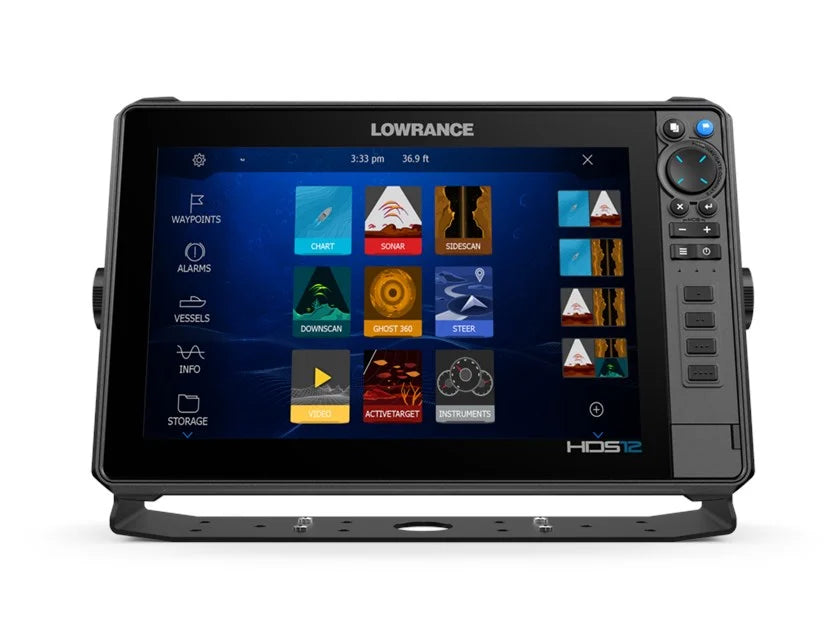

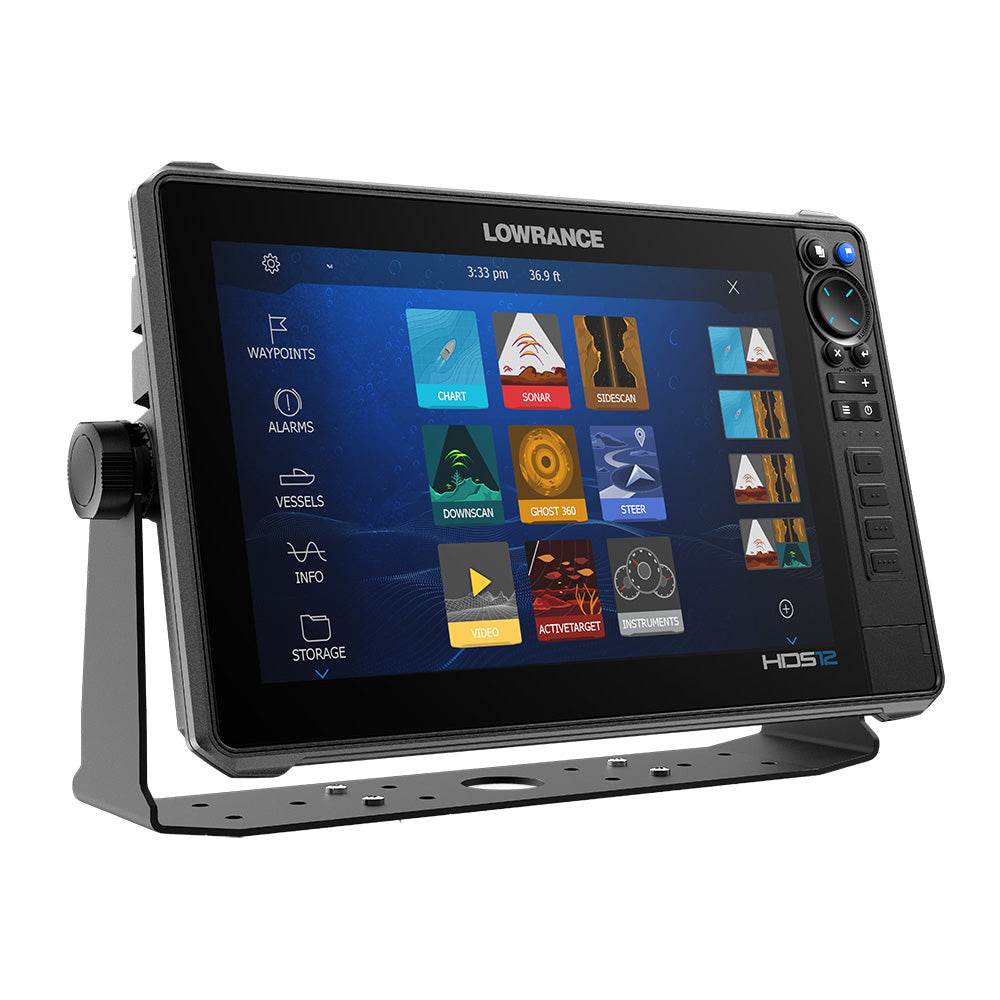

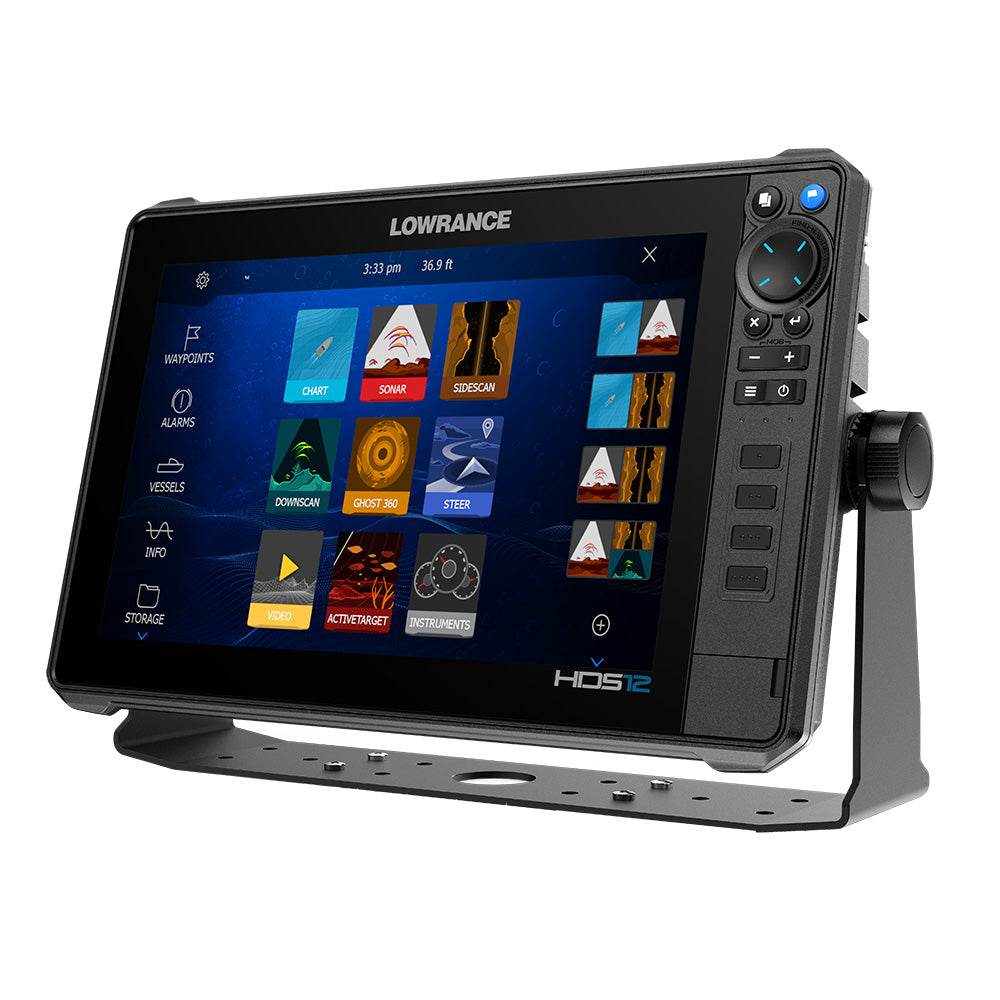

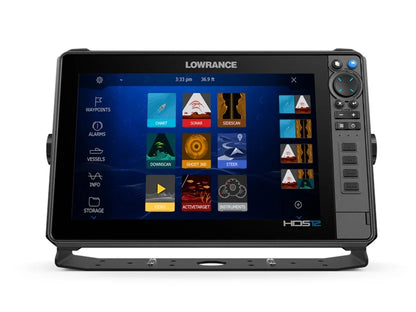

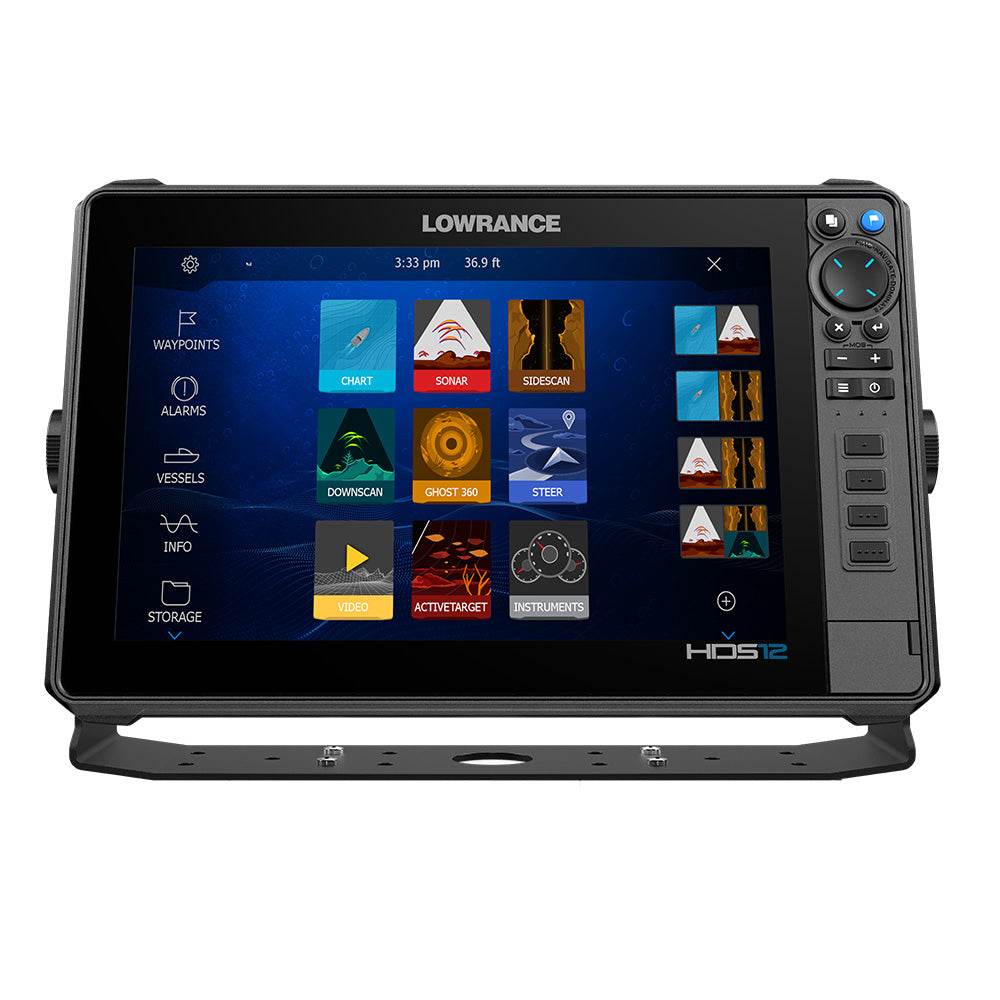

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard - No Transducer (000-16002-001)

Upgrade your boat’s electronics with the Lowrance HDS PRO 12 (00016002001) — the ultimate 12″ fishfinder/chartplotter built for serious anglers who demand clarity, connectivity and coverage. With a large SolarMAX™ HD touchscreen, preloaded high-resolution lake charts, and full system networking capabilities, this unit is designed to let you spot fish and structure, control your onboard gear, and dominate your lake time.

What’s included in the box:

• HDS PRO 12 fishfinder/chartplotter unit (12″ display)
• Pre-loaded C-MAP® DISCOVER OnBoard chart-package (covers 19,000+ US lakes and 9,400+ Canadian lakes with 1-foot contours)
• (Note: Transducer not included)
• Mounting bracket and hardware (per standard packaging)
• Screen cover/sun shade (varies by package)
• Documentation, manual and warranty registration information

Key Features & Capabilities:

• 12″ SolarMAX™ HD IPS touchscreen display with 1280 × 800 resolution and >1200 nits brightness, viewable at extreme angles and with polarized sunglasses on.
• Viewing angles rated 80° top/bottom, 80° left/right for excellent readability from any helm position.

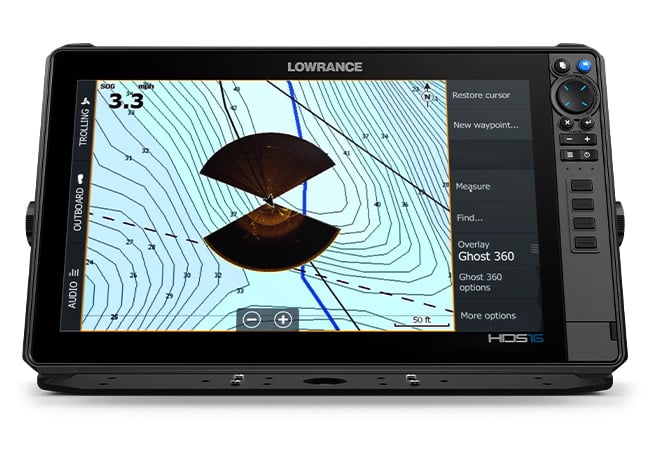

• Pre-loaded C-MAP DISCOVER OnBoard charts: over 19,000 US lakes and 9,400 Canadian lakes each with 1-foot contours—enables ultra-detailed bathymetric view.

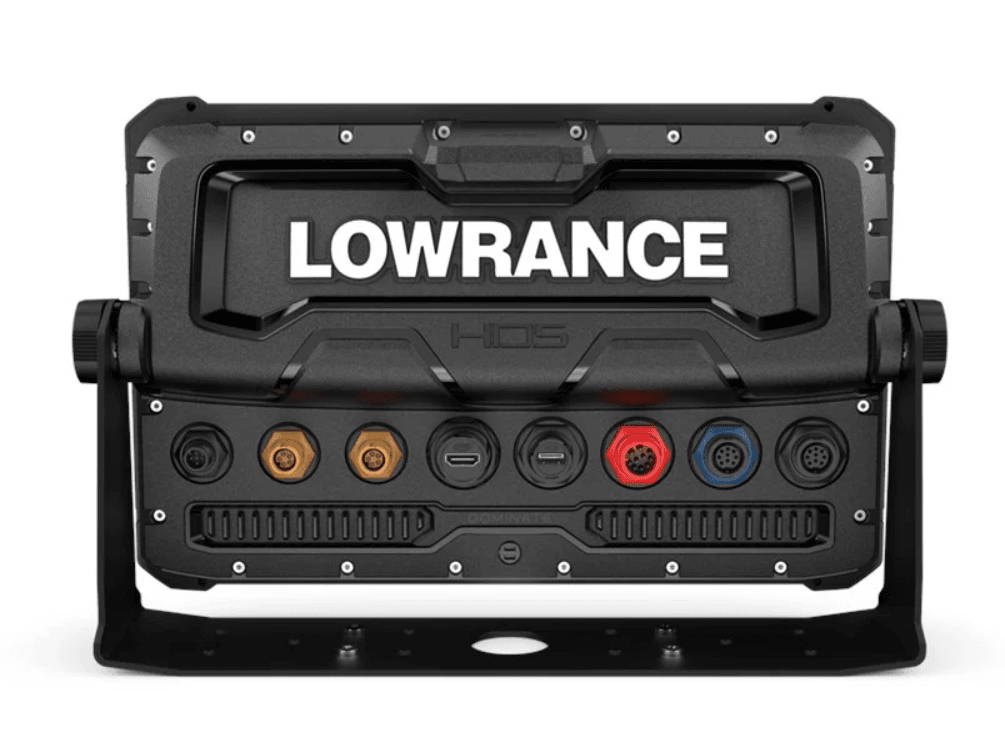

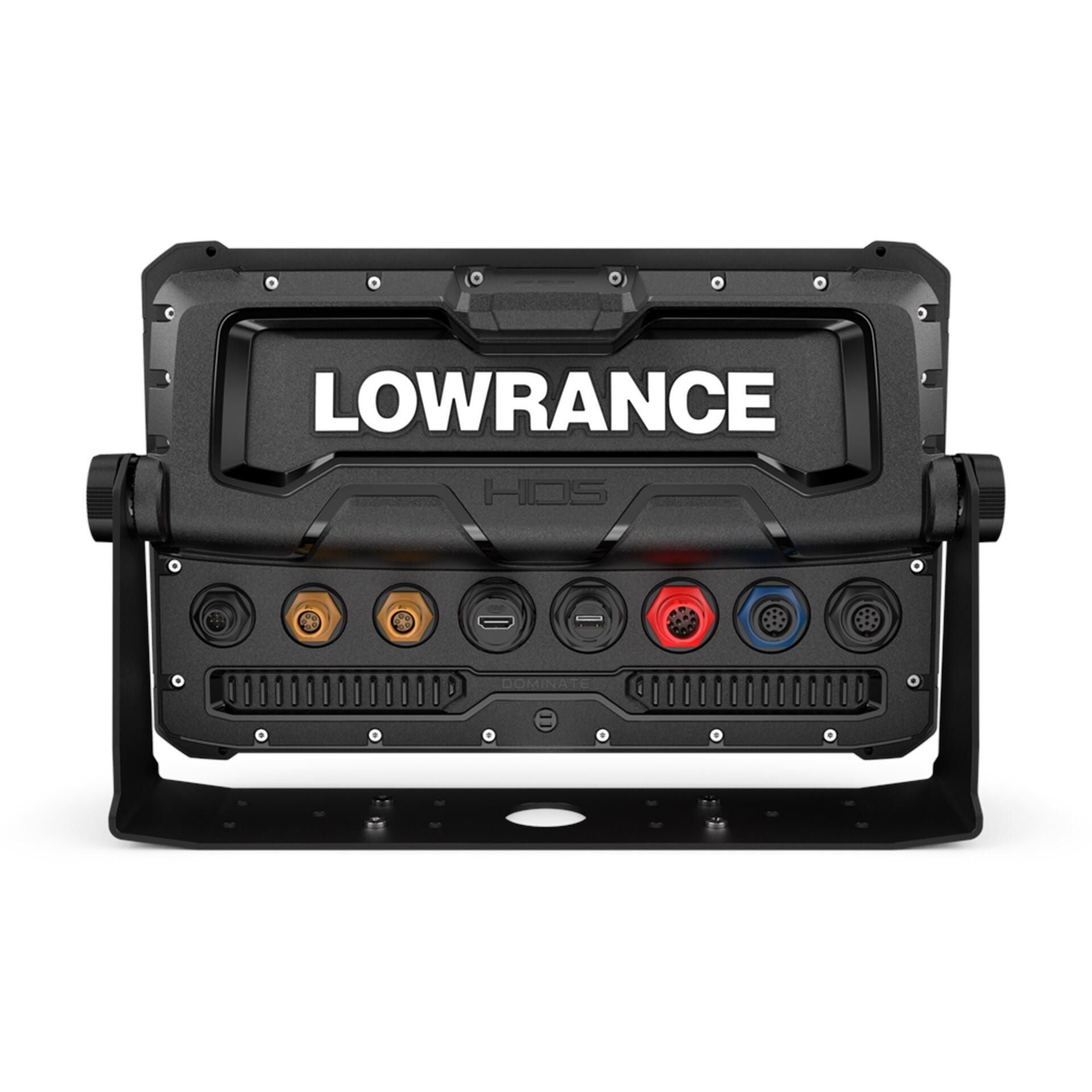

• Network ready and expandable:
  • Two (2) 100 Mbit Ethernet ports supporting up to 6 MFDs on a network.
  • Full wireless connectivity: Internal WiFi (802.11b/g/n) and Bluetooth 4.0 with Bluetooth Classic support.
  • NMEA 2000 / NMEA 0183 connectivity (1 micro-C port).
• Sonar & imaging support:

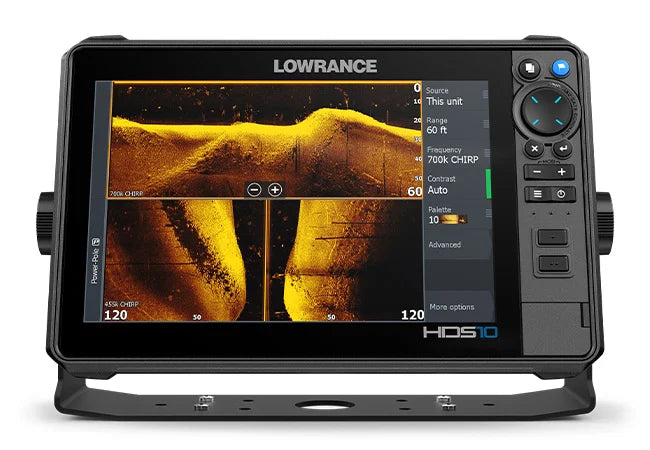

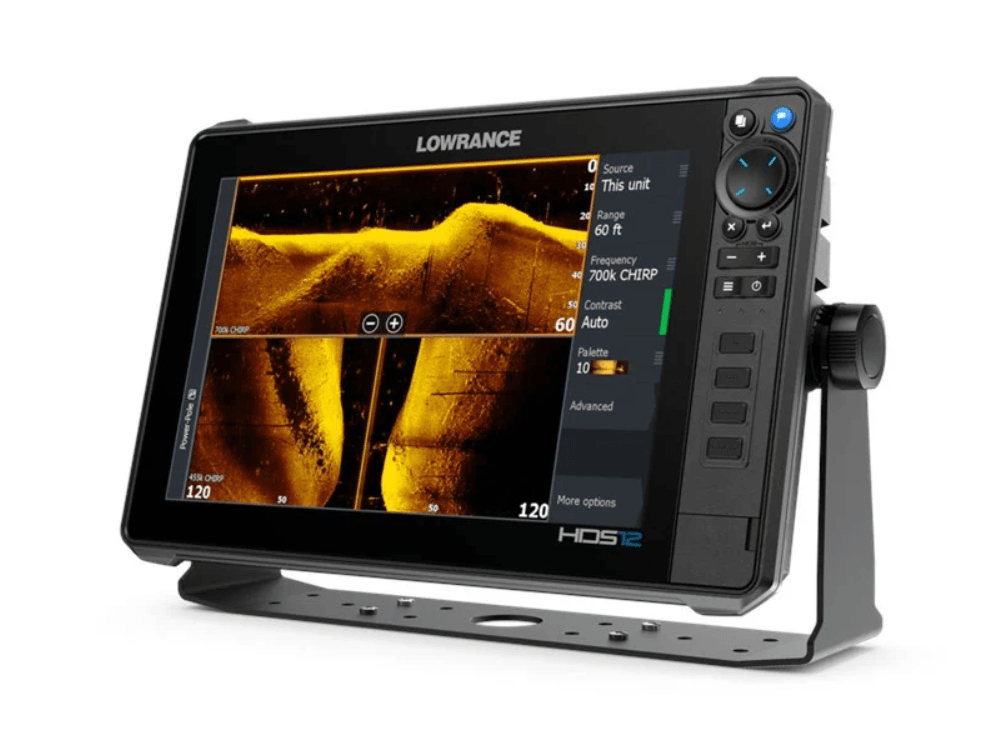

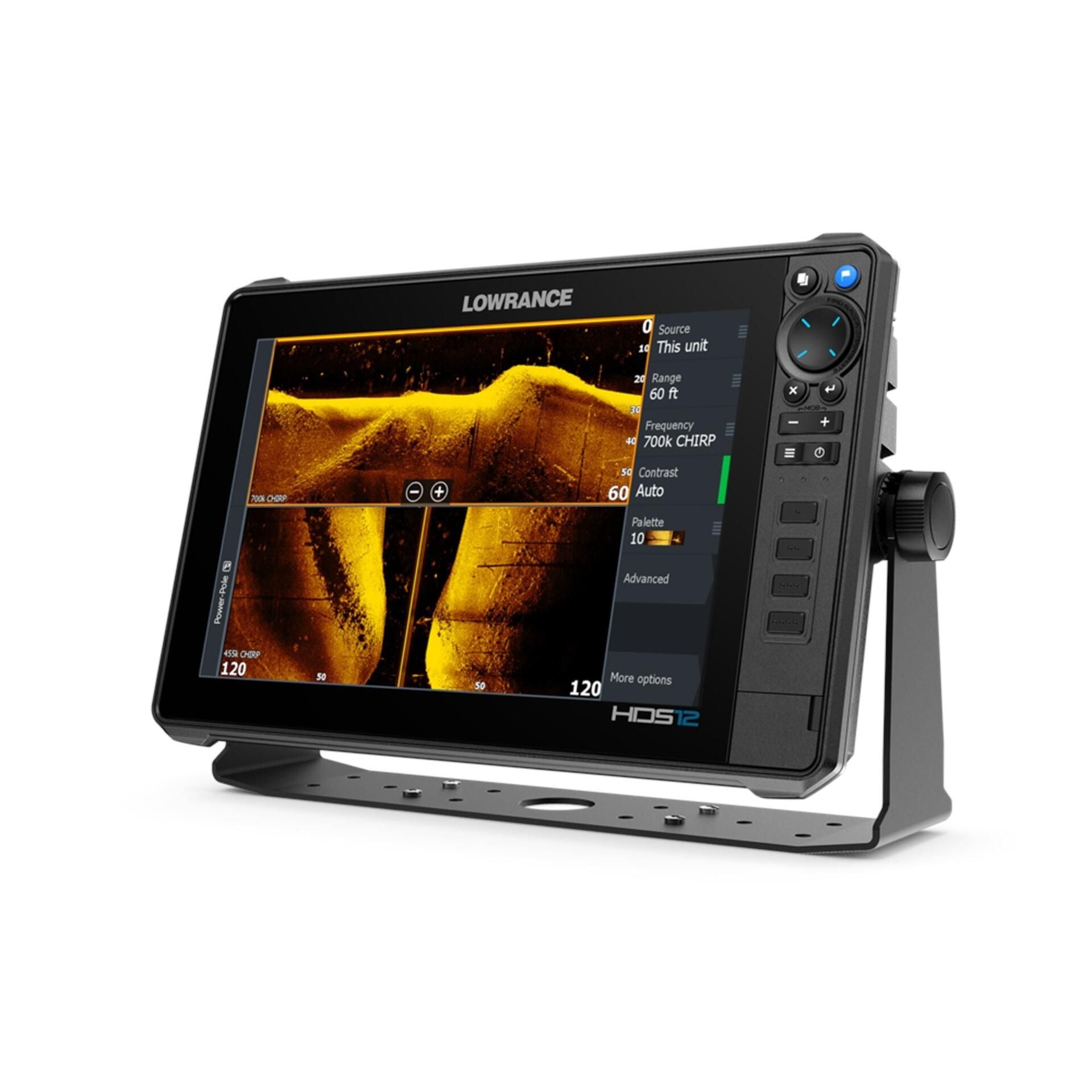

  • Compatible with CHIRP, broadband sonar, and the ultra-high-definition Active Imaging™ HD (DownScan & SideScan) for crisp structure views.

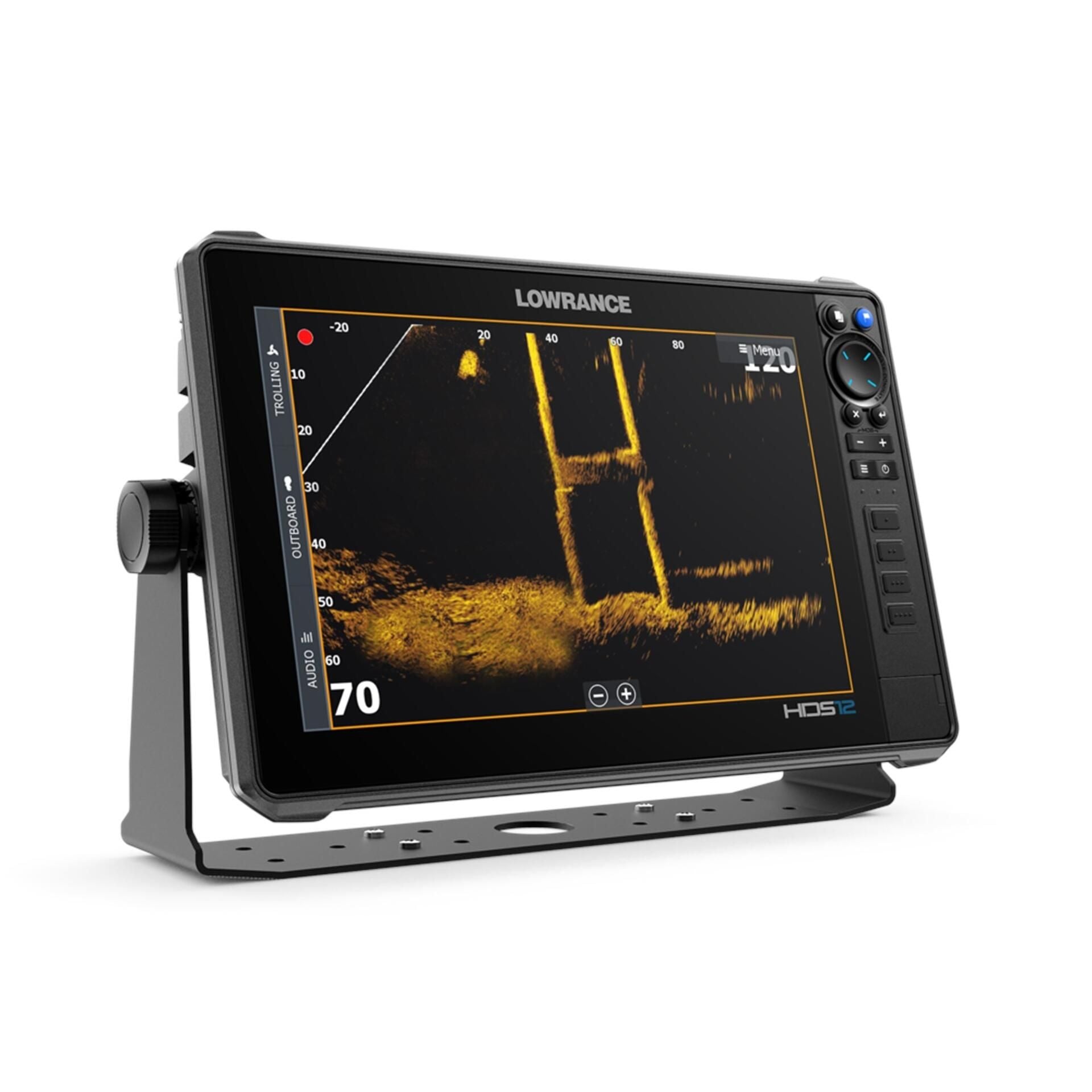

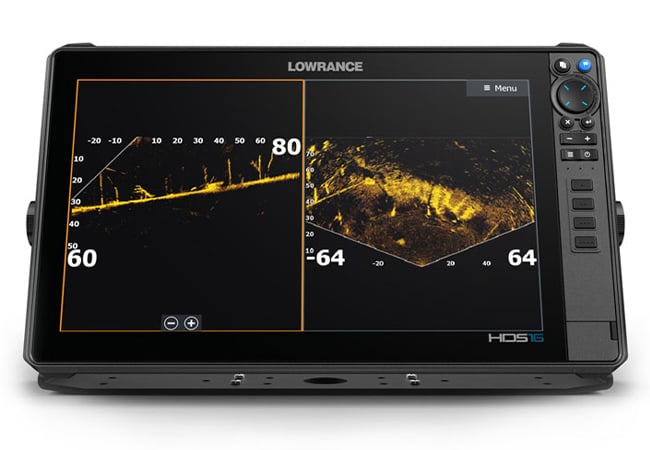

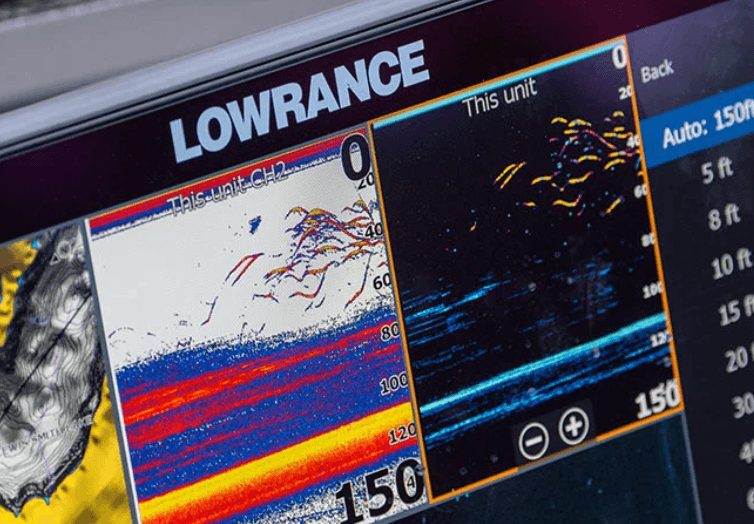

  • High-resolution live sonar ready: Supports ActiveTarget® 2 Live Sonar (when paired with required module/transducer) so you can watch fish react in real time. (Transducer sold separately)
• Large internal storage: 8.0 GB internal storage and dual microSD card slots (up to 32 GB each) for chart card upgrades and data logging.
• GPS performance: 10 Hz GPS/GLONASS receiver for smooth chart-tracking and waypoint accuracy.
• Smart marine display integrations: Touchscreen control of Power-Pole® anchors, Ghost® trolling motor, autopilot systems, and full bow-to-stern networked boat control.
• Environmentally rugged:
  • Operating temperature range from 5 °F to 131 °F (-15 °C to 55 °C)
  • Storage temperature from 4 °F to 140 °F (-20 °C to 60 °C)
  • Waterproof rating: IPX7 (with card door closed) – survives immersion up to ~1 m for 30 minutes, ideal for marine environments.
• Power & electrical:
  • Supply voltage: 12 V DC (10.8-17 V)
  • Max power consumption: 3.6 A @ 13.8 V (≈47.7 W) for the 12″ model.
  • Typical consumption: ~2.3 A @ 13 V (≈30 W) with full backlight & sonar active. (From spec sheet)
• Waypoints/Routes/Tracks: Supports up to 3,000 waypoints, 100 routes and 100 trails (up to 10,000 points per trail) for robust navigation logging.
• Warranty: Backed by a 2-year limited warranty, plus optional upgrade to a total of 5 years when you register the unit and meet upgrade terms.

Quick Guide (pdf)
Owner's Manual (pdf)
