Lowrance Outboard Cable Steer Pilot Pack (000-11749-001)

Unlock effortless, precision steering with the Lowrance Outboard Pilot Cable‑Steer Pack (00011749001) — a premium autopilot kit designed to integrate seamlessly with your boat’s outboard motor and HDS series display.

Built for serious anglers and boaters who demand both control and freedom, this all-in-one solution gives you the confidence to focus on your fishing or cruising while the system handles the steering.

Why this kit stands out

• Designed for single outboard setups on vessels 30 ft or less — take advantage of autopilot technology tailored to cable-steered motors.
• Works hand-in-glove with the Lowrance HDS Gen2 or Gen2 Touch displays to steer to a heading, waypoint, route or cursor.
• Advanced SmartSteer™ interface lets you switch easily between outboard motor control, trolling-motor (MotorGuide Xi5) control and electric-steer from your HDS screen.

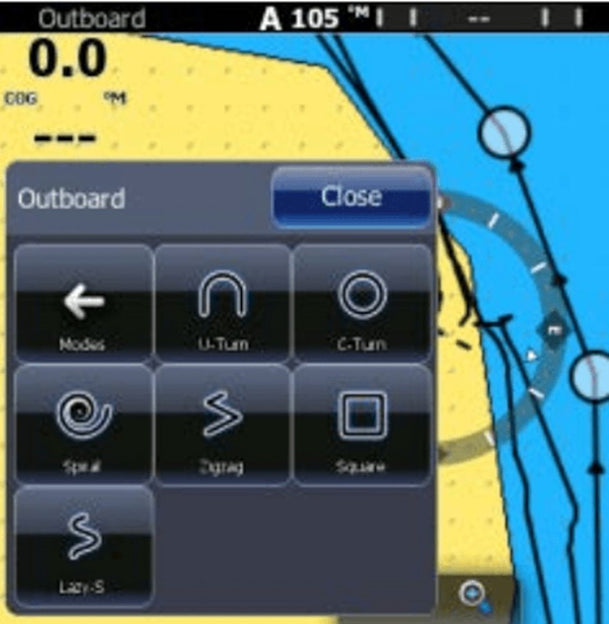

• “One-touch” route creation: convert trails into routes and retrace your track back to the dock or favourite fishing spot. Pre-set turn patterns make trolling or fishing runs smoother and more efficient.
• Virtual Rudder Feedback (VRF) eliminates the need for a separate rudder position sensor, simplifying installation and reducing complexity.
• Certified splash-proof with IPx5 rating — built to withstand the marine environment.
• Backed by a 2 year limited warranty (plus eligibility for the Lowrance Advantage Service program) – ensuring your investment is protected.

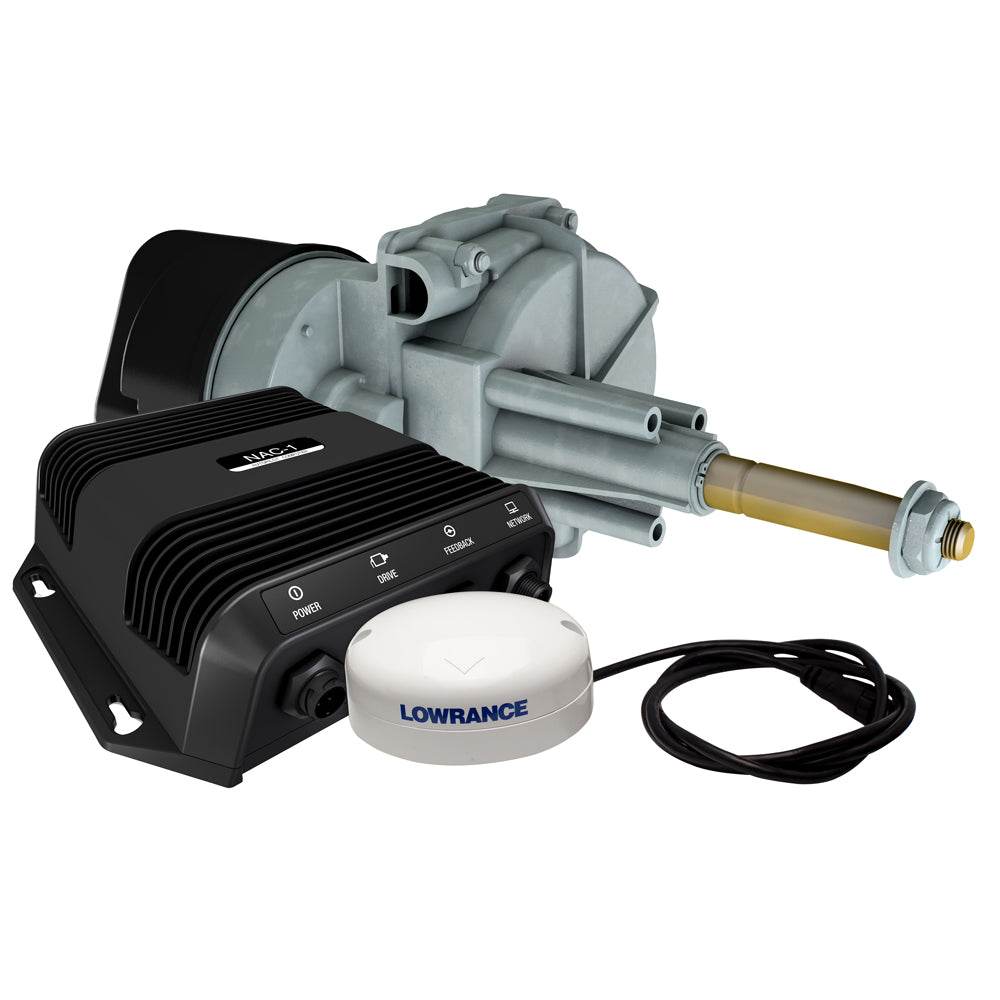

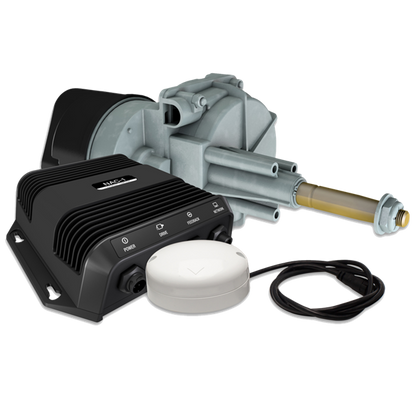

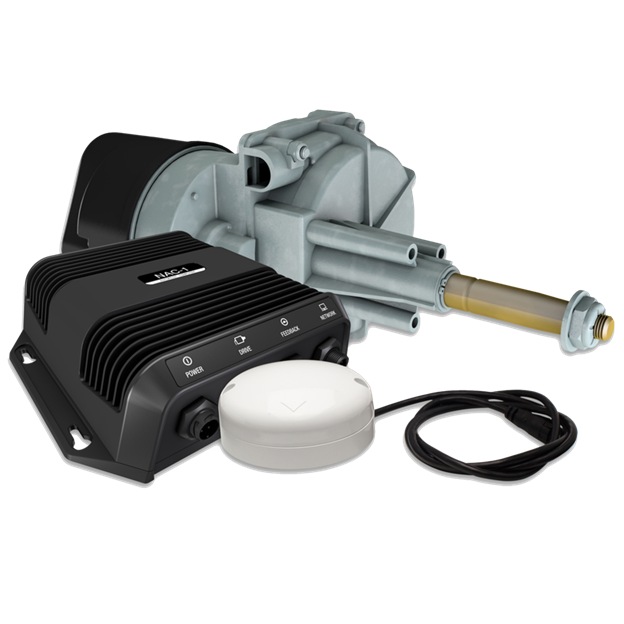

What’s included in the box

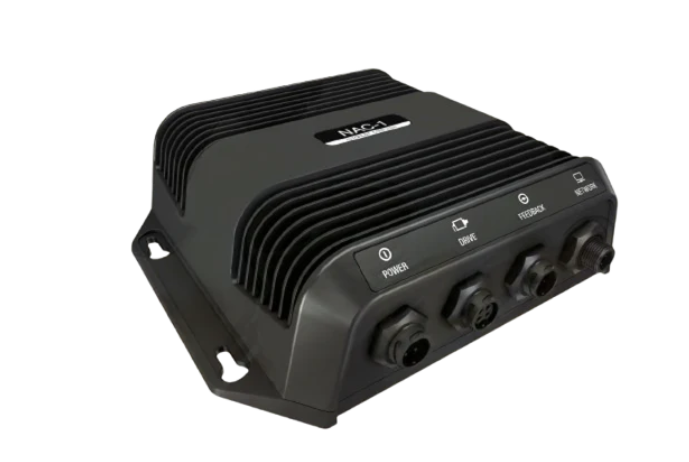

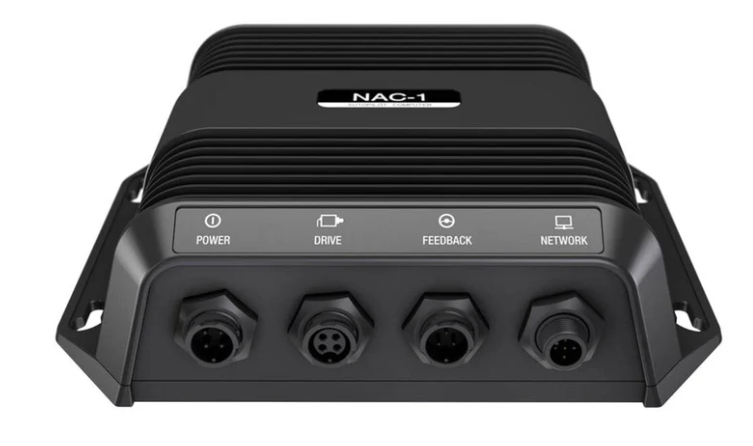

• NAC-1 Autopilot Computer (000-11769-001) — the brain of the system, steering the drive unit motor and clutch.
• Helm-1 Cable-Steer Drive Unit (000-11771-001) — replaces the manual helm-drive unit for cable-steered outboard motors; compatible with Morse 290, Morse 304411 and Teleflex SSC52 cables.
• N2K 4-Way Joiner (000-10996-001) — connects up to four NMEA 2000® Micro-C devices for network integration.

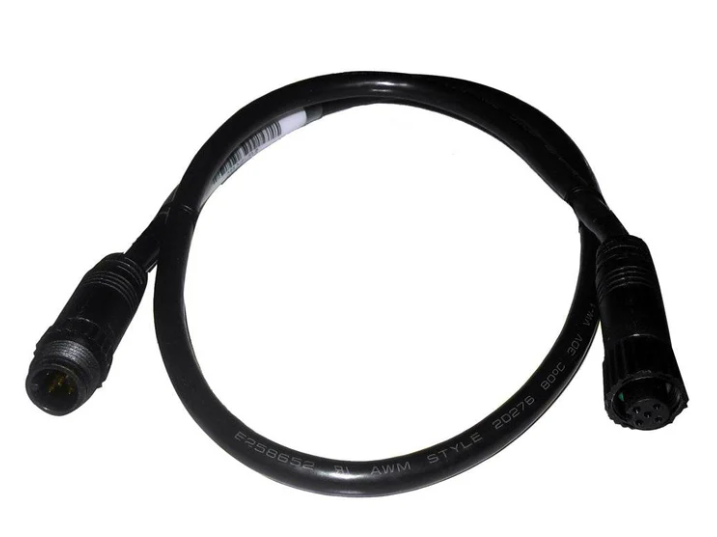

• NMEA 2000® Backbone Cables: N2KEXT-2RD (0.6 m/2′), N2KEXT-6RD (1.82 m/6′), N2KEXT-15RD (4.55 m/15′) — for flexible network layout.
• TR-120-KIT (1 male + 1 female NMEA 2000® terminators) — for proper network termination.
• MICRO-C Power Cable (No T-Connector) – Part 000-12202-001 — ready for power integration.

Core Specifications

• Steering type: Cable/Solenoid drive for cable-steer outboard motors.
• Water resistance: IPx5 — splash-proof for harsh marine conditions.
• Operating temperature (Helm-1 unit): –15 °C to +75 °C (5 °F to 167 °F) — built for tough outdoor use.
• Recommended boat length: Single outboard, up to 30 ft.
• Compatible steering cables: Morse 290, Morse 304411, Teleflex SSC52.

Installation & Usage Benefits

• Plug-and-socket architecture simplifies wiring and dramatically reduces installation time compared with older autopilot systems.
• Straightforward first-time setup guided by software and SmartSteer interface — get you on the water faster.
• Direct integration with your HDS display means you control routes and autopilot steering from the same familiar screen you already use for charting and sonar.

Ideal For
Boaters who run a single outboard motor & cable-steer setup, who want autopilot precision without adding hydraulic complexity. If you’re fishing, trolling or simply cruising, this system keeps you on track so you can concentrate on the moment, not the helm.

Note: Your HDS® display (Gen2 or Gen2 Touch) must be updated to software version 3.5 or later to ensure compatibility with the autopilot functions.

With the Lowrance Outboard Pilot Cable-Steer Pack installed, you gain a powerful autopilot system that frees you from the wheel while maintaining precision, control and safety. Let the system hold your course, and let you focus on the catch.

Brochure (pdf)
