• Suncoast Marine and Auto offers Maretron Micro Double-Ended Cordset - 6 Meter (CM-CG1-CF-06.0)
1 1

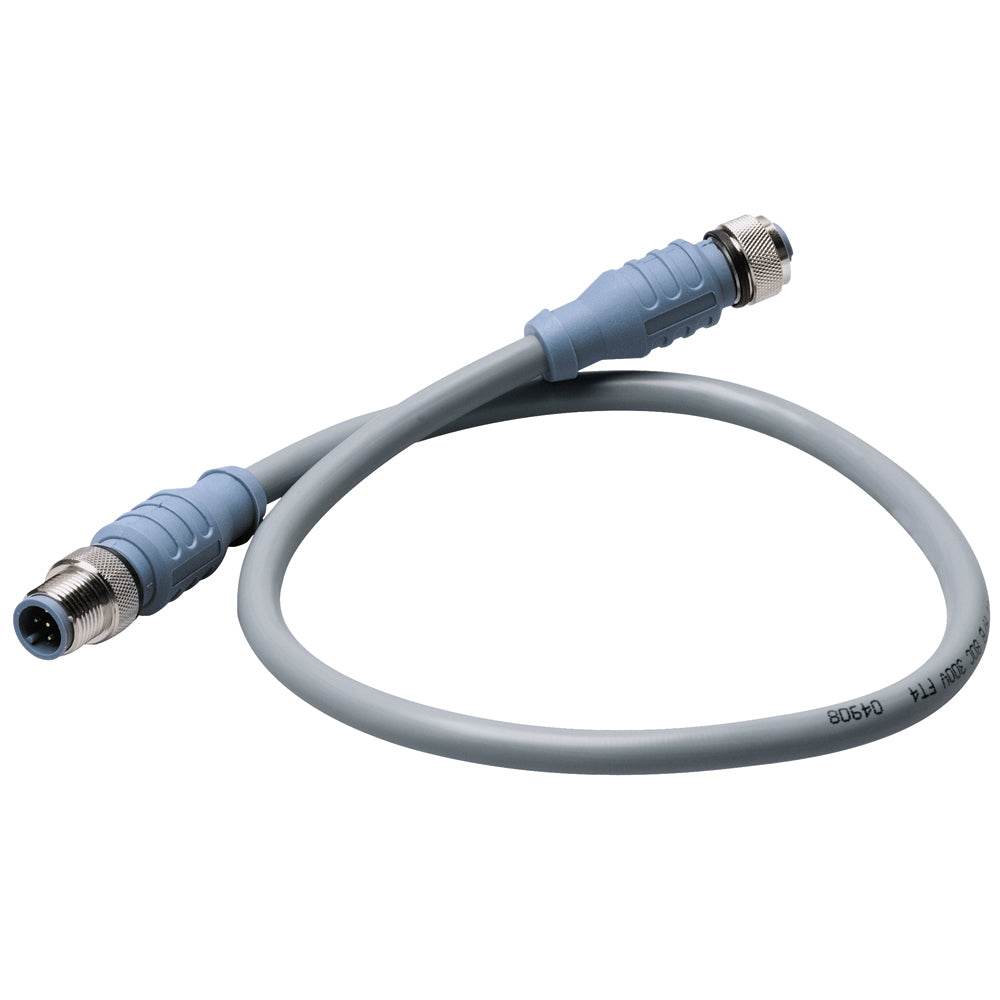

Maretron Micro Double-Ended Cordset - 6 Meter (CM-CG1-CF-06.0)

Maretron Micro Double-Ended Cordset - 6 Meter (CM-CG1-CF-06.0)

$56.99
$60.00 $56.99
Sale Sold out
Shipping calculated at checkout.
  • FREE SHIPPING $99+
  • 30-DAY RETURNS
  • WARRANTY ELIGIBLE

View full details

Authentic, brand-new, and backed by full manufacturer warranty as an Authorized Dealer

Product Description

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Specifications:

    • Cable Length (Feet): 20'
    • Data Interface: NMEA 2000

    • WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
