Maretron MPower 12 Channel DC Load Module NMEA 2K w/12" Pigtail Adapter Cable for J1 J2 Connectors [CLMD12-R]

Maretron MPower 12 Channel DC Load Module NMEA 2K w/12" Pigtail Adapter Cable for J1 J2 Connectors [CLMD12-R]

$557.99
$695.00 $557.99
Sale Sold out
Shipping calculated at checkout.

Common Questions

Can I purchase "Sold Out" or "Out of Stock" items?

If an item shows as “Sold Out” or “Out of Stock,” it simply means we don’t typically keep that product on hand. Many of these items are made-to-order or shipped directly from the manufacturer and can still be ordered upon request.

To check availability or place an order, just reach out to our team or send us a message using the chat box below. We’re happy to help you get the parts you need!

What is your Shipping Policy?

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

What delivery times should I expect?

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

How does Suncoast handle returns and refunds?

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

How can I check for availability?

Not sure if this item is in stock?

  • Live Chat with the Owner below.
  • Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.

Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.

View full details

Product Description

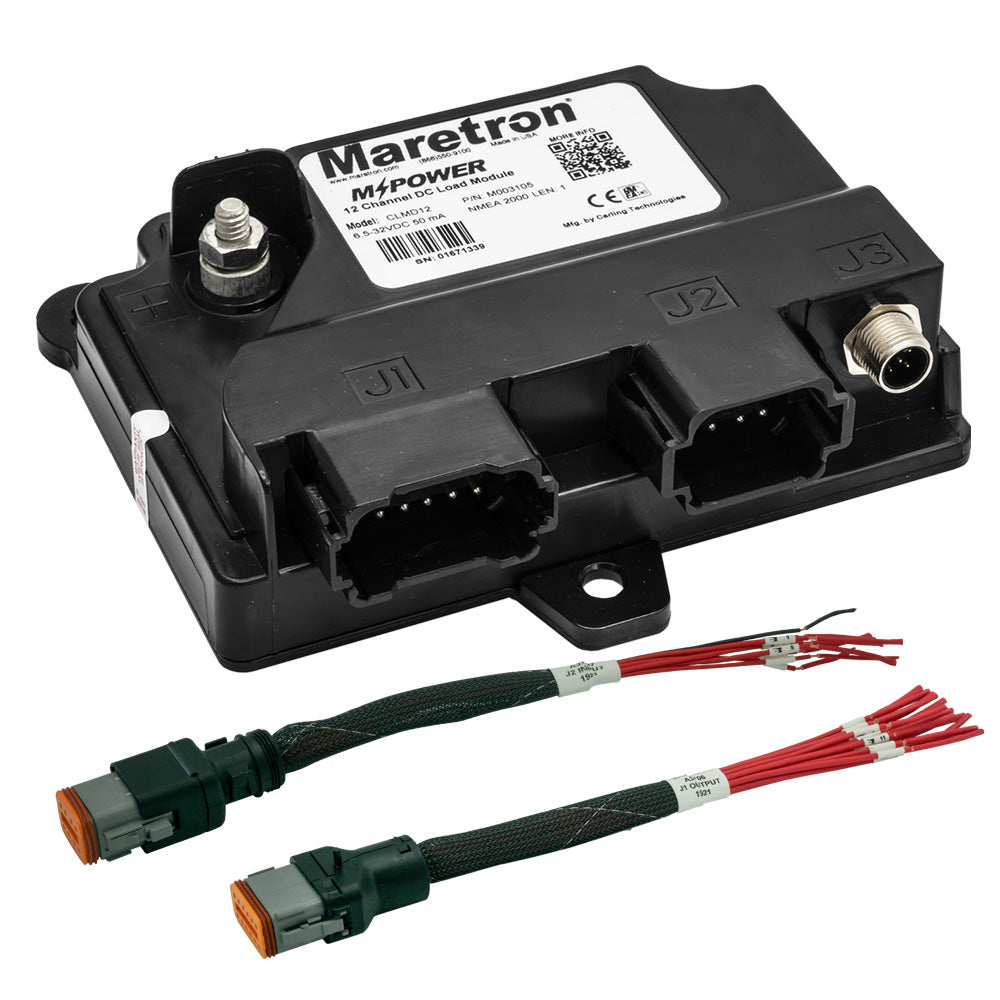

MPower 12 Channel DC Load Module NMEA 2K with 12" Pigtail Adapter Cable for J1 & J2 Connectors

Designed for vessels of all sizes with smaller loads, the MPower® CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps, six handle a maximum of 10 amps, and four handle a maximum of 5 amps, with a total current capacity of 75 Amps. Additionally, circuits can be paralleled.

If a smaller circuit needs to be protected, each of the 12 breakers can be set to trip at lower current levels using the new Maretron N2KAnalyzer® V3 software. In addition, the CLMD12 has inputs for up to 7 hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc.

The CLMD12 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD12 is that it reports the current through each of the 12 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.

For manual control of the loads, an optional MPower 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the CLMD12.

Features:

  • NMEA 2000® Interface
  • IP67 Rated
  • Ignition Protected
  • Opto-isolated from NMEA 2000®, eliminating potential ground loops
  • Twelve (12) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network
  • 2 breakers capable of carrying up to 12 Amps
  • 6 breakers capable of carrying up to 10 Amps
  • 4 breakers capable of carrying up to 5 Amps
  • Individual breaker electrical current monitoring
  • Breakers can have Power-Up states defined (ON, OFF, or PREVIOUS STATE)
  • Breakers can be locked against inadvertent actuation.
  • Seven (7) discrete inputs configurable as Active High or Active Low
  • Automatic ECB overcurrent shutdown
  • Automatic ECB thermal shutdown (Overtemperature Protection)

Applications:

  • Remote control of navigation lights
  • Remote control of the boarding lights
  • Burnt-out bulb alerts
  • Control of area lights with dimming
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • AC/DC: DC
  • Touchscreen: No

Quick Guide (pdf)
