Newmar 115-24-10 Power Supply [115-24-10]

Newmar 115-24-10 Power Supply [115-24-10]

$1,124.99
$1,547.36 $1,124.99
SALE SOLD OUT

Shipping

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

Delivery Times

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

Returns and Refunds

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

Check Availability

Not sure if this item is in stock?

  • Live Chat with the Owner below.
  • Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.

Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.

View full details

Product Description

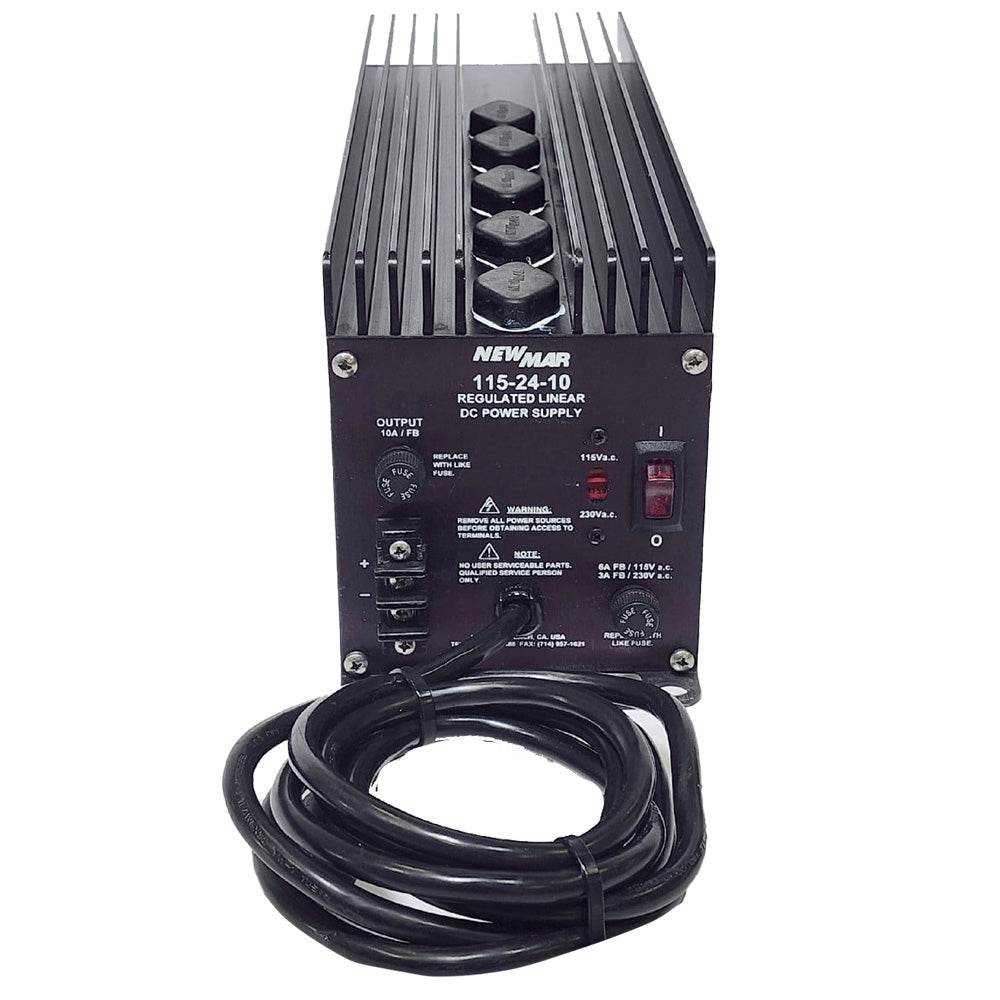

115-24-10 Power Supply

This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.

Features:

  • Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
  • Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
  • The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
  • Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
  • Thermally activated cooling fan on “CD” units

Specifications:

  • Nominal Input/VAC: 115/230
  • Maximum Input Current @115: 5.5
  • Maximum Input Current @230: 2.5
  • Output Amperage (Intermittent): 10
  • Output Amperage (Continuous): 4
  • Weight: 20 lbs. / 9.1 kg

Case Size:

H x W x D (inch): 5.7” x 4.8” x 16.3”

Input Range

105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC

Operating Temperature

Standard Units - 0-50 degrees C, Derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C thermal shutdown @ 85 degrees C case temperature

Duty Cycle:

  • Intermittent: 20 minutes max on time, 20% duty
  • Continuous: 24 hours/day 100% Duty

Options:

  • Modify for use as a battery charger
  • The output voltage is adjusted (see Output Voltage for range)
  • Transfer relay for back-up battery in event of power failure (ERC option)

Output Voltage:

  • 24.5 VDC (Internally adjustable 21-27.5 VDC)
  • Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
  • 1% Line and Load (@ 110-125 / 220-250 VAC input)

Mechanical:

  • Powder-coated aluminum heat sink case
  • Front panel terminal block
  • Heavy-duty mounting flange
  • Conformal-coated PC board
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
