Ritchie

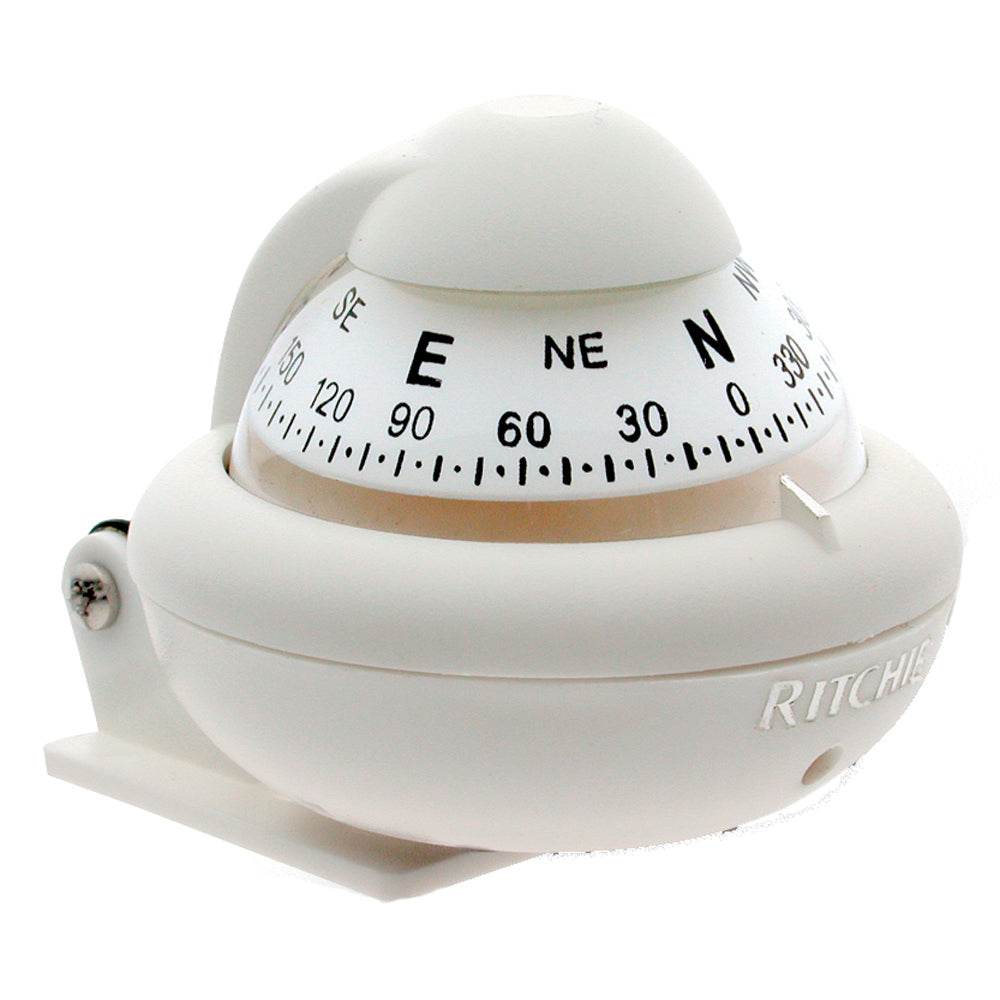

Ritchie X-10W-M RitchieSport Compass - Bracket Mount - White [X-10W-M]
Ritchie X-10W-M RitchieSport Compass - Bracket Mount - White [X-10W-M]
Couldn't load pickup availability
![Suncoast Marine and Auto offers Ritchie X-10W-M RitchieSport Compass - Bracket Mount - White [X-10W-M]](http://www.suncoastmarineandauto.com/cdn/shop/files/36526XL.jpg?v=1737756986&width=1445)
![Suncoast Marine and Auto offers Ritchie X-10W-M RitchieSport Compass - Bracket Mount - White [X-10W-M]](http://www.suncoastmarineandauto.com/cdn/shop/files/36526BXL.jpg?v=1737756987&width=1445)
Product Description
RitchieSport Compass
LOWEST PRICES GUARANTEED
RitchieSport™ White Bracket Mount Compass (X10WM) by Ritchie®. Whether you're a pro or boating for pleasure, make the most out of your boat and time on the water! Built with the highest quality standards and reliability in mind, every product is designed to suit your specific needs and requirements to maximize your enjoyment on the water.
Features:
- 2″ (51 mm) Direct-Reading, High Visibility Dials
- Two-Sided, Self-Adhesive Mounting Pads Included
- Reversible Bracket allows a mounting range of over 300 degrees from overhead, through angled and vertical mounts to horizontal surfaces
- These mounting position options and your choice of mounting hardware permit mounting on everything from windshield or supporting frame structures, to slanted dashboards and consoles, to almost any flat, angled or vertical surface
- Internal Green Night Lighting
- High Temp Composite Construction for Extended Operating Range
- Hardened Steel Pivot and Sapphire Jewel Movement
- Built-in Compensators
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 5 oz. (142g)
Notes:
- Comes standard with 12v Green LED lighting.
- For all X-10's built between 1991 and 1999 use the part number RS-0004 XSP for replacement lighting.
Specifications:
- Backlight: Yes
- Lubber Lines: Yes
- Mounting Style: Bracket
- Read: Front
Includes:
- Compass
- Two-Sided Self-Adhesive Mounting Pads
Quick Guide (pdf)
Owner's Manual (pdf)
| Dial Size/Design | |
|---|---|
| Night Lighting | |
| Compensators |
Includes
- Compass
- Two-Sided Self-Adhesive Mounting Pads
Features
- 2" Direct-Reading, High Visibility Dials
- Reversible Bracket allows a mounting range of over 300 degrees from overhead, through angled and vertical mounts to horizontal surfaces
- These mounting position options and your choice of mounting hardware permit mounting on everything from windshield or supporting frame structures, to slanted dashboards and consoles, to almost any flat, angled or vertical surface
- Internal Green Night Lighting
- High Temp Composite Construction for Extended Operating Range
- Hardened Steel Pivot and Sapphire Jewel Movement
- Built-in Compensators
Product Details
RitchieSport™ White Bracket Mount Compass (X10WM) by Ritchie®. Whether you're a pro or boating for pleasure, make the most out of your boat and time on the water! Built with the highest quality standards and reliability in mind, every product is designed to suit your specific needs and requirements to maximize your enjoyment on the water.
Installation
Ritchie has manufactured successfully and continuously since 1850. There are several capacities prominent in their manufacturing processes that contribute to this success and longevity.
No Artificial Dampening
All Ritchie compasses are built with ultra lightweight dial assemblies. Therefore, Ritchie doesn't need to use heavy fluid to artificially dampen the movement. Their compasses are filled with a highly refined, very low-viscosity dampening fluid which allows the dial to move smoothly within the bowl and lock on to magnetic north faster than other compasses. Ritchie's Dampening Fluid is also refined for brilliant, optical clarity. Compasses are filled with fluid drawn under V ACuum. Fluid drawn this way helps eliminate the formation of bubbles and is again, one more reason for Ritchie's quality reputation.
Hand Balancing Assures Accuracy
The Ritchie Compass dial assembly is a combination of components that includes the pivot and jewel, the gimbal system, powerful DirectiveForce magnets, extremely lightweight dials and a counter balance tab. Before this entire assembly can be placed into the compass bowl, it must be balanced to assure optimum performance and accuracy. Any adjustment is made with a light weight counter balance which hangs below the dial. This tab also provides additional stability to the entire assembly.
Machine Shop Capabilities
All the advances in computer aid design and machining can't replace personal craftsmanship. That's why Ritchie's in-house machine shop manufactures or finishes many of the metal assemblies that go into every Ritchie compass. It is also critical in prototype development and tooling of new compasses.
Controlling Quality
The words "Quality Control" are not just buzz words at Ritchie. They are an integral part of their manufacturing process. For over 14 years, components purchased from outside vendors have had to get a critical eye before they go into the compass assembly room. Meeting high standards for manufactured components and long-term testing of prototype compasses and parts assures that every compass Ritchie makes will provide years of accuracy and dependability.
