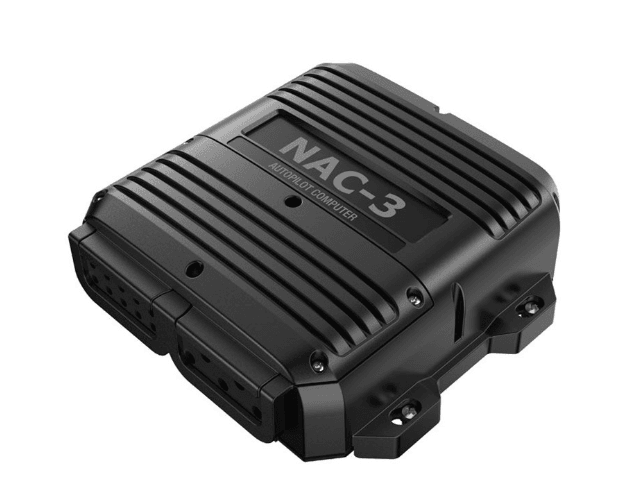

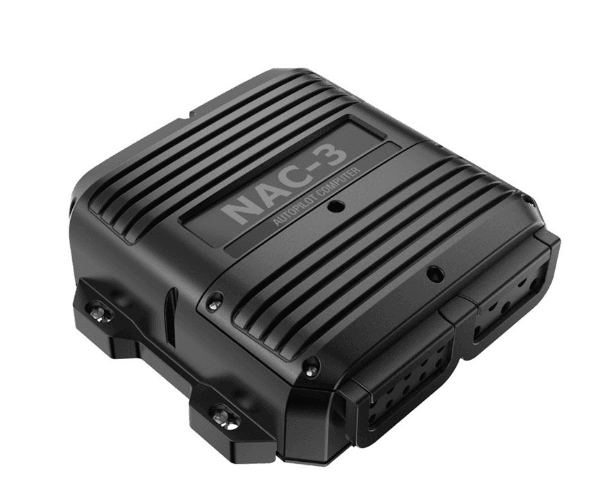

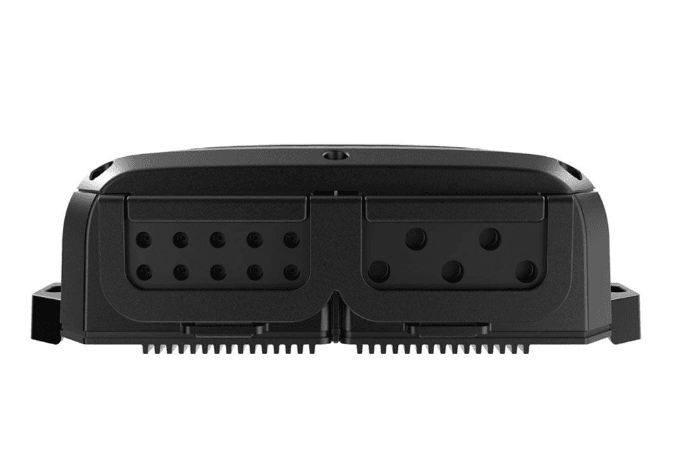

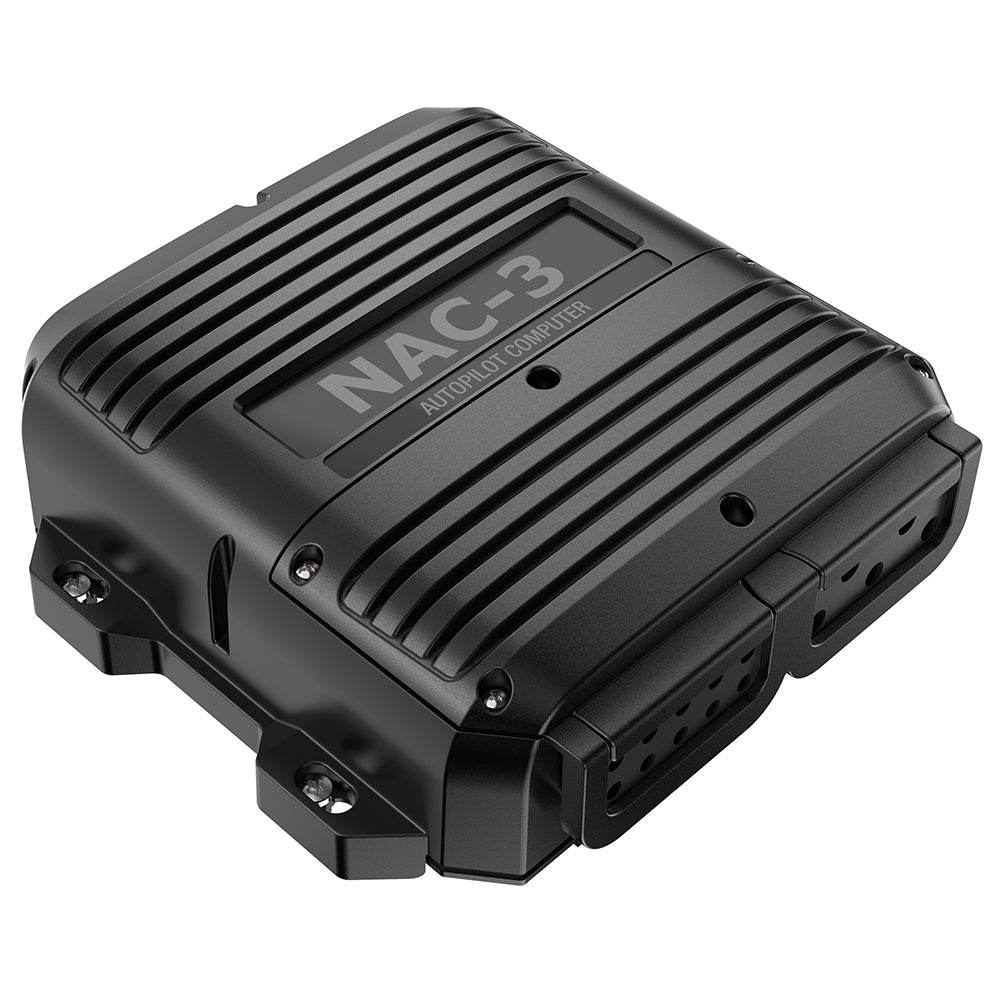

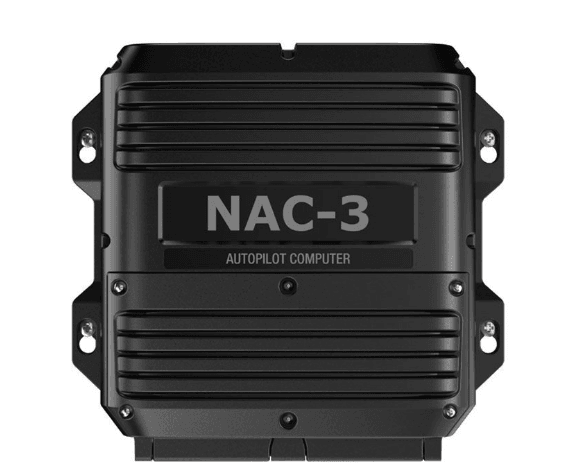

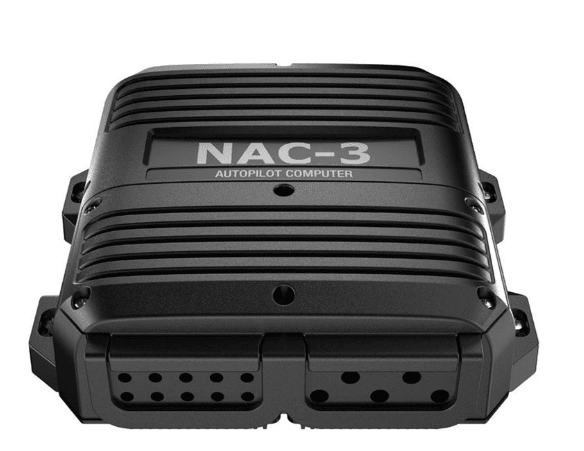

Simrad NAC-3 Autopilot Computer

NAC-3 High Current Course Computer (000-13250-001)

The NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).

• High-Current Output: The NAC-3 Autopilot Computer is recommended for boats above 10 metres (35 feet) in length. It is rated to operate high-current drive pumps including the Simrad RPU160 and RPU300, mechanical drives such as the Simrad DD15, hydraulic linear drives such as the HLD2000 series, and solenoid valves.
• Virtual Rudder Feedback: Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a separate rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats with planing hulls. This reduces overall autopilot system cost and complexity, and is ideal where a feedback unit is impractical due to mechanical constraints. For vessels that do require a physical rudder feedback sensor, the NAC-3 supports SimNet or NMEA 2000® connected Simrad RF25 feedback units, and rudder feedback sensors with variable frequency output including the Simrad RF300.
• Easy Installation: Industry-standard NMEA 2000® networking and NMEA 0183® input allow simple connectivity to heading sensors, rudder feedback units, autopilot controllers, and multifunction displays located anywhere on board.

Features:

• Reliable autopilot performance based on Simrad Continuum™ steering technology

• Recommended for boats above 10M (33') in length

• High-current output of 30 Amps continuous, 50 Amps peak

• Clutch output (3 Amps maximum)

• Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves

• Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats

• Supports Simrad RF25 and RF300 rudder feedback units

• NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

• NMEA 0183® input

• Warranty: 2 years

Specifications:

What's in the Box:

• NAC-3

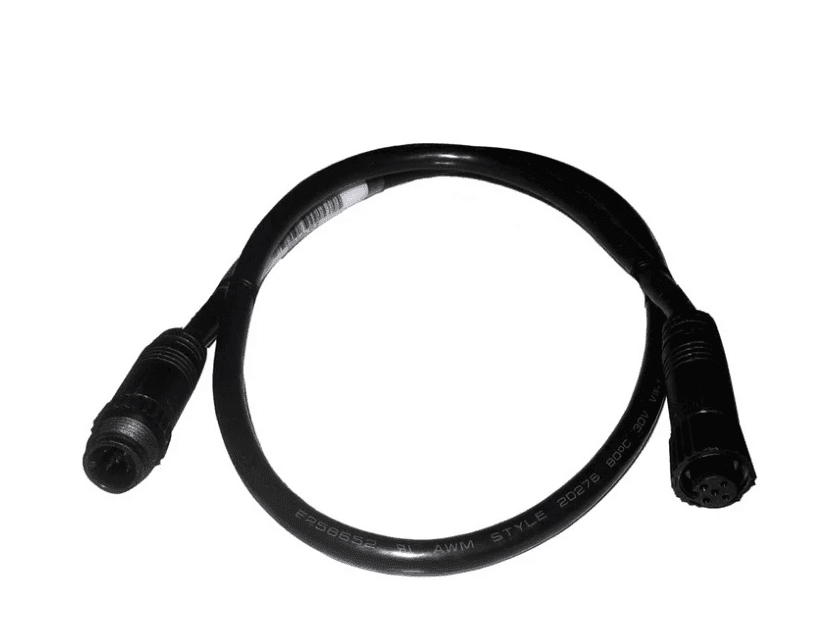

• N2KEXT-2RD - 0.61 m (2-ft) NMEA

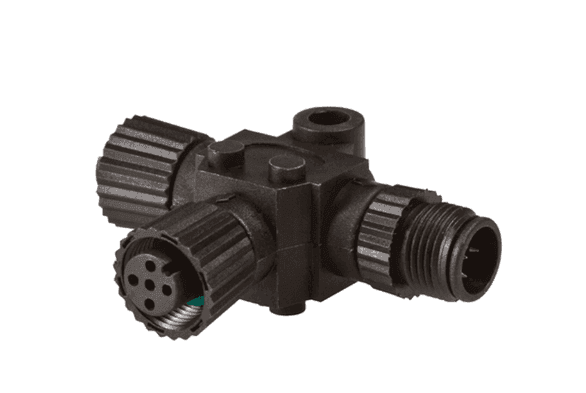

• N2K-T-RD T
