Simrad NSO evo3S Processor

Simrad NSO evo3S Processor

$4,999.00
$0.00 $4,999.00
Sale Sold out
Shipping calculated at checkout.

Common Questions

Can I purchase "Sold Out" or "Out of Stock" items?

If an item is labeled as "Sold Out" or "Out of Stock" it simply means that we do not normally keep this item in stock at our warehouse, but it can be ordered. Here's how...

Reach out to a team member or use the Chat box to see what options we have available for the parts you need!

What is your Shipping Policy?

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

What delivery times should I expect?

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

How does Suncoast handle returns and refunds?

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

How can I check for availability?

Not sure if this item is in stock?

  • Live Chat with the Owner below.
  • Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.

Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.

View full details

Product Description

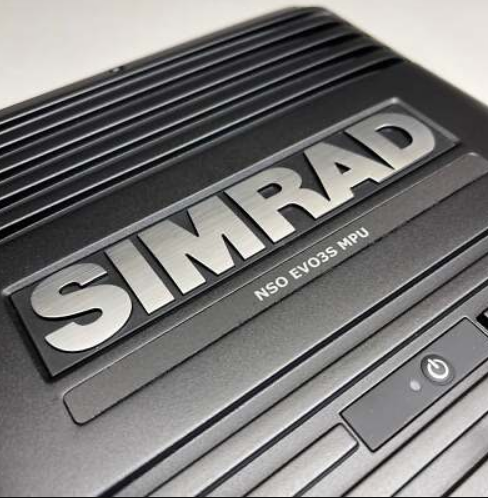

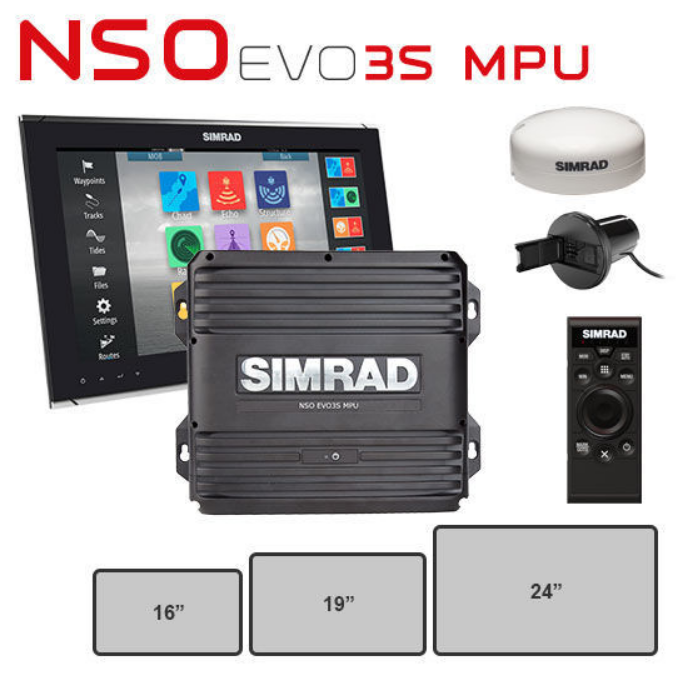

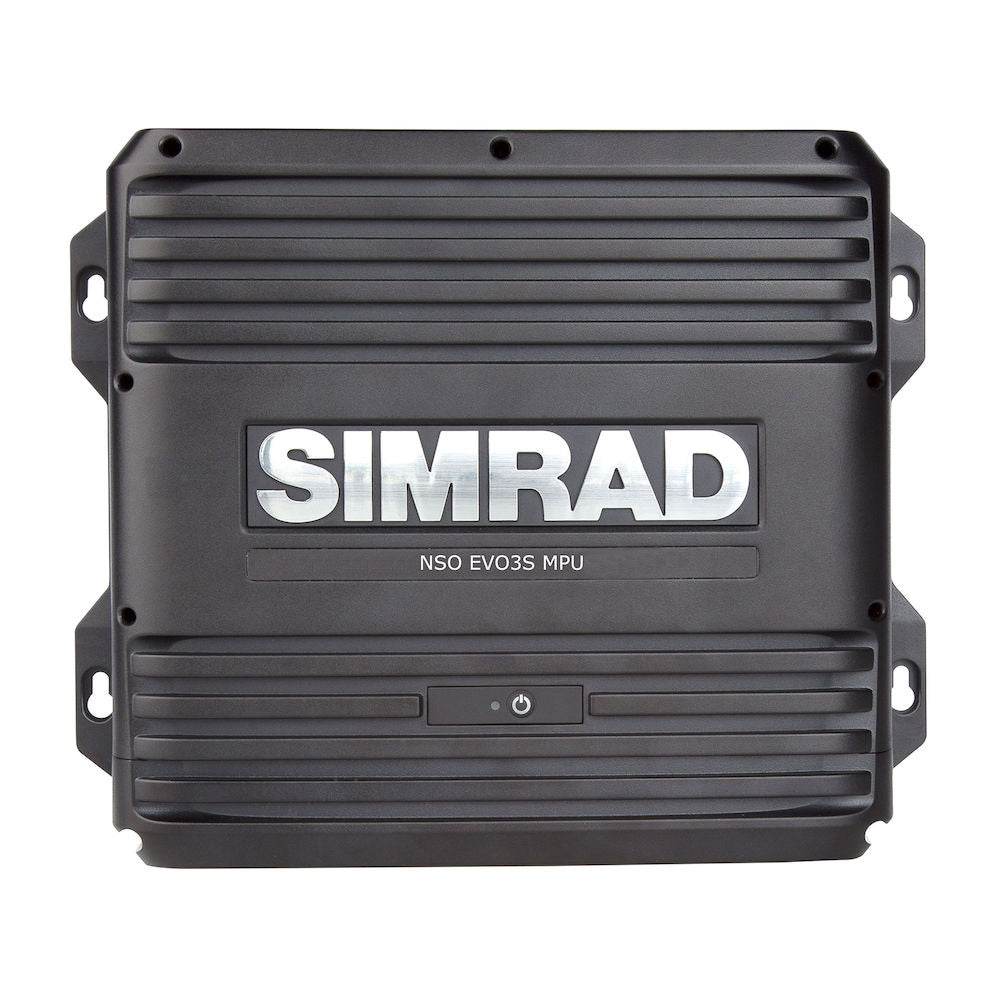

NSO evo3S MPU Processor (000-15100-001)

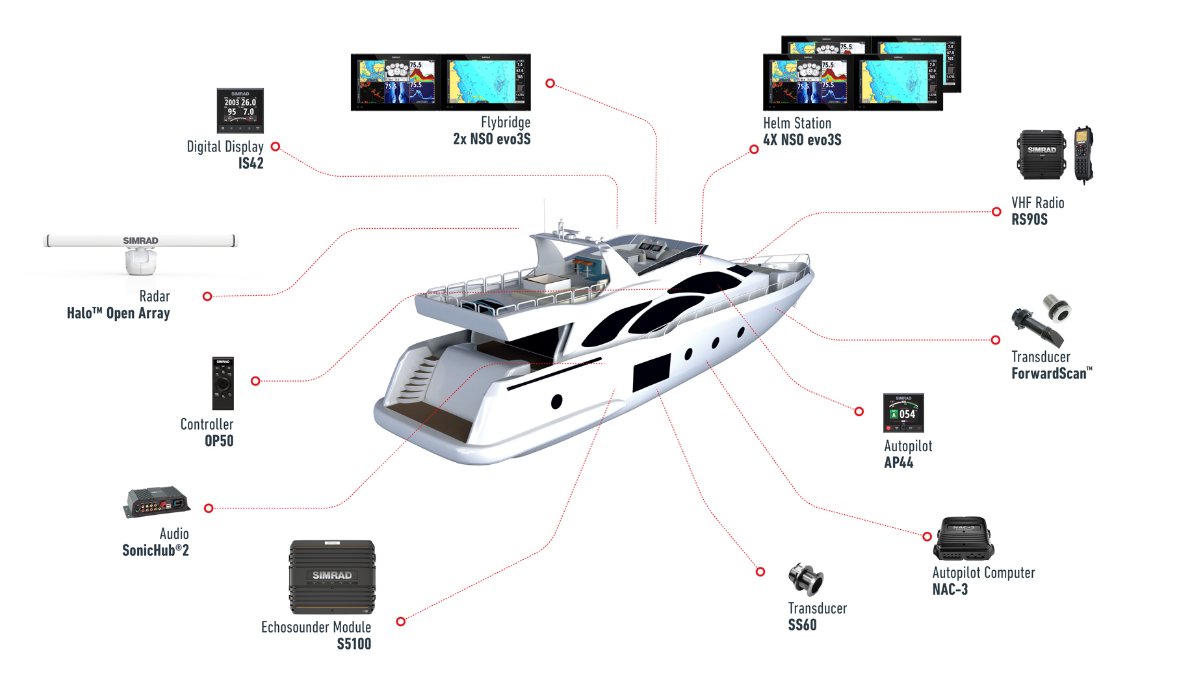

Create truly customized multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 33' (10M) and larger. This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors. Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.

Features:

  • Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad-Core processors and the connectivity options needed to integrate and expand your system vessel-wide.

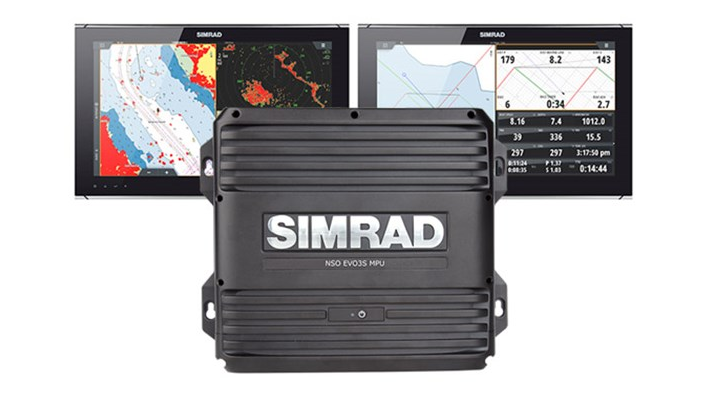

  • Dual monitor support - enabling two independent stations
  • Quad-Core processors for supreme performance. The NSO evo3S processor features two quad-core processors delivering category-leading response times across connected displays.
  • Industry-standard vessel-wide connectivity. NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third-party accessories.

Suncoast Marine and Auto offers Simrad NSO evo3S MPU Processor [000-15100-001] NSOevo3S has a iMX 8 processor, touchscreen, and Full HD display. It can be integrated or modular, with a processor containing two six-core processors.

Technical Specifications:

  • Connectivity - NMEA 2000, NMEA 0183, ethernet, video inputs x 2, video output x 1, Wi-fi compatible with external module
  • Languages - Standard Simrad language pack
  • Supply Voltage - 9 - 31.2 V DC
  • Waterproof rating - IPX2
  • Dimensions (W x H x D) - 11" x 9.1" x 2.5" (281 x 232 x 66 mm)
  • Weight - 2.33lb (1.06kg)

In the Box:

  • Processor x 1
  • Power cable - 6.5' (2 M) 4 pin to bare wire x 1
  • Ethernet cable - 4" (.1 M) x 1
  • NMEA 0183 cable - 6.5" (2 M) x 1
  • NMEA 2000 cable - 6' (1.8 M) x 1
  • NMEA 2000 power cable with T-Connector - x 1
  • NMEA 200 terminal resistor kit x 1
  • NMEA 2000 T-Connector x 2
  • Instruction manual

*Sold as an Individual


Owner's Manual (pdf)
