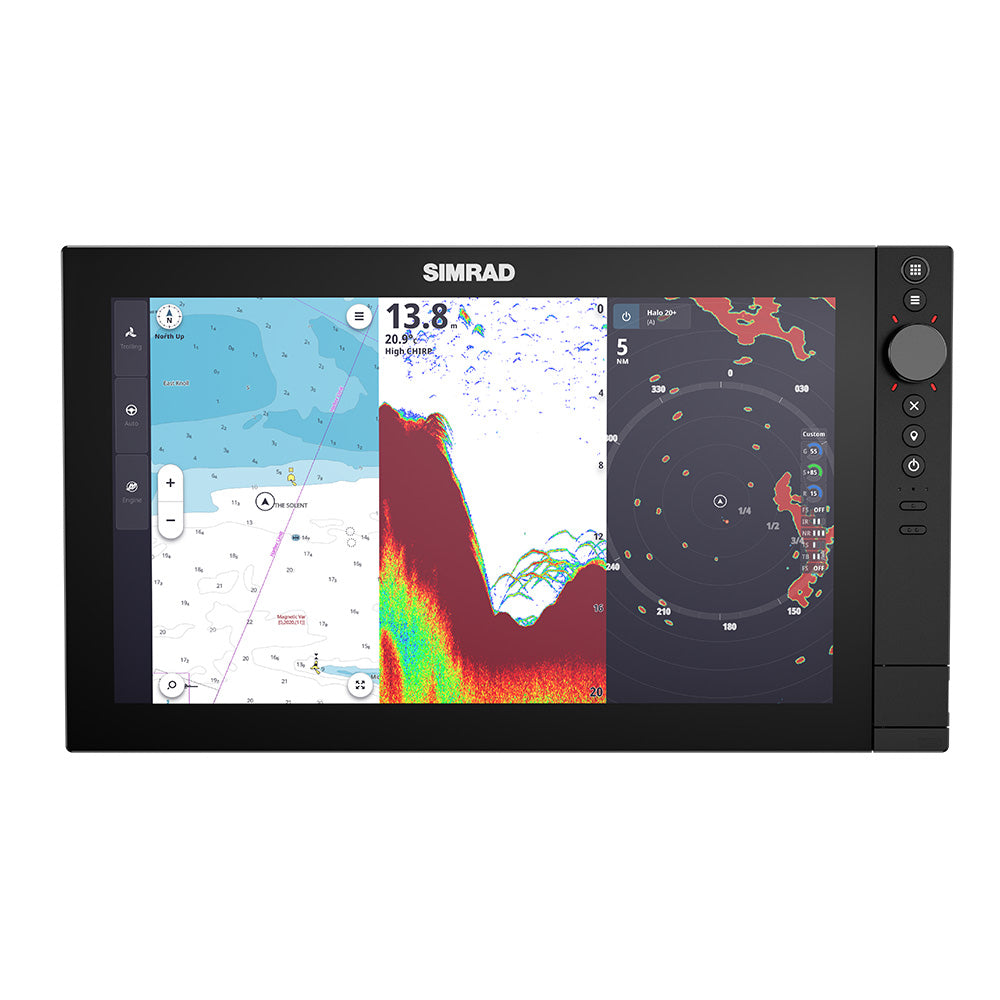

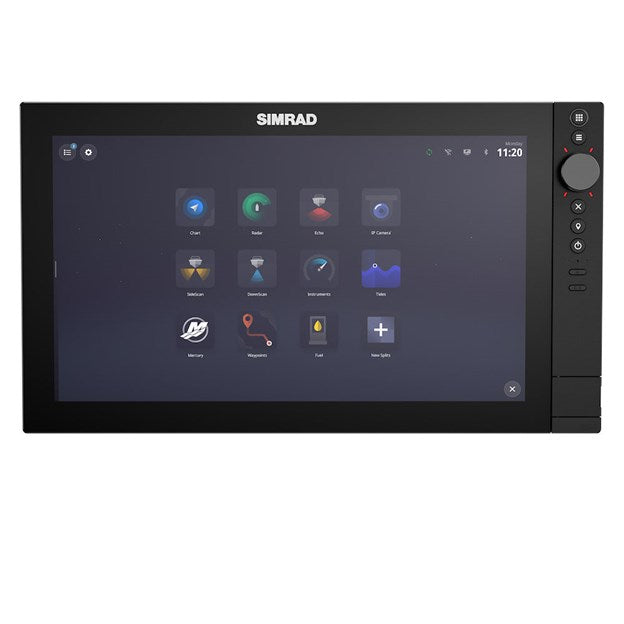

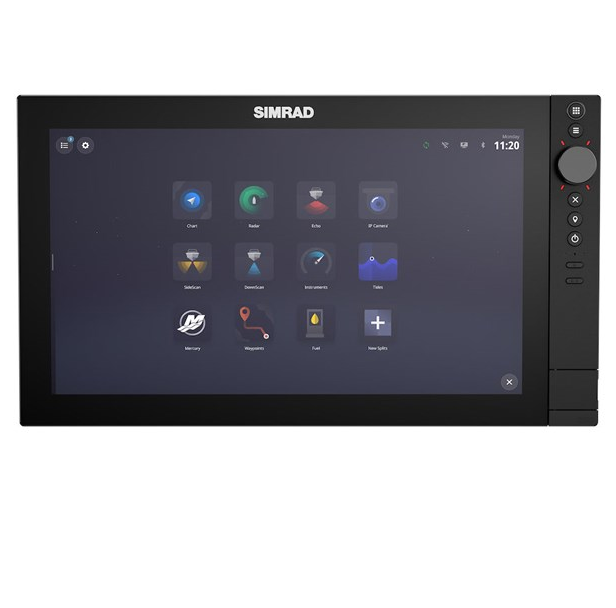

Simrad NSS4 16" MFD (No Sonar)

NSS4-16 16" MFD - No Sonar (000-16277-001)

Experience next-level marine electronics with the Simrad NSS 4-16 — a sleek, powerful 16-inch multifunction display (MFD) engineered for seamless navigation and system control (no built-in sonar). Ideal for serious boaters and cruisers who prefer to choose external sonar modules or networked sensors.

Product Highlights & Capabilities:

• Redesigned “glass-to-edge” design for a modern helm appearance and enhanced viewing area
• Hybrid control scheme: touchscreen (multi-touch), rotary dial, and physical keypad work together for intuitive operation in all conditions
• Fast, responsive performance powered by a Qualcomm® 8-core processor for smooth chart scrolling, menu navigation, and screen transitions
• No integrated sonar — supports external sonar modules and networked sonar (e.g. Simrad S5100, StructureScan, Active Imaging)
• Preloaded with C-MAP Discover X basemap and support for full map expansion via SD slots
• Dual front-facing microSD card slots allow easy chart and memory card access
• Ultra-wide viewing angles and high brightness display—readable even in direct sunlight
• Compass-safe distance: 65 cm (about 2.1 ft) to avoid interference with magnetic compasses
• Full network integration: connect radar, autopilot, NMEA 2000 sensors, lighting, audio, and more via Simrad’s ecosystem
• Mounting versatility: bracket mount or panel (flush) mounting options
• Robust build quality: designed for marine conditions, with strong durability, thermal and moisture resistance

• Main Menu/Pages Button: Switch instantly to full-screen mode, giving a clear overview of all key data without clutter.
• App Menu: Provides quick access to the settings menu to make tweaks on the fly.
• Rotary Dial: Useful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.
• X Button: Return to the previous screen or cancel the current action.
• Waypoint Button: A super quick and easy way to mark waypoints accurately on your chart.
• Power Button: Power your device on and off.
• Configurable Custom Keys: These fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key)
• Dual SD Card Slot: Convenient front-facing slots for easy access to chart cards and memory cards.
• Unmatched Speed: Experience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.
• Instant Response: Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.
• Ultra-fast Charting: NSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.
• Advanced Angling Tech for the Ultimate Sportfishing System:
  • Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.
  • Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

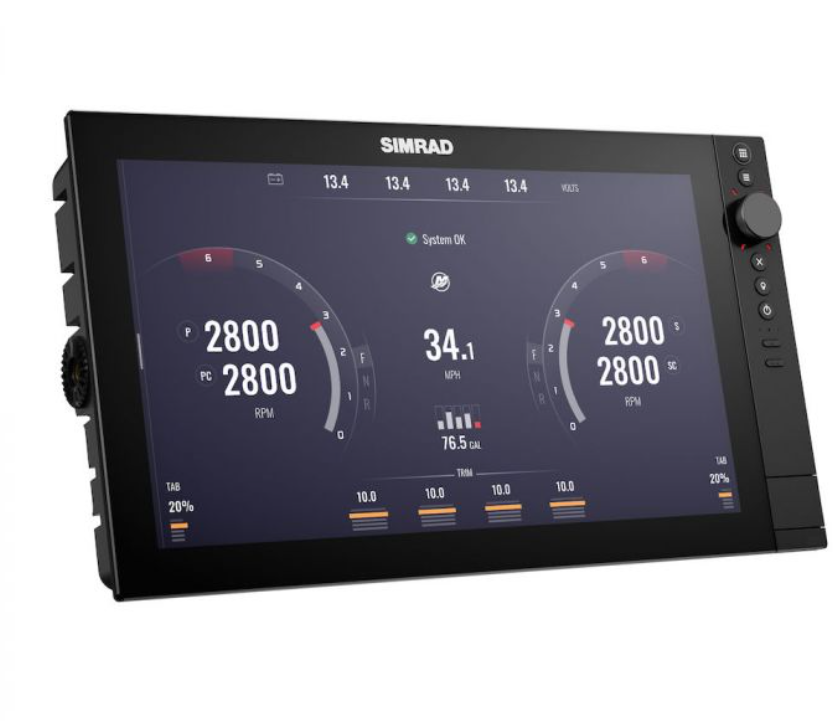

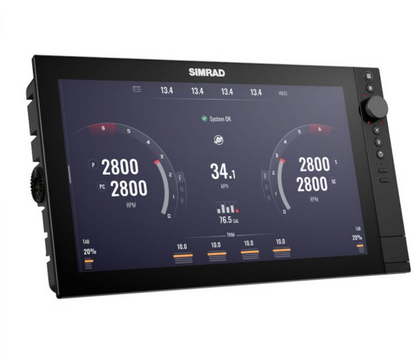

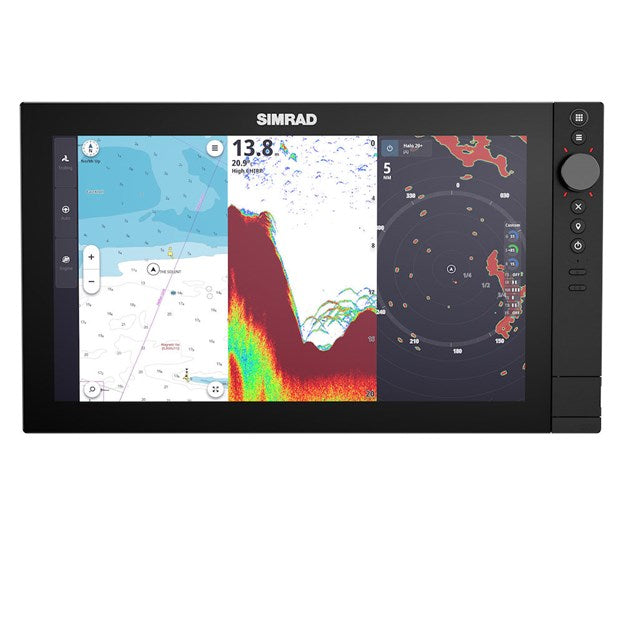

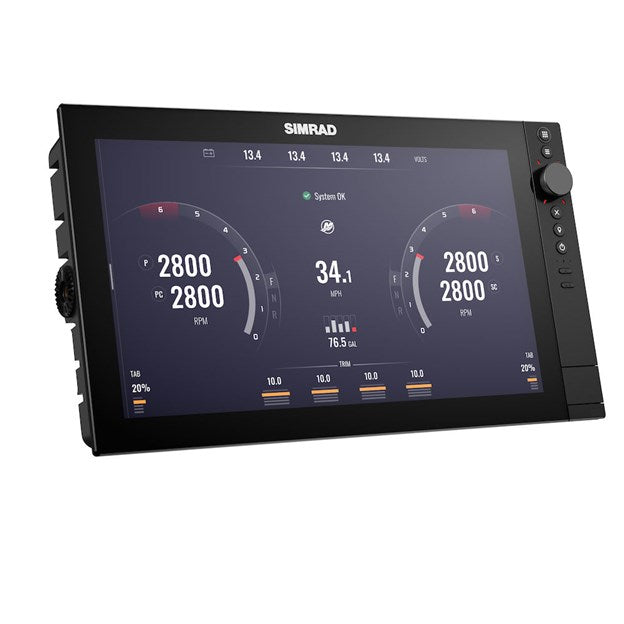

• Built for Complete Customization: Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.

Features:

• A trio of hybrid controls: touch, rotary, and keypad
• Premium glass-to-edge design
• Lightning fast Qualcomm® 8-core processor
• Redesigned operating system
• Support for various 1kW CHIRP echo sounders
• Support for Active Imaging™ & Active Imaging™ HD
• Support for C-MAP® X-gen charts and others
• Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
• Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more...
• Support for Mercury®, CZone®, SiriusXM®, and more...
• 2-year limited warranty

Autopilot

• Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
• Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

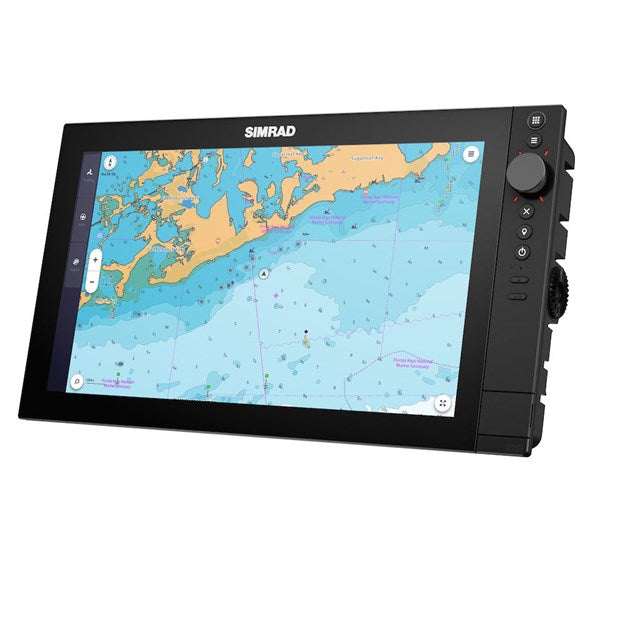

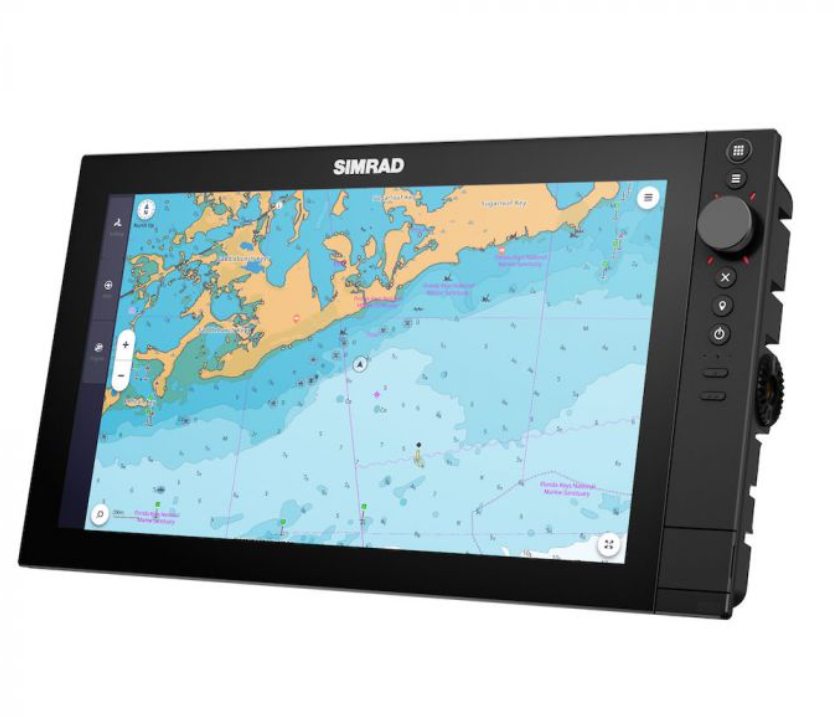

Cartography

• Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
• Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)

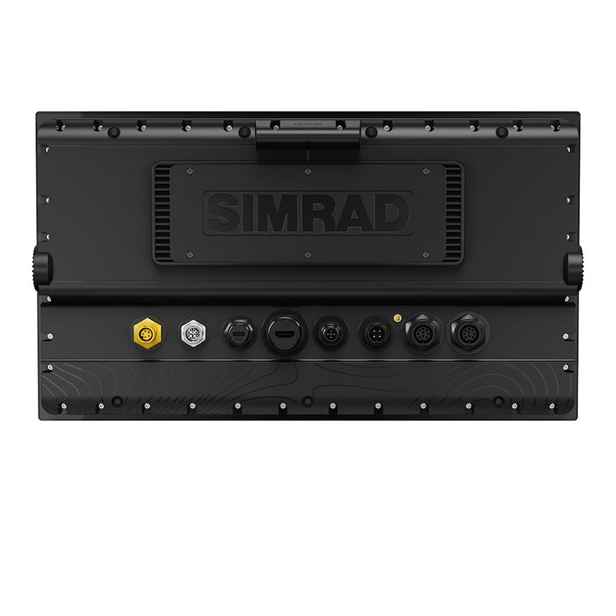

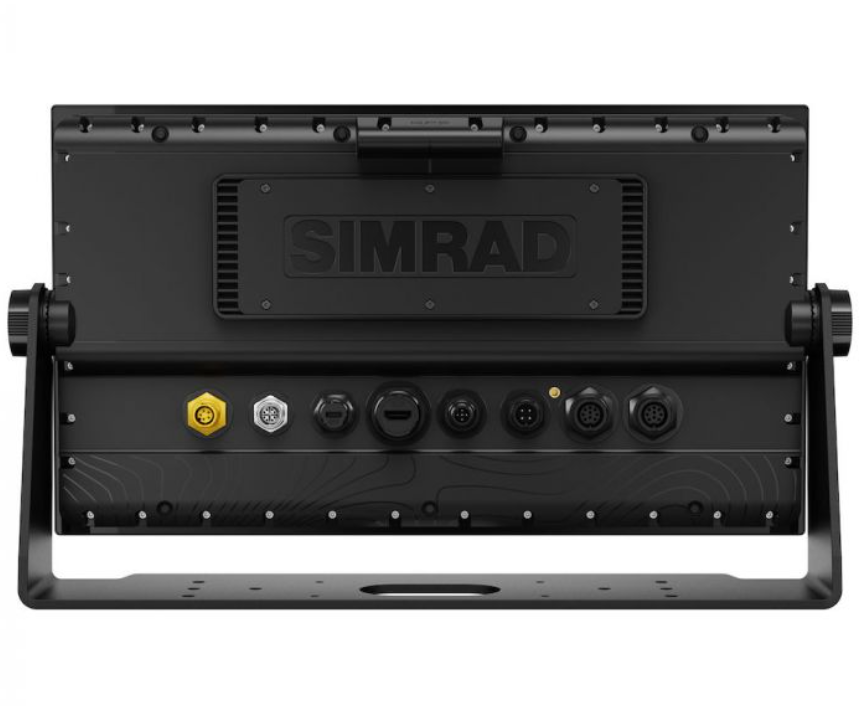

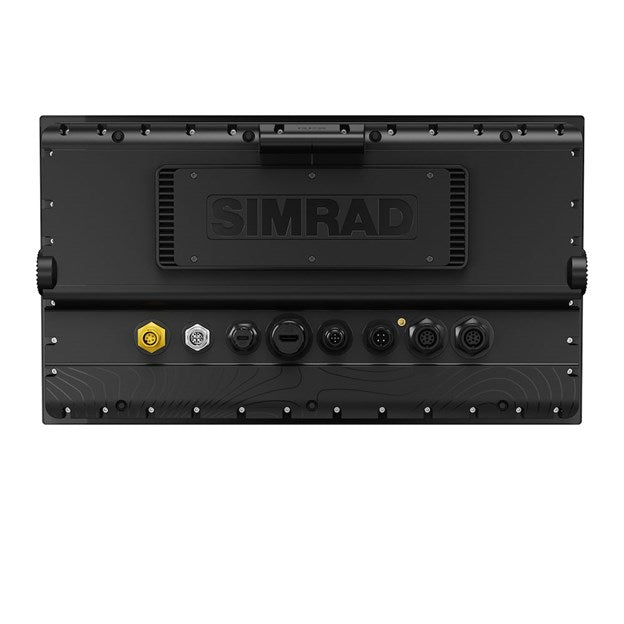

Connectivity

• Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
• Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
• NMEA 0183: No
• NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity: No
• Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras
• WiFi: Wi-Fi 5 (IEEE 802.11ax)

Display

• Backlight Color: White
• Resolution: 1920 x 1080
• Screen Brightness: >1200 nits
• Size and Type: 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
• Viewing Angles: 80° top/bottom, 80° left/right
• Waterproof rating: IPX6 and IPX7

Electrical

• Power Consumption, max.: 40 W
• Recommended Fuse Rating: 5 A
• Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
• Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

GPS

• Correction: 10 Hz high-speed update (internal)
• GPS Receiver Channels: 32 Channels
• Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
• Update rate: 10Hz

MFD

• AIS: Receive AIS data over NMEA 2000
• Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
• Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required
• Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
• Digital Switching: Czone / DDS
• External Storage: 2x (microSD®, SDHC®)
• GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS)

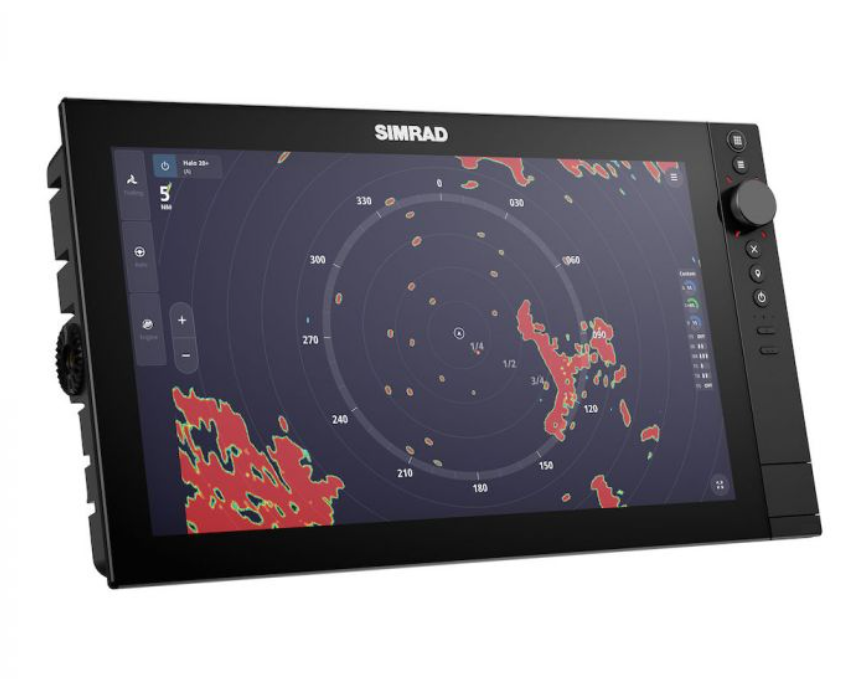

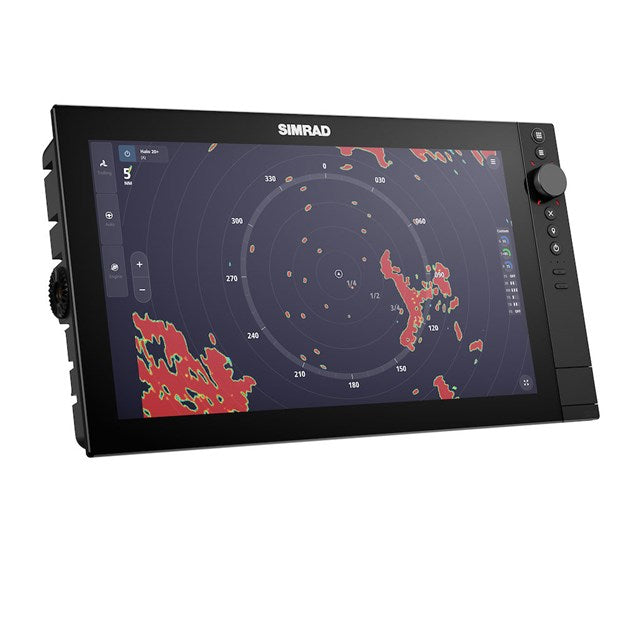

• Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
• Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports
• Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
• Weather: SiriusXM via WM4 module (USA only)
• Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft)

Physical

• Dimensions (W x H x D): Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″) With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″)

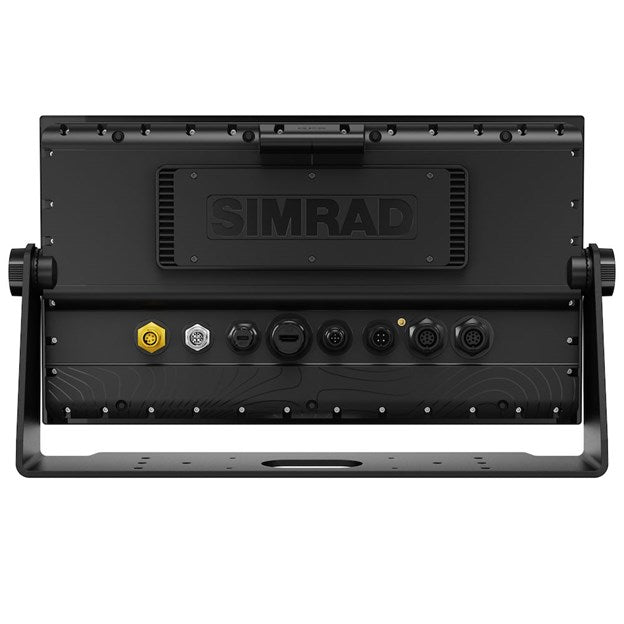

• Mounting Type: Bracket mount (bracket optional). Rear mount (brackets supplied)
• Weight: 3.8 kg (8.38 lb)

Other

• Warranty Period: 2 Years
• Interface: Hybrid multi-touch screen, buttons, and rotary knob

Specifications:

• Cartography Brand: C-Map Reveal X
• Internal/External Antenna: Internal
• Screen Size: 16"
• Touchscreen: Yes
