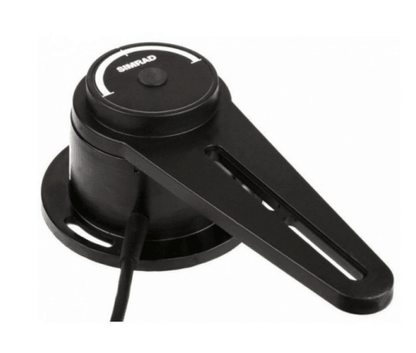

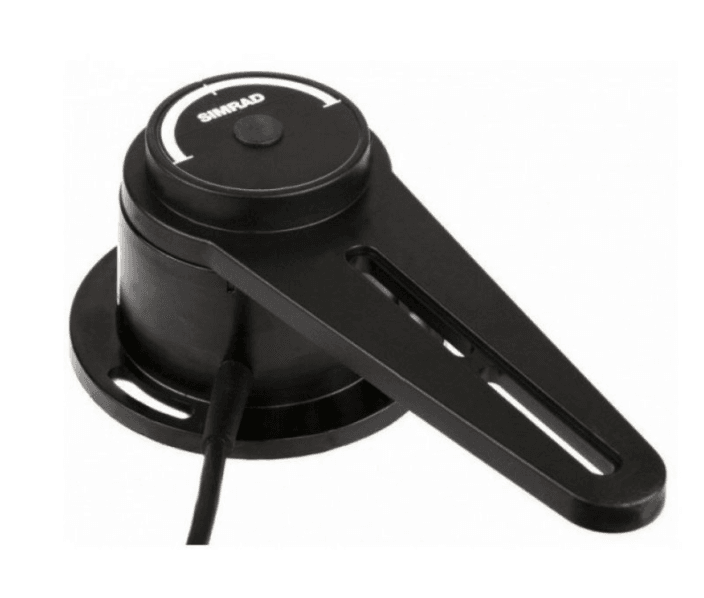

Simrad RF25N Rudder Reference Sensor with Micro-C connector

RF25N Rudder Feedback w/Link & Micro-C Cable - 5M (000-10756-001)

Get precise, reliable rudder angle feedback for your autopilot and navigation systems with the Simrad RF25N. This medium-duty rudder reference sensor uses NMEA 2000® connectivity and comes with a 5 m Micro-C cable and transmission link for straightforward integration into marine electronics networks.

Key Features & Capabilities

• Medium-duty rudder feedback unit with NMEA 2000® interface for seamless data transfer and network integration.
• ±120° rudder angle measurement range, enabling effective monitoring of rudder travel.
• Typical accuracy of ±0.5°, ensuring high-fidelity feedback to your autopilot and electronics.
• Supplied with 5 m Micro-C cable and transmission link for easy mounting and connection to your system.
• Compatible with medium-duty applications and commonly used in recreational and coastal vessels.
• Connects directly to NMEA 2000 backbones, simplifying wiring and reducing installation complexity.
• Voltage input range suitable for marine electronics environments (e.g. 8–16 V DC typical for marine systems)
• Built for reliable operation in the marine environment — robust construction ensures long-term performance in saltwater exposure.

Applications & Benefits

• Use as a rudder reference sensor in autopilot systems to deliver accurate rudder position feedback, particularly when paired with Simrad or other compatible autopilot controllers.
• Helps improve autopilot steering precision, reduce erratic course adjustments, and maintain smoother heading control.
• Ideal for retrofit or new installations where NMEA 2000 integration is preferred, offering better system compatibility and fewer wiring complexities.
• Supports diagnostic feedback and integration into multi-function displays (MFDs) or chartplotters that monitor rudder angle via NMEA 2000.

Why Choose the RF25N for Your Vessel?

The RF25N is a trusted, field-proven choice for recreational and light commercial vessels needing reliable rudder feedback in an NMEA 2000 networked environment. Its ±120° range, decent accuracy, and ease of connection make it a smart option for both upgrades and new builds.

The RF25 is a medium duty rudder feedback unit with Micro-C interface. The RF25 will attach directly to industry standard Micro-C systems for straight-forward installation.

Features:

• +/- 120° Measurement

• Precise and Accurate; +/- 0.5°

• Micro-C Connectivity

• 5.5M attached Micro-C Cable

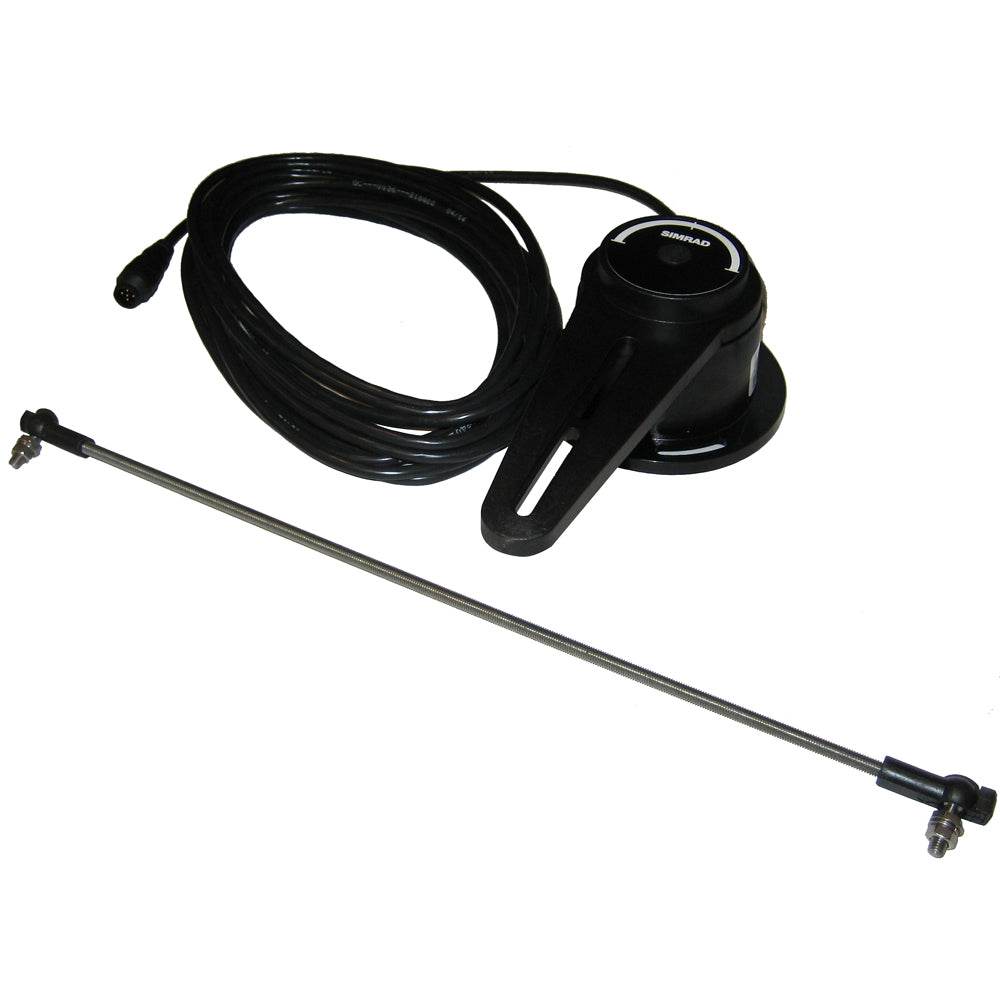

What's in the Box:

• RF25N with 5m Micro-C cable
• Linkage
• Warranty: 2 years
