• Suncoast Marine and Auto offers Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 30AMP Isolated [ORI241240110]
1 1

Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 30AMP Isolated (ORI241240110)

Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 30AMP Isolated (ORI241240110)

$201.45
$237.00 $201.45
Sale Sold out
Shipping calculated at checkout.

Common Questions

What is your Shipping Policy?

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

What delivery times should I expect?

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

How does Suncoast handle returns and refunds?

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

View full details

Authentic, brand-new, and backed by full manufacturer warranty as an Authorized Dealer

Product Description

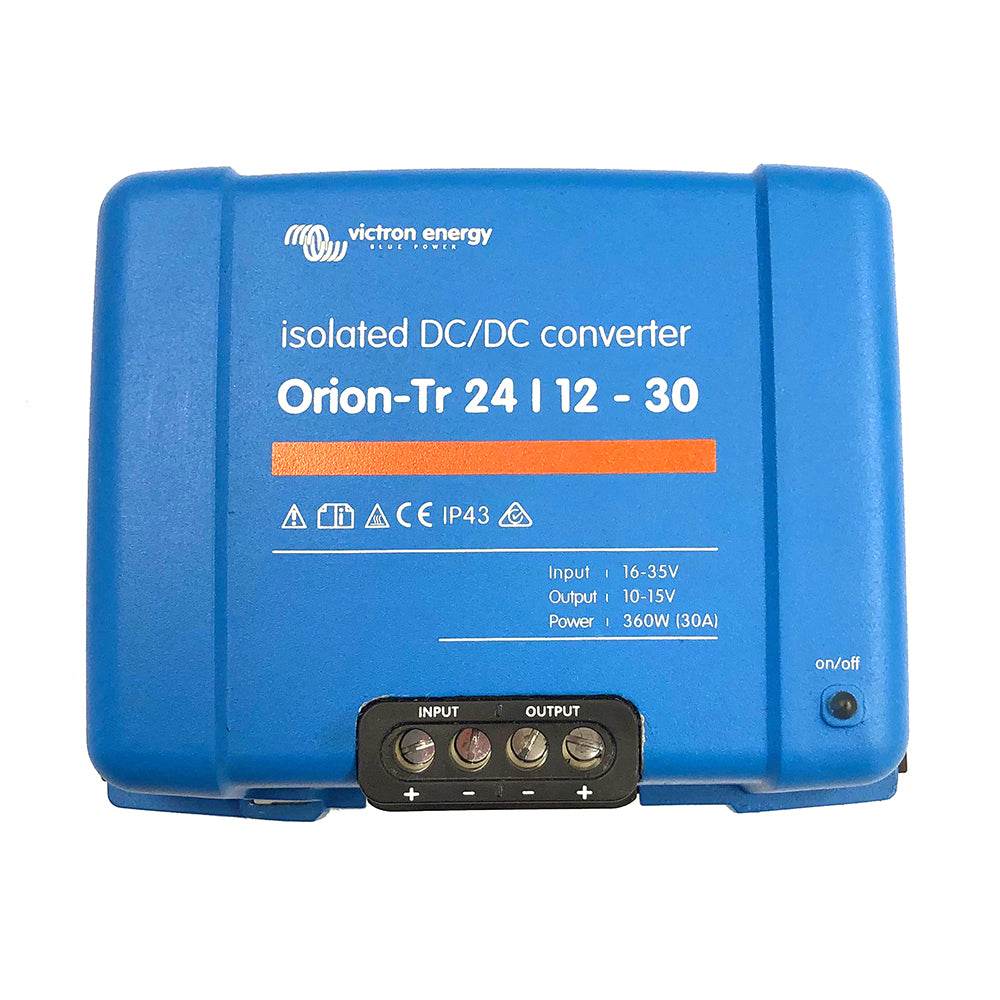

Orion-TR 24/12-30A (360W) Isolated DC-DC Converter

Isolated Model - separate in and out (-) leads

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

  • Input Voltage Range: 20-35 V
  • Under Voltage Shut Down: 14 V
  • Under Voltage Restart: 15 V
  • Nominal Output Voltage: 12.2 V
  • Output Voltage Adjust Range: 10-15 V
  • Output Voltage Tolerance: +/- 0,2 V
  • Output Noise: 2 mV rms
  • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
  • Maximum Output Current (10 S) at Nominal Output Voltage: 45 A
  • Short Circuit Output Current: 60 A
  • Cont. Output Power at 25 Degrees C: 430 W
  • Cont. Output Power at 40 Degrees C: 360 W
  • Efficiency: 88 %
  • No Load Input Current (2): < 100 mA
  • Current Consumption: < 200uA when disabled via its remote port
  • Galvanic Isolation: 200 VDC between input, output, and case
  • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
  • Humidity: Max. 95 % non-condensing
  • DC Connection: Screw terminals
  • Maximum Cable Cross-Section: 16 mm² AWG6
  • Weight: 1.3 kg (3 lb)
  • Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
  • Safety Standards: EN 60950
  • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
  • Automotive Directive Standards: ECE R10-5

Specifications:

  • Charger Input - Voltage: 24v
  • Charger Output - Amps: 30a
  • Charger Output Voltage: 12v

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
