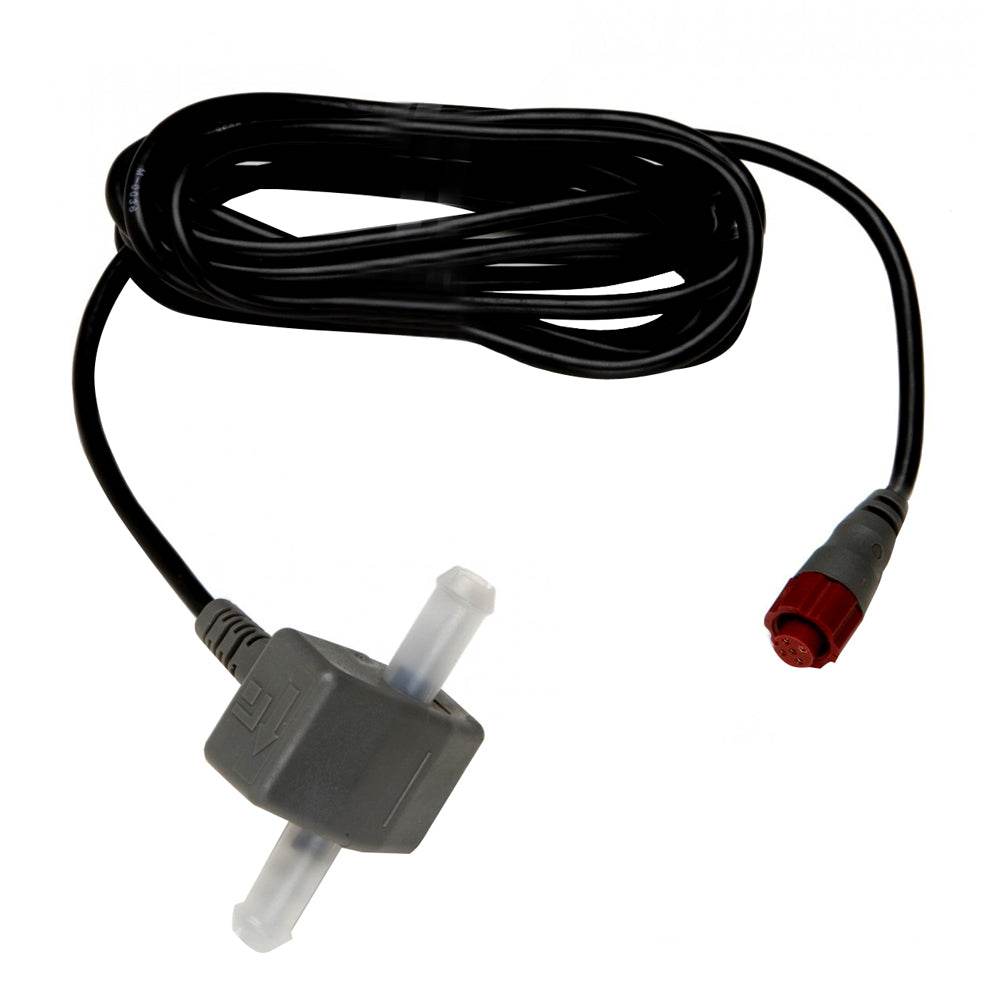

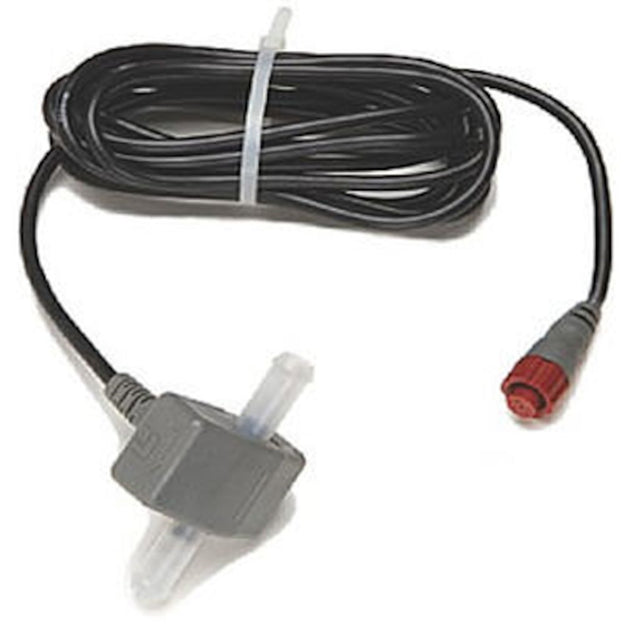

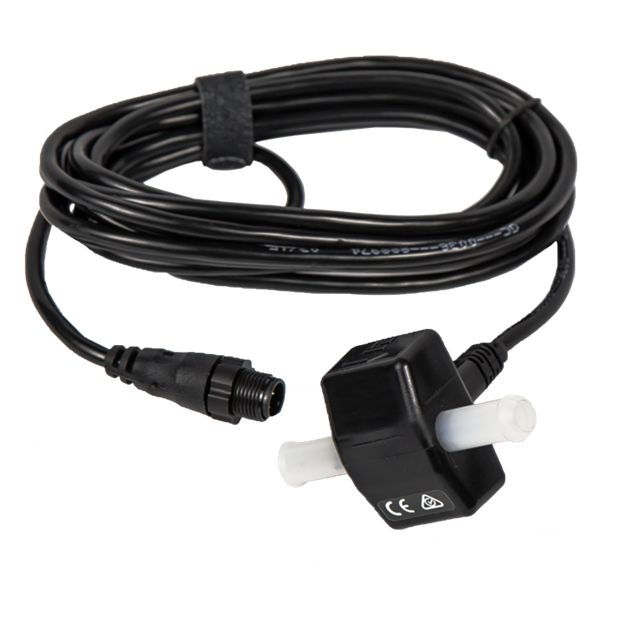

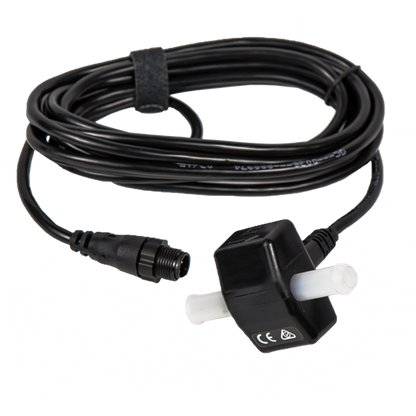

Fuel Flow Sensor with 10' cable & T-connector (000-11517-001)

Take full control of your boat’s fuel efficiency with the Lowrance Fuel Flow Sensor (00011517001) — the perfect addition to your NMEA 2000® network. Designed for gasoline engines, this precision sensor tracks every drop of fuel used so you can maximize performance, extend range, and reduce costs on every trip.

Built for accuracy and reliability, it measures real-time fuel flow, tank fuel used, trip fuel used, and seasonal fuel consumption — helping you make smarter decisions whether you’re cruising, trolling, or running offshore.

⚓ Key Features & Benefits:

• Complete Fuel Monitoring: Tracks Fuel Flow, Tank Fuel Used, Trip Fuel Used, and Seasonal Fuel Used for precise fuel management.
• Gasoline Engine Compatible: Designed for gasoline engines only (not for diesel systems). Supports up to three engines with one sensor per engine.

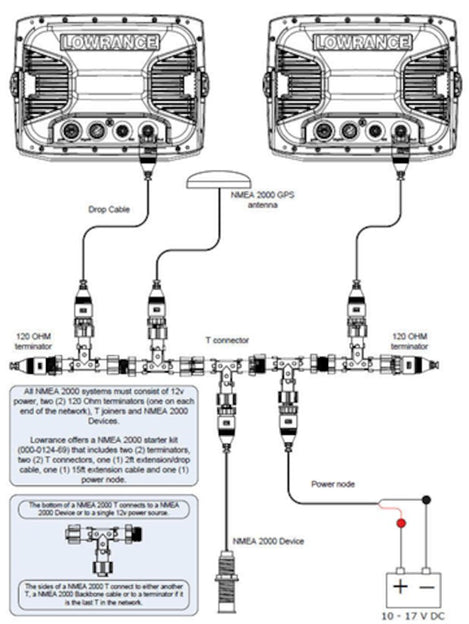

• Plug-and-Play Integration: Comes with a 10’ cable and NMEA 2000® T-connector for quick, clean installation into your existing marine network.
• High-Accuracy Measurement: Optimized for flow rates from 0.6–45 gallons per hour, ensuring reliable readings even at idle or wide-open throttle.
• Low Back Pressure: Engineered for minimal resistance — just 0.5 PSI at 20 GPH and 1 PSI at 40 GPH to protect fuel system performance.
• Durable Marine-Grade Design: Built to withstand harsh marine conditions, with water-resistant sealing for long-term reliability.

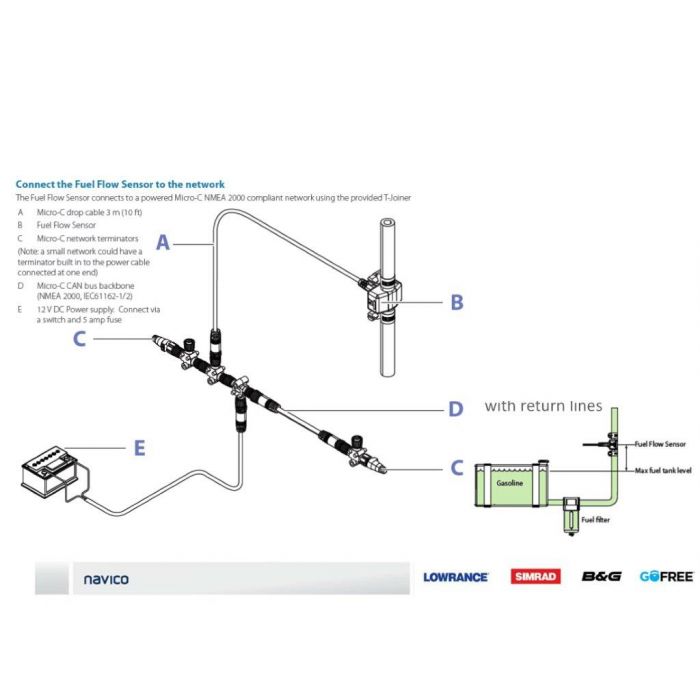

• Compact & Easy to Install: Installs above the maximum fuel tank level, after the fuel filter, and includes (2) 1” stainless-steel hose clamps.
• Expandable System: Multiple sensors can be used for multi-engine boats, offering complete visibility across your entire fuel network.
• Trusted Lowrance Quality: Backed by Lowrance’s 2 year limited warranty for worry-free performance.

📦 In the Box:

• (1) Lowrance Fuel Flow Sensor
• (1) 10’ NMEA 2000® Cable
• (1) T-Connector
• (2) Stainless-Steel Hose Clamps
• Installation Guide

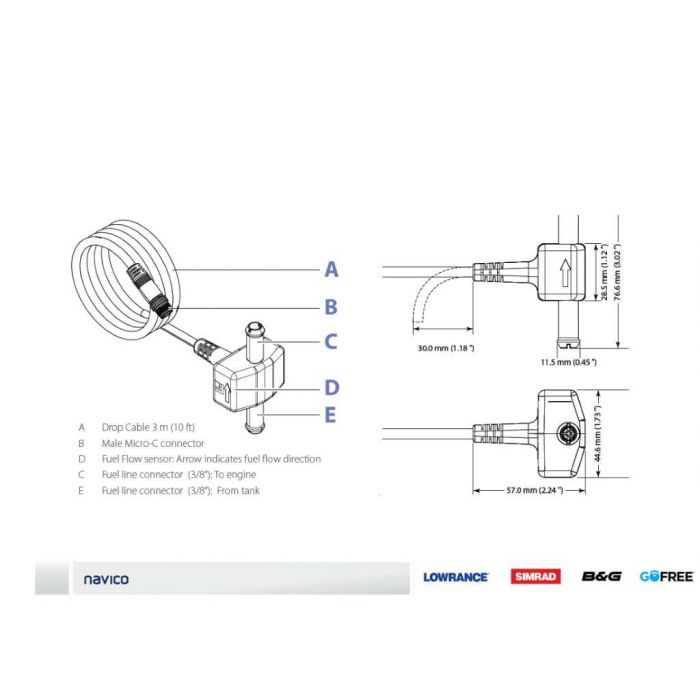

⚙️ Technical Specifications:

• Fuel Line Diameter: 3/8” (9.5 mm) ID
• Flow Range: 0.6–45 GPH (optimized)
• Hole Size (bulkhead pass-through): 22 mm (7/8”)
• Installation: Inline, above tank level
• Fuel Type: Gasoline only
• Network Compatibility: NMEA 2000®

With the Lowrance Fuel Flow Sensor, you’ll know exactly how much fuel you’re burning — no more guessing or wasted gas. Whether you’re optimizing range on long runs or tracking seasonal fuel use, this sensor provides the data you need to run smarter, safer, and more efficiently.
