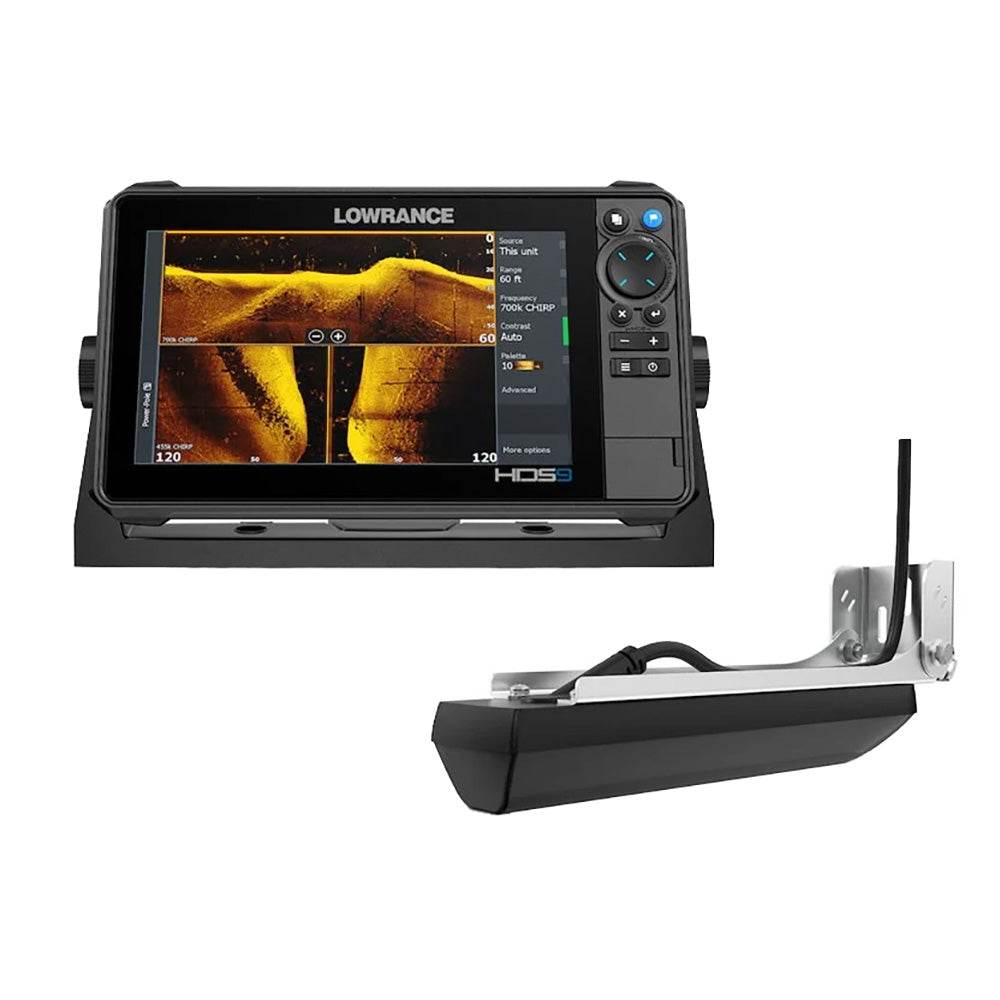

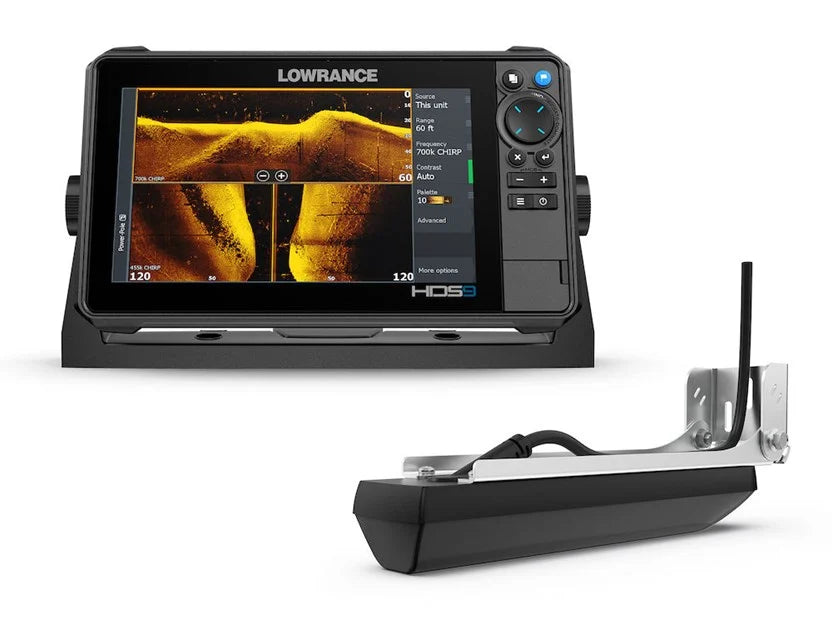

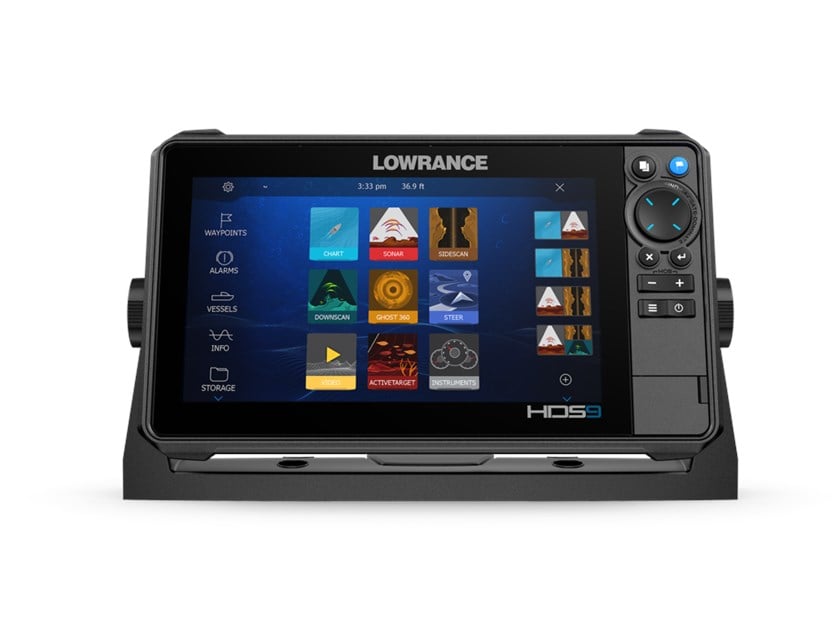

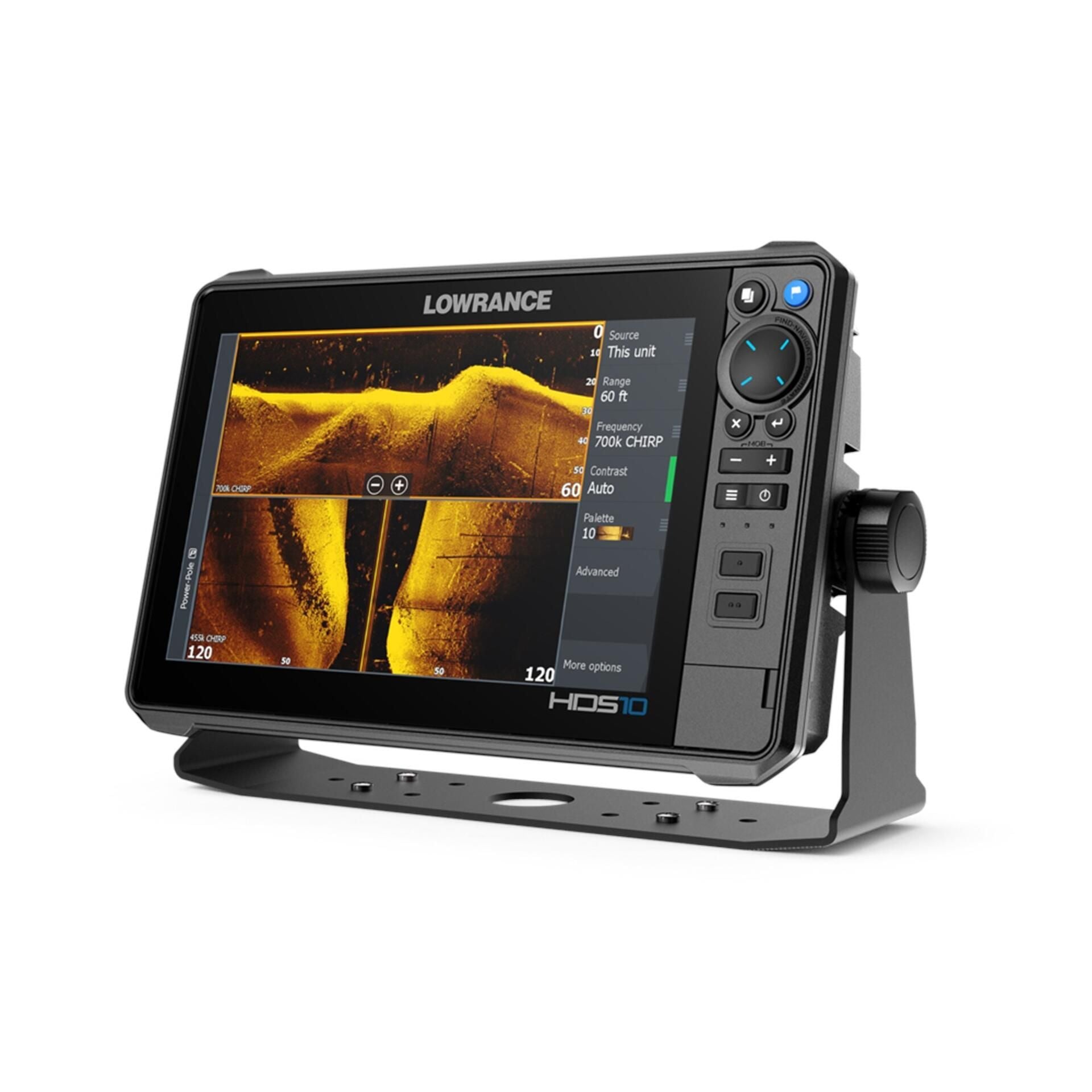

HDS PRO 9 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer (000-15981-001)

Take command of your fishing game with the Lowrance HDS PRO 9 (00015981001), the ultimate all-in-one fishfinder/chartplotter built for serious anglers. Designed for clarity, speed, and total system integration, this powerhouse delivers professional-grade sonar detail and mapping precision — right at your fingertips.

Preloaded with C-MAP® DISCOVER OnBoard charts and paired with the Active Imaging™ HD 3-in-1 Transducer, the HDS PRO 9 gives you everything you need to locate fish, read structure, and navigate confidently across any water.

🎣 Why Anglers Love the HDS PRO 9:

• High-Definition Active Imaging™ HD 3-in-1 Transducer Included: Experience ultra-clear SideScan and DownScan Imaging™ up to 1.2 MHz with Lowrance® CHIRP sonar for unmatched clarity, target separation, and definition of fish and structure.

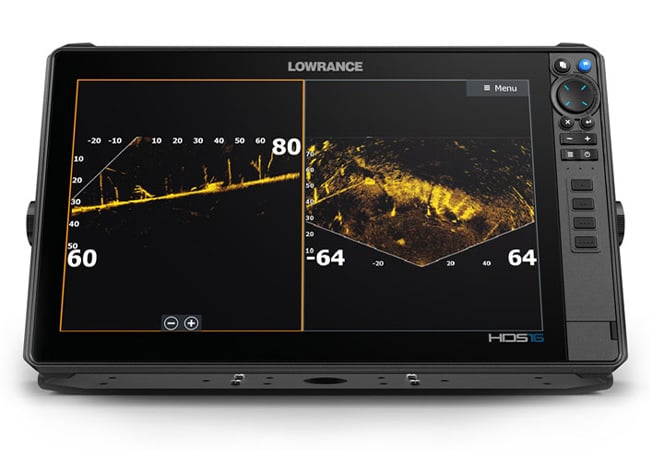

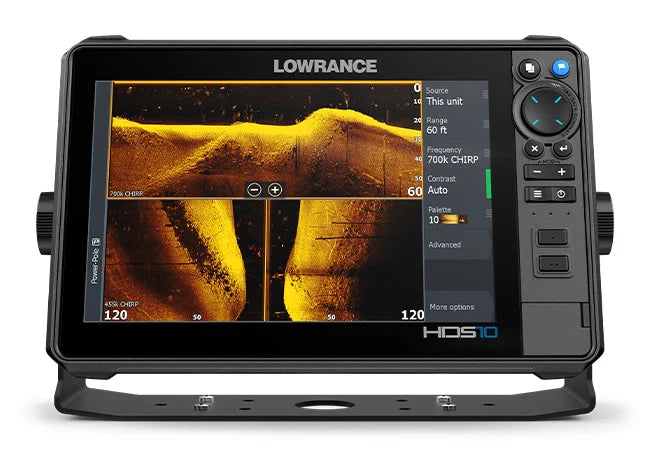

• ActiveTarget® 2 Live Sonar Ready: Watch fish in real time and see how they react to your lure for precise, data-driven casting and better catch rates.
• Preloaded C-MAP® DISCOVER OnBoard Charts: Find prime fishing spots instantly with detailed 1-foot contours covering 19,000+ U.S. lakes and 9,400+ Canadian lakes.
• SolarMAX™ HD Display: The bright, 9-inch touchscreen offers crisp 1280x720 resolution and remains visible in full sunlight, even through polarized lenses.
• FishReveal™ Technology: Combines CHIRP sonar and DownScan Imaging™ to make fish targets stand out clearly against structure — simplifying identification.
• Total Boat Integration: Effortlessly control your Power-Pole® anchors, Ghost® Trolling Motor, and Lowrance Autopilot directly from your display.
• Smart Networking & Connectivity:

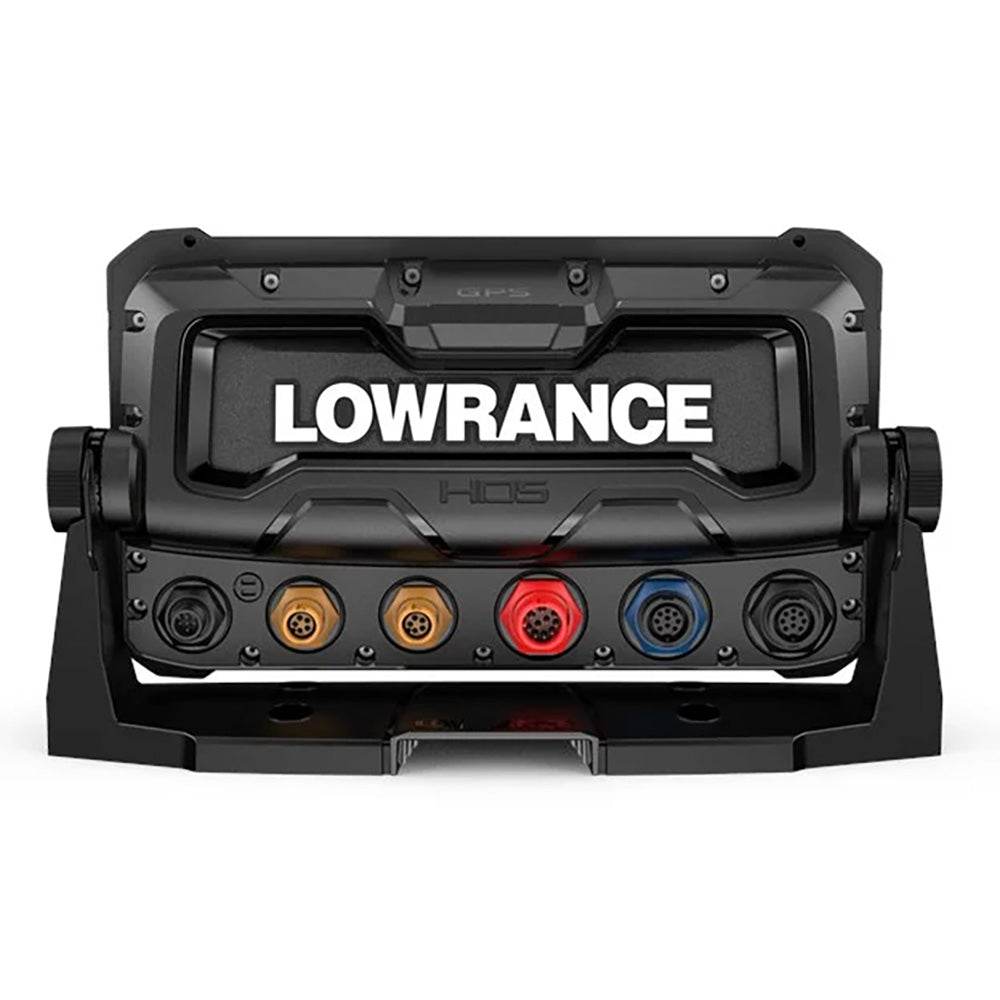

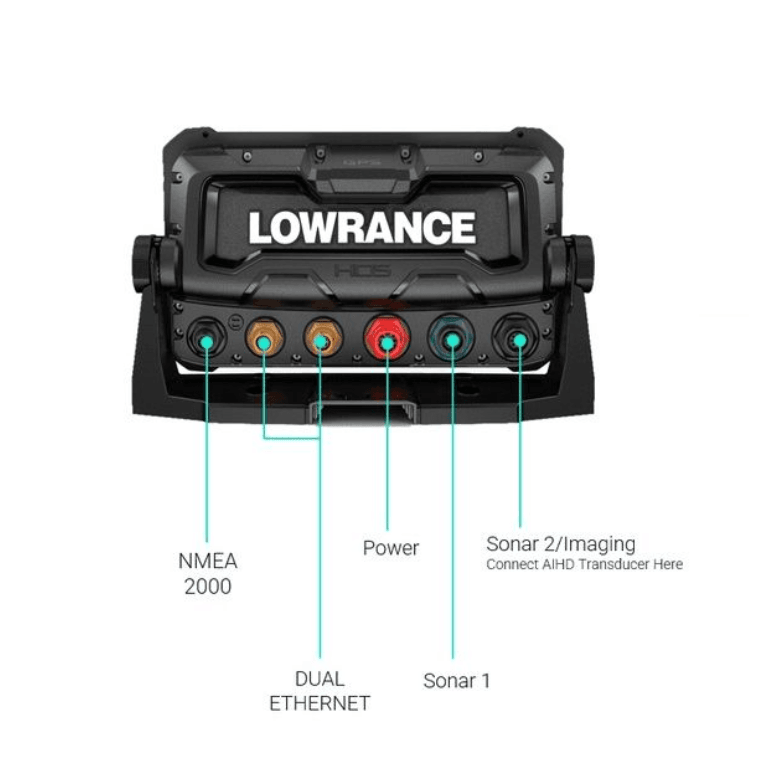

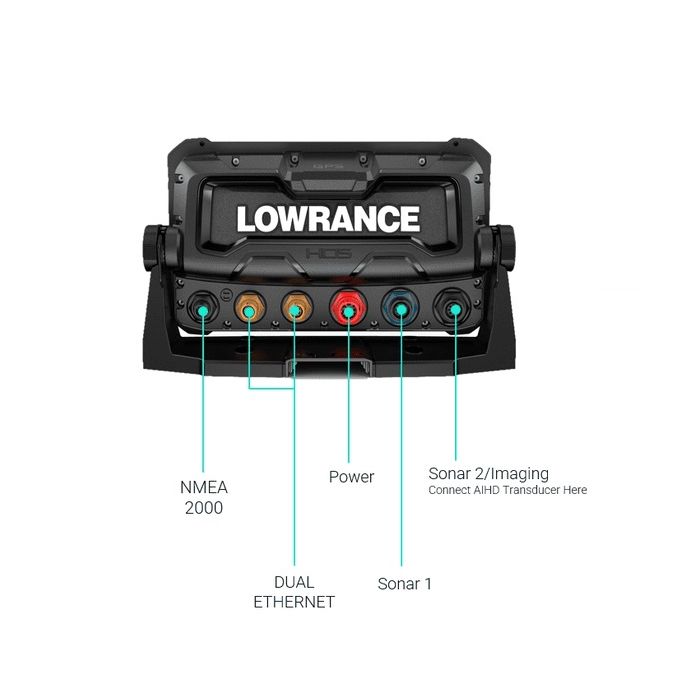

  • Dual Ethernet ports for system expansion (up to 6 MFDs)
  • Bluetooth® and Wi-Fi® connectivity for updates, data sharing, and smartphone notifications
  • NMEA 2000® compatibility for full network control
• Built to Perform: Engineered for reliability in all environments with an operating range from 5°F to 131°F (-15°C to 55°C).

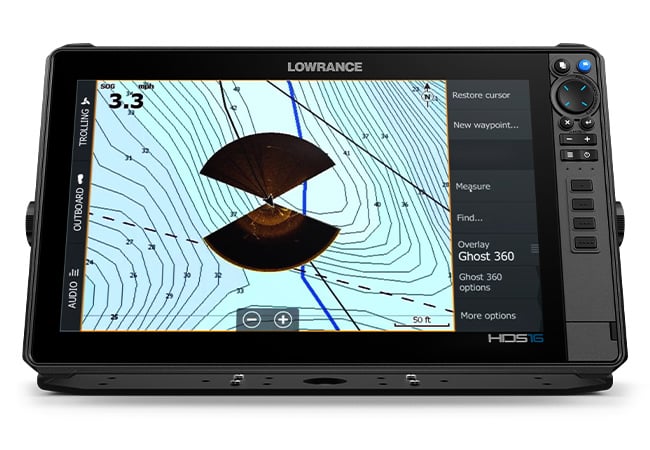

• Real-Time Mapping: Create custom maps on the fly with C-MAP Genesis Live, perfect for marking fish-holding structure and depth changes.

⚙️ Technical Highlights:

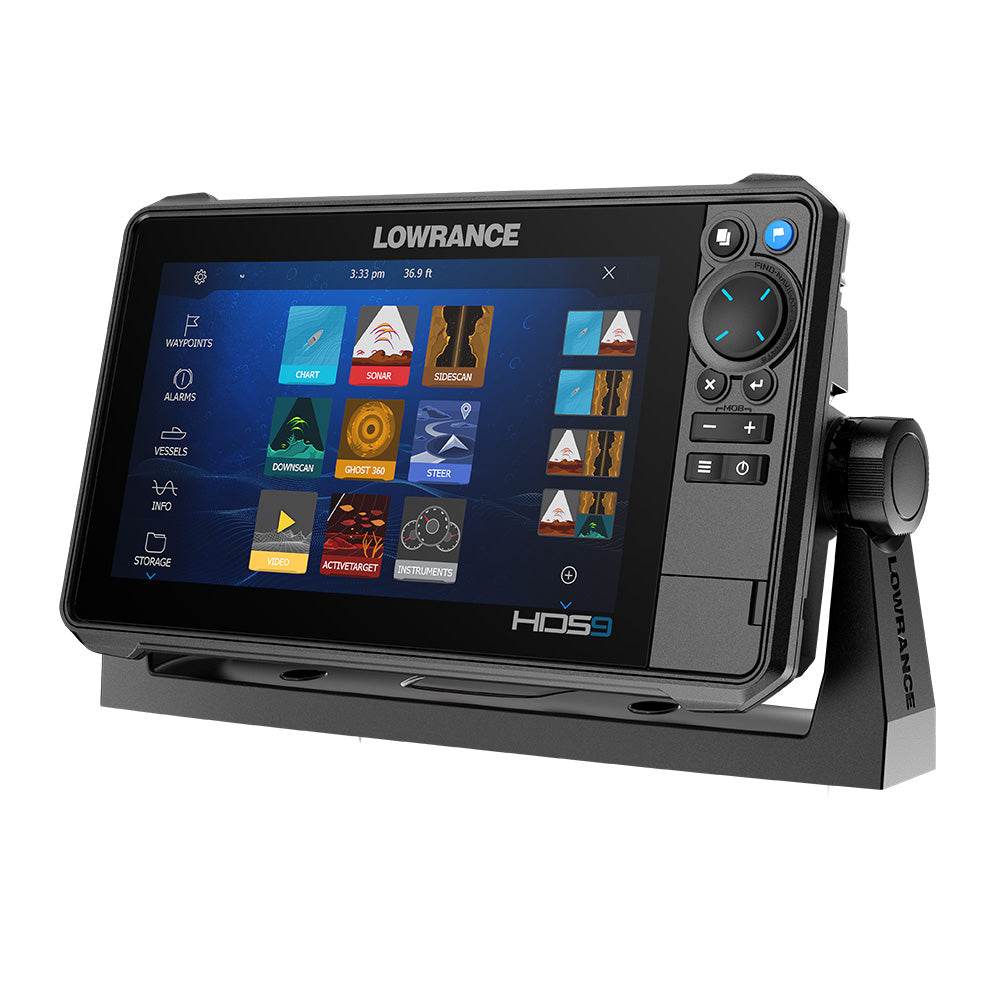

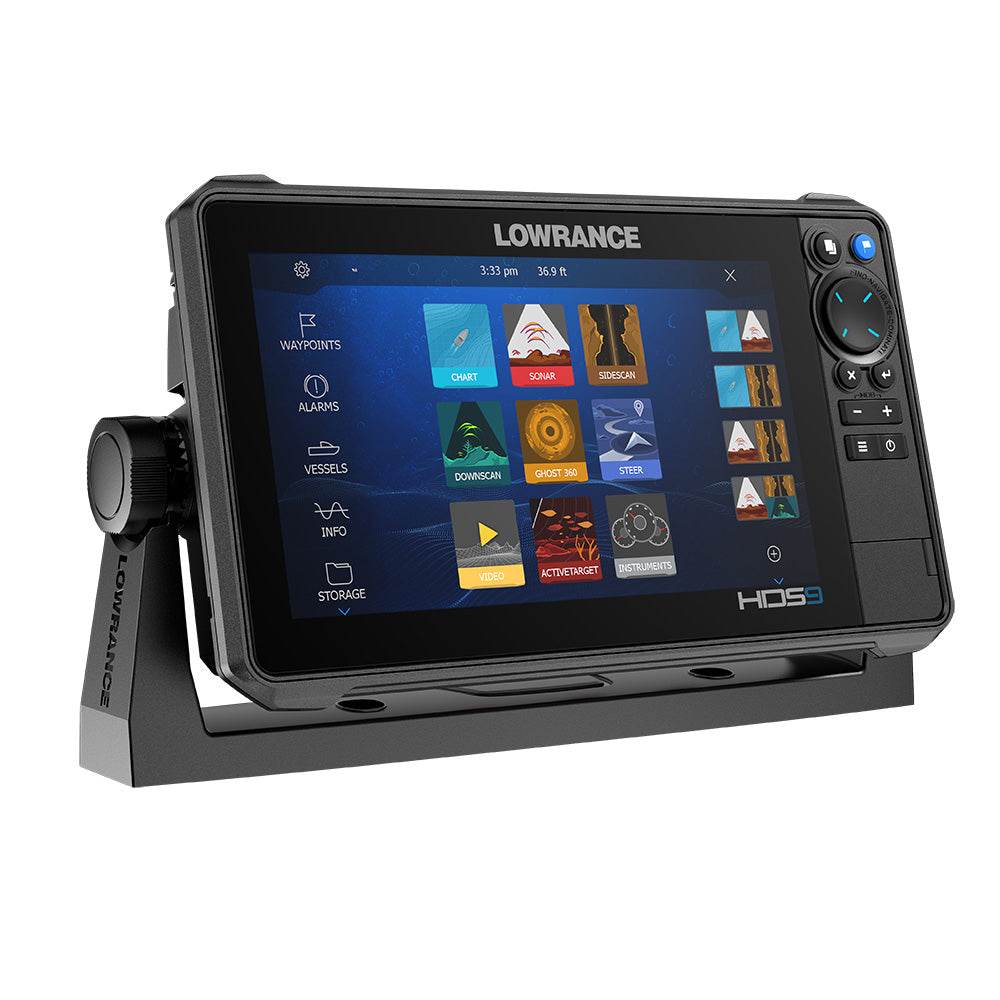

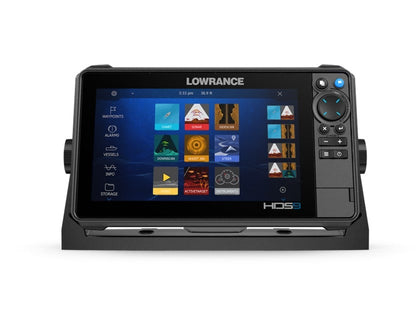

• Display Size: 9” SolarMAX™ HD Touchscreen
• Display Resolution: 1280 x 720
• GPS Update Rate: 10 Hz with 16-channel precision receiver
• Power Draw: 2.0–2.9A @ 13VDC
• Storage: Dual microSD (32GB each) + 8GB internal
• Cartography: Preloaded with C-MAP DISCOVER OnBoard
• Transducer: Active Imaging™ HD 3-in-1 (000-16062-001) included
• Viewing Angles: 80° top/bottom, 80° left/right
• Waterproof Rating: IPX7 with card door closed
• Mounting Type: Panel or bracket mount

Warranty Period: 2 Year + 3 additional years of upgrade options. Totaling 5 years.

Specifications

What's in the Box:

• HDS-9 PRO
• Lowrance Power/0183 Cable
• HDS-9 LIVE/PRO, Elite FS9 Bracket and Knobs
• HDS-9 LIVE/PRO Suncover
• DISCOVER - NORTH AMERICA
• ActiveImaging™ HD 3-in-1 Transducer

Quick Guide (pdf)
Owner's Manual (pdf)
