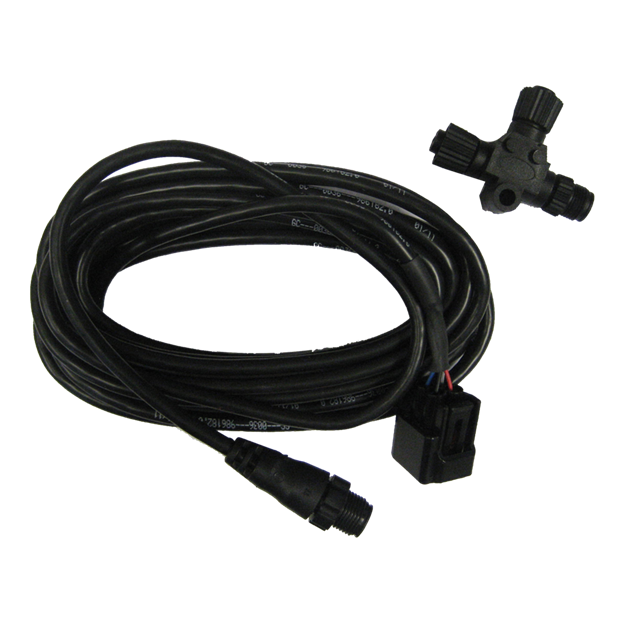

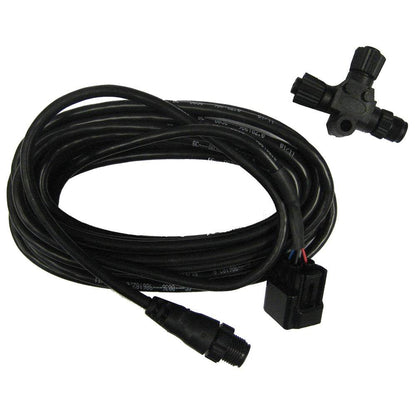

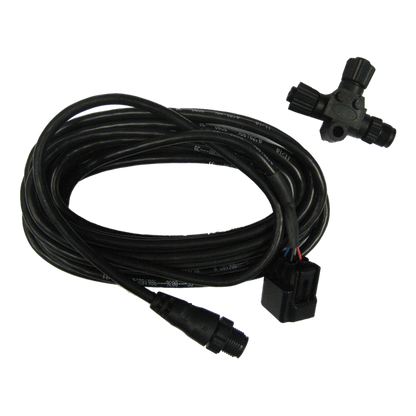

Yamaha Engine Interface Cable (000-0120-37)

Upgrade your marine data system with the Yamaha Engine Interface Cable (000012037), a must-have for boaters who demand clear, real-time engine information from their Yamaha outboard. Whether you’re out fishing, cruising, or working the water, this interface cable brings your engine data to your chartplotter or display—without the need for the CommandLink Plus system.

Key Features & Benefits:

• Connects seamlessly to 2006 & newer Yamaha outboard models (F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250; Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300).
• 4.5 metre (15-foot) cable length offers generous reach from engine to network backbone.

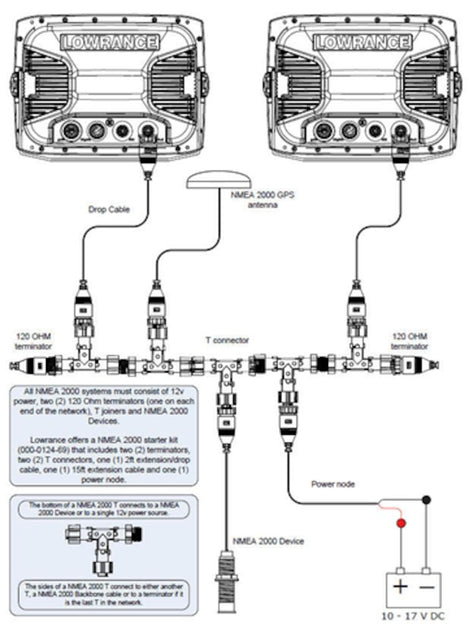

• Includes rugged T-connector for direct tie-in to your existing or newly installed NMEA 2000® network—makes integration simple.
• Provides a wide array of critical engine parameters to your display: RPM, alternator voltage, engine hours, engine temperature, fuel pressure, fuel rate, oil pressure, trim* and water pressure.
• Designed for Yamaha engines without the CommandLink Plus system—great for upgrading older boats or simpler setups.
• Built to marine standards: 4-pin data connector, molded cable assembly, corrosion-resistant materials ensure reliable performance in a demanding environment.
• Compatible with all NMEA 2000-compliant displays, GPS/Chartplotters and accessories—providing true integration into your vessel’s network.

*Note: Digital trim functionality requires connection through an authorized Yamaha dealer.

What’s in the Box:

• 4.5 metre (15 ft) engine interface cable (part no. 000-0120-37)
• NMEA 2000 T-connector for network integration
• Installation guide / quick-start instructions

Installation & Use:
Simply connect the cable’s 4-pin data connector to the Yamaha engine-mount harness, route the 15-ft cable to your NMEA 2000 backbone, plug in the included T-connector and you’re ready: your chartplotter will begin receiving key engine-data like RPM, voltage, hours, pressures and more. No additional modules needed for engines covered by the compatibility list.

Why It Matters:
In a marine environment, every piece of information counts. With this interface cable you gain access to critical engine data on-the-fly, help identifying potential issues early, optimizing fuel use, preventing downtime and keeping you focused on enjoying your time on the water. And because it ties into your NMEA 2000 network, it works seamlessly alongside your other electronics rather than being a standalone add-on.
