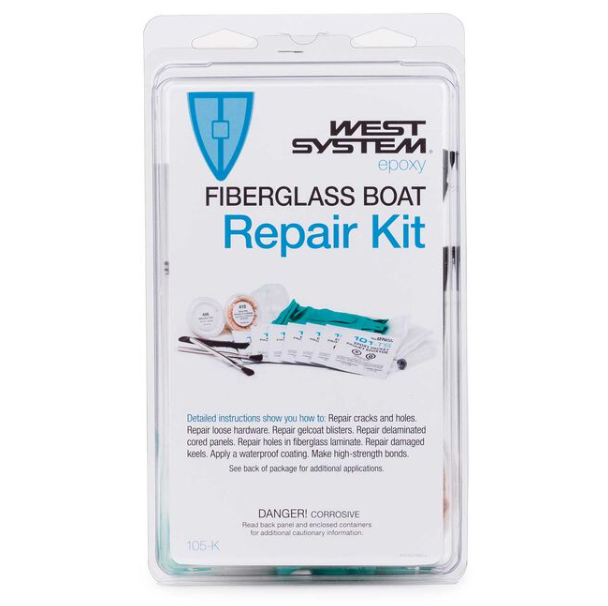

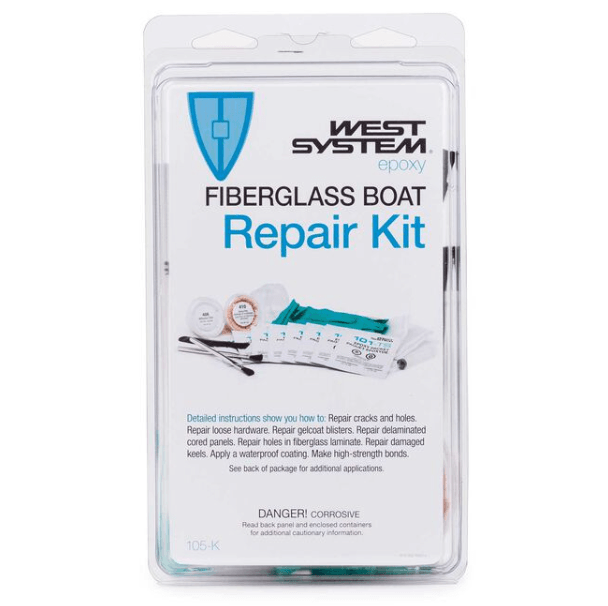

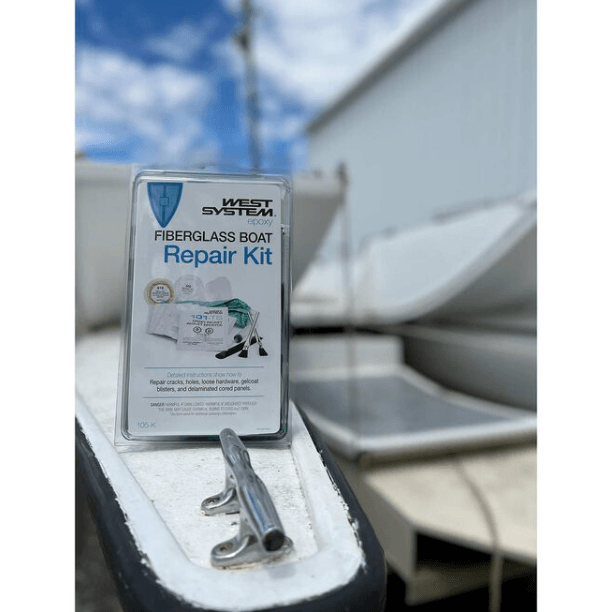

WEST SYSTEM #105 Fiberglass Boat Repair Kit (105-K)

Repair cracks and scrapes, gelcoat blisters, loose hardware, delaminated decks and panels, damaged keels and holes up to 1″ diameter in solid laminates up to ¼” thick, and smaller holes in thicker laminates. Each Fiberglass Boat Repair Kit contains eight packets of WEST SYSTEM® 105 Epoxy Resin® and 205 Fast Hardener®, fiberglass fabric, adhesive filler, fairing filler, glue brushes, mixing cups, a reusable mixing stick, an application syringe, three pairs of protective gloves, and illustrated instructions for completing a variety of common fiberglass repairs.

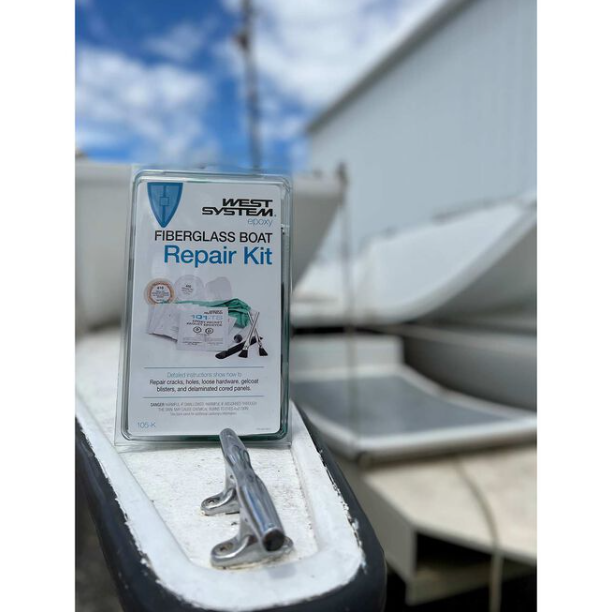

All components are contained in a sturdy, resealable package that can be easily stowed aboard your boat.

DESIGNED FOR

• Fiberglass
• Reinforcing fabrics
• Composite materials

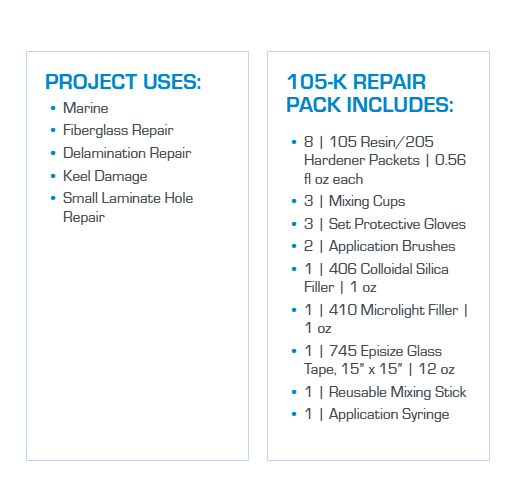

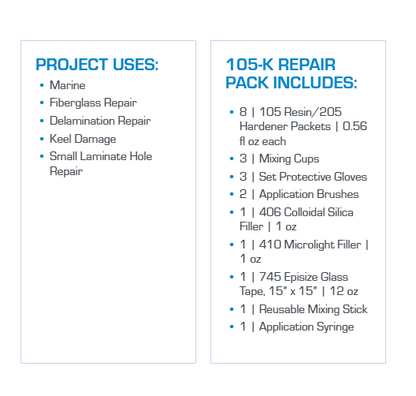

PROJECT USES

• Marine
• Fiberglass Repair
• Delamination Repair
• Keel Damage
• Small Laminate Hole Repair

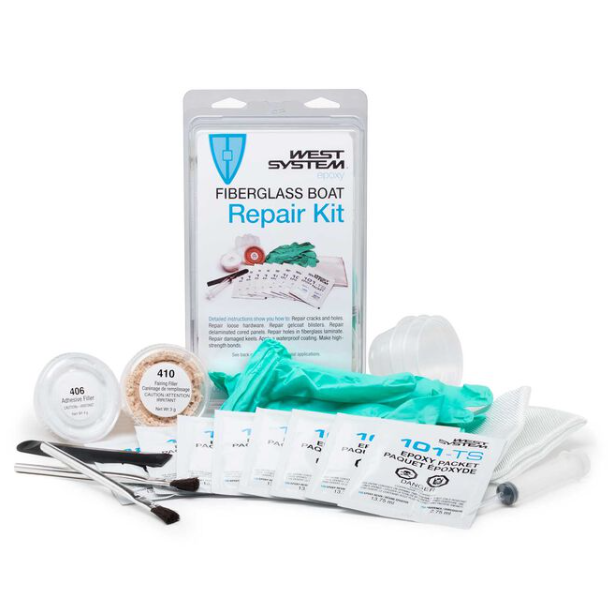

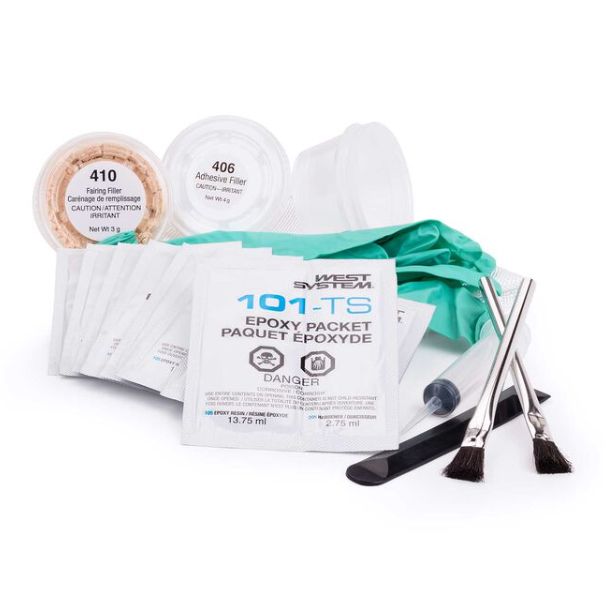

INCLUDES

• (8) 105 Resin/205 Hardener Packets | 0.56 fl oz each
• (3) Mixing Cups
• (3) Set Protective Gloves
• (2) Application Brushes
• (1) 406 Colloidal Silica Filler | 1 oz
• (1) 410 Microlight Filler | 1 oz
• (1) 745 Episize Glass Tape, 15″ x 15″ | 12 oz
• (1) Reusable Mixing Stick
• (1) Application Syringe


All other WEST SYSTEM products are sold separately.

For the suitability of fillers for specific applications, see the Filler Selection Chart.

For more about 105 Epoxy Resin and the complete line of WEST SYSTEM products, see the Product Selection Guide.

User Manual and Product Guide

Additional Info:

Choosing the Right Epoxy System
WEST SYSTEM® 105 Epoxy Resin® is a professional quality, two-part epoxy system developed for high strength and good versatility. The Epoxy Selection Guide is a handy tool to help you pair 105 Epoxy Resin with a choice of four hardeners to best match your working temperatures, desired cure speed, and coating clarity.
Epoxy System Selection Guide

Estimating Coverage for Fabric Application
Estimating how much epoxy is required to wet out fabric is based on the fabric weight and square footage. We provide estimates of the amount of epoxy needed to apply 1 sq. ft. of fiberglass cloth.

Coating
This epoxy is also a great coating material. Applied with a roller, it offers excellent thin-film characteristics. It will flow out and self-level without “fisheyeing.” 105 Epoxy Resin’s viscosity is approximately 1000 centipoise (cp) at 72 F (22C).

Filler and Epoxy Strength
WEST SYSTEM Epoxy fillers are used to thicken the basic epoxy resin/hardener mixture for specific applications. Adding these filling agents to blended epoxy resin and hardener allows you to control the consistency of the epoxy, bridge gaps in joints, create either strong or sandable fillets with epoxy, or alter the cured density of epoxy, making it easier to sand smooth.

Additives and Pigments
Additives and Pigments provide additional properties such as abrasion resistance and coloration. Reinforcing materials such as fiberglass cloth and carbon tapes should be selected based on where and how you want to enhance structural reinforcement.

Epoxy Techniques
We believe every builder or repairer should develop an understanding of 105 Epoxy and a feel for working with it. We strongly recommend performing simple “shop floor” tests as you proceed. The 105 Epoxy System was designed to give you the flexibility to tailor the epoxy to meet your project's and work environment's demands. If you’re starting out, familiarize yourself with our recommended epoxy techniques. When you understand the working and cured characteristics of your 105 Epoxy blends, you’ll develop the best solutions to construction and repair problems.

Instruction Manuals
Gougeon Brothers, Inc. offers a range of detailed epoxy instruction manuals to help you get started with WEST SYSTEM Epoxy products. All of our print publications are available as free downloads. Download Instruction Manuals.

Metering Pumps

For group sizes "A", "B" and "C", 205 and 206 Hardeners are mixed with 105 Epoxy Resin in a ratio of 5:1. 207 and 209 Hardeners are mixed with 105 Epoxy Resin in a ratio of 3:1. To make sure you get the  proportions right, we highly recommend purchase of the 300 Mini-Pump Kit, which meters the hardener and resin in the exact proportions you need. For group size "E" and larger sizes, we suggest use of either the 306-23 Special Purpose Resin/Hardener pump (Model 128845), which dispenses hardener and 105 Epoxy Resin at a ratio of 3:1, or the 306-25 Special Purpose Resin/Hardener pump (Model 335703), which dispenses hardener and 105 Epoxy Resin at a ratio of 5:1.

Epoxy Safety is Important
Epoxy is a chemical product and should be handled with care. Whether you’re a new user of WEST SYSTEM Epoxy or an old hand at it, you’re always better off with the most up-to-date information on using epoxy safely. We strive to make it easy for our epoxy customers to find our Safety Data Sheets and learn the best practices for using epoxy safely.

Epoxy Shelf Life & Proper Storage
WEST SYSTEM resins and hardeners do not have a strict shelf life. Certain changes may make them less effective for some jobs, but the resin and hardener will still be reactive. Because we are an ISO 9001 company, lot numbers are provided on containers, and we keep retains of every batch we make for up to 2 years from the date of manufacturing. However, the actual shelf life is typically far longer.
