Simrad NSX Series Chartplotters & Fishfinders

The Simrad NSX Series Chartplotters & Fishfinders feature 7”, 9”, and 12” ultrawide multifunction displays (models NSX 3007, NSX 3009, NSX 3012UW) designed for anglers and cruisers who demand reliable GPS navigation, chartplotting, and sonar fishfinding.

Available in radar bundles with HALO20+ dome radar, these multifunction displays support C-MAP Discover charts, NMEA 2000 networking, and autopilot integration.

Whether you’re comparing Simrad NSX vs NSS, NSX vs GO, or choosing between 9” and 12” displays, these high-resolution displays deliver fast, responsive interfaces, built-in Wi-Fi, and networking capabilities to integrate with your boat’s electronics seamlessly.

NSX Series Overview

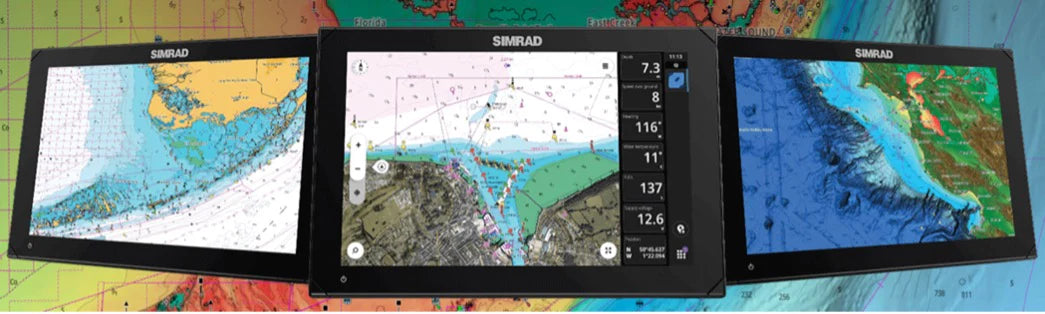

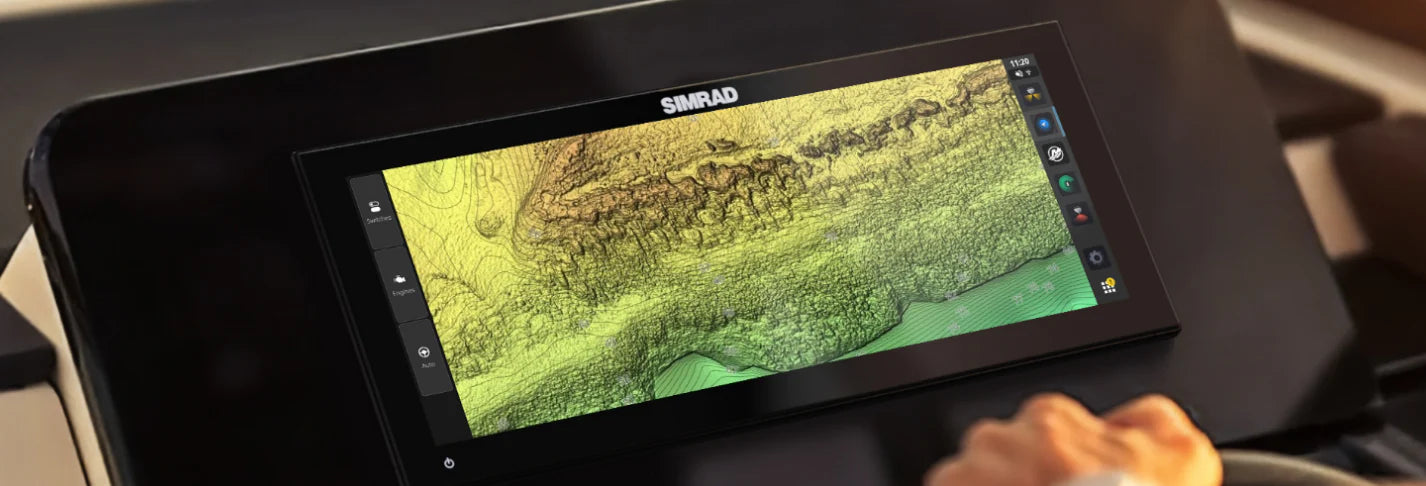

Simrad NSX Chartplotters combine advanced navigation and sonar features in a sleek, ultrawide touchscreen display.

These units are designed for freshwater and saltwater use, providing precise GPS positioning, radar integration, and networked control over compatible marine electronics.

Display Sizes & Performance

• Display Sizes Available for any helm configuration:

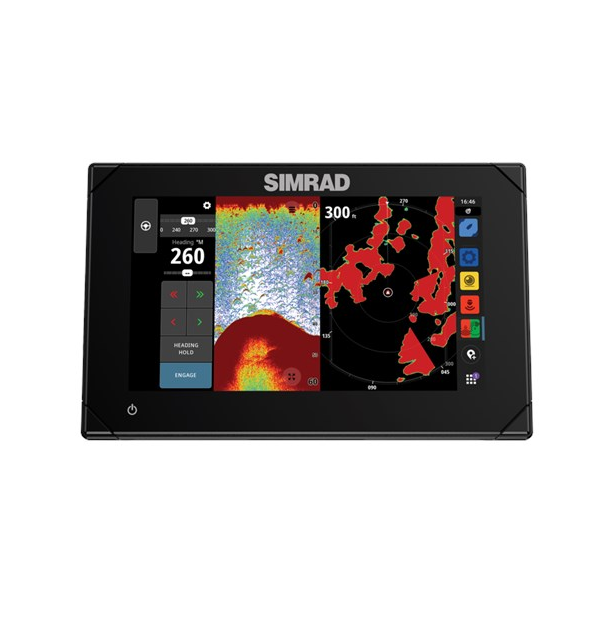

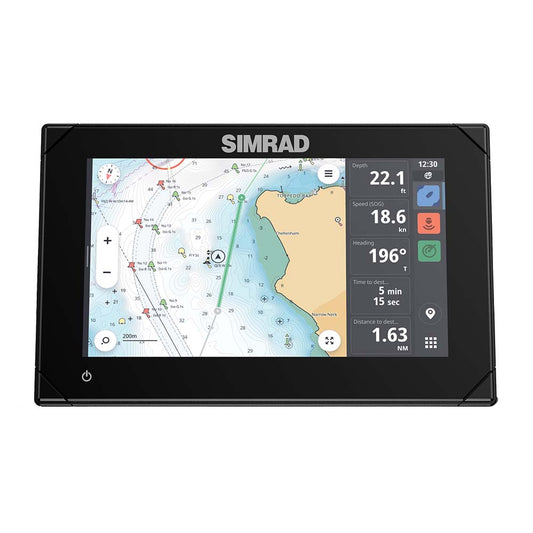

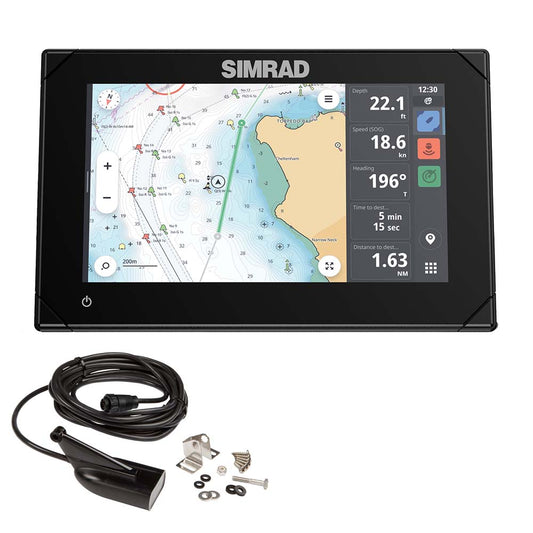

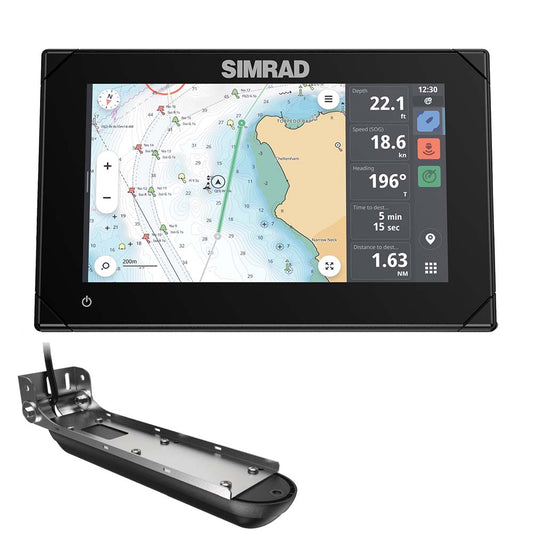

  • 7" (display only / with tranducer)

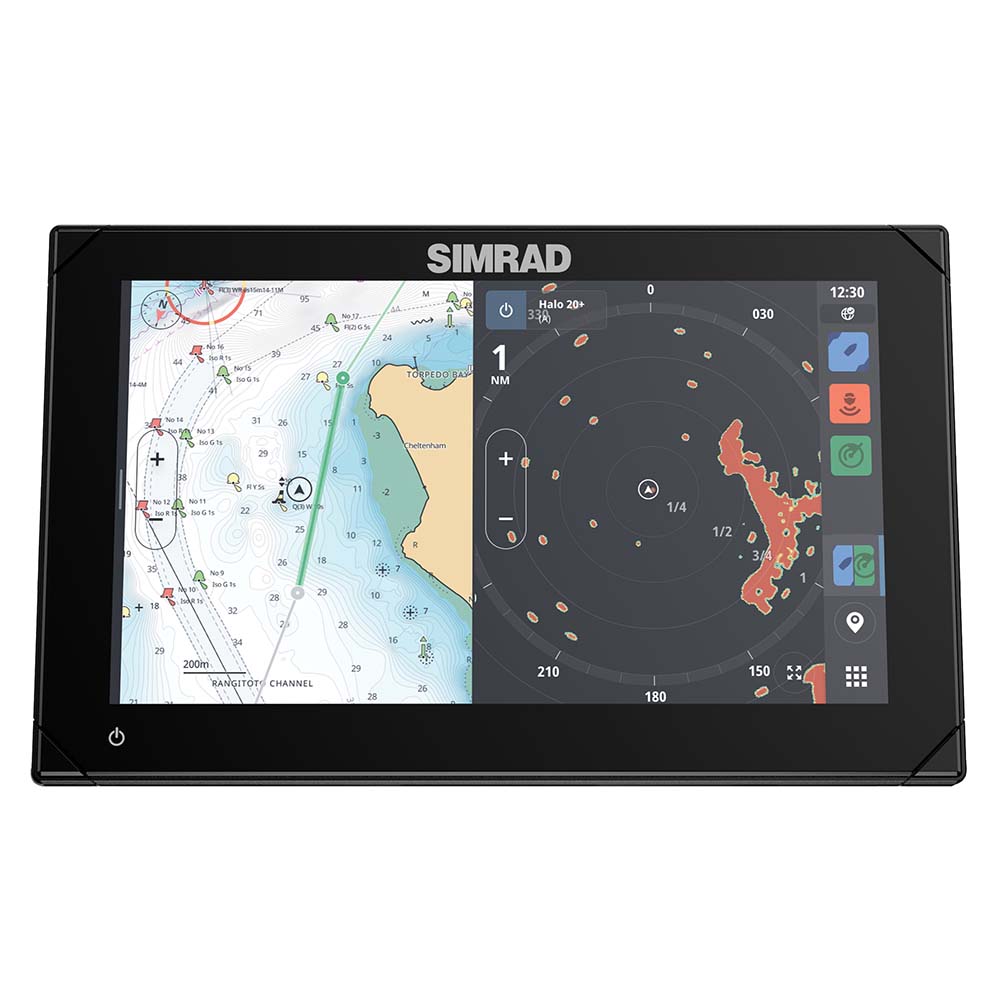

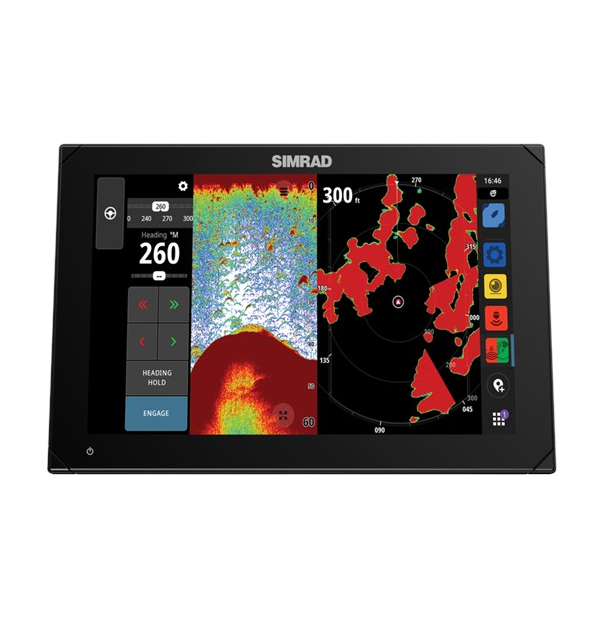

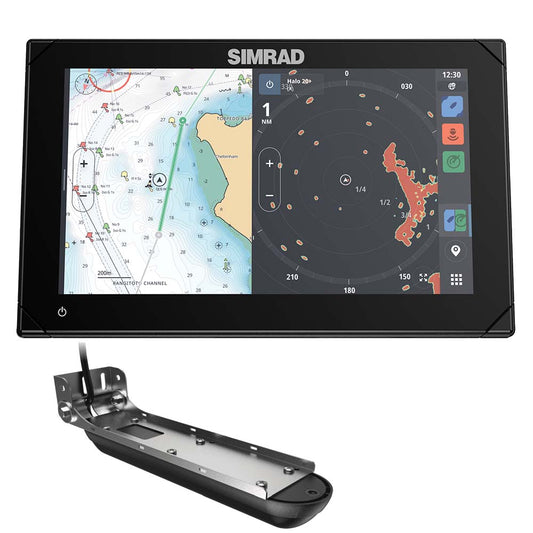

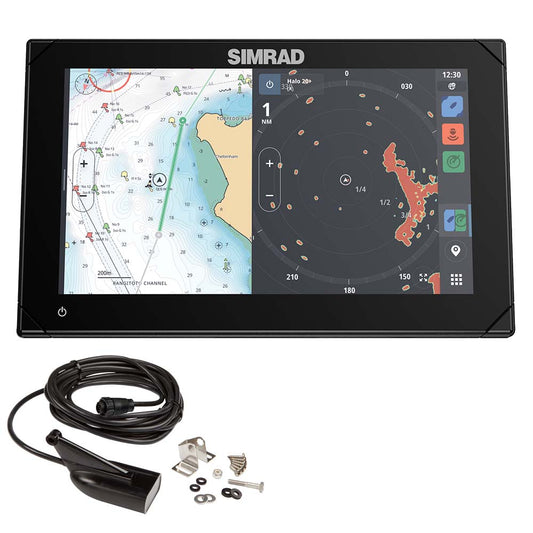

  • 9" (display only / with tranducer)

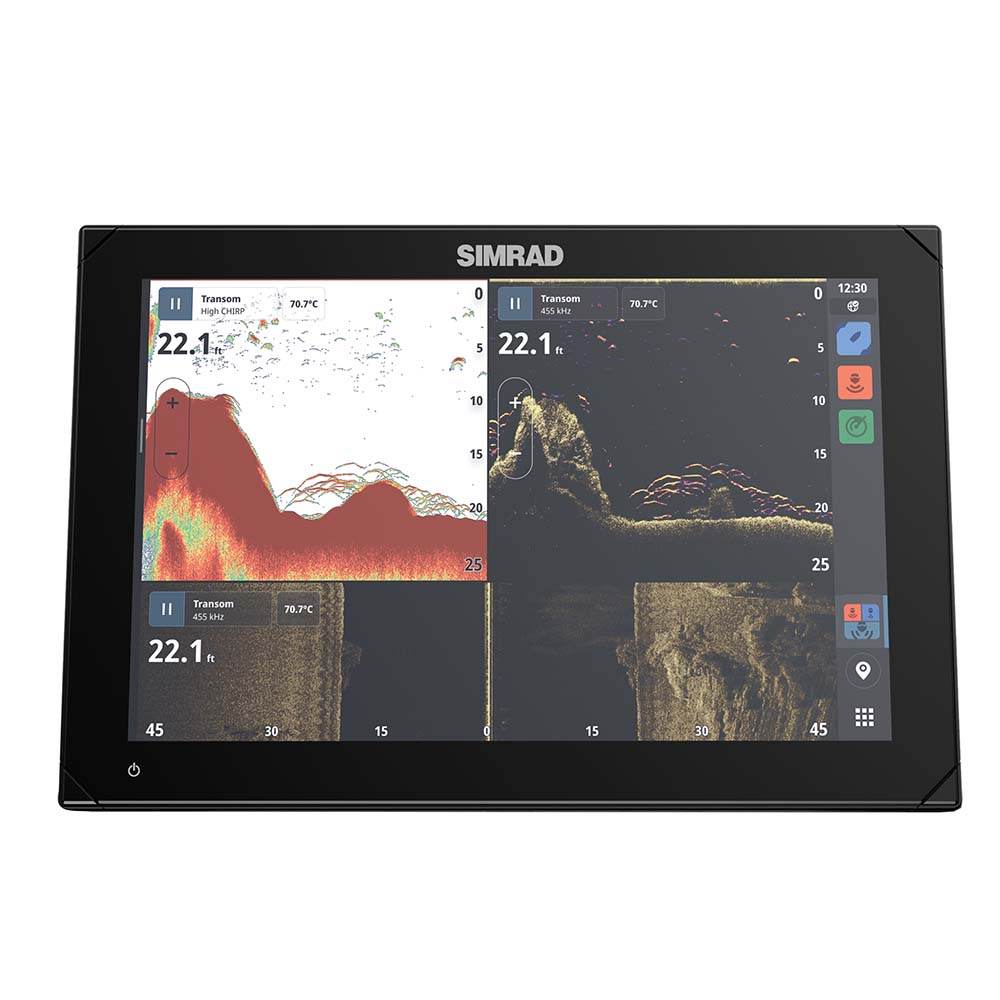

  • 12" (display only / with tranducer)

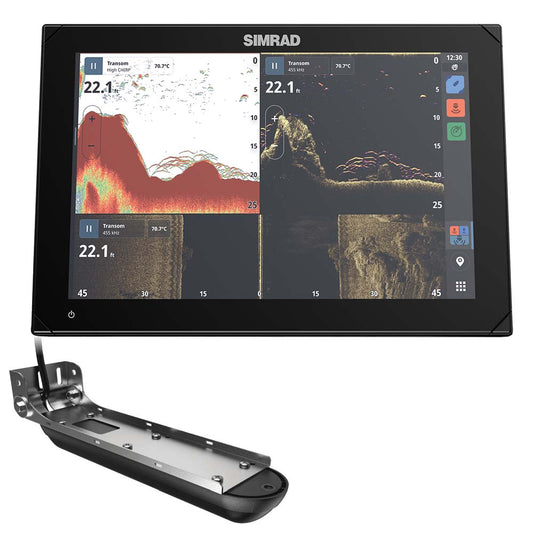

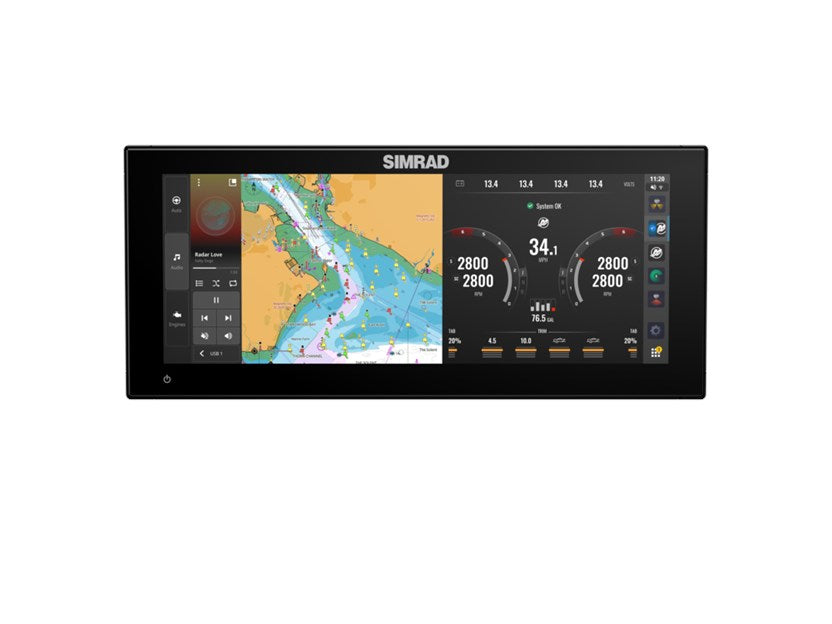

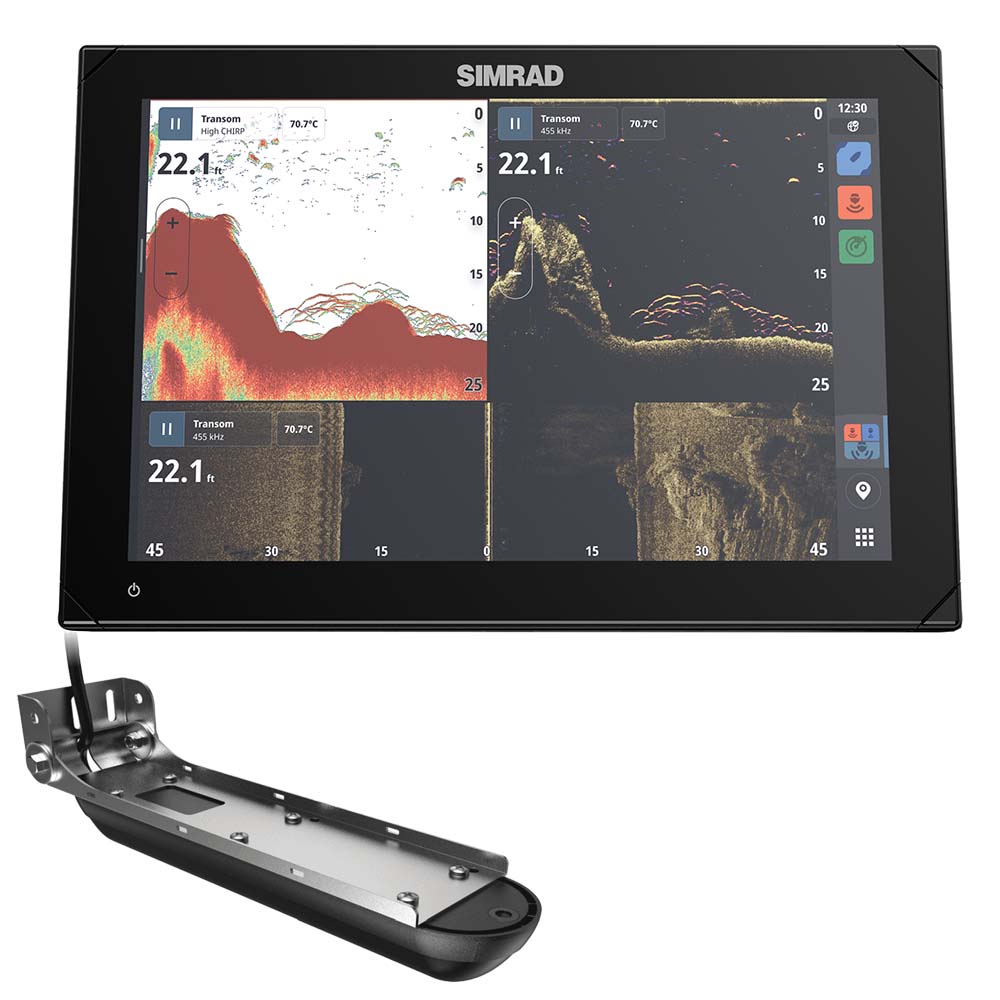

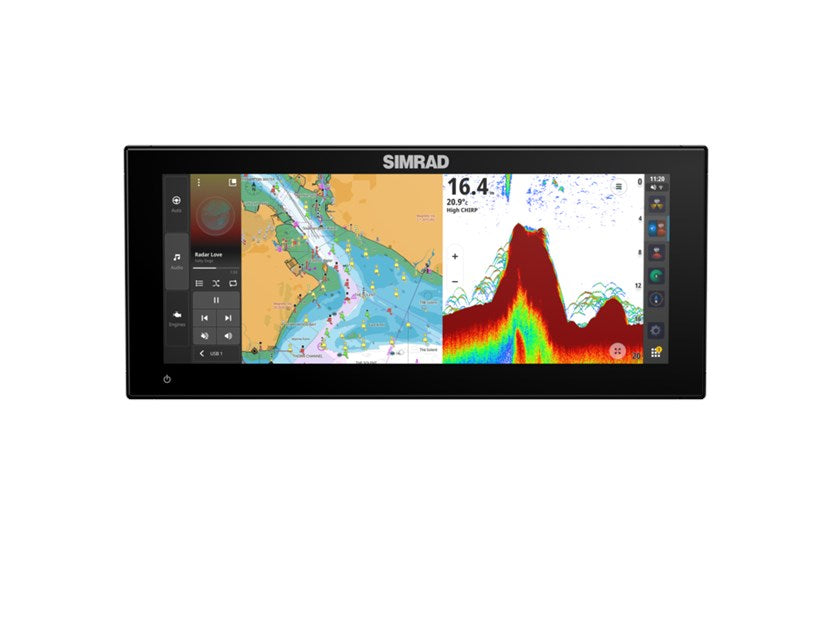

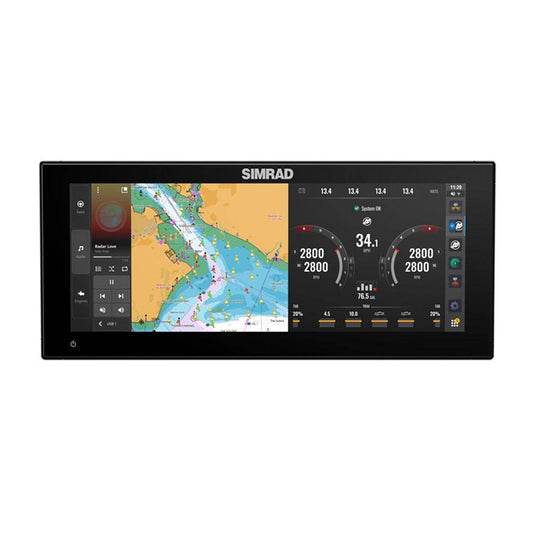

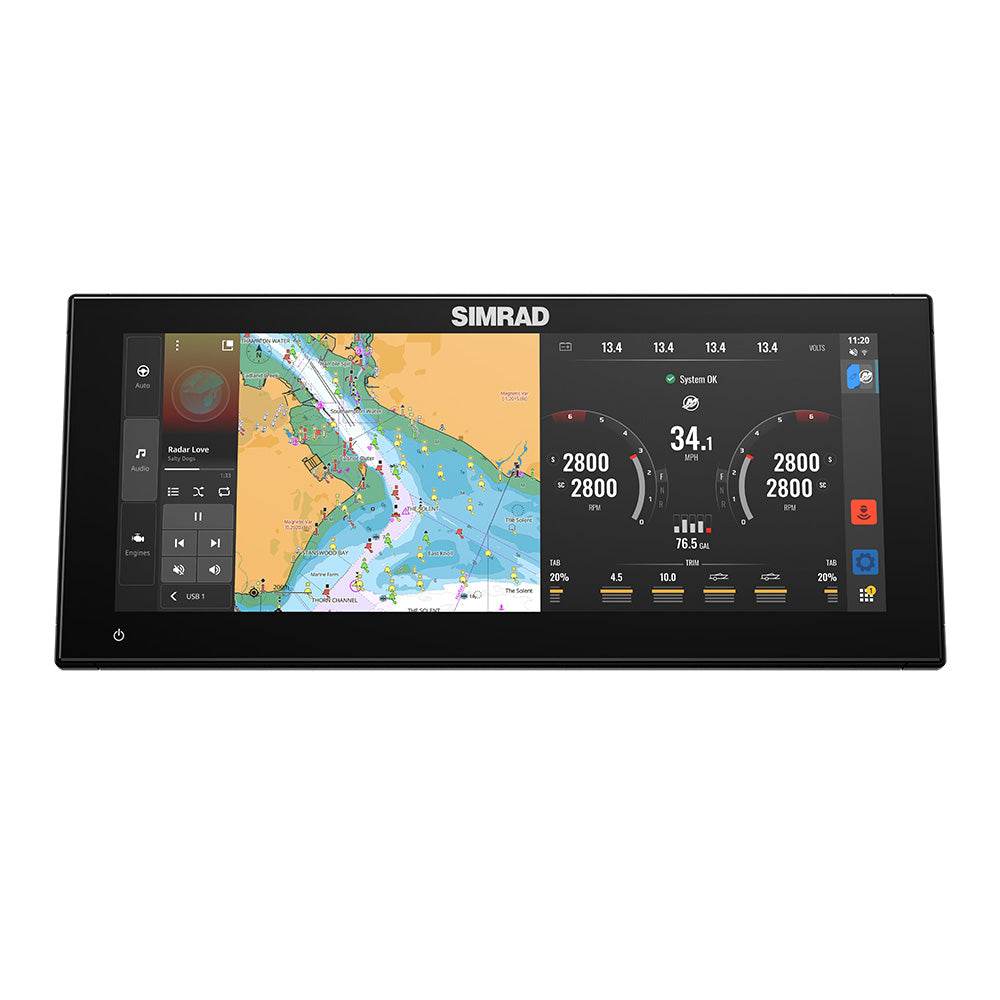

• NSX 3012 12" Ultrawide, high-resolution touchscreen for clear charts and sonar images

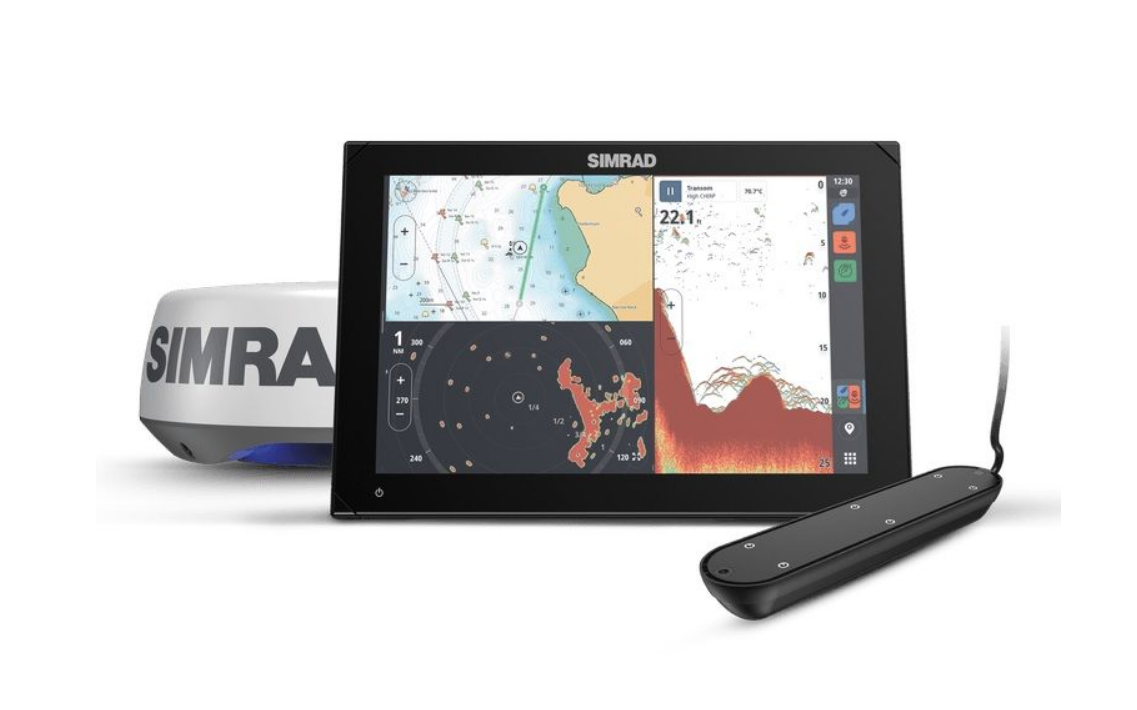

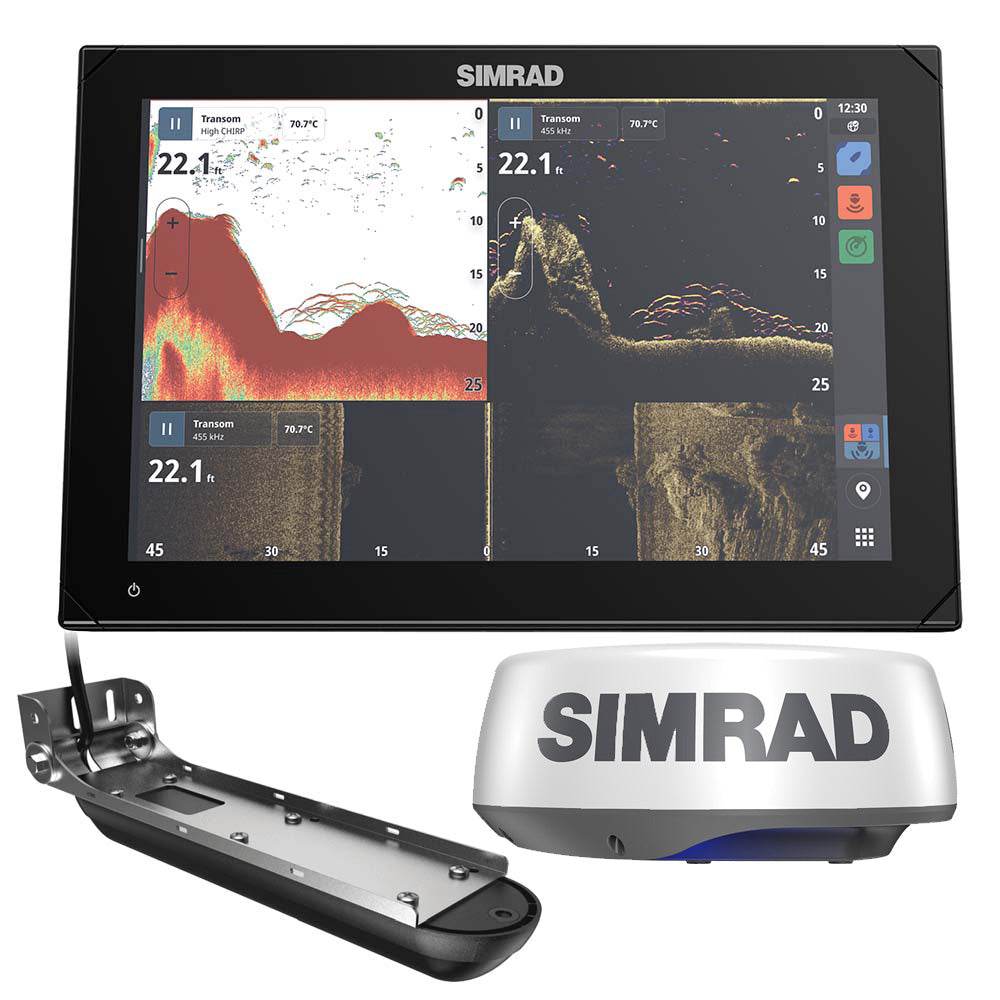

• NSX 3012 Radar Bundle w/ HALO20+
• Supports 3-in-1 sonar transducers (CHIRP, DownScan, SideScan)
• Fast refresh rate for real-time navigation and fish tracking
• Compare models easily: NSX 3007, NSX 3009, NSX 3012UW

Advanced GPS & Chartplotting

• Integrated GPS for precise navigation
• Supports C-MAP Discover enhanced charts
• Autopilot and NMEA 2000 compatible
• Quickly set waypoints, routes, and tracks
• Works with Simrad GO and NSS series for networked helm setups

Radar & Networking Bundles

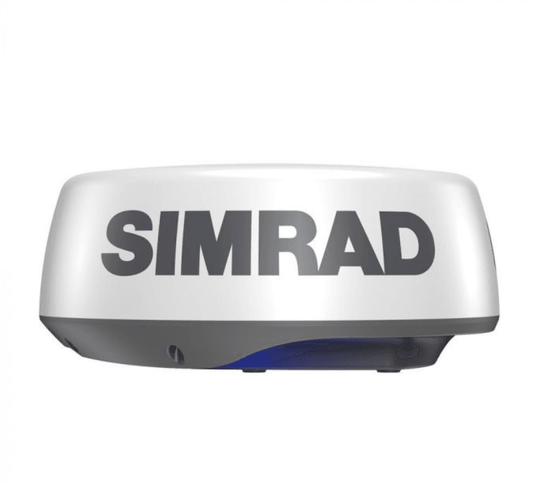

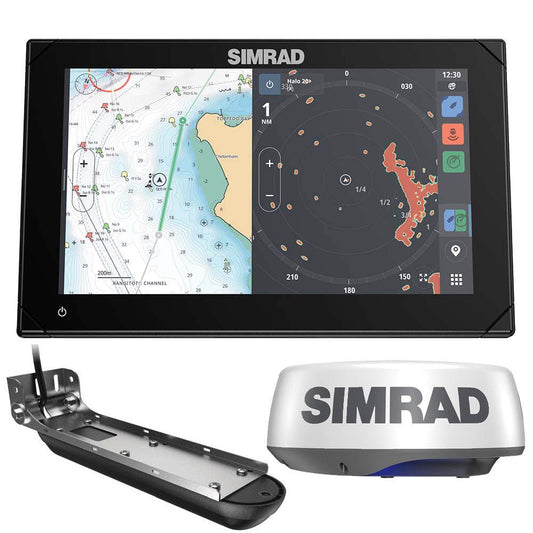

• Optional HALO20+ dome radar bundles for superior target tracking
• Connect multiple NSX units via SimNet/Ethernet for real-time data sharing
• Wi-Fi enabled for software updates and app connectivity
• Compatible with radar, autopilot, and marine camera systems

Fishfinding & Sonar Features

• Built-in sonar with 3-in-1 transducer options (CHIRP, SideScan, DownScan)
• Active Imaging sonar for precise fish detection
• Display depth, water temperature, and bottom structure
• Ideal for freshwater and saltwater fishing environments

What’s Included

• Simrad NSX Chartplotter display (7”, 9”, or 12”)
• Power and networking cables
• Optional HALO20+ radar in selected bundles

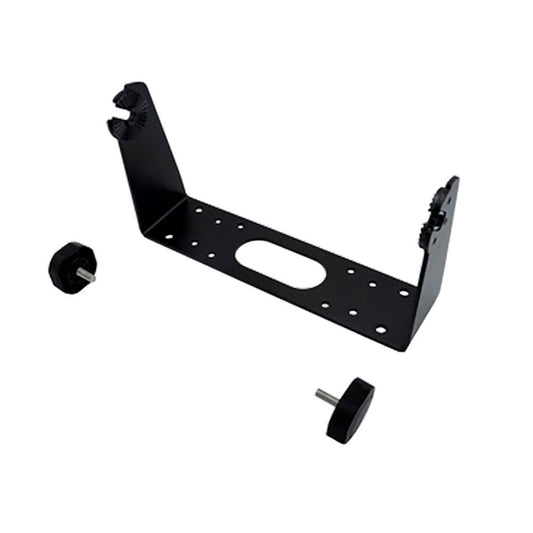

• Mounting hardware and installation guides
• Owner’s manuals and documentation

Key Features

• Ultrawide, high-resolution touchscreen displays
• Multiple sizes: 7”, 9”, 12” (NSX 3007, 3009, 3012UW)
• GPS chartplotter with C-MAP charts
• Optional HALO20+ radar bundles
• 3-in-1 sonar (CHIRP, DownScan, SideScan)
• NMEA 2000 and SimNet compatible
• Autopilot integration and Wi-Fi updates
• Quick menu navigation with responsive interface

Why Choose NSX Series

The NSX Series delivers fast, responsive, and reliable marine navigation and fishfinding.

With ultrawide displays, network compatibility, and optional radar bundles, NSX units outperform older Simrad GO or NSS models, giving you superior control, clearer charts, and better fish detection to make every day on the water more productive.
